[Rtk-users] CG recon

[Simon Rit]

Dear Wang Dongping,
When doing an iterative reconstruction from truncated data, the
reconstructed image should be large enough to contain the whole patient,
even if part of it is outside the field-of-view. You can for example check
figure 15 of doi.org/10.1109/TRPMS.2017.2706196. I'm guessing that this is
the issue here.
Simon

On Fri, Jul 22, 2022 at 5:31 AM dongping.wang--- via Rtk-users <
rtk-users at public.kitware.com> wrote:

> Hi all
>
>
>

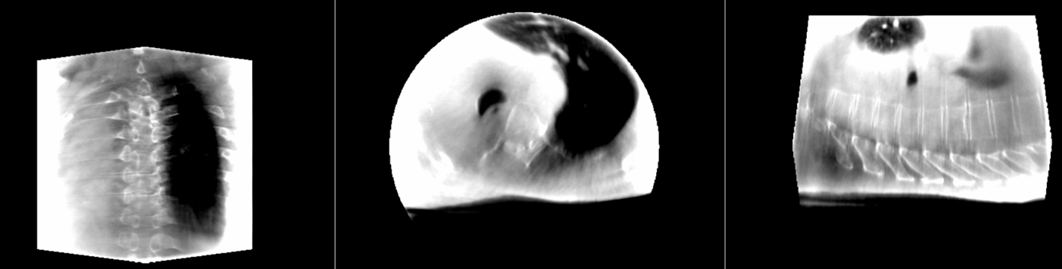

> I made a CG recon, but found it looks there are much brighter around the
> outer.
>
>
>

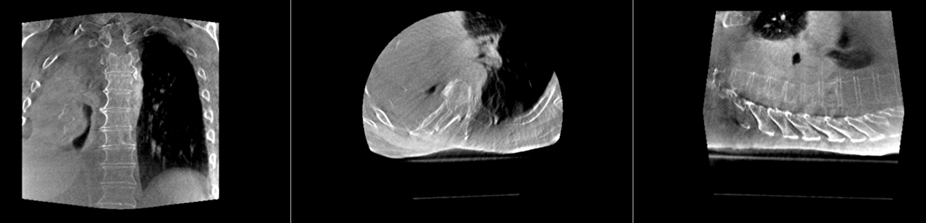

> If I made a FDK with TruncationCorrection(0.9), it looks good.
>
>
>
>
>
> Anybody know the possible reason?
>
>
>
> Regards
>
>
>
> Wang Dongping
> _______________________________________________
> Rtk-users mailing list
> Rtk-users at public.kitware.com
> https://public.kitware.com/cgi-bin/mailman/listinfo/rtk-users
>
