[Rtk-users] 回复：How to output the image after truncation correction and ramp filtering?

[Simon Rit]

Hi,
The FDK filter is a composite filter. The ramp filter, which does the
truncation correction, is one of the filters. You can simply do
feldkampCUDA->GetRampFilter()->GetOutput() to get this intermdiate result.
Simon

On Tue, Apr 9, 2024 at 8:46 AM 948206097 <948206097 at qq.com> wrote:

>
>
>
>
>
> ------------------ 原始邮件 ------------------
> *发件人:* "948206097" <948206097 at qq.com>;
> *发送时间:* 2024年4月9日(星期二) 中午1:51
> *收件人:* "rtk-users"<rtk-users at openrtk.org>;
> *主题:* How to output the image after truncation correction and ramp
> filtering?
>
> Dear RTK Team：
>

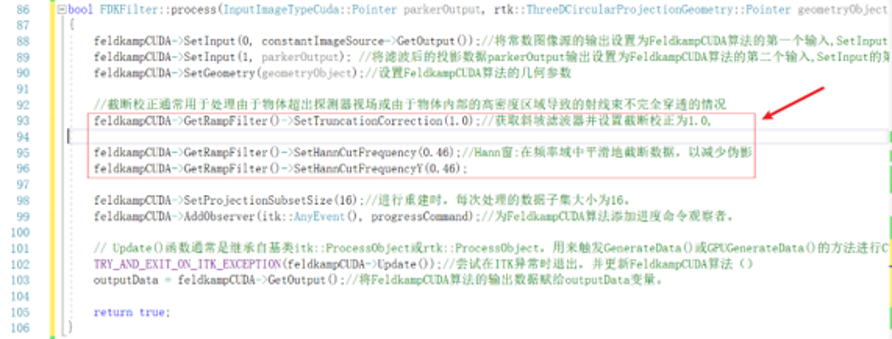

> Lines 93, 95, and 96 set the truncation correction coefficients and
> filtering parameters.And the truncation correction, filtering, and CT
> reconstruction operations are performed in the “feldkampCUDA->Update()”
> function.
>
> I would like to view the projection data after truncation correction. How
> can I output the projection data after truncation correction? Can we
> currently support this work?
>
> If it is possible to support, do I need to modify the source code? And
> where in the source code is the truncation correction algorithm executed?
> Looking forward to your reply.Thank you！
>
>
>
> _______________________________________________
> Rtk-users mailing list
> rtk-users at openrtk.org
> https://www.creatis.insa-lyon.fr/mailman/listinfo/rtk-users
>
