[Rtk-users] [EXTERNAL] Help with CudaForwardProjectionImageFilter
Rahman, Obaid
rahmano at ornl.gov
Fri Apr 26 13:36:25 CEST 2024
Hi Simon,
Thank you for the suggestion, I will definitely try that.

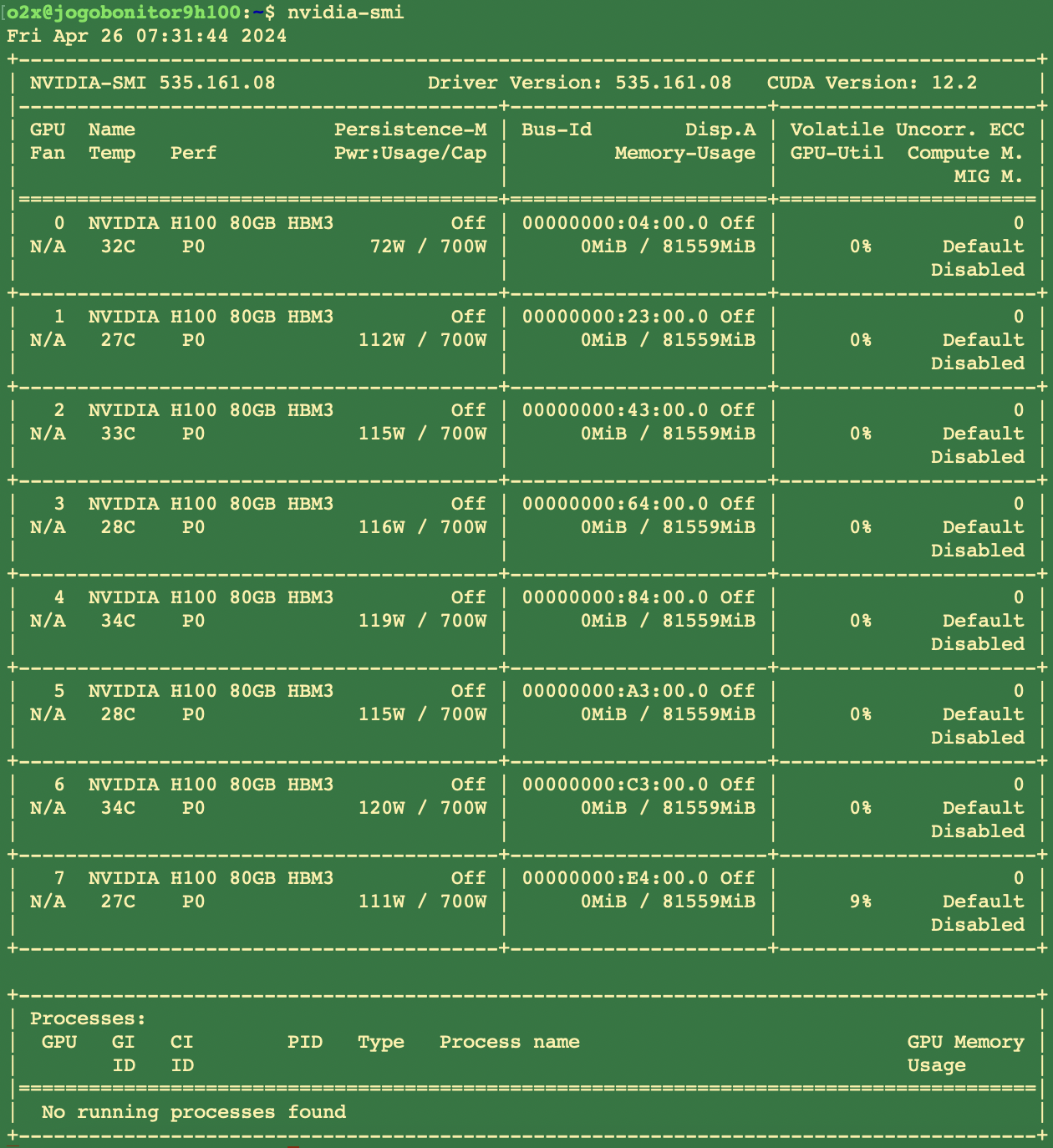

Please find attached the output of nvidia-smi.
Thanks.
Best,
Obaid

> On Apr 26, 2024, at 3:03 AM, Simon Rit <simon.rit at creatis.insa-lyon.fr> wrote:
>
> Hi Obaid,
> If you remove the "ForwardProj.Update()" line and connect instead a StreamingImageFilter <https://urldefense.us/v2/url?u=https-3A__itk.org_Doxygen_html_classitk-5F1-5F1StreamingImageFilter.html&d=DwMFaQ&c=v4IIwRuZAmwupIjowmMWUmLasxPEgYsgNI-O7C4ViYc&r=J7uT21mkGp7aMwIrHQkTLGwy72wKx_bOB0IkoGp__bQ&m=irXqD18u-c9Im_eQprxOMZNcAsAeuIrOn7RWNk8LABzPsfkFpG_WuH03l9pRCH7S&s=wSLRSuiTcAhTsEGggRb-clAgYNx67JL22y315GEq6TI&e=>, your projections can be processed piece by piece.
> I'm surprised by your 80 GB memory, can you display the output of nvidia-smi?
> Simon
>
> On Thu, Apr 25, 2024 at 11:56 AM Rahman, Obaid <rahmano at ornl.gov <mailto:rahmano at ornl.gov>> wrote:
>> Thanks, Nils for the swift response.
>> I have actually 80 GB memory per GPU which should be plenty.
>> The image is 8.65 GB (read as float32), and the projection size is 1.5 GB (read as float32).
>> Also, CudaBackProjectionImageFilter works fine for the given projection and image sizes.
>>
>> I have tried other forward projectors (Astra) and they work fine with the given memory.
>> I was wondering if my code was suboptimal memory-wise.
>> Thanks!
>>
>> Best,
>> Obaid
>>
>>> On Apr 25, 2024, at 3:54 AM, krah <nils.krah at creatis.insa-lyon.fr <mailto:nils.krah at creatis.insa-lyon.fr>> wrote:
>>>
>>> Hey,
>>> without knowing further details nor having verified the code, I guess your image is just too large to fit into the memory of your GPU.
>>>
>>> Naïvely, I would calculate the size in GBytes of your image and compare with the memory of your GPU. Increasing the spacing means using fewer pixels = less memory. On top of that, I guess there are the projections which require space on the GPU.
>>>
>>> If you need a small spacing, maybe you can reconstruct in chunks along the rotation axis and merge the chunks later?
>>> Or the RTK experts know other tricks ...
>>>
>>> just my non-expert two-cents ...
>>> Nils
>>>
>>> On Apr 25 2024, at 3:21 am, Rahman, Obaid <rahmano at ornl.gov <mailto:rahmano at ornl.gov>> wrote:
>>>> Hello all,
>>>>
>>>> I am getting “out of memory” error when I run CudaForwardProjectionImageFilter.
>>>> Please refer to the attached screenshot.
>>>>
>>>> These are the array sizes with which I get the error:
>>>> Projection size: (slice/row, view, column)=(1456,145,1840)
>>>> Recon size: (z, y, x)=(1264, 1356, 1356)
>>>>
>>>> When I increase the voxel size to twice i.e. Recon size: (z, y, x)=(632, 678, 678), it works fine.
>>>> Maybe I’m not being very efficient with the memory?
>>>>
>>>> If anyone has suggestion to make it more memory efficient, please let me know.
>>>> Thanks.
>>>>
>>>> Best,
>>>> Obaid
>>>>
>>>> Here’s what I’m doing:
>>>>
>>>> def rtk_projection(recon_arrar, proj_params, miscalib, vol_params, return_itk=False, return_RVC=True):
>>>> '''
>>>> inputs:
>>>> recon_arrar: image numpy array (ZXY format is expected)
>>>> proj_params: projection parameter dictionary
>>>> miscalib: miscalibation parameter dictionary
>>>> vol_params: image volume parameter dictionary
>>>> return_itk: True if itk image is expected, False if a numpy array is expected
>>>> output:
>>>> itk image (c,r,v format internally) or image numpy array (r,v,c format) of projection data
>>>> '''
>>>> ImageType = itk.Image[itk.F,3]; CudaImageType = itk.CudaImage[itk.F,3]
>>>>
>>>> # Convert the recon to itk format
>>>> ###########################################################################
>>>> # proj_data is in (z,x,y); rtk requires numpy array in (x,z,y)
>>>> recon_arrar = np.transpose(recon_arrar, [1,0,2]).astype('float32') # now in (x,z,y)
>>>> recon_shape = recon_arrar.shape
>>>> recon_arrar = itk.GetImageFromArray(recon_arrar) # internally img has format (y,z,x)
>>>>
>>>> # Center the image around 0 which is the default center of rotation
>>>> recon_arrar.SetOrigin([-0.5*(recon_arrar.GetLargestPossibleRegion().GetSize()[0]-1)*recon_arrar.GetSpacing()[0],
>>>> -0.5*(recon_arrar.GetLargestPossibleRegion().GetSize()[1]-1)*recon_arrar.GetSpacing()[1],
>>>> -0.5*(recon_arrar.GetLargestPossibleRegion().GetSize()[2]-1)*recon_arrar.GetSpacing()[2]])
>>>>
>>>> # Graft the projections to an itk::CudaImage
>>>> ###########################################################################
>>>> vol_xy = float(vol_params['vox_xy']); vol_z = float(vol_params['vox_z'])
>>>> rtk_recon = CudaImageType.New()# img will have format crv
>>>> rtk_recon.SetPixelContainer(recon_arrar.GetPixelContainer()) # img has format crv
>>>> rtk_recon.SetLargestPossibleRegion(recon_arrar.GetLargestPossibleRegion())
>>>> rtk_recon.SetBufferedRegion(recon_arrar.GetBufferedRegion())
>>>> rtk_recon.SetRequestedRegion(recon_arrar.GetRequestedRegion())
>>>> rtk_recon.SetSpacing([vol_xy, vol_z, vol_xy]) # spacing for xzy
>>>> rtk_recon.SetOrigin([-0.5*(recon_shape[2]-1)*vol_xy, # origin for x direction
>>>> -0.5*(recon_shape[1]-1)*vol_z, # origin for z direction
>>>> -0.5*(recon_shape[0]-1)*vol_xy]) # origin for y direction
>>>> # print('GPU recon:', rtk_recon)
>>>> del recon_arrar
>>>> ###########################################################################
>>>>
>>>> # Defines the RTK geometry object
>>>> geometry = rtk.ThreeDCircularProjectionGeometry.New()
>>>> for i in range(len(proj_params['angles'])):
>>>> angle_deg = proj_params['angles'][i]*180/np.pi # angle in degree
>>>> geometry.AddProjection(proj_params['cone_params']['src_orig'],
>>>> proj_params['cone_params']['src_orig']+proj_params['cone_params']['orig_det'],
>>>> angle_deg, miscalib['delta_u'], miscalib['delta_v'])
>>>>
>>>> # define some parameters (to make code more readable)
>>>> det_pix_x = proj_params['cone_params']['pix_x'] # row direction pixel size
>>>> det_pix_y = proj_params['cone_params']['pix_y'] # channel direction pixel size
>>>> proj_shape = [int(proj_params['dims'][0]), int(proj_params['dims'][1]), int(proj_params['dims'][2])] # r,v,c
>>>> ###########################################################################
>>>>
>>>> # define a zero projection (GPU)
>>>> constantImageSource = rtk.ConstantImageSource[CudaImageType].New()
>>>> constantImageSource.SetSpacing( [det_pix_y, det_pix_x, 1.] ) # c,r,v
>>>> constantImageSource.SetSize( [proj_shape[2], proj_shape[0], proj_shape[1]] ) # c,r,v
>>>> constantImageSource.SetOrigin([ -0.5*(proj_shape[2]-1)*det_pix_y, # origin for channel direction
>>>> -0.5*(proj_shape[0]-1)*det_pix_x, # origin for row direction
>>>> -0.5*(proj_shape[1]-1)*1]) # origin for view direction (will be ignored anyway)
>>>> constantImageSource.SetConstant(0.)
>>>> ###########################################################################
>>>>
>>>> # forward project the recon to fill out the zero projection image
>>>> ForwardProj = rtk.CudaForwardProjectionImageFilter[CudaImageType].New()
>>>> ForwardProj.SetGeometry( geometry )
>>>> ForwardProj.SetInput(0, constantImageSource.GetOutput()) # projection image
>>>> ForwardProj.SetInput(1, cpu2gpu(rtk_recon)) # recon volume
>>>> ForwardProj.SetStepSize(float(vol_params['vox_xy'])/4) # step size along the ray (default is 1mm)
>>>> ForwardProj.Update()
>>>> ###########################################################################
>>>>
>>>> # graft the projection to CPU / extract the array
>>>> rtk_reprojection = gpu2cpu(ForwardProj.GetOutput()) # array inside the image has c,r,v format
>>>> if return_itk:
>>>> return rtk_reprojection # array inside the image has c,r,v format
>>>> else:
>>>> rtk_reprojection = itk.GetArrayViewFromImage(rtk_reprojection) # now v,r,c format
>>>> if return_RVC:
>>>> rtk_reprojection = np.transpose(rtk_reprojection, [1,0,2]) # r,v,c format to match Astra projection
>>>> return rtk_reprojection # numpy array (r,v,c)
>>>>
>>>>
