BBTK Package wxvtk 1.0.0

Description	:	2D/3D image/mesh viewers based on vtk and wx
Author(s)	:	infodev at creatis.insa-lyon.fr
Author(s)	:
Version	:	1.0.0
bbtk Version	:	0.9.3

Black Boxes :

DoubleSlicer	Simple viewer displaying the same slice of two images. The slice is controlled by a slider. See exampleDoubleSlicer.bbs.
IsoSurfaceWidget	Image iso-surface extractor (vtk::IsoSurfaceExtractor) with associated control panel (isovalue, opacity and colour)
MIPWidget	Maximum Intensity Projection (MIP) creator (vtk::MIPCreator) with associated control panel (shift and scale)
SimpleIsoSurfaceViewer	Simple viewer of an iso-surface of an image
SimpleSlicer	Simple 2D viewer of a slice of a 3D image. The slice is controlled by a slider. See exampleSimpleSlicer.bbs. Screenshot :
Viewer2D	2D Viewer widget (vtk)
Viewer3D	3D Viewer widget (vtk)
exampleDoubleSlicer	Demo of the box DoubleSlicer.
exampleImagePlanes	Example of the box vtk::ImagePlanes.
exampleIsoSurfaceWidget	Example of IsoSurfaceWidget.
exampleIsoSurfaceWithGUI	Example of automatic gui creation for IsoSurfaceExtractor with the command 'newgui'.
exampleMIPWidget	Example of MIPWidget.
exampleSimpleIsoSurfaceViewer	Example of the box SimpleIsoSurfaceViewer.
exampleSimpleSlicer	Example of the box SimpleSlicer.
exampleView2D3D
exampleView3DImage1	Example of complex 3D view of an image using vtk::ImagePlanes and wxvtk::IsoSurfaceWidget. Screenshot :
exampleView3DImage1_Stereo	Example of complex 3D view of an image using vtk::ImagePlanes and wxvtk::IsoSurfaceWidget. Screenshot :
exampleViewer2D	Example of the box Viewer2D.
exampleViewerInLayoutTab	Example :Viewer in a LayoutTab
exampleVolumeRendering	Volume rendering example

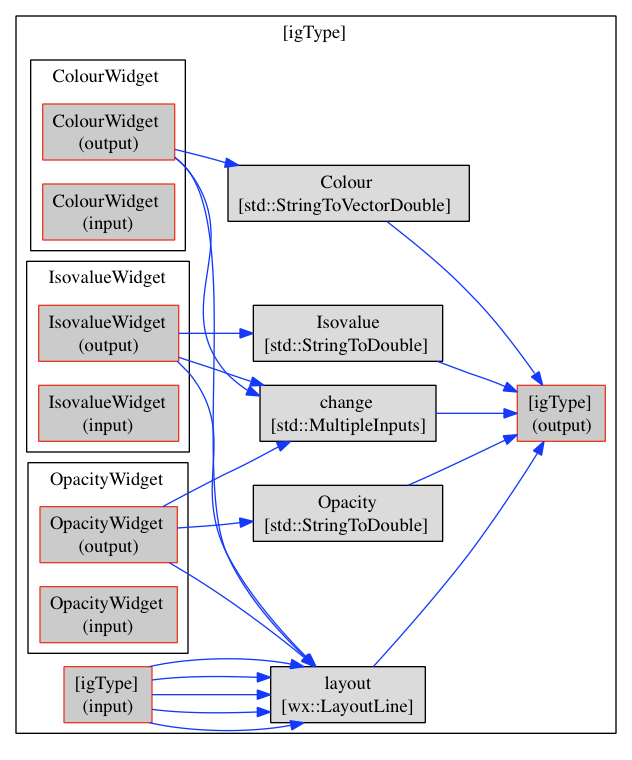

igType
wxvtkTour	A tour of wxvtk boxes

Adaptors :

Castbbwxvtk::wxVTKRenderWindowInteractor*TovtkRenderWindowInteractor*

Static cast from bbwxvtk::wxVTKRenderWindowInteractor* (bbwxvtk::wxVTKRenderWindowInteractor*) to vtkRenderWindowInteractor* (vtkRenderWindowInteractor*)

Castbbwxvtk::wxVTKRenderWindowInteractor*TovtkRenderWindowInteractor*

Description	:	Static cast from bbwxvtk::wxVTKRenderWindowInteractor* (bbwxvtk::wxVTKRenderWindowInteractor*) to vtkRenderWindowInteractor* (vtkRenderWindowInteractor*)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include wxvtk

Inputs
In	Input	<bbwxvtk::wxVTKRenderWindowInteractor*>
BoxExecute	Any signal received by this input executes the box	<bbtk::Void>
BoxProcessMode	Sets the processing mode of the box (Pipeline | Always | Reactive)	<std::string>
Outputs
Out	Output	<vtkRenderWindowInteractor*>
BoxChange	Signals modifications of the box	<bbtk::Void>

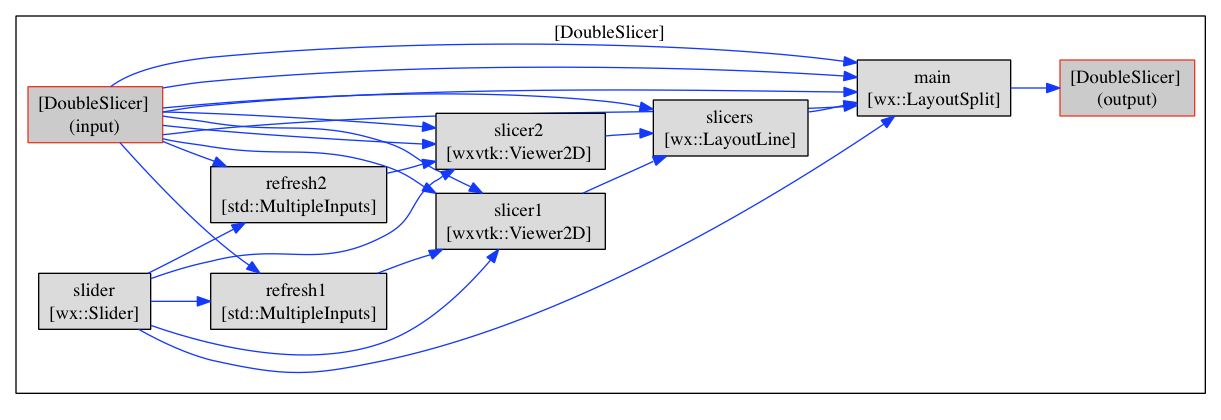

DoubleSlicer

Description	:	Simple viewer displaying the same slice of two images. The slice is controlled by a slider. See exampleDoubleSlicer.bbs.
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	complex box
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/boxes/bbDoubleSlicer.bbs  [source]
Uses	:	wx::LayoutSplit std::MultipleInputs wxvtk::Viewer2D wx::LayoutLine wx::Slider

Inputs
BoxProcessModeSlicer1	Process mode of the first slicer	<std::string>
BoxProcessModeSlicer2	Process mode of the second slicer	<std::string>
In1	Left (or top) image	<vtkImageData*>
In2	Right (or bottom) image	<vtkImageData*>
Orientation	Orientation of the images (0=Horizontal / 1=Vertical)	<std::string>
RefreshSlicer1	Refreshes the first slicer	<bbtk::Void>
RefreshSlicer2	Refreshes the second slicer	<bbtk::Void>
WinDialog	Execute in dialog mode	<bool>
WinHeight	Width of the window	<int>
WinTitle	Title of the window	<std::string>
WinWidth	Width of the window	<int>
Outputs
Widget	Widget	<wxWindow*>

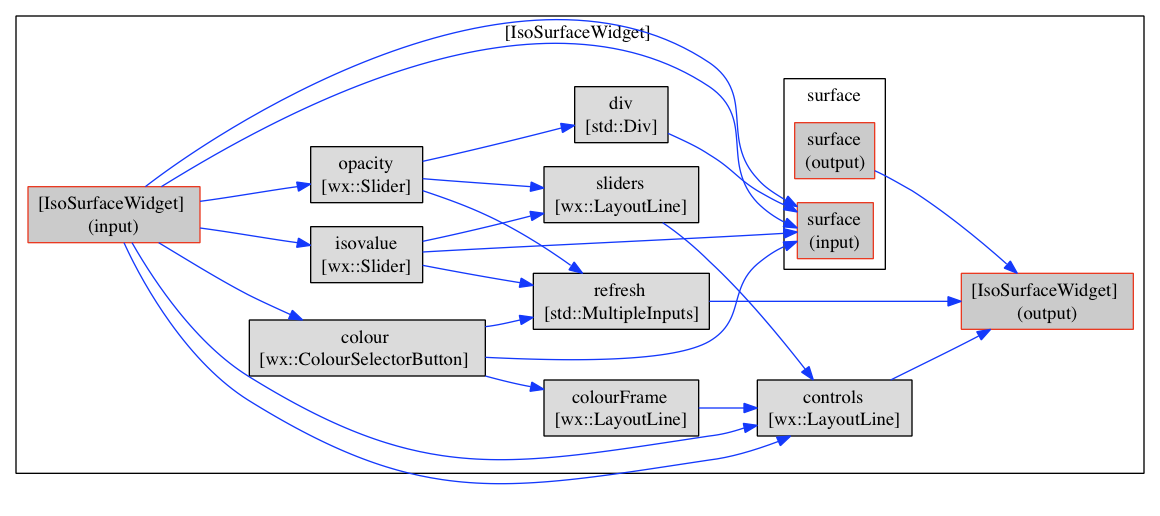

IsoSurfaceWidget

Description	:	Image iso-surface extractor (vtk::IsoSurfaceExtractor) with associated control panel (isovalue, opacity and colour)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	complex box  image  mesh  widget  viewer
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/boxes/bbIsoSurfaceWidget.bbs  [source]
Uses	:	wx::ColourSelectorButton wx::LayoutLine std::Div wx::Slider std::MultipleInputs vtk::IsoSurfaceExtractor

Inputs
BoxExecute	Box execution	<bbtk::Void>
Colour	Initial colour	<std::string>
In	Input image	<vtkImageData*>
Isovalue	Initial isovalue	<int>
Opacity	Initial opacity	<int>
Title	Title of the control panel	<std::string>
Vertical	Set to 1 to have controls arranged vertically	<std::string>
Outputs
BoxChange	BoxChange	<bbtk::Void>
Out	Output surface	<vtkProp3D*>
Widget	Widget	<wxWindow*>

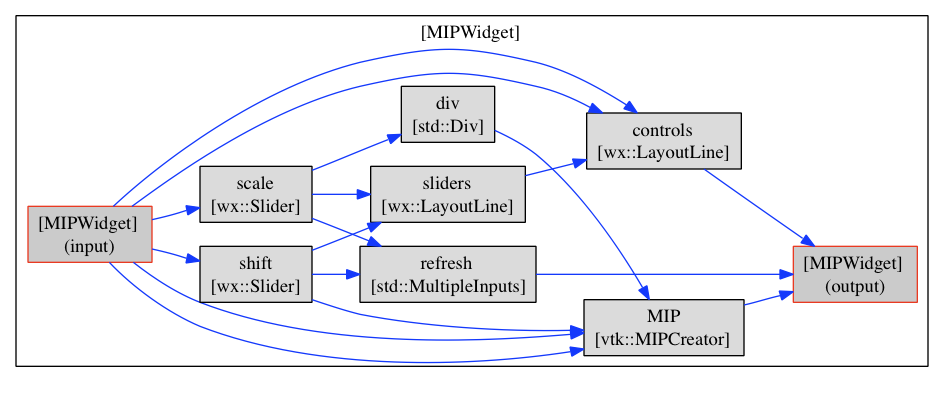

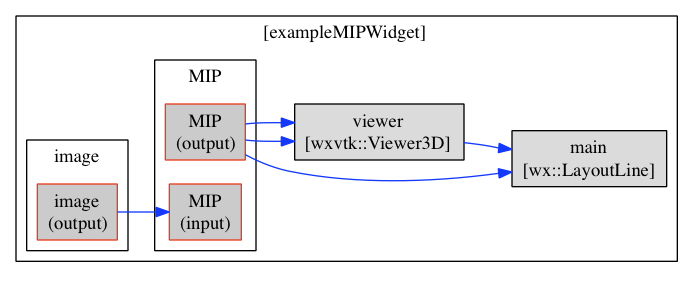

MIPWidget

Description	:	Maximum Intensity Projection (MIP) creator (vtk::MIPCreator) with associated control panel (shift and scale)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	complex box  image  mesh  widget  viewer
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/boxes/bbMIPWidget.bbs  [source]
Uses	:	vtk::MIPCreator wx::LayoutLine std::Div std::MultipleInputs wx::Slider

Inputs
BoxExecute	Box execution	<bbtk::Void>
In	Input image	<vtkImageData*>
Scale	Initial scale	<int>
Shift	Initial shift	<int>
Title	Title of the control panel	<std::string>
Vertical	Set to 1 to have controls arranged vertically	<std::string>
Outputs
BoxChange	BoxChange	<bbtk::Void>
Out	Output MIP	<vtkProp3D*>
Widget	Widget	<wxWindow*>

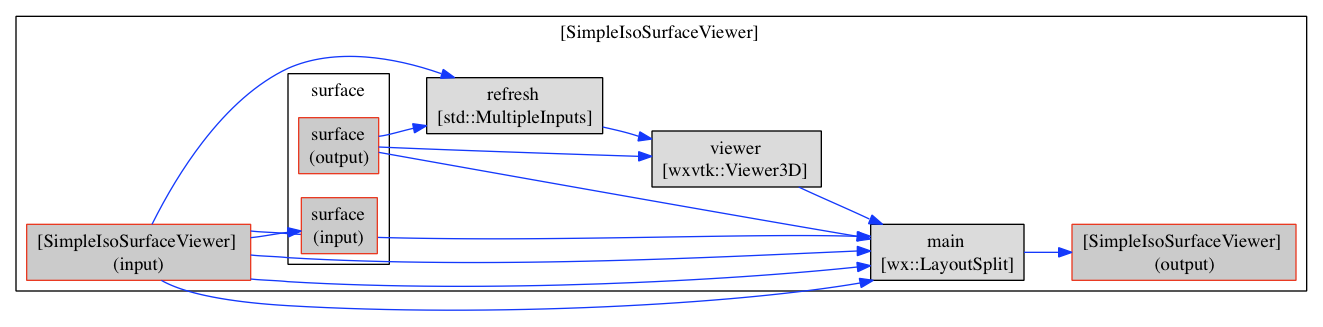

SimpleIsoSurfaceViewer

Description	:	Simple viewer of an iso-surface of an image
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	complex box  viewer
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/boxes/bbSimpleIsoSurfaceViewer.bbs  [source]
Uses	:	wx::LayoutSplit std::MultipleInputs wxvtk::IsoSurfaceWidget wxvtk::Viewer3D

Inputs
BoxExecute	Execute the box	<bbtk::Void>
In	Input image	<vtkImageData*>
WinDialog	Dialog mode	<bool>
WinHeight	Height of the window	<int>
WinTitle	Title of the window	<std::string>
WinWidth	Width of the window	<int>
Outputs
Widget	Widget	<wxWindow*>

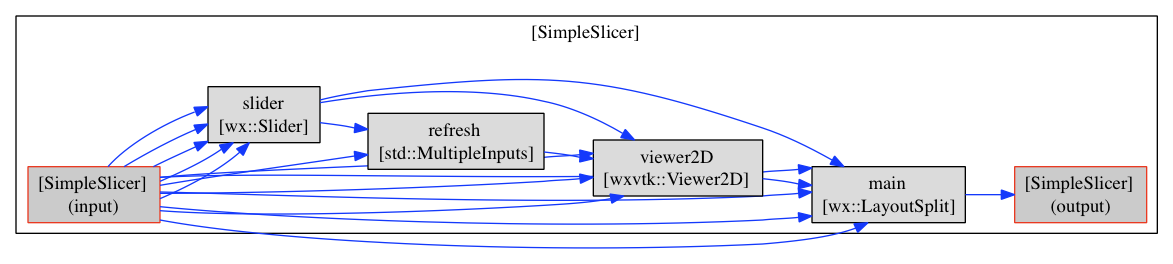

SimpleSlicer

Description	:	Simple 2D viewer of a slice of a 3D image. The slice is controlled by a slider. See exampleSimpleSlicer.bbs. Screenshot :
Author(s)	:	info-dev@creatis.insa-lyon.fr
Category(s)	:	complex box  viewer
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/boxes/bbSimpleSlicer.bbs  [source]
Uses	:	wx::LayoutSplit std::MultipleInputs wx::Slider wxvtk::Viewer2D

Inputs
BoxExecute	Execute the box	<bbtk::Void>
In	Input image	<vtkImageData*>
Interpolate	Pixels Interpolation (true/false)	<bool>
Orientation	Slicing orientation : 0:yz / 1:xz / 2:xy	<int>
Slice	Initial slice	<int>
SliderOrientation	Slider Orientation (H/V)	<std::string>
SliderReactiveOnTrack	Reactive On track (default : 0)	<bool>
SliderSize	Slider Size	<int>
SliderTitle	Slider Title	<std::string>
WinDialog	Execute in dialog mode	<bool>
WinHeight	Height of the window	<int>
WinTitle	Title of the window	<std::string>
WinWidth	Width of the window	<int>
Outputs
Widget	Widget	<wxWindow*>

Viewer2D

Description	:	2D Viewer widget (vtk)
Author(s)	:	eduardo.davila@creatis.insa-lyon.fr
Category(s)	:	atomic box  widget  viewer
To use it	:	include wxvtk

Inputs
In	Input Image	<vtkImageData*>
Interpolate	Pixels interpolation: true/false	<bool>
Orientation	Slicing orientation : 0:yz / 1:xz / 2:xy	<int>
Slice	Initial Slice number	<int>
WinClose	Any signal received closes the window (*)	<bbtk::Void>
WinDialog	Set to 'true' to create a dialog window, i.e. which blocks the pipeline until it is closed (modal) (*)	<bool>
WinHeight	Height of the window (*)	<int>
WinHide	Any signal received hides the window (*)	<bbtk::Void>
WinTitle	Title of the window (*)	<std::string>
WinWidth	Width of the window (* : only used if the widget is not connected to a Layout box)	<int>
BoxExecute	Any signal received by this input executes the box	<bbtk::Void>
BoxProcessMode	Sets the processing mode of the box (Pipeline | Always | Reactive)	<std::string>
Outputs
Out	Current Slice number	<int>
Renderer	vtk Renderer	<vtkRenderer*>
Widget	Output widget	<wxWindow*>
BoxChange	Signals modifications of the box	<bbtk::Void>

Viewer3D

Description	:	3D Viewer widget (vtk)
Author(s)	:	eduardo.davila@creatis.insa-lyon.fr
Category(s)	:	atomic box  widget  viewer
To use it	:	include wxvtk

Inputs
In1	Input actor	<vtkProp3D*>
In2	Input actor	<vtkProp3D*>
In3	Input actor	<vtkProp3D*>
In4	Input actor	<vtkProp3D*>
In5	Input actor	<vtkProp3D*>
Obs1	Input observer	<vtkInteractorObserver*>
Obs2	Input observer	<vtkInteractorObserver*>
Obs3	Input observer	<vtkInteractorObserver*>
Obs4	Input observer	<vtkInteractorObserver*>
Obs5	Input observer	<vtkInteractorObserver*>
Stereo	Stereo with Red-Blue filter. False/True (default False)	<bool>
WinClose	Any signal received closes the window (*)	<bbtk::Void>
WinDialog	Set to 'true' to create a dialog window, i.e. which blocks the pipeline until it is closed (modal) (*)	<bool>
WinHeight	Height of the window (*)	<int>
WinHide	Any signal received hides the window (*)	<bbtk::Void>
WinTitle	Title of the window (*)	<std::string>
WinWidth	Width of the window (* : only used if the widget is not connected to a Layout box)	<int>
BoxExecute	Any signal received by this input executes the box	<bbtk::Void>
BoxProcessMode	Sets the processing mode of the box (Pipeline | Always | Reactive)	<std::string>
Outputs
Interactor	Interactor with which vtk widgets can interact	<bbwxvtk::wxVTKRenderWindowInteractor*>
Renderer	Renderer to which actors can be added.	<vtkRenderer*>
Widget	Output widget	<wxWindow*>
BoxChange	Signals modifications of the box	<bbtk::Void>

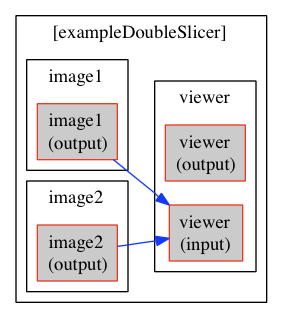

exampleDoubleSlicer

Description	:	Demo of the box DoubleSlicer.
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	complex box  example
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/appli/exampleDoubleSlicer.bbs  [source]
Uses	:	vtk::LoadHola wxvtk::DoubleSlicer

Inputs

Outputs

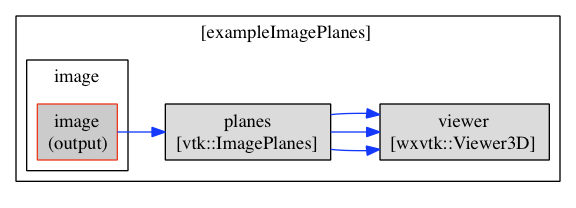

exampleImagePlanes

Description	:	Example of the box vtk::ImagePlanes.
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	complex box  example
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/appli/exampleImagePlanes.bbs  [source]
Uses	:	vtk::LoadHola vtk::ImagePlanes wxvtk::Viewer3D

Inputs

Outputs

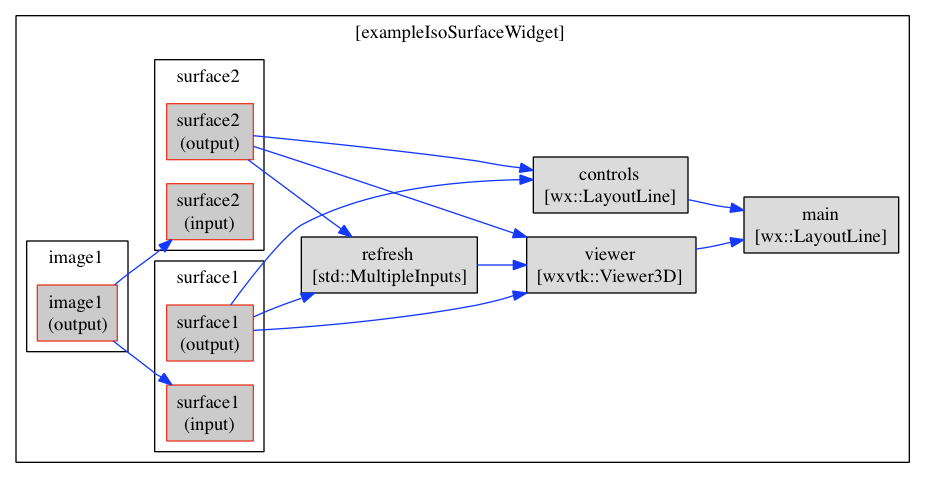

exampleIsoSurfaceWidget

Description	:	Example of IsoSurfaceWidget.
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	complex box  example
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/appli/exampleIsoSurfaceWidget.bbs  [source]
Uses	:	wx::LayoutLine vtk::LoadHola std::MultipleInputs wxvtk::IsoSurfaceWidget wxvtk::Viewer3D

Inputs

Outputs

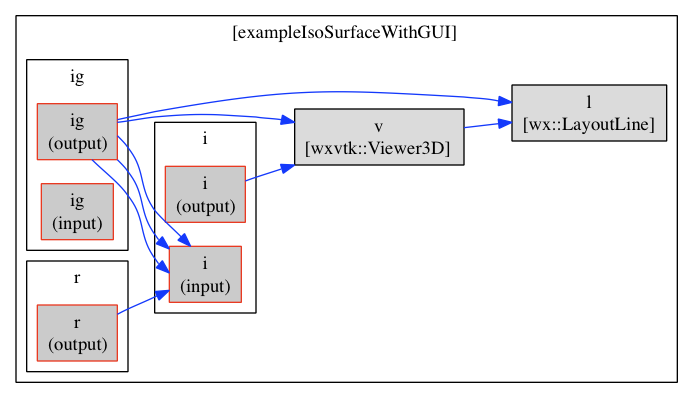

exampleIsoSurfaceWithGUI

Description	:	Example of automatic gui creation for IsoSurfaceExtractor with the command 'newgui'.
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	complex box  example
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/appli/exampleIsoSurfaceWithGUI.bbs  [source]
Uses	:	vtk::IsoSurfaceExtractor wxvtk::igType wx::LayoutLine vtk::LoadHola wxvtk::Viewer3D

Inputs

Outputs

exampleMIPWidget

Description	:	Example of MIPWidget.
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	complex box  example
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/appli/exampleMIPWidget.bbs  [source]
Uses	:	wxvtk::MIPWidget vtk::LoadHola wx::LayoutLine wxvtk::Viewer3D

Inputs

Outputs

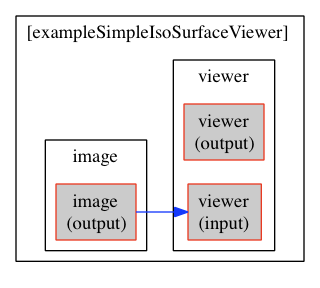

exampleSimpleIsoSurfaceViewer

Description	:	Example of the box SimpleIsoSurfaceViewer.
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	complex box  example
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/appli/exampleSimpleIsoSurfaceViewer.bbs  [source]
Uses	:	vtk::LoadHola wxvtk::SimpleIsoSurfaceViewer

Inputs

Outputs

exampleSimpleSlicer

Description	:	Example of the box SimpleSlicer.
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	complex box  example
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/appli/exampleSimpleSlicer.bbs  [source]
Uses	:	vtk::LoadHola wxvtk::SimpleSlicer

Inputs

Outputs

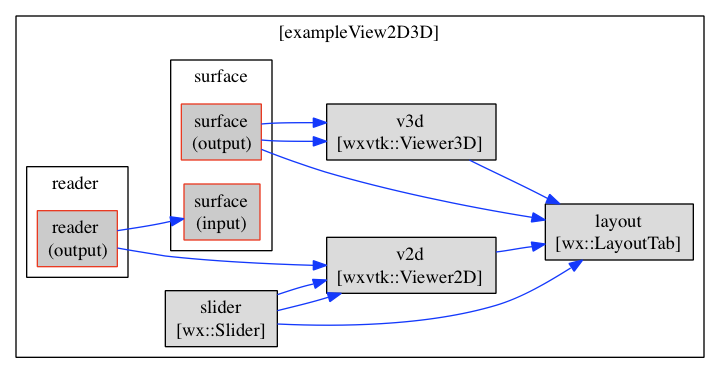

exampleView2D3D

Description	:
Author(s)	:
Category(s)	:	complex box
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/appli/exampleView2D3D.bbs  [source]
Uses	:	wx::LayoutTab vtk::LoadHola wx::Slider wxvtk::IsoSurfaceWidget wxvtk::Viewer2D wxvtk::Viewer3D

Inputs

Outputs

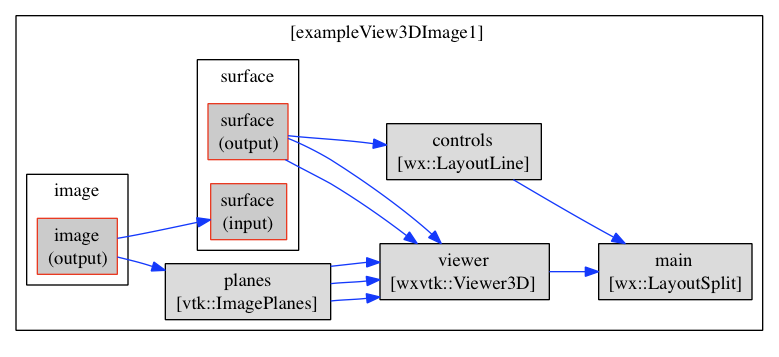

exampleView3DImage1

Description	:	Example of complex 3D view of an image using vtk::ImagePlanes and wxvtk::IsoSurfaceWidget. Screenshot :
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	complex box  example
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/appli/exampleView3DImage1.bbs  [source]
Uses	:	wx::LayoutLine vtk::LoadHola wx::LayoutSplit vtk::ImagePlanes wxvtk::IsoSurfaceWidget wxvtk::Viewer3D

Inputs

Outputs

exampleView3DImage1_Stereo

Description	:	Example of complex 3D view of an image using vtk::ImagePlanes and wxvtk::IsoSurfaceWidget. Screenshot :
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	complex box  example
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/appli/exampleView3DImage1_Stereo.bbs  [source]
Uses	:	wx::LayoutLine vtk::LoadHola wx::LayoutSplit vtk::ImagePlanes wxvtk::IsoSurfaceWidget wxvtk::Viewer3D

Inputs

Outputs

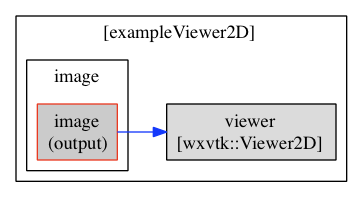

exampleViewer2D

Description	:	Example of the box Viewer2D.
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	complex box  example
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/appli/exampleViewer2D.bbs  [source]
Uses	:	vtk::LoadHola wxvtk::Viewer2D

Inputs

Outputs

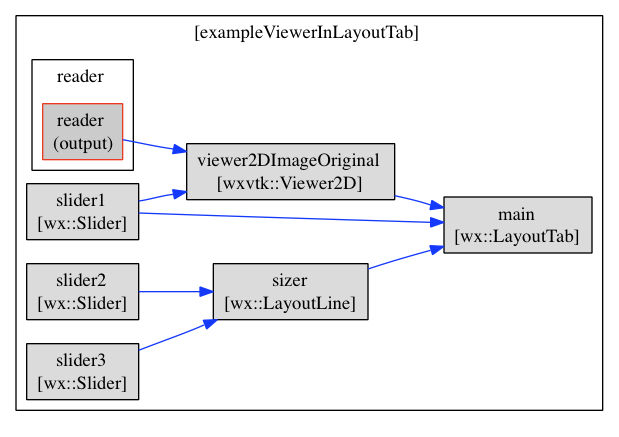

exampleViewerInLayoutTab

Description	:	Example :Viewer in a LayoutTab
Author(s)	:	jpr@creatis.univ-lyon1.fr
Category(s)	:	complex box  example
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/appli/exampleViewerInLayoutTab.bbs  [source]
Uses	:	wx::LayoutTab vtk::LoadHola wx::LayoutLine wx::Slider wxvtk::Viewer2D

Inputs

Outputs

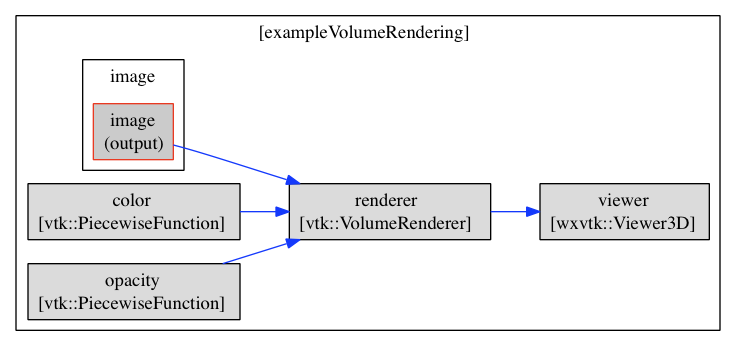

exampleVolumeRendering

Description	:	Volume rendering example
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	complex box  example
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/appli/exampleVolumeRendering.bbs  [source]
Uses	:	vtk::PiecewiseFunction vtk::LoadHola vtk::VolumeRenderer wxvtk::Viewer3D

Inputs

Outputs

igType

Description	:
Author(s)	:
Category(s)	:	complex box
To use it	:	include buffer_/usr/local/bin/../share/bbtk/bbs/wxvtk/appli/exampleIsoSurfaceWithGUI.bbs_19  [source]
Uses	:	std::StringToVectorDouble wx::GUIcolour std::StringToDouble wx::GUIdouble std::MultipleInputs wx::LayoutLine

Inputs
WinDialog	Dialog	<bool>
WinHeight	Height	<int>
WinHide	Hide	<bbtk::Void>
WinTitle	Title	<std::string>
WinWidth	Width	<int>
Outputs
BoxChange	BoxChange	<bbtk::Void>
Colour	Colour	<std::vector<double, std::allocator<double> >>
Isovalue	Isovalue	<double>
Opacity	Opacity	<double>
Widget	Widget	<wxWindow*>

wxvtkTour

Description	:	A tour of wxvtk boxes
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	complex box  demo
To use it	:	include /usr/local/bin/../share/bbtk/bbs/wxvtk/appli/wxvtkTour.bbs  [source]

Inputs

Outputs
