BBTK Package itk 1.0.0

Description	:	Basic itk-based boxes
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Author(s)	:
Version	:	1.0.0
bbtk Version	:	"0.9.0"

Black Boxes :

BinaryThresholdImageFilter	Binarizes an image by thresholding (generic bbification of itk::BinaryThresholdImageFilter)
DICOMDirReader	Reads a series from a DICOM directory as a 3D itk image
DICOMSeriesFileNames	Reads a DICOM directory and generates an ordered sequence of filenames based on the DICOM tags in the files. Files can be sorted based on image number, slice location, or patient position. The files in the specified directory are grouped by SeriesUID. The list of SeriesUIDs can be queried and the filenames for a specific series extracted.
ExtractImageFilter	Decrease the image size by cropping the image to the selected region bounds (bbification of itk::ExtractImageFilter)
ImageCrop	Extracts a sub-image of an image
ImageInfo	Gives information on the input image (pixel type, dimension, size, spacing)
ImageProperties	Outputs different properties of an image (type, dimension, size, spacing, ...)
ImageReader	Generic itk image reader
ImageRegion	Creates a generic ImageRegion (bbtk::any) from two vectors providing the index and size of the region. The dimension D of the actual itk::ImageRegion created is the max of the sizes of Index and Size (the smallest vector is padded by zeros).
ImageSeriesReader	Generic itk image series reader
ImageWriter	Generic itk image writer
ResampleImageFilter	Resamples an image
anyItkImagePointerRelay	Just copies the value of its input to its output. Usefull to plug an input of a complex box into different internal boxes.

Adaptors :

anyItkImagePointerToString	Converts a anyItkImagePointer (bbtk::any) into a string
anyItkImagePointerToitkImageChar2cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageChar2cptr)
anyItkImagePointerToitkImageChar2ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageChar2ptr)
anyItkImagePointerToitkImageChar3cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageChar3cptr)
anyItkImagePointerToitkImageChar3ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageChar3ptr)
anyItkImagePointerToitkImageChar4cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageChar4cptr)
anyItkImagePointerToitkImageChar4ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageChar4ptr)
anyItkImagePointerToitkImageDouble2cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageDouble2cptr)
anyItkImagePointerToitkImageDouble2ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageDouble2ptr)
anyItkImagePointerToitkImageDouble3cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageDouble3cptr)
anyItkImagePointerToitkImageDouble3ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageDouble3ptr)
anyItkImagePointerToitkImageDouble4cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageDouble4cptr)
anyItkImagePointerToitkImageDouble4ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageDouble4ptr)
anyItkImagePointerToitkImageFloat2cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageFloat2cptr)
anyItkImagePointerToitkImageFloat2ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageFloat2ptr)
anyItkImagePointerToitkImageFloat3cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageFloat3cptr)
anyItkImagePointerToitkImageFloat3ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageFloat3ptr)
anyItkImagePointerToitkImageFloat4cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageFloat4cptr)
anyItkImagePointerToitkImageFloat4ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageFloat4ptr)
anyItkImagePointerToitkImageInt2cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageInt2cptr)
anyItkImagePointerToitkImageInt2ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageInt2ptr)
anyItkImagePointerToitkImageInt3cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageInt3cptr)
anyItkImagePointerToitkImageInt3ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageInt3ptr)
anyItkImagePointerToitkImageInt4cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageInt4cptr)
anyItkImagePointerToitkImageInt4ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageInt4ptr)
anyItkImagePointerToitkImageShort2cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageShort2cptr)
anyItkImagePointerToitkImageShort2ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageShort2ptr)
anyItkImagePointerToitkImageShort3cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageShort3cptr)
anyItkImagePointerToitkImageShort3ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageShort3ptr)
anyItkImagePointerToitkImageShort4cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageShort4cptr)
anyItkImagePointerToitkImageShort4ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageShort4ptr)
anyItkImagePointerToitkImageUChar2cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageUChar2cptr)
anyItkImagePointerToitkImageUChar2ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageUChar2ptr)
anyItkImagePointerToitkImageUChar3cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageUChar3cptr)
anyItkImagePointerToitkImageUChar3ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageUChar3ptr)
anyItkImagePointerToitkImageUChar4cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageUChar4cptr)
anyItkImagePointerToitkImageUChar4ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageUChar4ptr)
anyItkImagePointerToitkImageUInt2cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageUInt2cptr)
anyItkImagePointerToitkImageUInt2ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageUInt2ptr)
anyItkImagePointerToitkImageUInt3cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageUInt3cptr)
anyItkImagePointerToitkImageUInt3ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageUInt3ptr)
anyItkImagePointerToitkImageUInt4cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageUInt4cptr)
anyItkImagePointerToitkImageUInt4ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageUInt4ptr)
anyItkImagePointerToitkImageUShort2cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageUShort2cptr)
anyItkImagePointerToitkImageUShort2ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageUShort2ptr)
anyItkImagePointerToitkImageUShort3cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageUShort3cptr)
anyItkImagePointerToitkImageUShort3ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageUShort3ptr)
anyItkImagePointerToitkImageUShort4cptr	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageUShort4cptr)
anyItkImagePointerToitkImageUShort4ptr	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageUShort4ptr)
itkImageChar2cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageChar2cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageChar2ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageChar2ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageChar3cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageChar3cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageChar3ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageChar3ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageChar4cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageChar4cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageChar4ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageChar4ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageDouble2cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageDouble2cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageDouble2ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageDouble2ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageDouble3cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageDouble3cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageDouble3ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageDouble3ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageDouble4cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageDouble4cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageDouble4ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageDouble4ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageFloat2cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageFloat2cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageFloat2ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageFloat2ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageFloat3cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageFloat3cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageFloat3ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageFloat3ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageFloat4cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageFloat4cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageFloat4ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageFloat4ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageInt2cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageInt2cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageInt2ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageInt2ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageInt3cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageInt3cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageInt3ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageInt3ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageInt4cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageInt4cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageInt4ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageInt4ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageShort2cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageShort2cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageShort2ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageShort2ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageShort3cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageShort3cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageShort3ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageShort3ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageShort4cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageShort4cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageShort4ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageShort4ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageUChar2cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageUChar2cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageUChar2ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageUChar2ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageUChar3cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageUChar3cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageUChar3ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageUChar3ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageUChar4cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageUChar4cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageUChar4ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageUChar4ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageUInt2cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageUInt2cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageUInt2ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageUInt2ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageUInt3cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageUInt3cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageUInt3ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageUInt3ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageUInt4cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageUInt4cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageUInt4ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageUInt4ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageUShort2cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageUShort2cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageUShort2ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageUShort2ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageUShort3cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageUShort3cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageUShort3ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageUShort3ptr) into a generic itk image pointer (anyItkImagePointer)
itkImageUShort4cptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageUShort4cptr) into a generic itk image pointer (anyItkImagePointer)
itkImageUShort4ptrToanyItkImagePointer	Converts a typed itk image pointer (itkImageUShort4ptr) into a generic itk image pointer (anyItkImagePointer)

BinaryThresholdImageFilter

Description	:	Binarizes an image by thresholding (generic bbification of itk::BinaryThresholdImageFilter)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  filter  image
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input image. Can be any itk::Image*
InsideValue	<double>	Output value for pixels inside thresholds
LowerThreshold	<double>	Lower threshold
OutsideValue	<double>	Output value for pixels outside thresholds
UpperThreshold	<double>	Upper threshold
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output image. Of the same type and dimension than the input image
BoxChange	<bbtk::Void>	Signals modifications of the box

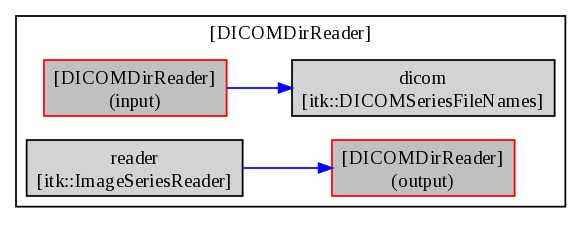

DICOMDirReader

Description	:	Reads a series from a DICOM directory as a 3D itk image
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	complex box  image  read/write  dicom
To use it	:	include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/itk/boxes/bbDICOMDirReader.bbs  [source]
Uses	:	itk::DICOMSeriesFileNames itk::ImageSeriesReader

Inputs
In	<std::string>	The input DICOM directory
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	The image read

DICOMSeriesFileNames

Description	:	Reads a DICOM directory and generates an ordered sequence of filenames based on the DICOM tags in the files. Files can be sorted based on image number, slice location, or patient position. The files in the specified directory are grouped by SeriesUID. The list of SeriesUIDs can be queried and the filenames for a specific series extracted.
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  read/write  image  dicom
To use it	:	include itk

Inputs
In	<std::string>	DICOM directory
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<std::vector<std::string, std::allocator<std::string> >>	Vector of file names
BoxChange	<bbtk::Void>	Signals modifications of the box

ExtractImageFilter

Description	:	Decrease the image size by cropping the image to the selected region bounds (bbification of itk::ExtractImageFilter)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  image  filter
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input image
Region	<bbtk::any<bbitk::ImageRegion>>	Extraction region
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output image
BoxChange	<bbtk::Void>	Signals modifications of the box

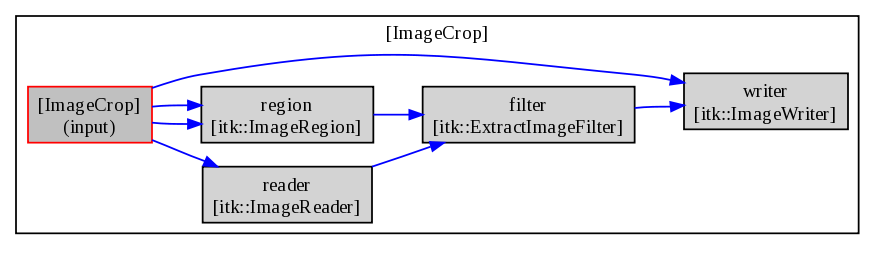

ImageCrop

Description	:	Extracts a sub-image of an image
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	complex box  application
To use it	:	include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/itk/appli/ImageCrop.bbs  [source]
Uses	:	itk::ExtractImageFilter itk::ImageReader itk::ImageRegion itk::ImageWriter

Inputs
I	<std::string>	Input file name
O	<bbtk::any<bbitk::ImagePointer>>	Output file name
P	<std::vector<long, std::allocator<long> >>	Position of the crop region
S	<std::vector<long, std::allocator<long> >>	Size of the crop region
Outputs

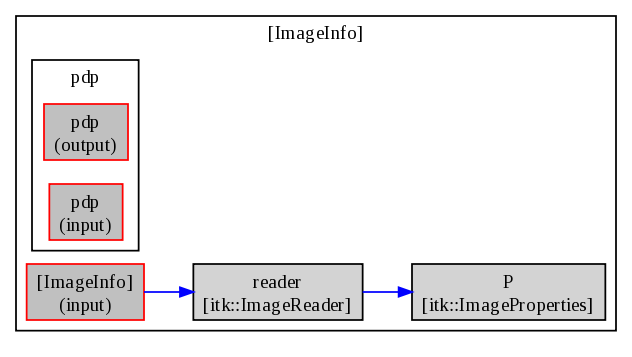

ImageInfo

Description	:	Gives information on the input image (pixel type, dimension, size, spacing)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	complex box  application  image
To use it	:	include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/itk/appli/ImageInfo.bbs  [source]
Uses	:	itk::ImageProperties std::PrependDataPath itk::ImageReader

Inputs
I	<std::string>	Input image file
Outputs

ImageProperties

Description	:	Outputs different properties of an image (type, dimension, size, spacing, ...)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  image
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Dimension	<unsigned int>	Dimension
Index	<std::vector<int, std::allocator<int> >>	Origin of the image
LargestPossibleRegion	<bbtk::any<bbitk::ImageRegion>>	Global extent of the image
Size	<std::vector<int, std::allocator<int> >>	Size in each dimension
Spacing	<std::vector<float, std::allocator<float> >>	Size of the voxels
TypeName	<std::string>	Pixel type name
BoxChange	<bbtk::Void>	Signals modifications of the box

ImageReader

Description	:	Generic itk image reader
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  image  read/write
To use it	:	include itk

Inputs
In	<std::string>	filename with complete path
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output image
BoxChange	<bbtk::Void>	Signals modifications of the box

ImageRegion

Description	:	Creates a generic ImageRegion (bbtk::any) from two vectors providing the index and size of the region. The dimension D of the actual itk::ImageRegion created is the max of the sizes of Index and Size (the smallest vector is padded by zeros).
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  image
To use it	:	include itk

Inputs
Index	<std::vector<long, std::allocator<long> >>	Vector of region indices
Size	<std::vector<long, std::allocator<long> >>	Vector of region sizes
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImageRegion>>	Output generic region
BoxChange	<bbtk::Void>	Signals modifications of the box

ImageSeriesReader

Description	:	Generic itk image series reader
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  image  read/write
To use it	:	include itk

Inputs
FileNames	<std::vector<std::string, std::allocator<std::string> >>	vector of file names with complete paths
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output itk::image with type T and dimension D determined by the content of the files
BoxChange	<bbtk::Void>	Signals modifications of the box

ImageWriter

Description	:	Generic itk image writer
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  image  read/write
To use it	:	include itk

Inputs
Filename	<std::string>	filename with complete path
In	<bbtk::any<bbitk::ImagePointer>>	Image to write
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
BoxChange	<bbtk::Void>	Signals modifications of the box

ResampleImageFilter

Description	:	Resamples an image
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  image  filter
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input image. Can be any itk::Image*
Interpolation	<std::string>	Interpolation
Spacing	<std::vector<double, std::allocator<double> >>	Spacing
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output image. Of the same type and dimension than the input image
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerRelay

Description	:	Just copies the value of its input to its output. Usefull to plug an input of a complex box into different internal boxes.
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  misc
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToString

Description	:	Converts a anyItkImagePointer (bbtk::any) into a string
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<std::string>	Output
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageChar2cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageChar2cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<signed char, 2u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageChar2ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageChar2ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<signed char, 2u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageChar3cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageChar3cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<signed char, 3u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageChar3ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageChar3ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<signed char, 3u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageChar4cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageChar4cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<signed char, 4u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageChar4ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageChar4ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<signed char, 4u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageDouble2cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageDouble2cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<double, 2u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageDouble2ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageDouble2ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<double, 2u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageDouble3cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageDouble3cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<double, 3u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageDouble3ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageDouble3ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<double, 3u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageDouble4cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageDouble4cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<double, 4u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageDouble4ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageDouble4ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<double, 4u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageFloat2cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageFloat2cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<float, 2u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageFloat2ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageFloat2ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<float, 2u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageFloat3cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageFloat3cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<float, 3u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageFloat3ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageFloat3ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<float, 3u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageFloat4cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageFloat4cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<float, 4u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageFloat4ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageFloat4ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<float, 4u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageInt2cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageInt2cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<int, 2u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageInt2ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageInt2ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<int, 2u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageInt3cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageInt3cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<int, 3u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageInt3ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageInt3ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<int, 3u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageInt4cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageInt4cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<int, 4u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageInt4ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageInt4ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<int, 4u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageShort2cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageShort2cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<short, 2u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageShort2ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageShort2ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<short, 2u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageShort3cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageShort3cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<short, 3u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageShort3ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageShort3ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<short, 3u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageShort4cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageShort4cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<short, 4u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageShort4ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageShort4ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<short, 4u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageUChar2cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageUChar2cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<unsigned char, 2u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageUChar2ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageUChar2ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<unsigned char, 2u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageUChar3cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageUChar3cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<unsigned char, 3u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageUChar3ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageUChar3ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<unsigned char, 3u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageUChar4cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageUChar4cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<unsigned char, 4u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageUChar4ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageUChar4ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<unsigned char, 4u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageUInt2cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageUInt2cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<unsigned int, 2u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageUInt2ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageUInt2ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<unsigned int, 2u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageUInt3cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageUInt3cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<unsigned int, 3u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageUInt3ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageUInt3ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<unsigned int, 3u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageUInt4cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageUInt4cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<unsigned int, 4u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageUInt4ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageUInt4ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<unsigned int, 4u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageUShort2cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageUShort2cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<unsigned short, 2u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageUShort2ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageUShort2ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<unsigned short, 2u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageUShort3cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageUShort3cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<unsigned short, 3u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageUShort3ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageUShort3ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<unsigned short, 3u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageUShort4cptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a const typed itk image pointer (itkImageUShort4cptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<unsigned short, 4u> const*>	Output const typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

anyItkImagePointerToitkImageUShort4ptr

Description	:	Converts a generic itk image pointer (anyItkImagePointer) into a typed itk image pointer (itkImageUShort4ptr)
Author(s)	:	laurent.guigues@creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor
To use it	:	include itk

Inputs
In	<bbtk::any<bbitk::ImagePointer>>	Input generic image pointer
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<itk::Image<unsigned short, 4u>*>	Output typed image pointer
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageChar2cptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageChar2cptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<signed char, 2u> const*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageChar2ptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageChar2ptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<signed char, 2u>*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageChar3cptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageChar3cptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<signed char, 3u> const*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageChar3ptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageChar3ptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<signed char, 3u>*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageChar4cptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageChar4cptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<signed char, 4u> const*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageChar4ptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageChar4ptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<signed char, 4u>*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageDouble2cptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageDouble2cptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<double, 2u> const*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageDouble2ptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageDouble2ptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<double, 2u>*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageDouble3cptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageDouble3cptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<double, 3u> const*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageDouble3ptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageDouble3ptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<double, 3u>*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageDouble4cptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageDouble4cptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<double, 4u> const*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageDouble4ptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageDouble4ptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<double, 4u>*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageFloat2cptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageFloat2cptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<float, 2u> const*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageFloat2ptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageFloat2ptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<float, 2u>*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageFloat3cptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageFloat3cptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<float, 3u> const*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageFloat3ptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageFloat3ptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<float, 3u>*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageFloat4cptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageFloat4cptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<float, 4u> const*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageFloat4ptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageFloat4ptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<float, 4u>*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageInt2cptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageInt2cptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<int, 2u> const*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageInt2ptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageInt2ptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<int, 2u>*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageInt3cptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageInt3cptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<int, 3u> const*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageInt3ptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageInt3ptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<int, 3u>*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageInt4cptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageInt4cptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<int, 4u> const*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageInt4ptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageInt4ptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<int, 4u>*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageShort2cptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageShort2cptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<short, 2u> const*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageShort2ptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageShort2ptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<short, 2u>*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageShort3cptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageShort3cptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<short, 3u> const*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageShort3ptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageShort3ptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<short, 3u>*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageShort4cptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageShort4cptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<short, 4u> const*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageShort4ptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageShort4ptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<short, 4u>*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageUChar2cptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageUChar2cptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<unsigned char, 2u> const*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageUChar2ptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageUChar2ptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<unsigned char, 2u>*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageUChar3cptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageUChar3cptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<unsigned char, 3u> const*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box

itkImageUChar3ptrToanyItkImagePointer

Description	:	Converts a typed itk image pointer (itkImageUChar3ptr) into a generic itk image pointer (anyItkImagePointer)
Author(s)	:	laurent.guigues at creatis.insa-lyon.fr
Category(s)	:	atomic box  adaptor  adaptor
To use it	:	include itk

Inputs
In	<itk::Image<unsigned char, 3u>*>	Input typed image
BoxExecute	<bbtk::Void>	Any signal received by this input executes the box
BoxProcessMode	<std::string>	Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
Out	<bbtk::any<bbitk::ImagePointer>>	Output generic image
BoxChange	<bbtk::Void>	Signals modifications of the box
