| Description | : | Basic graphical interface elements (sliders, buttons ...) based on wxWidgets |
| Author(s) | : | eduardo.davila/laurent.guigues@creatis.insa-lyon.fr |
| Author(s) | : | |
| Version | : | 1.0.0 |
| bbtk Version | : | "0.9.0" |
Black Boxes :
| ColourSelector | Colour Selector dialog (bbfication of wxColourSelector) |
| ColourSelectorButton | A button which displays a colour picker dialog when clicked |
| CommandButton | Button which executes bbi commands |
| DirectorySelector | Pops up a directory selection dialog (wxDirDialog) |
| DoubleSlider | test object |
| FileSelector | Pops up a file selection dialog for reading or saving (wxFileDialog) |
| InputText | A zone in which the user can enter a text (wxTextCtrl) |
| LayoutLine | LayoutLine widget (wxBoxSizer) |
| LayoutSplit | Widget which splits a window in two fixed size parts (wxSplitterWindow) |

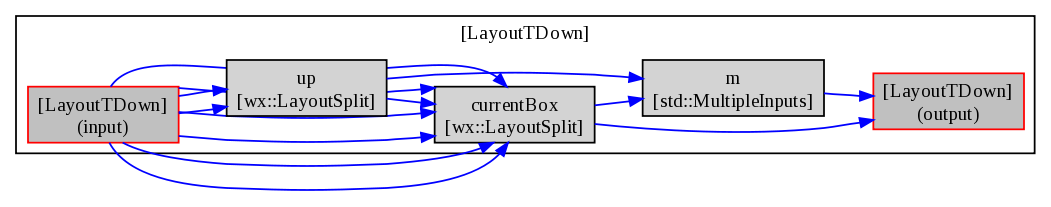

| LayoutTDown | Creates a 'T like' complex container : Down {UpLeft, UpRight} |

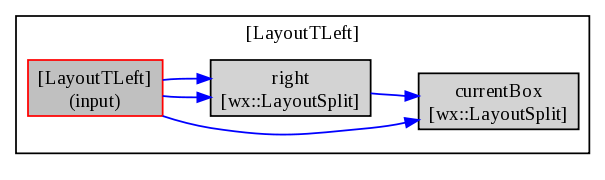

| LayoutTLeft | Creates a 'T like' complex container: Left {RigthUp, RightDown} |

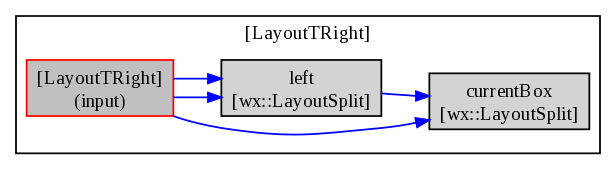

| LayoutTRight | Creates a 'T like' complex container : Right {LeftUp, LeftDown} |

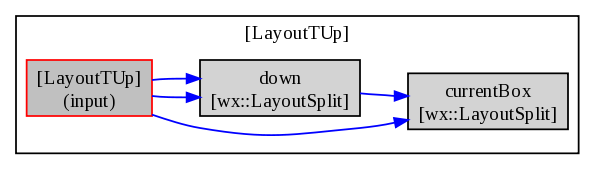

| LayoutTUp | Creates a 'T like' complex container : Up {DownLeft, DownRight} as w1{w2,w3} |
| LayoutTab | LayoutTab widget (wxNotebook) The label of each 'note book' will be the name of the object it contains |

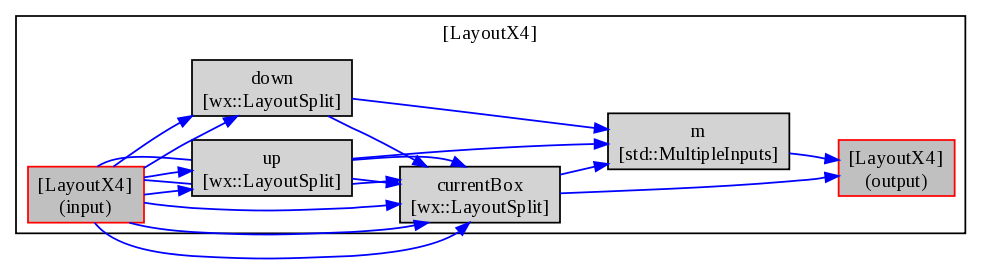

| LayoutX4 | Creates a '+ like' complex container : {UpLeft, UpRight} {DownLeft, DownRigth} |
| OutputText | Text zone to be inserted into a window (wxStaticText) |
| RadioButton | RadioButton group widget 0-9 entries |
| Slider | Slider widget (wxSlider) |

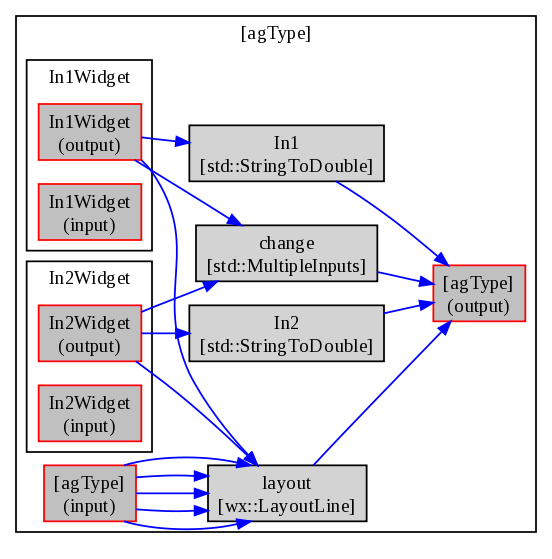

| agType | |

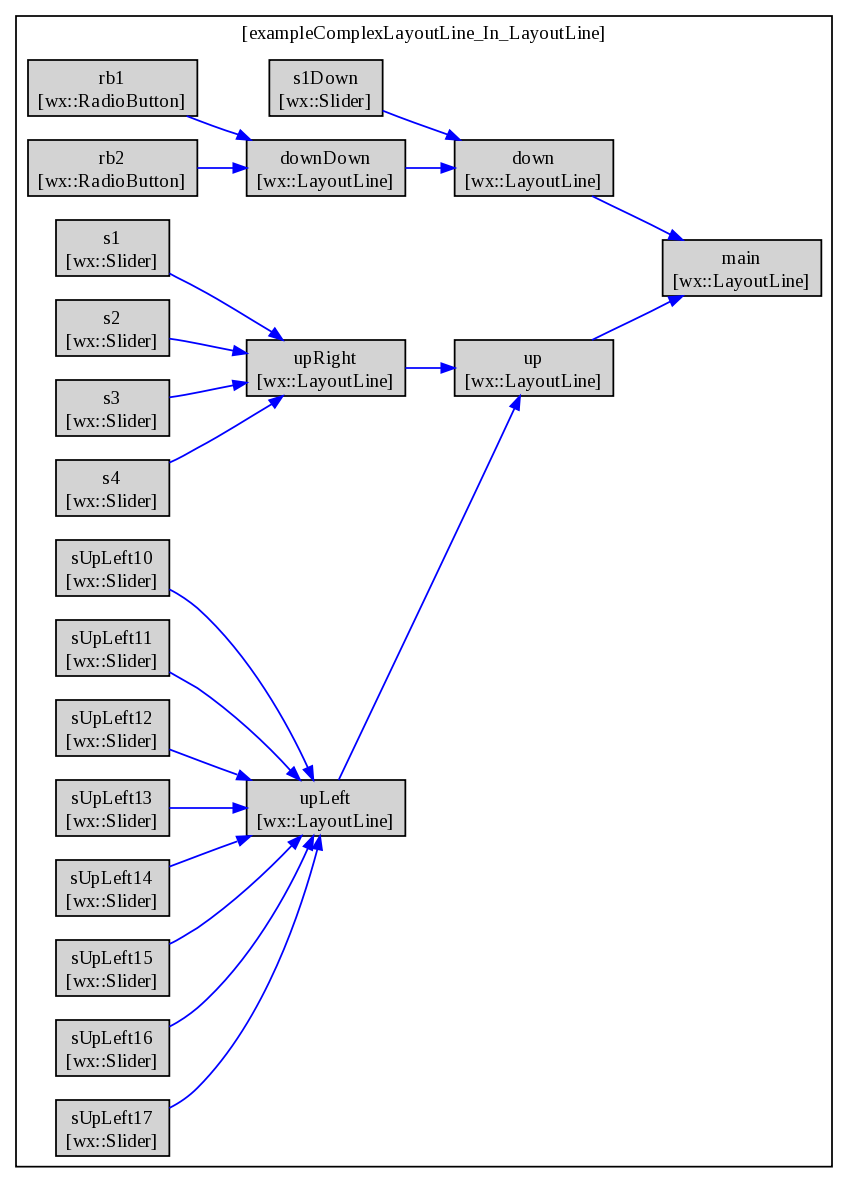

| exampleComplexLayoutLine_In_LayoutLine | More complicated example of wx::LayoutLine widgets |

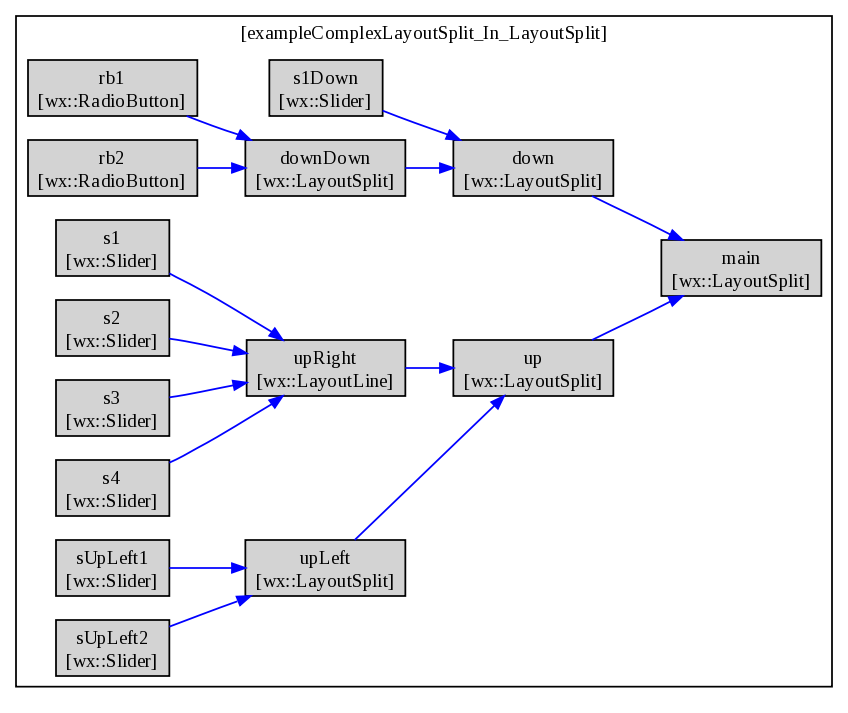

| exampleComplexLayoutSplit_In_LayoutSplit | Simple test of wx::LayoutSplit widgets |

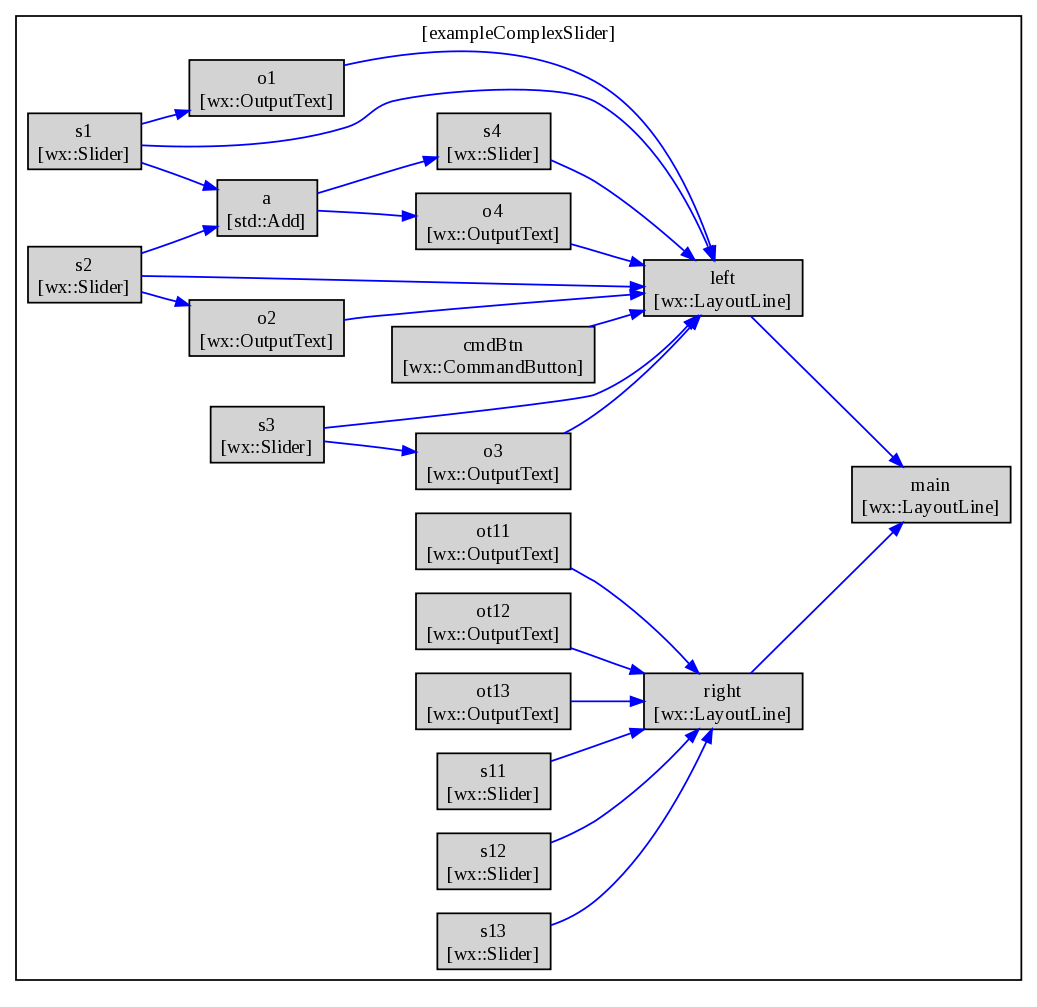

| exampleComplexSlider | More complex test of wx::Slider widget |

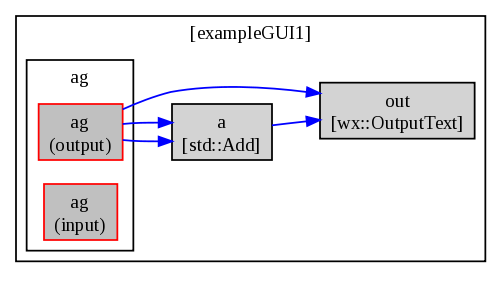

| exampleGUI1 | Example of automatic gui creation with bbi command 'newgui' |

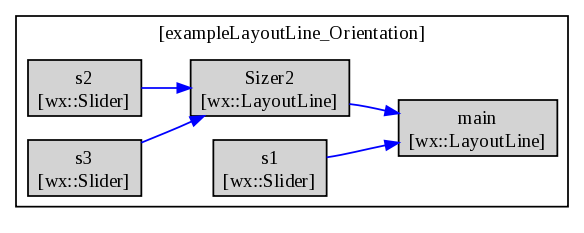

| exampleLayoutLine_Orientation | Simple test of wx::LayoutLine widgets |

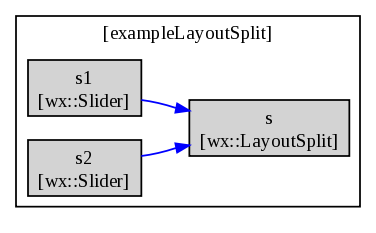

| exampleLayoutSplit | Example of LayoutSplit |

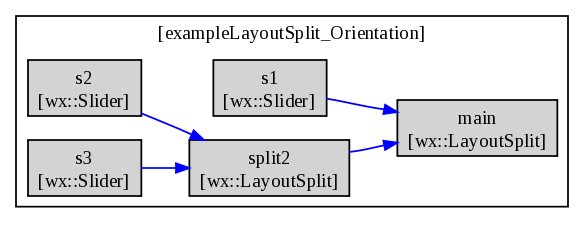

| exampleLayoutSplit_Orientation | Simple test of wx::LayoutLine widgets |

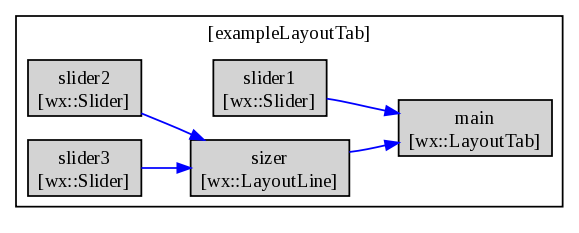

| exampleLayoutTab | Simple test of wx::LayoutTab widget |

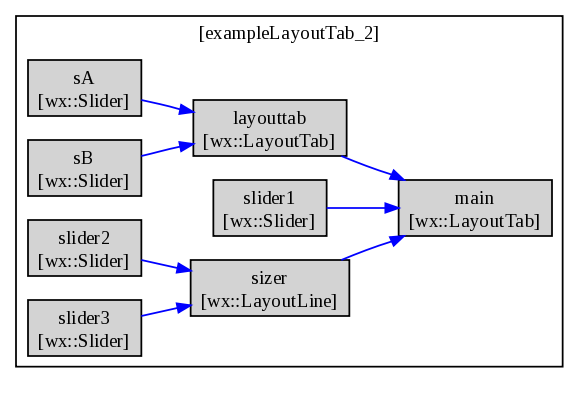

| exampleLayoutTab_2 | Simple test of wx::LayoutTab widget |

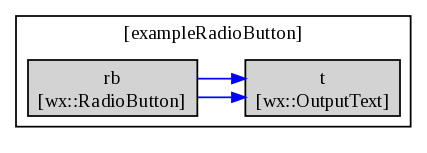

| exampleRadioButton | Simple test of wx::RadioButton widget |

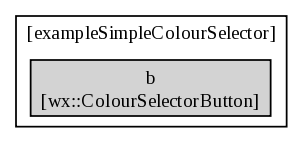

| exampleSimpleColourSelector | Simple test of wx::ColourSelector widget |

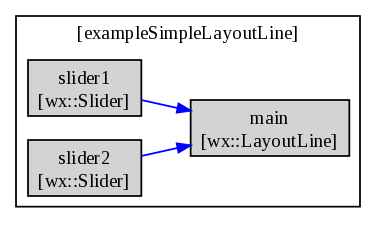

| exampleSimpleLayoutLine | Simple test of wx::LayoutLine widget |
| exampleSimpleLayoutSplit | Simple test of wx::LayoutSplit widget |

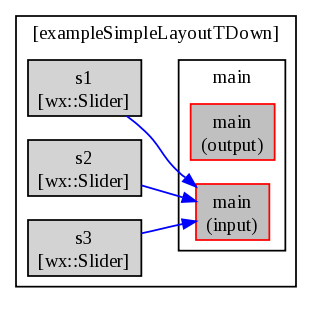

| exampleSimpleLayoutTDown | Simple test of wx::LayoutTDown widgets |

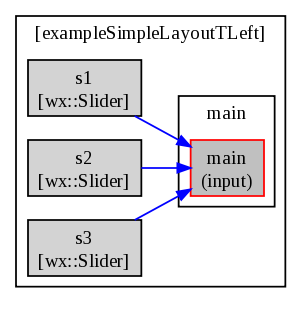

| exampleSimpleLayoutTLeft | Simple test of wx::LayoutTLeft widgets |

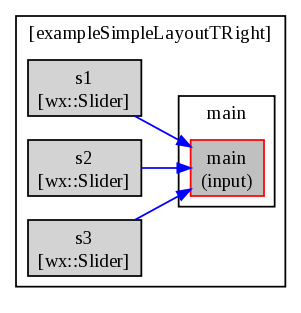

| exampleSimpleLayoutTRight | Simple test of wx::LayoutTRight widgets |

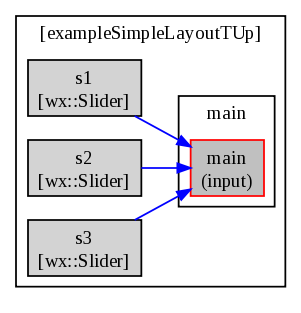

| exampleSimpleLayoutTUp | Simple test of wx::LayoutTUp widgets |

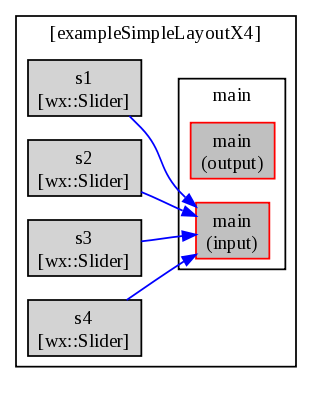

| exampleSimpleLayoutX4 | Simple test of wx::LayoutX4 widgets |
| exampleSimpleSlider | Simple test of wx::Slider widget |

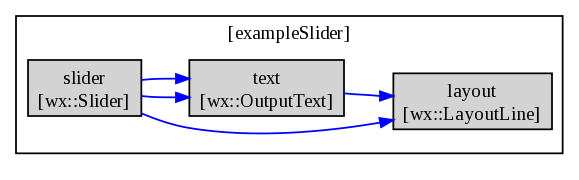

| exampleSlider | Simple use of wx::Slider widget |

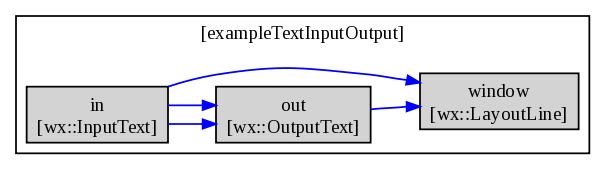

| exampleTextInputOutput | Input/OutputText widgets example |
Adaptors :
| Description | : | Colour Selector dialog (bbfication of wxColourSelector) |
| Author(s) | : | laurent.guigues@creatis.insa-lyon.fr |
| Category(s) | : | atomic box |
| To use it | : | include wx |
| Inputs | ||
BoxExecute | <bbtk::Void> | Any signal received by this input executes the box |
BoxProcessMode | <std::string> | Sets the processing mode of the box (Pipeline | Always | Reactive) |
| Outputs | ||
Out | <std::string> | Colour choosen in format '[0,1] [0,1] [0,1]' |
BoxChange | <bbtk::Void> | Signals modifications of the box |
| Description | : | A button which displays a colour picker dialog when clicked |
| Author(s) | : | laurent.guigues@creatis.insa-lyon.fr |
| Category(s) | : | atomic box widget |
| To use it | : | include wx |
| Inputs | ||
In | <std::string> | Initial colour |
WinClose | <bbtk::Void> | Any signal received closes the window (*) |
WinDialog | <bool> | Set to 'true' to create a dialog window, i.e. which blocks the pipeline until it is closed (modal) (*) |
WinHeight | <int> | Height of the window (*) |
WinHide | <bbtk::Void> | Any signal received hides the window (*) |
WinTitle | <std::string> | Title of the window (*) |
WinWidth | <int> | Width of the window (* : only used if the widget is not connected to a Layout box) |
BoxExecute | <bbtk::Void> | Any signal received by this input executes the box |
BoxProcessMode | <std::string> | Sets the processing mode of the box (Pipeline | Always | Reactive) |
| Outputs | ||
Out | <std::string> | Colour choosen in format '[0,1] [0,1] [0,1]' |
Widget | <wxWindow*> | Output widget |
BoxChange | <bbtk::Void> | Signals modifications of the box |
| Description | : | Button which executes bbi commands |
| Author(s) | : | eduardo.davila@creatis.insa-lyon.fr |
| Category(s) | : | atomic box widget |
| To use it | : | include wx |
| Inputs | ||
Colour | <std::vector<double, std::allocator<double> >> | Colour of the button (-1 -1 -1 Background) |
In | <std::string> | Commands to be executed separated by commas (;). Each single quote (') is replaced by a double quote ("). |
Label | <std::string> | Label of the button |
WinClose | <bbtk::Void> | Any signal received closes the window (*) |
WinDialog | <bool> | Set to 'true' to create a dialog window, i.e. which blocks the pipeline until it is closed (modal) (*) |
WinHeight | <int> | Height of the window (*) |
WinHide | <bbtk::Void> | Any signal received hides the window (*) |
WinTitle | <std::string> | Title of the window (*) |
WinWidth | <int> | Width of the window (* : only used if the widget is not connected to a Layout box) |
BoxExecute | <bbtk::Void> | Any signal received by this input executes the box |
BoxProcessMode | <std::string> | Sets the processing mode of the box (Pipeline | Always | Reactive) |
| Outputs | ||
Widget | <wxWindow*> | Output widget |
BoxChange | <bbtk::Void> | Signals modifications of the box |
| Description | : | Pops up a directory selection dialog (wxDirDialog) |
| Author(s) | : | laurent.guigues@creatis.insa-lyon.fr |
| Category(s) | : | atomic box widget |
| To use it | : | include wx |
| Inputs | ||
DefaultDir | <std::string> | The default directory |
Message | <std::string> | Message to show on the dialog |
Title | <std::string> | Title of the dialog |
BoxExecute | <bbtk::Void> | Any signal received by this input executes the box |
BoxProcessMode | <std::string> | Sets the processing mode of the box (Pipeline | Always | Reactive) |
| Outputs | ||
Out | <std::string> | The directory selected by the user |
BoxChange | <bbtk::Void> | Signals modifications of the box |

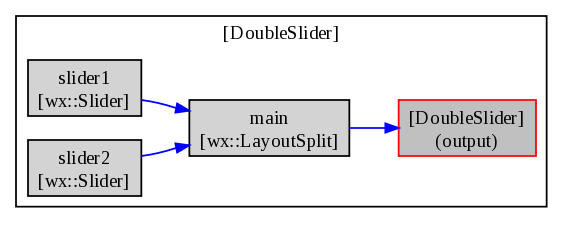

| Description | : | test object |
| Author(s) | : | laurent.guigues at creatis.insa-lyon.fr |
| Category(s) | : | complex box complex box widget |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/boxes/bbDoubleSlider.bbs [source] |
| Uses | : | wx::LayoutSplit wx::Slider |
| Inputs | ||
| Outputs | ||
Widget | <wxWindow*> | Widget |
| Description | : | Pops up a file selection dialog for reading or saving (wxFileDialog) |
| Author(s) | : | laurent.guigues@creatis.insa-lyon.fr |
| Category(s) | : | atomic box widget |
| To use it | : | include wx |
| Inputs | ||
DefaultDir | <std::string> | The default directory |
DefaultFile | <std::string> | The default filename |
Message | <std::string> | Message to show on the dialog |
OpenSave | <std::string> | Open for an open dialog (default) / Save for a save dialog |
Title | <std::string> | Title of the dialog |
Wildcard | <std::string> | A wildcard, such as "*.*" or "BMP files (*.bmp)|*.bmp|GIF files (*.gif)|*.gif" |
BoxExecute | <bbtk::Void> | Any signal received by this input executes the box |
BoxProcessMode | <std::string> | Sets the processing mode of the box (Pipeline | Always | Reactive) |
| Outputs | ||
Out | <std::string> | The file selected by the user |
BoxChange | <bbtk::Void> | Signals modifications of the box |

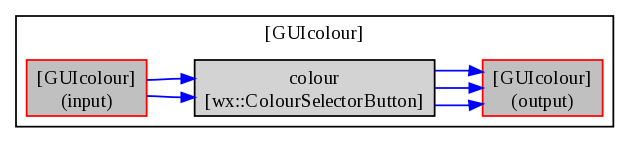

| Description | : | |
| Author(s) | : | |
| Category(s) | : | complex box complex box widget gui |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/boxes/bbGUIcolour.bbs [source] |
| Uses | : | wx::ColourSelectorButton |
| Inputs | ||
In | <std::string> | Initial colour |
Label | <std::string> | Label |
| Outputs | ||
BoxChange | <bbtk::Void> | BoxChange |
Out | <std::string> | Selected colour |
Widget | <wxWindow*> | Widget |

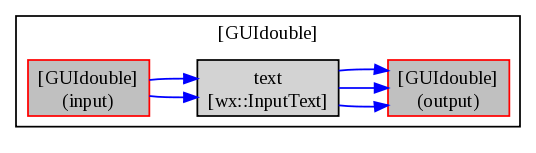

| Description | : | |
| Author(s) | : | |
| Category(s) | : | complex box gui complex box widget |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/boxes/bbGUIdouble.bbs [source] |
| Uses | : | wx::InputText |
| Inputs | ||
In | <std::string> | Initial value |
Label | <std::string> | Label |
| Outputs | ||
BoxChange | <bbtk::Void> | BoxChange |
Out | <std::string> | Current value |
Widget | <wxWindow*> | Widget |

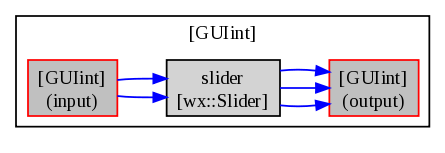

| Description | : | |
| Author(s) | : | |
| Category(s) | : | complex box gui complex box widget |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/boxes/bbGUIint.bbs [source] |
| Uses | : | wx::Slider |
| Inputs | ||
In | <int> | Initial position |
Label | <std::string> | Label |
| Outputs | ||
BoxChange | <bbtk::Void> | BoxChange |
Out | <int> | Current position |
Widget | <wxWindow*> | Widget |
| Description | : | A zone in which the user can enter a text (wxTextCtrl) |
| Author(s) | : | laurent guigues at creatis.insa-lyon.fr |
| Category(s) | : | atomic box widget |
| To use it | : | include wx |
| Inputs | ||
In | <std::string> | Initial text (default '') |
Title | <std::string> | Title of the input zone (default '') |
WinClose | <bbtk::Void> | Any signal received closes the window (*) |
WinDialog | <bool> | Set to 'true' to create a dialog window, i.e. which blocks the pipeline until it is closed (modal) (*) |
WinHeight | <int> | Height of the window (*) |
WinHide | <bbtk::Void> | Any signal received hides the window (*) |
WinTitle | <std::string> | Title of the window (*) |
WinWidth | <int> | Width of the window (* : only used if the widget is not connected to a Layout box) |
BoxExecute | <bbtk::Void> | Any signal received by this input executes the box |
BoxProcessMode | <std::string> | Sets the processing mode of the box (Pipeline | Always | Reactive) |
| Outputs | ||
Out | <std::string> | Current text |
Widget | <wxWindow*> | Output widget |
BoxChange | <bbtk::Void> | Signals modifications of the box |
| Description | : | LayoutLine widget (wxBoxSizer) |
| Author(s) | : | eduardo.davila@creatis.insa-lyon.fr |
| Category(s) | : | atomic box widget |
| To use it | : | include wx |
| Inputs | ||
Orientation | <std::string> | Orientation (default V), 0=H=HORIZONTAL , 1=V=VERTICAL |
Widget1 | <wxWindow*> | widget 1 |
Widget2 | <wxWindow*> | widget 2 |
Widget3 | <wxWindow*> | widget 3 |
Widget4 | <wxWindow*> | widget 4 |
Widget5 | <wxWindow*> | widget 5 |
Widget6 | <wxWindow*> | widget 6 |
Widget7 | <wxWindow*> | widget 7 |
Widget8 | <wxWindow*> | widget 8 |
Widget9 | <wxWindow*> | widget 9 |
WinClose | <bbtk::Void> | Any signal received closes the window (*) |
WinDialog | <bool> | Set to 'true' to create a dialog window, i.e. which blocks the pipeline until it is closed (modal) (*) |
WinHeight | <int> | Height of the window (*) |
WinHide | <bbtk::Void> | Any signal received hides the window (*) |
WinTitle | <std::string> | Title of the window (*) |
WinWidth | <int> | Width of the window (* : only used if the widget is not connected to a Layout box) |
BoxExecute | <bbtk::Void> | Any signal received by this input executes the box |
BoxProcessMode | <std::string> | Sets the processing mode of the box (Pipeline | Always | Reactive) |
| Outputs | ||
Widget | <wxWindow*> | Output widget |
BoxChange | <bbtk::Void> | Signals modifications of the box |
| Description | : | Widget which splits a window in two fixed size parts (wxSplitterWindow) |
| Author(s) | : | laurent.guigues@creatis.insa-lyon.fr |
| Category(s) | : | atomic box widget |
| To use it | : | include wx |
| Inputs | ||
Orientation | <std::string> | Orientation (default H), 0=H=HORIZONTAL , 1=V=VERTICAL |
Proportion | <int> | Proportion (in percent) of the first children in the window |
Widget1 | <wxWindow*> | Upper or left widget |
Widget2 | <wxWindow*> | Lower or right widget |
WinClose | <bbtk::Void> | Any signal received closes the window (*) |
WinDialog | <bool> | Set to 'true' to create a dialog window, i.e. which blocks the pipeline until it is closed (modal) (*) |
WinHeight | <int> | Height of the window (*) |
WinHide | <bbtk::Void> | Any signal received hides the window (*) |
WinTitle | <std::string> | Title of the window (*) |
WinWidth | <int> | Width of the window (* : only used if the widget is not connected to a Layout box) |
BoxExecute | <bbtk::Void> | Any signal received by this input executes the box |
BoxProcessMode | <std::string> | Sets the processing mode of the box (Pipeline | Always | Reactive) |
| Outputs | ||
Widget | <wxWindow*> | Output widget |
BoxChange | <bbtk::Void> | Signals modifications of the box |
| Description | : | Creates a 'T like' complex container : Down {UpLeft, UpRight} |
| Author(s) | : | jean-pierre.roux@creatis.univ-lyon1.fr |
| Category(s) | : | complex box complex box widget |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/boxes/bbLayoutTDown.bbs [source] |
| Uses | : | wx::LayoutSplit std::MultipleInputs |
| Inputs | ||
Widget1 | <wxWindow*> | UpLeft container |
Widget2 | <wxWindow*> | UpRight container |
Widget3 | <wxWindow*> | Down container |
WinClose | <bbtk::Void> | Any signal received closes the window (*) |
WinHeight | <int> | Height of the window (*) |
WinHide | <bbtk::Void> | Any signal received hides the window (*) |
WinTitle | <std::string> | Title of the window (*) |
WinWidth | <int> | Width of the window (* : only used if the widget is not connected to a Layout box) |
| Outputs | ||
BoxChange | <bbtk::Void> | BoxChange |
Widget | <wxWindow*> | Widget |
| Description | : | Creates a 'T like' complex container: Left {RigthUp, RightDown} |
| Author(s) | : | jean-pierre.roux@creatis.univ-lyon1.fr |
| Category(s) | : | complex box complex box widget |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/boxes/bbLayoutTLeft.bbs [source] |
| Uses | : | wx::LayoutSplit |
| Inputs | ||
Widget1 | <wxWindow*> | Left container |
Widget2 | <wxWindow*> | RightUp container |
Widget3 | <wxWindow*> | RightDown container |
| Outputs | ||
| Description | : | Creates a 'T like' complex container : Right {LeftUp, LeftDown} |
| Author(s) | : | jean-pierre.roux@creatis.univ-lyon1.fr |
| Category(s) | : | complex box complex box widget |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/boxes/bbLayoutTRight.bbs [source] |
| Uses | : | wx::LayoutSplit |
| Inputs | ||
Widget1 | <wxWindow*> | LeftUp container |
Widget2 | <wxWindow*> | Right container |
Widget3 | <wxWindow*> | LeftDown container |
| Outputs | ||
| Description | : | Creates a 'T like' complex container : Up {DownLeft, DownRight} as w1{w2,w3} |
| Author(s) | : | jean-pierre.roux@creatis.univ-lyon1.fr |
| Category(s) | : | complex box complex box widget |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/boxes/bbLayoutTUp.bbs [source] |
| Uses | : | wx::LayoutSplit |
| Inputs | ||
Widget1 | <wxWindow*> | Up container |
Widget2 | <wxWindow*> | DownLeft container |
Widget3 | <wxWindow*> | DownRight container |
| Outputs | ||
| Description | : | LayoutTab widget (wxNotebook) The label of each 'note book' will be the name of the object it contains |
| Author(s) | : | eduardo.davila@creatis.insa-lyon.fr |
| Category(s) | : | atomic box widget |
| To use it | : | include wx |
| Inputs | ||
Orientation | <std::string> | Orientation (default T), 0=T=TOP , 1=R=RIGHT , 2=B=BOTTON , 3=L=LEFT |
Widget1 | <wxWindow*> | widget 1 |
Widget2 | <wxWindow*> | widget 2 |
Widget3 | <wxWindow*> | widget 3 |
Widget4 | <wxWindow*> | widget 4 |
Widget5 | <wxWindow*> | widget 5 |
Widget6 | <wxWindow*> | widget 6 |
Widget7 | <wxWindow*> | widget 7 |
Widget8 | <wxWindow*> | widget 8 |
Widget9 | <wxWindow*> | widget 9 |
WinClose | <bbtk::Void> | Any signal received closes the window (*) |
WinDialog | <bool> | Set to 'true' to create a dialog window, i.e. which blocks the pipeline until it is closed (modal) (*) |
WinHeight | <int> | Height of the window (*) |
WinHide | <bbtk::Void> | Any signal received hides the window (*) |
WinTitle | <std::string> | Title of the window (*) |
WinWidth | <int> | Width of the window (* : only used if the widget is not connected to a Layout box) |
BoxExecute | <bbtk::Void> | Any signal received by this input executes the box |
BoxProcessMode | <std::string> | Sets the processing mode of the box (Pipeline | Always | Reactive) |
| Outputs | ||
Widget | <wxWindow*> | Output widget |
BoxChange | <bbtk::Void> | Signals modifications of the box |
| Description | : | Creates a '+ like' complex container : {UpLeft, UpRight} {DownLeft, DownRigth} |
| Author(s) | : | jean-pierre.roux@creatis.univ-lyon1.fr |
| Category(s) | : | complex box complex box widget |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/boxes/bbLayoutX4.bbs [source] |
| Uses | : | wx::LayoutSplit std::MultipleInputs |
| Inputs | ||
Widget1 | <wxWindow*> | UpLeft container |
Widget2 | <wxWindow*> | UpRight container |
Widget3 | <wxWindow*> | DownLeft container |
Widget4 | <wxWindow*> | DownRight container |
WinClose | <bbtk::Void> | Any signal received closes the window (*) |
WinHeight | <int> | Height of the window (*) |
WinHide | <bbtk::Void> | Any signal received hides the window (*) |
WinTitle | <std::string> | Title of the window (*) |
WinWidth | <int> | Width of the window (* : only used if the widget is not connected to a Layout box) |
| Outputs | ||
BoxChange | <bbtk::Void> | BoxChange |
Widget | <wxWindow*> | Widget |
| Description | : | Text zone to be inserted into a window (wxStaticText) |
| Author(s) | : | laurent.guigues at creatis.insa-lyon.fr |
| Category(s) | : | atomic box widget |
| To use it | : | include wx |
| Inputs | ||
In | <std::string> | Text |
Title | <std::string> | Title prepended to the text |
WinClose | <bbtk::Void> | Any signal received closes the window (*) |
WinDialog | <bool> | Set to 'true' to create a dialog window, i.e. which blocks the pipeline until it is closed (modal) (*) |
WinHeight | <int> | Height of the window (*) |
WinHide | <bbtk::Void> | Any signal received hides the window (*) |
WinTitle | <std::string> | Title of the window (*) |
WinWidth | <int> | Width of the window (* : only used if the widget is not connected to a Layout box) |
BoxExecute | <bbtk::Void> | Any signal received by this input executes the box |
BoxProcessMode | <std::string> | Sets the processing mode of the box (Pipeline | Always | Reactive) |
| Outputs | ||
Widget | <wxWindow*> | Output widget |
BoxChange | <bbtk::Void> | Signals modifications of the box |
| Description | : | RadioButton group widget 0-9 entries |
| Author(s) | : | eduardo.davila@creatis.insa-lyon.fr |
| Category(s) | : | atomic box widget |
| To use it | : | include wx |
| Inputs | ||
In | <int> | Set initial item |
In0 | <std::string> | option 0 |
In1 | <std::string> | option 1 |
In2 | <std::string> | option 2 |
In3 | <std::string> | option 3 |
In4 | <std::string> | option 4 |
In5 | <std::string> | option 5 |
In6 | <std::string> | option 6 |
In7 | <std::string> | option 7 |
In8 | <std::string> | option 8 |
In9 | <std::string> | option 9 |
Title | <std::string> | Title of the widget (default '') |
WinClose | <bbtk::Void> | Any signal received closes the window (*) |
WinDialog | <bool> | Set to 'true' to create a dialog window, i.e. which blocks the pipeline until it is closed (modal) (*) |
WinHeight | <int> | Height of the window (*) |
WinHide | <bbtk::Void> | Any signal received hides the window (*) |
WinTitle | <std::string> | Title of the window (*) |
WinWidth | <int> | Width of the window (* : only used if the widget is not connected to a Layout box) |
BoxExecute | <bbtk::Void> | Any signal received by this input executes the box |
BoxProcessMode | <std::string> | Sets the processing mode of the box (Pipeline | Always | Reactive) |
| Outputs | ||
Out | <int> | Item selected |
Widget | <wxWindow*> | Output widget |
BoxChange | <bbtk::Void> | Signals modifications of the box |
| Description | : | Slider widget (wxSlider) |
| Author(s) | : | eduardo.davila@creatis.insa-lyon.fr |
| Category(s) | : | atomic box widget |
| To use it | : | include wx |
| Inputs | ||
ChangeResolution | <bool> | Can the user change the resolution of the slider ? (default FALSE) |
In | <int> | Initial position of the slider (default 0) |
Label | <bool> | Show slider labels ? (default FALSE) |
Max | <int> | Maximum value of the slider (default 500) |
Min | <int> | Minimum value of the slider (default 0) |
Orientation | <std::string> | Orientation : (default H) 0=H=HORIZONTAL, 1=V=VERTICAL |
ReactiveOnTrack | <int> | Slider sends info when track moves (default 0 = no) |
Title | <std::string> | Title shown above the slider (default '') |
WinClose | <bbtk::Void> | Any signal received closes the window (*) |
WinDialog | <bool> | Set to 'true' to create a dialog window, i.e. which blocks the pipeline until it is closed (modal) (*) |
WinHeight | <int> | Height of the window (*) |
WinHide | <bbtk::Void> | Any signal received hides the window (*) |
WinTitle | <std::string> | Title of the window (*) |
WinWidth | <int> | Width of the window (* : only used if the widget is not connected to a Layout box) |
BoxExecute | <bbtk::Void> | Any signal received by this input executes the box |
BoxProcessMode | <std::string> | Sets the processing mode of the box (Pipeline | Always | Reactive) |
| Outputs | ||
Out | <int> | Current position of the slider |
Widget | <wxWindow*> | Output widget |
BoxChange | <bbtk::Void> | Signals modifications of the box |
| Description | : | |
| Author(s) | : | |
| Category(s) | : | complex box |
| To use it | : | include buffer_/home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleGUI1.bbs_29 [source] |
| Uses | : | std::StringToDouble wx::GUIdouble std::MultipleInputs wx::LayoutLine |
| Inputs | ||
WinDialog | <bool> | Dialog |
WinHeight | <int> | Height |
WinHide | <bbtk::Void> | Hide |
WinTitle | <std::string> | Title |
WinWidth | <int> | Width |
| Outputs | ||
BoxChange | <bbtk::Void> | BoxChange |
In1 | <double> | In1 |
In2 | <double> | In2 |
Widget | <wxWindow*> | Widget |
| Description | : | More complicated example of wx::LayoutLine widgets |
| Author(s) | : | jean-pierre.roux@creatis.univ-lyon1.fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleComplexLayoutLine_In_LayoutLine.bbs [source] |
| Uses | : | wx::LayoutLine wx::RadioButton wx::Slider |
| Inputs | ||
| Outputs |
| Description | : | Simple test of wx::LayoutSplit widgets |
| Author(s) | : | jean-pierre.roux@creatis.univ-lyon1.fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleComplexLayoutSplit_In_LayoutSplit.bbs [source] |
| Uses | : | wx::LayoutSplit wx::RadioButton wx::Slider wx::LayoutLine |
| Inputs | ||
| Outputs |
| Description | : | More complex test of wx::Slider widget |
| Author(s) | : | jpr[at]creatis[dot]insa[dash]lyon[dot]fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleComplexSlider.bbs [source] |
| Uses | : | std::Add wx::CommandButton wx::LayoutLine wx::OutputText wx::Slider |
| Inputs | ||
| Outputs |
| Description | : | Example of automatic gui creation with bbi command 'newgui' |
| Author(s) | : | laurent.guigues@creatis.insa-lyon.fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleGUI1.bbs [source] |
| Uses | : | std::Add wx::agType wx::OutputText |
| Inputs | ||
| Outputs |
| Description | : | Simple test of wx::LayoutLine widgets |
| Author(s) | : | jean-pierre.roux@creatis.univ-lyon1.fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleLayoutLine_Orientation.bbs [source] |
| Uses | : | wx::LayoutLine wx::Slider |
| Inputs | ||
| Outputs |
| Description | : | Example of LayoutSplit |
| Author(s) | : | laurent.guigues@creatis.insa-lyon.fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleLayoutSplit.bbs [source] |
| Uses | : | wx::LayoutSplit wx::Slider |
| Inputs | ||
| Outputs |
| Description | : | Simple test of wx::LayoutLine widgets |
| Author(s) | : | jean-pierre.roux [at] creatis [dot] univ [dash] lyon1 [dot] fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleLayoutSplit_Orientation.bbs [source] |
| Uses | : | wx::LayoutSplit wx::Slider |
| Inputs | ||
| Outputs |
| Description | : | Simple test of wx::LayoutTab widget |
| Author(s) | : | eduardo.davila@creatis.insa-lyon.fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleLayoutTab.bbs [source] |
| Uses | : | wx::LayoutTab wx::LayoutLine wx::Slider |
| Inputs | ||
| Outputs |
| Description | : | Simple test of wx::LayoutTab widget |
| Author(s) | : | eduardo.davila@creatis.insa-lyon.fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleLayoutTab_2.bbs [source] |
| Uses | : | wx::LayoutTab wx::Slider wx::LayoutLine |
| Inputs | ||
| Outputs |
| Description | : | Simple test of wx::RadioButton widget |
| Author(s) | : | jean-pierre.roux@creatis.univ-lyon1.fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleRadioButton.bbs [source] |
| Uses | : | wx::RadioButton wx::OutputText |
| Inputs | ||
| Outputs |
| Description | : | Simple test of wx::ColourSelector widget |
| Author(s) | : | jpr@creatis.univ-lyon.fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleSimpleColourSelector.bbs [source] |
| Uses | : | wx::ColourSelectorButton |
| Inputs | ||
| Outputs |
| Description | : | Simple test of wx::LayoutLine widget |
| Author(s) | : | eduardo.davila@creatis.insa-lyon.fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleSimpleLayoutLine.bbs [source] |
| Uses | : | wx::LayoutLine wx::Slider |
| Inputs | ||
| Outputs |
| Description | : | Simple test of wx::LayoutSplit widget |
| Author(s) | : | laurent.guigues@creatis.insa-lyon.fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleSimpleLayoutSplit.bbs [source] |
| Uses | : | wx::LayoutSplit wx::Slider |
| Inputs | ||
| Outputs |
| Description | : | Simple test of wx::LayoutTDown widgets |
| Author(s) | : | jean-pierre.roux@creatis.univ-lyon1.fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleSimpleLayoutTDown.bbs [source] |
| Uses | : | wx::LayoutTDown wx::Slider |
| Inputs | ||
| Outputs |
| Description | : | Simple test of wx::LayoutTLeft widgets |
| Author(s) | : | jean-pierre.roux@creatis.univ-lyon1.fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleSimpleLayoutTLeft.bbs [source] |
| Uses | : | wx::LayoutTLeft wx::Slider |
| Inputs | ||
| Outputs |
| Description | : | Simple test of wx::LayoutTRight widgets |
| Author(s) | : | jean-pierre.roux [at] creatis [dot] univ [dash] lyon1 [dot] fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleSimpleLayoutTRight.bbs [source] |
| Uses | : | wx::LayoutTRight wx::Slider |
| Inputs | ||
| Outputs |
| Description | : | Simple test of wx::LayoutTUp widgets |
| Author(s) | : | jean-pierre.roux@creatis.univ-lyon1.fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleSimpleLayoutTUp.bbs [source] |
| Uses | : | wx::LayoutTUp wx::Slider |
| Inputs | ||
| Outputs |
| Description | : | Simple test of wx::LayoutX4 widgets |
| Author(s) | : | jean-pierre.roux@creatis.univ-lyon1.fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleSimpleLayoutX4.bbs [source] |
| Uses | : | wx::LayoutX4 wx::Slider |
| Inputs | ||
| Outputs |
| Description | : | Simple test of wx::Slider widget |
| Author(s) | : | laurent.guigues@creatis.insa-lyon.fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleSimpleSlider.bbs [source] |
| Uses | : | wx::Slider |
| Inputs | ||
| Outputs |
| Description | : | Simple use of wx::Slider widget |
| Author(s) | : | jpr@creatis.insa-lyon.fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleSlider.bbs [source] |
| Uses | : | wx::LayoutLine wx::Slider wx::OutputText |
| Inputs | ||
| Outputs |
| Description | : | Input/OutputText widgets example |
| Author(s) | : | laurent.guigues at creatis.insa-lyon.fr |
| Category(s) | : | complex box example |
| To use it | : | include /home/guigues/build/bbtk-build-tmp/bin/bin/../share/bbtk/bbs/wx/appli/exampleTextInputOutput.bbs [source] |
| Uses | : | wx::InputText wx::OutputText wx::LayoutLine |
| Inputs | ||
| Outputs |
