The Black Box Toolkit
Package Developers' Guide
bbtk version 0.9.0 (15/10/2008)
Generated on : Nov 12, 2008
Eduardo Dávila, Laurent Guigues, Jean-Pierre Roux
CREATIS-LRMN, Centre de Recherche en Imagerie Médicale
CNRS UMR 5220, INSERM U620, INSA Lyon, Université Claude-Bernard Lyon 1
http://www.creatis.insa-lyon.fr/creatools/bbtk
1 Introduction
This guide describes how to
create new bbtk packages and black boxes.
How to use them is described in bbtk Users' guide.
Any black box must be included in a bbtk package,
that is in a particular shared library which can be loaded
dynamically by bbtk , either in C++ code or in bbs scripts
with the commands include or load.
The steps to create new boxes are thus to :
- Create a new package.
This is described in section .
- Describe your new box.
You can do it either :
- In C++ code. You will have to write the class for
your box, mostly using bbtk macros.
- In xml code.
When configuring your project with cmake ,
the utility bbfy will then generate the corresponding C++ code.
This is described in section .
2 Creating a new package
2.1 Creating the file tree
Before defining any black box you
have to create a package, or more precisely
the source files which will allow you to generate the package
(compile and link the shared library) and may be install it.
The bbtk command line application bbCreatePackage
allows to create the basic file architecture
to start the development of a new black box package.
Type bbCreatePackage in a console to get its usage :
bbCreatePackage <package-path> <package-name> [author] [description]
bbStudio also offers a graphical interface to the bbCreatePackage
application.
You can run it with the menu Tools > Create Package.
In both cases (using the command line tool or bbStudio interface),
you have to choose :
- The directory of your new package.
Two cases occur :
- The black boxes you want to create are based on
a processing code (C++ classes or C functions) which
is in an existing project handled by cmake
and you want the new package to be part of your existing project.
You will have to create your new package into the source tree of your
project and add a SUBDIRS command in the CMakeLists.txt
file of the parent directory of your package.
- You do not have an already existing project (you want
to create the new boxes from scratch) or you want/are imposed
that the existing project remain external to the package project.
You will have to create your new package in a new location and
may be include/link against existing libraries.
- The name of your new package.
This name will be used to load the package in C++ and bbs scripts.
You must also provide the author list
and a description which will be used for your package documentation.
After running bbCreatePackage or clicking 'Run' in bbStudio interface
you should get a file structure like this (Linux users can verify it with the tree command):
NEW_PACKAGE
|-- CMakeLists.txt
|-- Configure.cmake
|-- PackageConfig.cmake.in
|-- README.txt
|-- UsePackage.cmake.in
|-- bbs
| |-- CMakeLists.txt
| |-- appli
| | `-- README.txt
| `-- boxes
| `-- README.txt
|-- data
| `-- CMakeLists.txt
|-- doc
| |-- CMakeLists.txt
| |-- bbdoc
| | |-- CMakeLists.txt
| | `-- header.html.in
| `-- doxygen
| |-- CMakeLists.txt
| |-- DoxyMainPage.txt.in
| `-- Doxyfile.txt.in
`-- src
`-- CMakeLists.txt
You can then :
- Edit the root CMakeLists.txt file to customize your package build settings (see below)
- Put your c++/xml boxes sources in 'src'.
Please use the convention : If the name of your package is Pack and the name of your box is Box then name the source files bbPackBox.{h;cxx;xml}.
- Put your script-defined boxes (complex boxes) in 'bbs/boxes'.
Please use the convention : If the name of your box is 'Box' then call the file 'bbBox.bbs' to let others know that the script defines a complex black box type.
- Put your script-defined applications in 'bbs/appli'.
Please use the convention : Do not prepend 'bb' to the files.
- Put your data in 'data'.
Any data put there will be installed and accessible in your scripts :
the package data path is provided by the box
std::PrependPackageDataPath.
- You can customize the header of your package html doc by editing the file 'doc/bbdoc/header.html.in'. You must put html code in this file (or edit it with an html editor). You can include images or links to other html pages. The images and pages must be put in the folder 'doc/bbdoc' and will be properly installed. The same way, you can link to these images or pages in your boxes descriptions without giving any path. If you create subdirs for your material then you have to install the materials yourself by editing the CMakeLists.txt and links must use paths relative to 'doc/bbdoc'.
- You can customize the main page of your doxygen doc by editing the file 'doc/doxygen/DoxyMainPage.txt.in'.
2.2 Configuring the root CMakeLists.txt
First you must configure your new package build settings, by editing the file
CMakeLists.txt in the package root directory.
This file contains :
File CMakeLists.txt
#===========================================================================
# CMAKE SETTINGS FOR BUILDING A BBTK PACKAGE
#===========================================================================
#===========================================================================
# THE NAME OF THE BBTK PACKAGE
SET(BBTK_PACKAGE_NAME MyPackage)
#===========================================================================
#===========================================================================
# IF IT IS A STANDALONE PROJECT UNCOMMENT NEXT LINE TO DECLARE YOUR PROJECT
# PROJECT(bb${BBTK_PACKAGE_NAME})
#===========================================================================
#===========================================================================
# PACKAGE AUTHOR
# !!! NO COMMA ALLOWED !!!
SET(${BBTK_PACKAGE_NAME}_AUTHOR "myself")
#===========================================================================
#===========================================================================
# PACKAGE DESCRIPTION
SET(${BBTK_PACKAGE_NAME}_DESCRIPTION "The kinkiest stuff you ve ever seen.")
#===========================================================================
#===========================================================================
# PACKAGE VERSION NUMBER
SET(${BBTK_PACKAGE_NAME}_MAJOR_VERSION 1)
SET(${BBTK_PACKAGE_NAME}_MINOR_VERSION 0)
SET(${BBTK_PACKAGE_NAME}_BUILD_VERSION 0)
#===========================================================================
#===========================================================================
# UNCOMMENT EACH LIBRARY NEEDED (WILL BE FOUND AND USED AUTOMATICALLY)
# SET(${BBTK_PACKAGE_NAME}_USE_VTK ON)
# SET(${BBTK_PACKAGE_NAME}_USE_ITK ON)
# SET(${BBTK_PACKAGE_NAME}_USE_GDCM ON)
# SET(${BBTK_PACKAGE_NAME}_USE_GSMIS ON)
# SET(${BBTK_PACKAGE_NAME}_USE_WXWIDGETS ON)
#===========================================================================
#===========================================================================
# LIST HERE THE OTHER bbtk PACKAGES NEEDED
# (WILL BE FOUND AND USED AUTOMATICALLY)
SET(${BBTK_PACKAGE_NAME}_USE_PACKAGES
# std
# wx
# itk
# vtk
# ...
)
#===========================================================================
#===========================================================================
# THE SOURCES OF THE PACKAGE
# EITHER UNCOMMENT NEXT LINE TO COMPILE ALL .cxx OF THE src DIRECTORY :
SET(${BBTK_PACKAGE_NAME}_COMPILE_ALL_CXX ON)
# ... OR LIST THE FILES TO COMPILE MANUALLY :
#SET(${BBTK_PACKAGE_NAME}_SOURCES
# LIST HERE THE FILES TO COMPILE TO BUILD THE LIB
# E.G. TO COMPILE "toto.cxx" ADD "toto" (NO EXTENSION)
# THE PATH MUST BE RELATIVE TO THE src FOLDER
# )
#===========================================================================
#===========================================================================
# THE xml SOURCES OF THE PACKAGE
# EITHER UNCOMMENT NEXT LINE TO bbfy ALL .xml OF THE src DIRECTORY :
SET(${BBTK_PACKAGE_NAME}_COMPILE_ALL_XML ON)
# ... OR LIST THE FILES TO COMPILE MANUALLY :
#SET(${BBTK_PACKAGE_NAME}_XML_SOURCES
# LIST HERE THE FILES TO bbfy TO BUILD THE LIB
# E.G. TO bbfy "toto.xml" ADD "toto" (NO EXTENSION)
# THE PATH MUST BE RELATIVE TO THE src FOLDER
# )
#===========================================================================
#===========================================================================
# THE SCRIPT-DEFINED BOXES OF THE PACKAGE (bbs)
# EITHER UNCOMMENT NEXT LINE TO INCLUDE ALL .bbs OF THE bbs/boxes DIRECTORY :
SET(${BBTK_PACKAGE_NAME}_INCLUDE_ALL_BBS_BOXES ON)
# ... OR LIST THE FILES TO INCLUDE MANUALLY :
# SET(${BBTK_PACKAGE_NAME}_BBS_BOXES
# LIST HERE THE bbs FILES TO INCLUDE
# E.G. TO INCLUDE "boxes/bbtoto.bbs" ADD "boxes/bbtoto" (NO EXTENSION)
# !! THE PATH MUST BE RELATIVE TO THE bbs FOLDER !!
#)
#===========================================================================
#===========================================================================
# THE SCRIPT-DEFINED APPLICATIONS OF THE PACKAGE (bbs)
# EITHER UNCOMMENT NEXT LINE TO INCLUDE ALL .bbs OF THE bbs/appli DIRECTORY :
SET(${BBTK_PACKAGE_NAME}_INCLUDE_ALL_BBS_APPLI ON)
# ... OR LIST THE FILES TO INCLUDE MANUALLY :
# SET(${BBTK_PACKAGE_NAME}_BBS_APPLI
# LIST HERE THE bbs FILES TO INCLUDE
# E.G. TO INCLUDE "appli/testToto.bbs" ADD "appli/testToto" (NO EXTENSION)
# !! THE PATH MUST BE RELATIVE TO THE bbs FOLDER !!
#)
#===========================================================================
#===========================================================================
SET(${BBTK_PACKAGE_NAME}_INCLUDE_DIRS
# LIST HERE YOUR ADDITIONAL INCLUDE DIRECTORIES
# EXCEPT :
# - src
# - bbtk dirs
# - automatically handled libraries or packages : wx, vtk... (see above)
# - the dirs automatically set by other libraries found by FIND_PACKAGE
)
#===========================================================================
#===========================================================================
SET(${BBTK_PACKAGE_NAME}_LIBS
# LIST HERE THE ADDITIONAL LIBS TO LINK AGAINST
# EXCEPT : the same libs than for INCLUDE_DIRS
)
#===========================================================================
#===========================================================================
# IF NEEDED : UNCOMMENT NEXT LINE
# AND LIST ADDITIONNAL DIRECTORIES
# IN WHICH TO LOOK FOR LIBRARIES TO LINK AGAINST
# LINK_DIRECTORIES()
#===========================================================================
#===========================================================================
# SET TO TRUE TO HAVE INFORMATION ON LIBRARIES FOUND DURING CMAKE CONFIGURE
SET(FIND_PACKAGE_VERBOSE TRUE)
#===========================================================================
#===========================================================================
# END OF USER SECTION
#===========================================================================
#===========================================================================
# Include configuration script
INCLUDE(Configure.cmake)
#===========================================================================
#===========================================================================
# EOF
#===========================================================================
End of file
The comments in the file should be easily understandable !
In this file,
you can see some of the informations you supplied in previous step:
- The name of your package. This will be the name used to load it in bbi . The shared library however will be called bbname hence on
Linux the object file will be called libbbname.so
and on Windows it will be called bbname.dll.
- The author(s) of the package. Preferably provide e-mail adresses.
- A description of the package, which will appear in the help of your package or in its html documentation automatically generated by bbtk .
You can additionaly set :
- The version of the package.
- The libraries used by the package : vtk , itk , gdcm , gsmis , wxWidgets . The mecanisms to find these libraries, their sources and to link against them are automatically handled by the cmake files installed by bbCreatePackage . You just have to uncomment a line to use one of these libraries.
- The core bbtk packages used by the package as C++ libraries
(if you need to use the black boxes of these packages in your C++ code,
i.e. include some header and link with the library).
The mecanisms to find these libraries,
their sources and to link against them are automatically handled
by the cmake files installed by bbCreatePackage .
You just have to uncomment a line to use one of these libraries.
- The C++ sources of the package : you can list each input C++
file explicitly or tell cmake to include in the project all the C++ files
of the 'src' directory (default).
- The xml sources of the package : you can list each input xml
file explicitly or tell cmake to include in the project all the xml files
of the 'src' directory (default).
- The boxes bbs sources of the package : you can list each
input bbs
file explicitly or tell cmake to include in the project all
the bbs files of the 'bbs/boxes' directory (default, recommanded).
- The appli bbs sources of the package :
you can list each input bbs
file explicitly or tell cmake to include in the project all
the bbs files of the 'bbs/appli' directory (default, recommanded).
- Additional include directories. Set it if your package needs to include source files which are not in the package directory, typically if it depends on another library which is not one the libraries automatically handled (vtk , itk ...) and which you did not find with the
FIND_PACKAGE mechanism of cmake .
- Additional libraries to link against. Set it if your package needs to link against another library which is not one the libraries automatically handled (vtk , itk ...) and which you did not find with the
FIND_PACKAGE mechanism of cmake .
- Additional link directories in which to find libraries not
automatically handled and which you did not find with the
FIND_PACKAGE mechanism of cmake .
Of course, this is only a framework and you can add any other cmake commands
in the file.
3 Creating a new box
3.1 Principles
3.1.1 C++ or XML ?
There are two ways to create a new black box in an existing package :
- Write an xml description file which will be automatically
translated in C++ by the bbfy application during build (recommanded).
- Write the C++ code of the box using bbtk macros.
3.1.2 From which bbtk class inherit ?
Apart from the choice of the description langage to use,
there is an important choice to do concerning the implementation of the box.
In C++ , a black box is nothing but a class which has the standard
interface of all black boxes : what's its name ? inputs ? outputs ? and so on.
The abstract description of this interface is done in the class
bbtk::BlackBox of the bbtk library
and is implemented in its children classes :
bbtk::AtomicBlackBox and bbtk::WxBlackBox
1.
To create a new black box, you have to inherit one of these two
concrete classes in order to inherit the black box interface and a
particular implementation of this interface.
If your black box is a Widget black box,
that is a black box which has (or is)
a piece of a graphical interface based on the wxWidgets library,
then it must inherit the class bbtk::WxBlackBox.
Concretely, a bbtk::WxBlackBox is associated
a wxWindow and must be able to return a pointer to it.
If your black box is not a widget black box
(that is : doesn't returns a pointer to a wxWindow),
it must inherit from bbtk::AtomicBlackBox.
NOTE : modal dialogs
which are created and destroyed at the end of the process
method of the box are NOT WxBlackBoxes :
they do not return a wxWindow,
see the code of wx::FileSelector for example.
3.1.3 Inherit or encapsulate ?
Now, your black box will do something (hopefully !).
When you decide to write a new black box,
you should be in one of these three cases :
- You already have a C-like function which
does the processing that you wish to 'blackboxify' (bbfy in short).
- You already have a C++ class which
does the processing that you wish to 'blackboxify'
- You start from scratch without any existing code
The idea of The Black Box Toolkit is to embed processing codes into
C++ objects which have a standard and generic interface -
namely black boxes - to be able to chain arbitrary
processes afterwards.
In C++ , in order to embed an existing processing class
into a standard interface you only have two possibilities :
- Inherit the existing processing class
and the interface class (e.g. bbtk::AtomicBlackBox).
In this case you have to :
- make the link between the inputs and outputs of the black box
and the interface of the inherited class
- call the processing
method of the inherited class in the processing method of the black box.
- Encapsulate the existing processing class
in a class inherited from
the interface class (e.g. bbtk::AtomicBlackBox).
In this case you have to :
- declare an instance of the processing class
as a member of the black box,
- instantiate it at the right time
(either in the constructor or in the processing method of the black box)
- in the processing method of the black box :
- set the inputs of the member processing class with the inputs of the black box,
- call the processing method of the encapsulated class
- set the ouputs of the black box with the outputs of the encapsulated
class.
If you wish to 'blackboxify' a C-like function,
you do not have the choice, you can only use the second mechanism,
namely encapsulation.
Obviously, the inheritance mechanism is more powerfull
and - when it is possible to use it - it demands less effort
because, as we will see, in bbtk you can directly
link the accessors to the input and output data of the box
to the accessors of the inherited processing class,
as well as the procesing method of the black box
to the processing method of the inherited processing class,
very much like a callback mechanism.
3.1.4 Input and output accessors
When you encapsulate a processing class or a C function
or when you write down a black box from scratch,
you must access the inputs and outputs of the black box,
in order to interface it manually with your processing method
or simply write your processing code
(there are other cases in which you also need to access the
inputs and outputs, we will talk about them later).
The only thing you must know about the C++ code generated
from your xml or your C++ macro-based description
is that when you declare an input
or an output of a black box then
two accessors for this input or output are generated :
one to get the value of the input or output and
one to set it.
These accessors have normalized names :
- The declaration of an input called NAME and
of type TYPE generates the two accessors
2:
- void bbSetInput<NAME>(<TYPE>);
- <TYPE> bbGetInput<NAME>();
- The declaration of an output called NAME and
of type TYPE generates the two accessors:
- void bbSetOutput<NAME>(<TYPE>);
- <TYPE> bbGetOutput<NAME>();
For example, declaring an input called Image
would generate the two accessors bbSetInputImage and
bbGetInputImage.
Note that:
- All bbtk methods are prefixed by bb
to avoid conflicts with potential inherited methods.
- An input and an output can have the same name (e.g. 'Image').
No conflict between accessors occur (e.g.
four distinct accessors are created :
bbSetInputImage,
bbGetInputImage,
bbSetOutputImage and
bbGetOutputImage).
3.2 Generate the black box skeleton
The command line application bbCreateBlackBox
allows to create a skeleton C++ or xml files for a new black box.
It has a rather complex usage,
we recommand you use the graphical interface to it
which is accessible with bbStudio menu Tools > Create black box.

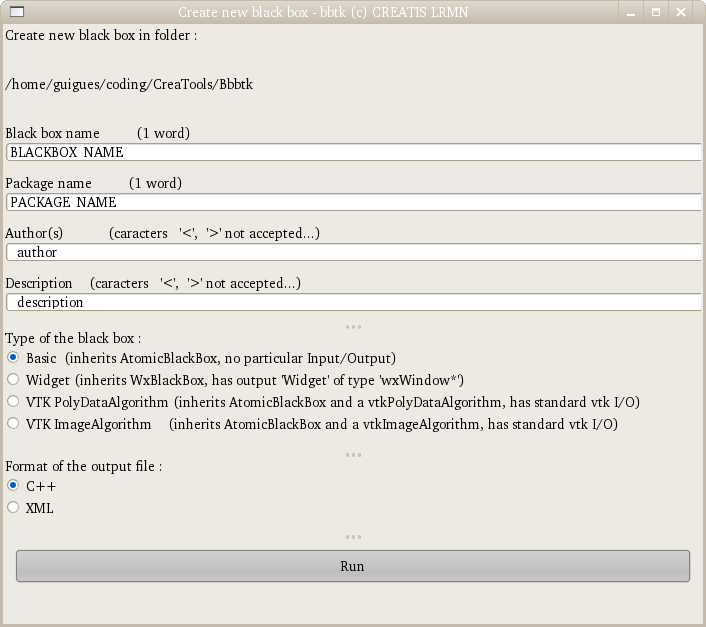

The interface looks like in fig. .
Figure 1:
Create Black Box interface
You will have to give :
- The name of the box
- The package to which the box belongs (can we do it automatically ? LG : think about it)
- The author(s) of the box
- A description of the box
- Its type, either
- Basic (inherits AtomicBlackBox, no particular Input/Output)
- Widget (inherits WxBlackBox, has output 'Widget' of type 'wxWindow*')
- VTK PolyDataAlgorithm (inherits AtomicBlackBox and a vtkPolyDataAlgorithm, has standard vtk I/O)
- VTK ImageAlgorithm (inherits AtomicBlackBox and a vtkImageAlgorithm, has standard vtk I/O)
- The output format of the file, either a C++ file or an XML file.
3.3 XML description of a box
3.3.1 General xml tags
Let us examine the xml file
describing the Add box of the std package :
File packages/std/src/bbAdd.xml
<?xml version="1.0" encoding="iso-8859-1"?>
<blackbox name="Add">
<author>laurent.guigues@creatis.insa-lyon.fr </author>
<description>Adds its inputs </description>
<category>math </category>
<input name="In1" type="double" description="First number to add"/>
<input name="In2" type="double" description="Second number to add"/>
<output name="Out" type="double" description="Result"/>
<process><PRE>
bbSetOutputOut( bbGetInputIn1() + bbGetInputIn2() );
</PRE></process>
<constructor><PRE>
bbSetInputIn1(0);
bbSetInputIn2(0);
bbSetOutputOut(0);
</PRE></constructor>
</blackbox>
End of file
The tags and their role are easily understandable.
As the box is not a widget, we inherit implicitely from
bbtk::AtomicBlackBox (the default).
The only part of the file which needs a bit of explaination is
the body of the process tag, which describes the
actual code to execute in the box.
This code must be enclosed in a <PRE></PRE> tag
to tell the xml parser not to interpret it as xml instructions.
This is necessary to be able to use any symbol,
like the < and > which have a
special meaning in xml .
In the case of the Add box, the process code
is very simple : remember that
bbGetInputIn1() is the
accessor to the input In1 declared above and
bbGetInputIn2() is the
accessor to the input In2;
the code simply adds the values of the two inputs
and sets the output Out with the resulting value.
To describe your own black boxes in xml code,
you must modify the xml file generated by bbCreateBlackBox :
- Complete the description and author tags if you feel like.
- Add the #include directives to be put in the generated .h file
- Create your inputs and outputs
- Fill in the process tag
- Fill in the constructor tag
- Fill in the copyconstructor tag
- Fill in the destructor tag
3.3.2 Writting new widget boxes in xml
See the example packages/wx/src/bbwxOutputText.xml
File packages/wx/src/bbwxOutputText.xml
<blackbox name="OutputText" widget>
<author>laurent.guigues at creatis.insa-lyon.fr</author>
<description>Text zone to be inserted into a window (wxStaticText)</description>
<category></category>
<input name="Title" type="std::string" description="Title prepended to the text"/>
<input name="In" type="std::string" description="Text"/>
<createwidget><PRE>
bbSetOutputWidget( new wxStaticText ( bbGetWxParent() , -1 , _T("") ) );
Process();
</PRE></createwidget>
<process><PRE>
std::string msg;
if (bbGetInputTitle()!="")
{
msg = bbGetInputTitle()+": " + bbGetInputIn();
}
else
{
msg = bbGetInputIn();
}
((wxStaticText*)bbGetOutputWidget())->SetLabel( bbtk::std2wx( msg ) );
</PRE></process>
<constructor><PRE>
bbSetInputIn("");
bbSetInputTitle("");
</PRE></constructor>
</blackbox>
End of file
Explainations:
- The attribute widget of the blackbox tag instructs
bbfy that the box inherits from bbtk::WxBlackBox.
- An output called 'Widget' of type wxWindow* is
automatically declared (you do not have to do it).
- The tag createwidget provides the body of the method which creates the widget. At the end of this method the output 'Widget' must
have been set with the newly created wxWindow.
Here we create a new wxStaticText.
The parent of the widget to create MUST BE the one provided by the method
bbGetWxParent() which returns a wxWindow*.
To update the static text after creation we simply call the Process
method.
- The body of the process method simply concatenates the
input 'Title' (if non empty) and the input 'In' and
updates the wxStaticText.
Remark that to get it, we use the bbGetOutputWidget() method
which returns a wxWindow* which we cast into a
wxStaticText* to use its specific method SetLabel.
More complex examples can be found in the package/wx/src folder.
3.3.3 Specific xml tags for vtkImageAlgorithm classes bbfication by inheritance
If you wish to bbfy a vtk object which is a vtkImageAlgorithm
(such as vtkImageGaussianSmooth, ImageAnisotropicDiffusion3D,
...) we recommand you do it in xml (you can have a look at the examples
in the vtk core package 'src' folder).
The bbfication mechanism is inheritance.
You have to add the attribute type="VTK_ImageAlgorithm"
to the blackbox tag :
<blackbox name="..." type="VTK_ImageAlgorithm">
You have to had an include tag which includes the vtk parent header, such as :
<include> vtkImageAnisotropicDiffusion3D.h </include>
You have to add the tag vtkparent which gives the vtk parent of the box, e.g.:
<vtkparent> vtkImageAnisotropicDiffusion3D </vtkparent>
The vtk algorithm input/ouput are wrapped directly using the
special attributes of the input and output tags.
A typical example is :
<input name="In" type="vtkImageData*" special="vtk input"
description="Input image"/>
<output name="Out" type="vtkImageData*" special="vtk output"
description="Output image"/>
The attribute special="vtk input" of the input 'In' definition
directly connects it to the input of the vtk object the box inherits.
No additional code is needed, the vtk object will directly receive
the value of this input.
The same mechanism hold for the output.
The parameters of the vtk object which are declared using
vtkSetMacro and vtkGetMacro can also be directly
wrapped using the attribute special="vtk parameter" of the input tag,
e.g. :
<input name="DiffusionThreshold" type="double" special="vtk parameter"
description="Difference threshold that stops diffusion"/>
The attribute special="vtk parameter"
of the input called DiffusionThreshold instructs bbfy to
directly call the SetDiffusionThreshold and
GetDiffusionThreshold
methods of the vtk parent when needed.
NOTE :
For this mechanism to work,
the name of the bbtk input MUST be the same than the name
of the vtk parent parameter.
No process method has to be given,
bbfy generates a process body for you, which simply calls the
Update() method of the vtk parent.
NOTE :
you can write your own process code which will overload
the default. Don't forget to call Update().
See packages/vtk/src/bbvtkConeSource.xml for an example.
3.3.4 Specific xml tags for vtkPolyDataAlgorithm classes bbfication by inheritance
If you wish to bbfy a vtk object which is a vtkPolyDataAlgorithm
(such as vtkConeSource, ...)
we recommand you do it in xml (you can have a look at the examples
in the vtk core package 'src' folder).
The bbfication mechanism is inheritance.
You must use the same xml tags and attributes than for wrapping a
vtkImageAlgorithm (see above) :
<blackbox name="..." type="VTK_PolyDataAlgorithm">
<vtkparent>the vtk Polydata class it inherits from</vtkparent>
<input name="..." type="vtkPolyData*" special="vtk input"
description="..."/>
<output name="..." type="vtkPolyData*" special="vtk output"
description="..."/>
<input name="..." type="double" special="vtk parameter"
description="..."/>
3.3.5 Specific xml tags for itk::ImageToImageFilter classes bbfication by inheritance
to be written...
3.3.6 bbfy xml tags reference
See tables ,
Table 1:
bbfy xml tags reference (part 1)
Tag | Attributes | Condition | Multiplicity | Description
|
<blackbox> | name | - | 1 | The name of the box |
| type | - | 1 | The type of the box. In:
{standard (default),
ITK_ImageToImageFilter,
VTK_ImageAlgorithm,
VTK_PolyDataAlgorithm} |
| generic | a) | 0-1 | Generate the generic filter (see text) |
| widget | - | 1 | If present then the box inherits from WxBlackBox
(AtomicBlackBox if absent)
|
<description> | - | - | 0-n | The description of the box. Multiple occurrence are concatenated |
<author> | - | - | 0-n | The author of the box. Multiple occurrence are concatenated |
<category> | - | - | 0-1 | The box category (if more than one, they are separated with commas) see Tab |
<namespace> | - | - | 0-1 | The namespace of the box.
Use bbPACKAGE, where PACKAGE is the name of the package |
<include> | - | - | 0-n | Additionnal file to include
(generates : #include 'value') |
<template> | - | - | 0-n | Template parameter of the box. The template parameter list is generated in the order of appearance of the tag. |
<itkparent> | - | a) | 1 | The parent itk class (with namespace) |
<vtkparent> | - | b) | 1 | The parent vtk class |
<input> | name | - | 1 | The name of the input |
| type | - | 1 | The type of the input |
| special | - | 0-1 | In: {'itk input',
'vtk input', 'itk parameter', 'vtk parameter'} (see below). |
| generic_type | c) | 0-1 | The "generic" type of the input (see text). |
Table 2:
bbfy xml tags reference (part 2)
Tag | Attributes | Condition | Multiplicity | Description
|
<output> | name | - | 1 | The name of the output |
| type | - | 1 | The type of the output |
| special | - | 0-1 | In: {'itk output',
'vtk output'} (see below). |
| generic_type | c) | 0-1 | The "generic" type of the output (see text). |
| nature | c) | 0-1 | The "nature" of the output (used for automatic GUI generation). |
<process> | - | - | 0-1 | The code of the processing method of the box. Must be put between clear tags : <PRE></PRE> |
<createwidget> | - | d) | 0-1 | The code of the widget creation
method of the box. Must be put between clear tags : <PRE></PRE>
|
<constructor> | - | - | 0-1 | The code of the user Constructor of the box (may contains default initialisations). Must be put between clear tags : <PRE></PRE> |
<copyconstructor> | - | - | 0-1 | The code of the user Copy Constructor of the box . Must be put between clear tags : <PRE></PRE> |
<destructor> | - | - | 0-1 | The code of the user Destructor of the box. Must be put between clear tags : <PRE></PRE> |
Table 3:
bbfy xml tags conditions
a) | <blackbox type == 'ITK_ImageToImageFilter'> |
b) | <blackbox type == 'VTK_ImageAlgorithm' or 'VTK_PolyDataAlgorithm'> |
c) | <blackbox type == 'ITK_ImageToImageFilter'> and
<blackbox generic> is present. |
d) | <blackbox widget> is present |
Table 4:
Black Box categories
Category name | : Meaning |
| |
adaptor | : Adaptor box |
application | : Final application, end user intended |
atomic box | : System category.
Automatically assigned to Atomic Black Boxes (c++ defined) |
complex box | : System category.
Automatically assigned to Complex Black Boxes (script defined) |
command line | : Script which defines a command line application (no embedded GUI, but command line imput parameters) |
demo | : Demonstration |
dicom | : DICOM aware box |
example | : Example script showing a box use-case |
filter | : Filtering box |
image | : Image processing related box |
math | : Mathematical operations |
mesh | : Mesh processing related box |
misc | : A box that cannot be put in other category ! |
read/write | : Box that read or write data from or to disk |
viewer | : Box which displays some data |
widget | : Piece of graphical interface |
3D object creator | : Sophisticated 3D widget |
toolsbbtk | : bbtk development tools (GUICreatePackage, GUICreateBlackBox,...) |
Table 5:
Black box kinds
Kind | Use as : |
| |
ADAPTOR | |
DEFAULT_ADAPTOR | |
WIDGET_ADAPTOR | |
DEFAULT_WIDGET_ADAPTOR | |
GUI | |
DEFAULT_GUI | |
ALL | If kind='ALL' then sets the level for all kinds |
Table 6:
Input/output natures
Nature | : Associated DEFAULT_GUI box |
| |
'file name' | wx::FileSelector |
'directory name' | wx::DirectorySelector |
'colour' | wx::ColourSelector |
.
.
.
.
.
3.4 C++ description of a box
Almost everything is performed using macros.
For a quick start, the best you have to do is to run bbStudio, then in the menu Tools, choose the item
Create black box, click on C++, and have a look to the generated files, or have a look at the source files of bbtk core packages.
3.4.1 Black box basic header file (.h)
Let's have a look at the file packages/std/bbstdMakeFileName.h
File packages/std/bbstdMakeFileName.h
#ifndef __bbstdMakeFileName_h_INCLUDED__
#define __bbstdMakeFileName_h_INCLUDED__
#include "bbtkAtomicBlackBox.h"
namespace bbstd
{
class MakeFileName : public bbtk::AtomicBlackBox
{
BBTK_BLACK_BOX_INTERFACE(MakeFileName,bbtk::AtomicBlackBox);
BBTK_DECLARE_INPUT(Directory, std::string);
BBTK_DECLARE_INPUT(File, std::string);
BBTK_DECLARE_INPUT(Extent, std::string);
BBTK_DECLARE_OUTPUT(Out, std::string);
BBTK_PROCESS(DoProcess);
void DoProcess();
protected:
virtual void bbUserConstructor();
};
BBTK_BEGIN_DESCRIBE_BLACK_BOX(MakeFileName,bbtk::AtomicBlackBox);
BBTK_NAME("MakeFileName");
BBTK_AUTHOR("jpr@creatis.insa-lyon.fr");
BBTK_CATEGORY("misc");
BBTK_DESCRIPTION("Makes a kosher file name");
BBTK_INPUT(MakeFileName,Directory,"Directory Name",std::string,
"directory name");
BBTK_INPUT(MakeFileName,File, "File Name", std::string,
"file name");
BBTK_INPUT(MakeFileName,Extent, "Extention", std::string,
"file extension");
BBTK_OUTPUT(MakeFileName,Out,"Full File Name",std::string,"file name");
BBTK_END_DESCRIBE_BLACK_BOX(MakeFileName);
}
// EO namespace bbstd
#endif // __bbstdMakeFileName_h_INCLUDED__
End of file
It includes bbtkAtomicBlackBox.h.
The box class is MakeFileName.
It inherits bbtk::AtomicBlackBox.
It is in the bbstd namespace :
each box of a given package, say PACK, must be inserted into
the namespace bbPACK.
The macro BBTK_BLACK_BOX_INTERFACE
declares the interface of the class : constructor, destructor,
standard methods (e.g. New), etc.
The following macros then declare inputs and outputs of the box,
with their types.
The macro BBTK_PROCESS then declares which method to call
when processing the box (the process callback).
The callback itself is declared just below.
The line virtual void bbUserConstructor(); then
overloads the virtual method bbUserConstructor
which is used to perform specific things at construction time.
You can also overload bbUserCopyConstructor
and bbUserDestructor with the same signature.
The black box interface macros are summarized in table
.
Table 7:
Black box interface C++ macros
|
BBTK_BLACK_BOX_INTERFACE(BOX_NAME,BBTK_PARENT) :
Yes, we know the bbtk parent is redundant with the inheritance list... That's why we allow you to describe your class in xml format!
|
BBTK_VTK_BLACK_BOX_INTERFACE(CLASS,BBTK_PARENT,VTK_PARENT) : Black box interface for vtk object inherited boxes
...
|
BBTK_ITK_BLACK_BOX_INTERFACE(CLASS,BBTK_PARENT,ITK_PARENT) : Black box interface for itk object inherited boxes
...
|
BBTK_DECLARE_INPUT (NAME,TYPE) : Declares an input of the box, with NAME : the input name (as it will appear to the users of your black box) and TYPE : C++ type of the input (e.g. double, std::string, vtkImageData*, ...).
|
BBTK_DECLARE_INHERITED_INPUT(NAME,TYPE,GETMETHOD,SETMETHOD) : Declares an input of the box which wraps the GETMETHOD / SETMETHOD accessors
|
BBTK_DECLARE_VTK_INPUT(NAME,TYPE) :
Declares a vtk object-inherited input
|
BBTK_DECLARE_VTK_IMAGE_ALGORITHM_INPUT(NAME,TYPE) : Declares a vtkImageAlgorithm-inherited input
|
BBTK_DECLARE_VTK_POLY_DATA_ALGORITHM_INPUT(NAME,TYPE) : Declares a vtkPolyDataAlgorithm-inherited input
|
BBTK_DECLARE_ITK_INPUT (NAME,TYPE) :
Declares a itk object-inherited input
|
BBTK_DECLARE_OUTPUT (NAME,TYPE) :
Declares an output of the box
|
BBTK_DECLARE_INHERITED_OUTPUT(NAME,TYPE,GETMETHOD,SETMETHOD) :
Declares an output of the box which wraps the GETMETHOD / SETMETHOD accessors
|
BBTK_DECLARE_VTK_OUTPUT(NAME,TYPE) :
Declares a vtk object-inherited output
|
BBTK_DECLARE_ITK_OUTPUT(NAME,TYPE) :
Declares a itk object-inherited output
|
BBTK_DECLARE_VTK_PARAM(VTK_PARENT,NAME,TYPE) :
Declares an input corresponding to an inherited vtk parameter
(you know, the ones that are declared by vtkSetMacro/vtkGetMacro). Its name must be the same than the vtk parameter name.
|
BBTK_DECLARE_ITK_PARAM(NAME,TYPE) :
Declares an input corresponding to an inherited itk parameter
|
BBTK_PROCESS(METHOD_NAME) :
Defines the method to call when the box is processed.
|
BBTK_VTK_PROCESS : Defines AND implements the default processing method for vtk
inherited black boxes (calls vtkParent::Update)
|
BBTK_ITK_PROCESS : Defines AND implements the default processing method for itk
inherited black boxes (calls itkParent::Update)
|
After the black box class declaration
then comes a zone in which you describe your black box,
between the macros BBTK_BEGIN_DESCRIBE_BLACK_BOX
and
BBTK_END_DESCRIBE_BLACK_BOX.
The macro BBTK_BEGIN_DESCRIBE_BLACK_BOX
actually starts the declaration of another class,
called BOXNAME Descriptor
(in our case MakeFileNameDescriptor).
The descriptor of a black box :
- has only one instance, which is stored in the package
- provides information about the box type (author, description, ...)
which is used for documentation.
- provides information about the box I/Os, mainly their types
(uses RTTI : std::type_info ).
- is responsible for creating new instances of the box it describes.
As you can see,
the macros which are between BBTK_BEGIN_DESCRIBE_BLACK_BOX
and BBTK_END_DESCRIBE_BLACK_BOX
provide the box name (the string),
its authors, description, category,
the descriptions of its inputs and outputs.
Black box descriptor related
are described in table .
Table 8:
Black box descriptor C++ macros
|
BBTK_BEGIN_DESCRIBE_BLACK_BOX(BOX_NAME,BBTK_PARENT) :
Yes, we know it's redundant with public inheritance ... That's why we allow you to describe your class in xml format!
All the following items will be used in the Help interface; describe them carefully (i.e. in a Human understandable way!).
|
BBTK_ADAPTOR : Declares that the box is an adaptor
|
BBTK_DEFAULT_ADAPTOR : Declares that the box is the default adaptor for its I/O types
|
BBTK_NAME(STRING) : The name of your box
|
BBTK_AUTHOR(STRING) : The author(s) (better you put e-mail adresses)
|
BBTK_DESCRIPTION(STRING) : Brief description of what does the box
|
BBTK_CATEGORY(STRING) : Box categories, semicolon separated (see table 4)
|
BBTK_INPUT(BOX_NAME,INPUT_NAME,DESCRIPTION,CPP_TYPE,INPUT_NATURE)
- BOX_NAME : The current black box name.
- INPUT_NAME : The input name
- DESCRIPTION (string) : A brief description of what the parameter is used for.
- CPP_TYPE : The C++ type of the input (e.g. double, std::string, vtkImageData*, ...)
- INPUT_NATURE : The 'nature' of the parameter (see table 6) if you wish your box may be used by automatic GUI generator.
Supply an empty string ("") if you don't care.
|
BBTK_OUTPUT(BOX_NAME,OUTPUT_NAME,DESCRIPTION,CPP_TYPE) : The same
|
BBTK_END_DESCRIBE_BLACK_BOX(BOX_NAME)
|
3.4.2 Black box basic implementation file (.cxx)
Now let's have a look at the file packages/std/bbstdMakeFileName.cxx
File packages/std/bbstdMakeFileName.cxx
#include "bbstdMakeFileName.h"
#include "bbstdPackage.h"
namespace bbstd
{
BBTK_ADD_BLACK_BOX_TO_PACKAGE(std,MakeFileName);
BBTK_BLACK_BOX_IMPLEMENTATION(MakeFileName,bbtk::AtomicBlackBox);
void MakeFileName::bbUserConstructor()
{
bbSetInputDirectory("");
bbSetInputFile("");
bbSetInputExtent("");
}
void MakeFileName::DoProcess()
{
...
}
}
// EO namespace bbstd
End of file
The first line includes the header file.
The second one includes the std package header file.
This file is automatically generated during cmake configuration :
for a package named PACK , cmake
creates the files bb PACK Package.h
and bb PACK Package.cxx.
The header is to be included in any box implementation file and
the second one is compiled in the package library.
The macro BBTK_ADD_BLACK_BOX_TO_PACKAGE
then registers the box MakeFileName into the package std.
The macro BBTK_BLACK_BOX_IMPLEMENTATION is the
mirror macro of the macro BBTK_BLACK_BOX_INTERFACE that
was used in the header : it implements the methods declared in the header.
We then need to write the body of bbUserConstrutor
and of the processing callback (here DoProcess).
That's all we need for a 'basic' black box.
The implementation related macros are summarized in table .
Table 9:
Black box implementation C++ macros
|
BBTK_ADD_BLACK_BOX_TO_PACKAGE(PACKAGE_NAME,BOX_NAME)
|
BBTK_BLACK_BOX_IMPLEMENTATION(BOX_NAME,BBTK_PARENT)
|
3.4.3 Widget black boxes C++ macros
See the example of package/wx/src/bbwxLayoutLine.h cxx.
The only differences with a non-widget black box are :
- The header must include bbtkWxBlackBox.h and
the class must inherit bbtk::WxBlackBox.
- The black box interface must declare the widget creation callback
with the macro BBTK_CREATE_WIDGET(CALLBACK).
The callback must be declared in the interface and implemented.
- You can overload the method void bbUserOnShow() which
is called just after the wxWindow has been shown, e.g.
to refresh its content. Note that Layout widget MUST
overload this method and call bbUserOnShowWidget(INPUT_NAME)
for all inputs which correspond to an 'embedded' window
(the 'Widget1' ... 'WidgetN' inputs,
see package/wx/src/bbwxLayoutLine.cxx)
3.4.4 VTK black boxes C++ macros
See the example of package/wx/src/bbvtkMarchingCubes.h cxx.
The macros are summarized in table 7.
3.4.5 Template black boxes C++ macros
You can write down black box classes templates.
However, only actual classes, that is instanciated templates,
can be inserted into a package.
The files package/std/src/bbstdStringTo.h cxx
provide an example of a class template with one template parameter.
The files package/std/src/bbstdCast.h cxx
provide an example of a class template with two template parameters.
Class templates related macros are summarized in table .
Table 10:
Black box templates-related C++ macros
|
BBTK_TEMPLATE_BLACK_BOX_INTERFACE(BOX_NAME,BBTK_PARENT, TEMPLATE_PARAMETER)
|
BBTK_TEMPLATE2_BLACK_BOX_INTERFACE(BOX_NAME,BBTK_PARENT, TEMPLATE_PARAMETER_1, TEMPLATE_PARAMETER_2)
|
BBTK_BEGIN_DESCRIBE_TEMPLATE_BLACK_BOX(BOX_NAME,BBTK_PARENT) : Note that in the descriptor, the template parameter name is T
|
BBTK_BEGIN_DESCRIBE_TEMPLATE2_BLACK_BOX(BOX_NAME,BBTK_PARENT) : Note that in the descriptor, the template parameters names are T1 and T2
|
BBTK_END_DESCRIBE_TEMPLATE_BLACK_BOX(BOX_NAME)
|
BBTK_END_DESCRIBE_TEMPLATE2_BLACK_BOX(BOX_NAME)
|
BBTK_TEMPLATE_INPUT(BOX_NAME,INPUT_NAME,DESCRIPTION,CPP_TYPE, INPUT_NATURE) : Same than for non-templates, except that the CPP_TYPE can be the template parameter.
|
BBTK_TEMPLATE2_INPUT(BOX_NAME,INPUT_NAME,DESCRIPTION,CPP_TYPE, INPUT_NATURE) : Same remark
|
BBTK_TEMPLATE_OUTPUT(BOX_NAME,OUTPUT_NAME,DESCRIPTION,CPP_TYPE) : Same remark
|
BBTK_TEMPLATE2_OUTPUT(BOX_NAME,OUTPUT_NAME,DESCRIPTION,CPP_TYPE) : Same remark
|
BBTK_BLACK_BOX_TEMPLATE_IMPLEMENTATION(BOX_NAME,BBTK_PARENT)
|
BBTK_BLACK_BOX_TEMPLATE2_IMPLEMENTATION(BOX_NAME,BBTK_PARENT)
|
BBTK_ADD_TEMPLATE_BLACK_BOX_TO_PACKAGE(PACKAGE_NAME,BOX_NAME, TEMPLATE_PARAMETER_VALUE) : Adds the black box template instanciated on a certain value of its template parameter to the package. You can put as many such lines with different template parameter values as you want (see e.g. package/std/src/bbstdStringTo.cxx)
|
BBTK_ADD_TEMPLATE2_BLACK_BOX_TO_PACKAGE(PACKAGE_NAME,BOX_NAME, TEMPLATE_PARAMETER_1_VALUE, TEMPLATE_PARAMETER_2_VALUE) :
The same for two template parameters (see e.g. package/std/src/bbstdCast.cxx)
|
|
IMPORTANT NOTE ON TEMPLATE BLACK BOXES NAMES:
Two different boxes registered in a package must have two different names.
Hence when using black box classes templates,
one must give different names to two instanciations of the template on
two different types.
This is typically done with inserting the template parameter type name in the
black box class name.
An example is provided in package/std/src/bbstdStringTo.h :
BBTK_BEGIN_DESCRIBE_TEMPLATE_BLACK_BOX(ToString,bbtk::AtomicBlackBox);
BBTK_NAME(bbtk::HumanTypeName<T>()+"ToString");
...
BBTK_END_DESCRIBE_TEMPLATE_BLACK_BOX(ToString);
To get the string corresponding to the name of a C++ type
(here the template parameter T)
one must use the template bbtk function bbtk::HumanTypeName<T>()
3.
It is then concatenated to the name ToString.
This thus gives the name IntToString to the black box ToString int ,
DoubleToString to the black box ToString double , etc.
You can also use bbtk::HumanTypeName<T>()
in the macro BBTK_DESCRIPTION, like for example:
BBTK_DESCRIPTION("Converts a "+bbtk::HumanTypeName<T>()+" ("
+bbtk::TypeName<T>()+") into a string");
3.4.6 ITK black boxes C++ macros
It is a special cas of black box templates with also
special macros for itk object inherited black boxes.
See the example of package/wx/src/bbitkBinaryThresholdImageFilter.h cxx,
the tables 7 and 10.
Note that
there is also a mechanism for making
"generic" untemplatized itk black boxes.
See the example in the file above.
Footnotes:
1all the classes of the bbtk library are in a namespace
called bbtk
and the C++ header of a class called NameOfAClass is
in the file called bbtkNameOfAClass.h
2For the sake of simplicity, the parameters and return value are
shown here as if they were all passed by value.
However the actual code can use references.
The same way, the issue of const or non const methods is eluded here.
Different cases occur in practice.
3HumanTypeName returns a human readable type name,
without special chars such as :: or . For example the
human readable type name of std::vector std::string is VectorOfString. The 'inhuman' type name is given
by the function bbtk::TypeName<T>().
File translated from
TEX
by
TTH,
version 3.81.
On 12 Nov 2008, 11:39.
