Descriptor of the structure of a Tree (number of levels, descriptors of each level, ...). More...

#include <creaImageIOTreeDescriptor.h>

Public Types
typedef std::vector < LevelDescriptor >	LevelDescriptorListType
	The type of LevelDescriptor container. More...

Public Member Functions
	Descriptor ()
	Ctor : creates the mandatory level 0 descriptor called "Root". More...

	~Descriptor ()
	Destructor. More...

void	LoadXML (const std::string &filename)
	Loads from a xml description file. More...

void	CreateDefault ()
	Creates the default descriptor. More...

unsigned int	GetNumberOfLevels ()
	Returns the number of levels of the tree. More...

const LevelDescriptor &	GetLevelDescriptor (int level) const
	Returns the LevelDescriptor of a given level (const ref) More...

const LevelDescriptor::AttributeDescriptorListType &	GetAttributeDescriptorList (int level, int type=0) const
	type = 1 without ID and PATIENT_ID More...

void	CopyAttributeDescriptorList (int level)
	Copy the AttributeDescriptorList without ID tag. More...

void	Add (const LevelDescriptor &)
	Adds a LevelDescriptor at the end of the list. More...

void	Add (const AttributeDescriptor &, int l)
	Adds an AttributeDescriptor to level l. More...

void	BuildAttributeMap (AttributeMapType &) const
	Builds the key to value map of all the attributes of the tree. More...

const LevelDescriptorListType &	GetLevelDescriptorList () const
	Returns the list of tree levels (const) More...

void	Clear ()
	Clears the Descriptor. More...

void	createDescriptorfromFile (const std::string &i_file)

const std::string	isExist (const std::string i_attr)

Private Member Functions
void	CreateLevel0Descriptor ()

Private Attributes
LevelDescriptorListType	mLevelDescriptorList

Detailed Description

Descriptor of the structure of a Tree (number of levels, descriptors of each level, ...).

Definition at line 49 of file creaImageIOTreeDescriptor.h.

Member Typedef Documentation

typedef std::vector<LevelDescriptor> creaImageIO::tree::Descriptor::LevelDescriptorListType

The type of LevelDescriptor container.

Definition at line 95 of file creaImageIOTreeDescriptor.h.

Constructor & Destructor Documentation

creaImageIO::tree::Descriptor::Descriptor ( )

Ctor : creates the mandatory level 0 descriptor called "Root".

Definition at line 57 of file creaImageIOTreeDescriptor.cpp.

References CreateLevel0Descriptor().

     {
       CreateLevel0Descriptor();
     }

Here is the call graph for this function:

creaImageIO::tree::Descriptor::~Descriptor ( )

Destructor.

Definition at line 64 of file creaImageIOTreeDescriptor.cpp.

65 {

66 }

Member Function Documentation

void creaImageIO::tree::Descriptor::Add ( const LevelDescriptor & d )

Adds a LevelDescriptor at the end of the list.

Definition at line 260 of file creaImageIOTreeDescriptor.cpp.

References mLevelDescriptorList.

Referenced by CreateDefault(), createDescriptorfromFile(), CreateLevel0Descriptor(), creaImageIO::SQLiteTreeHandler::DBCreate(), and creaImageIO::SQLiteTreeHandler::DBImportTreeDescription().

     {
       mLevelDescriptorList.push_back(d);
     }

Here is the caller graph for this function:

void creaImageIO::tree::Descriptor::Add	(	const AttributeDescriptor &	d,
		int	l
	)

Adds an AttributeDescriptor to level l.

Definition at line 268 of file creaImageIOTreeDescriptor.cpp.

References mLevelDescriptorList.

     {
       mLevelDescriptorList[l].Add(d);
       // TO DO : update DicomTagToName and NameToDicomTag map
     }

void creaImageIO::tree::Descriptor::BuildAttributeMap ( AttributeMapType & map ) const

Builds the key to value map of all the attributes of the tree.

Definition at line 286 of file creaImageIOTreeDescriptor.cpp.

References GetLevelDescriptorList().

Referenced by creaImageIO::TreeHandlerImageAdder::AddFile(), creaImageIO::Synchronizer::AttributesMatch(), and creaImageIO::TreeHandlerImageAdder::CheckAttributes().

     {
       map.clear();
       LevelDescriptorListType::const_iterator l;
       for (l = GetLevelDescriptorList().begin();
            l!= GetLevelDescriptorList().end();
            ++l)
         {
           LevelDescriptor::AttributeDescriptorListType::const_iterator a;
           for (a = l->GetAttributeDescriptorList().begin();
                a!= l->GetAttributeDescriptorList().end();
                ++a)
             {
               map[a->GetKey()]="";
             }
         }
     }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::tree::Descriptor::Clear ( )

Clears the Descriptor.

Definition at line 277 of file creaImageIOTreeDescriptor.cpp.

References mLevelDescriptorList.

Referenced by CreateDefault(), createDescriptorfromFile(), and creaImageIO::SQLiteTreeHandler::DBImportTreeDescription().

     {
       mLevelDescriptorList.clear();
     }

Here is the caller graph for this function:

void creaImageIO::tree::Descriptor::CopyAttributeDescriptorList ( int level )

inline

Copy the AttributeDescriptorList without ID tag.

Definition at line 79 of file creaImageIOTreeDescriptor.h.

Referenced by creaImageIO::tree::Tree::CopyAttributeDescriptorList().

           {
                   mLevelDescriptorList[level].CopyAttributeDescriptorList();
           }

Here is the caller graph for this function:

void creaImageIO::tree::Descriptor::CreateDefault ( )

Creates the default descriptor.

Definition at line 78 of file creaImageIOTreeDescriptor.cpp.

References Add(), Clear(), CreateLevel0Descriptor(), creaImageIO::tree::AttributeDescriptor::IDENTIFIER, and creaImageIO::tree::AttributeDescriptor::LABEL.

     {
       // clears the existing one
       Clear();

       // Creates the level 0 descriptor
       CreateLevel0Descriptor();
       // Creates the attribute "Name"
       Add(AttributeDescriptor("Name","Name",
                               AttributeDescriptor::LABEL),0);

       // Patient level
       Add(LevelDescriptor("Patient"));
       Add(AttributeDescriptor("NumberOfChildren","#Series",0),1);   // Number of Series
       Add(AttributeDescriptor(0x0010,0x0010,   // Patient name
                               AttributeDescriptor::LABEL),1);
       Add(AttributeDescriptor(0x0010,0x0040),1); // Patient sex
       Add(AttributeDescriptor(0x0010,0x0030),1); // Patient birthday
       Add(AttributeDescriptor(0x0010,0x0020,   // Patient ID
                               AttributeDescriptor::IDENTIFIER),1);

       // Study-series level
       Add(LevelDescriptor("Series"));
       Add(AttributeDescriptor("NumberOfChildren","#Images",0),2);   // Number of images
       Add(AttributeDescriptor(0x0008,0x0060,    // Modality
                               AttributeDescriptor::LABEL),2);
       Add(AttributeDescriptor(0x0008,0x1030),2); // Study Description
       Add(AttributeDescriptor(0x0008,0x103E),2); // Description
       Add(AttributeDescriptor(0x0008,0x0080),2); // Institution Name
       Add(AttributeDescriptor(0x0008,0x0081),2); // Institution Adress
       Add(AttributeDescriptor(0x0008,0x1010),2); // Station Name
       Add(AttributeDescriptor(0x0008,0x1048),2); // Physician of Record
       Add(AttributeDescriptor(0x0008,0x1050),2); // Performing Physician's Name
       Add(AttributeDescriptor(0x0018,0x1030),2); // Protocol Name

       Add(AttributeDescriptor(0x0020,0x0010),2); // Study ID
       Add(AttributeDescriptor(0x0008,0x0020),2); // Study Date
       Add(AttributeDescriptor(0x0008,0x0030),2); // Study Time
       Add(AttributeDescriptor(0x0008,0x0050),2); // Study Accession Number
       Add(AttributeDescriptor(0x0008,0x0005),2); // Specific character set
       Add(AttributeDescriptor(0x0008,0x0021),2); // Series Date
       Add(AttributeDescriptor(0x0008,0x0031),2); // Series time

       Add(AttributeDescriptor(0x0020,0x000D   // Study Instance UID
                                                     ),2);//AttributeDescriptor::IDENTIFIER),2);
       Add(AttributeDescriptor(0x0020,0x000E,   // Series Instance UID
                                 AttributeDescriptor::IDENTIFIER),2);
       // |
       //                        AttributeDescriptor::LABEL),2);


       // Image level
       Add(LevelDescriptor("Image"));

       Add(AttributeDescriptor(0x0020,0x0013),3); // Image Number

       Add(AttributeDescriptor(0x0028,0x0010),3); // Rows
       Add(AttributeDescriptor(0x0028,0x0011),3); // Columns
       Add(AttributeDescriptor(0x0028,0x0012),3); // Planes
       Add(AttributeDescriptor(0x0028,0x0002),3); // Sample per pixels
       Add(AttributeDescriptor(0x0028,0x0008),3); // Number of Frames
       Add(AttributeDescriptor(0x0028,0x0004),3); // Photometric Interpretation
       Add(AttributeDescriptor(0x0028,0x0103),3); // Pixel Representation

       Add(AttributeDescriptor(0x0020,0x0032),3); // Image Position Patient
       Add(AttributeDescriptor(0x0020,0x0037),3); // Image Orientation Patient
       Add(AttributeDescriptor(0x0020,0x1041),3); // Slice Location
       Add(AttributeDescriptor(0x0028,0x0006),3); // Planar Configuration

       Add(AttributeDescriptor(0x0028,0x0030),3); // Pixel Spacing
       Add(AttributeDescriptor(0x0028,0x0100),3); // AlocatedBits
       Add(AttributeDescriptor(0x0028,0x0101),3); // StoredBits

       Add(AttributeDescriptor(0x0008,0x0008),3); // Image Type
       Add(AttributeDescriptor(0x0008,0x0023),3); // Content Date
       Add(AttributeDescriptor(0x0008,0x0033),3); // Content Time

       Add(AttributeDescriptor(0x0020,0x4000),3); // Image Comments

       Add(AttributeDescriptor(0x0004,0x1500,   // File Name
                                 AttributeDescriptor::LABEL),3);
       Add(AttributeDescriptor(0x0028,0x1052),3); // Rescale Intercept
       Add(AttributeDescriptor(0x0028,0x1053),3); // Rescale Slope

       Add(AttributeDescriptor(0x0050,0x0004),3); // Calibration Image

       Add(AttributeDescriptor(0x0020,0x0052   // Frame Reference UID
                                            ),3);
       Add(AttributeDescriptor(0x0008,0x0016),3); // SOP Class UID
       Add(AttributeDescriptor("FullFileName",  // Full file name
                                 "Full file name",
                                 AttributeDescriptor::IDENTIFIER),3);

     }

Here is the call graph for this function:

void creaImageIO::tree::Descriptor::createDescriptorfromFile ( const std::string & i_file )

Definition at line 178 of file creaImageIOTreeDescriptor.cpp.

References Add(), and Clear().

Referenced by creaImageIO::Gimmick::createDB().

         {
                 Clear();

                 // read file and put in buffer
                 std::ifstream i_file(i_name.c_str());
                 std::stringstream buffer;
                 buffer << i_file.rdbuf();
                 std::string line;
                 bool bname;
                 int ilevel = -1;


                 while(std::getline(buffer, line))
                 {
                         if(line =="<level>")
                         {       //increment levels.
                                 ilevel++;
                                 bname = true;
                         }
                         else if(bname)
                         {
                                 // For each level, a name to describe it
                                 Add(LevelDescriptor(line));
                                 bname = false;
                         }
                         else if(line.empty()) // to avoid end line
                         {
                                 return;
                         }
                         else
                         {
                                 // split line to find all tags
                                 std::vector<std::string> descriptors;
                                 std::string separator = " ";
                                 std::string::size_type last_pos = line.find_first_not_of(separator);
                                 //find first separator
                                 std::string::size_type pos = line.find_first_of(separator, last_pos);
                                 while(std::string::npos != pos || std::string::npos != last_pos)
                                 {
                                         descriptors.push_back(line.substr(last_pos, pos - last_pos));
                                         last_pos = line.find_first_not_of(separator, pos);
                                         pos = line.find_first_of(separator, last_pos);
                                 }

                                 // By default, the last tag is at zero and not recorded but if take in count
                                 unsigned int flag = 0;
                                 if(descriptors.size() == 4)
                                 {
                                         std::stringstream val;
                                         val << std::dec << descriptors[3];
                                         val>> flag;
                                 }

                                 // if Dicom tag, use "group" and "element" descriptor
                                 if(descriptors[0] == "D")
                                 {       std::stringstream val, val2;
                                         unsigned short group;
                                         unsigned short element;
                                         val <<   std::dec << descriptors[1] ;
                                         val >> std::hex >> group;
                                         val2 << std::dec <<  descriptors[2];
                                         val2 >> std::hex >> element;
                                         Add(AttributeDescriptor( group,element,flag), ilevel);
                                 }

                                 else if(descriptors[0].find("#") != -1)
                                 {
                                         // commented line continue to next line
                                 }
                                 else
                                 {       boost::algorithm::replace_all(descriptors[2],"_"," ");
                                         Add(AttributeDescriptor( descriptors[1].c_str(),descriptors[2].c_str(),flag), ilevel);
                                 }
                         }
                 }
         }

Here is the call graph for this function:

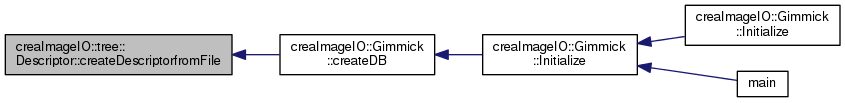

Here is the caller graph for this function:

void creaImageIO::tree::Descriptor::CreateLevel0Descriptor ( )

private

Creates the mandatory level 0 descriptor called "Root" (assumes the list is empty)

Definition at line 70 of file creaImageIOTreeDescriptor.cpp.

References Add().

Referenced by CreateDefault(), and Descriptor().

     {
       Add(LevelDescriptor("Root"));
     }

Here is the call graph for this function:

Here is the caller graph for this function:

const LevelDescriptor::AttributeDescriptorListType& creaImageIO::tree::Descriptor::GetAttributeDescriptorList	(	int	level,
		int	type = `0`
	)		const

inline

type = 1 without ID and PATIENT_ID

Returns the AttributeDescriptorList of a given level (const ref) type = 0 all attributes

Definition at line 74 of file creaImageIOTreeDescriptor.h.

References creaImageIO::tree::LevelDescriptor::GetAttributeDescriptorList().

Referenced by creaImageIO::tree::Tree::GetAttributeDescriptorList().

75 { return mLevelDescriptorList[level].GetAttributeDescriptorList(type); }

Here is the call graph for this function:

Here is the caller graph for this function:

const LevelDescriptor& creaImageIO::tree::Descriptor::GetLevelDescriptor ( int level ) const

inline

Returns the LevelDescriptor of a given level (const ref)

Definition at line 67 of file creaImageIOTreeDescriptor.h.

Referenced by creaImageIO::tree::Tree::GetLevelDescriptor().

68 { return mLevelDescriptorList[level]; }

Here is the caller graph for this function:

const LevelDescriptorListType& creaImageIO::tree::Descriptor::GetLevelDescriptorList ( ) const

inline

Returns the list of tree levels (const)

Definition at line 98 of file creaImageIOTreeDescriptor.h.

Referenced by BuildAttributeMap(), and isExist().

98 { return mLevelDescriptorList; }

Here is the caller graph for this function:

unsigned int creaImageIO::tree::Descriptor::GetNumberOfLevels ( )

inline

Returns the number of levels of the tree.

Definition at line 63 of file creaImageIOTreeDescriptor.h.

Referenced by creaImageIO::tree::Tree::GetNumberOfLevels().

64 { return (int)mLevelDescriptorList.size(); }

Here is the caller graph for this function:

const std::string creaImageIO::tree::Descriptor::isExist ( const std::string i_attr )

test if an attribute is present in DescriptionList return level's name

Definition at line 308 of file creaImageIOTreeDescriptor.cpp.

References GetLevelDescriptorList().

Referenced by creaImageIO::tree::Tree::isAttributeExist().

         {
                 std::string name = "";
                 LevelDescriptorListType::const_iterator l = GetLevelDescriptorList().begin();
                 for (;     l!= GetLevelDescriptorList().end(); ++l)
                 {
                         LevelDescriptor::AttributeDescriptorListType::const_iterator a = l->GetAttributeDescriptorList().begin();
                 for(;a!= l->GetAttributeDescriptorList().end(); ++a)
                         {
                                 if (a->GetKey() == i_attr)
                                 {
                                         name = l->GetName();
                                         break;
                                 }
                         }
                 }
                 return name.c_str();
         }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::tree::Descriptor::LoadXML ( const std::string & filename )

Loads from a xml description file.

Member Data Documentation

LevelDescriptorListType creaImageIO::tree::Descriptor::mLevelDescriptorList

private

Definition at line 112 of file creaImageIOTreeDescriptor.h.

Referenced by Add(), and Clear().

The documentation for this class was generated from the following files:

/home/davila/Creatis/All/creatools_source/creaImageIO/src/creaImageIOTreeDescriptor.h
/home/davila/Creatis/All/creatools_source/creaImageIO/src/creaImageIOTreeDescriptor.cpp

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
