gdcm::DocEntry Class Reference

The dicom header of a Dicom file contains a set of such entries (when successfuly parsed against a given Dicom dictionary). More...

#include <gdcmDocEntry.h>

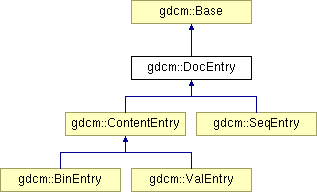

Inheritance diagram for gdcm::DocEntry:

gdcm::Base gdcm::ContentEntry gdcm::SeqEntry gdcm::BinEntry gdcm::ValEntry List of all members.

Public Member Functions

 DocEntry (DictEntry *)
 Constructor from a given DictEntry.

virtual ~DocEntry ()
 Canonical Destructor.

virtual void Print (std::ostream &os=std::cout, std::string const &indent="")
 Prints the common part of ValEntry, BinEntry, SeqEntry.

virtual void WriteContent (std::ofstream *fp, FileType filetype)
 Writes the common part of any ValEntry, BinEntry, SeqEntry.

DictEntry * GetDictEntry ()
 Gets the DicEntry of the current Dicom entry.

uint16_t GetGroup ()
 Returns the Dicom Group number of the current Dicom entry.

uint16_t GetElement ()
 Returns the Dicom Element number of the current Dicom entry.

void SetKey (TagKey const &key)
 Set the 'key' of the current Dicom entry.

std::string const & GetKey () const
 Returns the 'key' of the current Dicom entry.

std::string const & GetName () const
 Returns the 'Name' '(e.g. "Patient's Name") found in the Dicom Dictionnary of the current Dicom Header Entry.

std::string const & GetVR () const
 Returns the 'Value Representation' (e.g. "PN" : Person Name, "SL" : Signed Long), found in the Dicom header or in the Dicom Dictionnary, of the current Dicom entry.

std::string const & GetVM () const
 Returns the 'Value Multiplicity' (e.g. "1", "1-n", "6"), found in the Dicom entry or in the Dicom Dictionnary of the current Dicom entry.

void SetVM (TagName const &v)
 Sets the 'Value Multiplicity' of the current Dicom entry.

size_t GetOffset ()
 Returns offset (since the beginning of the file, including the File Preamble, if any) of the value of the current Dicom entry.

void SetReadLength (uint32_t l)
 Sets only 'Read Length' (*not* 'Usable Length') of the current Dicom entry.

uint32_t GetReadLength ()
 Returns the 'read length' of the current Dicom entry.

void SetLength (uint32_t l)
 Sets both 'Read Length' and 'Usable Length' of the current Dicom entry.

uint32_t GetLength ()
 Returns the actual value length of the current Dicom entry.

uint32_t GetFullLength ()
 Gets the full length of the elementary DocEntry (not only value length) depending on the VR.

void SetOffset (size_t of)
 Sets the offset of the Dicom entry.

void SetImplicitVR ()
 Sets to TRUE the ImplicitVr flag of the current Dicom entry.

bool IsImplicitVR ()
 Tells us if the current Dicom entry was checked as ImplicitVr.

bool IsVRUnknown ()
 Tells us if the VR of the current Dicom entry is Unknown.

bool IsVMUnknown ()
 Tells us if the VM of the current Dicom entry is Unknown.

bool IsItemDelimitor ()
 tells us if entry is the last one of a 'no length' SequenceItem (fffe,e00d)

bool IsSequenceDelimitor ()
 tells us if entry is the last one of a 'no length' Sequence (fffe,e0dd)

virtual void Copy (DocEntry *e)
 Copies all the attributes from an other DocEntry.

void SetPrintLevel (int level)
 Sets the print level for the Dicom Header Elements.

int GetPrintLevel ()
 Gets the print level for the Dicom Entries.


Protected Attributes

DictEntry * DicomDict
 pointer to the underlying Dicom dictionary element

uint32_t Length
 Correspond to the real length of the data This length might always be even.

uint32_t ReadLength
 Length to read in the file to obtain data.

bool ImplicitVR
 Even when reading explicit vr files, some elements happen to be implicit. Flag them here since we can't use the entry->vr without breaking the underlying dictionary.

size_t Offset
 Offset from the beginning of file for direct user access.

TagKey Key
 Generalized key of this DocEntry (for details on the generalized key refer to TagKey documentation).

int PrintLevel
 Amount of printed details for each Dicom Entries : 0 : stands for the least detail level.

Detailed Description

The dicom header of a Dicom file contains a set of such entries (when successfuly parsed against a given Dicom dictionary).

Definition at line 40 of file gdcmDocEntry.h.

Constructor & Destructor Documentation

gdcm::DocEntry::DocEntry (  DictEntry *  in  )


Constructor from a given DictEntry.

Parameters:
in Pointer to existing dictionary entry

Definition at line 40 of file gdcmDocEntry.cxx.

References DicomDict, ImplicitVR, Length, Offset, ReadLength, and SetKey().

00041 {
00042    ImplicitVR = false;
00043    DicomDict  = in;
00044    SetKey( in->GetKey( ) );
00045    Offset     = 0 ; // To avoid further missprinting
00046
00047    // init some variables
00048    ReadLength = 0;
00049    Length = 0;
00050 }

virtual gdcm::DocEntry::~DocEntry (   )  [inline, virtual]


Canonical Destructor.

Definition at line 45 of file gdcmDocEntry.h.

00045 {};

Member Function Documentation

void gdcm::DocEntry::Copy (  DocEntry *  doc  )  [virtual]


Copies all the attributes from an other DocEntry.

Parameters:
doc entry to copy from

Reimplemented in gdcm::ContentEntry.

Definition at line 193 of file gdcmDocEntry.cxx.

References ImplicitVR, Length, Offset, and ReadLength.

00194 {
00195    Length     = doc->Length;
00196    ReadLength = doc->ReadLength;
00197    ImplicitVR = doc->ImplicitVR;
00198    Offset     = doc->Offset;
00199 }

DictEntry* gdcm::DocEntry::GetDictEntry (   )  [inline]


Gets the DicEntry of the current Dicom entry.

Returns:
The DicEntry of the current Dicom entry

Definition at line 52 of file gdcmDocEntry.h.

Referenced by gdcm::FileHelper::CopyBinEntry(), gdcm::FileHelper::CopyValEntry(), gdcm::DocEntryArchive::Push(), and gdcm::FileHelper::SetWriteToLibido().

00052 { return DicomDict; };

uint16_t gdcm::DocEntry::GetElement (   )  [inline]


Returns the Dicom Element number of the current Dicom entry.

Definition at line 58 of file gdcmDocEntry.h.

Referenced by gdcm::SQItem::AddEntry(), gdcm::Document::ComputeGroup0002Length(), gdcm::Document::FixDocEntryFoundLength(), gdcm::Document::IsDocEntryAnInteger(), IsItemDelimitor(), IsSequenceDelimitor(), gdcm::Document::ParseDES(), gdcm::ValEntry::Print(), Print(), gdcm::Document::ReadNextDocEntry(), and WriteContent().

00058 { return DicomDict->GetElement();};

uint32_t gdcm::DocEntry::GetFullLength (   )


Gets the full length of the elementary DocEntry (not only value length) depending on the VR.

Definition at line 150 of file gdcmDocEntry.cxx.

References GetReadLength(), GetVR(), and IsImplicitVR().

00151 {
00152    uint32_t l = GetReadLength();
00153    if ( IsImplicitVR() )
00154    {
00155       l = l + 8;  // 2 (gr) + 2 (el) + 4 (lgth)
00156    }
00157    else
00158    {
00159       if ( GetVR()=="OB" || GetVR()=="OW" || GetVR()=="SQ" )
00160       {
00161          l = l + 12; // 2 (gr) + 2 (el) + 2 (vr) + 2 (unused) + 4 (lgth)
00162       }
00163       else
00164       {
00165          l = l + 8;  // 2 (gr) + 2 (el) + 2 (vr) + 2 (lgth)
00166       }
00167    }
00168    return l;
00169 }

uint16_t gdcm::DocEntry::GetGroup (   )  [inline]


Returns the Dicom Group number of the current Dicom entry.

Definition at line 55 of file gdcmDocEntry.h.

Referenced by gdcm::SQItem::AddEntry(), gdcm::Document::ComputeGroup0002Length(), gdcm::Document::FixDocEntryFoundLength(), gdcm::Document::IsDocEntryAnInteger(), IsItemDelimitor(), IsSequenceDelimitor(), gdcm::Document::LoadDocEntry(), gdcm::Document::ParseDES(), gdcm::ValEntry::Print(), Print(), gdcm::Document::ReadNextDocEntry(), gdcm::Document::SkipToNextDocEntry(), gdcm::ValEntry::WriteContent(), WriteContent(), and gdcm::BinEntry::WriteContent().

00055 { return DicomDict->GetGroup();  };

std::string const& gdcm::DocEntry::GetKey (   )  const [inline]


Returns the 'key' of the current Dicom entry.

Definition at line 63 of file gdcmDocEntry.h.

Referenced by gdcm::ElementSet::AddEntry(), gdcm::Document::ParseDES(), gdcm::Document::ParseSQ(), gdcm::SQItem::RemoveEntry(), gdcm::ElementSet::RemoveEntry(), gdcm::SQItem::RemoveEntryNoDestroy(), and gdcm::ElementSet::RemoveEntryNoDestroy().

00063 { return Key; }

uint32_t gdcm::DocEntry::GetLength (   )  [inline]


Returns the actual value length of the current Dicom entry.

Warning:
this value is not *always* the one stored in the Dicom header in case of well knowned bugs

Definition at line 102 of file gdcmDocEntry.h.

Referenced by gdcm::File::AnonymizeNoLoad(), gdcm::Document::ComputeGroup0002Length(), gdcm::Document::GetDocEntryValue(), gdcm::DocEntrySet::GetEntryLength(), gdcm::File::GetPixelAreaLength(), gdcm::Document::IsDocEntryAnInteger(), gdcm::Document::LoadDocEntry(), gdcm::Document::LoadEntryBinArea(), gdcm::ValEntry::Print(), gdcm::BinEntry::Print(), gdcm::Document::SkipDocEntry(), gdcm::ValEntry::WriteContent(), WriteContent(), and gdcm::BinEntry::WriteContent().

00102 { return Length; };

std::string const& gdcm::DocEntry::GetName (   )  const [inline]


Returns the 'Name' '(e.g. "Patient's Name") found in the Dicom Dictionnary of the current Dicom Header Entry.

Definition at line 67 of file gdcmDocEntry.h.

Referenced by Print().

00067 { return DicomDict->GetName(); };

size_t gdcm::DocEntry::GetOffset (   )  [inline]


Returns offset (since the beginning of the file, including the File Preamble, if any) of the value of the current Dicom entry.

Warning:
offset of the *value*, not of the Dicom entry

Definition at line 85 of file gdcmDocEntry.h.

Referenced by gdcm::File::AnonymizeNoLoad(), gdcm::File::File(), gdcm::File::GetPixelOffset(), gdcm::Document::LoadDocEntry(), gdcm::Document::LoadEntryBinArea(), gdcm::Document::ParseDES(), Print(), gdcm::SeqEntry::SeqEntry(), and gdcm::Document::SkipToNextDocEntry().

00085 { return Offset; };

int gdcm::Base::GetPrintLevel (   )  [inline, inherited]


Gets the print level for the Dicom Entries.

Definition at line 48 of file gdcmBase.h.

00048 { return PrintLevel; };

uint32_t gdcm::DocEntry::GetReadLength (   )  [inline]


Returns the 'read length' of the current Dicom entry.

Warning:
this value is the one stored in the Dicom header but not mandatoryly the one thats's used (in case on SQ, or delimiters, the usable length is set to zero)

Definition at line 94 of file gdcmDocEntry.h.

Referenced by GetFullLength(), gdcm::Document::ParseDES(), gdcm::Document::ParseSQ(), gdcm::SeqEntry::Print(), Print(), and gdcm::Document::SkipToNextDocEntry().

00094 { return ReadLength; };

std::string const& gdcm::DocEntry::GetVM (   )  const [inline]


Returns the 'Value Multiplicity' (e.g. "1", "1-n", "6"), found in the Dicom entry or in the Dicom Dictionnary of the current Dicom entry.

Definition at line 77 of file gdcmDocEntry.h.

00077 { return DicomDict->GetVM(); };

std::string const& gdcm::DocEntry::GetVR (   )  const [inline]


Returns the 'Value Representation' (e.g. "PN" : Person Name, "SL" : Signed Long), found in the Dicom header or in the Dicom Dictionnary, of the current Dicom entry.

Definition at line 72 of file gdcmDocEntry.h.

Referenced by gdcm::Document::ComputeGroup0002Length(), gdcm::FileHelper::CopyBinEntry(), gdcm::File::File(), gdcm::Document::FixDocEntryFoundLength(), gdcm::Document::GetDocEntryUnvalue(), gdcm::Document::GetDocEntryValue(), gdcm::DocEntrySet::GetEntryVR(), GetFullLength(), gdcm::DocEntrySet::InsertBinEntry(), gdcm::DocEntrySet::InsertValEntry(), gdcm::Document::IsDocEntryAnInteger(), gdcm::Document::LoadDocEntry(), gdcm::Document::ParseDES(), gdcm::ValEntry::Print(), Print(), gdcm::ValEntry::SetValue(), gdcm::ValEntry::WriteContent(), WriteContent(), and gdcm::BinEntry::WriteContent().

00072 { return DicomDict->GetVR(); };

bool gdcm::DocEntry::IsImplicitVR (   )  [inline]


Tells us if the current Dicom entry was checked as ImplicitVr.

Returns:
true if the current Dicom entry was checked as ImplicitVr

Definition at line 117 of file gdcmDocEntry.h.

References gdcm::ImplicitVR.

Referenced by gdcm::Document::GetDocEntryUnvalue(), gdcm::Document::GetDocEntryValue(), GetFullLength(), and gdcm::SeqEntry::SeqEntry().

00117 { return ImplicitVR; };

bool gdcm::DocEntry::IsItemDelimitor (   )


tells us if entry is the last one of a 'no length' SequenceItem (fffe,e00d)

Definition at line 175 of file gdcmDocEntry.cxx.

References GetElement(), and GetGroup().

Referenced by gdcm::Document::ParseDES().

00176 {
00177    return (GetGroup() == 0xfffe && GetElement() == 0xe00d);
00178 }

bool gdcm::DocEntry::IsSequenceDelimitor (   )


tells us if entry is the last one of a 'no length' Sequence (fffe,e0dd)

Definition at line 184 of file gdcmDocEntry.cxx.

References GetElement(), and GetGroup().

Referenced by gdcm::Document::ParseSQ().

00185 {
00186    return (GetGroup() == 0xfffe && GetElement() == 0xe0dd);
00187 }

bool gdcm::DocEntry::IsVMUnknown (   )  [inline]


Tells us if the VM of the current Dicom entry is Unknown.

Returns:
true if the VM is unknown

Definition at line 125 of file gdcmDocEntry.h.

00125 { return DicomDict->IsVMUnknown(); };

bool gdcm::DocEntry::IsVRUnknown (   )  [inline]


Tells us if the VR of the current Dicom entry is Unknown.

Returns:
true if the VR is unknown

Definition at line 121 of file gdcmDocEntry.h.

00121 { return DicomDict->IsVRUnknown(); };

void gdcm::DocEntry::Print (  std::ostream &  os = std::cout,
std::string const &  indent = ""
)  [virtual]


Prints the common part of ValEntry, BinEntry, SeqEntry.

Parameters:
os ostream we want to print in
indent Indentation string to be prepended during printing

Reimplemented from gdcm::Base.

Reimplemented in gdcm::BinEntry, gdcm::SeqEntry, and gdcm::ValEntry.

Definition at line 214 of file gdcmDocEntry.cxx.

References gdcm::GDCM_UNKNOWN, GetElement(), GetGroup(), GetName(), GetOffset(), GetReadLength(), GetVR(), and gdcm::TSKey.

Referenced by gdcm::SQItem::Print(), gdcm::SeqEntry::Print(), and gdcm::ElementSet::Print().

00215 {
00216    size_t o;
00217    std::string st;
00218    TSKey v;
00219    std::string d2, vr;
00220    std::ostringstream s;
00221    uint32_t lgth;
00222
00223    o  = GetOffset();
00224    vr = GetVR();
00225    if(vr==GDCM_UNKNOWN)
00226       vr="  ";
00227
00228    s << DictEntry::TranslateToKey(GetGroup(),GetElement());
00229
00230    if (PrintLevel >= 2)
00231    {
00232       s << " lg : ";
00233       lgth = GetReadLength(); // ReadLength, as opposed to Length
00234       if (lgth == 0xffffffff)
00235       {
00236          st = Util::Format("x(ffff)");  // I said : "x(ffff)" !
00237          s.setf(std::ios::left);
00238          s << std::setw(10-st.size()) << " ";
00239          s << st << " ";
00240          s.setf(std::ios::left);
00241          s << std::setw(8) << "-1";
00242       }
00243       else
00244       {
00245          st = Util::Format("x(%x)",lgth);
00246          s.setf(std::ios::left);
00247          s << std::setw(10-st.size()) << " ";
00248          s << st << " ";
00249          s.setf(std::ios::left);
00250          s << std::setw(8) << lgth;
00251       }
00252       s << " Off.: ";
00253       st = Util::Format("x(%x)",o);
00254       s << std::setw(10-st.size()) << " ";
00255       s << st << " ";
00256       s << std::setw(8) << o;
00257    }
00258
00259    s << "[" << vr  << "] ";
00260
00261    if (PrintLevel >= 1)
00262    {
00263       s.setf(std::ios::left);
00264       s << std::setw(66-GetName().length()) << " ";
00265    }
00266
00267    s << "[" << GetName()<< "]";
00268    os << s.str();
00269 }

void gdcm::DocEntry::SetImplicitVR (   )  [inline]


Sets to TRUE the ImplicitVr flag of the current Dicom entry.

Definition at line 113 of file gdcmDocEntry.h.

References gdcm::ImplicitVR.

Referenced by gdcm::Document::ReadNextDocEntry().

00113 { ImplicitVR = true; };

void gdcm::DocEntry::SetKey (  TagKey const &  key  )  [inline]


Set the 'key' of the current Dicom entry.

Definition at line 61 of file gdcmDocEntry.h.

References gdcm::TagKey.

Referenced by DocEntry(), and gdcm::Document::ParseDES().

00061 { Key = key; }

void gdcm::DocEntry::SetLength (  uint32_t  l  )  [inline]


Sets both 'Read Length' and 'Usable Length' of the current Dicom entry.

Definition at line 98 of file gdcmDocEntry.h.

Referenced by gdcm::Document::FixDocEntryFoundLength(), gdcm::DocEntrySet::SetBinEntry(), gdcm::ValEntry::SetValue(), gdcm::FileHelper::SetWriteToRaw(), and gdcm::FileHelper::SetWriteToRGB().

00098 { Length = l; };

void gdcm::DocEntry::SetOffset (  size_t  of  )  [inline]


Sets the offset of the Dicom entry.

Warning:
use with caution !
Parameters:
of offset to be set

Definition at line 110 of file gdcmDocEntry.h.

Referenced by gdcm::DicomDirObject::FillObject(), gdcm::Document::ReadNextDocEntry(), and gdcm::DicomDir::SetElement().

00110 { Offset = of; };

void gdcm::Base::SetPrintLevel (  int  level  )  [inline, inherited]


Sets the print level for the Dicom Header Elements.

Note:
0 for Light Print; 1 for 'medium' Print, 2 for Heavy

Definition at line 45 of file gdcmBase.h.

Referenced by gdcm::SQItem::Print(), gdcm::SeqEntry::Print(), gdcm::FileHelper::Print(), gdcm::ElementSet::Print(), and gdcm::DicomDir::Print().

00045 { PrintLevel = level; };

void gdcm::DocEntry::SetReadLength (  uint32_t  l  )  [inline]


Sets only 'Read Length' (*not* 'Usable Length') of the current Dicom entry.

Definition at line 89 of file gdcmDocEntry.h.

Referenced by gdcm::Document::FixDocEntryFoundLength().

00089 { ReadLength = l; };

void gdcm::DocEntry::SetVM (  TagName const &  v  )  [inline]


Sets the 'Value Multiplicity' of the current Dicom entry.

Definition at line 80 of file gdcmDocEntry.h.

References gdcm::TagName.

00080 { DicomDict->SetVM(v); };

void gdcm::DocEntry::WriteContent (  std::ofstream *  fp,
FileType  filetype
)  [virtual]


Writes the common part of any ValEntry, BinEntry, SeqEntry.

Parameters:
fp already open ofstream pointer
filetype type of the file (ACR, ImplicitVR, ExplicitVR, ...)

Reimplemented in gdcm::BinEntry, gdcm::ContentEntry, gdcm::SeqEntry, and gdcm::ValEntry.

Definition at line 59 of file gdcmDocEntry.cxx.

References gdcm::binary_write(), gdcm::ExplicitVR, gdcm::GDCM_UNKNOWN, gdcmAssertMacro, GetElement(), GetGroup(), GetLength(), GetVR(), and gdcm::VRKey.

00060 {
00061    uint32_t ffff  = 0xffffffff;
00062    uint16_t group = GetGroup();
00063    VRKey vr       = GetVR();
00064    uint16_t el    = GetElement();
00065    uint32_t lgth  = GetLength();
00066
00067    if ( group == 0xfffe && el == 0x0000 )
00068    {
00069      // Fix in order to make some MR PHILIPS images e-film readable
00070      // see gdcmData/gdcm-MR-PHILIPS-16-Multi-Seq.dcm:
00071      // we just *always* ignore spurious fffe|0000 tag !
00072       return;
00073    }
00074    //
00075    // ----------- Writes the common part
00076    //
00077    binary_write( *fp, group); //group number
00078    binary_write( *fp, el);    //element number
00079
00080    if ( filetype == ExplicitVR )
00081    {
00082       // Special case of delimiters:
00083       if (group == 0xfffe)
00084       {
00085          // Delimiters have NO Value Representation
00086          // Hence we skip writing the VR.
00087          // In order to avoid further troubles, we choose to write them
00088          // as 'no-length' Item Delimitors (we pad by writing 0xffffffff)
00089          // We shall force the end of a given Item by writting
00090          //  a Item Delimitation Item (fffe, e00d)
00091
00092          uint32_t ff = 0xffffffff;
00093          binary_write(*fp, ff);
00094          return;
00095       }
00096
00097       uint16_t z = 0;
00098       uint16_t shortLgr = lgth;
00099
00100       if (vr == GDCM_UNKNOWN)
00101       {
00102          // Unknown was 'written'
00103          // deal with Little Endian
00104          binary_write(*fp, shortLgr);
00105          binary_write(*fp, z);
00106       }
00107       else
00108       {
00109          binary_write(*fp, vr);
00110          gdcmAssertMacro( vr.size() == 2 );
00111
00112          if ( (vr == "OB") || (vr == "OW") || (vr == "SQ") || (vr == "UN") )
00113          {
00114             binary_write(*fp, z);
00115             if (vr == "SQ")
00116             {
00117                // we set SQ length to ffffffff
00118                // and  we shall write a Sequence Delimitor Item
00119                // at the end of the Sequence!
00120                binary_write(*fp, ffff);
00121             }
00122             else
00123             {
00124                binary_write(*fp, lgth);
00125             }
00126          }
00127          else
00128          {
00129             binary_write(*fp, shortLgr);
00130          }
00131       }
00132    }
00133    else // IMPLICIT VR
00134    {
00135       if (vr == "SQ")
00136       {
00137          binary_write(*fp, ffff);
00138       }
00139       else
00140       {
00141          binary_write(*fp, lgth);
00142       }
00143    }
00144 }

Member Data Documentation

DictEntry* gdcm::DocEntry::DicomDict [protected]


pointer to the underlying Dicom dictionary element

Definition at line 134 of file gdcmDocEntry.h.

Referenced by DocEntry().

bool gdcm::DocEntry::ImplicitVR [protected]


Even when reading explicit vr files, some elements happen to be implicit. Flag them here since we can't use the entry->vr without breaking the underlying dictionary.

Definition at line 146 of file gdcmDocEntry.h.

Referenced by Copy(), DocEntry(), and gdcm::SeqEntry::SeqEntry().

TagKey gdcm::DocEntry::Key [protected]


Generalized key of this DocEntry (for details on the generalized key refer to TagKey documentation).

Definition at line 153 of file gdcmDocEntry.h.

uint32_t gdcm::DocEntry::Length [protected]


Correspond to the real length of the data This length might always be even.

Definition at line 138 of file gdcmDocEntry.h.

Referenced by Copy(), and DocEntry().

size_t gdcm::DocEntry::Offset [protected]


Offset from the beginning of file for direct user access.

Definition at line 149 of file gdcmDocEntry.h.

Referenced by Copy(), and DocEntry().

int gdcm::Base::PrintLevel [protected, inherited]


Amount of printed details for each Dicom Entries : 0 : stands for the least detail level.

Definition at line 53 of file gdcmBase.h.

Referenced by gdcm::Base::Base().

uint32_t gdcm::DocEntry::ReadLength [protected]


Length to read in the file to obtain data.

Definition at line 141 of file gdcmDocEntry.h.

Referenced by Copy(), and DocEntry().

The documentation for this class was generated from the following files:
Generated on Thu Feb 10 22:17:41 2005 for gdcm by doxygen 1.3.6
