bbtk::ComplexBlackBoxOutputDescriptor Class Reference

Structure containing the description of a ComplexBlackBox output (name, description, type, mapping). More...

#include <bbtkComplexBlackBoxOutputDescriptor.h>

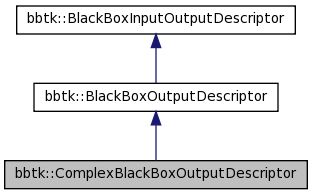

Inheritance diagram for bbtk::ComplexBlackBoxOutputDescriptor:

Collaboration diagram for bbtk::ComplexBlackBoxOutputDescriptor:

List of all members.

Public Member Functions

ComplexBlackBoxOutputDescriptor (TypeInfo creator_type_info, const std::string &name, const std::string &description, const std::string &nature, const std::string &target, const std::string &output, TypeInfo type)

~ComplexBlackBoxOutputDescriptor ()

TypeInfo GetTypeInfo () const

Returns the type of the output.

std::string GetTypeName () const

Returns the name of the type of the output.

std::string GetHumanTypeName () const

Returns the name of the type of the output.

bool IsPointerType () const

Returns true iff the type is a pointer to class.

const std::string & GetTarget () const

Returns the target black box.

const std::string & GetOutput () const

Returns the output.

TypeInfo GetCreatorTypeInfo () const

Returns the TypeInfo of the BlackBoxDescriptor which created this descriptor.

const std::string & GetName () const

Returns the name of the in/output.

const std::string & GetDescription () const

Returns the description of the in/output.

const std::string & GetNature () const

Returns the nature of the in/output.

virtual DataInfo GetDataInfo () const

Returns the DataInfo of the input (Type+Nature).

bool GetCopyConstruct () const

Private Member Functions

ComplexBlackBoxOutputDescriptor ()

Default ctor is private.

Private Attributes

std::string mTarget

std::string mOutput

TypeInfo mType

Detailed Description

Structure containing the description of a ComplexBlackBox output (name, description, type, mapping).

Definition at line 51 of file bbtkComplexBlackBoxOutputDescriptor.h.

Constructor & Destructor Documentation

bbtk::ComplexBlackBoxOutputDescriptor::ComplexBlackBoxOutputDescriptor	(	TypeInfo	creator_type_info,
		const std::string &	name,
		const std::string &	description,
		const std::string &	nature,
		const std::string &	target,
		const std::string &	output,
		TypeInfo	type
	)

Definition at line 43 of file bbtkComplexBlackBoxOutputDescriptor.cxx.

References bbtkDebugMessage.

00050     :
00051     BlackBoxOutputDescriptor(creator_type_info,name,description,nature),
00052     mTarget(target),
00053     mOutput(output),
00054     mType(type)
00055   {
00056
00057     bbtkDebugMessage("kernel",9,"ComplexBlackBoxOutputDescriptor(\""<<name<<"\",\""<<description<<"\",\""<<target<<"\",\""<<output<<"\")"<<std::endl);
00058   }

bbtk::ComplexBlackBoxOutputDescriptor::~ComplexBlackBoxOutputDescriptor ( )

Definition at line 64 of file bbtkComplexBlackBoxOutputDescriptor.cxx.

References bbtkDebugMessage, and bbtk::BlackBoxInputOutputDescriptor::GetName().

00065   {
00066     bbtkDebugMessage("kernel",9,"~ComplexBlackBoxOutputDescriptor(\""
00067                      <<GetName()<<"\")"<<std::endl);
00068   }

Here is the call graph for this function:

bbtk::ComplexBlackBoxOutputDescriptor::ComplexBlackBoxOutputDescriptor ( ) [inline, private]

Default ctor is private.

Definition at line 83 of file bbtkComplexBlackBoxOutputDescriptor.h.

00083                                       :
00084       BlackBoxOutputDescriptor(typeid(void),"","",""),
00085       mType(typeid(void))  {}

Member Function Documentation

bool bbtk::BlackBoxInputOutputDescriptor::GetCopyConstruct ( ) const [inline, inherited]

Returns true iff the in/output must be copied by the copy constructor of the box

Definition at line 91 of file bbtkBlackBoxInputOutputDescriptor.h.

00091 { return mCopyConstruct; }

TypeInfo bbtk::BlackBoxInputOutputDescriptor::GetCreatorTypeInfo ( ) const [inline, inherited]

Returns the TypeInfo of the BlackBoxDescriptor which created this descriptor.

Definition at line 71 of file bbtkBlackBoxInputOutputDescriptor.h.

Referenced by bbtk::Interpreter::commandNewGUI().

00071 { return mCreatorTypeInfo; }

Here is the caller graph for this function:

virtual DataInfo bbtk::BlackBoxInputOutputDescriptor::GetDataInfo ( ) const [inline, virtual, inherited]

Returns the DataInfo of the input (Type+Nature).

Definition at line 83 of file bbtkBlackBoxInputOutputDescriptor.h.

Referenced by bbtk::Interpreter::commandNewGUI().

00084     { return DataInfo(this->GetTypeInfo(),mNature); }

Here is the caller graph for this function:

const std::string& bbtk::BlackBoxInputOutputDescriptor::GetDescription ( ) const [inline, inherited]

Returns the description of the in/output.

Definition at line 75 of file bbtkBlackBoxInputOutputDescriptor.h.

Referenced by bbtk::WxGUIBlackBoxInfo::InsertInputOutput().

00075 { return mDescription; }

Here is the caller graph for this function:

std::string bbtk::ComplexBlackBoxOutputDescriptor::GetHumanTypeName ( ) const [inline, virtual]

Returns the name of the type of the output.

Implements bbtk::BlackBoxInputOutputDescriptor.

Definition at line 71 of file bbtkComplexBlackBoxOutputDescriptor.h.

References bbtk::HumanTypeName().

00071 { return HumanTypeName(mType); }

Here is the call graph for this function:

const std::string& bbtk::BlackBoxInputOutputDescriptor::GetName ( ) const [inline, inherited]

Returns the name of the in/output.

Definition at line 73 of file bbtkBlackBoxInputOutputDescriptor.h.

Referenced by bbtk::BlackBoxDescriptor::AddInputDescriptor(), bbtk::BlackBoxDescriptor::AddOutputDescriptor(), bbtk::ComplexBlackBox::bbWriteDotFileBlackBox(), bbtk::WxGUIBlackBoxInfo::InsertInputOutput(), bbtk::AtomicBlackBoxInputDescriptor::~AtomicBlackBoxInputDescriptor(), bbtk::AtomicBlackBoxOutputDescriptor::~AtomicBlackBoxOutputDescriptor(), bbtk::ComplexBlackBoxInputDescriptor::~ComplexBlackBoxInputDescriptor(), and ~ComplexBlackBoxOutputDescriptor().

00073 { return mName; }

Here is the caller graph for this function:

const std::string& bbtk::BlackBoxInputOutputDescriptor::GetNature ( ) const [inline, inherited]

Returns the nature of the in/output.

Definition at line 77 of file bbtkBlackBoxInputOutputDescriptor.h.

Referenced by bbtk::ComplexBlackBoxDescriptor::DefineInput(), bbtk::ComplexBlackBoxDescriptor::DefineOutput(), and bbtk::WxGUIBlackBoxInfo::InsertInputOutput().

00077 { return mNature; }

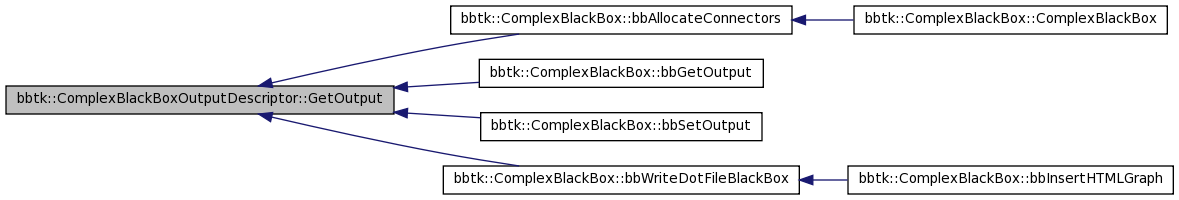

Here is the caller graph for this function:

const std::string& bbtk::ComplexBlackBoxOutputDescriptor::GetOutput ( ) const [inline]

Returns the output.

Definition at line 79 of file bbtkComplexBlackBoxOutputDescriptor.h.

Referenced by bbtk::ComplexBlackBox::bbAllocateConnectors(), bbtk::ComplexBlackBox::bbGetOutput(), bbtk::ComplexBlackBox::bbSetOutput(), and bbtk::ComplexBlackBox::bbWriteDotFileBlackBox().

00079 { return mOutput; }

Here is the caller graph for this function:

const std::string& bbtk::ComplexBlackBoxOutputDescriptor::GetTarget ( ) const [inline]

Returns the target black box.

Definition at line 77 of file bbtkComplexBlackBoxOutputDescriptor.h.

Referenced by bbtk::ComplexBlackBox::bbAllocateConnectors(), bbtk::ComplexBlackBox::bbGetOutput(), bbtk::ComplexBlackBox::bbSetOutput(), and bbtk::ComplexBlackBox::bbWriteDotFileBlackBox().

00077 { return mTarget; }

Here is the caller graph for this function:

TypeInfo bbtk::ComplexBlackBoxOutputDescriptor::GetTypeInfo ( ) const [inline, virtual]

Returns the type of the output.

Implements bbtk::BlackBoxInputOutputDescriptor.

Definition at line 67 of file bbtkComplexBlackBoxOutputDescriptor.h.

00067 { return mType; }

std::string bbtk::ComplexBlackBoxOutputDescriptor::GetTypeName ( ) const [inline, virtual]

Returns the name of the type of the output.

Implements bbtk::BlackBoxInputOutputDescriptor.

Definition at line 69 of file bbtkComplexBlackBoxOutputDescriptor.h.

References bbtk::TypeName().

00069 { return TypeName(mType); }

Here is the call graph for this function:

bool bbtk::ComplexBlackBoxOutputDescriptor::IsPointerType ( ) const [inline, virtual]

Returns true iff the type is a pointer to class.

Implements bbtk::BlackBoxInputOutputDescriptor.

Definition at line 73 of file bbtkComplexBlackBoxOutputDescriptor.h.

00073 { return false; }

Member Data Documentation

std::string bbtk::ComplexBlackBoxOutputDescriptor::mOutput [private]

Definition at line 87 of file bbtkComplexBlackBoxOutputDescriptor.h.

std::string bbtk::ComplexBlackBoxOutputDescriptor::mTarget [private]

Definition at line 86 of file bbtkComplexBlackBoxOutputDescriptor.h.

TypeInfo bbtk::ComplexBlackBoxOutputDescriptor::mType [private]

Definition at line 88 of file bbtkComplexBlackBoxOutputDescriptor.h.

The documentation for this class was generated from the following files:

/Users/davila/Creatis/All5/creatools_source/bbtk/kernel/src/bbtkComplexBlackBoxOutputDescriptor.h
/Users/davila/Creatis/All5/creatools_source/bbtk/kernel/src/bbtkComplexBlackBoxOutputDescriptor.cxx
