bbtk::Connection Class Reference

DDD. More...

#include <bbtkConnection.h>

Inheritance diagram for bbtk::Connection:

Inheritance graph
[legend]
Collaboration diagram for bbtk::Connection:

Collaboration graph
[legend]

List of all members.

Public Types

typedef Connection Self
typedef boost::shared_ptr< Self > Pointer
typedef boost::weak_ptr< Self > WeakPointer

Public Member Functions

std::string GetObjectName () const
std::string GetObjectInfo () const
size_t GetObjectSize () const
size_t GetObjectInternalSize () const
size_t GetObjectRecursiveSize () const
void RecursiveExecute ()
 Dtor.
void OnOutputChange (BlackBoxPointer, const std::string &, IOStatus)
 Change callback.
std::string GetFullName () const
BlackBoxPointer GetOriginalBlackBoxFrom () const
 Returns the original initial black box of the connection.
BlackBoxPointer GetOriginalBlackBoxTo () const
 Returns the origianl final black box of the connection.
const std::string & GetOriginalBlackBoxFromOutput () const
 Returns the original output of the initial black box of the connection.
const std::string & GetOriginalBlackBoxToInput () const
 Returns the original input of the final black box of the connection.
BlackBoxPointer GetBlackBoxFrom () const
 Returns the initial black box of the connection.
BlackBoxPointer GetBlackBoxTo () const
 Returns the final black box of the connection.
const std::string & GetBlackBoxFromOutput () const
 Returns the output of the initial black box of the connection.
const std::string & GetBlackBoxToInput () const
 Returns the input of the final black box of the connection.
void SetBlackBoxFrom (BlackBoxPointer b)
 Sets the initial black box of the connection.
void SetBlackBoxTo (BlackBoxPointer b)
 Sets the final black box of the connection.
void SetBlackBoxFromOutput (const std::string &o)
 Sets the output of the initial black box of the connection.
void SetBlackBoxToInput (const std::string &o)
 Sets the input of the final black box of the connection.
void Check () const
 Checks that the connection is ok (throws error if not).
void TransferData ()
long GetUseCount ()

Static Public Member Functions

static Pointer New (BlackBoxPointer from, const std::string &output, BlackBoxPointer to, const std::string &input, const FactoryPointer f)
static Pointer New (BlackBoxPointer from, const std::string &output, BlackBoxPointer to, const std::string &input)
static void InsertInObjectList (Pointer)
static void RemoveFromObjectList (WeakPointer)
static void InsertInPackageList (Pointer)
static void ReleasePackages ()
static void PrintObjectListInfo (const std::string &name)
static void PrintObjectInfo (const Pointer &o)
static long GetObjectsCount ()

Protected Types

typedef Object Superclass

Protected Member Functions

 Connection ()
 Connection (const Connection &)
 ~Connection ()
 Dtor.
void LockThis ()
void UnLockThis ()
template<class U >
boost::shared_ptr< U > GetThisPointer () const

Static Protected Member Functions

template<class U >
static boost::shared_ptr< U > MakePointer (U *s, bool lock=false)
template<class U , class D >
static boost::shared_ptr< U > MakePointer (U *s, const D &del, bool lock=false)

Protected Attributes

BlackBoxPointer mFrom
 Black box origin of the connection.
BlackBoxWeakPointer mOriginalFrom
std::string mOutput
 Output of mFrom which is connected.
std::string mOriginalOutput
BlackBoxPointer mTo
 Output connector of mFrom which is connected.
BlackBoxWeakPointer mOriginalTo
std::string mInput
 Input of mTo which is connected.
std::string mOriginalInput
BlackBoxPointer mAdaptor
 Input connector of mTo which is connected.
const FactoryWeakPointer mFactory
 The factory used to create adaptors.
bool mFromAny
 Is the connection input type is any<thing> ?
bool mToAny
 Is the connection output type is any<thing> ?
bool mDoDynamicCast
 Have to do dynamic_cast ?

Private Member Functions

 Connection (BlackBoxPointer from, const std::string &output, BlackBoxPointer to, const std::string &input, const FactoryPointer f)
 Ctor.
 Connection (BlackBoxPointer from, const std::string &output, BlackBoxPointer to, const std::string &input)
 Ctor.

Friends

struct Object::Deleter

Detailed Description

DDD.

Definition at line 71 of file bbtkConnection.h.

Member Typedef Documentation

typedef boost::shared_ptr<Self> bbtk::Connection::Pointer

Reimplemented from bbtk::Object.

Definition at line 73 of file bbtkConnection.h.

typedef Connection bbtk::Connection::Self

Definition at line 73 of file bbtkConnection.h.

typedef Object bbtk::Connection::Superclass [protected]

Definition at line 73 of file bbtkConnection.h.

typedef boost::weak_ptr<Self> bbtk::Connection::WeakPointer

Reimplemented from bbtk::Object.

Definition at line 73 of file bbtkConnection.h.

Constructor & Destructor Documentation

bbtk::Connection::Connection (  )  [protected]

bbtk::Connection::Connection ( const Connection &   )  [protected]

bbtk::Connection::~Connection (  )  [protected]

Dtor.

Definition at line 309 of file bbtkConnection.cxx.

References bbtkCDebugMessage, bbtkInternalError, mAdaptor, mFrom, mInput, mOutput, and mTo.

00310   {
00311     bbtkCDebugMessage("object",4,
00312                      "==> ~Connection()"
00313                      <<std::endl);
00314
00315     if (mAdaptor) mAdaptor.reset();
00316     if (mFrom!=0)
00317       {
00318         mFrom->bbDisconnectOutput(mOutput,this);
00319         //                                GetThisPointer<Connection>());
00320         mFrom.reset();
00321       }
00322     else
00323       {
00324         bbtkInternalError("~Connection() : invalid initial box pointer");
00325       }
00326     if (mTo!=0)
00327       {
00328         mTo->bbDisconnectInput(mInput,this);//   GetThisPointer<Connection>());
00329         mTo.reset();
00330       }
00331     else
00332       {
00333         bbtkInternalError("~Connection() : invalid final box pointer");
00334       }
00335
00336
00337     bbtkCDebugMessage("object",4,
00338                       "<== ~Connection()"
00339                       <<std::endl);
00340   }

bbtk::Connection::Connection ( BlackBoxPointer  from,
const std::string &  output,
BlackBoxPointer  to,
const std::string &  input,
const FactoryPointer  f
) [private]

Ctor.

bbtk::Connection::Connection ( BlackBoxPointer  from,
const std::string &  output,
BlackBoxPointer  to,
const std::string &  input
) [private]

Ctor.

Member Function Documentation

void bbtk::Connection::Check (  )  const

Checks that the connection is ok (throws error if not).

Definition at line 553 of file bbtkConnection.cxx.

References bbtkError, bbtkMessage, GetFullName(), bbtk::i, mFrom, mInput, mOutput, and mTo.

00554   {
00555     bbtkMessage("debug",1,"** Checking Connection "<<(void*)this<<" ["
00556                 <<GetFullName()<<"]"
00557                 <<std::endl);
00558     if (mFrom==0)
00559       {
00560         bbtkMessage("debug",2," - From = 0"<<std::endl);
00561       }
00562     else
00563       {
00564         bbtkMessage("debug",2," - From : "<<mFrom->bbGetName()<<std::endl);
00565         if (!mFrom->bbHasOutput(mOutput))
00566           {
00567             bbtkError("** Checking Connection "<<(void*)this
00568                        <<" ["<<GetFullName()<<"] : "
00569                       << mFrom->bbGetName()<<" does not have output '"
00570                       <<mOutput<<"'");
00571           }
00572         bbtkMessage("debug",2," - From : Output '"<<mOutput<<"' exists"<<std::endl);
00573         BlackBox::OutputConnectorMapType::const_iterator i
00574           = mFrom->bbGetOutputConnectorMap().find(mOutput);
00575         if (i== mFrom->bbGetOutputConnectorMap().end())
00576           {
00577              bbtkError("** Checking Connection "<<(void*)this
00578                        <<" ["<<GetFullName()<<"] : "
00579                        <<mFrom->bbGetName()<<" output '"
00580                        <<mOutput<<"' is not in OutputConnectorMap");
00581           }
00582         bbtkMessage("debug",2," - From : Output '"<<mOutput
00583                     <<"' is in OutputConnectorMap"<<std::endl);
00584
00585         std::vector< Connection* >::const_iterator j;
00586         /*
00587         for (j  = i->second->GetConnectionVector().begin();
00588              j != i->second->GetConnectionVector().end();
00589              ++j)
00590           {
00591             if ((*j)==this) break;
00592           }
00593         */
00594         j = find(i->second->GetConnectionVector().begin(),
00595                  i->second->GetConnectionVector().end(),
00596                  this);
00597
00598         if (j==i->second->GetConnectionVector().end())
00599           {
00600             bbtkError("** Checking Connection "<<(void*)this
00601                       <<" ["<<GetFullName()<<"] : "
00602                       <<" OutputConnector '"
00603                       <<mOutput<<"' of "<<mFrom->bbGetName()
00604                       <<" does not point to this connection");
00605
00606           }
00607         bbtkMessage("debug",2," - From : This connection is in OutputConnector connection vector"<<std::endl);
00608         bbtkMessage("debug",2," * Box from : Check successfull"<<std::endl);
00609
00610       }
00611
00612     if (mTo==0)
00613       {
00614         bbtkMessage("debug",2," - To   = 0"<<std::endl);
00615       }
00616     else
00617       {
00618         bbtkMessage("debug",2," - To   : "<<mTo->bbGetName()<<std::endl);
00619         //      std::cout << mTo << std::endl;
00620         //      std::cout << mTo->bbGetDescriptor() << std::endl;
00621         //      std::cout << mTo->bbGetDescriptor()->GetTypeName() << std::endl;
00622         //      mTo->bbGetName();
00623         bbtkMessage("debug",2," - To   : "<<mTo->bbGetName()<<std::endl);
00624         if (!mTo->bbHasInput(mInput))
00625           {
00626             bbtkError("** Checking Connection "<<(void*)this
00627                       <<" ["<<GetFullName()<<"] : "
00628                       <<mTo->bbGetName()<<" does not have input '"
00629                       <<mInput<<"'");
00630           }
00631         bbtkMessage("debug",2," - To   : Input '"<<mInput<<"' exists"<<std::endl);
00632         BlackBox::InputConnectorMapType::const_iterator i
00633           = mTo->bbGetInputConnectorMap().find(mInput);
00634         if (i== mTo->bbGetInputConnectorMap().end())
00635           {
00636              bbtkError("** Checking Connection "<<(void*)this
00637                        <<" ["<<GetFullName()<<"] : "
00638                        <<mTo->bbGetName()<<" input '"
00639                        <<mInput<<"' is not in InputConnectorMap");
00640           }
00641         bbtkMessage("debug",2," - To   : Input '"<<mInput
00642                     <<"' is in InputConnectorMap"<<std::endl);
00643
00644         if (i->second->GetConnection()==0)
00645           {
00646             bbtkError("** Checking Connection "<<(void*)this
00647                       <<" ["<<GetFullName()<<"] : "
00648                       <<" InputConnector '"
00649                       <<mInput<<"' of "<<mTo->bbGetName()
00650                       <<" does not point to this connection");
00651
00652           }
00653         bbtkMessage("debug",2," - To   : This connection is in InputConnector connection vector"<<std::endl);
00654         bbtkMessage("debug",2," * Box to   : Check successfull"<<std::endl);
00655
00656       }
00657   }

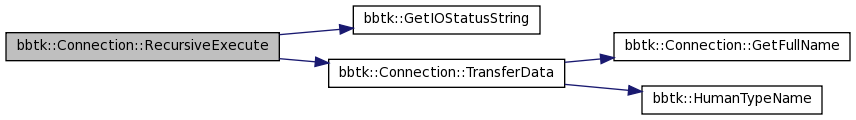

Here is the call graph for this function:

BlackBoxPointer bbtk::Connection::GetBlackBoxFrom (  )  const [inline]

Returns the initial black box of the connection.

Definition at line 111 of file bbtkConnection.h.

00111 { return mFrom; }

const std::string& bbtk::Connection::GetBlackBoxFromOutput (  )  const [inline]

Returns the output of the initial black box of the connection.

Definition at line 115 of file bbtkConnection.h.

00115 { return mOutput; }

BlackBoxPointer bbtk::Connection::GetBlackBoxTo (  )  const [inline]

Returns the final black box of the connection.

Definition at line 113 of file bbtkConnection.h.

00113 { return mTo; }

const std::string& bbtk::Connection::GetBlackBoxToInput (  )  const [inline]

Returns the input of the final black box of the connection.

Definition at line 117 of file bbtkConnection.h.

00117 { return mInput; }

std::string bbtk::Connection::GetFullName (  )  const

Definition at line 534 of file bbtkConnection.cxx.

References mFrom, mInput, mOriginalFrom, mOriginalInput, mOriginalOutput, mOriginalTo, mOutput, and mTo.

Referenced by bbtk::ComplexBlackBox::bbConnectInput(), bbtk::BlackBox::bbConnectInput(), bbtk::ComplexBlackBox::bbConnectOutput(), bbtk::BlackBox::bbConnectOutput(), bbtk::BlackBox::bbDisconnectInput(), bbtk::BlackBox::bbDisconnectOutput(), Check(), GetObjectName(), and TransferData().

00534                                           {
00535     if (mFrom && mTo)
00536       {
00537         std::string res = mFrom->bbGetName()+"."+mOutput+"--"
00538           +mTo->bbGetName()+"."+mInput;
00539         if ((!mOriginalFrom.expired()) && (!mOriginalTo.expired()) &&
00540             ((mFrom!=mOriginalFrom.lock())||(mTo!=mOriginalTo.lock())))
00541           {
00542             res += "("+mOriginalFrom.lock()->bbGetName()
00543               +"."+mOriginalOutput+"--"
00544               + mOriginalTo.lock()->bbGetName()+"."+mOriginalInput+")";
00545           }
00546         return res;
00547       }
00548     return "***Invalid Connection***";
00549   }

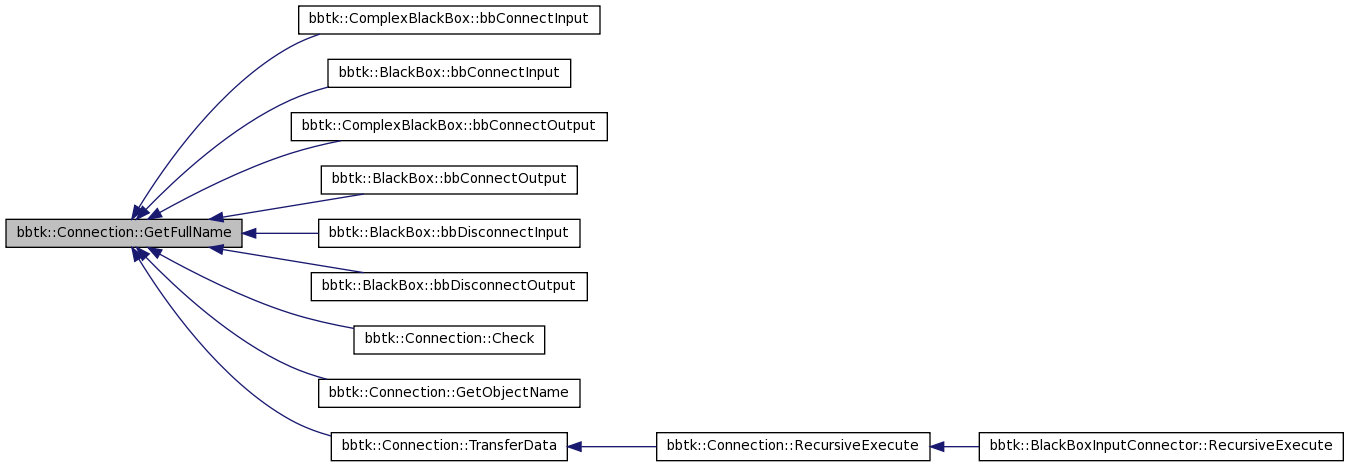

Here is the caller graph for this function:

std::string bbtk::Connection::GetObjectInfo (  )  const [virtual]

Reimplemented from bbtk::Object.

Definition at line 670 of file bbtkConnection.cxx.

References bbtk::i.

00671   {
00672     std::stringstream i;
00673     return i.str();
00674   }

size_t bbtk::Connection::GetObjectInternalSize (  )  const [virtual]

Reimplemented from bbtk::Object.

Definition at line 686 of file bbtkConnection.cxx.

Referenced by GetObjectRecursiveSize(), and GetObjectSize().

00687 {
00688   size_t s = sizeof(Connection);
00689   return s;
00690   }

Here is the caller graph for this function:

std::string bbtk::Connection::GetObjectName (  )  const [virtual]

Reimplemented from bbtk::Object.

Definition at line 660 of file bbtkConnection.cxx.

References GetFullName().

00661   {
00662     std::string s("Connection '");
00663     s += GetFullName();
00664     s += "'";
00665     return s;
00666   }

Here is the call graph for this function:

size_t bbtk::Connection::GetObjectRecursiveSize (  )  const [virtual]

Reimplemented from bbtk::Object.

Definition at line 693 of file bbtkConnection.cxx.

References GetObjectInternalSize(), and bbtk::Object::GetObjectRecursiveSize().

00694   {
00695     size_t s = Superclass::GetObjectRecursiveSize();
00696     s += Connection::GetObjectInternalSize();
00697     return s;
00698   }

Here is the call graph for this function:

static long bbtk::Object::GetObjectsCount (  )  [inline, static, inherited]

Definition at line 75 of file bbtkObject.h.

Referenced by bbtk::StaticInitTime::~StaticInitTime().

00075 { return mgObjectList.size(); }

Here is the caller graph for this function:

size_t bbtk::Connection::GetObjectSize (  )  const [virtual]

Reimplemented from bbtk::Object.

Definition at line 678 of file bbtkConnection.cxx.

References GetObjectInternalSize(), and bbtk::Object::GetObjectSize().

00679 {
00680   size_t s = Superclass::GetObjectSize();
00681   s += Connection::GetObjectInternalSize();
00682   return s;
00683   }

Here is the call graph for this function:

BlackBoxPointer bbtk::Connection::GetOriginalBlackBoxFrom (  )  const [inline]

Returns the original initial black box of the connection.

Definition at line 102 of file bbtkConnection.h.

Referenced by bbtk::BlackBox::bbPrintHelp(), bbtk::ComplexBlackBox::bbWriteDotFileBlackBox(), and bbtk::BlackBox::bbWriteDotFileBlackBox().

00102 { return mOriginalFrom.lock(); }

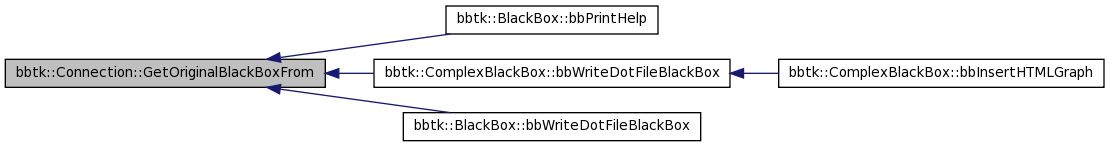

Here is the caller graph for this function:

const std::string& bbtk::Connection::GetOriginalBlackBoxFromOutput (  )  const [inline]

Returns the original output of the initial black box of the connection.

Definition at line 106 of file bbtkConnection.h.

Referenced by bbtk::BlackBox::bbPrintHelp(), bbtk::ComplexBlackBox::bbWriteDotFileBlackBox(), and bbtk::BlackBox::bbWriteDotFileBlackBox().

00106 { return mOriginalOutput; }

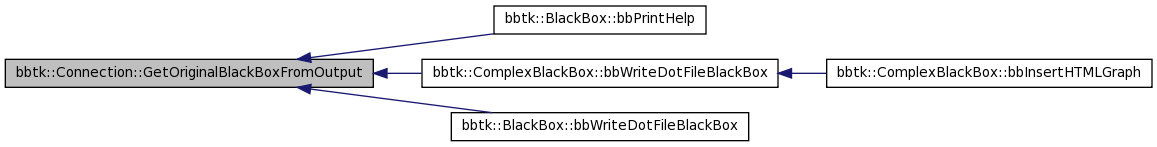

Here is the caller graph for this function:

BlackBoxPointer bbtk::Connection::GetOriginalBlackBoxTo (  )  const [inline]

Returns the origianl final black box of the connection.

Definition at line 104 of file bbtkConnection.h.

Referenced by bbtk::ComplexBlackBox::bbWriteDotFileBlackBox(), and bbtk::BlackBox::bbWriteDotFileBlackBox().

00104 { return mOriginalTo.lock(); }

Here is the caller graph for this function:

const std::string& bbtk::Connection::GetOriginalBlackBoxToInput (  )  const [inline]

Returns the original input of the final black box of the connection.

Definition at line 108 of file bbtkConnection.h.

Referenced by bbtk::ComplexBlackBox::bbWriteDotFileBlackBox(), and bbtk::BlackBox::bbWriteDotFileBlackBox().

00108 { return mOriginalInput; }

Here is the caller graph for this function:

template<class U >
boost::shared_ptr<U> bbtk::Object::GetThisPointer (  )  const [inline, protected, inherited]

Definition at line 92 of file bbtkObject.h.

00093     {
00094       return boost::dynamic_pointer_cast<U>(mThisPointer.lock());
00095     }

long bbtk::Object::GetUseCount (  )  [inline, inherited]

Definition at line 63 of file bbtkObject.h.

00063 { return mThisPointer.use_count(); }

void bbtk::Object::InsertInObjectList ( Pointer  p  )  [static, inherited]

Definition at line 59 of file bbtkObject.cxx.

References bbtkDebugMessage, and bbtk::Object::mgObjectList.

Referenced by bbtk::Object::MakePointer().

00060   {
00061     bbtkDebugMessage("object",9,"##> Object::InsertInObjectList(\""
00062                      <<p->GetObjectName()<<"\" ["<<p<<"])"<<std::endl);
00063     boost::weak_ptr<Object> w(p);
00064     mgObjectList.insert(w);
00065   }

Here is the caller graph for this function:

void bbtk::Object::InsertInPackageList ( Pointer  p  )  [static, inherited]

Definition at line 69 of file bbtkObject.cxx.

References bbtkDebugMessage, and bbtk::Object::mgPackageList.

00070   {
00071     bbtkDebugMessage("object",9,"##> Object::InsertInPackageList(\""
00072                      <<p->GetObjectName()<<"\" ["<<p<<"])"<<std::endl);
00073     boost::weak_ptr<Object> w(p);
00074     mgPackageList.insert(w);
00075   }

void bbtk::Object::LockThis (  )  [inline, protected, inherited]

Definition at line 88 of file bbtkObject.h.

00088 { mThisPointerLocked = mThisPointer.lock(); }

template<class U , class D >
static boost::shared_ptr<U> bbtk::Object::MakePointer ( U *  s,
const D &  del,
bool  lock = false
) [inline, static, protected, inherited]

Definition at line 115 of file bbtkObject.h.

References bbtk::Object::InsertInObjectList().

00118     {
00119       if (s->mThisPointer.lock())
00120         {
00121           boost::shared_ptr<U> p = s->GetThisPointer<U>();
00122           if (!lock) s->mThisPointerLocked.reset();
00123           return p;
00124         }
00125       boost::shared_ptr<U> p = boost::shared_ptr<U>(s,del);
00126       static_cast<D*>
00127         (p._internal_get_deleter(typeid(D)))
00128         ->mPointer = p;
00129       s->mThisPointer = p;
00130       Object::InsertInObjectList(p);
00131       if (lock) s->LockThis();
00132       return p;
00133     }

Here is the call graph for this function:

template<class U >
static boost::shared_ptr<U> bbtk::Object::MakePointer ( U *  s,
bool  lock = false
) [inline, static, protected, inherited]

Definition at line 97 of file bbtkObject.h.

References bbtk::Object::InsertInObjectList().

Referenced by bbtk::ComplexBlackBoxDescriptor::ComplexBlackBoxDescriptor(), bbtk::Executer::Executer(), bbtk::Interpreter::Init(), bbtk::Transcriptor::New(), bbtk::Package::New(), bbtk::InterpreterVirtual::New(), bbtk::Interpreter::New(), bbtk::Factory::New(), bbtk::Executer::New(), and bbtk::ComplexBlackBoxDescriptor::New().

00098     {
00099       if (s->mThisPointer.lock())
00100         {
00101           boost::shared_ptr<U> p = s->GetThisPointer<U>();
00102           if (!lock) s->mThisPointerLocked.reset();
00103           return p;
00104         }
00105       boost::shared_ptr<U> p = boost::shared_ptr<U>(s,Object::Deleter());
00106       static_cast<Object::Deleter*>
00107         (p._internal_get_deleter(typeid(Object::Deleter)))
00108         ->mPointer = p;
00109       s->mThisPointer = p;
00110       Object::InsertInObjectList(p);
00111       if (lock) s->LockThis();
00112       return p;
00113     }

Here is the call graph for this function:

Here is the caller graph for this function:

static Pointer bbtk::Connection::New ( BlackBoxPointer  from,
const std::string &  output,
BlackBoxPointer  to,
const std::string &  input
) [static]

static Pointer bbtk::Connection::New ( BlackBoxPointer  from,
const std::string &  output,
BlackBoxPointer  to,
const std::string &  input,
const FactoryPointer  f
) [static]

void bbtk::Connection::OnOutputChange ( BlackBoxPointer  ,
const std::string &  ,
IOStatus
)

Change callback.

void bbtk::Object::PrintObjectInfo ( const Pointer &  o  )  [static, inherited]

Definition at line 180 of file bbtkObject.cxx.

Referenced by bbtk::Object::PrintObjectListInfo().

00181   {
00182     std::cout << "* [" << p << "] \t"
00183               << p.use_count()-1 << " r \t"
00184               << p->GetObjectRecursiveSize() << " ("
00185               << p->GetObjectSize() << ") b \t"
00186               << p->GetObjectName()
00187               << std::endl;
00188     std::cout << p->GetObjectInfo();
00189   }

Here is the caller graph for this function:

void bbtk::Object::PrintObjectListInfo ( const std::string &  name  )  [static, inherited]

Definition at line 105 of file bbtkObject.cxx.

References bbtk::i, bbtk::Object::mgObjectList, and bbtk::Object::PrintObjectInfo().

Referenced by bbtk::Interpreter::commandDebug().

00106   {
00107
00108     std::cout
00109       << "=============== Living bbtk::Object pointers ========="<<std::endl;
00110
00111     long n = 0;
00112     long u = 0;
00113     size_t m = 0;
00114     ObjectListType::iterator i;
00115     for (i = mgObjectList.begin();
00116          i!=mgObjectList.end();
00117          ++i)
00118       {
00119         if (i->use_count() == 0)
00120           {
00121             u++;
00122           }
00123         else
00124           {
00125             Object::Pointer p(i->lock());
00126             if (p->GetObjectName().find(name) != std::string::npos )
00127               {
00128                 std::cout << n << "/" << mgObjectList.size() << " ";
00129                 PrintObjectInfo(p);
00130                 m += p->GetObjectSize();
00131                 n++;
00132               }
00133           }
00134       }
00135     std::cout
00136       << "------------------------------------------------------"<<std::endl;
00137
00138     std::cout << " Total : "<<n<<" objects - "<<m<<" b"<<std::endl;
00139     if (u==1)
00140       {
00141         std::cout<<"* Note : "<<u
00142                  <<" object in list has 0 ref count, "
00143                  <<"i.e. are no more accessible by bbtk but did not properly destroyed because another ref counting system is holding them !"<<std::endl;
00144       }
00145     else if (u>1)
00146       {
00147         std::cout<<"* Note : "<<u
00148                  <<" objects in list have 0 ref count, "
00149                  <<"i.e. are no more accessible by bbtk but did not properly destroyed because another ref counting system is holding them !"<<std::endl;
00150       }
00151     std::cout
00152       << "============ EO Living bbtk::Object pointers ========="<<std::endl;
00153
00154   }

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::Connection::RecursiveExecute (  )

Dtor.

Recursive execution.

Pipeline processing method 1) call bbRecursiveExecute(this) on the from box 2) copies the from box output to the to box input adapting it if needed 3) sets the new IOStatus of the to box input to the status of the from box output

Definition at line 345 of file bbtkConnection.cxx.

References bbtkCDebugMessage, bbtk::GetIOStatusString(), mFrom, mInput, bbtk::MODIFIED, mOutput, mTo, bbtk::OUTOFDATE, and TransferData().

Referenced by bbtk::BlackBoxInputConnector::RecursiveExecute().

00346   {
00347     bbtkCDebugMessage("process",4,
00348                       "===> Connection::RecursiveExecute()"
00349                       <<std::endl);
00350
00351     /*
00352     // If box from already executing : nothing to do
00353     if (mFrom->bbGetExecuting())
00354       {
00355         bbtkDebugMessage("process",3,
00356                          " -> "<<mFrom->bbGetName()
00357                          <<" already executing : abort"<<std::endl);
00358         return;
00359
00360       }
00361     */
00362
00363     mFrom->bbRecursiveExecute(GetThisPointer<Connection>());
00364
00365     TransferData();
00366
00367     // Transfer status
00368     IOStatus s = MODIFIED;
00369     if ( mFrom->bbGetOutputConnector(mOutput).GetStatus() == OUTOFDATE)
00370       {
00371         s = OUTOFDATE;
00372       }
00373     mTo->bbGetInputConnector(mInput).SetStatus(s);
00374
00375     bbtkCDebugMessage("process",4,
00376                      " --> '"<<mTo->bbGetName()<<"."<<mInput
00377                      <<" ["<<&mTo->bbGetInputConnector(mInput)<<"] "
00378                      <<"' new status '"
00379                      <<GetIOStatusString(s)
00380                      <<"'"
00381                      << std::endl);
00382
00383     bbtkCDebugMessage("process",4,
00384                      "<=== Connection::RecursiveExecute()"
00385                       <<std::endl);
00386     return;
00387   }

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::Object::ReleasePackages (  )  [static, inherited]

Definition at line 222 of file bbtkObject.cxx.

References bbtkDebugMessage, bbtk::i, bbtk::Object::mgPackageList, and bbtk::Package::Release().

Referenced by bbtk::StaticInitTime::~StaticInitTime().

00223   {
00224     bbtkDebugMessage("object",1,"##> Object::ReleasePackages()"<<std::endl);
00225     // Release package pointers
00226     ObjectListType::iterator i;
00227     for (i = mgPackageList.begin();
00228          i!= mgPackageList.end();
00229          ++i)
00230       {
00231         if (i->use_count() != 0)
00232           {
00233             bbtkDebugMessage("object",1,"##> Releasing package '"<<
00234                              i->lock()->GetThisPointer<Package>()->GetName()
00235                              <<"'"<<std::endl);
00236             //      Object::Pointer p(i->lock());
00237             Package::WeakPointer w(i->lock()->GetThisPointer<Package>());
00238             Package::Release(w);
00239             /*
00240             if (p->GetObjectName().find(name) != std::string::npos )
00241               {
00242                 std::cout << n << "/" << mgObjectList.size() << " ";
00243                 PrintObjectInfo(p);
00244                 m += p->GetObjectSize();
00245                 n++;
00246               }
00247             */
00248           }
00249       }
00250
00251   }

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::Object::RemoveFromObjectList ( WeakPointer  p  )  [static, inherited]

Definition at line 80 of file bbtkObject.cxx.

References bbtkDebugMessage, and bbtk::Object::mgObjectList.

Referenced by bbtk::Object::Deleter::operator()().

00081   {
00082     bbtkDebugMessage("object",9,"##> Object::RemoveFromObjectList()"
00083                      <<std::endl);
00084     mgObjectList.erase(p);
00085
00086   }

Here is the caller graph for this function:

void bbtk::Connection::SetBlackBoxFrom ( BlackBoxPointer  b  )  [inline]

Sets the initial black box of the connection.

Definition at line 120 of file bbtkConnection.h.

Referenced by bbtk::ComplexBlackBox::bbConnectOutput().

00120 { mFrom = b; }

Here is the caller graph for this function:

void bbtk::Connection::SetBlackBoxFromOutput ( const std::string &  o  )  [inline]

Sets the output of the initial black box of the connection.

Definition at line 124 of file bbtkConnection.h.

Referenced by bbtk::ComplexBlackBox::bbConnectOutput().

00124 { mOutput = o; }

Here is the caller graph for this function:

void bbtk::Connection::SetBlackBoxTo ( BlackBoxPointer  b  )  [inline]

Sets the final black box of the connection.

Definition at line 122 of file bbtkConnection.h.

Referenced by bbtk::ComplexBlackBox::bbConnectInput().

00122 { mTo = b; }

Here is the caller graph for this function:

void bbtk::Connection::SetBlackBoxToInput ( const std::string &  o  )  [inline]

Sets the input of the final black box of the connection.

Definition at line 126 of file bbtkConnection.h.

Referenced by bbtk::ComplexBlackBox::bbConnectInput().

00126 { mInput = o; }

Here is the caller graph for this function:

void bbtk::Connection::TransferData (  )

Ctor with the black box from and to and their input and output and a dummy int to differentiate from the public constructor. Sets the members but does not test compatibility (used by bbtk::AdaptiveConnection)

Transfers the data from the source output to the target input doing necessary conversions (adaptation or pointer cast)

Definition at line 395 of file bbtkConnection.cxx.

References bbtkCDebugMessage, bbtkError, GetFullName(), bbtk::HumanTypeName(), mAdaptor, mFactory, mFrom, mFromAny, mInput, mOutput, mTo, and mToAny.

Referenced by RecursiveExecute().

00396   {
00397     bbtkCDebugMessage("data",3,
00398                       "Connection::TransferData()"
00399                       <<std::endl);
00400
00401
00402     // If an adaptor was created we need to adapt the data
00403     if (mAdaptor)
00404       {
00405         mAdaptor->bbSetInput("In",mFrom->bbGetOutput(mOutput),false);
00406         mAdaptor->bbExecute();
00407         // LG : Connection Update does not set mTo as modified
00408         mTo->bbSetInput(mInput, mAdaptor->bbGetOutput("Out"),false);
00409
00410       }
00411     // If no adaptor but source type is an any and target is not an any
00412     else if ( mFromAny && (! mToAny) )
00413       {
00414         bbtkCDebugMessage("data",3,
00415                          " * Source type is an "
00416                          <<HumanTypeName<Data>()
00417                          <<" which contains a <"
00418                          <<HumanTypeName(mFrom->bbGetOutput(mOutput).type())
00419                          <<">"<<std::endl);
00420         bbtkCDebugMessage("data",3,
00421                          " * Target type is <"
00422                          <<HumanTypeName(mTo->bbGetInputType(mInput))
00423                          <<">"<<std::endl);
00424
00425         // 0) If from any contents void : nothing to do
00426         if (mFrom->bbGetOutput(mOutput).type() == typeid(void))
00427           {
00428             bbtkCDebugMessage("data",3,
00429                              " -> Source is void : nothing to transfer!"<<std::endl);
00430           }
00431         // 1) Test strict type matching between any content and target
00432         else if (mFrom->bbGetOutput(mOutput)
00433             .contains( mTo->bbGetInputType(mInput) ) )
00434           {
00435             bbtkCDebugMessage("data",3,
00436                              " -> Equal types : transfer ok"<<std::endl);
00437             mTo->bbSetInput( mInput,
00438                              mFrom->bbGetOutput(mOutput),
00439                              false);
00440           }
00441         else
00442           {
00443             // 2) Look for an adaptor
00444             bbtk::BlackBox::Pointer adaptor;
00445             try
00446               {
00447                 adaptor = mFactory.lock()
00448                   ->NewAdaptor(mFrom->bbGetOutput(mOutput).type(),
00449                                mTo->bbGetInputType(mInput),
00450                                "");
00451               }
00452             catch (...)
00453               {
00454               }
00455             if (adaptor)
00456               {
00457                 bbtkCDebugMessage("data",3," -> Adaptor found : using it"
00458                                  <<std::endl);
00459                   adaptor->bbSetInput("In",mFrom->bbGetOutput(mOutput),false);
00460                 adaptor->bbExecute();
00461                 // LG : Connection Update does not set mTo as modified
00462                 mTo->bbSetInput(mInput, adaptor->bbGetOutput("Out"),false);
00463                 //      adaptor->bbDelete();
00464               }
00465             // 3) If no adaptor found but the any content is a pointer
00466             //    and target type is also a pointer : we try run-time cast
00467             else if ( (mFrom->bbGetOutput(mOutput).contains_pointer()) &&
00468                       (mTo->bbGetDescriptor()->GetInputDescriptor(mInput)
00469                        ->IsPointerType()) )
00470               {
00471                 bbtkCDebugMessage("data",3,
00472                                  " -> No adaptor found but source and target types are both pointers : trying up or down cast"<<std::endl);
00473
00474                 void* nptr =
00475                   mFrom->bbGetOutput(mOutput)
00476                   .get_pointer_to(mTo->bbGetInput(mInput).pointed_type());
00477                 if (!nptr)
00478                   {
00479                     bbtkError("Connection '"
00480                               <<GetFullName()
00481                               <<"' : <"
00482                               <<HumanTypeName(mFrom->bbGetOutput(mOutput).type())
00483                               <<"> to <"
00484                               <<HumanTypeName(mTo->bbGetInputType(mInput))
00485                               <<"> : no adaptor available and run-time up and down cast failed");
00486                   }
00487                 mTo->bbBruteForceSetInputPointer(mInput, nptr, false);
00488               }
00489             // 4) Nothing worked : error
00490             else
00491               {
00492                 bbtkError("Connection '"<<GetFullName()<<"' "
00493                           <<"no adaptor found to convert <"
00494                           <<HumanTypeName(mFrom->bbGetOutput(mOutput).type())
00495                           <<"> to <"
00496                           <<HumanTypeName(mTo->bbGetInputType(mInput))<<">");
00497               }
00498           }
00499       }
00500     // EO : mFromAny && ! mToAny
00501     // Default case : types are the same; we use simple get-set
00502     else
00503       {
00504         // LG : Connection Update does not set mTo as modified
00505         mTo->bbSetInput(mInput, mFrom->bbGetOutput(mOutput),false);
00506       }
00507
00508   }

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::Object::UnLockThis (  )  [inline, protected, inherited]

Definition at line 89 of file bbtkObject.h.

00089 { mThisPointerLocked = Pointer(); }

Friends And Related Function Documentation

friend struct Object::Deleter [friend]

Definition at line 73 of file bbtkConnection.h.

Member Data Documentation

BlackBoxPointer bbtk::Connection::mAdaptor [protected]

Input connector of mTo which is connected.

Adaptor black box if needed

Definition at line 149 of file bbtkConnection.h.

Referenced by TransferData(), and ~Connection().

bool bbtk::Connection::mDoDynamicCast [protected]

Have to do dynamic_cast ?

Definition at line 162 of file bbtkConnection.h.

const FactoryWeakPointer bbtk::Connection::mFactory [protected]

The factory used to create adaptors.

Definition at line 152 of file bbtkConnection.h.

Referenced by TransferData().

BlackBoxPointer bbtk::Connection::mFrom [protected]

Black box origin of the connection.

Definition at line 133 of file bbtkConnection.h.

Referenced by Check(), GetFullName(), RecursiveExecute(), TransferData(), and ~Connection().

bool bbtk::Connection::mFromAny [protected]

Is the connection input type is any<thing> ?

Definition at line 155 of file bbtkConnection.h.

Referenced by TransferData().

std::string bbtk::Connection::mInput [protected]

Input of mTo which is connected.

Definition at line 144 of file bbtkConnection.h.

Referenced by Check(), GetFullName(), RecursiveExecute(), TransferData(), and ~Connection().

BlackBoxWeakPointer bbtk::Connection::mOriginalFrom [protected]

Definition at line 134 of file bbtkConnection.h.

Referenced by GetFullName().

std::string bbtk::Connection::mOriginalInput [protected]

Definition at line 145 of file bbtkConnection.h.

Referenced by GetFullName().

std::string bbtk::Connection::mOriginalOutput [protected]

Definition at line 137 of file bbtkConnection.h.

Referenced by GetFullName().

BlackBoxWeakPointer bbtk::Connection::mOriginalTo [protected]

Definition at line 142 of file bbtkConnection.h.

Referenced by GetFullName().

std::string bbtk::Connection::mOutput [protected]

Output of mFrom which is connected.

Definition at line 136 of file bbtkConnection.h.

Referenced by Check(), GetFullName(), RecursiveExecute(), TransferData(), and ~Connection().

BlackBoxPointer bbtk::Connection::mTo [protected]

Output connector of mFrom which is connected.

Black box destination of the connection

Definition at line 141 of file bbtkConnection.h.

Referenced by Check(), GetFullName(), RecursiveExecute(), TransferData(), and ~Connection().

bool bbtk::Connection::mToAny [protected]

Is the connection output type is any<thing> ?

Definition at line 158 of file bbtkConnection.h.

Referenced by TransferData().

The documentation for this class was generated from the following files:
Generated on Thu May 31 14:14:23 2012 for BBTK by  doxygen 1.5.7.1
