bbtk::WxGUICommand Class Reference

GUI Component which provides a command input zone. More...

#include <bbtkWxGUICommand.h>

Collaboration diagram for bbtk::WxGUICommand:

Collaboration graph
[legend]

List of all members.

Public Types

enum  {
  ID_Text_Command, ID_Btn_Go, ID_Btn_Include, ID_Btn_Reset,
  ID_Btn_Config, ID_Btn_GraphS, ID_Btn_GraphD, ID_Btn_Help,
  ID_Btn_PackageBrowser
}

Public Member Functions

 WxGUICommand (wxWindow *parent, WxGUICommandUser *user=0)
 ~WxGUICommand ()
void OnBtnGo (wxCommandEvent &event)
void OnCommandEnter (wxCommandEvent &event)
void OnCommandChar (wxCommandEvent &event)
void OnBtnInclude (wxCommandEvent &event)
void OnBtnReset (wxCommandEvent &event)
void OnBtnConfig (wxCommandEvent &event)
void OnBtnGraphS (wxCommandEvent &event)
void OnBtnGraphD (wxCommandEvent &event)
void OnBtnHelp (wxCommandEvent &event)
void OnBtnPackageBrowser (wxCommandEvent &event)
void SendCommand (const std::string &command)

Private Attributes

WxGUICommandUser * mUser
wxComboBox * mwxTextCommand

Detailed Description

GUI Component which provides a command input zone.

Definition at line 70 of file bbtkWxGUICommand.h.

Member Enumeration Documentation

anonymous enum

Enumerator:
ID_Text_Command
ID_Btn_Go
ID_Btn_Include
ID_Btn_Reset
ID_Btn_Config
ID_Btn_GraphS
ID_Btn_GraphD
ID_Btn_Help
ID_Btn_PackageBrowser

Definition at line 95 of file bbtkWxGUICommand.h.

00096       {
00097         ID_Text_Command,
00098         ID_Btn_Go,
00099         ID_Btn_Include,
00100         ID_Btn_Reset,
00101         ID_Btn_Config,
00102         ID_Btn_GraphS,
00103         ID_Btn_GraphD,
00104         ID_Btn_Help,
00105         ID_Btn_PackageBrowser
00106       };

Constructor & Destructor Documentation

bbtk::WxGUICommand::WxGUICommand ( wxWindow *  parent,
WxGUICommandUser *  user = 0
)

Definition at line 71 of file bbtkWxGUICommand.cxx.

References _T.

00072     : wxPanel(parent,-1),
00073       mUser(user)
00074   {
00075     wxBoxSizer *sizer = new wxBoxSizer(wxVERTICAL);
00076
00077     mwxTextCommand =
00078       new wxComboBox(this,
00079                      ID_Text_Command,
00080                      _T(""),
00081                      wxDefaultPosition,
00082                      wxDefaultSize,
00083                      0, NULL,
00084                      wxTE_PROCESS_ENTER
00085                      //             | wxTE_PROCESS_TAB
00086                      //             | wxWANTS_CHARS
00087                      //             //|  wxTAB_TRAVERSAL
00088                      );
00089
00090     wxButton *btnGo     = new wxButton(this,ID_Btn_Go,_T("Go"));
00091
00092     wxFlexGridSizer *sizerCommand= new wxFlexGridSizer(2);
00093     sizerCommand->AddGrowableCol(0);
00094     sizerCommand->Add(mwxTextCommand,1,wxGROW);
00095     sizerCommand->Add(btnGo);
00096
00097     sizer->Add(sizerCommand,0,wxGROW);
00098
00099     wxBoxSizer *btnsSizer       = new wxBoxSizer(wxHORIZONTAL);
00100
00101     wxButton *btnInclude                = new wxButton(this,ID_Btn_Include              ,_T("include")                  );
00102     wxButton *btnReset                  = new wxButton(this,ID_Btn_Reset                ,_T("reset")                    );
00103     wxButton *btnConfig                 = new wxButton(this,ID_Btn_Config               ,_T("config")                   );
00104     wxButton *btnGraphS                 = new wxButton(this,ID_Btn_GraphS               ,_T("graph (simple)")   );
00105     wxButton *btnGraphD                 = new wxButton(this,ID_Btn_GraphD               ,_T("graph (detailed)") );
00106     wxButton *btnHelp                   = new wxButton(this,ID_Btn_Help                 ,_T("help")                             );
00107     wxButton *btnPackageBrowser    = new wxButton(this,ID_Btn_PackageBrowser    ,_T("Start Package Browser")     );
00108
00109     btnsSizer->Add( btnInclude          );
00110     btnsSizer->Add( btnReset            );
00111     btnsSizer->Add( btnConfig           );
00112     btnsSizer->Add( btnGraphS           );
00113     btnsSizer->Add( btnGraphD           );
00114     btnsSizer->Add( btnHelp             );
00115     btnsSizer->Add( btnPackageBrowser   );
00116
00117     sizer->Add(btnsSizer,0,wxTOP|wxGROW, 10 );
00118
00119     SetSizer(sizer);
00120
00121     SetAutoLayout(true);
00122     Layout();
00123   }

bbtk::WxGUICommand::~WxGUICommand (  )

Definition at line 125 of file bbtkWxGUICommand.cxx.

00126   {
00127   }

Member Function Documentation

void bbtk::WxGUICommand::OnBtnConfig ( wxCommandEvent &  event  )

Definition at line 177 of file bbtkWxGUICommand.cxx.

References bbtkDebugMessage, and SendCommand().

00178   {
00179     bbtkDebugMessage("gui",2,"WxGUICommand::OnBtnConfig"<<std::endl);
00180     SendCommand("config");
00181   }

Here is the call graph for this function:

void bbtk::WxGUICommand::OnBtnGo ( wxCommandEvent &  event  )

Definition at line 129 of file bbtkWxGUICommand.cxx.

References bbtkDebugMessage, mwxTextCommand, SendCommand(), and bbtk::wx2std().

00130   {
00131     bbtkDebugMessage("gui",2,"WxGUICommand::OnBtnGo"<<std::endl);
00132     SendCommand(wx2std(mwxTextCommand->GetValue()));
00133   }

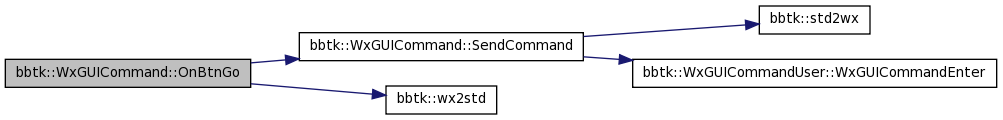

Here is the call graph for this function:

void bbtk::WxGUICommand::OnBtnGraphD ( wxCommandEvent &  event  )

Definition at line 189 of file bbtkWxGUICommand.cxx.

References bbtkDebugMessage, and SendCommand().

00190   {
00191     bbtkDebugMessage("gui",2,"WxGUICommand::OnBtnGraphD"<<std::endl);
00192     SendCommand("graph . 1");
00193   }

Here is the call graph for this function:

void bbtk::WxGUICommand::OnBtnGraphS ( wxCommandEvent &  event  )

Definition at line 183 of file bbtkWxGUICommand.cxx.

References bbtkDebugMessage, and SendCommand().

00184   {
00185     bbtkDebugMessage("gui",2,"WxGUICommand::OnBtnGraphS"<<std::endl);
00186     SendCommand("graph");
00187   }

Here is the call graph for this function:

void bbtk::WxGUICommand::OnBtnHelp ( wxCommandEvent &  event  )

Definition at line 195 of file bbtkWxGUICommand.cxx.

References bbtkDebugMessage, and SendCommand().

00196   {
00197     bbtkDebugMessage("gui",2,"WxGUICommand::OnBtnHelp"<<std::endl);
00198     SendCommand("help");
00199   }

Here is the call graph for this function:

void bbtk::WxGUICommand::OnBtnInclude ( wxCommandEvent &  event  )

Definition at line 151 of file bbtkWxGUICommand.cxx.

References _T, bbtkDebugMessage, bbtk::ConfigurationFile::Get_default_temp_dir(), bbtk::ConfigurationFile::GetInstance(), SendCommand(), and bbtk::wx2std().

00152   {
00153     bbtkDebugMessage("gui",2,"WxGUICommand::OnBtnInclude"<<std::endl);
00154
00155     std::string default_doc_dir =
00156       ConfigurationFile::GetInstance().Get_default_temp_dir();
00157     std::string stdDir = default_doc_dir+"/share/bbtk/bbs";
00158     wxString defaultDir(stdDir.c_str(), wxConvUTF8);
00159
00160     wxFileDialog dialog(this, _T("Include file"),defaultDir, _T(""), _T("*.bbs"), wxOPEN );
00161     if (dialog.ShowModal() == wxID_OK)
00162      {
00163        // std::string command(_T("include "));
00164        // std::string pathfilename = (const char *)(dialog.GetFilename().mb_str());
00165        std::string command("include ");
00166        command = command + "\"" + wx2std(dialog.GetPath()) + "\"";
00167        SendCommand(command);
00168      }
00169   }

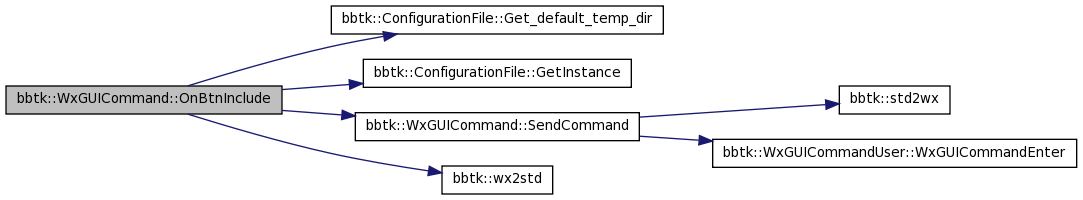

Here is the call graph for this function:

void bbtk::WxGUICommand::OnBtnPackageBrowser ( wxCommandEvent &  event  )

Definition at line 201 of file bbtkWxGUICommand.cxx.

References _T.

00202   {
00203         wxBusyCursor wait;
00204         WxGUIPackageBrowser2Window *helpbrowser = new
00205         WxGUIPackageBrowser2Window(this,_T("Package Browser"), wxSize(600,600) );
00206         helpbrowser->Show();
00207   }

void bbtk::WxGUICommand::OnBtnReset ( wxCommandEvent &  event  )

Definition at line 171 of file bbtkWxGUICommand.cxx.

References bbtkDebugMessage, and SendCommand().

00172   {
00173     bbtkDebugMessage("gui",2,"WxGUICommand::OnBtnReset"<<std::endl);
00174     SendCommand("reset");
00175   }

Here is the call graph for this function:

void bbtk::WxGUICommand::OnCommandChar ( wxCommandEvent &  event  )

void bbtk::WxGUICommand::OnCommandEnter ( wxCommandEvent &  event  )

Definition at line 135 of file bbtkWxGUICommand.cxx.

References bbtkDebugMessage, mwxTextCommand, SendCommand(), and bbtk::wx2std().

00136   {
00137     bbtkDebugMessage("gui",2,"WxGUICommand::OnCommandEnter"<<std::endl);
00138     SendCommand(wx2std(mwxTextCommand->GetValue()));
00139   }

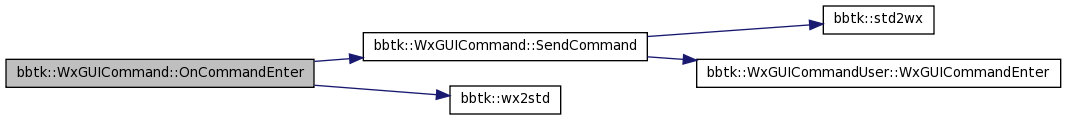

Here is the call graph for this function:

void bbtk::WxGUICommand::SendCommand ( const std::string &  command  )

Definition at line 141 of file bbtkWxGUICommand.cxx.

References _T, mUser, mwxTextCommand, bbtk::std2wx(), and bbtk::WxGUICommandUser::WxGUICommandEnter().

Referenced by OnBtnConfig(), OnBtnGo(), OnBtnGraphD(), OnBtnGraphS(), OnBtnHelp(), OnBtnInclude(), OnBtnReset(), OnCommandEnter(), bbtk::WxGUIScriptingInterface::OnMenuCreateBlackBox(), and bbtk::WxGUIScriptingInterface::OnMenuCreatePackage().

00142   {
00143     if (command.length()==0) return;
00144
00145     mwxTextCommand->SetValue(_T(""));
00146     mwxTextCommand->Append(std2wx(command));
00147     if (mUser) mUser->WxGUICommandEnter(command);
00148   }

Here is the call graph for this function:

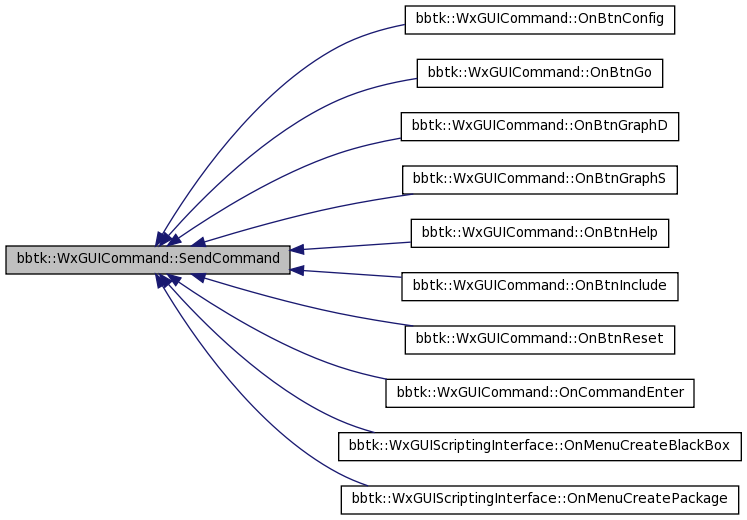

Here is the caller graph for this function:

Member Data Documentation

WxGUICommandUser* bbtk::WxGUICommand::mUser [private]

Definition at line 90 of file bbtkWxGUICommand.h.

Referenced by SendCommand().

wxComboBox* bbtk::WxGUICommand::mwxTextCommand [private]

Definition at line 91 of file bbtkWxGUICommand.h.

Referenced by OnBtnGo(), OnCommandEnter(), and SendCommand().

The documentation for this class was generated from the following files:
