bbtk::AtomicBlackBox Class Reference

Ancestor of all user defined (concrete) black boxes which are atomic (vs. complex boxes which are made up of other (atomic or complex) boxes). More...

#include <bbtkAtomicBlackBox.h>

List of all members.

Public Member Functions

bbtk::BlackBoxDescriptor::Pointer bbGetDescriptor () const
Data bbGetOutput (const std::string &label)
 Gets the output Data of a given label.
Data bbGetInput (const std::string &label)
 Gets the input Data of a given label.
void bbSetOutput (const std::string &name, Data data)
 Sets the data of the output called <name>.
void bbSetInput (const std::string &name, Data data, bool setModified=true)
 Sets the data of the input called <name>.
void bbBruteForceSetInputPointer (const std::string &name, void *data, bool setModified=true)
 Sets the data of the input called <name>.
std::string GetObjectInfo () const
size_t GetObjectSize () const
size_t GetObjectRecursiveSize () const
virtual IOStatus bbBackwardUpdate (Connection::Pointer caller)
 Main processing method of the box.

Protected Member Functions

 AtomicBlackBox (const std::string &name, bool alloc=true)
 Constructor with the AtomicBlackBox's instance name.
 AtomicBlackBox (AtomicBlackBox &from, const std::string &name, bool alloc=true)
 Constructor from an existing box (copy) with a new instance name.
virtual ~AtomicBlackBox ()
 Destructor.
virtual void bbLockDescriptor ()=0
virtual void bbProcess ()
virtual void bbUserProcess ()
virtual void bbUserConstructor ()
 User callback called in the box contructor.
virtual void bbUserCopyConstructor ()
 User callback called in the box copy constructor.
virtual void bbUserDestructor ()
 User callback called in the box destructor.

Protected Attributes

bbtk::BlackBoxDescriptor::Pointer bbmDescriptorPointer

Private Member Functions

 AtomicBlackBox ()

Detailed Description

Ancestor of all user defined (concrete) black boxes which are atomic (vs. complex boxes which are made up of other (atomic or complex) boxes).

Definition at line 77 of file bbtkAtomicBlackBox.h.

Constructor & Destructor Documentation

bbtk::AtomicBlackBox::AtomicBlackBox ( const std::string &  name,
bool  alloc = true
) [protected]

Constructor with the AtomicBlackBox's instance name.

Definition at line 42 of file bbtkAtomicBlackBox.cxx.

References bbtkDebugMessage.

00043     : BlackBox(name)
00044   {
00045     bbtkDebugMessage("object",3,
00046                      "==> AtomicBlackBox::AtomicBlackBox(\""
00047                      <<name<<"\")"<<std::endl);
00048     bbtkDebugMessage("object",3,
00049                      "<== AtomicBlackBox::AtomicBlackBox(\""
00050                      <<name<<"\")"<<std::endl);
00051   }

bbtk::AtomicBlackBox::AtomicBlackBox ( AtomicBlackBox &  from,
const std::string &  name,
bool  alloc = true
) [protected]

Constructor from an existing box (copy) with a new instance name.

Constructor from an existing box (copy) with a new name.

Definition at line 56 of file bbtkAtomicBlackBox.cxx.

References bbtkDebugMessage.

00059     : BlackBox(from,name)
00060   {
00061     bbtkDebugMessage("object",3,
00062                      "==>AtomicBlackBox::AtomicBlackBox("
00063                      <<from.bbGetFullName()<<",\""
00064                      <<name<<"\")"<<std::endl);
00065     bbtkDebugMessage("object",3,
00066                      "<==AtomicBlackBox::AtomicBlackBox("
00067                      <<from.bbGetFullName()<<",\""
00068                      <<name<<"\")"<<std::endl);
00069
00070   }

bbtk::AtomicBlackBox::~AtomicBlackBox (  )  [protected, virtual]

Destructor.

Definition at line 76 of file bbtkAtomicBlackBox.cxx.

References bbtkDebugMessage.

00077   {
00078     bbtkDebugMessage("object",3,"==> AtomicBlackBox::~AtomicBlackBox()"
00079                      <<std::endl);
00080     bbtkDebugMessage("object",3,"<== AtomicBlackBox::~AtomicBlackBox()"
00081                      <<std::endl);
00082   }

bbtk::AtomicBlackBox::AtomicBlackBox (  )  [inline, private]

Default constructor is private : derived classes must use the constructor with the AtomicBlackBox's name

Definition at line 179 of file bbtkAtomicBlackBox.h.

00179 : BlackBox("") {}

Member Function Documentation

bbtk::BlackBoxDescriptor::Pointer bbtk::AtomicBlackBox::bbGetDescriptor (  )  const [inline]

Definition at line 82 of file bbtkAtomicBlackBox.h.

Referenced by bbBruteForceSetInputPointer(), bbGetInput(), bbGetOutput(), bbSetInput(), and bbSetOutput().

00083     {
00084       return bbmDescriptorPointer;
00085     }

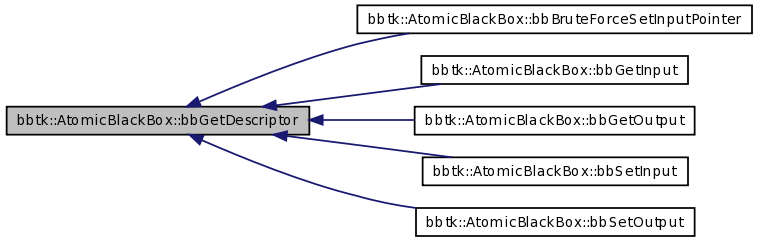

Here is the caller graph for this function:

Data bbtk::AtomicBlackBox::bbGetOutput ( const std::string &  label  )

Gets the output Data of a given label.

Definition at line 159 of file bbtkAtomicBlackBox.cxx.

References bbGetDescriptor(), bbtkDebugDecTab, and bbtkDebugMessageInc.

00160   {
00161     bbtkDebugMessageInc("Data",7,
00162             "AtomicBlackBox::bbGetOutput(\""<<name<<"\") ["
00163             <<bbGetFullName()<<"]"
00164             <<std::endl);
00165
00166     Data p = ((AtomicBlackBoxOutputDescriptor*)bbGetDescriptor()
00167                 ->GetOutputDescriptor(name))->GetGetFunctor()->Get(this);
00168
00169     bbtkDebugDecTab("Data",7);
00170     return p;
00171   }

Here is the call graph for this function:

Data bbtk::AtomicBlackBox::bbGetInput ( const std::string &  label  )

Gets the input Data of a given label.

Gets the input Data of a given name.

Definition at line 177 of file bbtkAtomicBlackBox.cxx.

References bbGetDescriptor(), bbtkDebugDecTab, and bbtkDebugMessageInc.

00178   {
00179     bbtkDebugMessageInc("Data",7,
00180             "AtomicBlackBox::bbGetInput(\""<<name<<"\") ["
00181             <<bbGetFullName()<<"]"
00182             <<std::endl);
00183
00184     Data p = ((AtomicBlackBoxInputDescriptor*)bbGetDescriptor()
00185                 ->GetInputDescriptor(name))->GetGetFunctor()->Get(this);
00186
00187     bbtkDebugDecTab("Data",7);
00188     return p;
00189   }

Here is the call graph for this function:

void bbtk::AtomicBlackBox::bbSetOutput ( const std::string &  name,
Data  data
)

Sets the data of the output called <name>.

Definition at line 195 of file bbtkAtomicBlackBox.cxx.

References bbGetDescriptor(), bbtkDebugDecTab, and bbtkDebugMessageInc.

00196   {
00197     bbtkDebugMessageInc("Data",7,
00198             "AtomicBlackBox::bbSetOutput(\""<<name<<"\",data) ["
00199             <<bbGetFullName()<<"]"
00200             <<std::endl);
00201
00202     ((AtomicBlackBoxOutputDescriptor*)bbGetDescriptor()
00203         ->GetOutputDescriptor(name))->GetSetFunctor()->Set(this,data);
00204
00205     bbtkDebugDecTab("Data",7);
00206   }

Here is the call graph for this function:

void bbtk::AtomicBlackBox::bbSetInput ( const std::string &  name,
Data  data,
bool  setModified = true
)

Sets the data of the input called <name>.

Definition at line 212 of file bbtkAtomicBlackBox.cxx.

References bbGetDescriptor(), bbtkDebugDecTab, and bbtkDebugMessageInc.

00216   {
00217     bbtkDebugMessageInc("Data",7,
00218             "AtomicBlackBox::bbSetInput(\""<<name<<"\",data) ["
00219             <<bbGetFullName()<<"]"
00220             <<std::endl);
00221     ((AtomicBlackBoxInputDescriptor*)bbGetDescriptor()->GetInputDescriptor(name))->GetSetFunctor()->Set(this,data);
00222
00223     if (setModified)
00224         {
00225             bbSetModifiedStatus();
00226         }
00227
00228     bbtkDebugDecTab("Data",7);
00229   }

Here is the call graph for this function:

void bbtk::AtomicBlackBox::bbBruteForceSetInputPointer ( const std::string &  name,
void *  data,
bool  setModified = true
)

Sets the data of the input called <name>.

Definition at line 235 of file bbtkAtomicBlackBox.cxx.

References bbGetDescriptor(), bbtkDebugDecTab, and bbtkDebugMessageInc.

00240   {
00241     bbtkDebugMessageInc("Data",7,
00242             "AtomicBlackBox::bbBruteForceSetInputPointer(\""
00243             <<name<<"\",data) ["
00244             <<bbGetFullName()<<"]"
00245             <<std::endl);
00246     ((AtomicBlackBoxInputDescriptor*)bbGetDescriptor()
00247         ->GetInputDescriptor(name))->GetSetFunctor()
00248             ->BruteForceSetPointer(this,data);
00249
00250     if (setModified)
00251       {
00252         bbSetModifiedStatus();
00253       }
00254
00255     bbtkDebugDecTab("Data",7);
00256   }

Here is the call graph for this function:

std::string bbtk::AtomicBlackBox::GetObjectInfo (  )  const

Definition at line 262 of file bbtkAtomicBlackBox.cxx.

References bbtk::i.

00263   {
00264     std::stringstream i;
00265     return i.str();
00266   }

size_t bbtk::AtomicBlackBox::GetObjectSize (  )  const

Definition at line 270 of file bbtkAtomicBlackBox.cxx.

Referenced by GetObjectRecursiveSize().

00271   {
00272     return sizeof(*this);
00273   }

Here is the caller graph for this function:

size_t bbtk::AtomicBlackBox::GetObjectRecursiveSize (  )  const

Definition at line 277 of file bbtkAtomicBlackBox.cxx.

References GetObjectSize().

00278   {
00279     size_t s = GetObjectSize();
00280     return s;
00281   }

Here is the call graph for this function:

virtual void bbtk::AtomicBlackBox::bbLockDescriptor (  )  [protected, pure virtual]

IOStatus bbtk::AtomicBlackBox::bbBackwardUpdate ( Connection::Pointer  caller  )  [virtual]

Main processing method of the box.

Recursive pipeline processing in backward direction (recursion is in backward direction however execution always goes forward).

Returns:
The final status of the box (UPTODATE or MODIFIED)
First checks that re-processing is needed (either Status==MODIFIED or InputProcessMode==Always) then :
  • updates its inputs by calling bbUpdateInputs (which recursively calls bbBackwardUpdate on upstream boxes)
  • calls bbProcess which here simply calls the user callback bbUserProcess which does the actual processing. bbProcess is overloaded in WxBlackBox to handle widget creation and show

Definition at line 89 of file bbtkAtomicBlackBox.cxx.

References bbProcess(), bbtkDebugMessage, bbtkDebugMessageInc, bbtk::MODIFIED, bbtk::UPDATING, and bbtk::UPTODATE.

00090   {
00091     bbtkDebugMessageInc("process",3,
00092                         "=> AtomicBlackBox::bbBackwardUpdate("
00093                         <<(caller?caller->GetFullName():"0")<<") ["
00094                         <<bbGetFullName()<<"]"<<std::endl);
00095
00096     bbtkDebugMessage("process",5,"Initial Status  = "<<bbGetStatus()
00097                     <<std::endl);
00098     bbtkDebugMessage("process",5,"BoxProcessMode  = "
00099                     <<bbGetInputBoxProcessMode()<<std::endl);
00100
00101
00102     if ( ( bbGetStatus() == MODIFIED ) ||
00103         ( bbBoxProcessModeIsAlways() ) )
00104       {
00105
00106         bbSetStatus(UPDATING);
00107
00108         bool wasExecuting = bbGlobalGetSomeBoxExecuting();
00109         bbGlobalSetSomeBoxExecuting(true);
00110
00111         // Updates its inputs
00112         IOStatus s = bbUpdateInputs();
00113
00114         bbtkDebugMessage("process",6,"Inputs post-update status = "<<s<<std::endl);
00115         // If all inputs are in UPTODATE post-update status
00116         // and mProcessMode is not "Always"
00117         // then the box is now UPTODATE
00118         IOStatus new_status;
00119         if ( ( s == UPTODATE ) &&
00120             ( ! bbBoxProcessModeIsAlways() ) )
00121             {
00122                 new_status = UPTODATE;
00123             }
00124         else
00125             {
00126                 // else it remains MODIFIED
00127                  new_status = MODIFIED;
00128             }
00129         bbSetStatus(new_status);
00130
00131         // User process
00132         bbProcess();
00133
00134         // Displays the window (WxBlackbox)
00135         bbShowWindow(caller);
00136
00137         bbGlobalSetSomeBoxExecuting(wasExecuting);
00138
00139       }
00140     else
00141       {
00142         bbtkDebugMessage("process",5,"Up-to-date : nothing to do"<<std::endl);
00143       }
00144
00145     bbtkDebugMessage("process",5,"Final Status    = "
00146             <<bbGetStatus()<<std::endl);
00147     bbtkDebugMessage("process",3,
00148             "<= AtomicBlackBox::bbBackwardUpdate() ["
00149             <<bbGetFullName()<<"]"<<std::endl);
00150
00151
00152     return bbGetStatus();
00153
00154   }

Here is the call graph for this function:

virtual void bbtk::AtomicBlackBox::bbProcess (  )  [inline, protected, virtual]

Calls the user defined processing method. Overloaded in WxBlackBox to handle widget creation and show

Definition at line 149 of file bbtkAtomicBlackBox.h.

Referenced by bbBackwardUpdate().

00149 { this->bbUserProcess(); }

Here is the caller graph for this function:

virtual void bbtk::AtomicBlackBox::bbUserProcess (  )  [inline, protected, virtual]

User callback which computes the outputs as a function of the inputs. It is assumed to be deterministic and thus is only called is the inputs have changed (i.e. if the black box is marked as modified)

Definition at line 156 of file bbtkAtomicBlackBox.h.

References bbtkWarning.

00157     {
00158       bbtkWarning("AtomicBlackBox::bbUserProcess() not overloaded for box '"
00159                   <<bbGetFullName()
00160                   <<"' : the box does nothing. Is it a bug or a feature ?"
00161                   <<std::endl);
00162     }

virtual void bbtk::AtomicBlackBox::bbUserConstructor (  )  [inline, protected, virtual]

User callback called in the box contructor.

Definition at line 167 of file bbtkAtomicBlackBox.h.

00167 {}

virtual void bbtk::AtomicBlackBox::bbUserCopyConstructor (  )  [inline, protected, virtual]

User callback called in the box copy constructor.

Definition at line 169 of file bbtkAtomicBlackBox.h.

00169 {}

virtual void bbtk::AtomicBlackBox::bbUserDestructor (  )  [inline, protected, virtual]

User callback called in the box destructor.

Definition at line 171 of file bbtkAtomicBlackBox.h.

00171 {}

Member Data Documentation

bbtk::BlackBoxDescriptor::Pointer bbtk::AtomicBlackBox::bbmDescriptorPointer [protected]

Definition at line 185 of file bbtkAtomicBlackBox.h.

The documentation for this class was generated from the following files:
Generated on Wed Nov 12 11:38:27 2008 for BBTK by  doxygen 1.5.6
