bbtk::WxGUIConsole Class Reference

A console in which user can enter commands. More...

#include <bbtkWxGUIConsole.h>

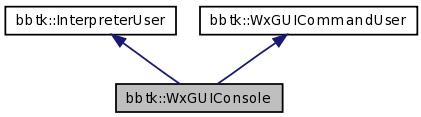

Inheritance diagram for bbtk::WxGUIConsole:

Inheritance graph
[legend]
Collaboration diagram for bbtk::WxGUIConsole:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 WxGUIConsole (wxWindow *parent, wxString title, wxSize size)
 ~WxGUIConsole ()
Interpreter::Pointer GetInterpreter () const
 Returns the Interpreter used (const).
void SetInputs (const std::map< std::string, std::string > &m)
void SetNoExecMode (bool b)
void SetDialogMode (Interpreter::DialogModeType t)
bool InterpretFile (const std::string &filename)
 Runs the interpretation of a file.
void OnMenuQuit (wxCommandEvent &event)
void OnMenuAbout (wxCommandEvent &event)
void OnMenuEditConfig (wxCommandEvent &WXUNUSED(event))
void OnMenuCreatePackage (wxCommandEvent &WXUNUSED(event))
void OnMenuCreateBlackBox (wxCommandEvent &WXUNUSED(event))
void OnMenuShowImageGraph (wxCommandEvent &WXUNUSED(event))
void OnMenuShowHTMLDoc (wxCommandEvent &WXUNUSED(event))
void OnMenuCreateIndex (wxCommandEvent &WXUNUSED(event))
void OnButtonRun (wxCommandEvent &WXUNUSED(event))
bool InterpreterUserHasOwnHtmlPageViewer ()
void InterpreterUserViewHtmlPage (const std::string &)
void WxGUICommandEnter (const std::string &)
 Callback invoked when a command is entered in the WxGUICommand.
virtual bool Show (bool show=true)
void OnWxSignal ()

Private Attributes

wxAuiManager m_mgr
Interpreter::Pointer mInterpreter
wxAuiNotebook * mwxNotebook
wxPanel * mwxPageCommand
wxPanel * mwxPageHelp
WxGUICommand * mWxGUICommand
WxGUIOutputMessages * mWxGUIOutputMessages
WxGUIHtmlBrowser * mWxGUIHtmlBrowser
wxButton * mwxButtonRun

Detailed Description

A console in which user can enter commands.

Definition at line 70 of file bbtkWxGUIConsole.h.

Constructor & Destructor Documentation

bbtk::WxGUIConsole::WxGUIConsole ( wxWindow *  parent,
wxString  title,
wxSize  size
)

Definition at line 77 of file bbtkWxGUIConsole.cxx.

References _T, bbtkAddWxSignalObserver, bbtk::ID_Button_Run, bbtk::ID_Menu_About, bbtk::ID_Menu_CreateBlackBox, bbtk::ID_Menu_CreateIndex, bbtk::ID_Menu_CreatePackage, bbtk::ID_Menu_EditConfig, bbtk::ID_Menu_Quit, bbtk::ID_Menu_ShowHTMLDoc, bbtk::ID_Menu_ShowImageGraph, m_mgr, mInterpreter, mwxButtonRun, mWxGUICommand, mWxGUIHtmlBrowser, mWxGUIOutputMessages, mwxNotebook, mwxPageCommand, and mwxPageHelp.

00078     : wxFrame((wxFrame *)parent, -1, title, wxDefaultPosition, size)
00079   {
00080 //    m_mgr = new wxAuiManager(this);
00081         m_mgr.SetManagedWindow(this);
00082
00083         mInterpreter = bbtk::Interpreter::New();
00084     mInterpreter->SetUser(this);
00085     mInterpreter->SetCommandLine(true);
00086     mInterpreter->SetThrow(false);
00087     //==============
00088     // Menu
00089     wxInitAllImageHandlers();
00090
00091     wxMenu *menuFile = new wxMenu;
00092     menuFile->Append( ID_Menu_Quit, _T("&Quit") );
00093
00094     wxMenu *menuAbout = new wxMenu;
00095     menuAbout->Append( ID_Menu_About, _T("&About...") );
00096
00097     wxMenu *menuTools = new wxMenu;
00098     menuTools->Append( ID_Menu_EditConfig, _T("&Edit bbtk config") );
00099     menuTools->Append( ID_Menu_CreatePackage, _T("Create &package") );
00100     menuTools->Append( ID_Menu_CreateBlackBox, _T("Create &blackbox") );
00101     menuTools->Append( ID_Menu_ShowImageGraph, _T("&Show last image graph") );
00102     menuTools->Append( ID_Menu_ShowHTMLDoc, _T("Show &HTML documentation") );
00103     menuTools->Append( ID_Menu_CreateIndex, _T("&Generate index") );
00104
00105
00106     wxMenuBar *menuBar = new wxMenuBar;
00107     menuBar->Append( menuFile, _T("&File") );
00108     menuBar->Append( menuTools, _T("&Tools") );
00109     menuBar->Append( menuAbout, _T("About") );
00110
00111     SetMenuBar( menuBar );
00112
00113     CreateStatusBar();
00114     SetStatusText( _T("Welcome to bbi !") );
00115
00116     //==============
00117     // Notebook
00118
00119     //    wxFlexGridSizer *sizer = new wxFlexGridSizer(1);
00120
00121 //EED    wxBoxSizer* sizer = new wxBoxSizer(wxVERTICAL);
00122 //    mwxNotebook = new wxNotebook(this,-1,wxDefaultPosition, wxDefaultSize, 0);
00123     mwxNotebook = new wxAuiNotebook(this,
00124                                     -1,
00125                                     wxPoint(0, 0),
00126                                     wxSize(500,500),
00127                                     wxAUI_NB_TAB_SPLIT | wxAUI_NB_TAB_EXTERNAL_MOVE | wxNO_BORDER);
00128
00129     mwxPageCommand = new wxPanel(mwxNotebook,-1);
00130     mwxPageHelp = new wxPanel(mwxNotebook,-1);
00131
00132
00133     wxBoxSizer *cmdsizer = new wxBoxSizer(wxVERTICAL);
00134
00135     mwxPageCommand->SetAutoLayout(true);
00136     mwxPageCommand->SetSizer(cmdsizer);
00137     cmdsizer->Fit(mwxPageCommand);
00138     cmdsizer->SetSizeHints(mwxPageCommand);
00139
00140     wxBoxSizer *helpsizer = new wxBoxSizer(wxVERTICAL);
00141
00142     mwxPageHelp->SetAutoLayout(true);
00143     mwxPageHelp->SetSizer(helpsizer);
00144     helpsizer->Fit(mwxPageHelp);
00145     helpsizer->SetSizeHints(mwxPageHelp);
00146
00147     mWxGUIHtmlBrowser = new WxGUIHtmlBrowser(mwxPageHelp,
00148                                              //EED                                wxSize(1200,0));
00149                                              wxSize(200,0));
00150
00151     //    mWxGUIHtmlBrowser->SetSize(wxSize(800,1000));
00152     helpsizer->Add (mWxGUIHtmlBrowser,1, wxGROW|wxLEFT|wxRIGHT|wxTOP, 5  );
00153 //    helpsizer->Add ( new wxButton(mwxPageHelp,-1,"perro"), 0,  wxEXPAND  );
00154     wxBitmap bmp_run(cc_run_xpm);
00155     mwxButtonRun = new wxBitmapButton( mwxPageHelp,ID_Button_Run,bmp_run);//_T("Run")  );
00156     helpsizer->Add( mwxButtonRun, 0, wxALL, 5  );
00157
00158
00159     //==============
00160     // Command page
00161     mWxGUIOutputMessages = new WxGUIOutputMessages(mwxPageCommand);
00162
00163     mWxGUICommand = new WxGUICommand(mwxPageCommand,this);
00164
00165     mWxGUICommand->SetFocus();
00166
00167     cmdsizer->Add (mWxGUIOutputMessages, 1, wxALL | wxGROW, 5);
00168     cmdsizer->Add (mWxGUICommand, 0, wxALL | wxGROW, 5);
00169
00170
00171     // Set the parent window of all bbtk windows as a child of this
00172     bbtk::Wx::SetTopWindowParent(this);
00173     // Top Window Auto Destroys when no more black box window alive
00174     // : this is the default
00175     //    bbtk::Wx::SetAutoDestroyTopWindow(true);
00176     // Add the method OnWxSignal as a Wx::Signal observer
00177     bbtkAddWxSignalObserver(WxGUIConsole::OnWxSignal);
00178
00179
00180     // Layout
00181 //EED    SetSizer(sizer);
00182
00183     mwxNotebook->AddPage( mwxPageCommand, _T("Command"));
00184     mwxNotebook->AddPage( mwxPageHelp, _T("Help"));
00185     m_mgr.AddPane(mwxNotebook, wxAuiPaneInfo().Name(wxT("notebook_content")).CenterPane().PaneBorder(false));
00186     m_mgr.Update();
00187
00188     SetAutoLayout(true);
00189     Layout();
00190 //    Refresh();
00191 //    m_mgr.Update();
00192   }

bbtk::WxGUIConsole::~WxGUIConsole (  )

Definition at line 196 of file bbtkWxGUIConsole.cxx.

References m_mgr.

00197   {
00198     m_mgr.UnInit();
00199   }

Member Function Documentation

Interpreter::Pointer bbtk::WxGUIConsole::GetInterpreter (  )  const [inline]

Returns the Interpreter used (const).

Returns the Interpreter used ONLY ONE FOR THE MOMENT BUT IN THE FUTURE CAN BE DIFFERENT (DIFFERENT WORKSPACES)

Definition at line 83 of file bbtkWxGUIConsole.h.

00083 { return mInterpreter; }

void bbtk::WxGUIConsole::SetInputs ( const std::map< std::string, std::string > &  m  )  [inline]

Sets the inputs of the workspace : the map is passed as is to the Executer

Definition at line 87 of file bbtkWxGUIConsole.h.

00088     { mInterpreter->SetInputs(m); }

void bbtk::WxGUIConsole::SetNoExecMode ( bool  b  )  [inline]

Puts the executer in "no exec" mode, which creates but does not execute pipelines.

Definition at line 92 of file bbtkWxGUIConsole.h.

00092 { mInterpreter->SetNoExecMode(b); }

void bbtk::WxGUIConsole::SetDialogMode ( Interpreter::DialogModeType  t  )  [inline]

Definition at line 94 of file bbtkWxGUIConsole.h.

00095     { mInterpreter->SetDialogMode(t); }

bool bbtk::WxGUIConsole::InterpretFile ( const std::string &  filename  )

Runs the interpretation of a file.

Runs the interpretation of a file Returns false on error

Definition at line 230 of file bbtkWxGUIConsole.cxx.

References mInterpreter.

00231   {
00232     if ( mInterpreter->InterpretFile(filename) ==
00233          Interpreter::Interpreter_ERROR )
00234       {
00235         return false;
00236       }
00237     return true;
00238   }

void bbtk::WxGUIConsole::OnMenuQuit ( wxCommandEvent &  event  )

void bbtk::WxGUIConsole::OnMenuAbout ( wxCommandEvent &  event  )

void bbtk::WxGUIConsole::OnMenuEditConfig ( wxCommandEvent &  WXUNUSEDevent  )

Definition at line 289 of file bbtkWxGUIConsole.cxx.

00290   {
00291         std::string commandStr;
00292     std::string configFile = ConfigurationFile::GetInstance().Get_config_xml_full_path();
00293 #ifdef WIN32
00294         commandStr = "notepad.exe ";
00295 #else
00296         commandStr = "gedit ";
00297 #endif
00298         commandStr = commandStr + configFile;
00299         std::cout << "system: " << commandStr << std::endl;
00300         system ( commandStr.c_str() );
00301   }

void bbtk::WxGUIConsole::OnMenuCreatePackage ( wxCommandEvent &  WXUNUSEDevent  )

Definition at line 306 of file bbtkWxGUIConsole.cxx.

References bbtkMessage.

00307   {
00308     std::string command("toolsbbtk/appli/GUICreatePackage");
00309
00310     bbtkMessage("Debug",1,"Executing : '"<<command<<"'"<<std::endl);
00311     Interpreter::Pointer I = Interpreter::New();
00312     I->InterpretFile(command);
00313   }

void bbtk::WxGUIConsole::OnMenuCreateBlackBox ( wxCommandEvent &  WXUNUSEDevent  )

Definition at line 318 of file bbtkWxGUIConsole.cxx.

References bbtkMessage.

00319   {
00320     std::string command("toolsbbtk/appli/GUICreateBlackBox");
00321     bbtkMessage("Debug",1,"Executing : '"<<command<<"'"<<std::endl);
00322     Interpreter::Pointer I = Interpreter::New();
00323     I->InterpretFile(command);
00324   }

void bbtk::WxGUIConsole::OnMenuShowImageGraph ( wxCommandEvent &  WXUNUSEDevent  )

Definition at line 328 of file bbtkWxGUIConsole.cxx.

00329   {
00330     std::string default_temp_dir = ConfigurationFile::GetInstance().Get_default_temp_dir();
00331
00332 #if defined(WIN32)
00333     std::string strappli="start ";
00334 #else
00335     std::string strappli="gnome-open ";
00336 #endif
00337     std::string strcommand0 = "cd \"" + default_temp_dir+"/temp_dir/" +"\"";
00338     std::string strcommand1 = strappli + "workspace_workspacePrototype.png";
00339     std::string strcommand = strcommand0 + " && " + strcommand1;
00340         std::cout << "system: " << strcommand << std::endl;
00341     system ( strcommand.c_str() );
00342
00343   }

void bbtk::WxGUIConsole::OnMenuShowHTMLDoc ( wxCommandEvent &  WXUNUSEDevent  )

Definition at line 347 of file bbtkWxGUIConsole.cxx.

00348   {
00349         std::string doc_path            = ConfigurationFile::GetInstance().Get_doc_path();
00350
00351 #if defined(WIN32)
00352     std::string strappli="start ";
00353 #else
00354     std::string strappli="gnome-open ";
00355 #endif
00356     std::string strcommand0 = "cd \"" + doc_path+"\"";
00357     std::string strcommand1 = strappli + "index.html";
00358     std::string strcommand = strcommand0 + " && " + strcommand1;
00359         std::cout << "system: " << strcommand << std::endl;
00360     system ( strcommand.c_str() );
00361
00362   }

void bbtk::WxGUIConsole::OnMenuCreateIndex ( wxCommandEvent &  WXUNUSEDevent  )

Definition at line 368 of file bbtkWxGUIConsole.cxx.

00369   {
00370 /*
00371     std::string doc_path = ConfigurationFile::GetInstance().Get_doc_path();
00372     std::string filepath = doc_path+"/bbdoc/make-index.bbs";
00373     Interpreter* I = new Interpreter;
00374     I->InterpretLine( "exec freeze");
00375     I->InterpretLine( "include *");
00376     I->InterpretLine( "help packages");
00377     I->InterpretLine( "index "+doc_path+"/bbdoc/index-alpha.html Initials");
00378     I->InterpretLine( "index "+doc_path+"/bbdoc/index-package.html Packages");
00379     I->InterpretLine( "index "+doc_path+"/bbdoc/index-category.html Categories");
00380     I->InterpretLine( "index "+doc_path+"/bbdoc/index-adaptors.html Adaptors");
00381     delete I;
00382 */
00383
00384         std::string bin_path            = ConfigurationFile::GetInstance().Get_bin_path();
00385         std::string doc_path            = ConfigurationFile::GetInstance().Get_doc_path();
00386         std::string bbdoc_path          = doc_path+"/bbdoc";
00387     std::string make_index_path = "\"" + bbdoc_path+"/make-index.bbs\"";
00388
00389         std::string strcommand0         = "cd "+bbdoc_path+" && mkdir tmp && cd tmp";
00390
00391         std::string strcommand1         = "cd "+bbdoc_path+"/tmp";
00392     std::string strcommand2             = "\""+bin_path+"/bbi\" -N "+make_index_path;
00393 #ifdef WIN32
00394     std::string strcommand3             = "move index*.html ../.";
00395 #else
00396     std::string strcommand3             = "mv index*.html ../.";
00397 #endif
00398
00399         std::string strcommand          =       strcommand1 +" && "+
00400                                                                         strcommand2 +" && "+
00401                                                                         strcommand3;
00402
00403         std::cout << "system: " << strcommand0 << std::endl;
00404         std::cout << "system: " << strcommand << std::endl;
00405
00406         system ( strcommand0.c_str() );
00407         system ( strcommand.c_str() );
00408   }

void bbtk::WxGUIConsole::OnButtonRun ( wxCommandEvent &  WXUNUSEDevent  )

Definition at line 242 of file bbtkWxGUIConsole.cxx.

References _T, bbtk::WxGUIHtmlBrowser::GetCurrentPage(), mWxGUIHtmlBrowser, and bbtk::std2wx().

00243   {
00244 //    wxString temp = mWxGUIHtmlBrowser->GetCurrentPage();
00245     std::string filename = mWxGUIHtmlBrowser->GetCurrentPage();//wx2std(temp);
00246     size_t s = filename.length();
00247
00248     Interpreter::Pointer I = Interpreter::New();
00249
00250     if ((s>3) && (filename[s-1]=='s')
00251         && (filename[s-2]=='b')
00252         && (filename[s-3]=='b')
00253         && (filename[s-4]=='.'))
00254       {
00255         std::string tmp("Executing ");
00256         tmp += filename;
00257         SetStatusText(std2wx(tmp));
00258         I->InterpretFile(filename);
00259       }
00260     else
00261       {
00262         SetStatusText(_T("The current page is not a bbs file : cannot execute it"));
00263       }
00264
00265   }

Here is the call graph for this function:

bool bbtk::WxGUIConsole::InterpreterUserHasOwnHtmlPageViewer (  )  [inline, virtual]

Reimplemented from bbtk::InterpreterUser.

Definition at line 115 of file bbtkWxGUIConsole.h.

00115 { return true; }

void bbtk::WxGUIConsole::InterpreterUserViewHtmlPage ( const std::string &  page  )  [virtual]

Reimplemented from bbtk::InterpreterUser.

Definition at line 413 of file bbtkWxGUIConsole.cxx.

References bbtk::WxGUIHtmlBrowser::GoTo(), mWxGUIHtmlBrowser, and mwxNotebook.

00414   {
00415     std::string s(page);
00416     //  std::cout << "WxGUIConsole::ShowHtmlPage('"<<page<<"')"<<std::endl;
00417     if (mWxGUIHtmlBrowser->GoTo(s))
00418       {
00419 //EED   mwxNotebook->ChangeSelection(1);
00420         mwxNotebook->SetSelection(1);
00421       }
00422     else
00423       {
00424          // std::cout << "ERROR html"<<std::endl;
00425       }
00426   }

Here is the call graph for this function:

void bbtk::WxGUIConsole::WxGUICommandEnter ( const std::string &  command  )  [virtual]

Callback invoked when a command is entered in the WxGUICommand.

Reimplemented from bbtk::WxGUICommandUser.

Definition at line 214 of file bbtkWxGUIConsole.cxx.

References mInterpreter, mWxGUIOutputMessages, and bbtk::WxGUIOutputMessages::Print().

00215   {
00216     std::string s("> ");
00217     s += command + "\n";
00218     mWxGUIOutputMessages->Print(s,wxRED);
00219
00220     if (  mInterpreter->InterpretLine( command ) ==
00221           Interpreter::Interpreter_QUIT )
00222       {
00223         Close(true);
00224       }
00225   }

Here is the call graph for this function:

bool bbtk::WxGUIConsole::Show ( bool  show = true  )  [virtual]

Definition at line 431 of file bbtkWxGUIConsole.cxx.

00432   {
00433     bbtk::Wx::SetAutoDestroyTopWindow(!show);
00434     return wxFrame::Show(show);
00435   }

void bbtk::WxGUIConsole::OnWxSignal (  )

Definition at line 203 of file bbtkWxGUIConsole.cxx.

References bbtkDebugMessage.

00204   {
00205     if ((!Wx::TopWindowExists())&&(!IsShown()))
00206       {
00207         bbtkDebugMessage("wx",2,"  --> bbtk top window destroyed and WxGUIConsole not shown => destructing"<<std::endl);
00208         Close();
00209       }
00210   }

Member Data Documentation

wxAuiManager bbtk::WxGUIConsole::m_mgr [private]

Definition at line 127 of file bbtkWxGUIConsole.h.

Referenced by WxGUIConsole(), and ~WxGUIConsole().

Interpreter::Pointer bbtk::WxGUIConsole::mInterpreter [private]

Definition at line 128 of file bbtkWxGUIConsole.h.

Referenced by InterpretFile(), WxGUICommandEnter(), and WxGUIConsole().

wxAuiNotebook* bbtk::WxGUIConsole::mwxNotebook [private]

Definition at line 132 of file bbtkWxGUIConsole.h.

Referenced by InterpreterUserViewHtmlPage(), and WxGUIConsole().

wxPanel* bbtk::WxGUIConsole::mwxPageCommand [private]

Definition at line 133 of file bbtkWxGUIConsole.h.

Referenced by WxGUIConsole().

wxPanel * bbtk::WxGUIConsole::mwxPageHelp [private]

Definition at line 133 of file bbtkWxGUIConsole.h.

Referenced by WxGUIConsole().

WxGUICommand* bbtk::WxGUIConsole::mWxGUICommand [private]

Definition at line 135 of file bbtkWxGUIConsole.h.

Referenced by WxGUIConsole().

WxGUIOutputMessages* bbtk::WxGUIConsole::mWxGUIOutputMessages [private]

Definition at line 136 of file bbtkWxGUIConsole.h.

Referenced by WxGUICommandEnter(), and WxGUIConsole().

WxGUIHtmlBrowser* bbtk::WxGUIConsole::mWxGUIHtmlBrowser [private]

Definition at line 137 of file bbtkWxGUIConsole.h.

Referenced by InterpreterUserViewHtmlPage(), OnButtonRun(), and WxGUIConsole().

wxButton* bbtk::WxGUIConsole::mwxButtonRun [private]

Definition at line 139 of file bbtkWxGUIConsole.h.

Referenced by WxGUIConsole().

The documentation for this class was generated from the following files:
Generated on Wed Nov 12 11:38:57 2008 for BBTK by  doxygen 1.5.6
