OsirixParser Class Reference

#include <OsirixParser.h>

List of all members.

Public Member Functions

 OsirixParser (std::string xsdfile="", double *spacing=NULL, int *extent=NULL)
 ~OsirixParser ()
int ParseFile (const char *xmlfile)
std::string getErrorLine ()
std::string getContoursFileName ()
const std::map< int, vector
< vector< double > > > & 		getContoursMapMM ()
const std::map< int, vector
< vector< double > > > & 		getContoursMapPX ()
const std::map< int,
std::string > & 		getContoursNameMM ()
const std::map< int,
std::string > & 		getContoursNamePX ()

Private Types

typedef vector< vector< double > > vectorXYZ

Private Member Functions

void saveCreaContoursFormat ()
void writeHeader (FILE *pFile)
void writeContours (FILE *pFile)
void writeContoursStatic (FILE *pFile)
void setErrorLine (DOMNodeList *list)
void getUserData (DOMElement *element)
void getData (DOMNodeList *list, std::vector< std::string > &vect, std::string tagname)
DOMNode * getLastNode (DOMNodeList *list)
void parseOSIRIX_DICT (DOMNodeList *list)
void parseOSIRIX_POINT_MM (DOMNodeList *list)
void parseOSIRIX_POINT_PX (DOMNodeList *list)

Private Attributes

std::string schema
std::string errorline
int _imageindex
std::string _roiname
const char * OSIRIX_DICT
const char * OSIRIX_KEY
const char * OSIRIX_IMAGES
const char * OSIRIX_ARRAY
const char * OSIRIX_IMAGEINDEX
const char * OSIRIX_INTEGER
const char * OSIRIX_NUMBEROFROIS
const char * OSIRIX_ROIS
const char * OSIRIX_POINT_MM
const char * OSIRIX_POINT_PX
const char * OSIRIX_STRING
const char * OSIRIX_NAME
const char * CREACONTOUR
const char * CREACONTOUR_VERSION
const char * CREACONTOUR_IMAGEDIMENSIONS
const char * CREACONTOUR_IMAGESPACING
const char * CREACONTOUR_NUMBEROFCONTOURS
const char * CREACONTOUR_INSTANT
const char * CREACONTOUR_TYPEMODEL
const char * CREACONTOUR_NUMBEROFCONTROLPOINTS
const char * CREACONTOUR_TYPEVIEW
const char * CREACONTOUR_NUMBEROFCONTOURSSTATIC
std::string TEMPIMPORTOSIRIXFILE
double _spacing [3]
int _extent [6]
std::map< int, vectorXYZ > contoursmapMM
std::map< int, vectorXYZ > contoursmapPX
std::map< int, std::string > contoursnameMM
std::map< int, std::string > contoursnamePX

Detailed Description

Definition at line 39 of file OsirixParser.h.

Member Typedef Documentation

typedef vector< vector<double> > OsirixParser::vectorXYZ [private]

Definition at line 118 of file OsirixParser.h.

Constructor & Destructor Documentation

OsirixParser::OsirixParser ( std::string  xsdfile = "",
double *  spacing = NULL,
int *  extent = NULL
)

Constructor for the parser, with the information of the pixel spacing and image dimensions

Definition at line 9 of file OsirixParser.cxx.

References _extent, _spacing, CREACONTOUR, CREACONTOUR_IMAGEDIMENSIONS, CREACONTOUR_IMAGESPACING, CREACONTOUR_INSTANT, CREACONTOUR_NUMBEROFCONTOURS, CREACONTOUR_NUMBEROFCONTOURSSTATIC, CREACONTOUR_NUMBEROFCONTROLPOINTS, CREACONTOUR_TYPEMODEL, CREACONTOUR_TYPEVIEW, CREACONTOUR_VERSION, OSIRIX_ARRAY, OSIRIX_DICT, OSIRIX_IMAGEINDEX, OSIRIX_IMAGES, OSIRIX_INTEGER, OSIRIX_KEY, OSIRIX_NAME, OSIRIX_NUMBEROFROIS, OSIRIX_POINT_MM, OSIRIX_POINT_PX, OSIRIX_ROIS, OSIRIX_STRING, schema, and TEMPIMPORTOSIRIXFILE.

00010 {
00011         schema=xsdfile;
00012
00013         OSIRIX_DICT = "dict";
00014         OSIRIX_KEY = "key";
00015         OSIRIX_IMAGES = "Images";
00016         OSIRIX_ARRAY = "array";
00017         OSIRIX_IMAGEINDEX = "ImageIndex";
00018         OSIRIX_INTEGER = "integer";
00019         OSIRIX_NUMBEROFROIS = "NumberOfROIs";
00020         OSIRIX_ROIS = "ROIs";
00021         OSIRIX_POINT_MM = "Point_mm";
00022         OSIRIX_POINT_PX = "Point_px";
00023         OSIRIX_STRING = "string";
00024         OSIRIX_NAME = "Name";
00025
00026         if(spacing != NULL){
00027                 _spacing[0] = spacing[0];
00028                 _spacing[1] = spacing[1];
00029                 _spacing[2] = spacing[2];
00030         }else{
00031                 _spacing[0] = 1;
00032                 _spacing[1] = 1;
00033                 _spacing[2] = 1;
00034         }
00035
00036         if(extent != NULL){
00037                 _extent[0] = extent[0];
00038                 _extent[1] = extent[1];
00039                 _extent[2] = extent[2];
00040                 _extent[3] = extent[3];
00041                 _extent[4] = extent[4];
00042                 _extent[5] = extent[5];
00043
00044         }else{
00045                 _extent[0] = 1;
00046                 _extent[1] = 1;
00047                 _extent[2] = 1;
00048                 _extent[3] = 1;
00049                 _extent[4] = 1;
00050                 _extent[5] = 1;
00051         }
00052
00053
00054         /*HEADER*/
00055         CREACONTOUR = "--CreaContour--";
00056         CREACONTOUR_VERSION = "Version 1.0.2";
00057         CREACONTOUR_IMAGEDIMENSIONS = "ImageDimensions";
00058         CREACONTOUR_IMAGESPACING = "ImageSpacing";
00059         CREACONTOUR_NUMBEROFCONTOURS = "NumberOfContours";
00060         /*FOR EACH CONTOUR*/
00061         CREACONTOUR_INSTANT = "Instant";
00062         CREACONTOUR_TYPEMODEL = "TypeModel";
00063         CREACONTOUR_NUMBEROFCONTROLPOINTS = "NumberOfControlPoints";
00064         CREACONTOUR_TYPEVIEW = "TypeView";
00065         /*STATICCONTOURS*/
00066         CREACONTOUR_NUMBEROFCONTOURSSTATIC = "NumberOfContoursStatic";
00067
00068         TEMPIMPORTOSIRIXFILE = "";
00069
00070 #ifdef WIN32
00071
00072         char currentPath[_MAX_PATH];
00073         GetModuleFileName(NULL, currentPath, _MAX_PATH);
00074         TEMPIMPORTOSIRIXFILE = currentPath;
00075
00076         TEMPIMPORTOSIRIXFILE = TEMPIMPORTOSIRIXFILE.substr(0,TEMPIMPORTOSIRIXFILE.find_last_of("\\"));
00077
00078         TEMPIMPORTOSIRIXFILE.append("\\data\\TEMPIMPORTOSIRIXFILE.roi");
00079
00080 #else
00081         char * pPath;
00082         pPath = getenv ("HOME");
00083
00084         if(pPath){
00085             TEMPIMPORTOSIRIXFILE.append(pPath);
00086         }else{
00087             TEMPIMPORTOSIRIXFILE.append(".");
00088         }
00089         TEMPIMPORTOSIRIXFILE.append("/.creaContourDataTemp/TEMPIMPORTOSIRIXFILE.roi");
00090 #endif
00091
00092 }

OsirixParser::~OsirixParser (  )

Desctructor by defect

Definition at line 93 of file OsirixParser.cxx.

00093                            {
00094
00095 }

Member Function Documentation

std::string OsirixParser::getContoursFileName (  )

Definition at line 463 of file OsirixParser.cxx.

References TEMPIMPORTOSIRIXFILE.

00463                                            {
00464         return TEMPIMPORTOSIRIXFILE;
00465 }

const std::map<int, vector< vector<double> > >& OsirixParser::getContoursMapMM (  )  [inline]

Definition at line 63 of file OsirixParser.h.

References contoursmapMM.

00063                                                                          {
00064           return contoursmapMM;
00065         }

const std::map<int, vector< vector<double> > >& OsirixParser::getContoursMapPX (  )  [inline]

Definition at line 66 of file OsirixParser.h.

References contoursmapPX.

00066                                                                          {
00067           return contoursmapPX;
00068         }

const std::map<int, std::string>& OsirixParser::getContoursNameMM (  )  [inline]

Definition at line 71 of file OsirixParser.h.

References contoursnameMM.

00071                                                           {
00072           return contoursnameMM;
00073         }

const std::map<int, std::string>& OsirixParser::getContoursNamePX (  )  [inline]

Definition at line 74 of file OsirixParser.h.

References contoursnamePX.

00074                                                           {
00075           return contoursnamePX;
00076         }

void OsirixParser::getData ( DOMNodeList *  list,
std::vector< std::string > &  vect,
std::string  tagname
) [private]

Definition at line 370 of file OsirixParser.cxx.

00370                                                                                           {
00371
00372         for(int i = 0; i < (int)(list->getLength()); i++){
00373                 DOMNode* node = list->item(i);
00374                 if(tagname.compare(XMLString::transcode(node->getNodeName()))==0){
00375                         std::cout<<"NODENAME "<<XMLString::transcode(node->getTextContent())<<std::endl;
00376                         vect.push_back(XMLString::transcode(node->getTextContent()));
00377                 }
00378
00379         }
00380 }

std::string OsirixParser::getErrorLine (  )

DOMNode * OsirixParser::getLastNode ( DOMNodeList *  list  )  [private]

Definition at line 197 of file OsirixParser.cxx.

00197                                                    {
00198
00199
00200         DOMNode* node;
00201         /*for(int i = list->getLength()-1; i >= 0 ;i--){
00202
00203                 node = list->item(i);
00204
00205                 if(node->getNodeType() == DOMNode::ELEMENT_NODE){
00206                         i = -1;
00207                 }
00208
00209         }*/
00210         node = list->item(list->getLength()-1);
00211
00212
00213
00214         if(node->getChildNodes()->getLength()>0){
00215                 return getLastNode(node->getChildNodes());
00216         }
00217         return node;
00218
00219 }

void OsirixParser::getUserData ( DOMElement *  element  )  [private]

Definition at line 221 of file OsirixParser.cxx.

References OSIRIX_DICT, and parseOSIRIX_DICT().

Referenced by ParseFile().

00221                                                  {
00222         parseOSIRIX_DICT(element->getElementsByTagName(XMLString::transcode(OSIRIX_DICT)));
00223 }

Here is the call graph for this function:

Here is the caller graph for this function:

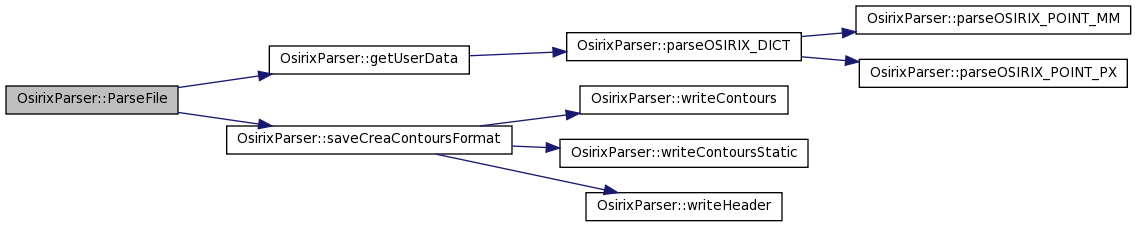

int OsirixParser::ParseFile ( const char *  xmlfile  )

Definition at line 97 of file OsirixParser.cxx.

References errorline, getUserData(), saveCreaContoursFormat(), and schema.

00097                                               {
00098
00099         xercesc::DOMDocument *doc;
00100
00101
00102         try {
00103             XMLPlatformUtils::Initialize();
00104         }
00105         catch (const XMLException& toCatch) {
00106             char* message = XMLString::transcode(toCatch.getMessage());
00107             cout << "Error during initialization! :\n"
00108                  << message << "\n";
00109             XMLString::release(&message);
00110             return 1;
00111         }
00112
00113         XercesDOMParser* OsirixParser = new XercesDOMParser();
00114
00115
00116                 OsirixParser->setDoNamespaces(true);
00117                 OsirixParser->setDoSchema(true);
00118                 OsirixParser->setValidationScheme(XercesDOMParser::Val_Always );
00119                 OsirixParser->setExternalNoNamespaceSchemaLocation(XMLString::transcode(schema.c_str()));
00120                 OsirixParser->setValidationSchemaFullChecking(true);
00121                 OsirixParser->setValidationConstraintFatal(true);
00122                 OsirixParser->setExitOnFirstFatalError(true);
00123
00124
00125         ErrorHandler* errHandler = (ErrorHandler*) new OsirixParserErrorHandler();
00126
00127         OsirixParser->setErrorHandler(errHandler);
00128
00129
00130         try {
00131             OsirixParser->parse(xmlfile);
00132
00133
00134                         if(OsirixParser->getErrorCount() > 0){
00135
00136                                 errorline = ((OsirixParserErrorHandler*)OsirixParser->getErrorHandler())->getErrorMsg();
00137
00138
00139                                 delete OsirixParser;
00140                                 delete errHandler;
00141                                 return -2;
00142                         }
00143
00144
00145
00146         }
00147         catch (const XMLException& toCatch) {
00148             char* message = XMLString::transcode(toCatch.getMessage());
00149             cout << "Exception message is: \n"
00150                  << message << "\n";
00151             XMLString::release(&message);
00152                         delete OsirixParser;
00153                     delete errHandler;
00154             return -1;
00155         }
00156         catch (const DOMException& toCatch) {
00157             char* message = XMLString::transcode(toCatch.msg);
00158             cout << "Exception message is: \n"
00159                  << message << "\n";
00160             XMLString::release(&message);
00161                         delete OsirixParser;
00162                         delete errHandler;
00163             return -1;
00164         }
00165         catch (...) {
00166             cout << "Unexpected Exception \n" ;
00167                         delete OsirixParser;
00168                         delete errHandler;
00169             return -1;
00170         }
00171
00172                 std::cout<<"parsing document..."<<std::endl;
00173
00174
00175         doc = OsirixParser->getDocument();
00176 //              DOMNodeList* list = doc->getChildNodes();
00177                 getUserData(doc->getDocumentElement());
00178
00179
00180                 saveCreaContoursFormat();
00181
00182         delete OsirixParser;
00183         delete errHandler;
00184
00185
00186
00187                 return 0;
00188
00189 }

Here is the call graph for this function:

void OsirixParser::parseOSIRIX_DICT ( DOMNodeList *  list  )  [private]

Definition at line 225 of file OsirixParser.cxx.

References _imageindex, _roiname, OSIRIX_IMAGEINDEX, OSIRIX_INTEGER, OSIRIX_NAME, OSIRIX_POINT_MM, OSIRIX_POINT_PX, OSIRIX_STRING, parseOSIRIX_POINT_MM(), and parseOSIRIX_POINT_PX().

Referenced by getUserData().

00225                                                     {
00226         int i, j;
00227         DOMNode* node, *childnode, *childnode1, *childarray;
00228         std::string point_mm, point_px, osirixinteger, imageindex, temp;
00229         DOMNodeList* childlist;
00230         point_mm = OSIRIX_POINT_MM;
00231         point_px = OSIRIX_POINT_PX;
00232         imageindex = OSIRIX_IMAGEINDEX;
00233         osirixinteger = OSIRIX_INTEGER;
00234
00235         std::string osirixstring = OSIRIX_STRING;
00236         std::string osirixname = OSIRIX_NAME;
00237
00238
00239         for(i = 0; i < (int)(list->getLength()); i++){
00240                 node = list->item(i);
00241                 childlist = node->getChildNodes();
00242                 for(j = 0; j < (int)(childlist->getLength());j++){
00243                         childnode = childlist->item(j);
00244                         temp = XMLString::transcode(childnode->getTextContent());
00245
00246
00247                         if(point_mm.compare(temp)==0){
00248                                 childarray = childlist->item(j+2);
00249                                 //temp = XMLString::transcode(childarray->getNodeName());
00250                                 if(childarray != 0){
00251                                         parseOSIRIX_POINT_MM(childarray->getChildNodes());
00252                                 }
00253                         }else if(point_px.compare(temp)==0){
00254                                 childarray = childlist->item(j+2);
00255                                 //temp = XMLString::transcode(childarray->getNodeName());
00256                                 if(childarray != 0){
00257                                         parseOSIRIX_POINT_PX(childarray->getChildNodes());
00258                                 }
00259                         }else if(imageindex.compare(temp) == 0){
00260                                 childnode1 = childlist->item(j+2);
00261                                 if(childnode1 != NULL && osirixinteger.compare(XMLString::transcode(childnode1->getNodeName())) == 0){
00262                                         _imageindex = atoi(XMLString::transcode(childnode1->getTextContent()));
00263                                 }
00264                         } else if(osirixname.compare(temp) == 0) {
00265                           // keep information about the name of the ROI
00266                                 childnode1 = childlist->item(j+2);
00267                                 if(childnode1 != NULL && osirixstring.compare(XMLString::transcode(childnode1->getNodeName())) == 0){
00268                                   char* roiname = XMLString::transcode(childnode1->getTextContent());
00269                                   _roiname = string(roiname);
00270                                 }
00271                         }
00272                 }
00273         }
00274 }

Here is the call graph for this function:

Here is the caller graph for this function:

void OsirixParser::parseOSIRIX_POINT_MM ( DOMNodeList *  list  )  [private]

Definition at line 276 of file OsirixParser.cxx.

References _roiname, contoursmapMM, contoursnameMM, and OSIRIX_STRING.

Referenced by parseOSIRIX_DICT().

00276                                                         {
00277         int i, stringfound0, stringfound1;
00278         DOMNode* node;
00279         string temp, osirix_string, numx, numy, numz;
00280         vector<double>* vectorx;
00281         vector<double>* vectory;
00282         vector<double>* vectorz;
00283         vectorXYZ vectorxyz;
00284         double x, y, z;
00285
00286         vectorx = new vector<double>;
00287         vectory = new vector<double>;
00288         vectorz = new vector<double>;
00289
00290         osirix_string = OSIRIX_STRING;
00291
00292         for(i = 0; i < (int)(list->getLength()); i++){
00293                 node = list->item(i);
00294                 if(osirix_string.compare(XMLString::transcode(node->getNodeName()))==0){
00295                         temp = XMLString::transcode(node->getTextContent());
00296
00297                         stringfound0 = temp.find(",",0);
00298                         numx = temp.substr(1, stringfound0-1);
00299
00300                         stringfound1 = temp.find(",",stringfound0+1);
00301                         numy = temp.substr(stringfound0+1, stringfound1-stringfound0-1);
00302
00303                         stringfound0 = temp.find(")",stringfound1+1);
00304                         numz = temp.substr(stringfound1+1, stringfound0-stringfound1-1);
00305
00306                         x = atof(numx.c_str());
00307                         y = atof(numy.c_str());
00308                         z = atof(numz.c_str());
00309
00310                         vectorx->push_back(x);
00311                         vectory->push_back(y);
00312                         vectorz->push_back(z);
00313                 }
00314         }
00315         if(vectorx->size() > 0){
00316                 vectorxyz.push_back(*vectorx);
00317                 vectorxyz.push_back(*vectory);
00318                 vectorxyz.push_back(*vectorz);
00319                 contoursmapMM.insert(pair<int, vectorXYZ>(contoursmapMM.size(), vectorxyz));
00320                 contoursnameMM.insert(pair<int, string>(contoursnameMM.size(), _roiname));
00321         }
00322 }

Here is the caller graph for this function:

void OsirixParser::parseOSIRIX_POINT_PX ( DOMNodeList *  list  )  [private]

Definition at line 324 of file OsirixParser.cxx.

References _imageindex, _roiname, contoursmapPX, contoursnamePX, and OSIRIX_STRING.

Referenced by parseOSIRIX_DICT().

00324                                                         {
00325         int i, stringfound0, stringfound1;
00326         DOMNode* node;
00327         string temp, osirix_string, numx, numy;
00328         vector<double>* vectorx;
00329         vector<double>* vectory;
00330         vector<double>* vectorz;
00331         vectorXYZ vectorxyz;
00332         double x, y, z;
00333
00334         vectorx = new vector<double>;
00335         vectory = new vector<double>;
00336         vectorz = new vector<double>;
00337
00338         osirix_string = OSIRIX_STRING;
00339
00340         for(i = 0; i < (int)(list->getLength()); i++){
00341                 node = list->item(i);
00342                 if(osirix_string.compare(XMLString::transcode(node->getNodeName()))==0){
00343                         temp = XMLString::transcode(node->getTextContent());
00344
00345                         stringfound0 = temp.find(",",0);
00346                         numx = temp.substr(1, stringfound0-1);
00347
00348                         stringfound1 = temp.find(")",stringfound0+1);
00349                         numy = temp.substr(stringfound0+1, stringfound1-stringfound0-1);
00350
00351                         x = atof(numx.c_str());
00352                         y = atof(numy.c_str());
00353
00354                         vectorx->push_back(x);
00355                         vectory->push_back(y);
00356                         vectorz->push_back(_imageindex);
00357                 }
00358         }
00359         if(vectorx->size() > 0){
00360                 vectorxyz.push_back(*vectorx);
00361                 vectorxyz.push_back(*vectory);
00362                 vectorxyz.push_back(*vectorz);
00363                 contoursmapPX.insert(pair<int, vectorXYZ>(contoursmapPX.size(), vectorxyz));
00364                 contoursnamePX.insert(pair<int, string>(contoursnamePX.size(), _roiname));
00365         }
00366 }

Here is the caller graph for this function:

void OsirixParser::saveCreaContoursFormat (  )  [private]

Definition at line 382 of file OsirixParser.cxx.

References TEMPIMPORTOSIRIXFILE, writeContours(), writeContoursStatic(), and writeHeader().

Referenced by ParseFile().

00382                                          {
00383         FILE *pFile=fopen(TEMPIMPORTOSIRIXFILE.c_str(),"w+");
00384
00385         if(pFile){
00386                 writeHeader(pFile);
00387                 writeContours(pFile);
00388                 writeContoursStatic(pFile);
00389                 fclose(pFile);
00390         }
00391 }

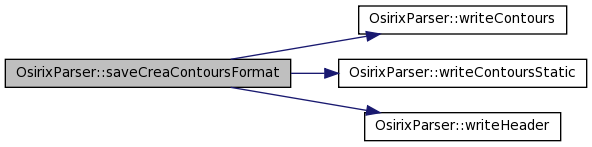

Here is the call graph for this function:

Here is the caller graph for this function:

void OsirixParser::setErrorLine ( DOMNodeList *  list  )  [private]

Definition at line 191 of file OsirixParser.cxx.

References errorline.

00191                                                 {
00192
00193         DOMNode* node = list->item(0);
00194         this->errorline =       XMLString::transcode(node->getTextContent());
00195
00196 }

void OsirixParser::writeContours ( FILE *  pFile  )  [private]

Definition at line 402 of file OsirixParser.cxx.

References _extent, _spacing, contoursmapPX, CREACONTOUR_INSTANT, CREACONTOUR_NUMBEROFCONTROLPOINTS, CREACONTOUR_TYPEMODEL, and CREACONTOUR_TYPEVIEW.

Referenced by saveCreaContoursFormat().

00402                                            {
00403
00404         map<int, vectorXYZ>::iterator itPX;
00405         vector<double> vectx, vecty, vectz;
00406         int i, valuez;
00407         int dimz = 0, dimy = 0;
00408
00409         if(_extent != 0){
00410                 dimz = _extent[5] - _extent[4] + 1;
00411                 dimy = _extent[3] - _extent[2] + 1;
00412         }
00413
00414         /*for (itMM = contoursmapMM.begin(),  itPX = contoursmapPX.begin();
00415                         itMM != contoursmapMM.end(), itPX != contoursmapPX.end();
00416                         itMM++, itPX++ ){*/
00417         for (itPX = contoursmapPX.begin(); itPX != contoursmapPX.end(); itPX++ ){
00418
00419                 vectx = ((*itPX).second)[0];
00420                 vecty = ((*itPX).second)[1];
00421                 vectz = ((*itPX).second)[2];
00422
00423                 if(!vectz.empty()){
00424
00425                         valuez = (int) vectz[0] / _spacing[2];
00426
00427                         fprintf(pFile, CREACONTOUR_INSTANT);
00428                         fprintf(pFile, " 1 %d 1 1 1 1\n",dimz - valuez);
00429                         fprintf(pFile, CREACONTOUR_TYPEMODEL);
00430                         fprintf(pFile, " 1\n");
00431                         fprintf(pFile, CREACONTOUR_NUMBEROFCONTROLPOINTS);
00432                         fprintf(pFile, " %d\n", vectz.size());
00433                         for(i = 0; i < vectx.size(); i++){
00434                           fprintf(pFile, "%f %f 900.00\n", vectx[i]/ _spacing[0], dimy - vecty[i]/ _spacing[1]);
00435                           // fprintf(pFile, "%f %f %f\n", vectx[i] , vecty[i], vectz[i]);
00436                         }
00437                         fprintf(pFile, CREACONTOUR_TYPEVIEW);
00438                         fprintf(pFile, " 1\n");
00439
00440                 }
00441         }
00442 }

Here is the caller graph for this function:

void OsirixParser::writeContoursStatic ( FILE *  pFile  )  [private]

Definition at line 393 of file OsirixParser.cxx.

References _extent, _spacing, CREACONTOUR_IMAGEDIMENSIONS, CREACONTOUR_IMAGESPACING, and CREACONTOUR_NUMBEROFCONTOURSSTATIC.

Referenced by saveCreaContoursFormat().

00393                                                  {
00394         fprintf(pFile, CREACONTOUR_IMAGEDIMENSIONS);
00395         fprintf(pFile, " %d %d %d\n", _extent[1] - _extent[0],_extent[3] - _extent[2], _extent[5] - _extent[4]);
00396         fprintf(pFile, CREACONTOUR_IMAGESPACING);
00397         fprintf(pFile, " %f %f %f\n", _spacing[0], _spacing[1], _spacing[2]);
00398         fprintf(pFile, CREACONTOUR_NUMBEROFCONTOURSSTATIC);
00399         fprintf(pFile, " 0\n");
00400 }

Here is the caller graph for this function:

void OsirixParser::writeHeader ( FILE *  pFile  )  [private]

Definition at line 444 of file OsirixParser.cxx.

References _extent, _spacing, contoursmapPX, CREACONTOUR, CREACONTOUR_IMAGEDIMENSIONS, CREACONTOUR_IMAGESPACING, CREACONTOUR_NUMBEROFCONTOURS, and CREACONTOUR_VERSION.

Referenced by saveCreaContoursFormat().

00444                                          {
00445
00446
00447         fprintf(pFile, CREACONTOUR);
00448         fprintf(pFile, "\n");
00449         fprintf(pFile, CREACONTOUR_VERSION);
00450         fprintf(pFile, "\n");
00451         fprintf(pFile, CREACONTOUR_IMAGEDIMENSIONS);
00452         fprintf(pFile, " %d %d %d\n", _extent[1] - _extent[0],_extent[3] - _extent[2], _extent[5] - _extent[4]);
00453         fprintf(pFile, CREACONTOUR_IMAGESPACING);
00454         fprintf(pFile, " %f %f %f\n", _spacing[0], _spacing[1], _spacing[2]);
00455         fprintf(pFile, CREACONTOUR_NUMBEROFCONTOURS);
00456         fprintf(pFile, " %d\n", contoursmapPX.size());
00457
00458
00459
00460 }

Here is the caller graph for this function:

Member Data Documentation

int OsirixParser::_extent[6] [private]

Definition at line 116 of file OsirixParser.h.

Referenced by OsirixParser(), writeContours(), writeContoursStatic(), and writeHeader().

int OsirixParser::_imageindex [private]

Definition at line 84 of file OsirixParser.h.

Referenced by parseOSIRIX_DICT(), and parseOSIRIX_POINT_PX().

std::string OsirixParser::_roiname [private]

Definition at line 85 of file OsirixParser.h.

Referenced by parseOSIRIX_DICT(), parseOSIRIX_POINT_MM(), and parseOSIRIX_POINT_PX().

double OsirixParser::_spacing[3] [private]

Definition at line 115 of file OsirixParser.h.

Referenced by OsirixParser(), writeContours(), writeContoursStatic(), and writeHeader().

std::map<int, vectorXYZ> OsirixParser::contoursmapMM [private]

Definition at line 119 of file OsirixParser.h.

Referenced by getContoursMapMM(), and parseOSIRIX_POINT_MM().

std::map<int, vectorXYZ> OsirixParser::contoursmapPX [private]

Definition at line 120 of file OsirixParser.h.

Referenced by getContoursMapPX(), parseOSIRIX_POINT_PX(), writeContours(), and writeHeader().

std::map<int, std::string> OsirixParser::contoursnameMM [private]

Definition at line 122 of file OsirixParser.h.

Referenced by getContoursNameMM(), and parseOSIRIX_POINT_MM().

std::map<int, std::string> OsirixParser::contoursnamePX [private]

Definition at line 123 of file OsirixParser.h.

Referenced by getContoursNamePX(), and parseOSIRIX_POINT_PX().

const char* OsirixParser::CREACONTOUR [private]

Definition at line 100 of file OsirixParser.h.

Referenced by OsirixParser(), and writeHeader().

const char* OsirixParser::CREACONTOUR_IMAGEDIMENSIONS [private]

Definition at line 102 of file OsirixParser.h.

Referenced by OsirixParser(), writeContoursStatic(), and writeHeader().

const char* OsirixParser::CREACONTOUR_IMAGESPACING [private]

Definition at line 103 of file OsirixParser.h.

Referenced by OsirixParser(), writeContoursStatic(), and writeHeader().

const char* OsirixParser::CREACONTOUR_INSTANT [private]

Definition at line 106 of file OsirixParser.h.

Referenced by OsirixParser(), and writeContours().

const char* OsirixParser::CREACONTOUR_NUMBEROFCONTOURS [private]

Definition at line 104 of file OsirixParser.h.

Referenced by OsirixParser(), and writeHeader().

const char* OsirixParser::CREACONTOUR_NUMBEROFCONTOURSSTATIC [private]

Definition at line 111 of file OsirixParser.h.

Referenced by OsirixParser(), and writeContoursStatic().

const char* OsirixParser::CREACONTOUR_NUMBEROFCONTROLPOINTS [private]

Definition at line 108 of file OsirixParser.h.

Referenced by OsirixParser(), and writeContours().

const char* OsirixParser::CREACONTOUR_TYPEMODEL [private]

Definition at line 107 of file OsirixParser.h.

Referenced by OsirixParser(), and writeContours().

const char* OsirixParser::CREACONTOUR_TYPEVIEW [private]

Definition at line 109 of file OsirixParser.h.

Referenced by OsirixParser(), and writeContours().

const char* OsirixParser::CREACONTOUR_VERSION [private]

Definition at line 101 of file OsirixParser.h.

Referenced by OsirixParser(), and writeHeader().

std::string OsirixParser::errorline [private]

Definition at line 82 of file OsirixParser.h.

Referenced by ParseFile(), and setErrorLine().

const char* OsirixParser::OSIRIX_ARRAY [private]

Definition at line 90 of file OsirixParser.h.

Referenced by OsirixParser().

const char* OsirixParser::OSIRIX_DICT [private]

Definition at line 87 of file OsirixParser.h.

Referenced by getUserData(), and OsirixParser().

const char* OsirixParser::OSIRIX_IMAGEINDEX [private]

Definition at line 91 of file OsirixParser.h.

Referenced by OsirixParser(), and parseOSIRIX_DICT().

const char* OsirixParser::OSIRIX_IMAGES [private]

Definition at line 89 of file OsirixParser.h.

Referenced by OsirixParser().

const char* OsirixParser::OSIRIX_INTEGER [private]

Definition at line 92 of file OsirixParser.h.

Referenced by OsirixParser(), and parseOSIRIX_DICT().

const char* OsirixParser::OSIRIX_KEY [private]

Definition at line 88 of file OsirixParser.h.

Referenced by OsirixParser().

const char* OsirixParser::OSIRIX_NAME [private]

Definition at line 98 of file OsirixParser.h.

Referenced by OsirixParser(), and parseOSIRIX_DICT().

const char* OsirixParser::OSIRIX_NUMBEROFROIS [private]

Definition at line 93 of file OsirixParser.h.

Referenced by OsirixParser().

const char* OsirixParser::OSIRIX_POINT_MM [private]

Definition at line 95 of file OsirixParser.h.

Referenced by OsirixParser(), and parseOSIRIX_DICT().

const char* OsirixParser::OSIRIX_POINT_PX [private]

Definition at line 96 of file OsirixParser.h.

Referenced by OsirixParser(), and parseOSIRIX_DICT().

const char* OsirixParser::OSIRIX_ROIS [private]

Definition at line 94 of file OsirixParser.h.

Referenced by OsirixParser().

const char* OsirixParser::OSIRIX_STRING [private]

Definition at line 97 of file OsirixParser.h.

Referenced by OsirixParser(), parseOSIRIX_DICT(), parseOSIRIX_POINT_MM(), and parseOSIRIX_POINT_PX().

std::string OsirixParser::schema [private]

Definition at line 80 of file OsirixParser.h.

Referenced by OsirixParser(), and ParseFile().

std::string OsirixParser::TEMPIMPORTOSIRIXFILE [private]

Definition at line 113 of file OsirixParser.h.

Referenced by getContoursFileName(), OsirixParser(), and saveCreaContoursFormat().

The documentation for this class was generated from the following files:
Generated on Wed Jun 27 23:28:34 2012 for creaContours_lib by  doxygen 1.5.7.1
