interfCalibrationPanel Class Reference

#include <interfToolsPanels.h>

List of all members.

Public Member Functions

interfCalibrationPanel (wxWindow *parent)

~interfCalibrationPanel ()

void onCalibrate (wxCommandEvent &event)

Private Attributes

wxTextCtrl * _size

wxRadioBox * _unitsRadiobox

Detailed Description

This class represents the calibration panel in the interface icons

Definition at line 100 of file interfToolsPanels.h.

Constructor & Destructor Documentation

interfCalibrationPanel::interfCalibrationPanel ( wxWindow * parent )

Initialized the panel

Parameters:

parent

Window who contains the panel

Definition at line 488 of file interfToolsPanels.cxx.

References _size, _unitsRadiobox, interfMainPanel::getImageRange(), interfMainPanel::getInstance(), and onCalibrate().

00489 : wxPanel(parent, -1, wxDefaultPosition, wxDefaultSize, wxBORDER_SUNKEN)
00490 {
00491         double range[2];
00492         interfMainPanel::getInstance()->getImageRange(range);
00493
00494         //Radio buttons
00495         wxString options[3];
00496         options[0]=_T("mm");
00497         options[1]=_T("cm");
00498         options[2]=_T("inch");
00499
00500         _unitsRadiobox = new wxRadioBox(this, -1, _T("Unit of measurement"), wxPoint(2, 25), wxSize(145,45), 3 , options,  3, wxRA_SPECIFY_COLS);
00501         _unitsRadiobox->SetSelection(0);
00502
00503         //The label
00504         new wxStaticText(this, wxID_ANY, wxT("Real Size: "),   wxPoint(2, 5));
00505
00506         //Text Control
00507         _size = new wxTextCtrl(this, wxID_ANY, wxT(""),  wxPoint(78,3),   wxSize(70, 20), 0, wxDefaultValidator, wxTextCtrlNameStr);
00508
00509         //The button
00510         new wxButton(this, 1, wxT("Calibrate"), wxPoint(78, 70), wxSize(70, 25), 0, wxDefaultValidator, wxT("button"));
00511
00512         //Conexion del boton con su respectivo manejador
00513         Connect(1, wxEVT_COMMAND_BUTTON_CLICKED,(wxObjectEventFunction) &interfCalibrationPanel::onCalibrate);
00514
00515 }

Here is the call graph for this function:

interfCalibrationPanel::~interfCalibrationPanel ( )

Definition at line 517 of file interfToolsPanels.cxx.

00518 {
00519 }

Member Function Documentation

void interfCalibrationPanel::onCalibrate ( wxCommandEvent & event )

Manages the event associated with the button of calibration

Definition at line 521 of file interfToolsPanels.cxx.

References _size, _unitsRadiobox, interfMainPanel::getInstance(), and interfMainPanel::onCalibration().

Referenced by interfCalibrationPanel().

00522 {
00523         wxString size =_size->GetValue();
00524         int unit = _unitsRadiobox->GetSelection();
00525         interfMainPanel::getInstance()->onCalibration(size, unit);
00526 }

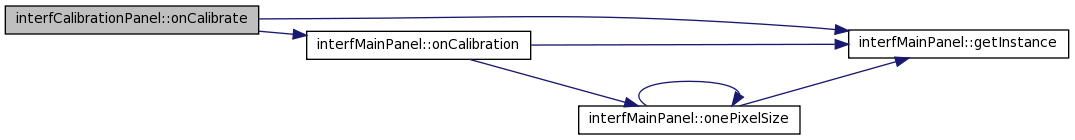

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

wxTextCtrl* interfCalibrationPanel::_size [private]

Text field of the calibration measure

Definition at line 123 of file interfToolsPanels.h.

Referenced by interfCalibrationPanel(), and onCalibrate().

wxRadioBox* interfCalibrationPanel::_unitsRadiobox [private]

Radio Box with the measurement units

Definition at line 128 of file interfToolsPanels.h.

Referenced by interfCalibrationPanel(), and onCalibrate().

The documentation for this class was generated from the following files:

/Users/davila/Creatis/All5/creatools_source/creaContours/lib/Interface_Icons_NDimensions/interfToolsPanels.h
/Users/davila/Creatis/All5/creatools_source/creaContours/lib/Interface_Icons_NDimensions/interfToolsPanels.cxx
