creaImageIO::WxGimmickPanel Class Reference
[Top level graphical user interfaces]

#include <creaImageIOWxGimmickPanel.h>

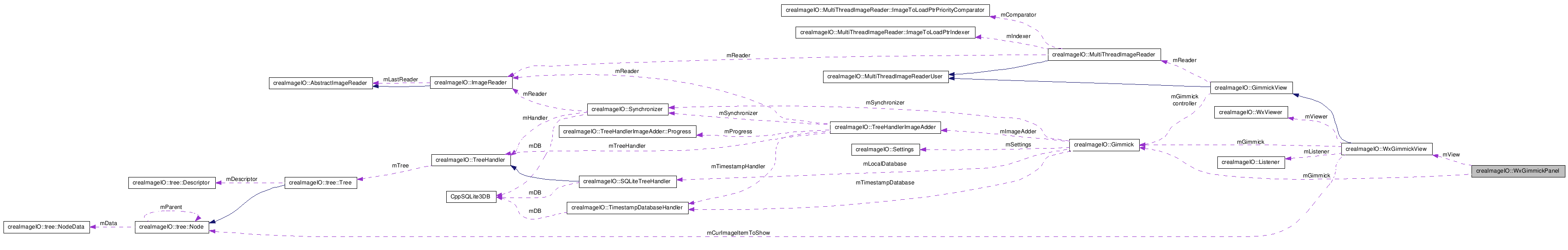

Collaboration diagram for creaImageIO::WxGimmickPanel:

[legend]

List of all members.

Public Types
typedef boost::signal< void(bool)>	SendImageSignalType
typedef SendImageSignalType::slot_function_type	SendImageCallbackType
Public Member Functions
	WxGimmickPanel ()
	WxGimmickPanel (wxWindow *parent, const wxWindowID id, const wxPoint &pos, const wxSize &size, int threads=0)
	~WxGimmickPanel ()
void	ConnectSendImageObserver (SendImageCallbackType callback)
void	GetSelectedImages (std::vector< vtkImageData * > &s, int dim)
void	OnSelectedImage (bool t)
void	AddImagesToDB (std::string dir)
Private Attributes
Gimmick *	mGimmick
WxGimmickView *	mView
SendImageSignalType	mSendImageSignal
	The sendImage signal.

---

Detailed Description

Definition at line 20 of file creaImageIOWxGimmickPanel.h.

---

Member Typedef Documentation

typedef boost::signal<void (bool)> creaImageIO::WxGimmickPanel::SendImageSignalType

Definition at line 33 of file creaImageIOWxGimmickPanel.h.

typedef SendImageSignalType::slot_function_type creaImageIO::WxGimmickPanel::SendImageCallbackType

Definition at line 34 of file creaImageIOWxGimmickPanel.h.

---

Constructor & Destructor Documentation

creaImageIO::WxGimmickPanel::WxGimmickPanel

(

)

creaImageIO::WxGimmickPanel::WxGimmickPanel	(	wxWindow *	parent,
		const wxWindowID	id,
		const wxPoint &	pos,
		const wxSize &	size,
		int	threads = 0
	)

creaImageIO::WxGimmickPanel::~WxGimmickPanel

(

)

---

Member Function Documentation

void creaImageIO::WxGimmickPanel::ConnectSendImageObserver

(

SendImageCallbackType

callback

)

Adds the function f to the list of functions to call when the addition progresses. f is of type ProgressCallbackType which is: void (*ProgressCallbackType)(Progress&) To pass a member function 'f' of an instance 'c' of a class 'C' as callback you have to 'bind' it, i.e. call: ConnectSendImageObserver ( boost::bind( &C::f , c, _1 ) );

void creaImageIO::WxGimmickPanel::GetSelectedImages	(	std::vector< vtkImageData * > &	s,
		int	dim
	)			[inline]

Definition at line 52 of file creaImageIOWxGimmickPanel.h.

    { mView->GetSelectedImages(s, dim); }

void creaImageIO::WxGimmickPanel::OnSelectedImage

(

bool

t

)

void creaImageIO::WxGimmickPanel::AddImagesToDB

(

std::string

dir

)

---

Member Data Documentation

Gimmick* creaImageIO::WxGimmickPanel::mGimmick [private]

Definition at line 62 of file creaImageIOWxGimmickPanel.h.

WxGimmickView* creaImageIO::WxGimmickPanel::mView [private]

Definition at line 63 of file creaImageIOWxGimmickPanel.h.

SendImageSignalType creaImageIO::WxGimmickPanel::mSendImageSignal [private]

The sendImage signal.

Definition at line 66 of file creaImageIOWxGimmickPanel.h.

---

The documentation for this class was generated from the following file:

• C:/Creatis/creaImageIO/src2/creaImageIOWxGimmickPanel.h

---
