creaImageIO::WxTreeView Class Reference
[View]

Abstract class that handles the view of a Tree through its TreeHandler. More...

#include <creaImageIOWxTreeView.h>

Inheritance diagram for creaImageIO::WxTreeView:

[legend]

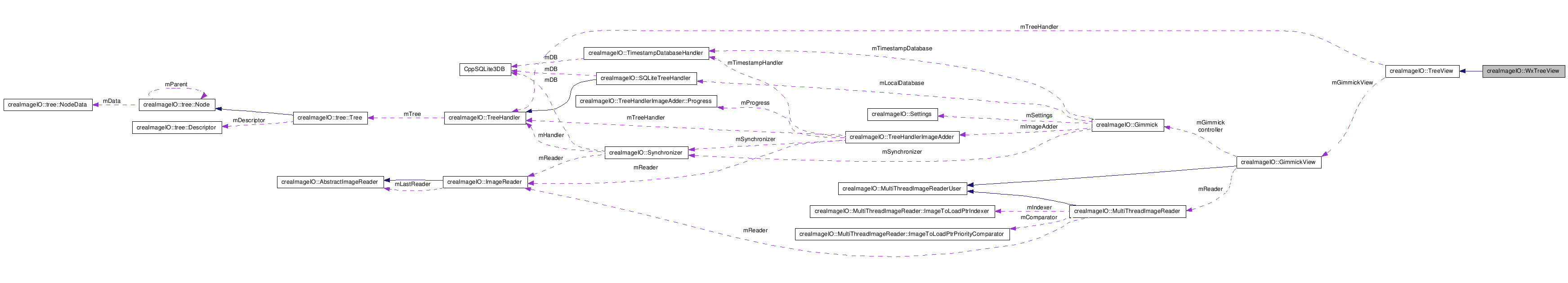

Collaboration diagram for creaImageIO::WxTreeView:

[legend]

List of all members.

Public Member Functions
	WxTreeView (TreeHandler *, GimmickView *, wxWindow *parent, const wxWindowID id)
	Ctor.
virtual	~WxTreeView ()
	Virtual destructor.
virtual void	UpdateLevel (int)
	Updates the view of a level given the selected items of upper level.
virtual void	RemoveSelected ()
	Removes selected nodes on given level.
virtual unsigned int	GetLastSelectedLevel ()
	Returns the last selected level.
void	OnItemSelected (wxListEvent &event)
	Callback for item selection.
void	OnItemDeSelected (wxListEvent &event)
	Callback for item deselection.
void	OnColClick (wxListEvent &event)
	Callback for column click.
void	OnPopupSort (wxCommandEvent &event)
	Callback when the user needs the items sorted.
void	OnPopupFilter (wxCommandEvent &event)
	Callback when the user need the items filtered.
void	OnLocalCopy (wxCommandEvent &event)
	Callback when the user needs the item copied to the local disk.
void	OnEditField (wxCommandEvent &event)
	Callback when the user needs to edit a field.
void	OnMouseClick (wxMouseEvent &event)
	Callback on mouse click.
void	OnItemMenu (wxListEvent &event)
	Displays a menu for items.
void	GetAttributes (std::vector< std::string > &areShown, std::vector< std::string > &notShown, int level)
	Gets the attributes that are being shown and the ones that have been blocked on a specific level.
void	SetNonVisibleAttributes (const std::vector< std::string > &notShown, int level)
	Sets the non visible attributes and refreshes the GUI.
void	CreateCtrl (std::vector< std::string > &notShown, int nlevel)
	Creates a new listctrl.
bool	IsAttributeVisible (const std::string &val, int level)
	Returns true if the attribute passed as a parameter is visible or not.
virtual void	ValidateSelectedImages ()
	Validates the selected images.
Protected Member Functions
TreeHandler *	GetTreeHandler ()
GimmickView *	GetGimmickView ()
Private Types
typedef std::map < tree::Node *, wxColour >	ColorMap
	The color map.
typedef std::pair < tree::Node *, wxColour >	NodeColorPair
Private Member Functions
wxListCtrl *	GetCtrl (int l)
	return the wxListCtrl of one level
wxSplitterWindow *	GetSplitter (int l)
	return the wxSplitter of one level
int	GetNumberOfLevels ()
	Returns the maximum number of levels.
const std::vector < tree::Node * > &	GetSelected (int level)
void	SetSelectedUpToDate (int l, bool v)
	Set the bool SelectedUpToDate for level l.
bool	GetSelectedUpToDate (int l)
	Get the bool SelectedUpToDate for level l.
void	ValidateSelectedImages (bool isSelection)
	Validates the selected images.
void	GetSelectedAsString (std::vector< std::string > &s)
	Gets selected filenames.
void	GetFilenamesAsString (const std::vector< tree::Node * > &nodes, std::vector< std::string > &s)
	Gets the filenames of the given nodes and returns them on the given vector. Is recursive.
void	GetNodes (std::vector< tree::Node * > &nodes, bool direction)
	Gets the next nodes on the list, be it up(true) or down(false).
virtual void	RecursiveUpdateLevel (int)
void	SetColor (int level, int item)
	Sets the color of a selected item.
void	CreateColorPalette ()
	Creates the color palette for the first level.
void	SelectAll (int level)
	Selects all the elements of a level.
void	UnSelectAll (int level)
	UnSelects all the elements of a level.
void	OnKeyDown (wxListEvent &event)
void	SortLevel (int level)
	Sorts the level.
Private Attributes
std::vector< LevelType >	mLevelList
	The vector of levels : one for each level of the tree.
int	mColumnSelected
	Currently Selected Column.
long	mLastSelected
	The last selected item on the list (left click).
long	mLastRightSelected
	The last selected item on the list (right click).
int	mLastRightLevel
	The last selected level (by right click).
ColorMap	mColorMap
std::vector < std::string >	mColorPalette
	Initial color palette.
wxMenu *	menu
wxObject *	senderCtrl
int	mAscendingID
int	mDescendingID
int	mFilterID
unsigned int	mLastLevel
wxMenu *	menuItem
int	mAnonymizingID
int	mLocalCopyID
int	mEditFieldID
bool	mIgnoreSelectedChanged
Classes
struct	LevelType

---

Detailed Description

Abstract class that handles the view of a Tree through its TreeHandler.

Definition at line 23 of file creaImageIOWxTreeView.h.

---

Member Typedef Documentation

typedef std::map<tree::Node*,wxColour> creaImageIO::WxTreeView::ColorMap [private]

The color map.

Definition at line 157 of file creaImageIOWxTreeView.h.

typedef std::pair<tree::Node*,wxColour> creaImageIO::WxTreeView::NodeColorPair [private]

Definition at line 158 of file creaImageIOWxTreeView.h.

---

Constructor & Destructor Documentation

creaImageIO::WxTreeView::WxTreeView	(	TreeHandler *	,
		GimmickView *	,
		wxWindow *	parent,
		const wxWindowID	id
	)

Ctor.

virtual creaImageIO::WxTreeView::~WxTreeView

(

)

[virtual]

Virtual destructor.

---

Member Function Documentation

virtual void creaImageIO::WxTreeView::UpdateLevel

(

int

)

[virtual]

Updates the view of a level given the selected items of upper level.

Reimplemented from creaImageIO::TreeView.

virtual void creaImageIO::WxTreeView::RemoveSelected

(

)

[virtual]

Removes selected nodes on given level.

Reimplemented from creaImageIO::TreeView.

virtual unsigned int creaImageIO::WxTreeView::GetLastSelectedLevel

(

)

[inline, virtual]

Returns the last selected level.

Reimplemented from creaImageIO::TreeView.

Definition at line 40 of file creaImageIOWxTreeView.h.

References mLastLevel.

{return mLastLevel;}

void creaImageIO::WxTreeView::OnItemSelected

(

wxListEvent &

event

)

Callback for item selection.

void creaImageIO::WxTreeView::OnItemDeSelected

(

wxListEvent &

event

)

Callback for item deselection.

void creaImageIO::WxTreeView::OnColClick

(

wxListEvent &

event

)

Callback for column click.

void creaImageIO::WxTreeView::OnPopupSort

(

wxCommandEvent &

event

)

Callback when the user needs the items sorted.

void creaImageIO::WxTreeView::OnPopupFilter

(

wxCommandEvent &

event

)

Callback when the user need the items filtered.

void creaImageIO::WxTreeView::OnLocalCopy

(

wxCommandEvent &

event

)

Callback when the user needs the item copied to the local disk.

void creaImageIO::WxTreeView::OnEditField

(

wxCommandEvent &

event

)

Callback when the user needs to edit a field.

void creaImageIO::WxTreeView::OnMouseClick

(

wxMouseEvent &

event

)

Callback on mouse click.

void creaImageIO::WxTreeView::OnItemMenu

(

wxListEvent &

event

)

Displays a menu for items.

void creaImageIO::WxTreeView::GetAttributes	(	std::vector< std::string > &	areShown,
		std::vector< std::string > &	notShown,
		int	level
	)			[virtual]

Gets the attributes that are being shown and the ones that have been blocked on a specific level.

Reimplemented from creaImageIO::TreeView.

void creaImageIO::WxTreeView::SetNonVisibleAttributes	(	const std::vector< std::string > &	notShown,
		int	level
	)			[virtual]

Sets the non visible attributes and refreshes the GUI.

Reimplemented from creaImageIO::TreeView.

void creaImageIO::WxTreeView::CreateCtrl	(	std::vector< std::string > &	notShown,
		int	nlevel
	)			[virtual]

Creates a new listctrl.

Reimplemented from creaImageIO::TreeView.

bool creaImageIO::WxTreeView::IsAttributeVisible	(	const std::string &	val,
		int	level
	)

Returns true if the attribute passed as a parameter is visible or not.

wxListCtrl* creaImageIO::WxTreeView::GetCtrl

(

int

l

)

[inline, private]

return the wxListCtrl of one level

Definition at line 110 of file creaImageIOWxTreeView.h.

References mLevelList.

{ return mLevelList[l].wxCtrl; }

wxSplitterWindow* creaImageIO::WxTreeView::GetSplitter

(

int

l

)

[inline, private]

return the wxSplitter of one level

Definition at line 112 of file creaImageIOWxTreeView.h.

References mLevelList.

{ return mLevelList[l].wxSplitter; }

int creaImageIO::WxTreeView::GetNumberOfLevels

(

)

[inline, private, virtual]

Returns the maximum number of levels.

Reimplemented from creaImageIO::TreeView.

Definition at line 114 of file creaImageIOWxTreeView.h.

References mLevelList.

{ return mLevelList.size(); }

const std::vector<tree::Node*>& creaImageIO::WxTreeView::GetSelected

(

int

level

)

[private, virtual]

Gets the user selected data from the level passed as a parameter Updates the vector if necessary

Reimplemented from creaImageIO::TreeView.

void creaImageIO::WxTreeView::SetSelectedUpToDate	(	int	l,
		bool	v
	)			[inline, private]

Set the bool SelectedUpToDate for level l.

Definition at line 119 of file creaImageIOWxTreeView.h.

References mLevelList.

{ mLevelList[l].SelectedUpToDate = v; }

bool creaImageIO::WxTreeView::GetSelectedUpToDate

(

int

l

)

[inline, private]

Get the bool SelectedUpToDate for level l.

Definition at line 121 of file creaImageIOWxTreeView.h.

References mLevelList.

{ return mLevelList[l].SelectedUpToDate; }

void creaImageIO::WxTreeView::ValidateSelectedImages

(

bool

isSelection

)

[private]

Validates the selected images.

void creaImageIO::WxTreeView::GetSelectedAsString

(

std::vector< std::string > &

s

)

[private, virtual]

Gets selected filenames.

Reimplemented from creaImageIO::TreeView.

void creaImageIO::WxTreeView::GetFilenamesAsString	(	const std::vector< tree::Node * > &	nodes,
		std::vector< std::string > &	s
	)			[private]

Gets the filenames of the given nodes and returns them on the given vector. Is recursive.

void creaImageIO::WxTreeView::GetNodes	(	std::vector< tree::Node * > &	nodes,
		bool	direction
	)			[private, virtual]

Gets the next nodes on the list, be it up(true) or down(false).

Reimplemented from creaImageIO::TreeView.

virtual void creaImageIO::WxTreeView::RecursiveUpdateLevel

(

int

)

[private, virtual]

Updates the view of a level given the selected items of upper level Recursive method

void creaImageIO::WxTreeView::SetColor	(	int	level,
		int	item
	)			[private]

Sets the color of a selected item.

void creaImageIO::WxTreeView::CreateColorPalette

(

)

[private]

Creates the color palette for the first level.

void creaImageIO::WxTreeView::SelectAll

(

int

level

)

[private]

Selects all the elements of a level.

void creaImageIO::WxTreeView::UnSelectAll

(

int

level

)

[private]

UnSelects all the elements of a level.

void creaImageIO::WxTreeView::OnKeyDown

(

wxListEvent &

event

)

[private]

void creaImageIO::WxTreeView::SortLevel

(

int

level

)

[private]

Sorts the level.

virtual void creaImageIO::TreeView::ValidateSelectedImages

(

)

[inline, virtual, inherited]

Validates the selected images.

Definition at line 40 of file creaImageIOTreeView.h.

References GimmickError.

          { GimmickError("INTERNAL ERROR : TreeView::ValidateSelected not overloaded");}

TreeHandler* creaImageIO::TreeView::GetTreeHandler

(

)

[inline, protected, inherited]

Definition at line 67 of file creaImageIOTreeView.h.

References creaImageIO::TreeView::mTreeHandler.

{ return mTreeHandler; }

GimmickView* creaImageIO::TreeView::GetGimmickView

(

)

[inline, protected, inherited]

Definition at line 68 of file creaImageIOTreeView.h.

References creaImageIO::TreeView::mGimmickView.

{ return mGimmickView; }

---

Member Data Documentation

std::vector<LevelType> creaImageIO::WxTreeView::mLevelList [private]

The vector of levels : one for each level of the tree.

Definition at line 107 of file creaImageIOWxTreeView.h.

Referenced by GetCtrl(), GetNumberOfLevels(), GetSelectedUpToDate(), GetSplitter(), and SetSelectedUpToDate().

int creaImageIO::WxTreeView::mColumnSelected [private]

Currently Selected Column.

Definition at line 147 of file creaImageIOWxTreeView.h.

long creaImageIO::WxTreeView::mLastSelected [private]

The last selected item on the list (left click).

Definition at line 149 of file creaImageIOWxTreeView.h.

long creaImageIO::WxTreeView::mLastRightSelected [private]

The last selected item on the list (right click).

Definition at line 152 of file creaImageIOWxTreeView.h.

int creaImageIO::WxTreeView::mLastRightLevel [private]

The last selected level (by right click).

Definition at line 155 of file creaImageIOWxTreeView.h.

ColorMap creaImageIO::WxTreeView::mColorMap [private]

Definition at line 159 of file creaImageIOWxTreeView.h.

std::vector<std::string> creaImageIO::WxTreeView::mColorPalette [private]

Initial color palette.

Definition at line 161 of file creaImageIOWxTreeView.h.

wxMenu* creaImageIO::WxTreeView::menu [private]

Definition at line 163 of file creaImageIOWxTreeView.h.

wxObject* creaImageIO::WxTreeView::senderCtrl [private]

Definition at line 165 of file creaImageIOWxTreeView.h.

int creaImageIO::WxTreeView::mAscendingID [private]

Definition at line 166 of file creaImageIOWxTreeView.h.

int creaImageIO::WxTreeView::mDescendingID [private]

Definition at line 167 of file creaImageIOWxTreeView.h.

int creaImageIO::WxTreeView::mFilterID [private]

Definition at line 168 of file creaImageIOWxTreeView.h.

unsigned int creaImageIO::WxTreeView::mLastLevel [private]

Definition at line 169 of file creaImageIOWxTreeView.h.

Referenced by GetLastSelectedLevel().

wxMenu* creaImageIO::WxTreeView::menuItem [private]

Definition at line 171 of file creaImageIOWxTreeView.h.

int creaImageIO::WxTreeView::mAnonymizingID [private]

Definition at line 172 of file creaImageIOWxTreeView.h.

int creaImageIO::WxTreeView::mLocalCopyID [private]

Definition at line 173 of file creaImageIOWxTreeView.h.

int creaImageIO::WxTreeView::mEditFieldID [private]

Definition at line 174 of file creaImageIOWxTreeView.h.

bool creaImageIO::WxTreeView::mIgnoreSelectedChanged [private]

Definition at line 179 of file creaImageIOWxTreeView.h.

---

The documentation for this class was generated from the following file:

• C:/Creatis/creaImageIO/src2/creaImageIOWxTreeView.h

---
