manualContourModel Class Reference

#include <manualContourModel.h>

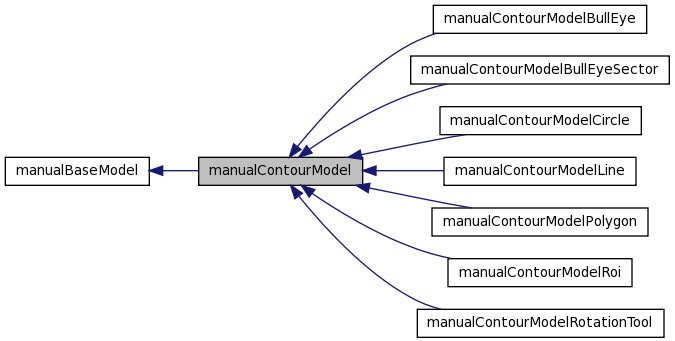

Inheritance diagram for manualContourModel:

[legend]

Collaboration diagram for manualContourModel:

[legend]

List of all members.

Public Member Functions
	manualContourModel ()
virtual	~manualContourModel ()
virtual manualContourModel *	Clone ()
void	CopyAttributesTo (manualContourModel *cloneObject)
void	Open (FILE *ff)
virtual void	Save (FILE *ff)
virtual int	GetTypeModel ()
virtual int	AddPoint (double x, double y, double z)
virtual int	InsertPoint (double x, double y, double z)
virtual void	InsertPoint_id (int id, double x, double y, double z)
virtual void	AddManualPoint (manualPoint *theManualPoint)
virtual void	Transform_Ax_Plus_B (double Ax, double Bx, double Ay, double By)
virtual void	DeletePoint (int i)
virtual void	DeleteAllPoints ()
virtual void	MovePoint (int i, double dx, double dy, double dz)
virtual void	MoveLstPoints (double dx, double dy, double dz)
virtual void	MoveAllPoints (double dx, double dy, double dz)
virtual int	GetIdPoint (double x, double y, double z, int i_range, int type)
virtual manualPoint *	GetManualPoint (int id)
virtual int	GetSizeLstPoints ()
int	GetNumberOfPointsSpline ()
virtual void	SetNumberOfPointsSpline (int size)
virtual void	UpdateSpline ()
void	SetCloseContour (bool closeContour)
bool	IfCloseContour ()
virtual double	GetPathSize ()
virtual double	GetPathArea ()
void	GetNearestPointAndNormal (double *p, double *rp, double *rn)
virtual void	GetSpline_i_Point (int i, double *x, double *y, double *z)
void	GetSpline_t_Point (double t, double *x, double *y, double *z)
virtual std::vector < manualBaseModel * >	ExploseModel ()
void	SetLabel (std::string newLabel)
void	SetRealSize (double newRealSize)
std::string	GetLabel ()
double	GetRealSize ()
void	SaveData (FILE *ff)
void	OpenData (FILE *ff)
int	IsPoint (double x, double y)
Public Attributes
bool	_closeContour
vtkKochanekSpline *	_cntSplineX
vtkKochanekSpline *	_cntSplineY
vtkKochanekSpline *	_cntSplineZ
double	_delta_JSTG
double	_realSize
std::string	_label
Protected Attributes
int	_sizePointsContour
std::vector< manualPoint * >	_lstPoints

---

Detailed Description

Definition at line 41 of file manualContourModel.h.

---

Constructor & Destructor Documentation

manualContourModel::manualContourModel

(

)

Definition at line 7 of file manualContourModel.cpp.

References _cntSplineX, _cntSplineY, _cntSplineZ, _delta_JSTG, _label, _realSize, manualBaseModel::_sizePointsContour, and SetCloseContour().

Referenced by Clone().

{
    _cntSplineX = vtkKochanekSpline::New( );
    _cntSplineY = vtkKochanekSpline::New( );
    _cntSplineZ = vtkKochanekSpline::New( );

        this->SetCloseContour(true);

    _cntSplineX->SetDefaultTension( 0 );
        _cntSplineX->SetDefaultBias( 0 );
        _cntSplineX->SetDefaultContinuity( 0 );

    _cntSplineY->SetDefaultTension( 0 );
        _cntSplineY->SetDefaultBias( 0 );
        _cntSplineY->SetDefaultContinuity( 0 );

    _cntSplineZ->SetDefaultTension( 0 );
        _cntSplineZ->SetDefaultBias( 0 );
        _cntSplineZ->SetDefaultContinuity( 0 );

//JSTG 25-02-08 -------------------------------------------------------------------------------------------------

        // this parameter is reset in the  VIRTUAL manualContourBaseControler::Configure
        _sizePointsContour      = 100;                  //JSTG 25-02-08 The change in the inisialization of these variable is critical.

        _delta_JSTG                     = 0.0;
//---------------------------------------------------------------------------------------------------------------

//CMRU 17-08-09 -------------------------------------------------------------------------------------------------
        _realSize                       = 0.0;
        _label                          = "";
//---------------------------------------------------------------------------------------------------------------

}

Here is the call graph for this function:

Here is the caller graph for this function:

manualContourModel::~manualContourModel

(

)

[virtual]

Definition at line 43 of file manualContourModel.cpp.

References _cntSplineX, _cntSplineY, _cntSplineZ, and manualBaseModel::_lstPoints.

{
        int i,size=_lstPoints.size();
        for (i=0;i<size; i++){
                delete _lstPoints[i];
        }
        _lstPoints.clear();

        _cntSplineX->RemoveAllPoints();
        _cntSplineY->RemoveAllPoints();
        _cntSplineZ->RemoveAllPoints();

        _cntSplineX->Delete();
        _cntSplineY->Delete();
        _cntSplineZ->Delete();
}

---

Member Function Documentation

void manualContourModel::AddManualPoint

(

manualPoint *

theManualPoint

)

[virtual]

Reimplemented from manualBaseModel.

Definition at line 704 of file manualContourModel.cpp.

References manualBaseModel::_lstPoints.

Referenced by AddPoint(), and CopyAttributesTo().

{
        _lstPoints.push_back( theManualPoint );
}

Here is the caller graph for this function:

int manualContourModel::AddPoint	(	double	x,
		double	y,
		double	z
	)			[virtual]

Reimplemented from manualBaseModel.

Definition at line 60 of file manualContourModel.cpp.

References manualBaseModel::_lstPoints, AddManualPoint(), and manualPoint::SetPoint().

Referenced by AutoControlPoints::ChargeSpline(), manualViewContour::InitMove(), PropContour::method_Spline(), Open(), and wxMaracasCoutourTool::SetControlPoints().

{
   manualPoint *mp = new manualPoint();
   mp->SetPoint(x,y,z);
   AddManualPoint(mp);
   //UpdateSpline();

   return _lstPoints.size()-1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

manualContourModel * manualContourModel::Clone

(

)

[virtual]

Reimplemented from manualBaseModel.

Reimplemented in manualContourModelBullEye, manualContourModelBullEyeSector, manualContourModelCircle, manualContourModelLine, manualContourModelPolygon, manualContourModelRoi, and manualContourModelRotationTool.

Definition at line 598 of file manualContourModel.cpp.

References CopyAttributesTo(), and manualContourModel().

Referenced by CopyAttributesTo().

{
        manualContourModel * clone = new manualContourModel();
        CopyAttributesTo(clone);
        return clone;
}

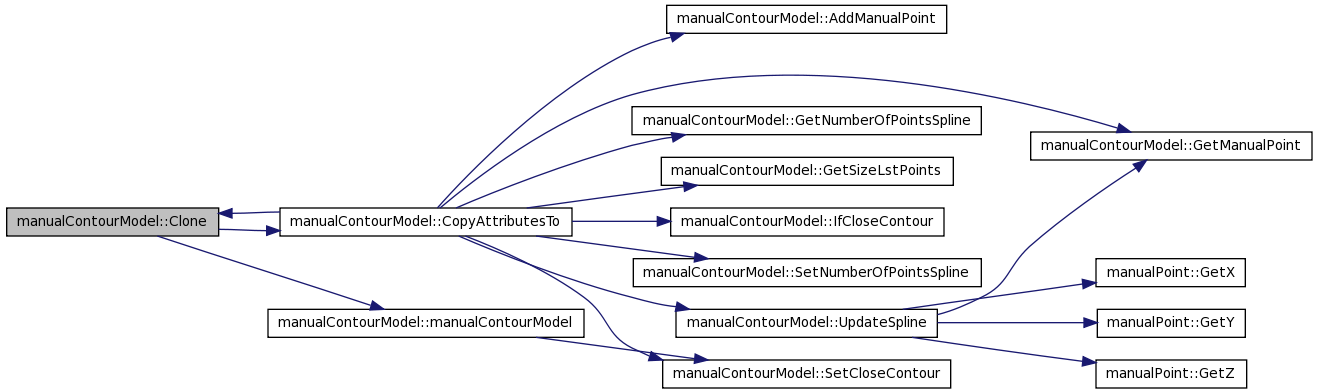

Here is the call graph for this function:

Here is the caller graph for this function:

void manualContourModel::CopyAttributesTo

(

manualContourModel *

cloneObject

)

Reimplemented from manualBaseModel.

Reimplemented in manualContourModelBullEye, manualContourModelBullEyeSector, manualContourModelCircle, manualContourModelLine, manualContourModelPolygon, manualContourModelRoi, and manualContourModelRotationTool.

Definition at line 686 of file manualContourModel.cpp.

References _closeContour, AddManualPoint(), Clone(), GetManualPoint(), GetNumberOfPointsSpline(), GetSizeLstPoints(), IfCloseContour(), SetCloseContour(), SetNumberOfPointsSpline(), and UpdateSpline().

Referenced by Clone().

{
        // Fathers object
        //XXXX::CopyAttributesTo(cloneObject);

        cloneObject->SetCloseContour( this->IfCloseContour() );
        int i, size = GetSizeLstPoints();
        for( i=0; i<size; i++ )
        {
                cloneObject->AddManualPoint( GetManualPoint( i )->Clone() );
        }
        cloneObject->SetNumberOfPointsSpline( GetNumberOfPointsSpline () );
        cloneObject->SetCloseContour( _closeContour );
        cloneObject->UpdateSpline();
}

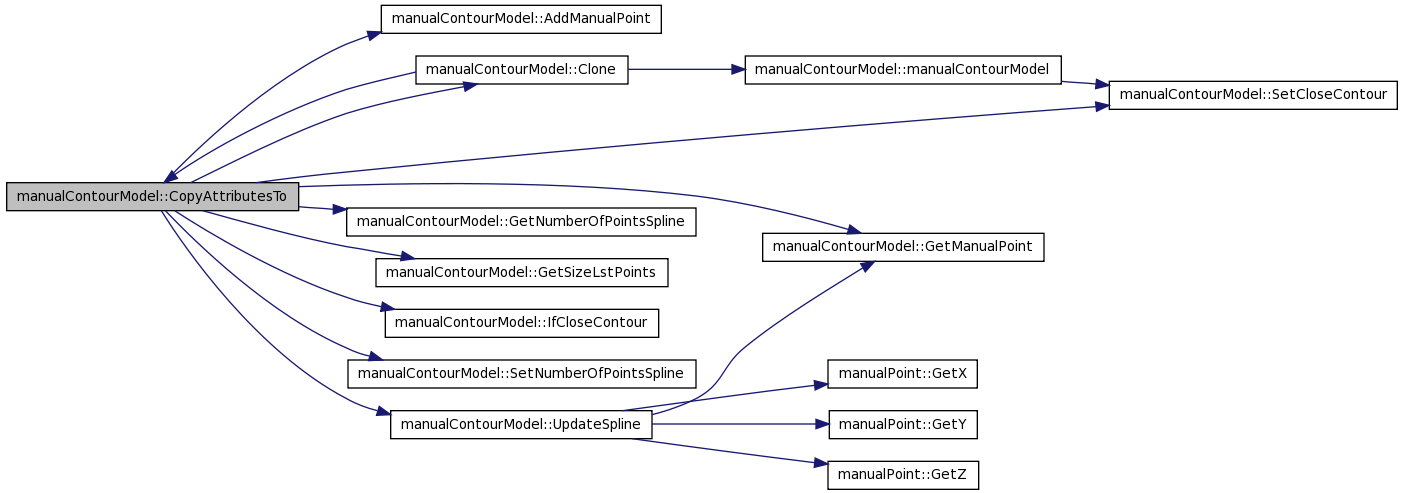

Here is the call graph for this function:

Here is the caller graph for this function:

void manualContourModel::DeleteAllPoints

(

)

[virtual]

Reimplemented from manualBaseModel.

Definition at line 153 of file manualContourModel.cpp.

References manualBaseModel::_lstPoints, and UpdateSpline().

Referenced by AutoControlPoints::ChargeSpline(), manualViewContour::InitMove(), PropContour::method_Spline(), manualContourContainer::refreshLumen(), manualContourContainer::refreshWall(), and wxMaracasCoutourTool::SetControlPoints().

{
        int i,size=_lstPoints.size();
        for (i=0;i<size;i++){
           _lstPoints.erase( _lstPoints.begin() );
        }
        this->UpdateSpline();
}

Here is the call graph for this function:

Here is the caller graph for this function:

void manualContourModel::DeletePoint

(

int

i

)

[virtual]

Reimplemented from manualBaseModel.

Definition at line 147 of file manualContourModel.cpp.

References manualBaseModel::_lstPoints.

{
        std::vector<manualPoint*>::iterator itNum = _lstPoints.begin() + i;
   _lstPoints.erase(itNum);
}

std::vector< manualBaseModel * > manualContourModel::ExploseModel

(

)

[virtual]

Reimplemented from manualBaseModel.

Reimplemented in manualContourModelBullEye.

Definition at line 709 of file manualContourModel.cpp.

{
        std::vector<manualBaseModel*> lstTmp;
        lstTmp.push_back(this);
        return lstTmp;
}

int manualContourModel::GetIdPoint	(	double	x,
		double	y,
		double	z,
		int	i_range,
		int	type
	)			[virtual]

Reimplemented from manualBaseModel.

Definition at line 192 of file manualContourModel.cpp.

References manualBaseModel::_lstPoints, manualPoint::GetX(), manualPoint::GetY(), and manualPoint::GetZ().

{
        double range = i_range+1;

        double xx,yy,zz,dd,ddmin=9999999;
        int ibak=-1;
        int i,size=_lstPoints.size();
        for (i=0;i<size;i++){
                manualPoint *mp=_lstPoints[i];
                xx=mp->GetX();
                yy=mp->GetY();
                zz=mp->GetZ();

                if (type==-1)
                {
                        if ((fabs(xx-x)<range) && (fabs(yy-y)<range) && (fabs(zz-z)<range)) {
                           dd=sqrt(   (xx-x)*(xx-x) + (yy-y)*(yy-y) + (zz-z)*(zz-z) );
                           if (dd<ddmin){
                                   ddmin=dd;
                                   ibak=i;
                           }
                        }
                }
                if (type==0)
                {
                        if ((fabs(yy-y)<range) && (fabs(zz-z)<range)) {
                           dd=sqrt(   (yy-y)*(yy-y) + (zz-z)*(zz-z) );
                           if (dd<ddmin){
                                   ddmin=dd;
                                   ibak=i;
                           }
                        }
                }
                if (type==1)
                {
                        if ((fabs(xx-x)<range) && (fabs(zz-z)<range)) {
                           dd=sqrt(   (xx-x)*(xx-x)  + (zz-z)*(zz-z) );
                           if (dd<ddmin){
                                   ddmin=dd;
                                   ibak=i;
                           }
                        }
                }
                if (type==2)
                {
                        if ((fabs(xx-x)<range) && (fabs(yy-y)<range) ) {
                           dd=sqrt(   (xx-x)*(xx-x) + (yy-y)*(yy-y)  );
                           if (dd<ddmin){
                                   ddmin=dd;
                                   ibak=i;
                           }
                        }
                }
        }
        return ibak;
}

Here is the call graph for this function:

std::string manualContourModel::GetLabel

(

)

[virtual]

Returns the label of the contour

Reimplemented from manualBaseModel.

Definition at line 750 of file manualContourModel.cpp.

References _label.

Referenced by SaveData().

{
        return _label;
}

Here is the caller graph for this function:

manualPoint * manualContourModel::GetManualPoint

(

int

id

)

[virtual]

Reimplemented from manualBaseModel.

Definition at line 249 of file manualContourModel.cpp.

References manualBaseModel::_lstPoints.

Referenced by CopyAttributesTo(), manualContourModelRotationTool::getCenter(), manualContourModelRotationTool::GetSpline_i_Point(), manualContourModelPolygon::GetSpline_i_Point(), GetSpline_t_Point(), manualViewContour::MoveContour(), wxMaracasCoutourTool::OnSaveControlPoints(), manualContourContainer::refreshLumen(), manualContourContainer::refreshWall(), Transform_Ax_Plus_B(), manualContourModelRotationTool::UpdateSpline(), manualContourModelCircle::UpdateSpline(), manualContourModelBullEye::UpdateSpline(), and UpdateSpline().

{
        return _lstPoints[id];
}

Here is the caller graph for this function:

void manualContourModel::GetNearestPointAndNormal	(	double *	p,
		double *	rp,
		double *	rn
	)			[virtual]

Reimplemented from manualBaseModel.

Definition at line 522 of file manualContourModel.cpp.

References manualBaseModel::_lstPoints, GetNumberOfPointsSpline(), GetSpline_i_Point(), and UpdateSpline().

{
        double  distMin=999999999;
        double  dist,dx,dy,dz;
        double  x1,y1,z1;
        double  x2,y2,z2;
        int             i,np,nps;

//JSTG 25-02-08 -------------------
        //double  tback;
        int iback;
        //double        t,delta;
//---------------------------------

        np      = _lstPoints.size( );
        if (np>=2)
        {
// JSTG 25-02-08 ------------------------------------------
                //nps           = 200;
                nps = GetNumberOfPointsSpline();
                //delta = ( double ) ( np  ) / ( double ) ( nps  );
                UpdateSpline();
                //GetSplinePoint(0,x1,y1,z1);
                GetSpline_i_Point(0,&x1,&y1,&z1);
                for( i = 0; i < nps; i++ )
                {
                        //t = delta * (double)i;
                        //GetSplinePoint(t,x1,y1,z1);
                        GetSpline_i_Point(i,&x1,&y1,&z1);
//----------------------------------------------------------
                        dx= x1-p[0];
                        dy= y1-p[1];
                        dz= z1-p[2];
                        dist = sqrt( dx*dx + dy*dy + dz*dz );
                        if (dist<distMin)
                        {
                                distMin  = dist;
//JSTG                  tback = t;
                                iback = i;
                                rp[0] = x1;
                                rp[1] = y1;
                                rp[2] = z1;
                                rn[0] = x2-x1;
                                rn[1] = y2-y1;
                                rn[2] = z2-z1;
                        }
                        x2=x1;
                        y2=y1;
                        z2=z1;
                }// for

// JSTG 25-02-08 ------------------------------------------
                //if (tback==0)
                if (iback==0)
                {
                        //t = delta * (double)1.0;
                        //GetSplinePoint(t,x1,y1,z1);
                        GetSpline_i_Point(i,&x1,&y1,&z1);
//----------------------------------------------------------
                        rn[0]=rp[0]-x1;
                        rn[1]=rp[1]-y1;
                        rn[2]=rp[2]-z1;
                }
        }
        else
        {
                rp[0] = 0;
                rp[1] = 0;
                rp[2] = 0;
                rn[0] = -1;
                rn[1] = 0;
                rn[2] = 0;
        }
}

Here is the call graph for this function:

int manualContourModel::GetNumberOfPointsSpline

(

)

[virtual]

Reimplemented from manualBaseModel.

Definition at line 259 of file manualContourModel.cpp.

References manualBaseModel::_sizePointsContour.

Referenced by wxMaracasCoutourTool::AnalisisContourInside(), AutoControlPoints::ChargeSpline(), CopyAttributesTo(), wxMaracasCoutourTool::GetMinMaxPoint(), GetNearestPointAndNormal(), GetPathArea(), GetPathSize(), manualContourModelRotationTool::GetSpline_i_Point(), manualContourModelBullEyeSector::GetSpline_i_Point(), wxMaracasCoutourTool::GetSplinePoints(), PropContour::method_Spline(), wxMaracasCoutourTool::OnSaveContour(), manualContourModelRotationTool::UpdateSpline(), and manualContourModelCircle::UpdateSpline().

{
        return _sizePointsContour;
}

Here is the caller graph for this function:

double manualContourModel::GetPathArea

(

)

[virtual]

Reimplemented from manualBaseModel.

Definition at line 441 of file manualContourModel.cpp.

References manualBaseModel::_lstPoints, GetNumberOfPointsSpline(), GetSpline_i_Point(), IfCloseContour(), and UpdateSpline().

{
        double result = 555;
        if ((_lstPoints.size()>=3) && IfCloseContour()==true )
        {
                double area;
//JSTG 25-02-08 ---------------------------------------------
                //double ti,tj;
//-----------------------------------------------------------
                double x1,y1,z1;
                double x2,y2,z2;
                bool okArea=true;
                int i, j;

                // This uses Green's theorem:
                // A = 1/2 * sum( xiyi+1 - xi+1yi); pO == pN
                // A < 0 -> A = |A| (a negative value could raise because points are
                // given in clockwise order).

//JSTG 25-02-08 -------------------------------------------------
                //int np  = _lstPoints.size( );
                //int nps = 200;
                int nps = GetNumberOfPointsSpline();
                //double delta=( double ) ( np  ) / ( double ) ( nps  );
                UpdateSpline();
                for( i = 0, area = 0.0; i < nps; i++ )
                {
                        j = ( i + 1 ) % nps;
                        //ti = delta * (double)i;
                        //tj = delta * (double)j;
                        //GetSplinePoint(ti,x1,y1,z1);
                        //GetSplinePoint(tj,x2,y2,z2);
                        GetSpline_i_Point(i,&x1,&y1,&z1);
                        GetSpline_i_Point(j,&x2,&y2,&z2);
//----------------------------------------------------------------
                        area +=
                                        (x1 * y2 ) -
                                        ( x2 * y1 );
                        if (z1!=z2)
                        {
                                okArea=false;
                        }
                }// for
                area /= 2.0;
                area = fabs( area );

/*
                for( i = 0, area = 0.0; i < _lstPoints.size(); i++ )
                {
                        j = ( i + 1 ) % _lstPoints.size();
                        //  Area
                        area +=
                                        (_lstPoints[i]->GetX() * _lstPoints[j]->GetY() ) -
                                        ( _lstPoints[j]->GetX() * _lstPoints[i]->GetY() );
                        if (_lstPoints[0]->GetZ()!=_lstPoints[i]->GetZ())
                        {
                                okArea=false;
                        }
                } // rof
                area /= 2.0;
                area = fabs( area );
*/

                if (okArea==true)
                {
                        result = area;
                } else {
                        result = -1;
                }

        } else {
                result = 0;
        }
        return result;
}

Here is the call graph for this function:

double manualContourModel::GetPathSize

(

)

[virtual]

Reimplemented from manualBaseModel.

Definition at line 391 of file manualContourModel.cpp.

References manualBaseModel::_lstPoints, GetNumberOfPointsSpline(), GetSpline_i_Point(), and UpdateSpline().

Referenced by AutoControlPoints::ChargeSpline().

{
        double result = 0;
        double x1,y1,z1;
        double x2,y2,z2;

// JSTG 25-02-08 -----------------------------
        //double t,delta;
        //int i,np,nps;
        int i;
//--------------------------------------------

        if (_lstPoints.size()==2)
        {
                x1=_lstPoints[0]->GetX();
                y1=_lstPoints[0]->GetY();
                z1=_lstPoints[0]->GetZ();
                x2=_lstPoints[1]->GetX();
                y2=_lstPoints[1]->GetY();
                z2=_lstPoints[1]->GetZ();
                result = sqrt( (x2-x1)*(x2-x1) + (y2-y1)*(y2-y1) + (z2-z1)*(z2-z1) );
        }
        if (_lstPoints.size()>2)
        {

// JSTG 25-02-08 ------------------------------------------
                //np  = _lstPoints.size( );
                //nps = 200;
                //delta=( double ) ( np  ) / ( double ) ( nps  );
                UpdateSpline();
                //GetSplinePoint(0,x1,y1,z1);
                GetSpline_i_Point(0,&x1,&y1,&z1);

                //for( i = 1; i < nps; i++ )
                for( i = 1; i < GetNumberOfPointsSpline(); i++ )
                {
                        //t = delta * (double)i;
                        //GetSplinePoint(t,x2,y2,z2);
                        GetSpline_i_Point(i,&x2,&y2,&z2);
//---------------------------------------------------------
                        result=result + sqrt( (x2-x1)*(x2-x1) + (y2-y1)*(y2-y1) + (z2-z1)*(z2-z1) );
                        x1=x2;
                        y1=y2;
                        z1=z2;
                }// for
        }

        return result;
}

Here is the call graph for this function:

Here is the caller graph for this function:

double manualContourModel::GetRealSize

(

)

[virtual]

Returns the real size in milimeters of the contour

Reimplemented from manualBaseModel.

Definition at line 745 of file manualContourModel.cpp.

References _realSize.

Referenced by SaveData().

{
        return _realSize;
}

Here is the caller graph for this function:

int manualContourModel::GetSizeLstPoints

(

)

[virtual]

Reimplemented from manualBaseModel.

Definition at line 254 of file manualContourModel.cpp.

References manualBaseModel::_lstPoints.

Referenced by CopyAttributesTo(), wxMaracas_ManualTree_MPRDlg::ExportPoints(), wxMaracasCoutourTool::OnSaveControlPoints(), manualContourContainer::refreshLumen(), manualContourContainer::refreshWall(), Transform_Ax_Plus_B(), manualContourModelRotationTool::UpdateSpline(), manualContourModelCircle::UpdateSpline(), and manualContourModelBullEye::UpdateSpline().

{
        return _lstPoints.size();
}

Here is the caller graph for this function:

void manualContourModel::GetSpline_i_Point	(	int	i,
		double *	x,
		double *	y,
		double *	z
	)			[virtual]

Reimplemented from manualBaseModel.

Reimplemented in manualContourModelBullEyeSector, manualContourModelCircle, manualContourModelPolygon, and manualContourModelRotationTool.

Definition at line 332 of file manualContourModel.cpp.

References _delta_JSTG, and GetSpline_t_Point().

Referenced by wxMaracasCoutourTool::AnalisisContourInside(), AutoControlPoints::ChargeSpline(), wxMaracas_ManualTree_MPRDlg::ExportPoints(), wxMaracasCoutourTool::GetMinMaxPoint(), GetNearestPointAndNormal(), GetPathArea(), GetPathSize(), wxMaracasCoutourTool::GetSplinePoints(), PropContour::method_Spline(), and wxMaracasCoutourTool::OnSaveContour().

{
        GetSpline_t_Point(i*_delta_JSTG,x,y,z);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void manualContourModel::GetSpline_t_Point	(	double	t,
		double *	x,
		double *	y,
		double *	z
	)			[virtual]

Reimplemented from manualBaseModel.

Definition at line 340 of file manualContourModel.cpp.

References _cntSplineX, _cntSplineY, _cntSplineZ, manualBaseModel::_lstPoints, GetManualPoint(), manualPoint::GetX(), manualPoint::GetY(), and manualPoint::GetZ().

Referenced by GetSpline_i_Point().

{
                if (_lstPoints.size()==0)
        {
                *x      = 0;
                *y      = 0;
                *z      = 0;
        }
        if (_lstPoints.size()==1)
        {
                manualPoint     *mp;
                mp      = GetManualPoint(0);
                *x      = mp->GetX();
                *y      = mp->GetY();
                *z      = mp->GetZ();
        }
        if (_lstPoints.size()>=2)
        {
                *x      = _cntSplineX->Evaluate(t);
                *y      = _cntSplineY->Evaluate(t);
                *z      = _cntSplineZ->Evaluate(t);
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

int manualContourModel::GetTypeModel

(

)

[virtual]

Reimplemented from manualBaseModel.

Reimplemented in manualContourModelBullEye, manualContourModelBullEyeSector, manualContourModelCircle, manualContourModelLine, manualContourModelPolygon, manualContourModelRoi, and manualContourModelRotationTool.

Definition at line 629 of file manualContourModel.cpp.

Referenced by Save().

{
        // 0 spline
        // 1 spline
        // 2 rectangle
        // 3 circle
        // 4 BullEye
        // 5 BullEyeSector
        // 6 Line
        return 1;
}

Here is the caller graph for this function:

bool manualContourModel::IfCloseContour

(

)

[virtual]

Reimplemented from manualBaseModel.

Definition at line 287 of file manualContourModel.cpp.

References _closeContour.

Referenced by CopyAttributesTo(), and GetPathArea().

{
        return _closeContour;
}

Here is the caller graph for this function:

int manualContourModel::InsertPoint	(	double	x,
		double	y,
		double	z
	)			[virtual]

Reimplemented from manualBaseModel.

Definition at line 70 of file manualContourModel.cpp.

References _closeContour, manualBaseModel::_lstPoints, and InsertPoint_id().

{
        double dd,ddmin=9999999;
        int    ibak=0;
        double xx,x1,x2;
        double yy,y1,y2;
        double zz,z1,z2;
        int i,ii,iii,size=_lstPoints.size();
        double j,MaxDivisions=20,porcentage;
        int sizeB=size;

        if (_closeContour==false)
        {
                size=size-1;
        }

        double jbak;

        for ( i=0 ; i<size ; i++ )
        {
                ii=i % sizeB ;
                iii=(i+1) % sizeB;
                x1=_lstPoints[ii]->GetX();
                y1=_lstPoints[ii]->GetY();
                z1=_lstPoints[ii]->GetZ();
                x2=_lstPoints[iii]->GetX();
                y2=_lstPoints[iii]->GetY();
                z2=_lstPoints[iii]->GetZ();
                for (j=0; j<=MaxDivisions; j++)
                {
                        porcentage=(j/MaxDivisions);
                        xx=(x2-x1)*porcentage+x1;
                        yy=(y2-y1)*porcentage+y1;
                        zz=(z2-z1)*porcentage+z1;
                        dd=sqrt( (xx-x)*(xx-x) + (yy-y)*(yy-y) + (zz-z)*(zz-z) );
                        if ( dd<ddmin )
                        {
                                ddmin=dd;
                                ibak=iii;
                                jbak=j;
                        }
                }
        }

        if (_closeContour==false)
        {
                if ( (ibak==1) && (jbak==0) )
                {
                        ibak=0;
                }
                if ( ( ibak==size ) && ( jbak==MaxDivisions ) )
                {
                        ibak=sizeB;
                }
        }


//JSTG - 25-04-08 ----------------------------------------------------------
        //manualPoint *mp = new manualPoint();
        //mp->SetPoint(x,y,z);
        //std::vector<manualPoint*>::iterator itNum = _lstPoints.begin() + ibak;
        //_lstPoints.insert(itNum,mp);
        InsertPoint_id(ibak,x,y,z);
//----------------------------------------------------------------------------

        return ibak;
}

Here is the call graph for this function:

void manualContourModel::InsertPoint_id	(	int	id,
		double	x,
		double	y,
		double	z
	)			[virtual]

Reimplemented from manualBaseModel.

Definition at line 138 of file manualContourModel.cpp.

References manualBaseModel::_lstPoints, and manualPoint::SetPoint().

Referenced by InsertPoint().

{
        manualPoint *mp = new manualPoint();
        mp->SetPoint(x,y,z);
        std::vector<manualPoint*>::iterator itNum = _lstPoints.begin() + id;
        _lstPoints.insert(itNum,mp);
}

Here is the call graph for this function:

Here is the caller graph for this function:

int manualBaseModel::IsPoint	(	double	x,
		double	y
	)			[inherited]

Definition at line 183 of file manualBaseModel.cpp.

References manualBaseModel::_lstPoints, manualPoint::GetX(), and manualPoint::GetY().

Referenced by ContourExtractData::isInside().

{
        double xx,yy/*,zz*/;
        bool exists=false;
        int i,size=_lstPoints.size();
        for (i=0;i<size;i++){
                manualPoint *mp=_lstPoints[i];
                xx=mp->GetX();
                yy=mp->GetY();

                //RaC Be Careful!! Cast to have a point like the one in the params 27-09-09
                if(x==(int)xx && y==(int)yy )
                {
                        exists=true;
                }
        }
        return exists;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void manualContourModel::MoveAllPoints	(	double	dx,
		double	dy,
		double	dz
	)			[virtual]

Reimplemented from manualBaseModel.

Definition at line 177 of file manualContourModel.cpp.

References manualBaseModel::_lstPoints, and MovePoint().

{
        int i,size=_lstPoints.size();
        for (i=0;i<size;i++){
                MovePoint(i,dx,dy,dz);
        }
}

Here is the call graph for this function:

void manualContourModel::MoveLstPoints	(	double	dx,
		double	dy,
		double	dz
	)			[virtual]

Reimplemented from manualBaseModel.

Definition at line 172 of file manualContourModel.cpp.

{
        // ToDo
}

void manualContourModel::MovePoint	(	int	i,
		double	dx,
		double	dy,
		double	dz
	)			[virtual]

Reimplemented from manualBaseModel.

Definition at line 163 of file manualContourModel.cpp.

References manualBaseModel::_lstPoints, manualPoint::GetX(), manualPoint::GetY(), manualPoint::GetZ(), and manualPoint::SetPoint().

Referenced by MoveAllPoints().

{
        manualPoint *mp=_lstPoints[i];
        double x=mp->GetX()+dx;
        double y=mp->GetY()+dy;
        double z=mp->GetZ()+dz;
        mp->SetPoint(x,y,z);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void manualContourModel::Open

(

FILE *

ff

)

[virtual]

Reimplemented from manualBaseModel.

Reimplemented in manualContourModelBullEye, and manualContourModelBullEyeSector.

Definition at line 606 of file manualContourModel.cpp.

References AddPoint().

{
        char tmp[255];
        int i;
        int numberOfControlPoints;
        double x,y,z;

        fscanf(ff,"%s",tmp); // NumberOfControlPoints
        fscanf(ff,"%s",tmp); // ##
        numberOfControlPoints = atoi(tmp);
        for (i=0;i<numberOfControlPoints;i++)
        {
                fscanf(ff,"%s",tmp); // X
                x = atof(tmp);
                fscanf(ff,"%s",tmp); // Y
                y = atof(tmp);
                fscanf(ff,"%s",tmp); // Z
                z = atof(tmp);
                AddPoint(x,y,z);
        }
}

Here is the call graph for this function:

void manualContourModel::OpenData

(

FILE *

ff

)

[virtual]

Reimplemented from manualBaseModel.

Definition at line 664 of file manualContourModel.cpp.

References SetLabel(), and SetRealSize().

{
        char tmp[255];

        fscanf(ff,"%s",tmp); // Label:
        fscanf(ff,"%s",tmp); // value
        std::cout<<tmp<<std::endl;
        //if(strcmp(tmp != "NO_LABEL") // JPR
        if(strcmp(tmp,"NO_LABEL") != 0)
                SetLabel(tmp);

        fscanf(ff,"%s",tmp); // Real_size
        fscanf(ff,"%s",tmp);// #

        //tmp.ToDouble(&tmp);
        SetRealSize(atof(tmp));
}

Here is the call graph for this function:

void manualContourModel::Save

(

FILE *

ff

)

[virtual]

Reimplemented from manualBaseModel.

Reimplemented in manualContourModelBullEye, and manualContourModelBullEyeSector.

Definition at line 642 of file manualContourModel.cpp.

References manualBaseModel::_lstPoints, GetTypeModel(), manualPoint::GetX(), manualPoint::GetY(), and manualPoint::GetZ().

{
        int i,size=_lstPoints.size();
        fprintf(ff,"TypeModel %d\n", GetTypeModel() );
        fprintf(ff,"NumberOfControlPoints %d\n",size);
        for (i=0;i<size;i++)
        {
                manualPoint *mp=_lstPoints[i];
                fprintf(ff,"%f %f %f\n", mp->GetX(), mp->GetY(), mp->GetZ() );
        }
}

Here is the call graph for this function:

void manualContourModel::SaveData

(

FILE *

ff

)

[virtual]

Reimplemented from manualBaseModel.

Definition at line 654 of file manualContourModel.cpp.

References GetLabel(), and GetRealSize().

{
        std::string etiqueta = GetLabel();
        if(etiqueta.empty())
                fprintf(ff,"Label: NO_LABEL\n");
        else
                fprintf(ff,"Label: %s\n",etiqueta.c_str());
        fprintf(ff,"Real_Size: %f\n",GetRealSize());
}

Here is the call graph for this function:

void manualContourModel::SetCloseContour

(

bool

closeContour

)

[virtual]

Reimplemented from manualBaseModel.

Definition at line 271 of file manualContourModel.cpp.

References _closeContour, _cntSplineX, _cntSplineY, and _cntSplineZ.

Referenced by AutoControlPoints::ChargeSpline(), wxManualTree_MPRWidget::ConfigureContour(), CopyAttributesTo(), manualContourModel(), manualContourModelLine::manualContourModelLine(), PropContour::method_Spline(), and wxWidgetMesure2D::OnCloseContour().

{
        _closeContour = closeContour;
        if (_closeContour==true)
        {
                _cntSplineX->ClosedOn();
                _cntSplineY->ClosedOn();
                _cntSplineZ->ClosedOn();
        } else {
                _cntSplineX->ClosedOff();
                _cntSplineY->ClosedOff();
                _cntSplineZ->ClosedOff();
        }
}

Here is the caller graph for this function:

void manualContourModel::SetLabel

(

std::string

newLabel

)

[virtual]

Reimplemented from manualBaseModel.

Definition at line 735 of file manualContourModel.cpp.

References _label.

Referenced by OpenData().

{
        _label = newLabel;
}

Here is the caller graph for this function:

void manualContourModel::SetNumberOfPointsSpline

(

int

size

)

[virtual]

Reimplemented from manualBaseModel.

Definition at line 264 of file manualContourModel.cpp.

References manualBaseModel::_sizePointsContour.

Referenced by manualContourModelBullEye::AddSector(), AutoControlPoints::ChargeSpline(), wxMaracasCoutourTool::ConfigureVTK(), CopyAttributesTo(), manualContourModelLine::manualContourModelLine(), manualContourModelRoi::manualContourModelRoi(), and PropContour::method_Spline().

{
        _sizePointsContour = size;
}

Here is the caller graph for this function:

void manualContourModel::SetRealSize

(

double

newRealSize

)

[virtual]

Reimplemented from manualBaseModel.

Definition at line 740 of file manualContourModel.cpp.

References _realSize.

Referenced by OpenData().

{
        _realSize = newRealSize;
}

Here is the caller graph for this function:

void manualContourModel::Transform_Ax_Plus_B	(	double	Ax,
		double	Bx,
		double	Ay,
		double	By
	)			[virtual]

Reimplemented from manualBaseModel.

Definition at line 718 of file manualContourModel.cpp.

References GetManualPoint(), GetSizeLstPoints(), manualPoint::GetX(), manualPoint::GetY(), manualPoint::SetPointX(), and manualPoint::SetPointY().

{
        manualPoint * mp;

        int i, size = GetSizeLstPoints();

        for( i=0; i<size; i++ )
        {
                mp = GetManualPoint( i );

                mp->SetPointX( mp->GetX()*Ax + Bx );
                mp->SetPointY( mp->GetY()*Ay + By );
        }
}

Here is the call graph for this function:

void manualContourModel::UpdateSpline

(

)

[virtual]

Reimplemented from manualBaseModel.

Reimplemented in manualContourModelBullEye, manualContourModelCircle, manualContourModelPolygon, and manualContourModelRotationTool.

Definition at line 294 of file manualContourModel.cpp.

References _closeContour, _cntSplineX, _cntSplineY, _cntSplineZ, _delta_JSTG, manualBaseModel::_lstPoints, manualBaseModel::_sizePointsContour, GetManualPoint(), manualPoint::GetX(), manualPoint::GetY(), and manualPoint::GetZ().

Referenced by wxMaracasCoutourTool::AnalisisContourInside(), AutoControlPoints::ChargeSpline(), CopyAttributesTo(), DeleteAllPoints(), wxMaracas_ManualTree_MPRDlg::ExportPoints(), wxMaracasCoutourTool::GetMinMaxPoint(), GetNearestPointAndNormal(), GetPathArea(), GetPathSize(), wxMaracasCoutourTool::GetSplinePoints(), PropContour::method_Spline(), and wxMaracasCoutourTool::SetControlPoints().

{
        int i, np;
    np  = _lstPoints.size();
        manualPoint     *mp;
        _cntSplineX->RemoveAllPoints();
        _cntSplineY->RemoveAllPoints();
        _cntSplineZ->RemoveAllPoints();
    for( i = 0; i < np; i++ ) {
                mp = GetManualPoint(i);
        _cntSplineX->AddPoint( i, mp->GetX() );
        _cntSplineY->AddPoint( i, mp->GetY() );
        _cntSplineZ->AddPoint( i, mp->GetZ() );
    } //  rof

//JSTG 25-02-08 ---------------------------------------------------------------------------------------------
        if (this->_closeContour==true)
        {
                _delta_JSTG = (double) (np) / double (_sizePointsContour - 1);  //Without the -1 the curve is not close
        } else {
//              _delta_JSTG = (double) (np-1) / double (_sizePointsContour );  //Without the -1 the curve is not close
                _delta_JSTG = (double) (np) / double (_sizePointsContour-1 );  //Without the -1 the curve is not close
        }
//-----------------------------------------------------------------------------------------------------------
}

Here is the call graph for this function:

Here is the caller graph for this function:

---

Member Data Documentation

bool manualContourModel::_closeContour

Definition at line 133 of file manualContourModel.h.

Referenced by CopyAttributesTo(), IfCloseContour(), InsertPoint(), SetCloseContour(), and UpdateSpline().

vtkKochanekSpline* manualContourModel::_cntSplineX

Definition at line 134 of file manualContourModel.h.

Referenced by GetSpline_t_Point(), manualContourModel(), SetCloseContour(), UpdateSpline(), and ~manualContourModel().

vtkKochanekSpline* manualContourModel::_cntSplineY

Definition at line 135 of file manualContourModel.h.

Referenced by GetSpline_t_Point(), manualContourModel(), SetCloseContour(), UpdateSpline(), and ~manualContourModel().

vtkKochanekSpline* manualContourModel::_cntSplineZ

Definition at line 136 of file manualContourModel.h.

Referenced by GetSpline_t_Point(), manualContourModel(), SetCloseContour(), UpdateSpline(), and ~manualContourModel().

double manualContourModel::_delta_JSTG

Definition at line 139 of file manualContourModel.h.

Referenced by GetSpline_i_Point(), manualContourModel(), and UpdateSpline().

std::string manualContourModel::_label

Represents the label associated with the contour

Definition at line 151 of file manualContourModel.h.

Referenced by GetLabel(), manualContourModel(), and SetLabel().

std::vector<manualPoint*> manualBaseModel::_lstPoints [protected, inherited]

Definition at line 134 of file manualBaseModel.h.

Referenced by AddManualPoint(), manualBaseModel::AddManualPoint(), AddPoint(), manualBaseModel::AddPoint(), DeleteAllPoints(), manualBaseModel::DeleteAllPoints(), DeletePoint(), manualBaseModel::DeletePoint(), GetIdPoint(), manualBaseModel::GetIdPoint(), GetManualPoint(), manualBaseModel::GetManualPoint(), GetNearestPointAndNormal(), manualBaseModel::GetNumberOfPointsSpline(), GetPathArea(), GetPathSize(), GetSizeLstPoints(), manualBaseModel::GetSizeLstPoints(), manualContourModelPolygon::GetSpline_i_Point(), manualBaseModel::GetSpline_i_Point(), GetSpline_t_Point(), InsertPoint(), manualBaseModel::InsertPoint(), InsertPoint_id(), manualBaseModel::InsertPoint_id(), manualBaseModel::IsPoint(), MoveAllPoints(), manualBaseModel::MoveAllPoints(), MovePoint(), manualBaseModel::MovePoint(), Save(), UpdateSpline(), manualBaseModel::~manualBaseModel(), and ~manualContourModel().

double manualContourModel::_realSize

Represents the real size in milimeters of the contour

Definition at line 146 of file manualContourModel.h.

Referenced by GetRealSize(), manualContourModel(), and SetRealSize().

int manualBaseModel::_sizePointsContour [protected, inherited]

Definition at line 133 of file manualBaseModel.h.

Referenced by GetNumberOfPointsSpline(), manualBaseModel::GetNumberOfPointsSpline(), manualBaseModel::manualBaseModel(), manualContourModel(), SetNumberOfPointsSpline(), manualBaseModel::SetNumberOfPointsSpline(), and UpdateSpline().

---

The documentation for this class was generated from the following files:

• /home/davila/Creatis/All2/creatools_source/creaMaracasVisu/lib/maracasVisuLib/src/interface/wxWindows/widgets/manualContour/manualContourModel.h
• /home/davila/Creatis/All2/creatools_source/creaMaracasVisu/lib/maracasVisuLib/src/interface/wxWindows/widgets/manualContour/manualContourModel.cpp
