pColorBar Class Reference

#include <pColorBar.h>

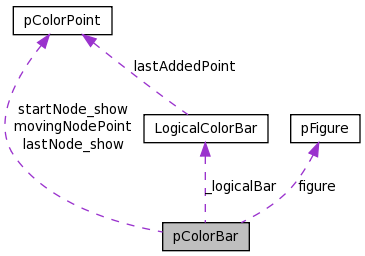

Collaboration diagram for pColorBar:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 pColorBar (wxWindow *parent, int _w, int _h, bool _bar_orientation)
 ~pColorBar ()
void OnSize (wxSizeEvent &WXUNUSED(event))
void onMouseMove (wxMouseEvent &event)
void onPaint (wxPaintEvent &WXUNUSED(event))
void onAddColorPoint (wxCommandEvent &anEvent)
void onDeleteColorPoint (wxCommandEvent &anEvent)
void onChangeColourSelectedPoint (wxCommandEvent &anEvent)
void onTrianglesUp_Figure (wxCommandEvent &anEvent)
void onTrianglesDown_Figure (wxCommandEvent &anEvent)
void onTrianglesLeft_Figure (wxCommandEvent &anEvent)
void onTrianglesRight_Figure (wxCommandEvent &anEvent)
void onRectangles_Figure (wxCommandEvent &anEvent)
void onDegradeControl (wxCommandEvent &anEvent)
void onLeftButtonDClick (wxMouseEvent &event)
void onShowPopupMenu (wxMouseEvent &event)
void setActiveStateTo (bool activeNow)
bool isActive ()
int getRealX_vertical_line ()
void setRealX_vertical_line (int newReal_x)
void reinitiateColorBar (double minRealValue, double maxRealValue)
void reinitiateColorBarTo (std::vector< pColorPoint * > pointsVector)
void getPointsListWithTemps (std::vector< pColorPoint * > &pointsVector)
void getAddedColorsPointsList (std::vector< pColorPoint * > &pointsVector)
bool addColorPoint (double xRealValue, wxColour theColour)
bool deleteColorPoint (double xRealValue)
bool changeColor (int clickedValue)
void repaintView ()
void RefreshForce ()
void Refresh (bool eraseBackground=true, const wxRect *rect=NULL)
void drawColorBar (bool recentlyChangedOrientation)
void changeFigure (int theFigure)
void changePointsFigure_Edges (int figEdges)
int getPointsFigure_Edges ()
void setHeight (int _h)
int getHeight ()
void setWidth (int _w)
int getWidth ()
void setBarHeight (int _h)
int getBarHeight ()
void setBarWidth (int _w)
int getBarWidth ()
void setOrientation (bool _orientation)
bool getOrientation ()
void setPoints (std::vector< pColorPoint * > _points)
int getClickedX ()
void setClickedX (int xCoordPixel)
int getClickedY ()
void setClickedY (int yCoordPixel)
double convertToRealValue (int x_Pixel)
int convertToPixelValue (double x_real)
wxColour getSelectedColour ()
void setRepresentedValues (double minRealValue, double maxRealValue)
pColorPoint * getLastMovedColorPoint ()
void setGapValues (int gap_x, int gap_y)
void setDegradeState (bool newState)
void setVisibleRange (int minToShow, int maxToShow)
bool getDegradeState ()
void setStaticLimitsTo (bool areStatic)
bool getStaticLimits ()
void setDeviceBlitStart (wxCoord deviceStart_x, wxCoord deviceStart_y)
void clearTemporalColors ()
int getDeviceEndX ()
void setDeviceEndX (int newDeviceEnd_pixels)
void setDeviceEndMargin (int newDeviceEnd_pixels)
void createAndSendEvent (WXTYPE theEventType)
int getColorPointsSize ()
void getDataAt (int index, double &x, int &red, int &green, int &blue)
void setGuideLineColour (wxColour theNwGuideLineColor)
wxColour getGuideLineColour ()
void setBackGroundColour (wxColour theNwBackColor)
wxColour getBackGroundColour ()
double getMinValue ()
double getMaxValue ()
void updateExtremeColors ()
void onLeftClicDown (wxMouseEvent &event)
void onLeftClickUp (wxMouseEvent &event)
void updatePointsToDraw ()

Private Attributes

bool acceptedClick
LogicalColorBar * _logicalBar
int gapX
int gapY
int height
int width
int bar_height
int bar_width
std::deque< pColorPoint * > showedColorPoints
int points_orientation
int minX_represented_Tshow
int maxX_represented_Tshow
int temporalMinXToShow
int temporalMaxXToShow
pColorPoint * startNode_show
pColorPoint * lastNode_show
int accumTemporalPoints
bool viewingRange
pFigure * figure
int clickedX
int clickedY
int movingPointIndex
bool okSelectedColor
bool staticLimits
pColorPoint * movingNodePoint
wxBitmap * colorBar_Bitmap
wxBitmap * information_Bitmap
bool doingDegrade
bool minFound
bool maxFound
wxCoord deviceStart_x
wxCoord deviceStart_y
wxCoord deviceEndMargin
wxCoord deviceEnd_y
bool activeState
int avaliablePointToMove
int realX_vertical_line
wxColour guideLineColor
wxColour colourParent
wxMenu c_popmenu
wxMenu * changesMenu

Detailed Description

file pColorBar.h

Definition at line 68 of file pColorBar.h.

Constructor & Destructor Documentation

pColorBar::pColorBar ( wxWindow *  parent,
int  _w,
int  _h,
bool  _bar_orientation
)

Creates a colorBar instance param *parent Container event listener window param _w Width of the color bar drawing area param _h Height of the color bar drawing area param _bar_orientation VERTICAL (false) or HORIZONTAL (true) direction to set

file pColorBar.cxx

Definition at line 69 of file pColorBar.cxx.

References cntID_CHANGE_FIGURE, FIGURE_WIDTH, and RECTANGLE.

00070 :wxScrolledWindow(parent, -1, wxDefaultPosition, wxDefaultSize, wxTAB_TRAVERSAL)
00071 {
00072                 _logicalBar = new LogicalColorBar();
00073                 colourParent =  GetParent()->GetBackgroundColour();
00074                 deviceEndMargin = 0;
00075                 acceptedClick = true;
00076                 setGapValues (0,6);
00077                 setWidth(_w);
00078                 setHeight(_h);
00079
00080                 // Setting the default represented values
00081                 setDegradeState(true);
00082                 setStaticLimitsTo(false);
00083                 viewingRange = false;
00084                 accumTemporalPoints = 0;
00085                 deviceEndMargin = 0;
00086                 activeState = false;
00087                 avaliablePointToMove = -1;
00088
00089                 movingPointIndex = -1;
00090                 movingNodePoint = NULL;
00091                 realX_vertical_line = -1;
00092                 guideLineColor          =   wxColour(255,0,0);
00093
00094                 //TRIANGLES UP
00095                 figure = new pFigure( RECTANGLE, FIGURE_WIDTH, bar_height, -2, _bar_orientation );
00096                 setOrientation ( _bar_orientation );
00097
00098                 // Appending menu items to the pop-menu
00099                 c_popmenu.Append( cntID_ADD_COLOR_POINT, _T("Add color point"), _T("Adds a color point in the clicked point"));
00100                 c_popmenu.Append( cntID_DEL_COLOR_POINT, _T("Delete color point"), _T("Deletes the color point at the clicked point"));
00101                 c_popmenu.Append( cntID_CHANGE_COLOR_POINT, _T("Change color"), _T("Changes the color at the clicked point"));
00102                 c_popmenu.Append ( cntID_DEGRADE_CONTROL, _T("Turn off degrade"), _T("Turns on/off the degrade"),wxITEM_SEPARATOR);
00103
00104                 changesMenu = new wxMenu;
00105                 changesMenu->AppendCheckItem ( cntID_TRIANGLES_UP, _T("Triangles up"),_T("Sets triangles up figure"));
00106                 changesMenu->AppendCheckItem ( cntID_TRIANGLES_DOWN, _T("Triangles down"),_T("Sets triangles down figure"));
00107                 changesMenu->AppendCheckItem ( cntID_TRIANGLES_LEFT, _T("Triangles left"),_T("Sets triangles left figure"));
00108                 changesMenu->AppendCheckItem ( cntID_TRIANGLES_RIGHT, _T("Triangles right"),_T("Sets triangles right figure"));
00109                 changesMenu->AppendCheckItem ( cntID_RECTANGLES, _T("Rectangles"),_T("Sets rectangle figure"));
00110                 c_popmenu.Append(cntID_CHANGE_FIGURE, _T("Change figure"),changesMenu, _T("Changes the figure of the color points"));
00111                 changesMenu->Check (cntID_TRIANGLES_UP, true);
00112 }

pColorBar::~pColorBar (  )

Definition at line 114 of file pColorBar.cxx.

00115 {
00116
00117 }

Member Function Documentation

bool pColorBar::addColorPoint ( double  xRealValue,
wxColour  theColour
)

Adds a color degrade point to the color bar. param xRealValue The real xValue of the point param theColour The assigned color for the point param temporalStart Indicates if the inserted point is the temporal startShowing point param temporalEnd Indicates if the inserted point is the temporal startShowing point return Returns true if the point was succesfully inserted.

Definition at line 686 of file pColorBar.cxx.

References _logicalBar, LogicalColorBar::addColorPoint(), and RefreshForce().

Referenced by pPlotter::addColorPoint(), onAddColorPoint(), and onLeftButtonDClick().

00687         {
00688                 bool addedPoint = false;
00689                 addedPoint = _logicalBar->addColorPoint(xRealValue,theColour);
00690                 if (addedPoint)
00691                         RefreshForce();
00692                 return addedPoint;
00693         }

Here is the call graph for this function:

Here is the caller graph for this function:

bool pColorBar::changeColor ( int  clickedValue  )

Changes the color degrade point color value. Informs the result of the handled event like a wxCommandEvent wxEVT_CHANGED_COLOR_POINT if the point changed its colour. param clickedValue The x-coord pixel value of the point to which the color change interests return Returns true if the color point was succesfully updated.

Definition at line 727 of file pColorBar.cxx.

References convertToPixelValue(), convertToRealValue(), figure, getSelectedColour(), okSelectedColor, RefreshForce(), and showedColorPoints.

Referenced by onChangeColourSelectedPoint().

00728         {
00729                 bool colourUpdated = false;
00730                 double xRealValue = convertToRealValue( clickedValue );
00731                 pColorPoint* actualPoint;
00732                 for (int a =0; a<showedColorPoints.size() && !colourUpdated; a++)
00733                 {
00734                         actualPoint = showedColorPoints[a];
00735                         int actualX = (int)actualPoint -> getRealX();
00736                         bool isInsideActual = figure -> isPointInside (convertToPixelValue(actualX), clickedValue);
00737                         if( actualX == xRealValue || isInsideActual)
00738                         {
00739                                 wxColour newColour = getSelectedColour();
00740                                 if (okSelectedColor)
00741                                 {
00742                                         actualPoint -> setColor(newColour);
00743                                         colourUpdated = true;
00744                                 }
00745                         }
00746                 }
00747                 if(colourUpdated)
00748                         RefreshForce();
00749                 return colourUpdated;
00750         }

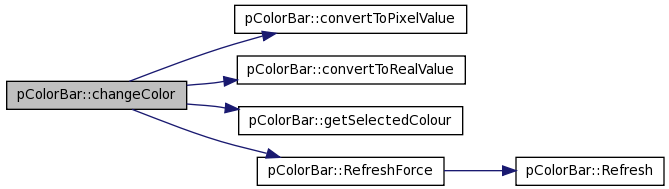

Here is the call graph for this function:

Here is the caller graph for this function:

void pColorBar::changeFigure ( int  theFigure  )

Changes the figure of the color points according to the parameter param theFigure Is the corresponding number for identifying the figure RECTANGLE = 4,TRIANGLE LEFT = -4, TRIANGLE RIGHT = -6, TRIANGLE UP = -8, TRIANGLE DOWN = -2

Definition at line 942 of file pColorBar.cxx.

References changePointsFigure_Edges(), figure, and RefreshForce().

Referenced by onRectangles_Figure(), onTrianglesDown_Figure(), onTrianglesLeft_Figure(), onTrianglesRight_Figure(), and onTrianglesUp_Figure().

00943         {
00944                 if ( figureOrientation<1 ) //The figure is a  a rotated triangle
00945                 {
00946                         changePointsFigure_Edges(3);
00947                         figure -> setFigureOrientation ( figureOrientation );
00948
00949                 }
00950                 else //The figure is a rectangle
00951                 {
00952                         changePointsFigure_Edges(4);
00953                 }
00954                 RefreshForce();
00955         }

Here is the call graph for this function:

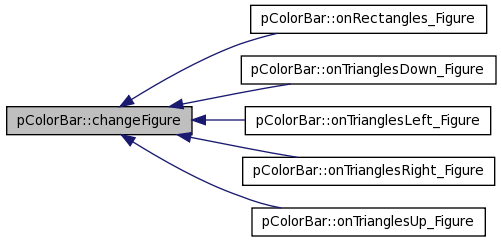

Here is the caller graph for this function:

void pColorBar::changePointsFigure_Edges ( int  figEdges  )

Changes the figure number of edges used for the degreade color points to the indicated one by parameter param figEdges Is the constant that represents the figure number of edges (TRIANGLE | RECTANGLE)

Changes the figure used for the degreade color points to the indicated one by parameter param figEdges Is the constant that represents the figure number of edges (TRIANGLE | RECTANGLE)

Definition at line 961 of file pColorBar.cxx.

References figure, and pFigure::setNumberEdges().

Referenced by changeFigure().

00962         {
00963                 figure->setNumberEdges( figEdges);
00964         }

Here is the call graph for this function:

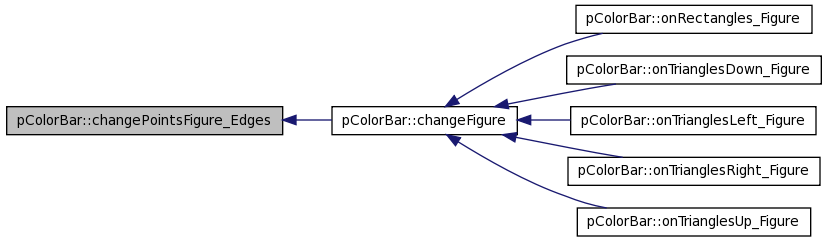

Here is the caller graph for this function:

void pColorBar::clearTemporalColors (  )

Clears the temporal color points of the list

Definition at line 1269 of file pColorBar.cxx.

01270         {
01271
01272         }

int pColorBar::convertToPixelValue ( double  x_real  )

Gets the x-pixel value for a given x_real value using the rule x_pixel = (x_real * bar_width)/(maxX_represented_Tshow - minX_represented_Tshow) param x_Pixel The pixel value to convert into real value with respect to the x scale return realX The real-x value corresponding to the xPixel

Gets the x-pixel value for a given x_real value using the rule x_pixel = ((x_real - minX_represented_Tshow) * bar_width)/(maxX_represented_Tshow - minX_represented_Tshow) param x_Pixel The pixel value to convert into real value with respect to the x scale return realX The real-x value corresponding to the xPixel

Definition at line 1135 of file pColorBar.cxx.

References bar_width, deviceEndMargin, maxX_represented_Tshow, and minX_represented_Tshow.

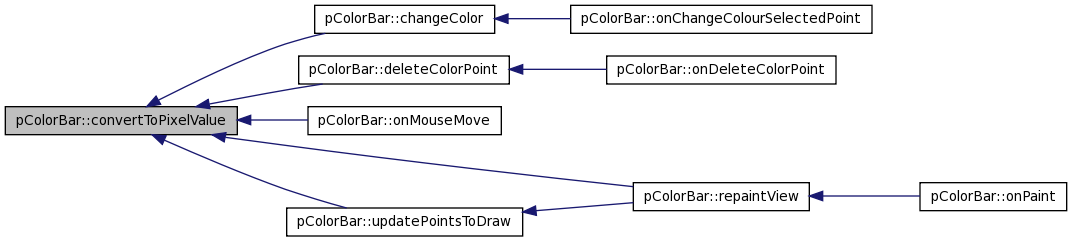

Referenced by changeColor(), deleteColorPoint(), onMouseMove(), repaintView(), and updatePointsToDraw().

01136         {
01137                 return (int)( ((x_real - minX_represented_Tshow) * (bar_width-deviceEndMargin))/(maxX_represented_Tshow - minX_represented_Tshow) );
01138         }

Here is the caller graph for this function:

double pColorBar::convertToRealValue ( int  x_Pixel  )

Gets the real x value for a givex x-pixel value using the rule real_x = (x_pixel * (maxX_represented_Tshow - minXRepresented) ) / bar_width param x_Pixel The pixel value to convert into real value with respect to the x scale return realX The real-x value corresponding to the xPixel

Gets the real x value for a given x-pixel value using the rule real_x = minX_represented_Tshow + ((x_Pixel * (maxX_represented_Tshow - minX_represented_Tshow) ) / bar_width) param x_Pixel The pixel value to convert into real value with respect to the x scale return realX The real-x value corresponding to the xPixel

int newPixel = x_Pixel*(bar_width - deviceEndMargin - deviceStart_x)/(bar_width) ; return newPixel*(maxX_represented_Tshow - minX_represented_Tshow)/(bar_width);

Definition at line 1121 of file pColorBar.cxx.

References bar_width, deviceEndMargin, deviceStart_x, maxX_represented_Tshow, and minX_represented_Tshow.

Referenced by changeColor(), onAddColorPoint(), onDeleteColorPoint(), onLeftButtonDClick(), and onMouseMove().

01122         {
01127                 return minX_represented_Tshow + ((x_Pixel-deviceStart_x) * (maxX_represented_Tshow - minX_represented_Tshow) ) /( bar_width-deviceEndMargin);
01128         }

Here is the caller graph for this function:

void pColorBar::createAndSendEvent ( WXTYPE  theEventType  )

Method that creates and send the given id-event to the event handler param theEventType Is the event id type identification for generating the event

Definition at line 1319 of file pColorBar.cxx.

Referenced by onAddColorPoint(), onChangeColourSelectedPoint(), onDeleteColorPoint(), onLeftButtonDClick(), and onMouseMove().

01320         {
01321                 wxCommandEvent cevent( theEventType, GetId() );
01322                 cevent.SetEventObject( this );
01323                 GetEventHandler()->ProcessEvent( cevent );
01324         }

Here is the caller graph for this function:

bool pColorBar::deleteColorPoint ( double  xRealValue  )

Delets a color degrade point to the color bar. param xRealValue The real xValue of the point to delete return Returns true if the point was succesfully inserted.

Definition at line 701 of file pColorBar.cxx.

References _logicalBar, convertToPixelValue(), LogicalColorBar::deleteColorPoint(), figure, movingPointIndex, RefreshForce(), and showedColorPoints.

Referenced by onDeleteColorPoint().

00702         {
00703                 pColorPoint* actualPoint;
00704                 bool deletedPoint = false;
00705                 for (int a =0; a<showedColorPoints.size() && !deletedPoint; a++)
00706                 {
00707                         actualPoint = showedColorPoints[a];
00708                         int actualX = (int)actualPoint -> getRealX();
00709                         bool isInsideActual = figure -> isPointInside (convertToPixelValue(actualX), convertToPixelValue(xRealValue));
00710                         if( actualX == xRealValue || isInsideActual)
00711                         {
00712                                 movingPointIndex=-1;
00713                                 deletedPoint = _logicalBar->deleteColorPoint(actualPoint -> getRealX());
00714                         }
00715                 }
00716                 if (deletedPoint)
00717                         RefreshForce();
00718                 return deletedPoint;
00719         }

Here is the call graph for this function:

Here is the caller graph for this function:

void pColorBar::drawColorBar ( bool  recentlyChangedOrientation  )

Draws the color bar with its degrades param recentlyChangedOrientation indicates if the orientation has been changed before calling this method

Definition at line 907 of file pColorBar.cxx.

References bar_height, bar_width, colorBar_Bitmap, deviceEndMargin, getOrientation(), height, setWidth(), and width.

Referenced by setDeviceBlitStart().

00908         {
00909                 wxRect rectTotal = GetClientRect();
00910                 if (recentlyChangedOrientation)
00911                 {
00912                         if ( getOrientation() ) // HORIZONTAL
00913                         {
00914                                 //SetSize(width, height );
00915                                 wxWindow::SetSize( width, height );
00916                                 //SetSize( rectTotal.GetWidth(), rectTotal.GetHeight() );
00917                                 setWidth(GetClientRect().GetWidth()- deviceEndMargin);
00918                                 //setHeight(GetClientRect().GetHeight());
00919
00920                                 colorBar_Bitmap = new wxBitmap( bar_width+1280, bar_height+1280 );
00921                                 //information_Bitmap = new wxBitmap( width-bar_width, height-bar_height );
00922                         }
00923                         else // VERTICAL
00924                         {
00925                                 wxWindow::SetSize( height, width );
00926                                 //SetSize( rectTotal.GetHeight(), rectTotal.GetWidth() );
00927                                 setWidth(GetClientRect().GetHeight()- deviceEndMargin);
00928                                 //setHeight(GetClientRect().GetWidth());
00929
00930                                 //SetWindowStyle( wxNO_FULL_REPAINT_ON_RESIZE );
00931                                 colorBar_Bitmap = new wxBitmap( bar_height+1280, bar_width+1280 );
00932                                 //information_Bitmap = new wxBitmap( height-bar_height, width-bar_width );
00933                         }
00934                 }
00935         }

Here is the call graph for this function:

Here is the caller graph for this function:

void pColorBar::getAddedColorsPointsList ( std::vector< pColorPoint * > &  pointsVector  )

Method that sets a copy of the points of the color bar to the given pointer parameter, and sets the default values to the needeed attributes, it doesn't includes the teporal points created param pointsVector The list for getting the points

Definition at line 666 of file pColorBar.cxx.

References _logicalBar, pColorPoint::getColor(), LogicalColorBar::getCount(), LogicalColorBar::getPointAtIndex(), pColorPoint::getRealX(), and pColorPoint::isTemporalColor().

Referenced by pPlotter::GetValuesColorPointsFunction(), pPlotter::onAdded_ColorPoint(), and pPlotter::onRemoved_ColorPoint().

00667         {
00668                 pColorPoint* cPoint;
00669                 for (int a =0; a<_logicalBar->getCount(); a++)
00670                 {
00671                         cPoint = _logicalBar ->getPointAtIndex(a);
00672                         pColorPoint* copyPoint = new pColorPoint(cPoint->getRealX(), cPoint->getColor( ), (cPoint->isTemporalColor()));
00673                         pointsVector.push_back(copyPoint);
00674                 }
00675         }

Here is the call graph for this function:

Here is the caller graph for this function:

wxColour pColorBar::getBackGroundColour (  )

Gets the background color return colourParent The color of the background

Definition at line 1376 of file pColorBar.cxx.

References colourParent.

01377         {
01378                 return colourParent;
01379         }

int pColorBar::getBarHeight (  )

Gets the height of the containing rectangle bar return bar_height The height to get

Definition at line 1026 of file pColorBar.cxx.

References bar_height.

01027         {
01028                 return bar_height;
01029         }

int pColorBar::getBarWidth (  )

Gets the width of the containing rectangle bar return bar_width The width to get

Definition at line 1044 of file pColorBar.cxx.

References bar_width.

01045         {
01046                 return bar_width;
01047         }

int pColorBar::getClickedX (  )

Gets the last clickedX pixel coord inside the bar. return clickedX The x-coord pixel value

Definition at line 1084 of file pColorBar.cxx.

References clickedX.

01085         {
01086                 return clickedX;
01087         }

int pColorBar::getClickedY (  )

Gets the last clickedY pixel coord inside the bar. return clickedY The y-coord pixel value

Definition at line 1102 of file pColorBar.cxx.

References clickedY.

01103         {
01104                 return clickedY;
01105         }

int pColorBar::getColorPointsSize (  )

Returns the number of points that the bar color has return

Returns the number of points that the bar color has

Definition at line 1330 of file pColorBar.cxx.

References _logicalBar, and LogicalColorBar::getCount().

Referenced by pPlotter::getColorPointsSize().

01331         {
01332                 return _logicalBar->getCount();
01333         }

Here is the call graph for this function:

Here is the caller graph for this function:

void pColorBar::getDataAt ( int  index,
double &  x,
int &  red,
int &  green,
int &  blue
)

Get the RGB values of the color point that is in the index given

Definition at line 1339 of file pColorBar.cxx.

References _logicalBar, and LogicalColorBar::getDataAt().

Referenced by pPlotter::getBarColorDataAt(), and updatePointsToDraw().

01340         {
01341                 //******************************
01342                 _logicalBar->getDataAt(index, x, red, green, blue);
01343         }

Here is the call graph for this function:

Here is the caller graph for this function:

bool pColorBar::getDegradeState (  )

Gets the degrade state of the color bar return doingDegrade is the actual degrade state of the bar

Definition at line 1214 of file pColorBar.cxx.

References doingDegrade.

Referenced by onDegradeControl().

01215         {
01216                 return doingDegrade;
01217         }

Here is the caller graph for this function:

int pColorBar::getDeviceEndX (  )

Gets the device value form the end of this panel to the end of the drawing area in the device in pixels return deviceEndMargin The value asigned to the right margin

wxColour pColorBar::getGuideLineColour (  )

Gets the guide line color return guideLineColor The color of the guideLine

Definition at line 1358 of file pColorBar.cxx.

References guideLineColor.

01359         {
01360                 return guideLineColor;
01361         }

int pColorBar::getHeight (  )

Sets the height of the drawing bar area return _h The height to get

Definition at line 989 of file pColorBar.cxx.

References height.

00990         {
00991                  return height;
00992         }

pColorPoint * pColorBar::getLastMovedColorPoint (  )

Gets the data of the last point moving return pointData Is a pColorPoint with the data of las moved color

Gets the data of the last point moving in a pColorPoint copy return pointData Is a pColorPoint with the data of las moved color

Definition at line 1179 of file pColorBar.cxx.

References pColorPoint::getColor(), pColorPoint::getRealX(), movingNodePoint, pColorPoint::setColor(), and pColorPoint::setRealX().

Referenced by pPlotter::onMoved_ColorPoint().

01180         {
01181                 pColorPoint * dataPoint = new pColorPoint ( 0, wxColor (0,0,0), false);
01182                 if (movingNodePoint)
01183                 {
01184                         dataPoint ->setColor(movingNodePoint->getColor());
01185                         dataPoint ->setRealX(movingNodePoint->getRealX());
01186                 }
01187                 return dataPoint;
01188         }

Here is the call graph for this function:

Here is the caller graph for this function:

double pColorBar::getMaxValue (  )

Gets the max value of the color bar

Definition at line 1392 of file pColorBar.cxx.

References maxX_represented_Tshow.

Referenced by pPlotter::eraseColorPoints(), and reinitiateColorBarTo().

01393         {
01394                 return (double)maxX_represented_Tshow;
01395         }

Here is the caller graph for this function:

double pColorBar::getMinValue (  )

Gets the min value of the color bar

Definition at line 1384 of file pColorBar.cxx.

References minX_represented_Tshow.

Referenced by pPlotter::eraseColorPoints(), and reinitiateColorBarTo().

01385         {
01386                 return (double)minX_represented_Tshow;
01387         }

Here is the caller graph for this function:

bool pColorBar::getOrientation (  )

Gets the orientation of the color bar return bar_orientation The bar orientation assigned

Definition at line 1063 of file pColorBar.cxx.

References _logicalBar, and LogicalColorBar::getOrientation().

Referenced by drawColorBar(), onAddColorPoint(), onChangeColourSelectedPoint(), onDeleteColorPoint(), onLeftButtonDClick(), onMouseMove(), onPaint(), onShowPopupMenu(), OnSize(), repaintView(), and setDeviceBlitStart().

01064         {
01065                 return _logicalBar->getOrientation();
01066         }

Here is the call graph for this function:

Here is the caller graph for this function:

int pColorBar::getPointsFigure_Edges (  )

Gets the constant that represents the figure number of edges used for the degreade color points return figureEdges Is the constant that represents the figure number of edges (TRIANGLE | RECTANGLE)

Gets the constant that represents the figure used for the degreade color points return figureEdges Is the constant that represents the figure number of edges (TRIANGLE | RECTANGLE)

Definition at line 970 of file pColorBar.cxx.

References figure.

00971         {
00972                 return (figure -> getNumberEdges());
00973         }

void pColorBar::getPointsListWithTemps ( std::vector< pColorPoint * > &  pointsVector  )

Method that sets a copy of the points of the color bar to the given pointer parameter param pointsList The list for getting the points

Definition at line 649 of file pColorBar.cxx.

References pColorPoint::getColor(), pColorPoint::getRealX(), pColorPoint::isTemporalColor(), and showedColorPoints.

00650         {
00651                 pColorPoint* cPoint;
00652                 for (int a =0; a<showedColorPoints.size() ; a++)
00653                 {
00654                         cPoint = showedColorPoints[a];
00655                         pColorPoint* copyPoint = new pColorPoint(cPoint->getRealX(), cPoint->getColor( ), (cPoint->isTemporalColor()));
00656                         pointsVector.push_back(copyPoint);
00657                 }
00658         }

Here is the call graph for this function:

int pColorBar::getRealX_vertical_line (  )

Gets the real-x value to draw a vertical line return realX_vertical_line The real x value for the vertical line

Definition at line 1296 of file pColorBar.cxx.

References realX_vertical_line.

Referenced by pPlotter::onSelectionEnd().

01297         {
01298                 return realX_vertical_line;
01299         }

Here is the caller graph for this function:

wxColour pColorBar::getSelectedColour (  )

Gets the selected color and updates the state of the okSelectedColor return selectedColor Is the selected rbg color

Definition at line 1144 of file pColorBar.cxx.

References okSelectedColor.

Referenced by changeColor(), onAddColorPoint(), and onLeftButtonDClick().

01145         {
01146                 okSelectedColor = false;
01147                 wxColour col;
01148                 wxColourData data;
01149                 wxColourDialog dialog( GetParent(), &data);
01150
01151                 if ( dialog.ShowModal() == wxID_OK )
01152                 {
01153                         col = dialog.GetColourData().GetColour();
01154                         okSelectedColor = true;
01155                 }
01156                 return col;
01157         }

Here is the caller graph for this function:

bool pColorBar::getStaticLimits (  )

Gets the state of static or not for the limit color points return staticLimits Is the state for limits

Definition at line 1245 of file pColorBar.cxx.

References staticLimits.

01246         {
01247                 return staticLimits;
01248         }

int pColorBar::getWidth (  )

Gets the width of the drawing bar area param width The width to get

Definition at line 1008 of file pColorBar.cxx.

References width.

01009         {
01010                 return width;
01011         }

bool pColorBar::isActive (  )

Gets the active state of the bar return activeState The actual state

Gets the active state of the bar return isActive The actual state

Definition at line 1287 of file pColorBar.cxx.

References activeState.

01288         {
01289                 return activeState;
01290         }

void pColorBar::onAddColorPoint ( wxCommandEvent &  anEvent  )

Reacts to the cntID_ADD_COLOR_POINT wxCommandEvent and adds a color degrade point to the color bar. Informs the result of the handled event like a wxCommandEvent wxEVT_ADDED_POINT if the point was inserted succesfully. param & anEvent The wxCommandEvent actioned event

Reacts to the cntID_ADD_COLOR_POINT wxCommandEvent and adds a color degrade point to the color bar. Informs the result of the handled event like a wxCommandEvent wxEVT_ADDED_COL_POINT if the point was inserted succesfully. param & anEvent The wxCommandEvent actioned event

Definition at line 363 of file pColorBar.cxx.

References addColorPoint(), clickedX, clickedY, convertToRealValue(), createAndSendEvent(), getOrientation(), getSelectedColour(), and okSelectedColor.

00364         {
00365                 bool addedPoint = false;
00366                 double real_x = getOrientation() ? convertToRealValue( clickedX ) : convertToRealValue( clickedY );
00367                 wxColour selectedColor = getSelectedColour();
00368                 if (okSelectedColor)
00369                 {
00370                         addedPoint = addColorPoint (real_x, selectedColor);
00371                 }
00372                 // Inform addedPoint event
00373                 if ( addedPoint )
00374                 {
00375                         //RefreshForce();
00376                         createAndSendEvent( wxEVT_ADDED_POINT );
00377                 }
00378         }

Here is the call graph for this function:

void pColorBar::onChangeColourSelectedPoint ( wxCommandEvent &  anEvent  )

Reacts to the cntID_CHANGE_COLOR_POINT wxCommandEvent and changes the assigned color to the selected color degrade point of the color bar. Informs the result of the handled event like a wxCommandEvent wxEVT_CHANGED_POINT if the point was succesfully removed. param & anEvent The wxCommandEvent actioned event

Definition at line 403 of file pColorBar.cxx.

References changeColor(), clickedX, clickedY, createAndSendEvent(), and getOrientation().

00404         {
00405                 bool changedColour = false;
00406                 changedColour = getOrientation() ? changeColor( clickedX ) : changeColor( clickedY );
00407                 // Inform deletedPoint event
00408                 if ( changedColour )
00409                 {
00410                         //RefreshForce();
00411                         createAndSendEvent( wxEVT_CHANGED_POINT );
00412                 }
00413         }

Here is the call graph for this function:

void pColorBar::onDegradeControl ( wxCommandEvent &  anEvent  )

Reacts to the cntID_DEGRADE_CONTROL wxCommandEvent and turns on/off the degrade in the color bar. param & anEvent The wxCommandEvent actioned event

Definition at line 499 of file pColorBar.cxx.

References c_popmenu, cntID_DEGRADE_CONTROL, getDegradeState(), and setDegradeState().

00500         {
00501                 bool degrade = getDegradeState();
00502                 wxString nextAction_text;
00503                 if(degrade)
00504                 {
00505                         nextAction_text = _T("Turn on degrade");
00506                         setDegradeState (false);
00507                 }
00508                 else
00509                 {
00510                         nextAction_text = _T("Turn off degrade");
00511                         setDegradeState (true);
00512                 }
00513                 c_popmenu.SetLabel ( cntID_DEGRADE_CONTROL, nextAction_text );
00514         }

Here is the call graph for this function:

void pColorBar::onDeleteColorPoint ( wxCommandEvent &  anEvent  )

Reacts to the cntID_DEL_POINT wxCommandEvent and deletes a color degrade point of the color bar. Informs the result of the handled event like a wxCommandEvent wxEVT_REMOVED_POINT if the point was succesfully removed. param & anEvent The wxCommandEvent actioned event

Reacts to the cntID_DEL_COLOR_POINT wxCommandEvent and deletes a color degrade point of the color bar. Informs the result of the handled event like a wxCommandEvent wxEVT_REMOVED_COL_POINT if the point was succesfully removed. param & anEvent The wxCommandEvent actioned event

Definition at line 385 of file pColorBar.cxx.

References clickedX, clickedY, convertToRealValue(), createAndSendEvent(), deleteColorPoint(), and getOrientation().

00386         {
00387                 bool deletedPoint = false;
00388                 double real_x = getOrientation() ? convertToRealValue( clickedX ) : convertToRealValue( clickedY );
00389                 deletedPoint = deleteColorPoint(real_x);
00390                 // Inform deletedPoint event
00391                 if ( deletedPoint )
00392                 {
00393                         //RefreshForce();
00394                         createAndSendEvent( wxEVT_REMOVED_POINT );
00395                 }
00396         }

Here is the call graph for this function:

void pColorBar::onLeftButtonDClick ( wxMouseEvent &  event  )

Reacts to the wxEVT_RIGHT_DCLICK wxMouseEvent and adds a color degrade point to the color bar. Informs the result of the handled event like a wxCommandEvent wxEVT_ADDED_POINT if the point was succesfully inserted. param & event The wxMouseEvent actioned event

Reacts to the wxEVT_RIGHT_DCLICK wxMouseEvent and adds a color degrade point to the color bar. Informs the result of the handled event like a wxCommandEvent wxEVT_ADDED_COL_POINT if the point was succesfully inserted. param & event The wxMouseEvent actioned event

Definition at line 521 of file pColorBar.cxx.

References activeState, addColorPoint(), bar_height, convertToRealValue(), createAndSendEvent(), deviceStart_x, deviceStart_y, getOrientation(), getSelectedColour(), and okSelectedColor.

00522         {
00523                 if (activeState)
00524                 {
00525                         bool addedPoint = false;
00526                         wxPoint point = event.GetPosition();
00527                         bool posiblePoint = false;
00528                         if( getOrientation() )
00529                         {
00530                                 posiblePoint = point.x>=deviceStart_x && point.y<= (bar_height + deviceStart_y);
00531                         }
00532                         else
00533                         {
00534                                 posiblePoint = point.x>=deviceStart_y && point.x<= (bar_height+deviceStart_y) && point.y>deviceStart_x;
00535                         }
00536
00537                         if (posiblePoint)
00538                         {
00539                                 double real_x = getOrientation() ? convertToRealValue( point.x ) : convertToRealValue( point.y );
00540                                 wxColour selectedColor = getSelectedColour();
00541                                 if (okSelectedColor)
00542                                 {
00543                                         addedPoint = addColorPoint (real_x, selectedColor);
00544                                 }
00545                                 // Inform addedPoint event
00546                                 if ( addedPoint )
00547                                 {
00548                                         //RefreshForce(); Is all ready refreshed on the adition of the point method
00549                                         createAndSendEvent( wxEVT_ADDED_POINT );
00550                                 }
00551                         }
00552                 }
00553         }

Here is the call graph for this function:

void pColorBar::onLeftClicDown ( wxMouseEvent &  event  )

Definition at line 555 of file pColorBar.cxx.

References acceptedClick.

00556         {
00557                 acceptedClick = true;
00558         }

void pColorBar::onLeftClickUp ( wxMouseEvent &  event  )

Definition at line 560 of file pColorBar.cxx.

References acceptedClick, and movingPointIndex.

00561         {
00562                 movingPointIndex = -1;
00563                 acceptedClick = false;
00564         }

void pColorBar::onMouseMove ( wxMouseEvent &  event  )

Reacts to the mouse movement inside the color bar for moving the clicked color point in the x-axis. Informs the result of the handled event like a wxCommandEvent wxEVT_MOVED_POINT if a point was moved. param event The mouse actioned event

Reacts to the mouse movement inside the color bar for moving the clicked color point in the x-axis. Informs the result of the handled event like a wxCommandEvent wxEVT_MOVED_COL_POINT if a point was moved. param event The mouse actioned event

Definition at line 140 of file pColorBar.cxx.

References _logicalBar, acceptedClick, activeState, avaliablePointToMove, convertToPixelValue(), convertToRealValue(), createAndSendEvent(), deviceStart_x, figure, LogicalColorBar::getCount(), getOrientation(), pColorPoint::getRealX(), pFigure::isPointInside(), pColorPoint::isTemporalColor(), lastNode_show, maxX_represented_Tshow, minX_represented_Tshow, movingNodePoint, movingPointIndex, RefreshForce(), pColorPoint::setRealX(), showedColorPoints, startNode_show, staticLimits, and viewingRange.

00141         {
00142                 if(!event.LeftIsDown())
00143                         avaliablePointToMove = -1;
00144
00145                 if (acceptedClick && activeState && _logicalBar->getCount()>0)
00146                 {
00147                         bool movedPoint = false;
00148                         wxPoint point = event.GetPosition();
00149                         double realClicked = getOrientation() ? convertToRealValue(point.x) : convertToRealValue(point.y);
00150                         bool rangeToMove = realClicked<=maxX_represented_Tshow && realClicked>=minX_represented_Tshow;//getOrientation() ? (point.x >=deviceStart_x && point.x<=bar_width+deviceStart_x-deviceEndMargin ) : ( point.y>=deviceStart_y && point.y<=bar_width+deviceStart_x-deviceEndMargin);
00151                         if ( rangeToMove && acceptedClick && showedColorPoints.size()>0 )
00152                         {
00153                                 if ( movingPointIndex == -1 )
00154                                 {
00155                                         startNode_show = showedColorPoints.front();
00156                                         lastNode_show = showedColorPoints.back();
00157
00158                                         //int numberEdges = figure->getNumberEdges(); // JPRx
00159                                         //wxPoint points [4]; // JPRx
00160                                         //int i=0; // JPRx
00161                                         int a;
00162                                         for (a=0; a<showedColorPoints.size() && movingPointIndex==-1 ; a++ )
00163                                         {
00164                                                 pColorPoint * nodePoint = showedColorPoints[a];
00165                                                 int point_pixelX = convertToPixelValue(nodePoint -> getRealX());
00166                                                 point_pixelX+= deviceStart_x;
00167                                                 if ( getOrientation() )
00168                                                         movingPointIndex  =  (figure ->isPointInside (point_pixelX,point.x))? a : -1;
00169                                                 else
00170                                                         movingPointIndex  =  (figure ->isPointInside (point_pixelX,point.y))? a : -1;
00171
00172                                                 if(movingPointIndex != -1)
00173                                                 {
00174                                                         movingNodePoint = nodePoint;
00175                                                         if(avaliablePointToMove ==-1)
00176                                                                 avaliablePointToMove = movingPointIndex;
00177                                                 }
00178                                         }
00179                                 }
00180                                 if (event.LeftIsDown() && movingNodePoint && movingPointIndex!=-1 && avaliablePointToMove==movingPointIndex)
00181                                 {
00182                                         bool hasPrevPoint = movingPointIndex > 0;
00183                                         bool hasNextPoint = movingPointIndex < showedColorPoints.size()-1;
00184
00185                                         pColorPoint * prevPoint =  hasPrevPoint? showedColorPoints[movingPointIndex-1]: NULL;
00186                                         pColorPoint * nextPoint = hasNextPoint ? showedColorPoints[movingPointIndex+1]: NULL;
00187
00188                                         if ( hasPrevPoint && prevPoint!=NULL )
00189                                         {
00190                                                 if ( hasNextPoint && nextPoint!=NULL )
00191                                                 {
00192                                                         double previousValue = prevPoint->getRealX();
00193                                                         double nextValue = nextPoint->getRealX();
00194                                                         movedPoint = prevPoint->isTemporalColor() ?
00195                                                                 ( nextPoint->isTemporalColor() ? (realClicked>=previousValue)&&(realClicked<=nextValue) : (realClicked>=previousValue)&&(realClicked<nextValue))
00196                                                                 :(realClicked>previousValue)&&(realClicked<nextValue);
00197                                                         if(!movedPoint)
00198                                                                 avaliablePointToMove = movingPointIndex;
00199                                                         if(!movedPoint && realClicked<previousValue)
00200                                                         {
00201                                                                 realClicked = previousValue+1;
00202                                                                 movedPoint = true;
00203                                                         }
00204                                                         else if(!movedPoint && realClicked>nextValue)
00205                                                         {
00206                                                                 realClicked = nextValue-1;
00207                                                                 movedPoint = true;
00208                                                         }
00209                                                 }
00210                                                 else
00211                                                 {
00212                                                         if ( !staticLimits )
00213                                                         {
00214                                                                 // Is the last point
00215                                                                 double previousValue = prevPoint->getRealX();
00216                                                                 movedPoint = prevPoint->isTemporalColor() ?
00217                                                                         ( realClicked>=previousValue ) && ( realClicked<= maxX_represented_Tshow )
00218                                                                         : ( realClicked>previousValue ) && ( realClicked<= maxX_represented_Tshow );
00219                                                                 if(!movedPoint)
00220                                                                         avaliablePointToMove = movingPointIndex;
00221                                                                 if(!movedPoint && realClicked<previousValue)
00222                                                                 {
00223                                                                         realClicked = prevPoint->isTemporalColor()? previousValue: previousValue+1;
00224                                                                         movedPoint = true;
00225                                                                 }
00226                                                                 else if (!movedPoint && realClicked>=maxX_represented_Tshow)
00227                                                                 {
00228                                                                         realClicked = maxX_represented_Tshow;
00229                                                                         movedPoint = true;
00230                                                                 }
00231                                                         }
00232                                                 }
00233                                         }
00234                                         else
00235                                         {
00236                                                 if ( hasNextPoint && nextPoint!=NULL )
00237                                                 {
00238                                                         if ( !staticLimits )
00239                                                         {
00240                                                                 // Is the first point
00241                                                                 double nextValue = nextPoint->getRealX();
00242                                                                 movedPoint = ( nextPoint->isTemporalColor() ? (realClicked<=nextValue) && ( realClicked>= minX_represented_Tshow )
00243                                                                         :( realClicked<nextValue ) && ( realClicked>= minX_represented_Tshow ));
00244
00245                                                                 if(!movedPoint)
00246                                                                         avaliablePointToMove = movingPointIndex;
00247                                                                 if(!movedPoint && realClicked>nextValue)
00248                                                                 {
00249                                                                         realClicked = nextPoint->isTemporalColor() ? nextValue : nextValue-1;
00250                                                                         movedPoint = true;
00251                                                                 }
00252                                                                 else if (!movedPoint && realClicked<=minX_represented_Tshow)
00253                                                                 {
00254                                                                         realClicked = minX_represented_Tshow;
00255                                                                         movedPoint = true;
00256                                                                 }
00257                                                         }
00258                                                 }
00259                                                 else
00260                                                 {
00261                                                         //Is the only point in the color bar
00262                                                         movedPoint = ( realClicked<= maxX_represented_Tshow ) && ( realClicked>= minX_represented_Tshow );
00263                                                         if(!movedPoint)
00264                                                                         avaliablePointToMove = movingPointIndex;
00265                                                         if (!movedPoint && realClicked<=minX_represented_Tshow)
00266                                                         {
00267                                                                 realClicked = minX_represented_Tshow;
00268                                                                 movedPoint = true;
00269                                                         }
00270                                                         else if(!movedPoint && realClicked>=maxX_represented_Tshow)
00271                                                         {
00272                                                                 realClicked = maxX_represented_Tshow;
00273                                                                 movedPoint = true;
00274                                                         }
00275                                                 }
00276                                         }
00277                                         if(viewingRange)
00278                                         {
00279                                                 bool movingTempStart = movingNodePoint->getRealX() == startNode_show->getRealX() && movingNodePoint->isTemporalColor();
00280                                                 bool movingTempEnd = movingNodePoint->getRealX()== lastNode_show->getRealX() && movingNodePoint->isTemporalColor();
00281                                                 if( movingTempStart || movingTempEnd )
00282                                                         movedPoint = false;
00283                                         }
00284                                 }
00285                                         // Inform movedPoint event
00286                                 if ( movedPoint )
00287                                 {
00288                                         movingNodePoint->setRealX ( realClicked );
00289                                         RefreshForce();//Refresh to show the point is moved
00290                                         createAndSendEvent(wxEVT_MOVED_POINT);
00291                                 }
00292                                 else
00293                                 {
00294                                         movingPointIndex = -1;
00295                                         //Creating a general event of mouse move to actualize views
00296                                         createAndSendEvent( wxEVT_ON_COLOR_BAR );
00297                                 }
00298                         }
00299                         else
00300                         {
00301                                 movingPointIndex = -1;
00302                                 //Creating a general event of mouse move to actualize views
00303                                 createAndSendEvent( wxEVT_ON_COLOR_BAR );
00304                         }
00305                         if ( movingPointIndex ==-1 )
00306                         {
00307                                 RefreshForce();//Refresh to show the point is not selected anymore
00308                         }
00309                 }
00310         }

Here is the call graph for this function:

void pColorBar::onPaint ( wxPaintEvent &  WXUNUSEDevent  )

Definition at line 322 of file pColorBar.cxx.

References bar_height, bar_width, colorBar_Bitmap, deviceEndMargin, deviceStart_x, deviceStart_y, getOrientation(), and repaintView().

00323         {
00324                 repaintView();
00325                 if ( getOrientation() ) // HORIZONTAL
00326                 {
00327                         wxMemoryDC temp_dc;
00328                         temp_dc.SelectObject( * colorBar_Bitmap );
00329                         wxPaintDC dc( this );
00330
00331 //                      dc.Blit(deviceStart_x, deviceStart_y, bar_width+deviceStart_x, bar_height+deviceStart_y, &temp_dc, deviceStart_x, deviceStart_y);
00332
00333                         dc.Blit(deviceStart_x, deviceStart_y, bar_width/*-deviceEndMargin*/, bar_height, &temp_dc, 0, 0);
00334
00335                         // Bitmap for posible needed information to be shown
00336                         /*
00337                         temp_dc.SelectObject( * information_Bitmap );
00338                         dc.Blit(0,bar_height, width, height, &temp_dc, 0, height);
00339                         */
00340                 }
00341                 else
00342                 {
00343                         wxMemoryDC temp_dc;
00344                         temp_dc.SelectObject( * colorBar_Bitmap );
00345                         wxPaintDC dc( this );
00346 //                      dc.Blit(deviceStart_y,deviceStart_x, bar_height+deviceStart_y, bar_width+deviceStart_x, &temp_dc, deviceStart_y, deviceStart_x);
00347
00348                         dc.Blit(deviceStart_y,deviceStart_x, bar_height, bar_width-deviceEndMargin, &temp_dc, 0, 0);
00349                         // Bitmap for posible needed information to be shown
00350                         /*
00351                         temp_dc.SelectObject( * information_Bitmap );
00352                         dc.Blit(0,bar_width, height, width, &temp_dc, 0, width );
00353                         */
00354                         temp_dc.SelectObject(wxNullBitmap);
00355                 }
00356         }

Here is the call graph for this function:

void pColorBar::onRectangles_Figure ( wxCommandEvent &  anEvent  )

Reacts to the cntID_RECTANGLES wxCommandEvent and changes the assigned figure to -rectangles- for the color points of the color bar. param & anEvent The wxCommandEvent actioned event

Definition at line 482 of file pColorBar.cxx.

References changeFigure(), changesMenu, cntID_RECTANGLES, cntID_TRIANGLES_DOWN, cntID_TRIANGLES_LEFT, cntID_TRIANGLES_RIGHT, cntID_TRIANGLES_UP, and RECTANGLE.

00483         {
00484                 if( !changesMenu->IsChecked(cntID_TRIANGLES_RIGHT) )
00485                 {
00486                         changeFigure (RECTANGLE);// RECTANGLE = 4
00487                         changesMenu->Check (cntID_TRIANGLES_UP, false);
00488                         changesMenu->Check (cntID_TRIANGLES_DOWN, false);
00489                         changesMenu->Check (cntID_TRIANGLES_LEFT, false);
00490                         changesMenu->Check (cntID_TRIANGLES_RIGHT, false);
00491                         changesMenu->Check (cntID_RECTANGLES, true);
00492                 }
00493         }

Here is the call graph for this function:

void pColorBar::onShowPopupMenu ( wxMouseEvent &  event  )

Shows the popup menu

Definition at line 568 of file pColorBar.cxx.

References activeState, bar_height, c_popmenu, cntID_DEL_COLOR_POINT, deviceStart_x, deviceStart_y, getOrientation(), RefreshForce(), setClickedX(), setClickedY(), and showedColorPoints.

00569         {
00570                 if (activeState)
00571                 {
00572                         if(showedColorPoints.empty())
00573                         {
00574                                 c_popmenu.Enable(cntID_DEL_COLOR_POINT, false);
00575                         }
00576                         else
00577                         {
00578                                 c_popmenu.Enable(cntID_DEL_COLOR_POINT, true);
00579                         }
00580                         bool setClickedValues = false;
00581                         if( getOrientation() )
00582                         {
00583                                 setClickedValues = event.GetX()>=deviceStart_x && event.GetY()<= (bar_height + deviceStart_y);
00584                         }
00585                         else
00586                         {
00587                                 setClickedValues = event.GetX()>=deviceStart_y && event.GetX()<= (bar_height+deviceStart_y) && event.GetY()>deviceStart_x;
00588                         }
00589                         if (setClickedValues)
00590                         {
00591                                 setClickedX ( event.GetX() );
00592                                 setClickedY ( event.GetY() );
00593                                 RefreshForce();
00594                                 PopupMenu( &c_popmenu, event.GetX(), event.GetY());
00595                         }
00596                 }
00597         }

Here is the call graph for this function:

void pColorBar::OnSize ( wxSizeEvent &  WXUNUSEDevent  )

Definition at line 122 of file pColorBar.cxx.

References deviceEndMargin, getOrientation(), Refresh(), and setWidth().

00123         {
00124                 wxRect rectTotal = GetClientRect();
00125                 if(getOrientation())
00126                 {
00127                         setWidth( rectTotal.GetWidth() - deviceEndMargin );
00128                 }
00129                 else
00130                 {
00131                         setWidth( rectTotal.GetHeight() - deviceEndMargin);
00132                 }
00133                 Refresh();
00134         }

Here is the call graph for this function:

void pColorBar::onTrianglesDown_Figure ( wxCommandEvent &  anEvent  )

Reacts to the cntID_TRIANGLES_DOWN wxCommandEvent and changes the assigned figure to -triangles down- for the color points of the color bar. param & anEvent The wxCommandEvent actioned event

Definition at line 434 of file pColorBar.cxx.

References changeFigure(), changesMenu, cntID_RECTANGLES, cntID_TRIANGLES_DOWN, cntID_TRIANGLES_LEFT, cntID_TRIANGLES_RIGHT, and cntID_TRIANGLES_UP.

00435         {
00436                 if( !changesMenu->IsChecked(cntID_TRIANGLES_DOWN) )
00437                 {
00438                         changeFigure (-2);
00439                         changesMenu->Check (cntID_TRIANGLES_UP, false);
00440                         changesMenu->Check (cntID_TRIANGLES_DOWN, true);
00441                         changesMenu->Check (cntID_TRIANGLES_LEFT, false);
00442                         changesMenu->Check (cntID_TRIANGLES_RIGHT, false);
00443                         changesMenu->Check (cntID_RECTANGLES, false);
00444                 }
00445         }

Here is the call graph for this function:

void pColorBar::onTrianglesLeft_Figure ( wxCommandEvent &  anEvent  )

Reacts to the cntID_TRIANGLES_LEFT wxCommandEvent and changes the assigned figure to -triangles left- for the color points of the color bar. param & anEvent The wxCommandEvent actioned event

Definition at line 450 of file pColorBar.cxx.

References changeFigure(), changesMenu, cntID_RECTANGLES, cntID_TRIANGLES_DOWN, cntID_TRIANGLES_LEFT, cntID_TRIANGLES_RIGHT, and cntID_TRIANGLES_UP.

00451         {
00452                 if( !changesMenu->IsChecked(cntID_TRIANGLES_LEFT) )
00453                 {
00454                         changeFigure (-4);
00455                         changesMenu->Check (cntID_TRIANGLES_UP, false);
00456                         changesMenu->Check (cntID_TRIANGLES_DOWN, false);
00457                         changesMenu->Check (cntID_TRIANGLES_LEFT, true);
00458                         changesMenu->Check (cntID_TRIANGLES_RIGHT, false);
00459                         changesMenu->Check (cntID_RECTANGLES, false);
00460                 }
00461         }

Here is the call graph for this function:

void pColorBar::onTrianglesRight_Figure ( wxCommandEvent &  anEvent  )

Reacts to the cntID_TRIANGLES_RIGHT wxCommandEvent and changes the assigned figure to -triangles right- for the color points of the color bar. param & anEvent The wxCommandEvent actioned event

Definition at line 466 of file pColorBar.cxx.

References changeFigure(), changesMenu, cntID_RECTANGLES, cntID_TRIANGLES_DOWN, cntID_TRIANGLES_LEFT, cntID_TRIANGLES_RIGHT, and cntID_TRIANGLES_UP.

00467         {
00468                 if( !changesMenu->IsChecked(cntID_TRIANGLES_RIGHT) )
00469                 {
00470                         changeFigure (-6);
00471                         changesMenu->Check (cntID_TRIANGLES_UP, false);
00472                         changesMenu->Check (cntID_TRIANGLES_DOWN, false);
00473                         changesMenu->Check (cntID_TRIANGLES_LEFT, false);
00474                         changesMenu->Check (cntID_TRIANGLES_RIGHT, true);
00475                         changesMenu->Check (cntID_RECTANGLES, false);
00476                 }
00477         }

Here is the call graph for this function:

void pColorBar::onTrianglesUp_Figure ( wxCommandEvent &  anEvent  )

Reacts to the cntID_TRIANGLES_UP wxCommandEvent and changes the assigned figure to -triangles up- for the color points of the color bar. param & anEvent The wxCommandEvent actioned event

Definition at line 418 of file pColorBar.cxx.

References changeFigure(), changesMenu, cntID_RECTANGLES, cntID_TRIANGLES_DOWN, cntID_TRIANGLES_LEFT, cntID_TRIANGLES_RIGHT, and cntID_TRIANGLES_UP.

00419         {
00420                 if( !changesMenu->IsChecked(cntID_TRIANGLES_UP) )
00421                 {
00422                         changeFigure (-8);
00423                         changesMenu->Check (cntID_TRIANGLES_UP, true);
00424                         changesMenu->Check (cntID_TRIANGLES_DOWN, false);
00425                         changesMenu->Check (cntID_TRIANGLES_LEFT, false);
00426                         changesMenu->Check (cntID_TRIANGLES_RIGHT, false);
00427                         changesMenu->Check (cntID_RECTANGLES, false);
00428                 }
00429         }

Here is the call graph for this function:

void pColorBar::Refresh ( bool  eraseBackground = true,
const wxRect *  rect = NULL
)

Definition at line 312 of file pColorBar.cxx.

Referenced by OnSize(), and RefreshForce().

00313         {
00314                 wxScrolledWindow::Refresh(false);
00315         }

Here is the caller graph for this function:

void pColorBar::RefreshForce (  )

Forces the refresh view of the color bar

Definition at line 898 of file pColorBar.cxx.

References Refresh().

Referenced by addColorPoint(), changeColor(), changeFigure(), deleteColorPoint(), onMouseMove(), onShowPopupMenu(), and setVisibleRange().

00899         {
00900                 Refresh(false);
00901         }

Here is the call graph for this function:

Here is the caller graph for this function:

void pColorBar::reinitiateColorBar ( double  minRealValue,
double  maxRealValue
)

Method that reinitiates attributes of the color bar to the given points param minRealValue The minimum represented value (real value) param maxRealValue The maximum represented value (real value)

Definition at line 607 of file pColorBar.cxx.

References _logicalBar, accumTemporalPoints, activeState, movingPointIndex, realX_vertical_line, setDegradeState(), setRepresentedValues(), showedColorPoints, and viewingRange.

Referenced by pPlotter::eraseColorPoints().

00608         {
00609
00610                 _logicalBar -> clearPoints();
00611                 showedColorPoints.clear();
00612
00613                 movingPointIndex = -1;
00614                 realX_vertical_line = -1;
00615                 activeState = true;
00616                 accumTemporalPoints = 0;
00617                 viewingRange = false;
00618                 setDegradeState(true);
00619                 setRepresentedValues(minRealValue, maxRealValue);
00620         }

Here is the call graph for this function:

Here is the caller graph for this function:

void pColorBar::reinitiateColorBarTo ( std::vector< pColorPoint * >  pointsVector  )

Method that reinitiates attributes of the color bar and set the points given by parameter param newPointsList Pointer to the list of the new points

Definition at line 626 of file pColorBar.cxx.

References _logicalBar, accumTemporalPoints, activeState, getMaxValue(), getMinValue(), movingPointIndex, realX_vertical_line, setDegradeState(), setRepresentedValues(), showedColorPoints, and viewingRange.

Referenced by pPlotter::onChangeFunction(), and pPlotter::setAll().

00627         {
00628                 _logicalBar -> clearPoints();
00629                 _logicalBar -> setColorPoints(pointsVector);
00630                 showedColorPoints.clear();
00631
00632                 movingPointIndex = -1;
00633                 realX_vertical_line = -1;
00634                 activeState = true;
00635                 accumTemporalPoints = 0;
00636                 viewingRange = false;
00637                 setDegradeState(true);
00638
00639                 double minRealValue = _logicalBar -> getMinValue();
00640                 double maxRealvalue = _logicalBar -> getMaxValue();
00641
00642                 setRepresentedValues(minRealValue, maxRealvalue);
00643         }

Here is the call graph for this function:

Here is the caller graph for this function:

void pColorBar::repaintView (  )

Repaints the color bar in direction mode of the orientation assigned param createTempPoints True for creating temporal points for start and end when a visible range changes

Definition at line 755 of file pColorBar.cxx.

References _logicalBar, bar_height, bar_width, colorBar_Bitmap, colourParent, convertToPixelValue(), deviceEndMargin, doingDegrade, figure, pFigure::getNumberEdges(), getOrientation(), pFigure::getVertexPoints(), guideLineColor, pColorPoint::isTemporalColor(), movingNodePoint, movingPointIndex, realX_vertical_line, pFigure::setVertexPoints(), showedColorPoints, and updatePointsToDraw().

Referenced by onPaint().

00756         {
00757                 wxMemoryDC temp_dc;
00758                 temp_dc.SelectObject( * colorBar_Bitmap );
00759                 temp_dc.SetBrush(wxBrush( colourParent ,wxSOLID  ));
00760                 temp_dc.SetPen(wxPen( colourParent,1,wxSOLID  ));
00761                 if (getOrientation())
00762                 {
00763                         temp_dc.DrawRectangle(0, 0, bar_width, bar_height);
00764                         temp_dc.SetPen(wxPen( wxColour(167,165,191),1,wxSOLID  ));
00765                         temp_dc.DrawRectangle(0, 0, bar_width-deviceEndMargin, bar_height);
00766                 }
00767                 else
00768                 {
00769                         temp_dc.DrawRectangle(0, 0, bar_height, bar_width);
00770                         temp_dc.SetPen(wxPen( wxColour(167,165,191),1,wxSOLID  ));
00771                         temp_dc.DrawRectangle(0, 0, bar_height, bar_width-deviceEndMargin);
00772                 }
00773                 //wxPoint figPoints[4]; // JPRx
00774
00775                 if( _logicalBar -> getCount() >0)
00776                 {
00777                         updatePointsToDraw();
00778
00779                         int numberEdges = figure->getNumberEdges();
00780                         wxPoint points [4];
00781                         figure->getVertexPoints(points);
00782                         figure ->setVertexPoints (points);
00783
00784                         int maxValue = showedColorPoints.size();
00785                         pColorPoint * iniPoint;
00786                         pColorPoint * endPoint;
00787                         wxColor intialColor, finalColor;
00788                         for (int a=0; a<maxValue; a++)
00789                         {
00790                                 iniPoint = showedColorPoints[a];
00791                                 int ini_pixelX = convertToPixelValue(iniPoint -> getRealX());
00792                                 intialColor = iniPoint -> getColor();
00793
00794                                 if( a<maxValue-1 )
00795                                 {
00796                                         if( doingDegrade )
00797                                         {
00798                                                 endPoint = showedColorPoints[a+1];
00799                                                 int end_pixelX = convertToPixelValue(endPoint -> getRealX());
00800                                                 finalColor = endPoint -> getColor();
00801
00802                                                 int rectangle_width = end_pixelX - ini_pixelX;
00803
00804                                                 //*************************************************************************************
00805                                                 int initial_r = intialColor.Red();
00806                                                 int final_r = finalColor.Red()  ;
00807                                                 int initial_g = intialColor.Green();
00808                                                 int final_g= finalColor.Green();
00809                                                 int initial_b = intialColor.Blue();
00810                                                 int final_b= finalColor.Blue();
00811
00812                                                 float m_scope_r = (float)(final_r-initial_r)/rectangle_width;
00813                                                 float m_scope_g = (float)(final_g-initial_g)/rectangle_width;
00814                                                 float m_scope_b = (float)(final_b-initial_b)/rectangle_width;
00815
00816                                                 int next_r = initial_r;
00817                                                 int next_g = initial_g;
00818                                                 int next_b = initial_b;
00819
00820                                                 float nxt_r = (float)next_r;
00821                                                 float nxt_g = (float)next_g;
00822                                                 float nxt_b = (float)next_b;
00823
00824                                                 for (int Xi =ini_pixelX; Xi<= end_pixelX; Xi++)
00825                                                 {
00826                                                         temp_dc.SetBrush(wxBrush( wxColour(next_r, next_g, next_b),wxSOLID  ));
00827                                                         temp_dc.SetPen(wxPen( wxColour(next_r, next_g, next_b),1,wxSOLID  ));
00828                                                         if( getOrientation() )
00829                                                                 temp_dc.DrawLine(Xi, 0, Xi, bar_height);
00830                                                         else
00831                                                                 temp_dc.DrawLine(0, Xi, bar_height, Xi);
00832
00833                                                         nxt_r = (m_scope_r + nxt_r);
00834                                                         nxt_g = (m_scope_g + nxt_g);
00835                                                         nxt_b = (m_scope_b + nxt_b);
00836
00837                                                         next_r = (int)(nxt_r);
00838                                                         next_g = (int)(nxt_g);
00839                                                         next_b = (int)(nxt_b);
00840                                                 }
00841                                         }
00842                                 }
00843                                 if( movingPointIndex!=-1 && movingNodePoint!=NULL )
00844                                 {
00845                                         if ( !(movingNodePoint -> isTemporalColor()) )
00846                                         {
00847                                                 if( movingNodePoint==iniPoint && movingPointIndex!=-1 )
00848                                                 {
00849                                                         temp_dc.SetBrush(wxBrush(  wxColour(5,36,180), wxSOLID  ));
00850                                                         temp_dc.SetPen(wxPen( wxColour(239,239,239), 1, wxSOLID  ));
00851                                                         if (getOrientation())
00852                                                                 temp_dc.DrawPolygon(numberEdges, points, ini_pixelX, 0);
00853                                                         else
00854                                                                 temp_dc.DrawPolygon(numberEdges, points, 0, ini_pixelX);
00855                                                 }
00856                                                 else
00857                                                 {
00858                                                                 temp_dc.SetBrush(wxBrush( intialColor, wxSOLID  ));
00859                                                                 if(iniPoint->isTemporalColor())
00860                                                                         temp_dc.SetPen(wxPen( intialColor, 1, wxSOLID  ));
00861                                                                 else
00862                                                                         temp_dc.SetPen(wxPen( wxColour(0,0,0), 1, wxSOLID  ));
00863                                                                 if (getOrientation())
00864                                                                         temp_dc.DrawPolygon(numberEdges, points, ini_pixelX, 0);
00865                                                                 else
00866                                                                         temp_dc.DrawPolygon(numberEdges, points, 0, ini_pixelX);
00867                                                 }
00868                                         }
00869                                 }
00870                                 else
00871                                 {
00872                                         if ( !(iniPoint -> isTemporalColor()) )
00873                                         {
00874                                                 temp_dc.SetBrush(wxBrush( intialColor, wxSOLID  ));
00875                                                 temp_dc.SetPen(wxPen( wxColour(0,0,0), 1, wxSOLID  ));
00876                                                 if (getOrientation())
00877                                                         temp_dc.DrawPolygon(numberEdges, points, ini_pixelX, 0);
00878                                                 else
00879                                                         temp_dc.DrawPolygon(numberEdges, points, 0, ini_pixelX);
00880                                         }
00881                                 }
00882                         }
00883                         if (realX_vertical_line!=-1)
00884                         {
00885                                 temp_dc.SetPen(wxPen(  guideLineColor,1,wxDOT  ));
00886                                 int pixelX_guide = convertToPixelValue(realX_vertical_line);
00887                                 if (getOrientation())
00888                                         temp_dc.DrawLine(pixelX_guide, 0, pixelX_guide, bar_height);
00889                                 else
00890                                         temp_dc.DrawLine(0, pixelX_guide, bar_height, pixelX_guide);
00891                         }
00892                 }
00893         }

Here is the call graph for this function:

Here is the caller graph for this function:

void pColorBar::setActiveStateTo ( bool  activeNow  )

Set active state param activeNow The new state

Definition at line 1278 of file pColorBar.cxx.

References activeState.

01279         {
01280                 activeState = activeNow;
01281         }

void pColorBar::setBackGroundColour ( wxColour  theNwBackColor  )

Sets the background color param theNwBackColor The color to set to the colourParent

Definition at line 1367 of file pColorBar.cxx.

References colourParent.

01368         {
01369                 colourParent = theNwBackColor;
01370         }

void pColorBar::setBarHeight ( int  _h  )

Sets the height of the containing rectangle bar param _h The height to set

Definition at line 1017 of file pColorBar.cxx.

References bar_height.

01018         {
01019                 bar_height = _h;
01020         }

void pColorBar::setBarWidth ( int  _w  )

Sets the width of the containing rectangle bar param _w The width to set

Definition at line 1035 of file pColorBar.cxx.

References bar_width.

01036         {
01037                 bar_width = _w;
01038         }

void pColorBar::setClickedX ( int  xCoordPixel  )

Sets the last clickedX pixel coord inside the bar. param xCoordPixel The x-coord value to set

Definition at line 1093 of file pColorBar.cxx.

References clickedX.

Referenced by onShowPopupMenu().

01094         {
01095                 clickedX = xCoordPixel;
01096         }

Here is the caller graph for this function:

void pColorBar::setClickedY ( int  yCoordPixel  )

Sets the last clickedY pixel coord inside the bar. param yCoordPixel The y-coord pixel value to set

Definition at line 1111 of file pColorBar.cxx.

References clickedY.

Referenced by onShowPopupMenu().

01112         {
01113                 clickedY = yCoordPixel;
01114         }

Here is the caller graph for this function:

void pColorBar::setDegradeState ( bool  newState  )

Sets the degrade state of the color bar param newState The degrade stare to set

Definition at line 1205 of file pColorBar.cxx.

References doingDegrade.

Referenced by onDegradeControl(), reinitiateColorBar(), and reinitiateColorBarTo().

01206         {
01207                 doingDegrade = newState;
01208         }

Here is the caller graph for this function:

void pColorBar::setDeviceBlitStart ( wxCoord  devStart_x,
wxCoord  devStart_y
)

Sets the device start drawing left-superior (pixel) start point and draws automatically the color bar param deviceStart_x Pixel start for x-coord param deviceStart_y Pixel start for y-coord

Definition at line 1255 of file pColorBar.cxx.

References deviceStart_x, deviceStart_y, drawColorBar(), getOrientation(), height, and width.

01256         {
01257                 deviceStart_x = devStart_x;
01258                 deviceStart_y = devStart_y;
01259                 if (getOrientation())
01260                         width += deviceStart_x;
01261                 else
01262                         height += deviceStart_y;
01263                 drawColorBar(true);
01264         }

Here is the call graph for this function:

void pColorBar::setDeviceEndMargin ( int  newDeviceEnd_pixels  )

Sets the new device (deviceEndMargin) value form the end of this panel to the end of the drawing area in the device param newDeviceEnd_pixels The new pixel value to asign to the right(horizontal view), underneath(vertical view) margin in pixels

Definition at line 1314 of file pColorBar.cxx.

References deviceEndMargin.

01315         {
01316                 deviceEndMargin = newDeviceEnd_pixels;
01317         }

void pColorBar::setDeviceEndX ( int  newDeviceEnd_pixels  )

Sets the new device (deviceEndMargin) value form the end of this panel to the end of the drawing area in the device param newDeviceEnd_pixels The new pixel value to asign to the right margin in pixels

void pColorBar::setGapValues ( int  gap_x,
int  gap_y
)

Sets the gap values for the color bar bitmap param gap_x Gap in x param gap_y Gap in y

Definition at line 1195 of file pColorBar.cxx.

References gapX, and gapY.

01196         {
01197                 gapX = gap_x;
01198                 gapY = gap_y;
01199         }

void pColorBar::setGuideLineColour ( wxColour  theNwGuideLineColor  )

Sets the guide line color param theNwGuideLineColor The color to set to the guideLineColor

Definition at line 1349 of file pColorBar.cxx.

References guideLineColor.

01350         {
01351                 guideLineColor = theNwGuideLineColor;
01352         }

void pColorBar::setHeight ( int  _h  )

Sets the height of the drawing bar area param _h The height to set

Definition at line 979 of file pColorBar.cxx.

References bar_height, gapY, and height.

00980         {
00981                 height = _h;
00982                 bar_height = height-gapY;
00983         }

void pColorBar::setOrientation ( bool  _orientation  )

Sets the orientation of the color bar param _orientation The orientation to set VERTICAL = false, HORIZONTAL = true

Definition at line 1053 of file pColorBar.cxx.

References _logicalBar, and figure.

01054         {
01055                 _logicalBar -> setOrientation(_orientation);
01056                 figure -> setBarOrientation (_orientation);
01057         }

void pColorBar::setPoints ( std::vector< pColorPoint * >  _points  )

Sets the collection of color points param _points The new points to set, each one of data type pColorPoint ( xValue, wxColour_assigned)

Definition at line 1072 of file pColorBar.cxx.

References _logicalBar, LogicalColorBar::clearPoints(), LogicalColorBar::setColorPoints(), and showedColorPoints.

01073         {
01074                 _logicalBar->clearPoints();
01075                 showedColorPoints.clear();
01076                 _logicalBar->setColorPoints(_points);
01077                 //posible needed to update
01078         }

Here is the call graph for this function:

void pColorBar::setRealX_vertical_line ( int  newReal_x  )

Sets the real-x value to draw a vertical line param realX_vertical_line The new real x value for the vertical line

Definition at line 1305 of file pColorBar.cxx.

References realX_vertical_line.

Referenced by pPlotter::onActualChange_Bar(), and pPlotter::onSelectionEnd().

01306         {
01307                 realX_vertical_line = newReal_x;
01308         }

Here is the caller graph for this function:

void pColorBar::setRepresentedValues ( double  minRealValue,
double  maxRealValue
)

Sets the represented minimum and maximunm values param minRealValue The minimum represented value (real value) param maxRealValue The maximum represented value (real value)

Definition at line 1164 of file pColorBar.cxx.

References _logicalBar, maxX_represented_Tshow, minX_represented_Tshow, LogicalColorBar::setMaxValue(), LogicalColorBar::setMinValue(), temporalMaxXToShow, and temporalMinXToShow.

Referenced by reinitiateColorBar(), and reinitiateColorBarTo().

01165         {
01166                 temporalMinXToShow = (int)minRealValue;
01167                 temporalMaxXToShow = (int)maxRealValue;
01168
01169                 minX_represented_Tshow = (int)minRealValue;
01170                 maxX_represented_Tshow = (int)maxRealValue;
01171                 _logicalBar->setMinValue(minX_represented_Tshow);
01172                 _logicalBar->setMaxValue(maxX_represented_Tshow);
01173         }

Here is the call graph for this function:

Here is the caller graph for this function:

void pColorBar::setStaticLimitsTo ( bool  areStatic  )

Sets the state of static or not for the limit color points pamar areStatic Is the state to set for the limits

Definition at line 1236 of file pColorBar.cxx.

References staticLimits.

01237         {
01238                 staticLimits = areStatic;
01239         }

void pColorBar::setVisibleRange ( int  minToShow,
int  maxToShow
)

Sets the visible range of the bar and repaints the bar according to it, the min value must be less than the max value. param minToShow Is the minimum value to show in the colorbar param maxToShow Is the maximum value to show in the colorbar

Definition at line 1224 of file pColorBar.cxx.

References maxX_represented_Tshow, minX_represented_Tshow, RefreshForce(), and viewingRange.

01225         {
01226                 minX_represented_Tshow = minToShow;
01227                 maxX_represented_Tshow = maxToShow;
01228                 viewingRange = true;
01229                 RefreshForce();
01230         }

Here is the call graph for this function:

void pColorBar::setWidth ( int  _w  )

Sets the width of the drawing bar area param _w The width to set

Definition at line 998 of file pColorBar.cxx.

References bar_width, gapX, and width.

Referenced by drawColorBar(), and OnSize().

00999         {
01000                 width = _w;
01001                 bar_width = width-gapX;
01002         }

Here is the caller graph for this function:

void pColorBar::updateExtremeColors (  )

Updates the colors of the first nonTemporal point in the list and the last nonTemporal point That logically corresponds always to the the first and last nodes of the color bar

void pColorBar::updatePointsToDraw (  )

Definition at line 1398 of file pColorBar.cxx.

References _logicalBar, accumTemporalPoints, convertToPixelValue(), LogicalColorBar::getCount(), getDataAt(), LogicalColorBar::getMaxAddedValue(), lastNode_show, maxX_represented_Tshow, minX_represented_Tshow, showedColorPoints, and startNode_show.

Referenced by repaintView().

01399         {
01400                 accumTemporalPoints = 0;
01401                 if (_logicalBar->getCount()>0)
01402                 {
01403                         showedColorPoints.clear();
01404
01405                         int startIndex, endIndex;
01406                         _logicalBar -> getPointersToRangeLimits( showedColorPoints, startIndex, endIndex, minX_represented_Tshow, maxX_represented_Tshow );
01407
01408                         int internalCount = _logicalBar->getCount();
01409                         std::deque <pColorPoint*>::iterator iterStart = showedColorPoints.begin( );
01410                         std::deque <pColorPoint*>::iterator iterEnd = showedColorPoints.end( );
01411
01412                         int pixelTmpStart = convertToPixelValue (minX_represented_Tshow);
01413                         int pixelTmpEnd = convertToPixelValue (maxX_represented_Tshow);
01414                         int initial_r, final_r, initial_g, final_g, initial_b, final_b, rectangle_width;
01415                         double realINI, realEND;
01416
01417                         bool includeTempStart = false;
01418                         bool includeTempEnd = false;
01419                         //-----------------Adding the first visible point of the list
01420                         if(showedColorPoints.size()>0)
01421                         {
01422                                 includeTempStart = (int)(showedColorPoints.front()->getRealX())>minX_represented_Tshow ;
01423                                 includeTempEnd = (int)(showedColorPoints.back()->getRealX())<maxX_represented_Tshow ;
01424                                 if( startIndex >= 0 )
01425                                 {
01426                                         if( startIndex == 0 )
01427                                         {
01428                                                 //The temporal showing point for the start should have the same color of the initial point in range at startIndex
01429                                                 _logicalBar -> getDataAt( startIndex, realINI, initial_r, initial_g, initial_b );
01430                                                 realINI = minX_represented_Tshow;
01431                                                 _logicalBar -> getDataAt( startIndex, realEND, final_r, final_g, final_b );
01432                                         }
01433                                         else if( startIndex > 0 )
01434                                         {
01435                                                 _logicalBar -> getDataAt( startIndex-1, realINI, initial_r, initial_g, initial_b );
01436                                                 _logicalBar -> getDataAt( startIndex, realEND, final_r, final_g, final_b );
01437                                         }
01438
01439                                         if( includeTempStart )
01440                                         {
01441                                                 int ini_pixelX = convertToPixelValue( realINI );
01442                                                 int end_pixelX = convertToPixelValue( realEND );
01443
01444                                                 rectangle_width = end_pixelX - ini_pixelX;
01445
01446                                                 float m_scope_r = (float)(final_r-initial_r)/rectangle_width;
01447                                                 float m_scope_g = (float)(final_g-initial_g)/rectangle_width;
01448                                                 float m_scope_b = (float)(final_b-initial_b)/rectangle_width;
01449
01450
01451                                                 float bRed = initial_r - m_scope_r*pixelTmpStart;
01452                                                 float bGreen = initial_g -  m_scope_g*pixelTmpStart;
01453                                                 float bBlue = initial_b - m_scope_b*pixelTmpStart;
01454
01455                                                 showedColorPoints.push_front( new pColorPoint ( minX_represented_Tshow, wxColour( (m_scope_r*pixelTmpStart)+bRed, (m_scope_g*pixelTmpStart)+bGreen, (m_scope_b*pixelTmpStart)+bBlue ), true));
01456
01457                                                 accumTemporalPoints ++;
01458                                         }
01459                                 }
01460                                 if( includeTempEnd && minX_represented_Tshow < maxX_represented_Tshow )
01461                                 {
01462                                         if( internalCount>0 )
01463                                         {
01464                                                 if( endIndex == internalCount-1 )
01465                                                 {
01466                                                         _logicalBar -> getDataAt( endIndex, realINI, initial_r, initial_g, initial_b );
01467                                                         _logicalBar -> getDataAt( endIndex, realEND, final_r, final_g, final_b );
01468                                                         realEND = maxX_represented_Tshow;
01469                                                 }
01470                                                 else
01471                                                 {
01472                                                         _logicalBar -> getDataAt( endIndex, realINI, initial_r, initial_g, initial_b );
01473                                                         _logicalBar -> getDataAt( endIndex+1, realEND, final_r, final_g, final_b );
01474                                                 }
01475
01476                                                 int ini_pixelX = convertToPixelValue( realINI );
01477                                                 int end_pixelX = convertToPixelValue( realEND );
01478
01479                                                 rectangle_width = end_pixelX - ini_pixelX;
01480
01481                                                 float m_scope_r = (float)(final_r-initial_r)/rectangle_width;
01482                                                 float m_scope_g = (float)(final_g-initial_g)/rectangle_width;
01483                                                 float m_scope_b = (float)(final_b-initial_b)/rectangle_width;
01484
01485                                                 float bRed = initial_r - m_scope_r*pixelTmpEnd;
01486                                                 float bGreen = initial_g -  m_scope_g*pixelTmpEnd;
01487                                                 float bBlue = initial_b - m_scope_b*pixelTmpEnd;
01488                                                 showedColorPoints.push_back( new pColorPoint ( maxX_represented_Tshow, wxColour( ( m_scope_r*pixelTmpEnd)+bRed, (m_scope_g*pixelTmpEnd)+bGreen, (m_scope_b*pixelTmpEnd)+bBlue ), true));
01489                                                 accumTemporalPoints ++;
01490                                         }
01491                                 }
01492                         }
01493                         else
01494                         {
01495                                 if(_logicalBar->getCount()>0)
01496                                 {
01497                                         if ( minX_represented_Tshow > _logicalBar->getMaxAddedValue() )
01498                                         {
01499                                                 endIndex = _logicalBar->getCount()-1;
01500                                         }
01501                                         else if ( maxX_represented_Tshow < _logicalBar->getMinAddedValue() )
01502                                         {
01503                                                 endIndex = 0;
01504                                         }
01505
01506                                         _logicalBar -> getDataAt( endIndex, realINI, initial_r, initial_g, initial_b );
01507                                         _logicalBar -> getDataAt( endIndex, realEND, final_r, final_g, final_b );
01508
01509                                         realINI = minX_represented_Tshow;
01510                                         realEND = maxX_represented_Tshow;
01511
01512                                         showedColorPoints.push_back( new pColorPoint ( realINI, wxColour( initial_r, initial_g, initial_b ), true));
01513                                         accumTemporalPoints ++;
01514                                         showedColorPoints.push_back( new pColorPoint ( realEND, wxColour( initial_r, initial_g, initial_b ), true));
01515                                         accumTemporalPoints ++;
01516                                 }
01517                         }
01518                 }
01519
01520                 if ( !showedColorPoints.empty() )
01521                 {
01522                         startNode_show = showedColorPoints.front();
01523                         lastNode_show = showedColorPoints.back();
01524                 }
01525         }

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

LogicalColorBar* pColorBar::_logicalBar [private]

Definition at line 559 of file pColorBar.h.

Referenced by addColorPoint(), deleteColorPoint(), getAddedColorsPointsList(), getColorPointsSize(), getDataAt(), getOrientation(), onMouseMove(), reinitiateColorBar(), reinitiateColorBarTo(), repaintView(), setOrientation(), setPoints(), setRepresentedValues(), and updatePointsToDraw().

bool pColorBar::acceptedClick [private]

Definition at line 554 of file pColorBar.h.

Referenced by onLeftClicDown(), onLeftClickUp(), and onMouseMove().

int pColorBar::accumTemporalPoints [private]

Indicates the amount of temporal initial color points

Definition at line 637 of file pColorBar.h.

Referenced by reinitiateColorBar(), reinitiateColorBarTo(), and updatePointsToDraw().

bool pColorBar::activeState [private]

Represents the active state of the bar

Definition at line 725 of file pColorBar.h.

Referenced by isActive(), onLeftButtonDClick(), onMouseMove(), onShowPopupMenu(), reinitiateColorBar(), reinitiateColorBarTo(), and setActiveStateTo().

int pColorBar::avaliablePointToMove [private]

Definition at line 727 of file pColorBar.h.

Referenced by onMouseMove().

int pColorBar::bar_height [private]

Definition at line 582 of file pColorBar.h.

Referenced by drawColorBar(), getBarHeight(), onLeftButtonDClick(), onPaint(), onShowPopupMenu(), repaintView(), setBarHeight(), and setHeight().

int pColorBar::bar_width [private]

Definition at line 587 of file pColorBar.h.

Referenced by convertToPixelValue(), convertToRealValue(), drawColorBar(), getBarWidth(), onPaint(), repaintView(), setBarWidth(), and setWidth().

wxMenu pColorBar::c_popmenu [private]

Definition at line 747 of file pColorBar.h.

Referenced by onDegradeControl(), and onShowPopupMenu().

wxMenu* pColorBar::changesMenu [private]

Definition at line 751 of file pColorBar.h.

Referenced by onRectangles_Figure(), onTrianglesDown_Figure(), onTrianglesLeft_Figure(), onTrianglesRight_Figure(), and onTrianglesUp_Figure().

int pColorBar::clickedX [private]

Represents the last clickedX coord inside the bar.

Definition at line 651 of file pColorBar.h.

Referenced by getClickedX(), onAddColorPoint(), onChangeColourSelectedPoint(), onDeleteColorPoint(), and setClickedX().

int pColorBar::clickedY [private]

Definition at line 656 of file pColorBar.h.

Referenced by getClickedY(), onAddColorPoint(), onChangeColourSelectedPoint(), onDeleteColorPoint(), and setClickedY().

wxBitmap* pColorBar::colorBar_Bitmap [private]

Is the bitmap for the bar color

Definition at line 683 of file pColorBar.h.

Referenced by drawColorBar(), onPaint(), and repaintView().

wxColour pColorBar::colourParent [private]

Definition at line 742 of file pColorBar.h.

Referenced by getBackGroundColour(), repaintView(), and setBackGroundColour().

wxCoord pColorBar::deviceEnd_y [private]

Y-Coord for left-superior device margin, important for vertical view

Definition at line 721 of file pColorBar.h.

wxCoord pColorBar::deviceEndMargin [private]

Definition at line 716 of file pColorBar.h.

Referenced by convertToPixelValue(), convertToRealValue(), drawColorBar(), onPaint(), OnSize(), repaintView(), and setDeviceEndMargin().

wxCoord pColorBar::deviceStart_x [private]

X-Coord for left-superior device visible drawing

Definition at line 706 of file pColorBar.h.

Referenced by convertToRealValue(), onLeftButtonDClick(), onMouseMove(), onPaint(), onShowPopupMenu(), and setDeviceBlitStart().

wxCoord pColorBar::deviceStart_y [private]

Y-Coord for left-superior device visible drawing

Definition at line 711 of file pColorBar.h.

Referenced by onLeftButtonDClick(), onPaint(), onShowPopupMenu(), and setDeviceBlitStart().

bool pColorBar::doingDegrade [private]

Represents the state of doing or not the degrade in the bar (default value true for doing degrade)

Definition at line 691 of file pColorBar.h.

Referenced by getDegradeState(), repaintView(), and setDegradeState().

pFigure* pColorBar::figure [private]

Is the constant that represents the figure number of edges (TRIANGLE | RECTANGLE)

Definition at line 647 of file pColorBar.h.

Referenced by changeColor(), changeFigure(), changePointsFigure_Edges(), deleteColorPoint(), getPointsFigure_Edges(), onMouseMove(), repaintView(), and setOrientation().

int pColorBar::gapX [private]

Definition at line 564 of file pColorBar.h.

Referenced by setGapValues(), and setWidth().

int pColorBar::gapY [private]

Definition at line 569 of file pColorBar.h.

Referenced by setGapValues(), and setHeight().

wxColour pColorBar::guideLineColor [private]

Represents the color of the dot-line use as guides. The default color is RED.

Definition at line 737 of file pColorBar.h.

Referenced by getGuideLineColour(), repaintView(), and setGuideLineColour().

int pColorBar::height [private]

Definition at line 573 of file pColorBar.h.

Referenced by drawColorBar(), getHeight(), setDeviceBlitStart(), and setHeight().

wxBitmap* pColorBar::information_Bitmap [private]

Is the bitmap of the information associated to the bar color

Definition at line 687 of file pColorBar.h.

pColorPoint* pColorBar::lastNode_show [private]

Indicates the last node to show

Definition at line 632 of file pColorBar.h.

Referenced by onMouseMove(), and updatePointsToDraw().

bool pColorBar::maxFound [private]

Represents that the maximum value for the visible range has been found in the original color points

Definition at line 701 of file pColorBar.h.

int pColorBar::maxX_represented_Tshow [private]

The maximum represented real value used for calculating the scaling for point by the rule real_x = (x_pixel * (maxX_represented_Tshow_Tshow - minXRepresented_Tshow) ) / bar_width

Definition at line 612 of file pColorBar.h.

Referenced by convertToPixelValue(), convertToRealValue(), getMaxValue(), onMouseMove(), setRepresentedValues(), setVisibleRange(), and updatePointsToDraw().

bool pColorBar::minFound [private]

Represents that the minimum value for the visible range has been found in the original color points

Definition at line 696 of file pColorBar.h.

int pColorBar::minX_represented_Tshow [private]

Definition at line 607 of file pColorBar.h.

Referenced by convertToPixelValue(), convertToRealValue(), getMinValue(), onMouseMove(), setRepresentedValues(), setVisibleRange(), and updatePointsToDraw().

pColorPoint* pColorBar::movingNodePoint [private]

Indicates the last node moving in the coloPoints list

Definition at line 676 of file pColorBar.h.

Referenced by getLastMovedColorPoint(), onMouseMove(), and repaintView().

int pColorBar::movingPointIndex [private]

Represents the movind index of the last moving point in the colorPoints list

Definition at line 661 of file pColorBar.h.

Referenced by deleteColorPoint(), onLeftClickUp(), onMouseMove(), reinitiateColorBar(), reinitiateColorBarTo(), and repaintView().

bool pColorBar::okSelectedColor [private]

Indicates if in the last colour selection the ok button was clicked

Definition at line 666 of file pColorBar.h.

Referenced by changeColor(), getSelectedColour(), onAddColorPoint(), and onLeftButtonDClick().

int pColorBar::points_orientation [private]

Definition at line 602 of file pColorBar.h.

int pColorBar::realX_vertical_line [private]

Represents the real-x value to draw a vertical line

Definition at line 732 of file pColorBar.h.

Referenced by getRealX_vertical_line(), reinitiateColorBar(), reinitiateColorBarTo(), repaintView(), and setRealX_vertical_line().

std::deque<pColorPoint *> pColorBar::showedColorPoints [private]

Definition at line 592 of file pColorBar.h.

Referenced by changeColor(), deleteColorPoint(), getPointsListWithTemps(), onMouseMove(), onShowPopupMenu(), reinitiateColorBar(), reinitiateColorBarTo(), repaintView(), setPoints(), and updatePointsToDraw().

pColorPoint* pColorBar::startNode_show [private]

Indicates the first node to show

Definition at line 627 of file pColorBar.h.

Referenced by onMouseMove(), and updatePointsToDraw().

bool pColorBar::staticLimits [private]

Represents the statc or movable state of limit start and end color points, default value true for static

Definition at line 671 of file pColorBar.h.

Referenced by getStaticLimits(), onMouseMove(), and setStaticLimitsTo().

int pColorBar::temporalMaxXToShow [private]

Definition at line 622 of file pColorBar.h.

Referenced by setRepresentedValues().

int pColorBar::temporalMinXToShow [private]

The minimum represented real value used for calculating the scaling for point by the rule real_x = (x_pixel * (maxX_represented_Tshow_Tshow - minX_represented_Tshow) ) / bar_width

Definition at line 617 of file pColorBar.h.

Referenced by setRepresentedValues().

bool pColorBar::viewingRange [private]

Represents the state of viewing a range

Definition at line 642 of file pColorBar.h.

Referenced by onMouseMove(), reinitiateColorBar(), reinitiateColorBarTo(), and setVisibleRange().

int pColorBar::width [private]

Definition at line 577 of file pColorBar.h.

Referenced by drawColorBar(), getWidth(), setDeviceBlitStart(), and setWidth().

The documentation for this class was generated from the following files:
Generated on 20 Oct 2010 for creaMaracasVisu_lib by  doxygen 1.6.1
