vtkImageViewer2_XYZ Class Reference

#include <vtkImageViewer2_XYZ.h>

List of all members.

Public Member Functions

 vtkImageViewer2_XYZ ()
 ~vtkImageViewer2_XYZ ()
void SetExtentDimension (int x1, int x2, int y1, int y2, int z1, int z2)
void SetXSlice (int slice)
void SetYSlice (int slice)
void SetZSlice (int slice)
int GetXSlice ()
int GetYSlice ()
int GetZSlice ()
void setColorTransferFunction (vtkColorTransferFunction *colortable)
vtkImageViewer2 * GetVtkImageViewer2 ()

Private Attributes

int _x1
int _x2
int _y1
int _y2
int _z1
int _z2
vtkImageViewer2 * _vtkimageviewer2
vtkColorTransferFunction * _colortable

Detailed Description

Definition at line 13 of file vtkImageViewer2_XYZ.h.

Constructor & Destructor Documentation

vtkImageViewer2_XYZ::vtkImageViewer2_XYZ (  )

Definition at line 8 of file vtkImageViewer2_XYZ.cxx.

References _colortable, and _vtkimageviewer2.

00009 {
00010         _vtkimageviewer2=  vtkImageViewer2::New();
00011         _vtkimageviewer2->GetRenderer()->GradientBackgroundOn();
00012         _vtkimageviewer2->GetRenderer()->SetBackground( 0.33 , 0.33 , 0.33 );
00013         _vtkimageviewer2->GetRenderer()->SetBackground2( 0.66 , 0.66 , 0.66 );
00014         _colortable = NULL;
00015 }

vtkImageViewer2_XYZ::~vtkImageViewer2_XYZ (  )

Definition at line 17 of file vtkImageViewer2_XYZ.cxx.

00018 {
00019         //_vtkimageviewer2->Delete();
00020 }

Member Function Documentation

vtkImageViewer2 * vtkImageViewer2_XYZ::GetVtkImageViewer2 (  )

Definition at line 85 of file vtkImageViewer2_XYZ.cxx.

References _vtkimageviewer2.

Referenced by wxWidgetMesure2D_Plane::CircleLine(), wxVtkMPR2DView::Configure(), wxVtk2DBaseView::Configure(), vtkPlane2DView::Configure(), vtkPlane2DView::Extract_MIP_PlaneVTK(), vtkPlane2DView::Extract_One_PlaneVTK(), wxVtk2DBaseView::GetRenderer(), wxVtk2DBaseView::GetRenWin(), vtkPlane2DView::HorizontalLine(), wxMaracasImageBrowser02::OnBtnResetRoi(), vtkInfoTextImage::PutColorLevel(), vtkInfoTextImage::PutWindowLevel(), wxVtk2DBaseView::ResetView(), wxVtk2DBaseView::setColorLevel(), wxVtk2DBaseView::SetInteractorStyleImage(), wxVtkMPR2DView::SetVisibleAxis(), wxVtk2DBaseView::setWindowLevel(), wxVtk2DBaseView::TransformCoordinate_spacing_ModelToView(), and wxVtk2DBaseView::TransformCoordinate_spacing_ViewToModel().

00086 {
00087         return _vtkimageviewer2;
00088 }

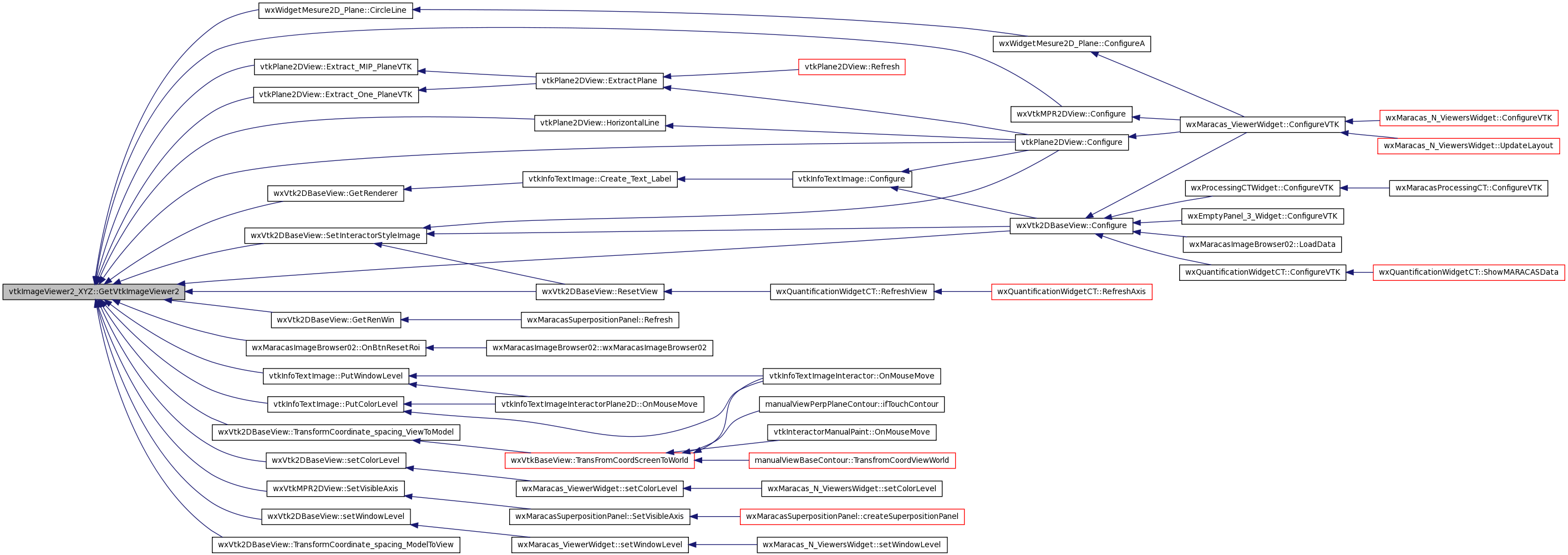

Here is the caller graph for this function:

int vtkImageViewer2_XYZ::GetXSlice (  )

Definition at line 59 of file vtkImageViewer2_XYZ.cxx.

References _vtkimageviewer2.

00060 {
00061         vtkImageActor *imageActor = _vtkimageviewer2->GetImageActor();
00062         return imageActor->GetDisplayExtent()[0];
00063 }

int vtkImageViewer2_XYZ::GetYSlice (  )

Definition at line 65 of file vtkImageViewer2_XYZ.cxx.

References _vtkimageviewer2.

00066 {
00067         vtkImageActor *imageActor = _vtkimageviewer2->GetImageActor();
00068         return imageActor->GetDisplayExtent()[2];
00069 }

int vtkImageViewer2_XYZ::GetZSlice (  )

Definition at line 71 of file vtkImageViewer2_XYZ.cxx.

References _vtkimageviewer2.

00072 {
00073
00074          int result;
00075 #if (VTK_MAJOR_VERSION >= 5)
00076                 result= _vtkimageviewer2->GetSlice( );
00077 #else
00078                 result= _vtkimageviewer2->GetZSlice( );
00079 #endif
00080
00081
00082         return result;
00083 }

void vtkImageViewer2_XYZ::setColorTransferFunction ( vtkColorTransferFunction *  colortable  )

Definition at line 90 of file vtkImageViewer2_XYZ.cxx.

References _colortable, and _vtkimageviewer2.

Referenced by wxVtk2DBaseView::setColorTransferFunction().

00090                                                                                       {
00091
00092
00093         vtkImageMapToWindowLevelColors* imagemaptowindowlevel = _vtkimageviewer2->GetWindowLevel();
00094
00095         if(colortable!=NULL&&colortable->GetSize()>0 && _colortable != colortable){
00096                 _colortable = colortable;
00097                 imagemaptowindowlevel->SetLookupTable(colortable);
00098         }
00099
00100 }

Here is the caller graph for this function:

void vtkImageViewer2_XYZ::SetExtentDimension ( int  x1,
int  x2,
int  y1,
int  y2,
int  z1,
int  z2
)

Definition at line 22 of file vtkImageViewer2_XYZ.cxx.

References _x1, _x2, _y1, _y2, _z1, and _z2.

Referenced by wxVtk2DBaseView::Configure().

00025 {
00026         _x1=x1;
00027         _x2=x2;
00028         _y1=y1;
00029         _y2=y2;
00030         _z1=z1;
00031         _z2=z2;
00032 }

Here is the caller graph for this function:

void vtkImageViewer2_XYZ::SetXSlice ( int  slice  )

Definition at line 34 of file vtkImageViewer2_XYZ.cxx.

References _vtkimageviewer2, _y1, _y2, _z1, and _z2.

Referenced by wxVtkMPR2DView::Refresh().

00035 {
00036         vtkImageActor *imageActor = _vtkimageviewer2->GetImageActor();
00037         imageActor->SetDisplayExtent(slice, slice, _y1, _y2, _z1, _z2 );
00038 }

Here is the caller graph for this function:

void vtkImageViewer2_XYZ::SetYSlice ( int  slice  )

Definition at line 40 of file vtkImageViewer2_XYZ.cxx.

References _vtkimageviewer2, _x1, _x2, _z1, and _z2.

Referenced by wxVtkMPR2DView::Refresh().

00041 {
00042         vtkImageActor *imageActor = _vtkimageviewer2->GetImageActor();
00043         imageActor->SetDisplayExtent(_x1, _x2, slice, slice, _z1, _z2 );
00044 }

Here is the caller graph for this function:

void vtkImageViewer2_XYZ::SetZSlice ( int  slice  )

Definition at line 46 of file vtkImageViewer2_XYZ.cxx.

References _vtkimageviewer2, _x1, _x2, _y1, and _y2.

Referenced by wxVtkMPR2DView::Refresh(), and wxVtk2DBaseView::Refresh().

00047 {
00048 #if (VTK_MAJOR_VERSION >= 5)
00049 //              _vtkimageviewer2->SetSlice( slice );
00050         vtkImageActor *imageActor = _vtkimageviewer2->GetImageActor();
00051         imageActor->SetDisplayExtent(_x1, _x2, _y1, _y2, slice, slice );
00052 #else
00053                 _vtkimageviewer2->SetZSlice( slice );
00054 #endif
00055
00056
00057 }

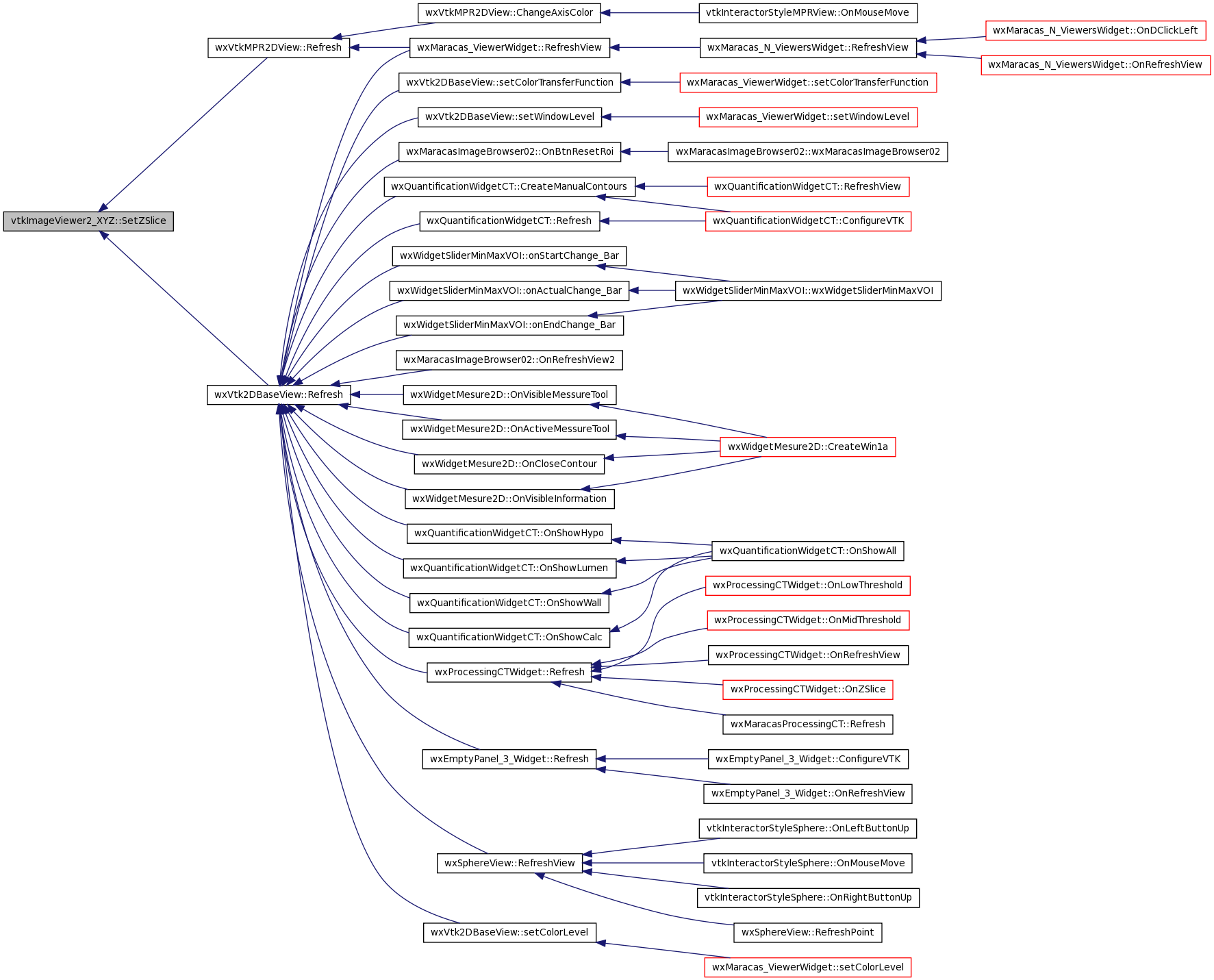

Here is the caller graph for this function:

Member Data Documentation

vtkColorTransferFunction* vtkImageViewer2_XYZ::_colortable [private]

Definition at line 33 of file vtkImageViewer2_XYZ.h.

Referenced by setColorTransferFunction(), and vtkImageViewer2_XYZ().

vtkImageViewer2* vtkImageViewer2_XYZ::_vtkimageviewer2 [private]

Definition at line 32 of file vtkImageViewer2_XYZ.h.

Referenced by GetVtkImageViewer2(), GetXSlice(), GetYSlice(), GetZSlice(), setColorTransferFunction(), SetXSlice(), SetYSlice(), SetZSlice(), and vtkImageViewer2_XYZ().

int vtkImageViewer2_XYZ::_x1 [private]

Definition at line 31 of file vtkImageViewer2_XYZ.h.

Referenced by SetExtentDimension(), SetYSlice(), and SetZSlice().

int vtkImageViewer2_XYZ::_x2 [private]

Definition at line 31 of file vtkImageViewer2_XYZ.h.

Referenced by SetExtentDimension(), SetYSlice(), and SetZSlice().

int vtkImageViewer2_XYZ::_y1 [private]

Definition at line 31 of file vtkImageViewer2_XYZ.h.

Referenced by SetExtentDimension(), SetXSlice(), and SetZSlice().

int vtkImageViewer2_XYZ::_y2 [private]

Definition at line 31 of file vtkImageViewer2_XYZ.h.

Referenced by SetExtentDimension(), SetXSlice(), and SetZSlice().

int vtkImageViewer2_XYZ::_z1 [private]

Definition at line 31 of file vtkImageViewer2_XYZ.h.

Referenced by SetExtentDimension(), SetXSlice(), and SetYSlice().

int vtkImageViewer2_XYZ::_z2 [private]

Definition at line 31 of file vtkImageViewer2_XYZ.h.

Referenced by SetExtentDimension(), SetXSlice(), and SetYSlice().

The documentation for this class was generated from the following files:
