wxVtkMPR3DView Class Reference

#include <wxVtkMPR3DView.h>

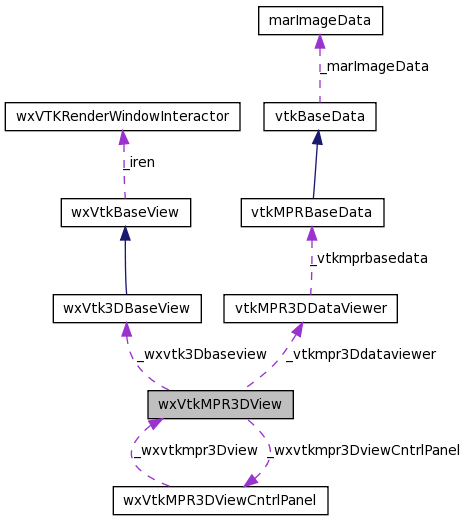

Collaboration diagram for wxVtkMPR3DView:

[legend]

List of all members.

Public Member Functions
	wxVtkMPR3DView (wxVtk3DBaseView *wxvtk3Dbaseview)
virtual	~wxVtkMPR3DView ()
void	VisibleImageActor (int idPosition, bool visible)
void	VisiblePointWidget (bool visible)
void	VisiblePlaneWidget (bool visible)
void	SetVisibleTissue (int idTissue, bool visible)
bool	GetVisibleTissue (int idTissue)
virtual void	Refresh ()
virtual void	RefreshView ()
virtual void	Configure ()
void	SetVtkMPR3DDataViewer (vtkMPR3DDataViewer *vtkmpr3Ddataviewer)
wxPanel *	CreateControlPanel (wxWindow *parent, bool align)
vtkMPR3DDataViewer *	GetVtkMPR3DDataViewer ()
wxVtk3DBaseView *	GetWxvtk3Dbaseview () throw (char*)
void	InitOrientationPointWidget ()
void	showOutlineActor (bool value)
void	TestLoic1 ()
void	TestLoic2 ()
void	RemoveActor (vtkActor *actor)
void	ResetCamera (int *ext=NULL, double *origin=NULL, double *spc=NULL)
void	setColorTransferFunction (vtkColorTransferFunction *colortable)
void	ConfigureFreePlanes ()
vtkImagePlaneWidget *	GetPlaneWidget (unsigned char activationkey, double r, double g, double b, vtkCellPicker *picker)
void	FreePlaneVisible (int plane, bool ok)
void	FreePlaneInteraction (bool ok)
Private Attributes
wxVtk3DBaseView *	_wxvtk3Dbaseview
vtkMPR3DDataViewer *	_vtkmpr3Ddataviewer
wxVtkMPR3DViewCntrlPanel *	_wxvtkmpr3DviewCntrlPanel
vtkPolyData *	_vtkplane
vtkActor *	_contourPlaneActor
vtkPlaneWidget *	_planeWidget
vtkPointWidget *	_pointWidget
vtkProbeFilter *	_probe
vtkPolyDataMapper *	_contourMapper
vtkImagePlaneWidget *	_planeWidgetX
vtkImagePlaneWidget *	_planeWidgetY
vtkImagePlaneWidget *	_planeWidgetZ

---

Detailed Description

Definition at line 17 of file wxVtkMPR3DView.h.

---

Constructor & Destructor Documentation

wxVtkMPR3DView::wxVtkMPR3DView

(

wxVtk3DBaseView *

wxvtk3Dbaseview

)

Definition at line 19 of file wxVtkMPR3DView.cxx.

References _contourMapper, _planeWidget, _planeWidgetX, _planeWidgetY, _planeWidgetZ, _pointWidget, _probe, _vtkmpr3Ddataviewer, _vtkplane, _wxvtk3Dbaseview, and _wxvtkmpr3DviewCntrlPanel.

{
        _wxvtk3Dbaseview                        =       wxvtk3Dbaseview;
        _vtkmpr3Ddataviewer                     =       NULL;
        _wxvtkmpr3DviewCntrlPanel       =       NULL;
        //_myCallback                           =       NULL;
        _pointWidget                            =       NULL;
        _planeWidget                            =       NULL;
        _vtkplane                                       =       NULL;
        _probe                                          =       NULL;
        _contourMapper                          =       NULL;

        _planeWidgetX = 0;
        _planeWidgetY = 0;
        _planeWidgetZ = 0;
        //EED Fev 3 2010
        //Free Planes
}

wxVtkMPR3DView::~wxVtkMPR3DView

(

)

[virtual]

Definition at line 40 of file wxVtkMPR3DView.cxx.

References _contourMapper, _contourPlaneActor, _planeWidget, _pointWidget, _probe, _vtkplane, VisiblePlaneWidget(), and VisiblePointWidget().

{
        VisiblePointWidget( false );
        VisiblePlaneWidget( false );

        if(_pointWidget!=NULL){
                _pointWidget->Delete();
        }
        if(_planeWidget!=NULL){
                _planeWidget->Delete();
        }

        if(_vtkplane!=NULL){
                _vtkplane->Delete();
                _probe->Delete();
                _contourMapper->Delete();
                _contourPlaneActor->Delete();
        }

}

Here is the call graph for this function:

---

Member Function Documentation

void wxVtkMPR3DView::Configure

(

)

[virtual]

Definition at line 97 of file wxVtkMPR3DView.cxx.

References _contourMapper, _contourPlaneActor, _planeWidget, _pointWidget, _probe, _vtkmpr3Ddataviewer, _vtkplane, _wxvtk3Dbaseview, _wxvtkmpr3DviewCntrlPanel, wxVtk3DBaseView::Configure(), ConfigureFreePlanes(), wxVtk3DBaseView::GetCamera(), vtkBaseData::GetImageData(), vtkMPR3DDataViewer::GetOutlineActor(), wxVtk3DBaseView::GetRenderer(), wxVtk3DBaseView::GetRenWin(), GetVtkMPR3DDataViewer(), vtkMPR3DDataViewer::GetVtkMPRBaseData(), GetWxvtk3Dbaseview(), vtkmyPWCallback_3DPointWidget::New(), ResetCamera(), vtkmyPWCallback_3DPointWidget::SetVtkPlaneWidget(), vtkmyPWCallback_3DPointWidget::SetVtkPointWidget(), vtkmyPWCallback_3DPointWidget::SetWxVtkMPR3DView(), and wxVtkMPR3DViewCntrlPanel::UpdateControlPanel().

Referenced by wxMaracasRenderTabbedPanel::addMPROptions(), and wxMaracas_ViewerWidget::ConfigureVTK().

                              {


        vtkImageData *imageData = GetVtkMPR3DDataViewer()->GetVtkMPRBaseData()->GetImageData();

        _wxvtk3Dbaseview->Configure();
        _wxvtkmpr3DviewCntrlPanel->UpdateControlPanel();

//EED 27 Mai 2009
//      _wxvtk3Dbaseview->GetRenderer()->Clear();

        // Actors are added to the renderer.
        vtkActor* _outlineActor = _vtkmpr3Ddataviewer->GetOutlineActor();
        _wxvtk3Dbaseview->GetRenderer()->AddActor( _outlineActor );
//      _wxvtk3Dbaseview->GetRenderer()->AddActor( _vtkmpr3Ddataviewer->GetImageActor(0)  );    // _saggital
//      _wxvtk3Dbaseview->GetRenderer()->AddActor( _vtkmpr3Ddataviewer->GetImageActor(1)  );    // _axial
//      _wxvtk3Dbaseview->GetRenderer()->AddActor( _vtkmpr3Ddataviewer->GetImageActor(2)  );    // _coronal


        // An initial camera view is created.  The Dolly() method moves
        // the camera towards the FocalPoint, thereby enlarging the image.
        _wxvtk3Dbaseview->GetRenderer()->SetActiveCamera(_wxvtk3Dbaseview->GetCamera());
        this->ResetCamera();


        // Set a background color for the renderer and set the size of the
        // render window (expressed in pixels).
        _wxvtk3Dbaseview->GetRenderer()->SetBackground( 0.36 , 0.36 , 0.36 );
        _wxvtk3Dbaseview->GetRenWin()->SetSize(400, 400);

        // Note that when camera movement occurs (as it does in the Dolly()
        // method), the clipping planes often need adjusting. Clipping planes
        // consist of two planes: near and far along the view direction. The
        // near plane clips out objects in front of the plane; the far plane
        // clips out objects behind the plane. This way only what is drawn
        // between the planes is actually rendered.
        _wxvtk3Dbaseview->GetRenderer()->ResetCameraClippingRange();


        // vtkPointWidget
        //if(_myCallback!=NULL){
                //_myCallback->Delete();

        //}
        vtkmyPWCallback_3DPointWidget *_myCallback = vtkmyPWCallback_3DPointWidget::New();
        _myCallback->SetWxVtkMPR3DView(this);


        if(imageData){
                if(_pointWidget==NULL){
                        _pointWidget = vtkPointWidget::New();
                }
                _pointWidget->SetInput( imageData );
                _myCallback->SetVtkPointWidget(_pointWidget);
                _pointWidget->SetInteractor( GetWxvtk3Dbaseview()->GetWxVTKRenderWindowInteractor() );
                _pointWidget->AllOff();
                _pointWidget->PlaceWidget();

                _pointWidget->AddObserver(vtkCommand::InteractionEvent,_myCallback);


                if(_planeWidget==NULL)
                {
                        _planeWidget = vtkPlaneWidget::New();
                }
                _planeWidget->SetInput( imageData );

                _myCallback->SetVtkPlaneWidget(_planeWidget);

                _planeWidget->NormalToXAxisOn();
                _planeWidget->SetResolution(50);
                _planeWidget->SetRepresentationToOutline();

                int dim[3];

                imageData->GetDimensions(dim);
                int px=(dim[0]/2);
                int py=(dim[1]/2);
                int pz=(dim[2]/2);
                int dd=20;
                _planeWidget->PlaceWidget( px-dd , px+dd , py-dd , py+dd , pz-dd , pz+dd );

                if(_vtkplane==NULL){
                        _vtkplane = vtkPolyData::New();

                        _probe = vtkProbeFilter::New();
                        _probe->SetInput(_vtkplane);

                        _contourMapper = vtkPolyDataMapper::New();

                        _contourMapper->SetInput( _probe->GetPolyDataOutput() );

                        _contourPlaneActor = vtkActor::New();
                        _contourPlaneActor->SetMapper(_contourMapper);

                        _contourPlaneActor->VisibilityOff();

                        _planeWidget->SetInteractor( GetWxvtk3Dbaseview()->GetWxVTKRenderWindowInteractor() );
                        _planeWidget->AddObserver(vtkCommand::InteractionEvent,_myCallback);

                        _planeWidget->Off();
                        _wxvtk3Dbaseview->GetRenderer()->AddActor( _contourPlaneActor );

                }

                _planeWidget->GetPolyData(_vtkplane);
                _probe->SetSource( imageData );
                _contourMapper->SetScalarRange( imageData->GetScalarRange() );


                ConfigureFreePlanes();
        }

//      _pointWidget->SetPosition( x,y,z );

//EED01 29Mars2009
// MACOS probleme vtk-window out of wx-window
//      _pointWidget->On();




// PlaneWidget









}

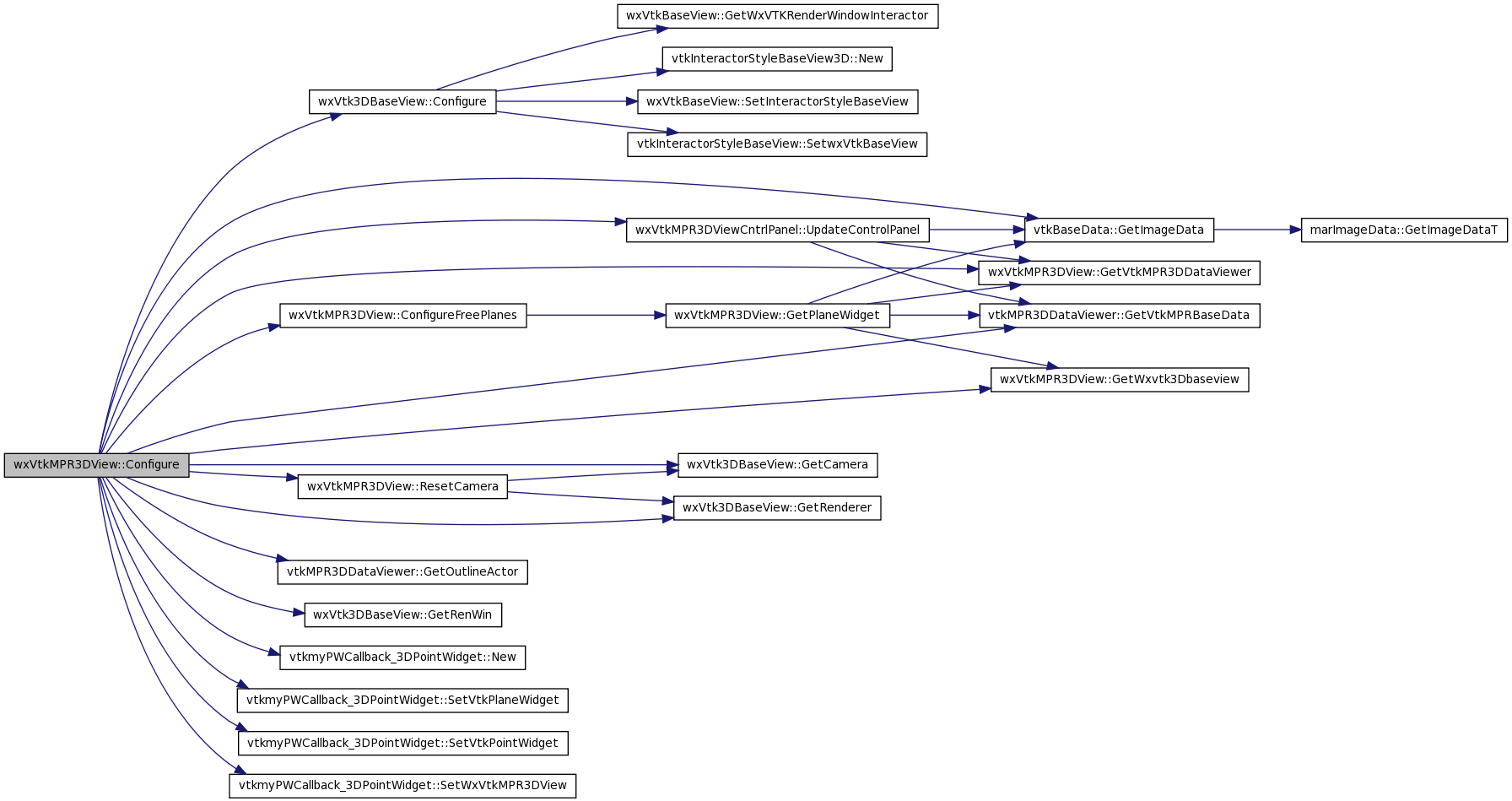

Here is the call graph for this function:

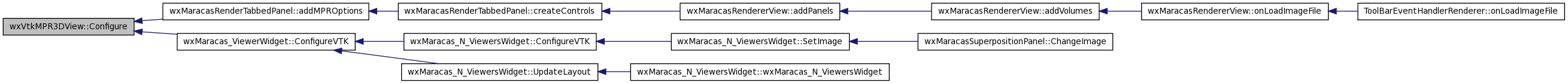

Here is the caller graph for this function:

void wxVtkMPR3DView::ConfigureFreePlanes

(

)

Definition at line 232 of file wxVtkMPR3DView.cxx.

References _planeWidgetX, _planeWidgetY, _planeWidgetZ, and GetPlaneWidget().

Referenced by Configure().

{

        // The shared picker enables us to use 3 planes at one time
        // and gets the picking order right
        vtkCellPicker* picker = vtkCellPicker::New();
        picker->SetTolerance(0.005);

        // The 3 image plane widgets
        _planeWidgetX = GetPlaneWidget('x', 1, 0, 0, picker);
        _planeWidgetY = GetPlaneWidget('y', 1, 1, 0, picker);
        _planeWidgetZ = GetPlaneWidget('z', 0, 0, 1, picker);

        _planeWidgetY->SetLookupTable(_planeWidgetX->GetLookupTable());
        _planeWidgetZ->SetLookupTable(_planeWidgetX->GetLookupTable());

        picker->UnRegister(NULL);

}

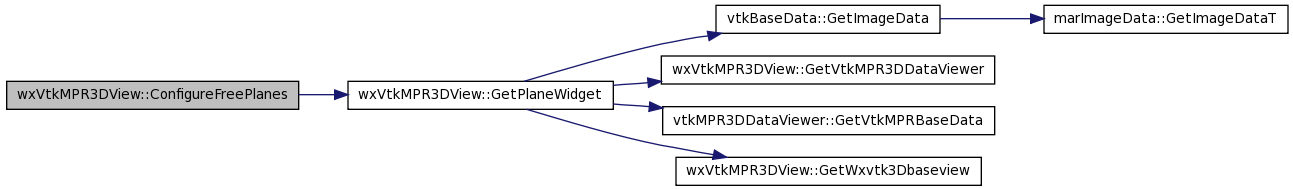

Here is the call graph for this function:

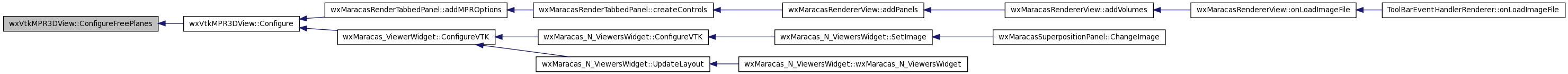

Here is the caller graph for this function:

wxPanel * wxVtkMPR3DView::CreateControlPanel	(	wxWindow *	parent,
		bool	align
	)

Definition at line 391 of file wxVtkMPR3DView.cxx.

References _wxvtkmpr3DviewCntrlPanel.

Referenced by wxMaracasRenderTabbedPanel::addMPROptions(), wxManualRegistration3D::AddPanelControl_B(), wxManualRegistration3D::Create3DView(), wxManualTree_MPRWidget::Create3DViewContour(), wxSegmentationFM3DWidget::Create3DViewContour(), wxManualSegmentation_MPRWidget::Create3DViewContour(), wxMPRWidget::CreateMPRPanel4View(), wxMPRWidget::CreateView(), and wxMaracas_ViewerWidget::wxMaracas_ViewerWidget().

{
        _wxvtkmpr3DviewCntrlPanel = new wxVtkMPR3DViewCntrlPanel(parent,this, align);
        return _wxvtkmpr3DviewCntrlPanel;
}

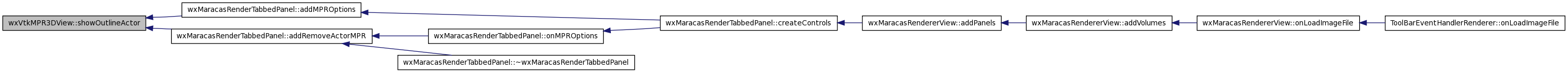

Here is the caller graph for this function:

void wxVtkMPR3DView::FreePlaneInteraction

(

bool

ok

)

Definition at line 314 of file wxVtkMPR3DView.cxx.

References _planeWidgetX, _planeWidgetY, and _planeWidgetZ.

Referenced by wxVtkMPR3DViewCntrlPanel::OnVisibleFreePlaneInteraction(), wxVtkMPR3DViewCntrlPanel::OnVisibleFreePlaneX(), wxVtkMPR3DViewCntrlPanel::OnVisibleFreePlaneY(), and wxVtkMPR3DViewCntrlPanel::OnVisibleFreePlaneZ().

{
        if(_planeWidgetX){
                if (ok==true)
                {
                        _planeWidgetX->InteractionOn();
                        _planeWidgetY->InteractionOn();
                        _planeWidgetZ->InteractionOn();
                } else {
                        _planeWidgetX->InteractionOff();
                        _planeWidgetY->InteractionOff();
                        _planeWidgetZ->InteractionOff();
                }
        }
}

Here is the caller graph for this function:

void wxVtkMPR3DView::FreePlaneVisible	(	int	plane,
		bool	ok
	)

Definition at line 301 of file wxVtkMPR3DView.cxx.

References _planeWidgetX, _planeWidgetY, and _planeWidgetZ.

Referenced by wxVtkMPR3DViewCntrlPanel::OnVisibleFreePlaneX(), wxVtkMPR3DViewCntrlPanel::OnVisibleFreePlaneY(), and wxVtkMPR3DViewCntrlPanel::OnVisibleFreePlaneZ().

{
        if(_planeWidgetX){
                if ((plane==1) && (ok==true)) _planeWidgetX->EnabledOn();
                if ((plane==2) && (ok==true)) _planeWidgetY->EnabledOn();
                if ((plane==3) && (ok==true)) _planeWidgetZ->EnabledOn();
                if ((plane==1) && (ok==false)) _planeWidgetX->EnabledOff();
                if ((plane==2) && (ok==false)) _planeWidgetY->EnabledOff();
                if ((plane==3) && (ok==false)) _planeWidgetZ->EnabledOff();
        }
}

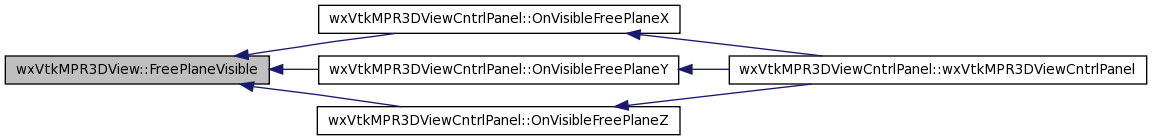

Here is the caller graph for this function:

vtkImagePlaneWidget * wxVtkMPR3DView::GetPlaneWidget	(	unsigned char	activationkey,
		double	r,
		double	g,
		double	b,
		vtkCellPicker *	picker
	)

Definition at line 253 of file wxVtkMPR3DView.cxx.

References vtkBaseData::GetImageData(), GetVtkMPR3DDataViewer(), vtkMPR3DDataViewer::GetVtkMPRBaseData(), and GetWxvtk3Dbaseview().

Referenced by ConfigureFreePlanes().

{
        vtkProperty* prop1 = 0;
        vtkImagePlaneWidget* planeWidget = 0;
        planeWidget = vtkImagePlaneWidget::New();
        planeWidget->EnabledOff();
        planeWidget->SetInteractor( GetWxvtk3Dbaseview()->GetWxVTKRenderWindowInteractor() );
        vtkImageData *image = GetVtkMPR3DDataViewer()->GetVtkMPRBaseData()->GetImageData();
        int xMin = 0, xMax = 0, yMin = 0, yMax = 0, zMin = 0, zMax = 0;
        double xSpacing = 0, ySpacing = 0, zSpacing = 0;
        if(image){
                planeWidget->SetInput( image );
                image->GetExtent(xMin, xMax, yMin, yMax, zMin, zMax);
                image->GetSpacing(xSpacing, ySpacing, zSpacing);
        }






        if (activationkey=='x')
        {
                planeWidget->SetPlaneOrientationToXAxes();
                planeWidget->SetSlicePosition((xMax+xMin)/2.*xSpacing);
        }

        if (activationkey=='y')
        {
                planeWidget->SetPlaneOrientationToYAxes();
                planeWidget->SetSlicePosition((yMax+yMin)/2.*ySpacing);
        }

        if (activationkey=='z')
        {
                planeWidget->SetPlaneOrientationToZAxes();
                planeWidget->SetSlicePosition((zMax+zMin)/2.*zSpacing);
        }

        planeWidget->DisplayTextOn();
        planeWidget->SetPicker(picker);
        planeWidget->SetKeyPressActivationValue(activationkey);
        prop1 = planeWidget->GetPlaneProperty();
        prop1->SetColor(r, g, b);
        return planeWidget;
}

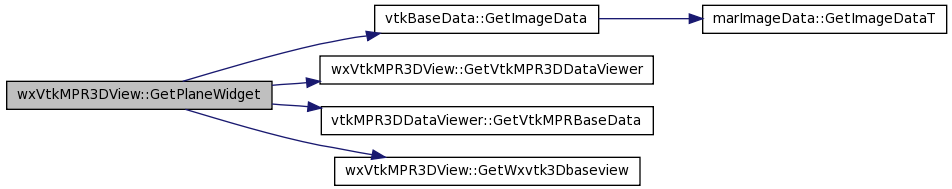

Here is the call graph for this function:

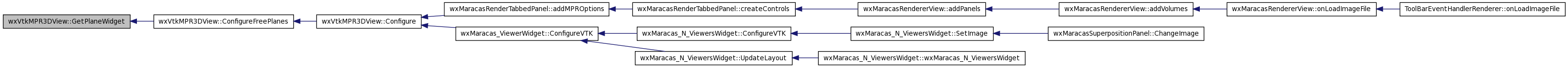

Here is the caller graph for this function:

bool wxVtkMPR3DView::GetVisibleTissue

(

int

idTissue

)

vtkMPR3DDataViewer * wxVtkMPR3DView::GetVtkMPR3DDataViewer

(

)

Definition at line 397 of file wxVtkMPR3DView.cxx.

References _vtkmpr3Ddataviewer.

Referenced by Configure(), wxManualTree_MPRWidget::ConfigureContour(), vtkmyPWCallback_3DPointWidget::Execute(), GetPlaneWidget(), wxVtkMPR3DViewCntrlPanel::OnEditColorTable(), wxVtkMPR3DViewCntrlPanel::OnPositionX(), wxVtkMPR3DViewCntrlPanel::OnPositionY(), wxVtkMPR3DViewCntrlPanel::OnPositionZ(), wxManualRegistration3D::OnTracking(), wxVtkMPR3DViewCntrlPanel::Refresh(), RefreshView(), wxManualRegistration3D::RefreshView(), vtkInteractorStyle3DView::SelectMarchibCubePoint(), setColorTransferFunction(), TestLoic1(), TestLoic2(), and wxVtkMPR3DViewCntrlPanel::UpdateControlPanel().

{
        return _vtkmpr3Ddataviewer;
}

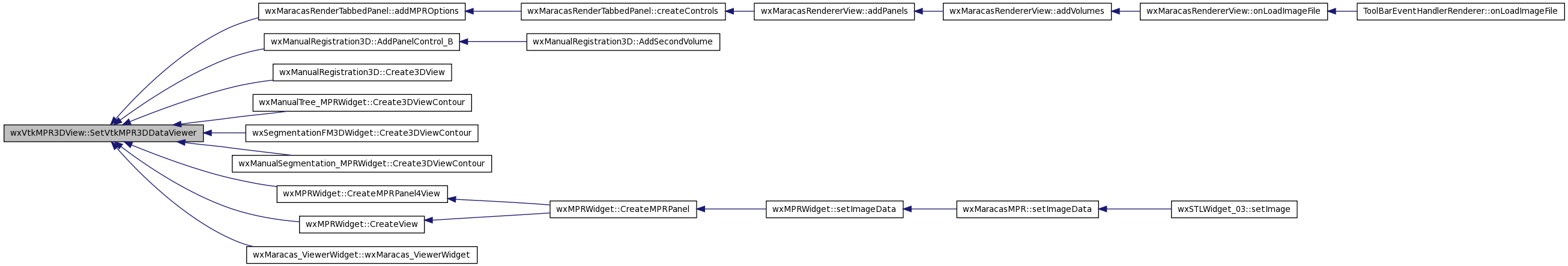

Here is the caller graph for this function:

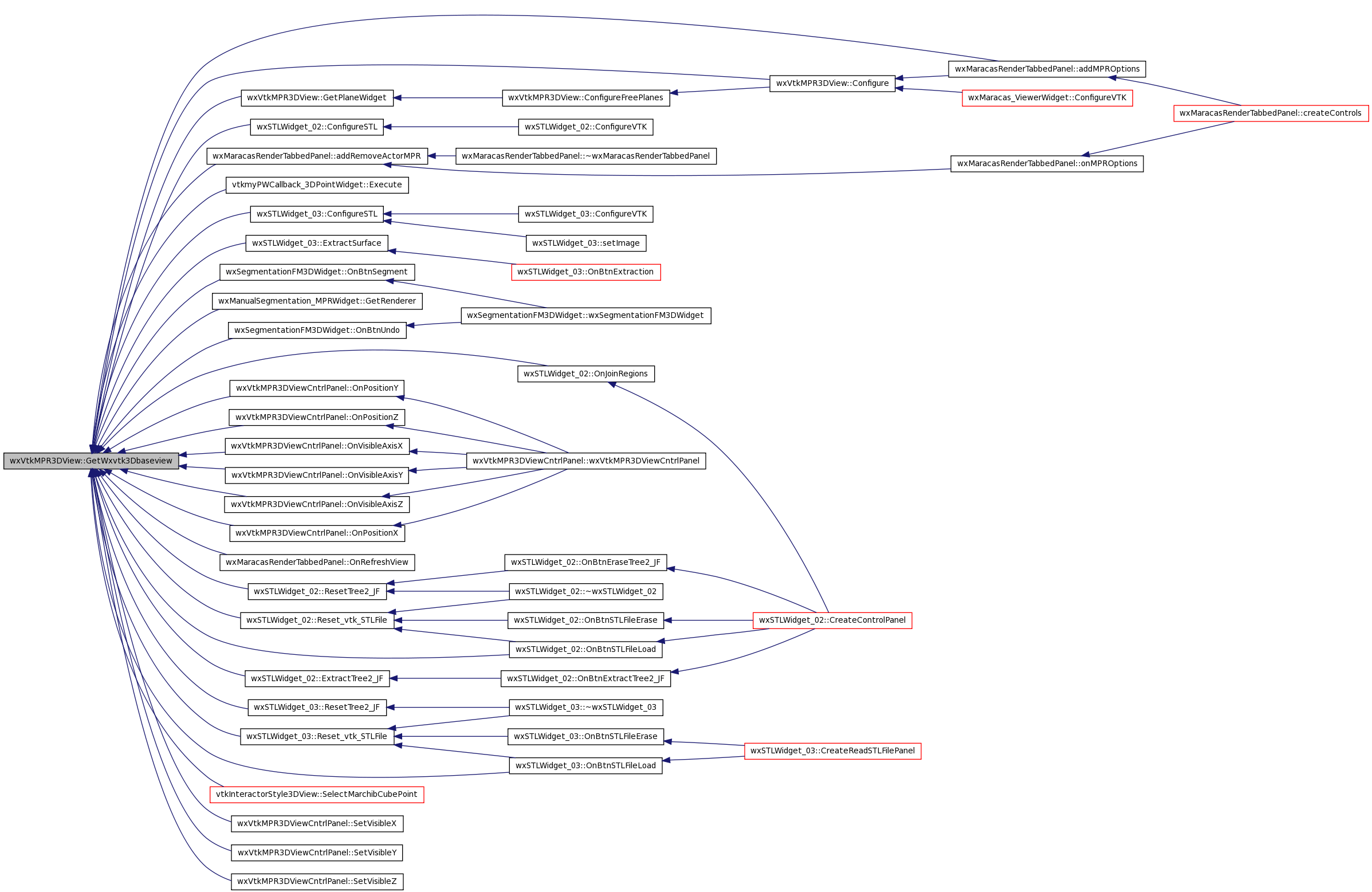

wxVtk3DBaseView * wxVtkMPR3DView::GetWxvtk3Dbaseview

(

)

throw (char*)

Definition at line 402 of file wxVtkMPR3DView.cxx.

References _wxvtk3Dbaseview.

Referenced by wxMaracasRenderTabbedPanel::addMPROptions(), wxMaracasRenderTabbedPanel::addRemoveActorMPR(), Configure(), wxSTLWidget_02::ConfigureSTL(), wxSTLWidget_03::ConfigureSTL(), vtkmyPWCallback_3DPointWidget::Execute(), wxSTLWidget_03::ExtractSurface(), wxSTLWidget_02::ExtractTree2_JF(), GetPlaneWidget(), wxManualSegmentation_MPRWidget::GetRenderer(), wxSegmentationFM3DWidget::OnBtnSegment(), wxSTLWidget_02::OnBtnSTLFileLoad(), wxSTLWidget_03::OnBtnSTLFileLoad(), wxSegmentationFM3DWidget::OnBtnUndo(), wxSTLWidget_02::OnJoinRegions(), wxVtkMPR3DViewCntrlPanel::OnPositionX(), wxVtkMPR3DViewCntrlPanel::OnPositionY(), wxVtkMPR3DViewCntrlPanel::OnPositionZ(), wxMaracasRenderTabbedPanel::OnRefreshView(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisX(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisY(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisZ(), wxSTLWidget_02::Reset_vtk_STLFile(), wxSTLWidget_03::Reset_vtk_STLFile(), wxSTLWidget_02::ResetTree2_JF(), wxSTLWidget_03::ResetTree2_JF(), vtkInteractorStyle3DView::SelectMarchibCubePoint(), wxVtkMPR3DViewCntrlPanel::SetVisibleX(), wxVtkMPR3DViewCntrlPanel::SetVisibleY(), and wxVtkMPR3DViewCntrlPanel::SetVisibleZ().

{
        if(_wxvtk3Dbaseview==NULL){
                throw "wxVtk3DBaseView* wxVtkMPR3DView::GetWxvtk3Dbaseview() _wxvtk3Dbaseview=NULL";
        }
        return _wxvtk3Dbaseview;
}

Here is the caller graph for this function:

void wxVtkMPR3DView::InitOrientationPointWidget

(

)

Definition at line 482 of file wxVtkMPR3DView.cxx.

References _planeWidget.

Referenced by wxManualRegistration3D::OnTracking().

{
        this->_planeWidget->SetNormal(1,0,0);
}

Here is the caller graph for this function:

void wxVtkMPR3DView::Refresh

(

)

[virtual]

Definition at line 338 of file wxVtkMPR3DView.cxx.

References _vtkmpr3Ddataviewer, _wxvtkmpr3DviewCntrlPanel, and wxVtkMPR3DViewCntrlPanel::Refresh().

Referenced by wxMaracasRenderTabbedPanel::addMPROptions(), wxMaracasRenderTabbedPanel::addRemoveActorMPR(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisX(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisY(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisZ(), RefreshView(), wxVtkMPR3DViewCntrlPanel::SetVisibleX(), wxVtkMPR3DViewCntrlPanel::SetVisibleY(), and wxVtkMPR3DViewCntrlPanel::SetVisibleZ().

{
        _vtkmpr3Ddataviewer     ->      Refresh();
        if (_wxvtkmpr3DviewCntrlPanel!=NULL)
        {
                _wxvtkmpr3DviewCntrlPanel->Refresh();
        }

}

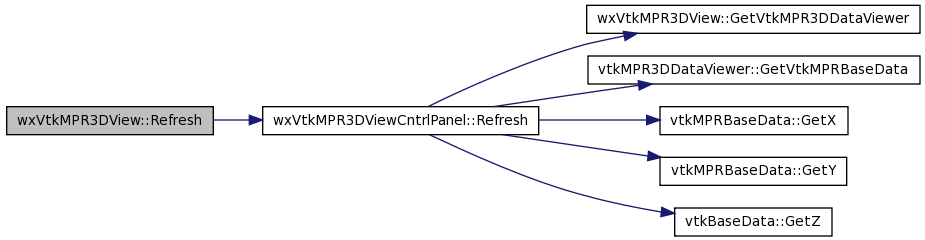

Here is the call graph for this function:

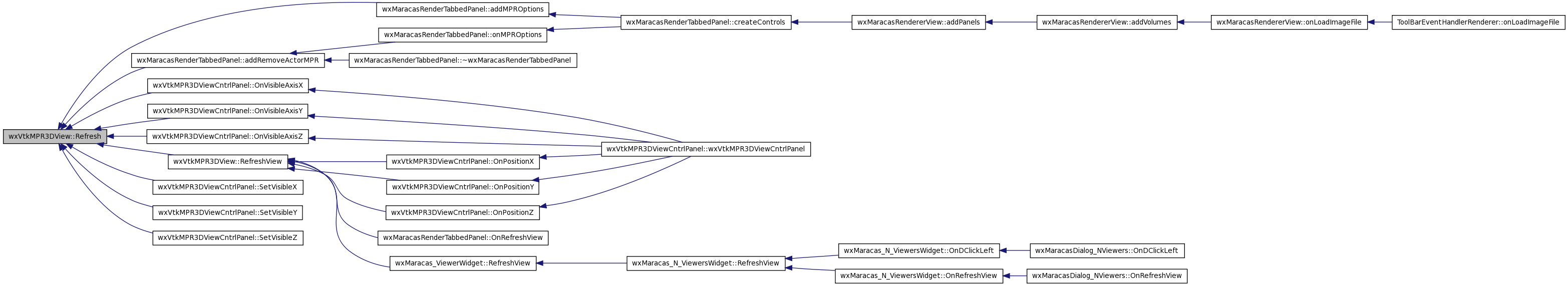

Here is the caller graph for this function:

void wxVtkMPR3DView::RefreshView

(

)

[virtual]

Definition at line 349 of file wxVtkMPR3DView.cxx.

References _planeWidget, _pointWidget, _vtkplane, vtkBaseData::GetImageData(), vtkMPRBaseData::GetTransformOrientation(), GetVtkMPR3DDataViewer(), vtkMPR3DDataViewer::GetVtkMPRBaseData(), vtkMPRBaseData::GetX(), vtkMPRBaseData::GetY(), vtkBaseData::GetZ(), and Refresh().

Referenced by wxVtkMPR3DViewCntrlPanel::OnPositionX(), wxVtkMPR3DViewCntrlPanel::OnPositionY(), wxVtkMPR3DViewCntrlPanel::OnPositionZ(), wxMaracasRenderTabbedPanel::OnRefreshView(), and wxMaracas_ViewerWidget::RefreshView().

{
        double spc[3];
        vtkImageData *image = GetVtkMPR3DDataViewer()->GetVtkMPRBaseData()->GetImageData();

        if(image){
                image->GetSpacing(spc);
        }else{
                spc[0] = 0;
                spc[1] = 0;
                spc[2] = 0;
        }
        //this->GetVtkMPR3DDataViewer()->GetVtkMPRBaseData()->GetImageData()->GetSpacing(spc);

        //double nx=1,ny=0,nz=0; // JPRx
        Refresh();
        double x=GetVtkMPR3DDataViewer ()->GetVtkMPRBaseData()->GetX();
        double y=GetVtkMPR3DDataViewer ()->GetVtkMPRBaseData()->GetY();
        double z=GetVtkMPR3DDataViewer ()->GetVtkMPRBaseData()->GetZ();

        x=x*spc[0];
        y=y*spc[1];
        z=z*spc[2];

        if(_pointWidget){
                _pointWidget->SetPosition( x,y,z );


                double in[3];
                double normal[3];
                vtkTransform *transform = GetVtkMPR3DDataViewer ()->GetVtkMPRBaseData()->GetTransformOrientation();
                in[0]=1;                in[1]=0;                        in[2]=0;
                transform->TransformPoint(in,normal);
                _planeWidget->SetNormal( normal[0],normal[1],normal[2] );


                _planeWidget->SetCenter( x,y,z );
                _planeWidget->UpdatePlacement();
                _planeWidget->GetPolyData(_vtkplane);
        }
}

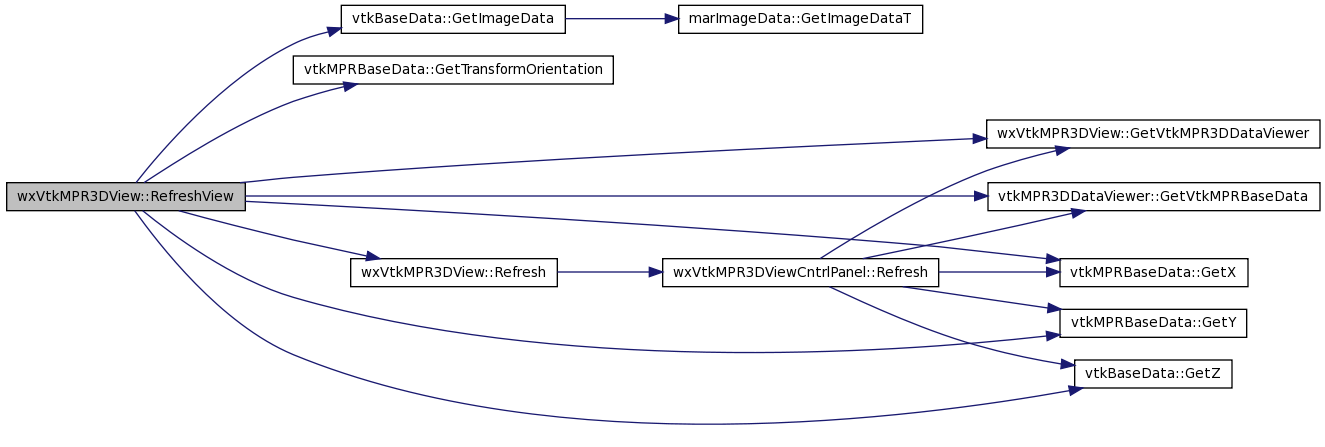

Here is the call graph for this function:

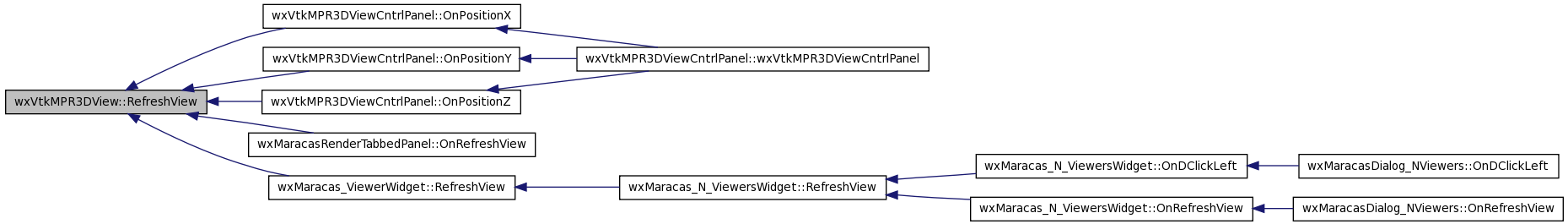

Here is the caller graph for this function:

void wxVtkMPR3DView::RemoveActor

(

vtkActor *

actor

)

Definition at line 62 of file wxVtkMPR3DView.cxx.

References _wxvtk3Dbaseview, and wxVtk3DBaseView::GetRenderer().

{
        _wxvtk3Dbaseview->GetRenderer()->RemoveActor(actor);
}

Here is the call graph for this function:

void wxVtkMPR3DView::ResetCamera	(	int *	ext = NULL,
		double *	origin = NULL,
		double *	spc = NULL
	)

Definition at line 68 of file wxVtkMPR3DView.cxx.

References _wxvtk3Dbaseview, wxVtk3DBaseView::GetCamera(), and wxVtk3DBaseView::GetRenderer().

Referenced by wxMaracasRenderTabbedPanel::addMPROptions(), Configure(), and wxMaracas_ViewerWidget::ConfigureVTK().

{
        if(ext == NULL){
                _wxvtk3Dbaseview->GetRenderer()->ResetCamera ();
                _wxvtk3Dbaseview->GetCamera()->Dolly(1.5);
        }else{
                /*double x = (spc[0])*(origin[0]+(((double)ext[1]-(double)ext[0])/2.0));
                double y = (spc[1])*(origin[1]+(double)ext[3]);
                double z = (spc[2])*(origin[2]+(((double)ext[5]-(double)ext[4])/2.0));*/
                /*double x0=(spc[0])*((double)ext[0]+origin[0]);
                double x1=(spc[0])*((double)ext[1]+origin[0]);
                double y0=(spc[1])*((double)ext[2]+origin[1]);
                double y1=(spc[1])*((double)ext[3]+origin[1]);
                double z0=(spc[2])*((double)ext[4]+origin[2]);
                double z1=(spc[2])*((double)ext[5]+origin[2]);*/
                double x0=(spc[0])*((double)ext[0]);
                double x1=(spc[0])*((double)ext[1]);
                double y0=(spc[1])*((double)ext[2]);
                double y1=(spc[1])*((double)ext[3]);
                double z0=(spc[2])*((double)ext[4]);
                double z1=(spc[2])*((double)ext[5]);

                _wxvtk3Dbaseview->GetRenderer()->ResetCamera(x0,x1,y0,y1,z0,z1);
                //_wxvtk3Dbaseview->GetCamera()->SetPosition(x,y,z);
                _wxvtk3Dbaseview->GetCamera()->Dolly(1.5);
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtkMPR3DView::setColorTransferFunction

(

vtkColorTransferFunction *

colortable

)

Definition at line 332 of file wxVtkMPR3DView.cxx.

References GetVtkMPR3DDataViewer(), and vtkMPR3DDataViewer::setColorTransferFunction().

Referenced by wxMaracas_ViewerWidget::setColorTransferFunction().

{
        GetVtkMPR3DDataViewer ()->setColorTransferFunction(colortable);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtkMPR3DView::SetVisibleTissue	(	int	idTissue,
		bool	visible
	)

void wxVtkMPR3DView::SetVtkMPR3DDataViewer

(

vtkMPR3DDataViewer *

vtkmpr3Ddataviewer

)

Definition at line 476 of file wxVtkMPR3DView.cxx.

References _vtkmpr3Ddataviewer.

Referenced by wxMaracasRenderTabbedPanel::addMPROptions(), wxManualRegistration3D::AddPanelControl_B(), wxManualRegistration3D::Create3DView(), wxManualTree_MPRWidget::Create3DViewContour(), wxSegmentationFM3DWidget::Create3DViewContour(), wxManualSegmentation_MPRWidget::Create3DViewContour(), wxMPRWidget::CreateMPRPanel4View(), wxMPRWidget::CreateView(), and wxMaracas_ViewerWidget::wxMaracas_ViewerWidget().

{
        _vtkmpr3Ddataviewer = vtkmpr3Ddataviewer;
}

Here is the caller graph for this function:

void wxVtkMPR3DView::showOutlineActor

(

bool

value

)

Definition at line 462 of file wxVtkMPR3DView.cxx.

References _vtkmpr3Ddataviewer, _wxvtk3Dbaseview, vtkMPR3DDataViewer::GetOutlineActor(), and wxVtk3DBaseView::GetRenderer().

Referenced by wxMaracasRenderTabbedPanel::addMPROptions(), and wxMaracasRenderTabbedPanel::addRemoveActorMPR().

{
        vtkActor* _outlineActor = _vtkmpr3Ddataviewer->GetOutlineActor();
        if(value == true)
        {
                _wxvtk3Dbaseview->GetRenderer()->AddActor( _outlineActor );
        }
        else
        {
                _wxvtk3Dbaseview->GetRenderer()->RemoveActor( _outlineActor );
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtkMPR3DView::TestLoic1

(

)

Definition at line 492 of file wxVtkMPR3DView.cxx.

References _planeWidget, vtkBaseData::GetImageData(), GetVtkMPR3DDataViewer(), and vtkMPR3DDataViewer::GetVtkMPRBaseData().

Referenced by wxManualRegistration3D::OnTracking().

{

        int sizeIma     = 128;
  double dimIma = sizeIma*2;

        vtkImageData *vtkimagedata =  this->GetVtkMPR3DDataViewer()->GetVtkMPRBaseData()->GetImageData();

        double spc[3];
        vtkimagedata->GetSpacing(spc);

        vtkimagedata->Update();


         double p[3], n[3];
     this->_planeWidget->GetOrigin(p);
     this->_planeWidget->GetNormal(n);



    vtkPlaneSource* pSource = vtkPlaneSource::New( );
    pSource->SetResolution( sizeIma - 1, sizeIma - 1 );
    pSource->SetOrigin( p[ 0 ], p[ 1 ], p[ 2 ] );
    pSource->SetPoint1( p[ 0 ] + dimIma - 1.0, p[ 1 ], p[ 2 ] );
    pSource->SetPoint2( p[ 0 ], p[ 1 ]+ dimIma - 1.0 , p[ 2 ] );
    pSource->Update( );
    pSource->SetCenter( p[ 0 ], p[ 1 ], p[ 2 ] );
    pSource->SetNormal( n[ 0 ], n[ 1 ], n[ 2 ] );
    pSource->Update( );

    vtkProbeFilter* slices = vtkProbeFilter::New();
    slices->SetInput( ( vtkDataSet* )pSource->GetOutput( ) );
    slices->SetSource( vtkimagedata );
    slices->Update( );
    pSource->Delete( );

        vtkStructuredPoints   *stPoints = vtkStructuredPoints::New();
        stPoints -> GetPointData( )->SetScalars(  slices->GetOutput()->GetPointData()->GetScalars()  );
        stPoints -> SetDimensions( sizeIma, sizeIma, 1 );
        stPoints -> SetScalarType( vtkimagedata->GetScalarType() );
        stPoints -> SetScalarTypeToShort();
        stPoints -> Update();

        vtkImageChangeInformation  *change = vtkImageChangeInformation ::New();
        change    -> SetInput( stPoints );
        change    -> Update();    //important

        double _range[2];
        vtkimagedata->GetScalarRange(_range);
   vtkWindowLevelLookupTable *_bwlookup = vtkWindowLevelLookupTable::New( );
   _bwlookup->SetHueRange( 0 , 1 );
   _bwlookup->SetNumberOfColors( (int)(_range[1] - _range[0] + 1) );
   _bwlookup->SetTableRange( _range[0] , _range[1] );
   _bwlookup->SetSaturationRange( 0 , 0 );
   _bwlookup->SetValueRange( 0 , 1 );
   _bwlookup->SetAlphaRange( 1 , 1 );
   _bwlookup->Build( );

   vtkLookupTable * _collookup = vtkLookupTable::New( );
   _collookup->SetNumberOfColors( 256 );
   _collookup->SetTableRange( 0 , 255 );
   _collookup->Build( );
   _collookup->SetTableValue( 0  , 1 , 0 , 0 , 1 );
   _collookup->SetTableValue(128 , 0 , 0 , 1 , 1 );
   _collookup->SetTableValue(255 , 0 , 1 , 0 , 1 );


        vtkMetaImageWriter *writer = vtkMetaImageWriter::New( );
        writer->SetInput( stPoints );
        writer->SetFileName( "C:/Users/Images/temp_EED/image.mhd" );
        writer->SetFileDimensionality( 2 );
        writer->Write( );



        vtkDataSetMapper *_3DSliceMapper = vtkDataSetMapper::New( );
        _3DSliceMapper->SetInput(change->GetOutput( ) );
        _3DSliceMapper->SetLookupTable( _bwlookup );
        _3DSliceMapper->SetScalarRange( _range );
        _3DSliceMapper->ImmediateModeRenderingOn( );

        vtkActor *_3DSliceActor = vtkActor::New( );
        _3DSliceActor->SetMapper( _3DSliceMapper );

 // The usual rendering stuff.
  vtkCamera *camera = vtkCamera::New();
      camera->SetPosition(1,1,1);
      camera->SetFocalPoint(0,0,0);

  vtkRenderer *renderer = vtkRenderer::New();
  vtkRenderWindow *renWin = vtkRenderWindow::New();
    renWin->AddRenderer(renderer);

  vtkRenderWindowInteractor *iren = vtkRenderWindowInteractor::New();
    iren->SetRenderWindow(renWin);

  renderer->AddActor( _3DSliceActor );
      renderer->SetActiveCamera(camera);
      renderer->ResetCamera();
      renderer->SetBackground(1,1,1);

  renWin->SetSize(300,300);

  // interact with data
  renWin->Render();
  iren->Start();





}

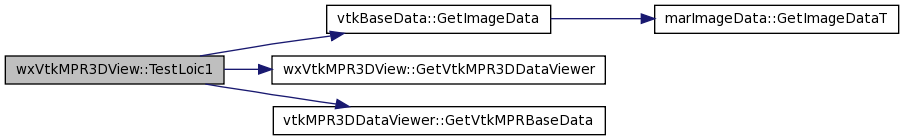

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtkMPR3DView::TestLoic2

(

)

Definition at line 607 of file wxVtkMPR3DView.cxx.

References _planeWidget, vtkBaseData::GetImageData(), GetVtkMPR3DDataViewer(), and vtkMPR3DDataViewer::GetVtkMPRBaseData().

{
/*
 vtkVectorNorm *vecMagnitude = vtkVectorNorm::New();
                vecMagnitude->SetInput(VtkMainGrid);
                vecMagnitude->NormalizeOff();
                vecMagnitude->Update();
*/

        vtkPlane *slicePlane = vtkPlane::New();
                                this->_planeWidget->GetPlane( slicePlane );


        vtkCutter* sliceCutter = vtkCutter::New();
                vtkImageData *vtkimagedata =  this->GetVtkMPR3DDataViewer()->GetVtkMPRBaseData()->GetImageData();
                sliceCutter->SetInput( vtkimagedata );
                sliceCutter->SetCutFunction( slicePlane );

//EED
//        vtkLookupTable *lut = BuildHueWeightBaseMap();


        vtkPolyDataMapper *slice = vtkPolyDataMapper::New();
                slice->SetInput( sliceCutter->GetOutput() );
        double range[2];
// EED
//                slice->Update();
                                  vtkimagedata->GetScalarRange(range);
//                vecMagnitude->GetOutput()->GetScalarRange( range );
//                range[1] *= 0.7; // reduce the upper range by 30%
//                slice->SetScalarRange( range );
//                slice->SetLookupTable( lut );

//       vtkActor *sliceActor = vtkActor::New();
//                sliceActor->SetMapper( slice );

        vtkPolyDataMapper *contourMapper = vtkPolyDataMapper::New();
                contourMapper->SetInput( sliceCutter->GetOutput() );
                contourMapper->SetScalarRange( range );
  //              contourMapper->SetLookupTable( lut );


        vtkActor *contourActor = vtkActor::New();
                contourActor->SetMapper( contourMapper );



 // The usual rendering stuff.
  vtkCamera *camera = vtkCamera::New();
      camera->SetPosition(1,1,1);
      camera->SetFocalPoint(0,0,0);

  vtkRenderer *renderer = vtkRenderer::New();
  vtkRenderWindow *renWin = vtkRenderWindow::New();
    renWin->AddRenderer(renderer);

  vtkRenderWindowInteractor *iren = vtkRenderWindowInteractor::New();
    iren->SetRenderWindow(renWin);

  renderer->AddActor( contourActor );
//  renderer->AddActor(cubeActor);
      renderer->SetActiveCamera(camera);
      renderer->ResetCamera();
      renderer->SetBackground(1,1,1);

  renWin->SetSize(300,300);

  // interact with data
  renWin->Render();
  iren->Start();


}

Here is the call graph for this function:

void wxVtkMPR3DView::VisibleImageActor	(	int	idPosition,
		bool	visible
	)

Definition at line 412 of file wxVtkMPR3DView.cxx.

References _vtkmpr3Ddataviewer, _wxvtk3Dbaseview, vtkMPR3DDataViewer::GetImageActor(), wxVtk3DBaseView::GetRenderer(), vtkMPR3DDataViewer::GetVisiblePosition(), and vtkMPR3DDataViewer::SetVisiblePosition().

Referenced by wxMaracasRenderTabbedPanel::addRemoveActorMPR(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisX(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisY(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisZ(), wxVtkMPR3DViewCntrlPanel::SetVisibleX(), wxVtkMPR3DViewCntrlPanel::SetVisibleY(), and wxVtkMPR3DViewCntrlPanel::SetVisibleZ().

                                                                  {
        /*if(visible == false)
                printf("CPR: wxVtkMPR3DView::VisibleImageActor-> visibleActor == false \n");
        else
        {
                printf("CPR: wxVtkMPR3DView::VisibleImageActor-> visibleActor == true\n");
                printf("CPR: wxVtkMPR3DView::VisibleImageActor-> idPosition == %d\n", idPosition);
        }
        */
        if (visible!=_vtkmpr3Ddataviewer->GetVisiblePosition(idPosition)){
                if (visible==false){
                        _wxvtk3Dbaseview->GetRenderer()->RemoveActor( _vtkmpr3Ddataviewer->GetImageActor(idPosition)  );
                } else {
                        _wxvtk3Dbaseview->GetRenderer()->AddActor( _vtkmpr3Ddataviewer->GetImageActor(idPosition)  );
                }
                _vtkmpr3Ddataviewer->SetVisiblePosition(idPosition,visible);
        }
}

Here is the call graph for this function:

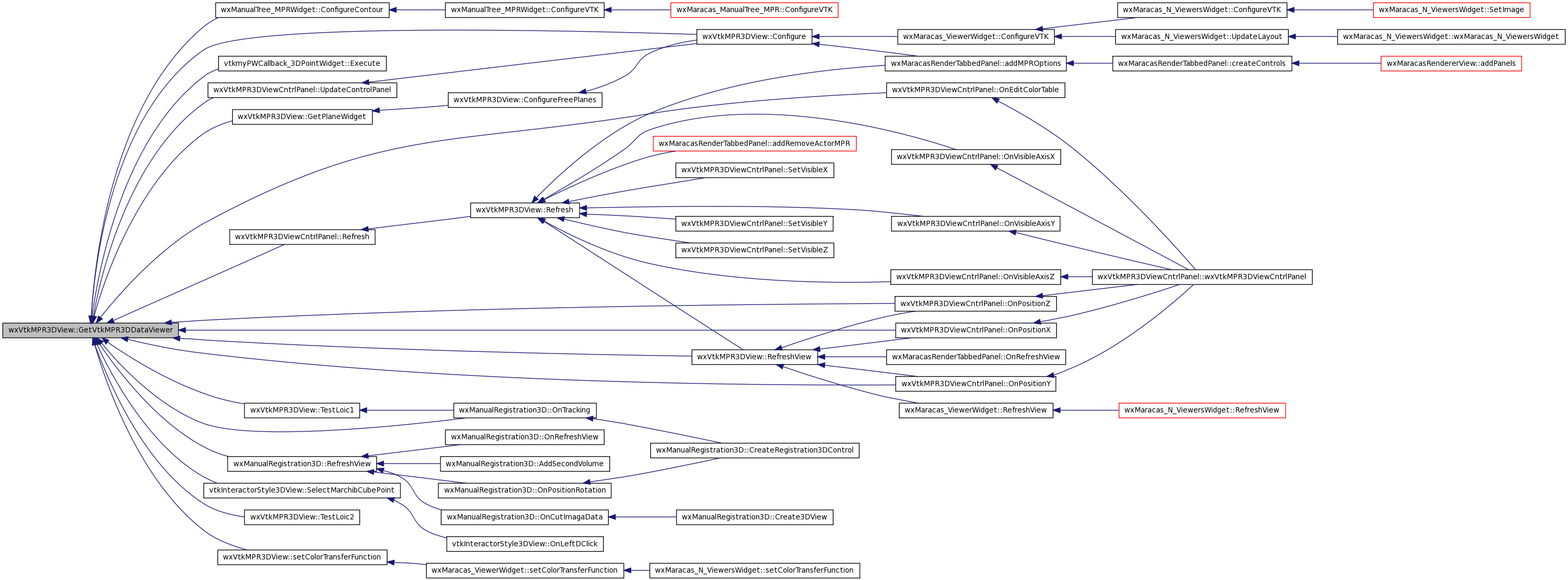

Here is the caller graph for this function:

void wxVtkMPR3DView::VisiblePlaneWidget

(

bool

visible

)

Definition at line 446 of file wxVtkMPR3DView.cxx.

References _contourPlaneActor, and _planeWidget.

Referenced by wxMaracasRenderTabbedPanel::addRemoveActorMPR(), wxVtkMPR3DViewCntrlPanel::OnVisiblePlane(), wxVtkMPR3DViewCntrlPanel::SetVisiblePlane(), and ~wxVtkMPR3DView().

{
        if(_planeWidget){
                if (visible==true)
                {
                        _planeWidget->On();
                        _contourPlaneActor->VisibilityOn();

                } else {
                        _planeWidget->Off();
                        _contourPlaneActor->VisibilityOff();
                }
        }
}

Here is the caller graph for this function:

void wxVtkMPR3DView::VisiblePointWidget

(

bool

visible

)

Definition at line 433 of file wxVtkMPR3DView.cxx.

References _pointWidget.

Referenced by wxMaracasRenderTabbedPanel::addRemoveActorMPR(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisXYZ(), wxVtkMPR3DViewCntrlPanel::SetVisibleXYZ(), and ~wxVtkMPR3DView().

{
        if(_pointWidget){
                if (visible==true)
                {
                        _pointWidget->On();
                } else {
                        _pointWidget->Off();
                }
        }
}

Here is the caller graph for this function:

---

Member Data Documentation

vtkPolyDataMapper* wxVtkMPR3DView::_contourMapper [private]

Definition at line 72 of file wxVtkMPR3DView.h.

Referenced by Configure(), wxVtkMPR3DView(), and ~wxVtkMPR3DView().

vtkActor* wxVtkMPR3DView::_contourPlaneActor [private]

Definition at line 65 of file wxVtkMPR3DView.h.

Referenced by Configure(), VisiblePlaneWidget(), and ~wxVtkMPR3DView().

vtkPlaneWidget* wxVtkMPR3DView::_planeWidget [private]

Definition at line 66 of file wxVtkMPR3DView.h.

Referenced by Configure(), InitOrientationPointWidget(), RefreshView(), TestLoic1(), TestLoic2(), VisiblePlaneWidget(), wxVtkMPR3DView(), and ~wxVtkMPR3DView().

vtkImagePlaneWidget* wxVtkMPR3DView::_planeWidgetX [private]

Definition at line 75 of file wxVtkMPR3DView.h.

Referenced by ConfigureFreePlanes(), FreePlaneInteraction(), FreePlaneVisible(), and wxVtkMPR3DView().

vtkImagePlaneWidget* wxVtkMPR3DView::_planeWidgetY [private]

Definition at line 76 of file wxVtkMPR3DView.h.

Referenced by ConfigureFreePlanes(), FreePlaneInteraction(), FreePlaneVisible(), and wxVtkMPR3DView().

vtkImagePlaneWidget* wxVtkMPR3DView::_planeWidgetZ [private]

Definition at line 77 of file wxVtkMPR3DView.h.

Referenced by ConfigureFreePlanes(), FreePlaneInteraction(), FreePlaneVisible(), and wxVtkMPR3DView().

vtkPointWidget* wxVtkMPR3DView::_pointWidget [private]

Definition at line 69 of file wxVtkMPR3DView.h.

Referenced by Configure(), RefreshView(), VisiblePointWidget(), wxVtkMPR3DView(), and ~wxVtkMPR3DView().

vtkProbeFilter* wxVtkMPR3DView::_probe [private]

Definition at line 71 of file wxVtkMPR3DView.h.

Referenced by Configure(), wxVtkMPR3DView(), and ~wxVtkMPR3DView().

vtkMPR3DDataViewer* wxVtkMPR3DView::_vtkmpr3Ddataviewer [private]

Definition at line 60 of file wxVtkMPR3DView.h.

Referenced by Configure(), GetVtkMPR3DDataViewer(), Refresh(), SetVtkMPR3DDataViewer(), showOutlineActor(), VisibleImageActor(), and wxVtkMPR3DView().

vtkPolyData* wxVtkMPR3DView::_vtkplane [private]

Definition at line 64 of file wxVtkMPR3DView.h.

Referenced by Configure(), RefreshView(), wxVtkMPR3DView(), and ~wxVtkMPR3DView().

wxVtk3DBaseView* wxVtkMPR3DView::_wxvtk3Dbaseview [private]

Definition at line 59 of file wxVtkMPR3DView.h.

Referenced by Configure(), GetWxvtk3Dbaseview(), RemoveActor(), ResetCamera(), showOutlineActor(), VisibleImageActor(), and wxVtkMPR3DView().

wxVtkMPR3DViewCntrlPanel* wxVtkMPR3DView::_wxvtkmpr3DviewCntrlPanel [private]

Definition at line 61 of file wxVtkMPR3DView.h.

Referenced by Configure(), CreateControlPanel(), Refresh(), and wxVtkMPR3DView().

---

The documentation for this class was generated from the following files:

• /home/davila/Creatis/All2/creatools_source/creaMaracasVisu/lib/maracasVisuLib/src/interface/wxWindows/widgets/wxVtkMPR3DView.h
• /home/davila/Creatis/All2/creatools_source/creaMaracasVisu/lib/maracasVisuLib/src/interface/wxWindows/widgets/wxVtkMPR3DView.cxx
