mathplot.h File Reference

#include "marTypes.h"
#include "wx/defs.h"
#include <wx/wx.h>

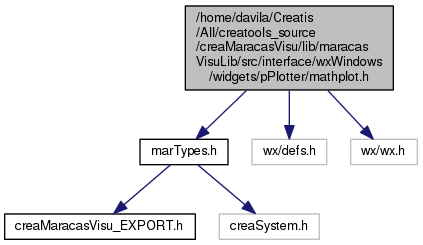

Include dependency graph for mathplot.h:

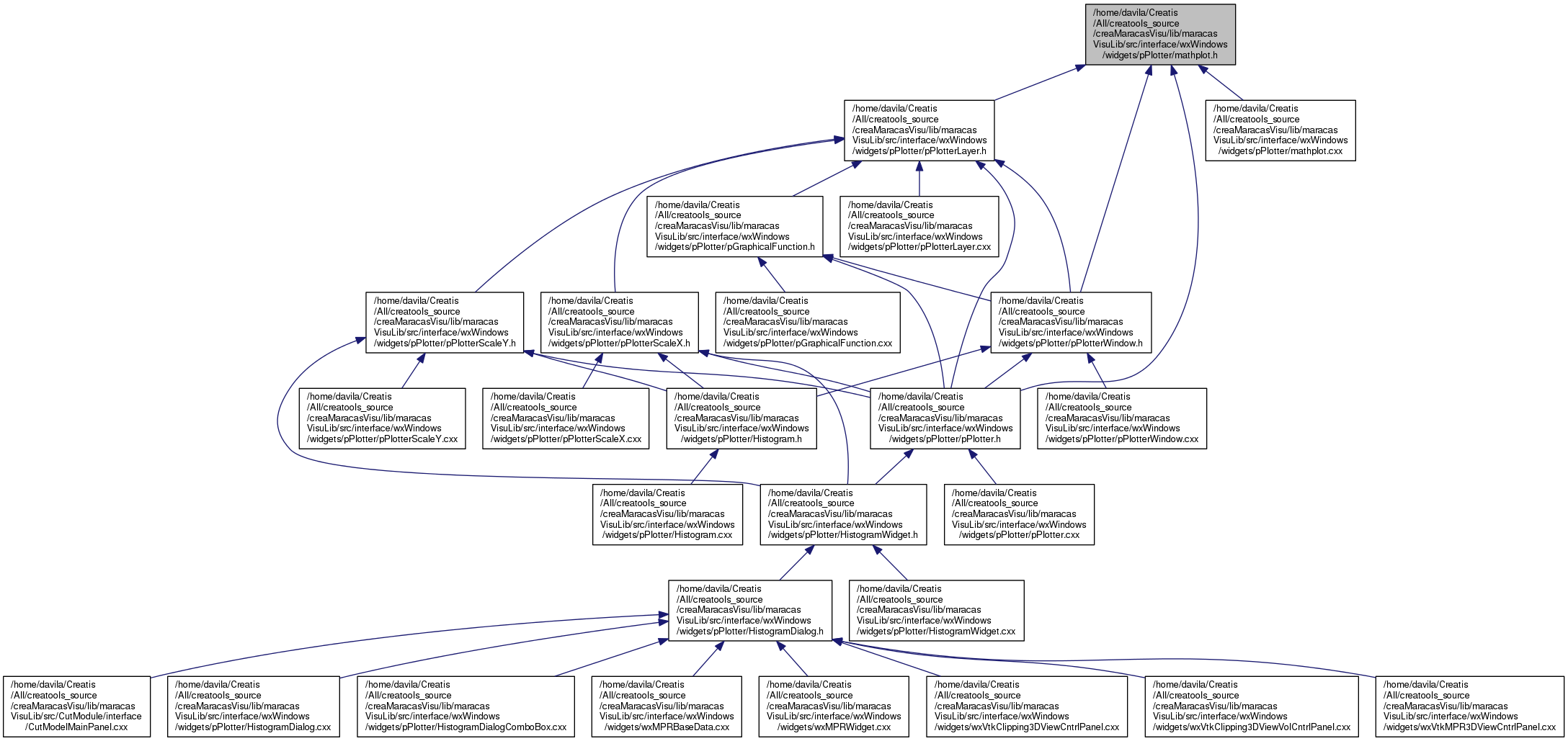

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	mpLayer
class	mpFX
class	mpFY
class	mpFXY
class	mpScaleX
class	mpScaleY
class	mpWindow

Macros
#define	ZOOM_FACTOR   1.5
Label alignment constants
#define	mpALIGNMASK   0x03
#define	mpALIGN_RIGHT   0x00
#define	mpALIGN_CENTER   0x01
#define	mpALIGN_LEFT   0x02
#define	mpALIGN_TOP   mpALIGN_RIGHT
#define	mpALIGN_BOTTOM   mpALIGN_LEFT
#define	mpALIGN_NE   0x00
#define	mpALIGN_NW   0x01
#define	mpALIGN_SW   0x02
#define	mpALIGN_SE   0x03
Constants defining mouse modes for mpWindow
#define	mpMOUSEMODE_DRAG   0
#define	mpMOUSEMODE_ZOOMBOX   1

Enumerations
enum	{   mpID_FIT = 2000, mpID_ZOOM_IN, mpID_ZOOM_OUT, mpID_CENTER,   mpID_LOCKASPECT, mpID_LINE_GUIDES }

Macro Definition Documentation

#define mpALIGN_BOTTOM   mpALIGN_LEFT

Aligns label to the bottom. For use with mpFY.

Definition at line 256 of file mathplot.h.

#define mpALIGN_CENTER   0x01

Aligns label to the center. For use with mpFX and mpFY.

Definition at line 250 of file mathplot.h.

Referenced by mpFX::Plot(), and mpFY::Plot().

#define mpALIGN_LEFT   0x02

Aligns label to the left. For use with mpFX.

Definition at line 252 of file mathplot.h.

#define mpALIGN_NE   0x00

Aligns label to north-east. For use with mpFXY.

Definition at line 258 of file mathplot.h.

Referenced by pPlotterWindow::onLoad(), pPlotterWindow::onStartDrawing(), and mpFXY::Plot().

#define mpALIGN_NW   0x01

Aligns label to north-west. For use with mpFXY.

Definition at line 260 of file mathplot.h.

Referenced by mpFXY::Plot().

#define mpALIGN_RIGHT   0x00

Aligns label to the right. For use with mpFX.

Definition at line 248 of file mathplot.h.

Referenced by mpFX::Plot().

#define mpALIGN_SE   0x03

Aligns label to south-east. For use with mpFXY.

Definition at line 264 of file mathplot.h.

#define mpALIGN_SW   0x02

Aligns label to south-west. For use with mpFXY.

Definition at line 262 of file mathplot.h.

Referenced by mpFXY::Plot().

#define mpALIGN_TOP   mpALIGN_RIGHT

Aligns label to the top. For use with mpFY.

Definition at line 254 of file mathplot.h.

Referenced by mpFY::Plot().

#define mpALIGNMASK   0x03

Definition at line 246 of file mathplot.h.

Referenced by mpFX::Plot(), mpFY::Plot(), and mpFXY::Plot().

#define mpMOUSEMODE_DRAG   0

Mouse panning drags the view. Mouse mode for mpWindow.

Definition at line 442 of file mathplot.h.

#define mpMOUSEMODE_ZOOMBOX   1

Mouse panning creates a zoom box. Mouse mode for mpWindow.

Definition at line 444 of file mathplot.h.

#define ZOOM_FACTOR   1.5

Definition at line 38 of file mathplot.h.

Referenced by pPlotterWindow::onMyZoomIn(), and pPlotterWindow::onMyZoomOut().

Enumeration Type Documentation

anonymous enum

Command IDs used by mpWindow

Enumerator
mpID_FIT	Fit view to match bounding box of all layers.
mpID_ZOOM_IN	Zoom into view at clickposition / window center.
mpID_ZOOM_OUT	Zoom out.
mpID_CENTER	Center view on click position.
mpID_LOCKASPECT	Lock x/y scaling aspect.
mpID_LINE_GUIDES	Enables or disables the line guides drawing condition.

Definition at line 102 of file mathplot.h.

{
        mpID_FIT = 2000,
        mpID_ZOOM_IN,
        mpID_ZOOM_OUT,
        mpID_CENTER,
        mpID_LOCKASPECT,
        mpID_LINE_GUIDES,
};
