creaMaracasVisu_lib: ContourExtractData Class Reference

ContourExtractData::ContourExtractData ( bool imagesResults = false )

Definition at line 6 of file ContourExtractData.cxx.

References _typeOperation, imagedata, imagedataMaskResult, and imagedataValueResult.

00007   {
00008     this->imagedata                     = NULL;
00009         imagedataValueResult    = NULL;
00010         imagedataMaskResult             = NULL;
00011         this->okImagesResults   = okImagesResults;
00012         _typeOperation                  = 0;
00013   }

ContourExtractData::~ContourExtractData ( )

Definition at line 17 of file ContourExtractData.cxx.

00018   {
00019   }

void ContourExtractData::SetImage ( vtkImageData * imagedata )

Definition at line 23 of file ContourExtractData.cxx.

References InitVtkImagesResult().

00024   {
00025         this->imagedata                 = imagedata;
00026
00027         // init vtk image result : valuesImage maskImage
00028         if (this->okImagesResults==true){  InitVtkImagesResult(); }
00029   }

Here is the call graph for this function:

void ContourExtractData::SetZtoBeAnalys ( int z )

Definition at line 31 of file ContourExtractData.cxx.

References zImage.

00032   {
00033         this->zImage                    = z;
00034   }

void ContourExtractData::SetLstManualContourModel ( std::vector< manualContourModel * > lstManConMod )

Definition at line 37 of file ContourExtractData.cxx.

00038   {
00039           this->lstManConMod = lstManConMod;
00040   }

void ContourExtractData::GetValuesInsideCrown	(	std::vector< double > *	pLstValue,
		std::vector< double > *	pLstValuePosX,
		std::vector< double > *	pLstValuePosY,
		std::vector< double > *	pLstValuePosZ
	)

Definition at line 378 of file ContourExtractData.cxx.

References _typeOperation, GetDataValue(), GetMinMaxPoint_Of_LstManConMod(), InitLstContoursLinesYPoints(), isInside(), and zImage.

00382 {
00383         pLstValue->clear();
00384         pLstValuePosX->clear();
00385         pLstValuePosY->clear();
00386         pLstValuePosZ->clear();
00387
00388 //      if (okImagesResults==true)
00389 //      {
00390 //              ResetImageResult(zImage);
00391 //      }
00392
00393         int minPoint[2];
00394         int maxPoint[2];
00395         int i,j;
00396         double value;
00397
00398
00399         minPoint[0] = 999999;
00400         minPoint[1] = 999999;
00401         maxPoint[0] = -999999;
00402         maxPoint[1] = -999999;
00403
00404         GetMinMaxPoint_Of_LstManConMod(minPoint,maxPoint);
00405     InitLstContoursLinesYPoints();
00406
00407         for (j=minPoint[1]; j<=maxPoint[1]; j++)
00408         {
00409                 for (i=minPoint[0]; i<=maxPoint[0]; i++)
00410                 {
00411                         if (isInside(i,j,_typeOperation)==true)
00412                         {
00413                                 value = GetDataValue(i,j,zImage);
00414
00415 // Borrame
00416 //                              if (okImagesResults==true){
00417 //                                      PutVtkImageDataResultValue(i,j,zImage,  value );
00418 //                              }
00419
00420                                 pLstValue               -> push_back( value );
00421                                 pLstValuePosX   -> push_back( i );
00422                                 pLstValuePosY   -> push_back( j );
00423                                 pLstValuePosZ   -> push_back( -1 );
00424                         } // if
00425                 } // for
00426         } // for
00427
00428
00429 // Borrame
00430 //      if (this->okImagesResults==true){
00431 //              imagedataValueResult->Modified();
00432 //              imagedataMaskResult->Modified();
00433 //      }
00434
00435
00436 }

Here is the call graph for this function:

void ContourExtractData::CalculateImageResult ( )

Definition at line 337 of file ContourExtractData.cxx.

References _typeOperation, GetDataValue(), GetMinMaxPoint_Of_LstManConMod(), imagedataMaskResult, imagedataValueResult, InitLstContoursLinesYPoints(), isInside(), okImagesResults, PutVtkImageDataResultValue(), ResetImageResult(), and zImage.

00338 {
00339         if (okImagesResults==true)
00340         {
00341                 ResetImageResult(zImage);
00342
00343                 int minPoint[2];
00344                 int maxPoint[2];
00345                 int i,j;
00346                 double value;
00347
00348                 minPoint[0] = 999999;
00349                 minPoint[1] = 999999;
00350                 maxPoint[0] = -999999;
00351                 maxPoint[1] = -999999;
00352
00353                 GetMinMaxPoint_Of_LstManConMod(minPoint,maxPoint);
00354                 InitLstContoursLinesYPoints();
00355
00356                 for (j=minPoint[1]; j<=maxPoint[1]; j++)
00357                 {
00358                         for (i=minPoint[0]; i<=maxPoint[0]; i++)
00359                         {
00360                                 if (isInside(i,j,_typeOperation)==true)
00361                                 {
00362                                         value = GetDataValue(i,j,zImage);
00363                                         PutVtkImageDataResultValue(i,j,zImage,  value );
00364                                 } // if
00365                         } // for i
00366                 } // for j
00367
00368
00369                 imagedataValueResult->Modified();
00370                 imagedataMaskResult->Modified();
00371                 imagedataValueResult->Update();
00372                 imagedataMaskResult->Update();
00373         } // if
00374
00375 }

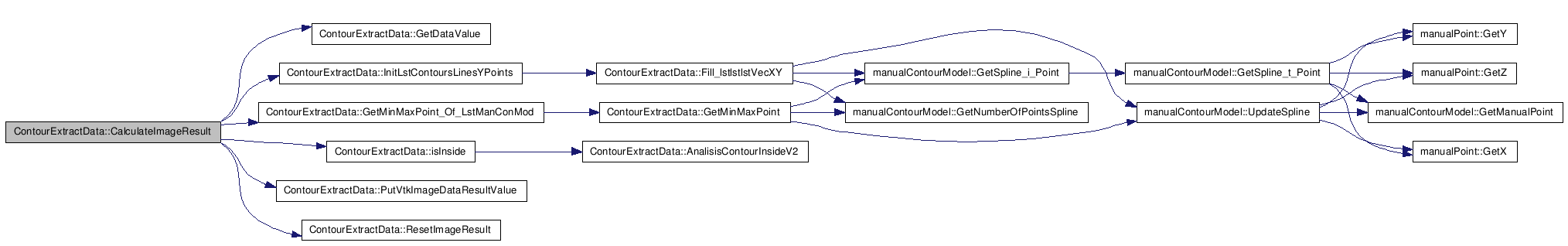

Here is the call graph for this function:

vtkImageData * ContourExtractData::GetVtkImageValueResult ( )

Definition at line 440 of file ContourExtractData.cxx.

References imagedataValueResult.

00441 {
00442         return imagedataValueResult;
00443 }

vtkImageData * ContourExtractData::GetVtkImageMaskResult ( )

Definition at line 445 of file ContourExtractData.cxx.

References imagedataMaskResult.

00446 {
00447         return imagedataMaskResult;
00448 }

void ContourExtractData::Statistics	(	std::vector< double > *	inputLstValue,
		int	grayRangeMin,
		int	grayRangeMax,
		int *	rCountRange,
		int *	rsize,
		double *	rmin,
		double *	rmax,
		double *	raverage,
		double *	rstandardeviation
	)

Definition at line 535 of file ContourExtractData.cxx.

References min, and SetVolumeStatistics().

00545 {
00546           double min                                            = 0;
00547           double max                                            = 0;
00548           double average                                        = 0;
00549           double standardeviation                       = 0;
00550           double acum_average                           = 0;
00551           double acum_standardeviation          = 0;
00552           int    size                                           = 0;
00553           int    countRange                                     = 0;
00554           double ng;
00555
00556           if (inputLstValue!=NULL)
00557           {
00558                 size=inputLstValue->size();
00559                 if (size>0){
00560                max=(*inputLstValue)[0];
00561                    min=(*inputLstValue)[0];
00562      // Average , countRange
00563                         int i;
00564                         for ( i=0; i<size; i++ )
00565                         {
00566                                 ng=(*inputLstValue)[i];
00567                                 acum_average = acum_average + ng;
00568                                 if (max<ng) max=ng;             // Max
00569                                 if (min>ng) min=ng;     // Min
00570                                 if ((ng>=grayRangeMin) && (ng<=grayRangeMax)) countRange++;  // countRange
00571                         } // for average
00572                         average = acum_average / size;
00573
00574           // Standar Deviation
00575                         acum_standardeviation=0;
00576                         double tmp;
00577                         for ( i=0; i<size; i++ )
00578                         {
00579                 tmp = (*inputLstValue)[i] - average;
00580                                 acum_standardeviation = acum_standardeviation + tmp*tmp;
00581                         } // for standar deviation
00582                         standardeviation = sqrt(acum_standardeviation/size);
00583                         SetVolumeStatistics(countRange, size,
00584                                                                 min,max,
00585                                                             acum_average,acum_standardeviation);
00586                 } // if size
00587           } // if NULL
00588
00589           // OUTPUT
00590                 *rsize                          = size;
00591                 *rCountRange            = countRange;
00592                 *rmin                           = min;
00593                 *rmax                           = max;
00594                 *raverage                       = average;
00595                 *rstandardeviation      = standardeviation;
00596 }

Here is the call graph for this function:

void ContourExtractData::SetTypeOperation ( int type )

Definition at line 599 of file ContourExtractData.cxx.

References _typeOperation.

00600 {
00601         _typeOperation=type;
00602 }

void ContourExtractData::InitVolumeStatistics ( )

Definition at line 489 of file ContourExtractData.cxx.

References vol_acum_average, vol_acum_standardeviation, vol_maxValue, vol_minValue, vol_rCountRange, and vol_rsize.

00490 {
00491         vol_rCountRange                         = 0;
00492         vol_rsize                                       = 0;
00493         vol_minValue                            = 9999999;
00494         vol_maxValue                            =-9999999;
00495         vol_acum_average                        = 0;
00496         vol_acum_standardeviation       = 0;
00497 }

void ContourExtractData::GetVolumeStatistics	(	int *	vol_rCountRange,
		int *	vol_rsize,
		double *	vol_minValue,
		double *	vol_maxValue,
		double *	vol_average,
		double *	vol_standardeviation
	)

Definition at line 518 of file ContourExtractData.cxx.

References vol_acum_average.

00524 {
00525         *vol_rCountRange                = this->vol_rCountRange;
00526         *vol_rsize                              = this->vol_rsize;
00527         *vol_minValue                   = this->vol_minValue;
00528         *vol_maxValue                   = this->vol_maxValue;
00529         *vol_average                    = this->vol_acum_average / this->vol_rsize;
00530         *vol_standardeviation   = sqrt(this->vol_acum_standardeviation / this->vol_rsize);
00531 }

void ContourExtractData::ResetImageResult ( int z )

Definition at line 317 of file ContourExtractData.cxx.

References imagedataMaskResult, imagedataValueResult, and okImagesResults.

Referenced by CalculateImageResult().

00318 {
00319         if (okImagesResults==true)
00320         {
00321                 unsigned short *pValue;
00322                 unsigned short *pMask;
00323                 pValue  = (unsigned short *)imagedataValueResult->GetScalarPointer(0,0,z);
00324                 pMask   = (unsigned short *)imagedataMaskResult->GetScalarPointer(0,0,z);
00325
00326                 int ext[6];
00327                 imagedataValueResult->GetExtent(ext);
00328
00329                 int size = (ext[1]-ext[0]+1) * (ext[3]-ext[2]+1);
00330                 memset(pValue,0,size*2);
00331                 memset(pMask,0,size*2);
00332         } // if
00333 }

Here is the caller graph for this function:

bool ContourExtractData::isInside	(	int	x,
		int	y,
		int	typeOperation
	)			`[private]`

Definition at line 183 of file ContourExtractData.cxx.

References AnalisisContourInsideV2(), imagedata, and lstManConMod.

Referenced by CalculateImageResult(), and GetValuesInsideCrown().

00184 {
00185         bool result                             = false;
00186         int numberLeft                  = 0;
00187         int i,size                              = this->lstManConMod.size();
00188         int numberInside        = 0;
00189
00190         int ext[6];
00191         imagedata->GetExtent(ext);
00192
00193         if ((x>=0) && (x<=ext[1]) && (y>=0) && (y<=ext[3]))
00194         {
00195
00196                 if (typeOperation==0)  // AND  Intersection
00197                 {
00198                         for (i=0;i<size;i++)
00199                         {
00200                                 numberLeft =  AnalisisContourInsideV2(x,y, i );
00201                                 if ( (numberLeft % 2) ==1){         numberInside++;  }
00202                         }
00203                         if ( numberInside == (size) ){ result=true; }
00204                 } // AND  Intersection
00205
00206
00207                 if (typeOperation==1)  // OR  All
00208                 {
00209                         for (i=0;i<size;i++)
00210                         {
00211                                 numberLeft =  AnalisisContourInsideV2(x,y, i );
00212                                 if ( (numberLeft % 2) ==1){ result=true;  }
00213                         }
00214                 } // OR  All
00215
00216                 if (typeOperation==2)  // XOR  crown
00217                 {
00218                         for (i=0;i<size;i++)
00219                         {
00220                                 numberLeft = numberLeft + AnalisisContourInsideV2(x,y, i );
00221                         }
00222                         if ( numberLeft % 2 ==1){       result = true;  }
00223                 }// XOR  crown
00224
00225
00226
00227         }
00228
00229         return result;
00230 }

Here is the call graph for this function:

Here is the caller graph for this function:

void ContourExtractData::GetMinMaxPoint	(	int *	minPoint,
		int *	maxPoint,
		manualContourModel *	manualcontourmodel
	)			`[private]`

Definition at line 44 of file ContourExtractData.cxx.

References manualContourModel::GetNumberOfPointsSpline(), manualContourModel::GetSpline_i_Point(), and manualContourModel::UpdateSpline().

Referenced by GetMinMaxPoint_Of_LstManConMod().

00048 {
00049         int i;
00050         //int   np              = manualcontourmodel->GetSizeLstPoints( );  // number of control points // JPRx
00051
00052 // JSTG 26-02-08 ---------------------------------------------------------------------------------------
00053         //int nps = manualviewbaseecontour->GetNumberOfPointsSpline(); // number of points in the spline
00054         int nps = manualcontourmodel->GetNumberOfPointsSpline(); // number of points in the spline
00055 //------------------------------------------------------------------------------------------------------
00056
00057 // JSTG 26-02-08 ---------------------------------------------------------------------------------------
00058         //double x,y,z,t;
00059         double x,y,z;
00060         //double delta=( double ) ( np  ) / ( double ) ( nps  );
00061         manualcontourmodel->UpdateSpline();
00062         for (i=0; i<nps; i++)
00063         {
00064                 //t= delta * (double)i;
00065                 //manualcontourmodel->GetSplinePoint(t,x,y,z);
00066                 manualcontourmodel->GetSpline_i_Point(i,&x,&y,&z);
00067                 if (x<minPoint[0]){ minPoint[0]=(int)x; }
00068                 if (y<minPoint[1]){ minPoint[1]=(int)y; }
00069                 if (x>maxPoint[0]){ maxPoint[0]=(int)x; }
00070                 if (y>maxPoint[1]){ maxPoint[1]=(int)y; }
00071         }
00072         minPoint[0]--;
00073         minPoint[1]--;
00074         maxPoint[0]++;
00075         maxPoint[1]++;
00076 //------------------------------------------------------------------------------------------------------
00077 }

Here is the call graph for this function:

Here is the caller graph for this function:

void ContourExtractData::GetMinMaxPoint_Of_LstManConMod	(	int *	minPoint,
		int *	maxPoint
	)			`[private]`

Definition at line 80 of file ContourExtractData.cxx.

References GetMinMaxPoint(), and lstManConMod.

Referenced by CalculateImageResult(), and GetValuesInsideCrown().

00084 {
00085         int i,size = lstManConMod.size();
00086         for(i=0 ; i<size ; i++)
00087         {
00088                 GetMinMaxPoint(minPoint,maxPoint,lstManConMod[i]);
00089         }
00090 }

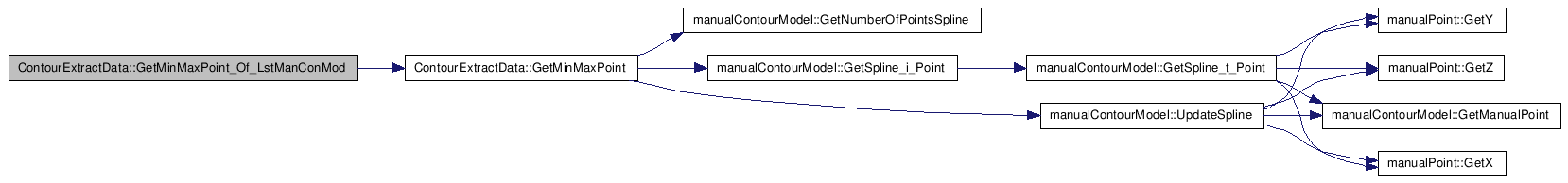

Here is the call graph for this function:

Here is the caller graph for this function:

int ContourExtractData::AnalisisContourInsideV2	(	int	x,
		int	y,
		int	iContour
	)			`[private]`

Definition at line 94 of file ContourExtractData.cxx.

References _lstlstlstVecX1, _lstlstlstVecX2, _lstlstlstVecY1, and _lstlstlstVecY2.

Referenced by isInside().

00095 {
00096         bool inBorder=false;
00097         int result      = 0;
00098         int i;
00099
00100         int nps=_lstlstlstVecX1[iContour][y].size();
00101
00102         double x1,y1,x2,y2;
00103         double borderX, borderY;
00104         double xx1, yy1,xx2, yy2;
00105         double xx=x, yy=y;
00106         double d;
00107
00108         for (i=0; i<nps; i++)
00109         {
00110                 x1=_lstlstlstVecX1[iContour][y][i];
00111                 y1=_lstlstlstVecY1[iContour][y][i];
00112                 x2=_lstlstlstVecX2[iContour][y][i];
00113                 y2=_lstlstlstVecY2[iContour][y][i];
00114
00115                 borderX=x1;
00116                 borderY=y1;
00117
00118                 if (y1<y2)
00119                 {
00120                         xx1=x1; yy1=y1; xx2=x2; yy2=y2;
00121                 } else {
00122                         xx1=x2; yy1=y2; xx2=x1; yy2=y1;
00123                 }
00124
00125                 double difxx2xx1=fabs(xx2-xx1);
00126                 if (difxx2xx1==0) difxx2xx1=0.0000000001;
00127
00128                 // Finding border looking in vertical direction  AND  verifing if pixel is at right of the line
00129                 if  ( (yy>=yy1)&&(yy<=yy2) )
00130                 {
00131                         //by triangle similarity
00132                         d = ( fabs(xx2-xx1)*(yy-yy1) ) / (yy2-yy1) ;
00133                         if ( (xx1<=xx2)&&(x<(xx1+d)) )  {       result++;       }
00134                         if ( (xx1>xx2)&&(x<(xx1-d)) )   {       result++;       }
00135
00136                         if ( (yy2-yy1)/difxx2xx1 >= 1.0)
00137                         {
00138                                 if (xx1<=xx2)
00139                                 {
00140                                         borderX = xx1+d;
00141                                         borderY = y;
00142                                 } else {
00143                                         borderX = xx1-d;
00144                                         borderY = y;
00145                                 }
00146                         }
00147                 } // if point inside y
00148
00149
00150                 // Finding border looking in vertical direction
00151                 if ( ((xx1<=xx2)&&(xx>=xx1)&&(xx<xx2)) || ((xx1>xx2)&&(xx>=xx2)&&(xx<xx1)) )
00152                 {
00153                         if ( (yy2-yy1)/difxx2xx1 <= 1.0)
00154                         {
00155                                 //by triangle similarity
00156                                 d = ( fabs(xx1-xx)*(yy2-yy1) ) / difxx2xx1;
00157                                 if (yy1+d<=yy2) {
00158                                         borderX=x;
00159                                         borderY=yy1+d;
00160                                 }
00161                         }
00162                 } // if point inside x
00163
00164
00165                 //Border verification
00166                 if (   (x==(int)borderX) && (y==(int)borderY)   )  { inBorder=true; }// if point in border
00167
00168                 // Verification : border in horizontal line
00169                 if ( ((int)y1==(int)y2)  &&  ((int)y1==y) && (x1<x2) && (x>=x1) && (x<=x2))             { inBorder=true;        }
00170                 if ( ((int)y1==(int)y2)  &&  ((int)y1==y) && (x2<x1) && (x>=x2) && (x<=x1))             { inBorder=true;        }
00171
00172                 if (inBorder==true){ i=nps; }
00173         } // for i
00174
00175         if (inBorder==true)     { result=1;     }
00176
00177         return result;
00178 }

Here is the caller graph for this function:

double ContourExtractData::GetDataValue	(	int	x,
		int	y,
		int	z
	)			`[private]`

Definition at line 234 of file ContourExtractData.cxx.

References imagedata.

Referenced by CalculateImageResult(), and GetValuesInsideCrown().

00235 {
00236 //      wxVtk2DBaseView *wxvtk2dbaseview = (wxVtk2DBaseView*)wxvtkbaseview;
00237 //      int z = (int)wxvtk2dbaseview->GetVtkBaseData()->GetZ();
00238         //JSTG 13-03-08-----
00239 //EED OJO avec JS       _zz = z;
00240         //------------------
00241         double result;
00242         void *p;
00243         p = imagedata->GetScalarPointer(x,y,z);
00244
00245         if (imagedata->GetScalarType()==VTK_CHAR)
00246         {
00247                 char *pp = (char*)p;
00248                 result = (double)(*pp);
00249         }
00250         else if (imagedata->GetScalarType()==VTK_SIGNED_CHAR)
00251         {
00252                 signed char *pp = (signed char*)p;
00253                 result = (double)(*pp);
00254         }
00255         else if (imagedata->GetScalarType()==VTK_UNSIGNED_CHAR)
00256         {
00257                 unsigned char *pp = (unsigned char*)p;
00258                 result = (double)(*pp);
00259         }
00260         else if (imagedata->GetScalarType()==VTK_SHORT)
00261         {
00262                 short *pp = (short*)p;
00263                 result = (double)(*pp);
00264         }
00265         else if (imagedata->GetScalarType()==VTK_UNSIGNED_SHORT)
00266         {
00267                 unsigned short *pp = (unsigned short*)p;
00268                 result = (double)(*pp);
00269         }
00270         else if (imagedata->GetScalarType()==VTK_INT)
00271         {
00272                 int *pp = (int*)p;
00273                 result = (double)(*pp);
00274         }
00275         else if (imagedata->GetScalarType()==VTK_UNSIGNED_INT)
00276         {
00277                 unsigned int *pp = (unsigned int*)p;
00278                 result = (double)(*pp);
00279         }
00280         else if (imagedata->GetScalarType()==VTK_LONG)
00281         {
00282                 long *pp = (long*)p;
00283                 result = (double)(*pp);
00284         }
00285         else if (imagedata->GetScalarType()==VTK_UNSIGNED_LONG)
00286         {
00287                 unsigned long *pp = (unsigned long*)p;
00288                 result = (double)(*pp);
00289         }
00290         else if (imagedata->GetScalarType()==VTK_FLOAT)
00291         {
00292                 float *pp = (float*)p;
00293                 result = (double)(*pp);
00294         }
00295         else if (imagedata->GetScalarType()==VTK_DOUBLE)
00296         {
00297                 double *pp = (double*)p;
00298                 result = (double)(*pp);
00299         }
00300
00301         return result;
00302 }

Here is the caller graph for this function:

void ContourExtractData::PutVtkImageDataResultValue	(	int	x,
		int	y,
		int	z,
		double	value
	)			`[private]`

Definition at line 306 of file ContourExtractData.cxx.

References imagedataMaskResult, and imagedataValueResult.

Referenced by CalculateImageResult().

00307 {
00308         unsigned short *pValue;
00309         unsigned short *pMask;
00310         pValue  = (unsigned short *)imagedataValueResult->GetScalarPointer(x,y,z);
00311         pMask   = (unsigned short *)imagedataMaskResult->GetScalarPointer(x,y,z);
00312         *pMask  = 255;
00313         *pValue = (unsigned short)value;
00314 }

Here is the caller graph for this function:

void ContourExtractData::InitVtkImagesResult ( ) [private]

Definition at line 450 of file ContourExtractData.cxx.

References imagedata, imagedataMaskResult, and imagedataValueResult.

Referenced by SetImage().

00451 {
00452           int ext[6];
00453           int newDim[3];
00454           double spc[3];
00455           int scalartype;
00456
00457           imagedata->GetSpacing(spc);
00458           imagedata->GetExtent(ext);
00459           newDim[0]=ext[1]-ext[0]+1;
00460           newDim[1]=ext[3]-ext[2]+1;
00461           newDim[2]=ext[5]-ext[4]+1;
00462           scalartype = imagedata->GetScalarType();
00463
00464           if (imagedataValueResult!=NULL)
00465           {
00466                   imagedataValueResult->Delete();
00467           }
00468           imagedataValueResult = vtkImageData::New();
00469 //        imagedataValueResult->SetScalarType(scalartype);
00470           imagedataValueResult->SetScalarTypeToUnsignedShort();
00471           imagedataValueResult->SetSpacing(spc);
00472           imagedataValueResult->SetDimensions( newDim );
00473           imagedataValueResult->AllocateScalars();
00474
00475           if (imagedataMaskResult!=NULL)
00476           {
00477                   imagedataMaskResult->Delete();
00478           }
00479           imagedataMaskResult  = vtkImageData::New();
00480 //        imagedataMaskResult->SetScalarType(scalartype);
00481           imagedataMaskResult->SetScalarTypeToUnsignedShort();
00482           imagedataMaskResult->SetSpacing(spc);
00483           imagedataMaskResult->SetDimensions( newDim );
00484           imagedataMaskResult->AllocateScalars();
00485 }

Here is the caller graph for this function:

void ContourExtractData::SetVolumeStatistics	(	int	rCountRange,
		int	rsize,
		double	minValue,
		double	maxValue,
		double	acum_average,
		double	acum_standardeviation
	)			`[private]`

Definition at line 500 of file ContourExtractData.cxx.

References vol_acum_average, vol_acum_standardeviation, vol_maxValue, vol_minValue, vol_rCountRange, and vol_rsize.

Referenced by Statistics().

00506 {
00507         vol_rCountRange                         = vol_rCountRange + rCountRange;
00508         vol_rsize                                       = vol_rsize + rsize;
00509
00510         if (minValue<vol_minValue){ vol_minValue = minValue;  }
00511         if (maxValue>vol_maxValue){ vol_maxValue = maxValue;  }
00512
00513         vol_acum_average                        = vol_acum_average + acum_average;
00514         vol_acum_standardeviation       = vol_acum_standardeviation + acum_standardeviation;
00515 }

Here is the caller graph for this function:

void ContourExtractData::Fill_lstlstlstVecXY	(	int	iContour,
		int	sizeY
	)			`[private]`

Definition at line 605 of file ContourExtractData.cxx.

References _lstlstlstVecX1, _lstlstlstVecX2, _lstlstlstVecY1, _lstlstlstVecY2, manualContourModel::GetNumberOfPointsSpline(), manualContourModel::GetSpline_i_Point(), lstManConMod, and manualContourModel::UpdateSpline().

Referenced by InitLstContoursLinesYPoints().

00606 {
00607         int i,y;
00608         double x1,y1,z1,x2,y2,z2;
00609         manualContourModel *manualcontourmodel= lstManConMod[iContour];
00610         int nps = manualcontourmodel->GetNumberOfPointsSpline(); // number of points in the spline
00611         manualcontourmodel->UpdateSpline();
00612         //------------------------------------------------------------------------------------------------------
00613
00614         for (y=0;y<sizeY;y++)
00615         {
00616                 manualcontourmodel->GetSpline_i_Point(0,&x1,&y1,&z1);
00617                 x1=x1+0.5; y1=y1+0.5;
00618                 for (i=1; i<nps; i++)
00619                 {
00620                         manualcontourmodel->GetSpline_i_Point(i,&x2,&y2,&z2);
00621                         x2=x2+0.5; y2=y2+0.5;
00622                         if ( ((y1<y2)&&(y>=y1)&&(y<=y2)) || ((y1>y2)&&(y>=y2)&&(y<=y1)) || ((int)y1==y) || ((int)y2==y)  )
00623                         {
00624                                 _lstlstlstVecX1[iContour][y].push_back(x1);
00625                                 _lstlstlstVecY1[iContour][y].push_back(y1);
00626                                 _lstlstlstVecX2[iContour][y].push_back(x2);
00627                                 _lstlstlstVecY2[iContour][y].push_back(y2);
00628                         }
00629                         x1=x2; y1=y2; z1=z2;
00630                 } // for i  Points in spline
00631         } // y
00632
00633 }

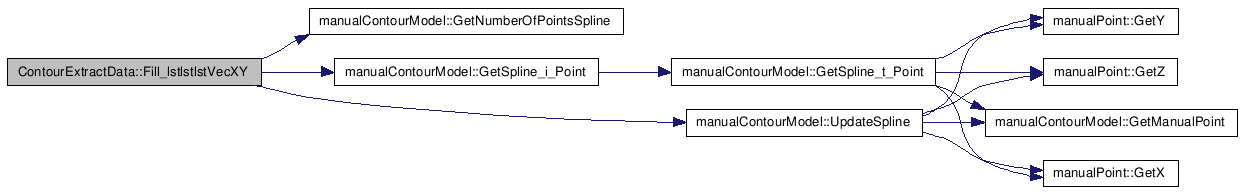

Here is the call graph for this function:

Here is the caller graph for this function:

void ContourExtractData::InitLstContoursLinesYPoints ( ) [private]

Definition at line 635 of file ContourExtractData.cxx.

References _lstlstlstVecX1, _lstlstlstVecX2, _lstlstlstVecY1, _lstlstlstVecY2, Fill_lstlstlstVecXY(), imagedata, and lstManConMod.

Referenced by CalculateImageResult(), and GetValuesInsideCrown().

00636 {
00637         // init InInside Optimisation
00638         int i;
00639
00640         _lstlstlstVecX1.clear();
00641         _lstlstlstVecY1.clear();
00642         _lstlstlstVecX2.clear();
00643         _lstlstlstVecY2.clear();
00644
00645         int ext[6];
00646         this->imagedata->GetWholeExtent(ext);
00647         int sizeY = ext[3]-ext[2]+1;
00648         std::vector<double> vecDouble;
00649         std::vector< std::vector<double> > vecVecDouble;
00650         for ( i=0 ; i<sizeY ; i++ )
00651         {
00652                 vecVecDouble.push_back( vecDouble );
00653         }
00654
00655         //Fill structure with points
00656         int sizeContours = lstManConMod.size();
00657         for( i=0 ; i<sizeContours ; i++ )
00658         {
00659                 _lstlstlstVecX1.push_back( vecVecDouble );
00660                 _lstlstlstVecY1.push_back( vecVecDouble );
00661                 _lstlstlstVecX2.push_back( vecVecDouble );
00662                 _lstlstlstVecY2.push_back( vecVecDouble );
00663                 Fill_lstlstlstVecXY(i,sizeY);
00664         }
00665
00666 }

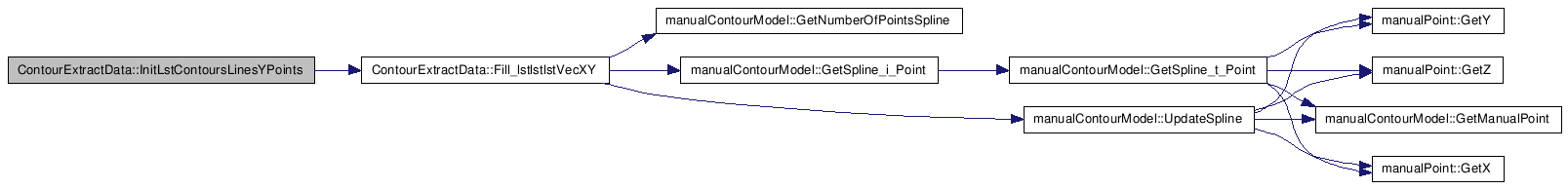

Here is the call graph for this function:

Here is the caller graph for this function:

bool ContourExtractData::okImagesResults [private]

Definition at line 51 of file ContourExtractData.h.

Referenced by CalculateImageResult(), and ResetImageResult().

std::vector<manualContourModel*> ContourExtractData::lstManConMod [private]

Definition at line 52 of file ContourExtractData.h.

Referenced by Fill_lstlstlstVecXY(), GetMinMaxPoint_Of_LstManConMod(), InitLstContoursLinesYPoints(), and isInside().

int ContourExtractData::_typeOperation [private]

Definition at line 53 of file ContourExtractData.h.

Referenced by CalculateImageResult(), ContourExtractData(), GetValuesInsideCrown(), and SetTypeOperation().

int ContourExtractData::zImage [private]

Definition at line 55 of file ContourExtractData.h.

Referenced by CalculateImageResult(), GetValuesInsideCrown(), and SetZtoBeAnalys().

vtkImageData* ContourExtractData::imagedata [private]

Definition at line 56 of file ContourExtractData.h.

Referenced by ContourExtractData(), GetDataValue(), InitLstContoursLinesYPoints(), InitVtkImagesResult(), and isInside().

vtkImageData* ContourExtractData::imagedataValueResult [private]

Definition at line 57 of file ContourExtractData.h.

Referenced by CalculateImageResult(), ContourExtractData(), GetVtkImageValueResult(), InitVtkImagesResult(), PutVtkImageDataResultValue(), and ResetImageResult().

vtkImageData* ContourExtractData::imagedataMaskResult [private]

Definition at line 58 of file ContourExtractData.h.

Referenced by CalculateImageResult(), ContourExtractData(), GetVtkImageMaskResult(), InitVtkImagesResult(), PutVtkImageDataResultValue(), and ResetImageResult().

int ContourExtractData::vol_rCountRange [private]

Definition at line 74 of file ContourExtractData.h.

Referenced by InitVolumeStatistics(), and SetVolumeStatistics().

int ContourExtractData::vol_rsize [private]

Definition at line 75 of file ContourExtractData.h.

Referenced by InitVolumeStatistics(), and SetVolumeStatistics().

double ContourExtractData::vol_minValue [private]

Definition at line 76 of file ContourExtractData.h.

Referenced by InitVolumeStatistics(), and SetVolumeStatistics().

double ContourExtractData::vol_maxValue [private]

Definition at line 77 of file ContourExtractData.h.

Referenced by InitVolumeStatistics(), and SetVolumeStatistics().

double ContourExtractData::vol_acum_average [private]

Definition at line 78 of file ContourExtractData.h.

Referenced by GetVolumeStatistics(), InitVolumeStatistics(), and SetVolumeStatistics().

double ContourExtractData::vol_acum_standardeviation [private]

Definition at line 79 of file ContourExtractData.h.

Referenced by InitVolumeStatistics(), and SetVolumeStatistics().

std::vector< std::vector< std::vector<double> > > ContourExtractData::_lstlstlstVecX1 [private]

Definition at line 86 of file ContourExtractData.h.

Referenced by AnalisisContourInsideV2(), Fill_lstlstlstVecXY(), and InitLstContoursLinesYPoints().

std::vector< std::vector< std::vector<double> > > ContourExtractData::_lstlstlstVecY1 [private]

Definition at line 87 of file ContourExtractData.h.

Referenced by AnalisisContourInsideV2(), Fill_lstlstlstVecXY(), and InitLstContoursLinesYPoints().

std::vector< std::vector< std::vector<double> > > ContourExtractData::_lstlstlstVecX2 [private]

Definition at line 88 of file ContourExtractData.h.

Referenced by AnalisisContourInsideV2(), Fill_lstlstlstVecXY(), and InitLstContoursLinesYPoints().

std::vector< std::vector< std::vector<double> > > ContourExtractData::_lstlstlstVecY2 [private]

Definition at line 89 of file ContourExtractData.h.

Referenced by AnalisisContourInsideV2(), Fill_lstlstlstVecXY(), and InitLstContoursLinesYPoints().

ContourExtractData Class Reference

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation


Public Member Functions
	ContourExtractData (bool imagesResults=false)
	~ContourExtractData ()
void	SetImage (vtkImageData *imagedata)
void	SetZtoBeAnalys (int z)
void	SetLstManualContourModel (std::vector< manualContourModel * > lstManConMod)
void	GetValuesInsideCrown (std::vector< double > pLstValue, std::vector< double > pLstValuePosX, std::vector< double > pLstValuePosY, std::vector< double > pLstValuePosZ)
void	CalculateImageResult ()
vtkImageData *	GetVtkImageValueResult ()
vtkImageData *	GetVtkImageMaskResult ()
void	Statistics (std::vector< double > inputLstValue, int grayRangeMin, int grayRangeMax, int rCountRange, int rsize, double rmin, double rmax, double raverage, double *rstandardeviation)
void	SetTypeOperation (int type)
void	InitVolumeStatistics ()
void	GetVolumeStatistics (int vol_rCountRange, int vol_rsize, double vol_minValue, double vol_maxValue, double vol_average, double vol_standardeviation)
void	ResetImageResult (int z)
Private Member Functions
bool	isInside (int x, int y, int typeOperation)
void	GetMinMaxPoint (int minPoint, int maxPoint, manualContourModel *manualcontourmodel)
void	GetMinMaxPoint_Of_LstManConMod (int minPoint, int maxPoint)
int	AnalisisContourInsideV2 (int x, int y, int iContour)
double	GetDataValue (int x, int y, int z)
void	PutVtkImageDataResultValue (int x, int y, int z, double value)
void	InitVtkImagesResult ()
void	SetVolumeStatistics (int rCountRange, int rsize, double minValue, double maxValue, double acum_average, double acum_standardeviation)
void	Fill_lstlstlstVecXY (int iContour, int sizeY)
void	InitLstContoursLinesYPoints ()
Private Attributes
bool	okImagesResults
std::vector < manualContourModel * >	lstManConMod
int	_typeOperation
int	zImage
vtkImageData *	imagedata
vtkImageData *	imagedataValueResult
vtkImageData *	imagedataMaskResult
int	vol_rCountRange
int	vol_rsize
double	vol_minValue
double	vol_maxValue
double	vol_acum_average
double	vol_acum_standardeviation
std::vector < std::vector < std::vector < double > > >	_lstlstlstVecX1
std::vector < std::vector < std::vector < double > > >	_lstlstlstVecY1
std::vector < std::vector < std::vector < double > > >	_lstlstlstVecX2
std::vector < std::vector < std::vector < double > > >	_lstlstlstVecY2
