ThresholdImageView Class Reference

#include <ThresholdImageView.h>

Collaboration diagram for ThresholdImageView:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 ThresholdImageView ()
 ~ThresholdImageView ()
void onThreshold ()
void onThresholdChange ()
void onThresholdInterpolation (bool interpolate)
void onThresholdChangeOpacity (int opacity)
void onThresholdRemove ()
void SetImage (vtkImageData *image)
void SetwxVtkBaseView (wxVtkBaseView *baseview)
wxVtkBaseView * GetwxVtkBaseView ()
void SetBaseColor (double r, double g, double b)
void SetZ (int z)
void SetminMaxValue (int min, int max)

Private Attributes

int _Z
double _baseColorR
double _baseColorG
double _baseColorB
double _minValue
double _maxValue
bool _actorPresent
vtkImageData * _image
vtkImageReslice * _imageReslicer
vtkLookupTable * _thresholdTable
vtkImageMapToColors * _thresholdMapper
vtkImageActor * _thresholdActor
wxVtkBaseView * _baseView

Detailed Description

Definition at line 26 of file ThresholdImageView.h.

Constructor & Destructor Documentation

ThresholdImageView::ThresholdImageView (  )

Definition at line 10 of file ThresholdImageView.cxx.

References _actorPresent, _baseColorB, _baseColorG, _baseColorR, _image, _imageReslicer, _maxValue, _minValue, _thresholdActor, _thresholdMapper, _thresholdTable, and _Z.

00011   {
00012           _actorPresent                         =       false;
00013           _Z                                            =       0;
00014           _minValue                                     =       0;
00015           _maxValue                                     =       1000;
00016           _image                                        =       NULL;
00017           _imageReslicer                        =       NULL;
00018           _thresholdTable                       =       NULL;
00019           _thresholdMapper                      =       NULL;
00020           _thresholdActor                       =       NULL;
00021           _baseColorR                           =       1;
00022           _baseColorG                           =       0;
00023           _baseColorB                           =       0;
00024   }

ThresholdImageView::~ThresholdImageView (  )

Definition at line 27 of file ThresholdImageView.cxx.

00028   {
00029   }

Member Function Documentation

void ThresholdImageView::onThreshold (  )

Definition at line 65 of file ThresholdImageView.cxx.

References _actorPresent, _baseColorB, _baseColorG, _baseColorR, _baseView, _image, _imageReslicer, _maxValue, _minValue, _thresholdActor, _thresholdMapper, _thresholdTable, _Z, and wxVtkBaseView::GetRenderer().

Referenced by onThresholdChange(), and ThresholdImageViewPanel::onThresholdShow().

00066 {
00067         int     z = _Z;
00068         double range[2];
00069
00070         vtkImageData *img = _image;
00071         img->GetScalarRange(range);
00072         if (range[1]==0)
00073         {
00074                 range[1]=255;
00075         }
00076
00077         int minTot = floor (range[0]);
00078         int maxTot = ceil (range[1]);
00079
00080         int minVal = floor (_minValue);
00081         int maxVal = floor (_maxValue);
00082
00083         if (!_actorPresent)
00084         {
00085                 if (_imageReslicer==NULL)
00086                 {
00087                         _imageReslicer = vtkImageReslice::New();
00088                         _imageReslicer->SetInput( img );
00089                         _imageReslicer->SetInformationInput(img);
00090                         _imageReslicer->SetResliceAxesDirectionCosines(1,0,0, 0,1,0 ,0,0,1);
00091                         _imageReslicer->SetOutputDimensionality(2);
00092                         _imageReslicer->SetInterpolationModeToLinear();
00093                 }
00094
00095                 _imageReslicer->SetResliceAxesOrigin(0,0,z);
00096
00097                 img = _imageReslicer->GetOutput();
00098                 img->Update();
00099                 img->UpdateInformation();
00100
00101                 wxVtkBaseView *baseView = _baseView;
00102
00103                 if (_thresholdTable==NULL)
00104                 {
00105                         //Lookup Table
00106                         _thresholdTable = vtkLookupTable::New();
00107                         _thresholdTable->SetNumberOfTableValues(maxTot+1);
00108                         _thresholdTable->SetTableRange(range);
00109                         _thresholdTable->SetAlphaRange(0, 1);
00110                         _thresholdTable->SetValueRange(0, 1);
00111                         _thresholdTable->SetSaturationRange(0, 0);
00112                         _thresholdTable->SetRampToLinear( );
00113                 }
00114
00115                 //Assign a fake color for the upper image, and set the white as transparent
00116                 int i;
00117                 for(i = minTot; i <= maxTot; i++)
00118                 {
00119                         if( i >= minVal && i <= maxVal )
00120                         {
00121                                 _thresholdTable->SetTableValue(i,_baseColorR,_baseColorG,_baseColorB, 1);
00122                         }
00123                         else if( i >= minTot && i < minVal )
00124                         {
00125                                 _thresholdTable->SetTableValue(i, 1.0, 1.0, 1.0, 0); //transparent
00126                         }
00127                         else if( i > maxVal && i < maxTot )
00128                         {
00129                                 _thresholdTable->SetTableValue(i, 1.0, 1.0, 1.0, 0); //transparent
00130                         }
00131                         else
00132                         {
00133                                 _thresholdTable->SetTableValue(i, 1.0, 1.0, 1.0, 0); //transparent
00134                         }
00135                 }
00136                 _thresholdTable->Build( );
00137
00138                 if (_thresholdMapper==NULL)
00139                 {
00140                         _thresholdMapper = vtkImageMapToColors::New( );
00141                 }
00142
00143                 _thresholdMapper->SetLookupTable( _thresholdTable );
00144                 _thresholdMapper->SetInput( img );
00145
00146                 if (_thresholdActor==NULL)
00147                 {
00148                         _thresholdActor = vtkImageActor::New( );
00149                         _thresholdActor->SetOpacity( 0.6 );
00150                         _thresholdActor->InterpolateOn(  );
00151                         _thresholdActor->SetPosition( 0,0, 900-1 );
00152                 }
00153
00154                 _thresholdActor->SetInput( _thresholdMapper->GetOutput() );
00155
00156                 baseView->GetRenderer()->AddActor( _thresholdActor );
00157                 _actorPresent = true;
00158         }
00159         else
00160         {
00161                 _imageReslicer->SetResliceAxesOrigin(0,0,z);
00162                 img = _imageReslicer->GetOutput();
00163                 img->Update();
00164                 img->UpdateInformation();
00165
00166                 //Assign a fake color for the upper image, and set the white as transparent
00167                 int i;
00168                 for(i = minTot; i <= maxTot; i++)
00169                 {
00170                         if( i >= minVal && i <= maxVal )
00171                         {
00172                                 _thresholdTable->SetTableValue(i,_baseColorR,_baseColorG,_baseColorB, 1);
00173                         }
00174                         else if( i >= minTot && i < minVal )
00175                         {
00176                                 _thresholdTable->SetTableValue(i, 1.0, 1.0, 1.0, 0); //transparent
00177                         }
00178                         else if( i > maxVal && i < maxTot )
00179                         {
00180                                 _thresholdTable->SetTableValue(i, 1.0, 1.0, 1.0, 0); //transparent
00181                         }
00182                         else
00183                         {
00184                                 _thresholdTable->SetTableValue(i, 1.0, 1.0, 1.0, 0); //transparent
00185                         }
00186                 }
00187                 _thresholdTable->Build( );
00188                 _thresholdMapper->SetLookupTable( _thresholdTable );
00189                 _thresholdMapper->SetInput( img );
00190                 _thresholdActor->SetInput( _thresholdMapper->GetOutput() );
00191         }
00192 }

Here is the call graph for this function:

Here is the caller graph for this function:

void ThresholdImageView::onThresholdChange (  )

Definition at line 196 of file ThresholdImageView.cxx.

References _actorPresent, and onThreshold().

Referenced by ThresholdImageViewPanel::onThresholdChange().

00197 {
00198         if (_actorPresent)
00199         {
00200                 onThreshold();
00201         }
00202 }

Here is the call graph for this function:

Here is the caller graph for this function:

void ThresholdImageView::onThresholdInterpolation ( bool  interpolate  )

Definition at line 205 of file ThresholdImageView.cxx.

References _thresholdActor.

Referenced by ThresholdImageViewPanel::onThresholdInterpolation().

00206 {
00207         if (_thresholdActor!=NULL)
00208         {
00209                 if (interpolate)
00210                 {
00211                         _thresholdActor->InterpolateOn( );
00212                 }
00213                 else
00214                 {
00215                         _thresholdActor->InterpolateOff( );
00216                 }
00217         }
00218 }

Here is the caller graph for this function:

void ThresholdImageView::onThresholdChangeOpacity ( int  opacity  )

Definition at line 221 of file ThresholdImageView.cxx.

References _actorPresent, and _thresholdActor.

Referenced by ThresholdImageViewPanel::onChangeOpacity().

00222 {
00223         if (_actorPresent)
00224         {
00225                 _thresholdActor->SetOpacity(opacity*0.1);
00226         }
00227 }

Here is the caller graph for this function:

void ThresholdImageView::onThresholdRemove (  )

Definition at line 230 of file ThresholdImageView.cxx.

References _actorPresent, _baseView, _thresholdActor, and wxVtkBaseView::GetRenderer().

Referenced by ThresholdImageViewPanel::onThresholdShow(), and ThresholdImageViewPanel::onThresholdStop().

00231 {
00232         if (_actorPresent)
00233         {
00234                 wxVtkBaseView * baseView = _baseView;
00235                 baseView->GetRenderer()->RemoveActor( _thresholdActor );
00236                 _actorPresent = false;
00237         }
00238 }

Here is the call graph for this function:

Here is the caller graph for this function:

void ThresholdImageView::SetImage ( vtkImageData *  image  )

Definition at line 34 of file ThresholdImageView.cxx.

References _image.

00035 {
00036         _image = image;
00037 }

void ThresholdImageView::SetwxVtkBaseView ( wxVtkBaseView *  baseview  )

Definition at line 40 of file ThresholdImageView.cxx.

References _baseView.

00041 {
00042         _baseView = baseview;
00043 }

wxVtkBaseView * ThresholdImageView::GetwxVtkBaseView (  )

Definition at line 46 of file ThresholdImageView.cxx.

References _baseView.

Referenced by ThresholdImageViewPanel::onChangeOpacity(), ThresholdImageViewPanel::onThresholdChange(), ThresholdImageViewPanel::onThresholdInterpolation(), and ThresholdImageViewPanel::onThresholdShow().

00047 {
00048         return _baseView;
00049 }

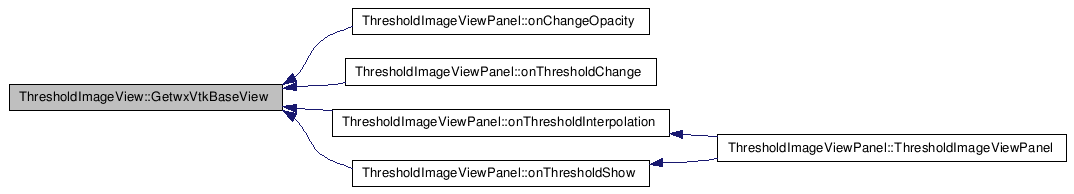

Here is the caller graph for this function:

void ThresholdImageView::SetBaseColor ( double  r,
double  g,
double  b
)

Definition at line 242 of file ThresholdImageView.cxx.

References _baseColorB, _baseColorG, and _baseColorR.

00243 {
00244         _baseColorR = r;
00245         _baseColorG = g;
00246         _baseColorB = b;
00247 }

void ThresholdImageView::SetZ ( int  z  )

Definition at line 52 of file ThresholdImageView.cxx.

References _Z.

00053 {
00054         _Z = z;
00055 }

void ThresholdImageView::SetminMaxValue ( int  min,
int  max
)

Definition at line 58 of file ThresholdImageView.cxx.

References _maxValue, and _minValue.

Referenced by ThresholdImageViewPanel::onThresholdChange().

00059 {
00060         _minValue = min;
00061         _maxValue = max;
00062 }

Here is the caller graph for this function:

Member Data Documentation

int ThresholdImageView::_Z [private]

Definition at line 46 of file ThresholdImageView.h.

Referenced by onThreshold(), SetZ(), and ThresholdImageView().

double ThresholdImageView::_baseColorR [private]

Definition at line 47 of file ThresholdImageView.h.

Referenced by onThreshold(), SetBaseColor(), and ThresholdImageView().

double ThresholdImageView::_baseColorG [private]

Definition at line 48 of file ThresholdImageView.h.

Referenced by onThreshold(), SetBaseColor(), and ThresholdImageView().

double ThresholdImageView::_baseColorB [private]

Definition at line 49 of file ThresholdImageView.h.

Referenced by onThreshold(), SetBaseColor(), and ThresholdImageView().

double ThresholdImageView::_minValue [private]

Definition at line 50 of file ThresholdImageView.h.

Referenced by onThreshold(), SetminMaxValue(), and ThresholdImageView().

double ThresholdImageView::_maxValue [private]

Definition at line 51 of file ThresholdImageView.h.

Referenced by onThreshold(), SetminMaxValue(), and ThresholdImageView().

bool ThresholdImageView::_actorPresent [private]

Definition at line 52 of file ThresholdImageView.h.

Referenced by onThreshold(), onThresholdChange(), onThresholdChangeOpacity(), onThresholdRemove(), and ThresholdImageView().

vtkImageData* ThresholdImageView::_image [private]

Definition at line 53 of file ThresholdImageView.h.

Referenced by onThreshold(), SetImage(), and ThresholdImageView().

vtkImageReslice* ThresholdImageView::_imageReslicer [private]

Definition at line 54 of file ThresholdImageView.h.

Referenced by onThreshold(), and ThresholdImageView().

vtkLookupTable* ThresholdImageView::_thresholdTable [private]

Definition at line 55 of file ThresholdImageView.h.

Referenced by onThreshold(), and ThresholdImageView().

vtkImageMapToColors* ThresholdImageView::_thresholdMapper [private]

Definition at line 56 of file ThresholdImageView.h.

Referenced by onThreshold(), and ThresholdImageView().

vtkImageActor* ThresholdImageView::_thresholdActor [private]

Definition at line 57 of file ThresholdImageView.h.

Referenced by onThreshold(), onThresholdChangeOpacity(), onThresholdInterpolation(), onThresholdRemove(), and ThresholdImageView().

wxVtkBaseView* ThresholdImageView::_baseView [private]

Definition at line 58 of file ThresholdImageView.h.

Referenced by GetwxVtkBaseView(), onThreshold(), onThresholdRemove(), and SetwxVtkBaseView().

The documentation for this class was generated from the following files:
Generated on Wed Jul 29 16:36:09 2009 for creaMaracasVisu_lib by  doxygen 1.5.3
