UtilVtk3DGeometriSelection Class Reference

#include <UtilVtk3DGeometriSelection.h>

List of all members.

Public Member Functions

 UtilVtk3DGeometriSelection ()
 ~UtilVtk3DGeometriSelection ()
void SetDimentions (int w, int h, int d)
void SetMarchingCube (vtkMarchingCubes *mCubes)
bool FindCubePointsFromPoints (double *pO, double *pF, double *pickPoint, double *cameraPos)
bool GetPointAndNormalIntersection (double *p, double *n, double *pO, double *pF)
bool IntersectPlaneWithLine (double *p, double *x1, double *x2, double *x3, double *x4, double *x5)
double DistanceMinPointToLine (double *p, double *pA, double *pB)
void IntersectionPlaneAndLine (double *pResult, double *n, double *p, double *pA, double *pB)

Private Attributes

int _width
int _height
int _depth
vtkMarchingCubes * _mCubes


Detailed Description

Definition at line 27 of file UtilVtk3DGeometriSelection.h.


Constructor & Destructor Documentation

UtilVtk3DGeometriSelection::UtilVtk3DGeometriSelection (  )

Definition at line 33 of file UtilVtk3DGeometriSelection.cxx.

References _depth, _height, _mCubes, and _width.

00034 {
00035         _width  =       0;
00036         _height =       0;
00037         _depth  =       0;
00038         _mCubes =       NULL;
00039 }

UtilVtk3DGeometriSelection::~UtilVtk3DGeometriSelection (  )

Definition at line 41 of file UtilVtk3DGeometriSelection.cxx.

00042 {
00043 }


Member Function Documentation

void UtilVtk3DGeometriSelection::SetDimentions ( int  w,
int  h,
int  d
)

Definition at line 45 of file UtilVtk3DGeometriSelection.cxx.

References _depth, _height, and _width.

Referenced by manualView3DContour::GetIdPoint2(), vtkInteractorStyle3DView::SelectMarchibCubePoint(), and vtk3DSurfaceWidget::SetInitialPoint().

00046 {
00047         _width  =       w;
00048         _height =       h;
00049         _depth  =       d;
00050 }

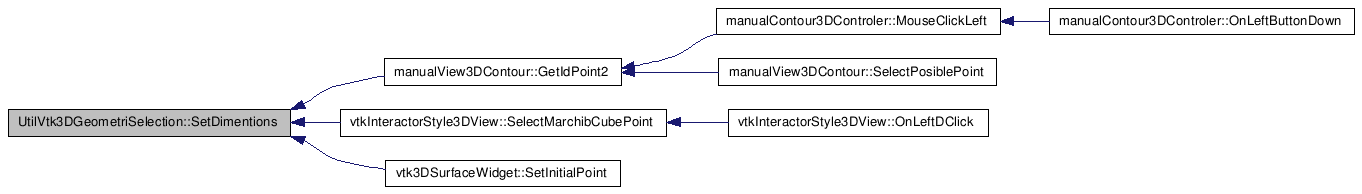

Here is the caller graph for this function:

void UtilVtk3DGeometriSelection::SetMarchingCube ( vtkMarchingCubes *  mCubes  )

Definition at line 52 of file UtilVtk3DGeometriSelection.cxx.

References _mCubes.

Referenced by vtkInteractorStyle3DView::SelectMarchibCubePoint(), and vtk3DSurfaceWidget::SetInitialPoint().

00053 {
00054         _mCubes = mCubes;
00055 }

Here is the caller graph for this function:

bool UtilVtk3DGeometriSelection::FindCubePointsFromPoints ( double *  pO,
double *  pF,
double *  pickPoint,
double *  cameraPos
)

Definition at line 57 of file UtilVtk3DGeometriSelection.cxx.

References _depth, _height, _width, and gtm::TVector< T >::GetAnsiRef().

Referenced by manualView3DContour::GetIdPoint2(), vtkInteractorStyle3DView::SelectMarchibCubePoint(), and vtk3DSurfaceWidget::SetInitialPoint().

00058 {
00059     gtm::TVector< double > p1( 3 ), p2( 3 ), p3( 3 ), p4( 3 ), p5( 3 ), p6( 3 );
00060     gtm::TVector< double > c( 3 );
00061     gtm::TVector< double >* swp;
00062     gtm::TVector< double > tpO( pO, 3, false ), tpF( pF, 3, false );
00063     std::vector< gtm::TVector< double >* > points;
00064     double x1[ 3 ], x2[ 3 ], x3[ 3 ], d1, d2;
00065     int i, j;
00066
00067     // 1st plane intersection
00068     x1[ 0 ] = 0; x1[ 1 ] = _height; x1[ 2 ] =      0;
00069     x2[ 0 ] = 0; x2[ 1 ] =       0; x2[ 2 ] =      0;
00070     x3[ 0 ] = 0; x3[ 1 ] =       0; x3[ 2 ] = _depth;
00071     if( this->IntersectPlaneWithLine( p1.GetAnsiRef( ), x1, x2, x3, cameraPos, pickPoint ) )
00072         points.push_back( &p1 );
00073
00074     // 2nd plane intersection
00075     x1[ 0 ] =      0; x1[ 1 ] = _height; x1[ 2 ] = _depth;
00076     x2[ 0 ] =      0; x2[ 1 ] =       0; x2[ 2 ] = _depth;
00077     x3[ 0 ] = _width; x3[ 1 ] =       0; x3[ 2 ] = _depth;
00078     if( this->IntersectPlaneWithLine( p2.GetAnsiRef( ), x1, x2, x3, cameraPos, pickPoint ) )
00079         points.push_back( &p2 );
00080
00081     // 3rd plane intersection
00082     x1[ 0 ] =      0; x1[ 1 ] = 0; x1[ 2 ] = _depth;
00083     x2[ 0 ] =      0; x2[ 1 ] = 0; x2[ 2 ] =      0;
00084     x3[ 0 ] = _width; x3[ 1 ] = 0; x3[ 2 ] =      0;
00085     if( this->IntersectPlaneWithLine( p3.GetAnsiRef( ), x1, x2, x3, cameraPos, pickPoint ) )
00086         points.push_back( &p3 );
00087
00088     // 4th plane intersection
00089     x1[ 0 ] = _width; x1[ 1 ] = _height; x1[ 2 ] = _depth;
00090     x2[ 0 ] = _width; x2[ 1 ] =       0; x2[ 2 ] = _depth;
00091     x3[ 0 ] = _width; x3[ 1 ] =       0; x3[ 2 ] =      0;
00092     if( this->IntersectPlaneWithLine( p4.GetAnsiRef( ), x1, x2, x3, cameraPos, pickPoint ) )
00093         points.push_back( &p4 );
00094
00095     // 5th plane intersection
00096     x1[ 0 ] = _width; x1[ 1 ] =       0; x1[ 2 ] = 0;
00097     x2[ 0 ] =      0; x2[ 1 ] =       0; x2[ 2 ] = 0;
00098     x3[ 0 ] =      0; x3[ 1 ] = _height; x3[ 2 ] = 0;
00099     if( this->IntersectPlaneWithLine( p5.GetAnsiRef( ), x1, x2, x3, cameraPos, pickPoint ) )
00100         points.push_back( &p5 );
00101
00102     // 6th plane intersection
00103     x1[ 0 ] =      0; x1[ 1 ] = _height; x1[ 2 ] =      0;
00104     x2[ 0 ] =      0; x2[ 1 ] = _height; x2[ 2 ] = _depth;
00105     x3[ 0 ] = _width; x3[ 1 ] = _height; x3[ 2 ] = _depth;
00106     if( this->IntersectPlaneWithLine( p6.GetAnsiRef( ), x1, x2, x3, cameraPos, pickPoint ) )
00107         points.push_back( &p6 );
00108
00109     if( points.size( ) >= 2 ) { // Did I find at least 2 points?
00110
00111         c( 0 ) = ( double )_width  / 2.0;
00112         c( 1 ) = ( double )_height / 2.0;
00113         c( 2 ) = ( double )_depth  / 2.0;
00114
00115         // Sort with bubble sort. Only 30 iterations!
00116         for( i = 0; i <(int) (points.size( )); i++ ) {
00117             for( j = 0; j < (int)(points.size( )) - 1; j++ ) {
00118
00119                 d1 = ( c - *points[ j ] ).GetNorm( );
00120                 d2 = ( c - *points[ j + 1 ] ).GetNorm( );
00121                 if( d2 < d1 ) {
00122
00123                     swp = points[ j ];
00124                     points[ j ] = points[ j + 1 ];
00125                     points[ j + 1 ] = swp;
00126
00127                 } // fi
00128
00129     } // rof
00130
00131         } // rof
00132
00133         // Order the two points according to distance to camera.
00134         c = cameraPos;
00135         d1 = ( c - *points[ 0 ] ).GetNorm( );
00136         d2 = ( c - *points[ 1 ] ).GetNorm( );
00137         tpO = ( d1 < d2 )? *points[ 0 ]: *points[ 1 ];
00138         tpF = ( d1 > d2 )? *points[ 0 ]: *points[ 1 ];
00139         return( true );
00140
00141     } else return( false );
00142
00143 }

Here is the call graph for this function:

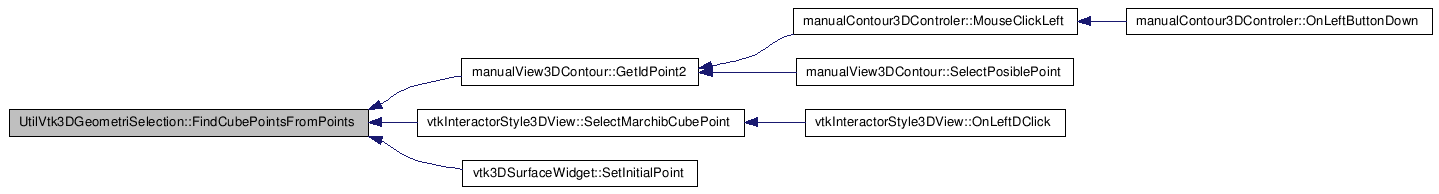

Here is the caller graph for this function:

bool UtilVtk3DGeometriSelection::GetPointAndNormalIntersection ( double *  p,
double *  n,
double *  pO,
double *  pF
)

Definition at line 145 of file UtilVtk3DGeometriSelection.cxx.

References _mCubes, gtm::TVector< T >::GetAnsiRef(), IntersectPlaneWithLine(), and gtm::TVector< T >::Normalize().

Referenced by vtkInteractorStyle3DView::SelectMarchibCubePoint(), and vtk3DSurfaceWidget::SetInitialPoint().

00146 {
00147     gtm::TVector< double > n1( 3 ), n2( 3 ), n3( 3 );
00148     int subId, cellId, returnVal;
00149     double t, pcoords[ 3 ], x[ 3 ];
00150     double fpO[ 3 ], fpF[ 3 ];
00151     double p1[ 3 ], p2[ 3 ], p3[ 3 ];
00152     vtkPolyData* data = _mCubes->GetOutput( );
00153     vtkCellLocator* locator = vtkCellLocator::New( );
00154
00155     locator->SetDataSet( data );
00156     locator->Initialize( );
00157     locator->Update( );
00158
00159     fpO[ 0 ] = pO[ 0 ]; fpO[ 1 ] = pO[ 1 ]; fpO[ 2 ] = pO[ 2 ];
00160     fpF[ 0 ] = pF[ 0 ]; fpF[ 1 ] = pF[ 1 ]; fpF[ 2 ] = pF[ 2 ];
00161     returnVal = locator->IntersectWithLine( fpO, fpF, 0.1, t, x, pcoords, subId, cellId );
00162     locator->Delete( );
00163
00164     if( returnVal )
00165     {
00166         vtkCell* cell = data->GetCell( cellId );
00167         vtkPoints* points = cell->GetPoints( );
00168
00169         data->GetPointData( )->GetNormals( )->GetTuple( cell->GetPointIds( )->GetId( 0 ), n1.GetAnsiRef( ) );
00170         data->GetPointData( )->GetNormals( )->GetTuple( cell->GetPointIds( )->GetId( 1 ), n2.GetAnsiRef( ) );
00171         data->GetPointData( )->GetNormals( )->GetTuple( cell->GetPointIds( )->GetId( 2 ), n3.GetAnsiRef( ) );
00172
00173         n1 += n2 + n3;
00174         n1 *= ( 1.0 / 3.0 );
00175         n1.Normalize( );
00176         n[ 0 ] = n1( 0 ); n[ 1 ] = n1( 1 ); n[ 2 ] = n1( 2 );
00177
00178         points->GetPoint( 0, p1 );
00179         points->GetPoint( 1, p2 );
00180         points->GetPoint( 2, p3 );
00181         this->IntersectPlaneWithLine( p, p1, p2, p3, pO, pF );
00182         return( true );
00183     } else return( false );
00184
00185 }

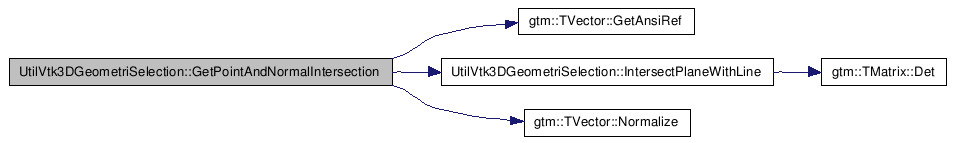

Here is the call graph for this function:

Here is the caller graph for this function:

bool UtilVtk3DGeometriSelection::IntersectPlaneWithLine ( double *  p,
double *  x1,
double *  x2,
double *  x3,
double *  x4,
double *  x5
)

Definition at line 188 of file UtilVtk3DGeometriSelection.cxx.

References gtm::TMatrix< T >::Det().

Referenced by GetPointAndNormalIntersection().

00189 {
00190     gtm::TVector< double > vx1( 3 ), vx2( 3 ), vx3( 3 );
00191     gtm::TVector< double > vx4( 3 ), vx5( 3 ), vx6( p, 3, false );
00192     gtm::TMatrix< double > mU( 4, 4 ), mD( 4, 4 );
00193     double t;
00194     bool ret;
00195
00196     vx1 = x1;
00197     vx2 = x2;
00198     vx3 = x3;
00199     vx4 = x4;
00200     vx5 = x5;
00201     vx6 = vx5 - vx4;
00202
00203     mD( 0, 0 ) = mU( 0, 0 ) = 1;
00204     mD( 0, 1 ) = mU( 0, 1 ) = vx1( 0 );
00205     mD( 0, 2 ) = mU( 0, 2 ) = vx1( 1 );
00206     mD( 0, 3 ) = mU( 0, 3 ) = vx1( 2 );
00207     mD( 1, 0 ) = mU( 1, 0 ) = 1;
00208     mD( 1, 1 ) = mU( 1, 1 ) = vx2( 0 );
00209     mD( 1, 2 ) = mU( 1, 2 ) = vx2( 1 );
00210     mD( 1, 3 ) = mU( 1, 3 ) = vx2( 2 );
00211     mD( 2, 0 ) = mU( 2, 0 ) = 1;
00212     mD( 2, 1 ) = mU( 2, 1 ) = vx3( 0 );
00213     mD( 2, 2 ) = mU( 2, 2 ) = vx3( 1 );
00214     mD( 2, 3 ) = mU( 2, 3 ) = vx3( 2 );
00215     mU( 3, 0 ) = 1;
00216     mU( 3, 1 ) = vx4( 0 );
00217     mU( 3, 2 ) = vx4( 1 );
00218     mU( 3, 3 ) = vx4( 2 );
00219     mD( 3, 0 ) = 0;
00220     mD( 3, 1 ) = vx6( 0 );
00221     mD( 3, 2 ) = vx6( 1 );
00222     mD( 3, 3 ) = vx6( 2 );
00223
00224     ret = ( mD.Det( ) != 0 );
00225     if( ret ) {
00226
00227         t = mU.Det( ) / mD.Det( );
00228         vx6 = ( ( vx4 - vx5 ) * t ) + vx4;
00229
00230     } // fi
00231     return( ret );
00232
00233 }

Here is the call graph for this function:

Here is the caller graph for this function:

double UtilVtk3DGeometriSelection::DistanceMinPointToLine ( double *  p,
double *  pA,
double *  pB
)

Definition at line 264 of file UtilVtk3DGeometriSelection.cxx.

References IntersectionPlaneAndLine().

Referenced by manualView3DContour::GetIdPoint2().

00265 {
00266         double pResult[3];
00267         double normalToPlane[3];
00268         normalToPlane[0]=pA[0]-pB[0];
00269         normalToPlane[1]=pA[1]-pB[1];
00270         normalToPlane[2]=pA[2]-pB[2];
00271     IntersectionPlaneAndLine(pResult,normalToPlane,p,pA,pB);
00272
00273         double dx = p[0]-pResult[0];
00274         double dy = p[1]-pResult[1];
00275         double dz = p[2]-pResult[2];
00276
00277     double result=sqrt( dx*dx + dy*dy + dz*dz );
00278
00279         return result;
00280 }

Here is the call graph for this function:

Here is the caller graph for this function:

void UtilVtk3DGeometriSelection::IntersectionPlaneAndLine ( double *  pResult,
double *  n,
double *  p,
double *  pA,
double *  pB
)

Definition at line 243 of file UtilVtk3DGeometriSelection.cxx.

Referenced by DistanceMinPointToLine().

00244 {
00245         double u,A,B,D;
00246         D = - (n[0]*p[0] + n[1]*p[1] + n[2]*p[2]) ;
00247         A= n[0]*pA[0] +  n[1]*pA[1] + n[2]*pA[2] + D;
00248         B= n[0]*(pA[0]-pB[0]) +  n[1]*(pA[1]-pB[1]) + n[2]*(pA[2]-pB[2]);
00249         if (B!=0)
00250         {
00251                 u = A / B ;
00252         } else {
00253                 u=-1;
00254         }
00255         pResult[0] = pA[0] + u*(pB[0] - pA[0]);
00256         pResult[1] = pA[1] + u*(pB[1] - pA[1]);
00257         pResult[2] = pA[2] + u*(pB[2] - pA[2]);
00258 }

Here is the caller graph for this function:


Member Data Documentation

int UtilVtk3DGeometriSelection::_width [private]

Definition at line 43 of file UtilVtk3DGeometriSelection.h.

Referenced by FindCubePointsFromPoints(), SetDimentions(), and UtilVtk3DGeometriSelection().

int UtilVtk3DGeometriSelection::_height [private]

Definition at line 44 of file UtilVtk3DGeometriSelection.h.

Referenced by FindCubePointsFromPoints(), SetDimentions(), and UtilVtk3DGeometriSelection().

int UtilVtk3DGeometriSelection::_depth [private]

Definition at line 45 of file UtilVtk3DGeometriSelection.h.

Referenced by FindCubePointsFromPoints(), SetDimentions(), and UtilVtk3DGeometriSelection().

vtkMarchingCubes* UtilVtk3DGeometriSelection::_mCubes [private]

Definition at line 46 of file UtilVtk3DGeometriSelection.h.

Referenced by GetPointAndNormalIntersection(), SetMarchingCube(), and UtilVtk3DGeometriSelection().


The documentation for this class was generated from the following files:
Generated on Wed Jul 29 16:36:09 2009 for creaMaracasVisu_lib by  doxygen 1.5.3
