mpWindow Class Reference

#include <mathplot.h>

Inheritance diagram for mpWindow:

Inheritance graph
[legend]

List of all members.

Public Member Functions

 mpWindow ()
 mpWindow (wxWindow *parent, wxWindowID id, const wxPoint &pos=wxDefaultPosition, const wxSize &size=wxDefaultSize, int flags=0)
 ~mpWindow ()
wxMenu * GetPopupMenu ()
void setType (int t)
int getType ()
void setMaxScrX (int maxX)
void setMaxScrY (int maxY)
double getMaxScrX ()
double getMaxScrY ()
float getZoomFactor ()
void setMinScrX (int minX)
void setMinScrY (int minY)
double getMinScrX ()
double getMinScrY ()
int getClickedX ()
int getClickedY ()
int getOffsetPixelsX ()
int getOffsetPixelsY ()
void setOffsetPixelX (int offX)
void setOffsetPixelY (int offY)
int getOffsetX ()
int getOffsetY ()
void setOffsetX (int offX)
void setOffsetY (int offY)

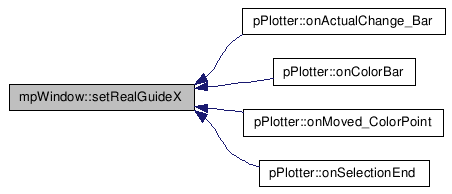

void setRealGuideX (int newX_realGuide)
int getRealGuideX ()
void setRealGuideY (int newY_realGuide)
int getRealGuideY ()
bool drawGuideLines ()

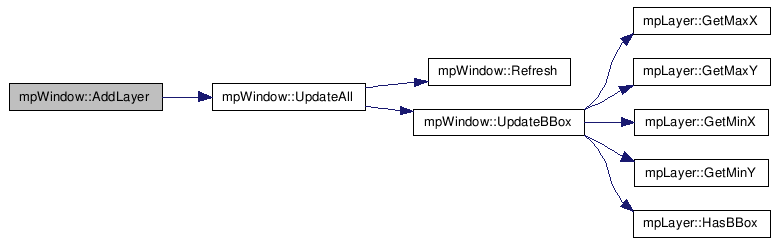

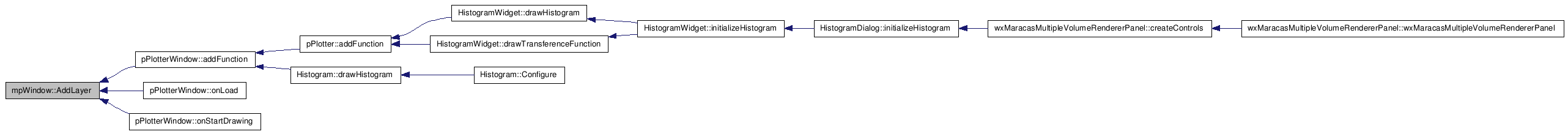

bool AddLayer (mpLayer *layer)
void DelLayer (mpLayer *layer)
double GetScaleX (void) const
double GetScaleY (void) const

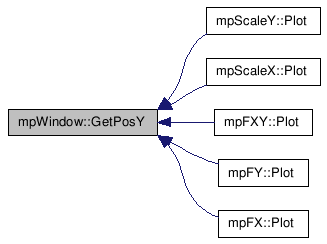

double GetPosX (void) const
double GetPosY (void) const
int GetScrX (void) const
int GetScrY (void) const
void SetScaleX (double scaleX)
void SetScaleY (double scaleY)
void SetPosX (double posX)
void SetPosY (double posY)
void SetPos (double posX, double posY)
void LockAspect (bool enable=TRUE)
bool IsAspectLocked ()

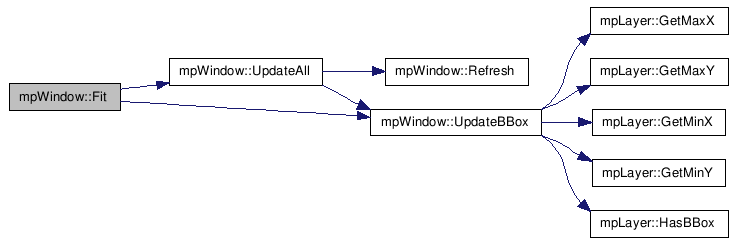

void Fit ()
void ZoomIn ()
void ZoomOut ()
void UpdateAll ()
int GetYTranslated (wxSize size, double y)

Protected Member Functions

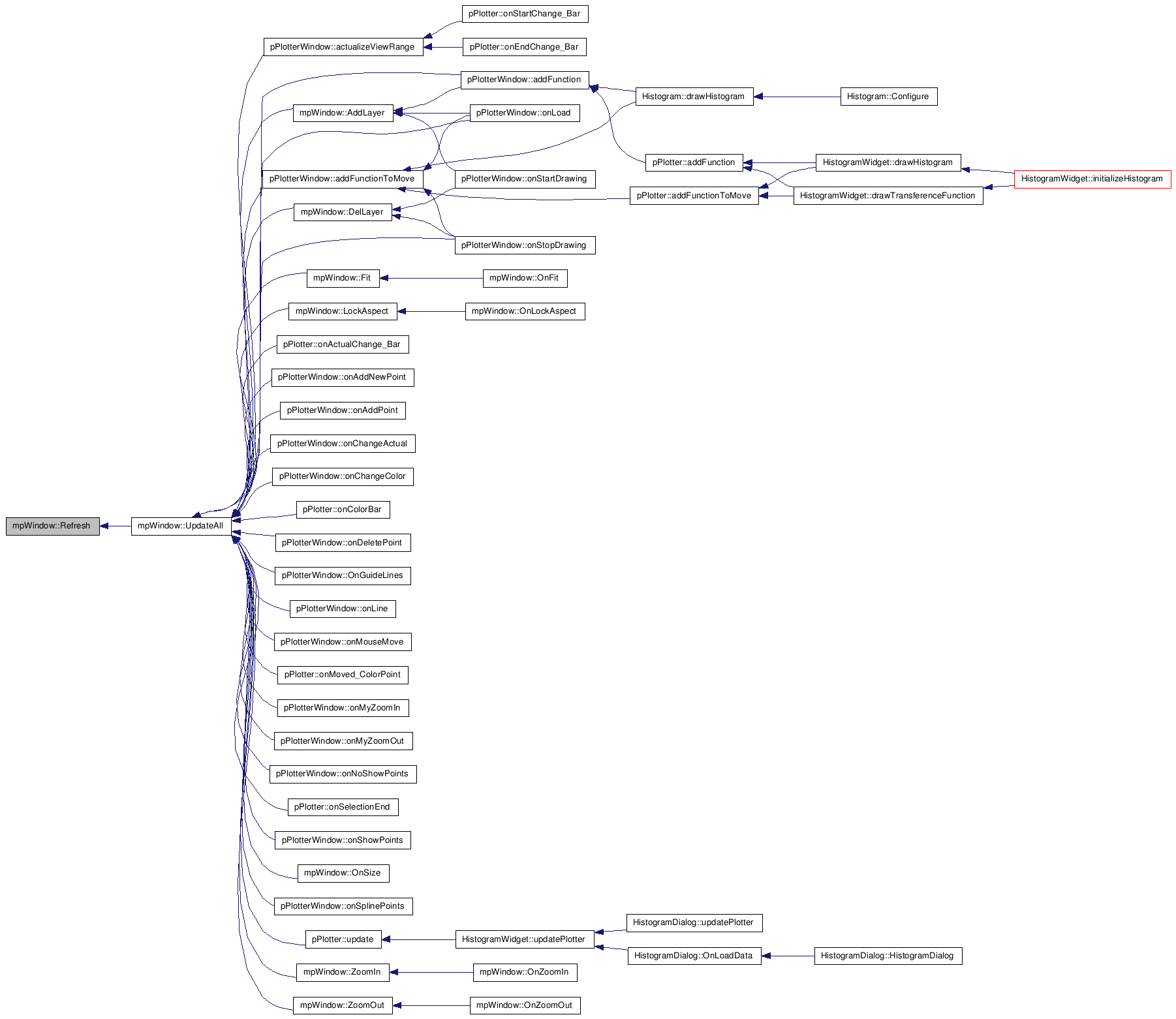

void Refresh (bool eraseBackground=true, const wxRect *rect=NULL)
void OnPaint (wxPaintEvent &event)
 Paint handler, will plot all attached layers.
void OnSize (wxSizeEvent &event)
 Size handler, will update scroll bar sizes.
void OnScroll2 (wxScrollWinEvent &event)
 Scroll handler, will move canvas.
void OnShowPopupMenu (wxMouseEvent &event)
 Mouse handler, will show context menu.
void OnCenter (wxCommandEvent &event)
 Context menu handler.
void OnFit (wxCommandEvent &event)
 Context menu handler.
void OnZoomIn (wxCommandEvent &event)
 Context menu handler.
void OnZoomOut (wxCommandEvent &event)
 Context menu handler.

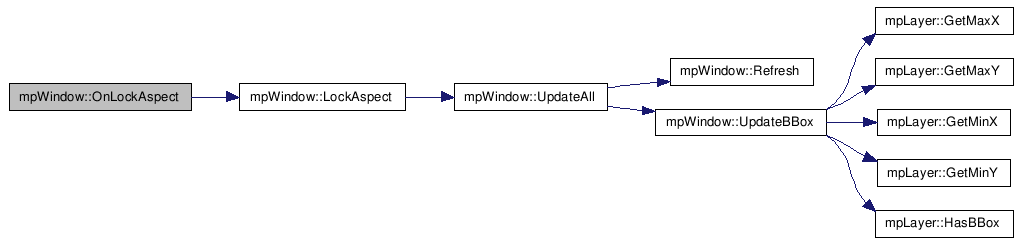

void OnLockAspect (wxCommandEvent &event)
 Context menu handler.

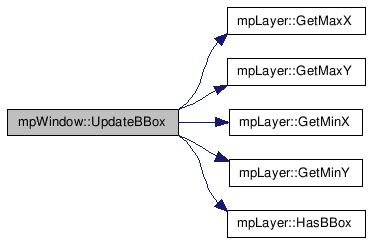

bool UpdateBBox ()
 Recalculate global layer bounding box.

Protected Attributes

wxList m_layers
 List of attached plot layers.
wxMenu m_popmenu
 Canvas' context menu.
bool m_lockaspect
 Scale aspect is locked or not.
double m_minX
 Global layer bounding box, left border incl.
double m_maxX
 Global layer bounding box, right border incl.
double m_minY
 Global layer bounding box, bottom border incl.
double m_maxY
 Global layer bounding box, top border incl.
double m_scaleX
 Current view's X scale.
double m_scaleY
 Current view's Y scale.
double m_posX
 Current view's X position.
double m_posY
 Current view's Y position.
int m_scrX
 Current view's X dimension.
int m_scrY
 Current view's Y dimension.
int m_clickedX
 Last mouse click X position, for centering and zooming the view.
int m_clickedY
 Last mouse click Y position, for centering and zooming the view.
int maxScrX
int maxScrY
int minScrX
int minScrY
float zoomFactor
int offsetPixelX
int offsetPixelY
int offsetX
int offsetY
int real_guideLine_X
int real_guideLine_Y
bool drawGuides
int type

Private Attributes

wxBitmap * _bitmap_functions


Detailed Description

Canvas for plotting mpLayer implementations.

This class defines a zoomable and moveable 2D plot canvas. Any number of mpLayer implementations (scale rulers, function plots, ...) can be attached using mpWindow::AddLayer.

The canvas window provides a context menu with actions for navigating the view. The context menu can be retrieved with mpWindow::GetPopupMenu, e.g. for extending it externally.

Definition at line 433 of file mathplot.h.


Constructor & Destructor Documentation

mpWindow::mpWindow (  )  [inline]

Definition at line 436 of file mathplot.h.

00436 {}

mpWindow::mpWindow ( wxWindow *  parent,
wxWindowID  id,
const wxPoint &  pos = wxDefaultPosition,
const wxSize &  size = wxDefaultSize,
int  flags = 0
)

Definition at line 396 of file mathplot.cxx.

References mpID_LINE_GUIDES.

00397 : wxScrolledWindow( parent, id, pos, size, flag, wxT("wxPlotter") )
00398 {
00399         m_scaleX = m_scaleY = 1.0;
00400         m_posX   = m_posY   = 0;
00401         m_scrX   = m_scrY   = 64;
00402         m_minX   = m_minY   = 0;
00403         m_maxX   = m_maxY   = 0;
00404         maxScrX = maxScrY   = 200;
00405         minScrX = minScrY   = 0;
00406         m_clickedX =  0;
00407         m_clickedY = 5000;
00408         m_lockaspect = FALSE;
00409         offsetX = offsetY = 0;
00410         offsetPixelX = offsetPixelY= 0;
00411
00412         real_guideLine_X = -1;
00413         real_guideLine_Y = -1;
00414         drawGuides = true;
00415         type=1;
00416
00417         m_popmenu.Append( mpID_CENTER,     _("Center"),      _("Center plot view to this position"));
00418         m_popmenu.Append( mpID_FIT,        _("Fit"),         _("Set plot view to show all items"));
00419         m_popmenu.Append( mpID_ZOOM_IN,    _("Zoom in"),     _("Zoom in plot view."));
00420         m_popmenu.Append( mpID_ZOOM_OUT,   _("Zoom out"),    _("Zoom out plot view."));
00421         m_popmenu.AppendCheckItem( mpID_LOCKASPECT, _("Lock aspect"), _("Lock horizontal and vertical zoom aspect."));
00422
00423         m_popmenu.AppendCheckItem( mpID_LINE_GUIDES, _("Turn off guide lines"), _("Enables/Disables the guide lines"));
00424
00425         m_layers.DeleteContents(TRUE);
00426         SetBackgroundColour( *wxWHITE );
00427         EnableScrolling(FALSE, FALSE);
00428         SetSizeHints(128, 128);
00429
00430         //_bitmap_functions= new wxBitmap(700,800);
00431
00432         UpdateAll();
00433 }

mpWindow::~mpWindow (  )

Definition at line 435 of file mathplot.cxx.

00436 {
00437 }


Member Function Documentation

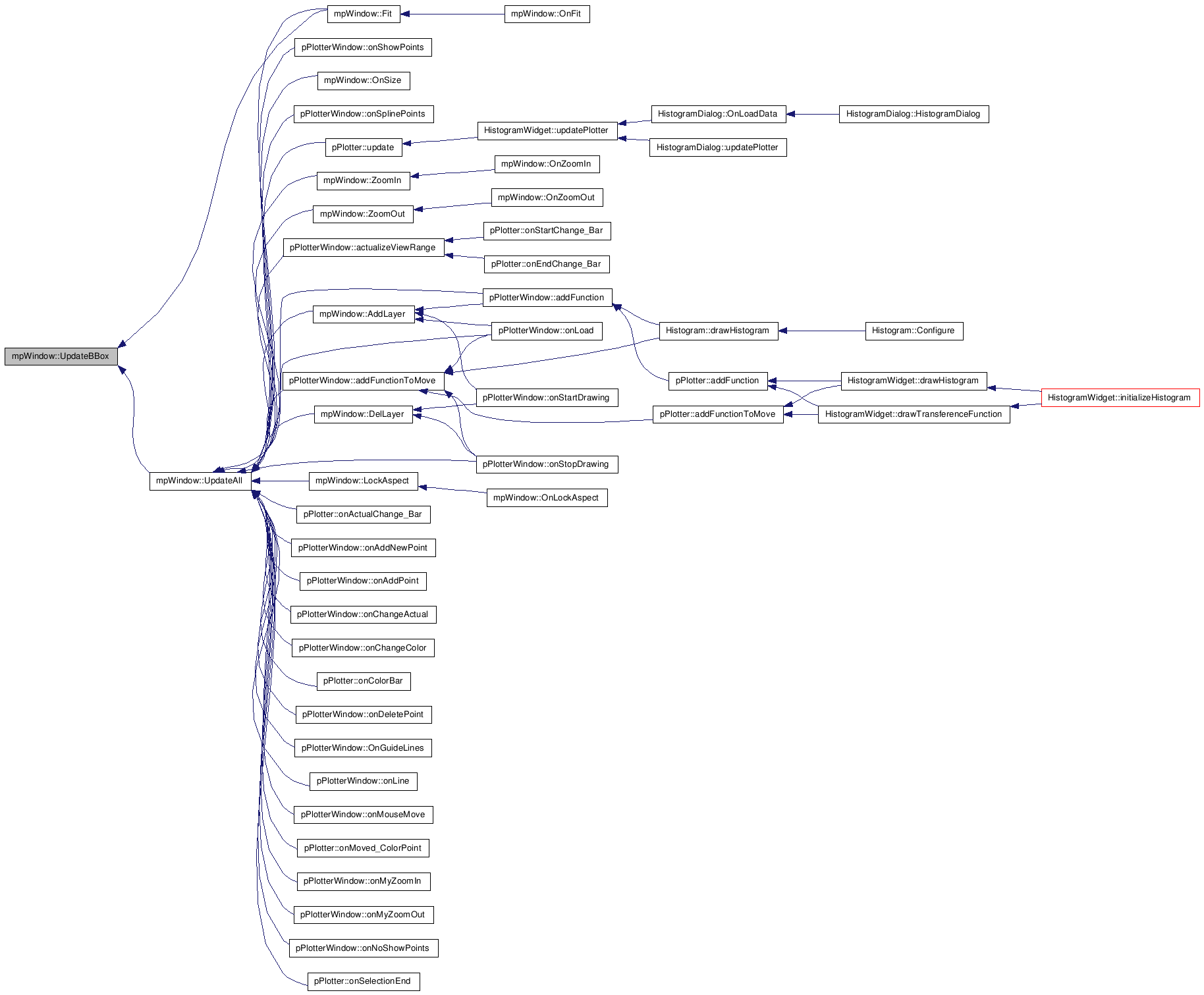

wxMenu* mpWindow::GetPopupMenu (  )  [inline]

Get reference to context menu of the plot canvas.

Returns:
Pointer to menu. The menu can be modified.

Definition at line 446 of file mathplot.h.

00446 { return &m_popmenu; }

void mpWindow::setType ( int  t  )  [inline]

Definition at line 454 of file mathplot.h.

Referenced by pPlotter::setType().

00455         {
00456                 type=t;
00457         }

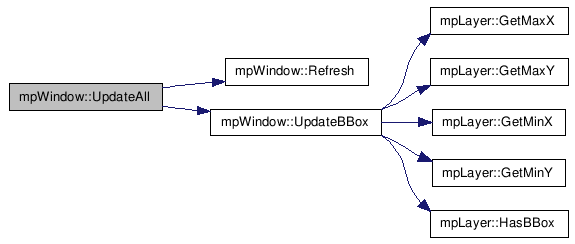

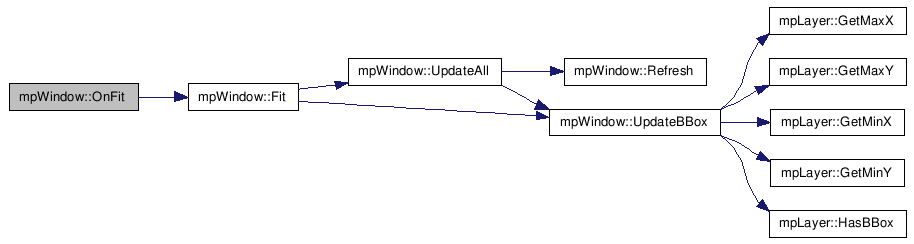

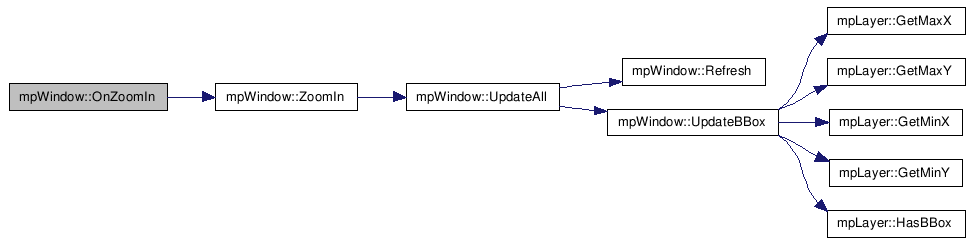

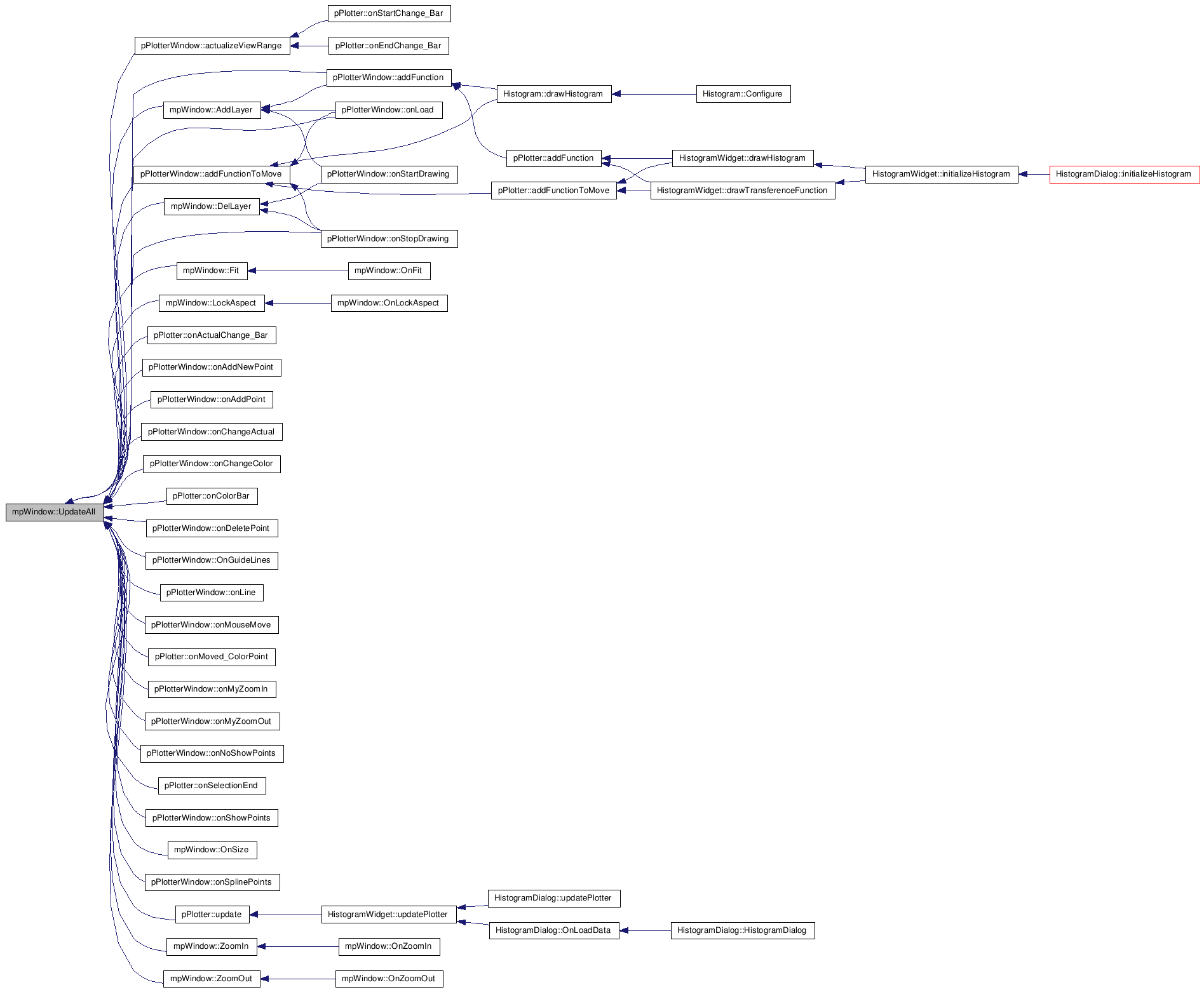

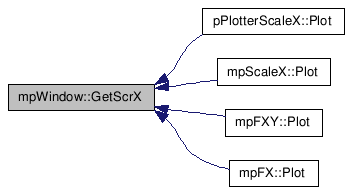

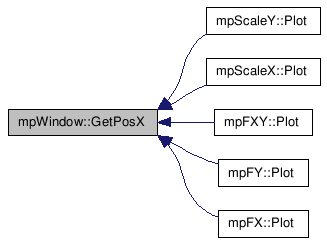

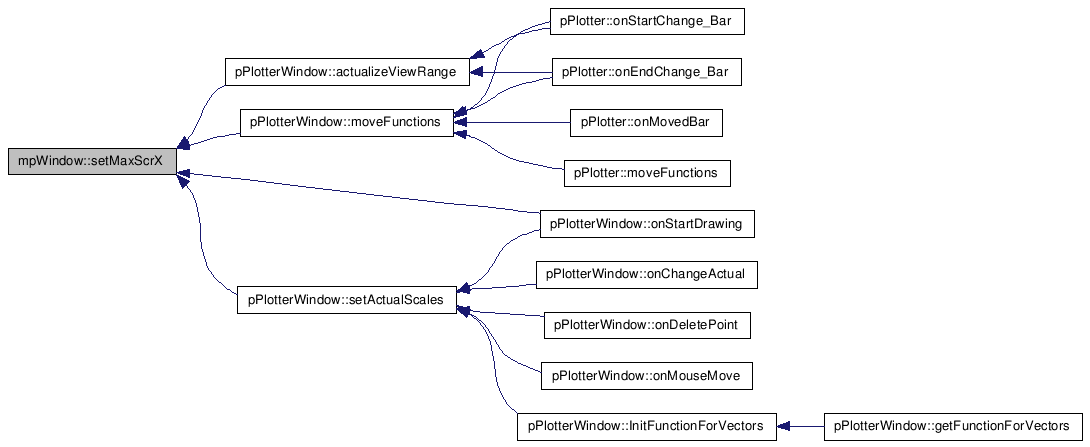

Here is the caller graph for this function:

int mpWindow::getType (  )  [inline]

Definition at line 461 of file mathplot.h.

Referenced by pPlotter::update().

00462         {
00463                 return type;
00464         }

Here is the caller graph for this function:

void mpWindow::setMaxScrX ( int  maxX  )  [inline]

set the max value in the x axis

Parameters:
maxX

Definition at line 471 of file mathplot.h.

Referenced by pPlotterWindow::actualizeViewRange(), pPlotterWindow::moveFunctions(), pPlotterWindow::onStartDrawing(), and pPlotterWindow::setActualScales().

00472         {
00473                 maxScrX=maxX;
00474         }

Here is the caller graph for this function:

void mpWindow::setMaxScrY ( int  maxY  )  [inline]

set the max value in the y axis

Parameters:
maxY

Definition at line 479 of file mathplot.h.

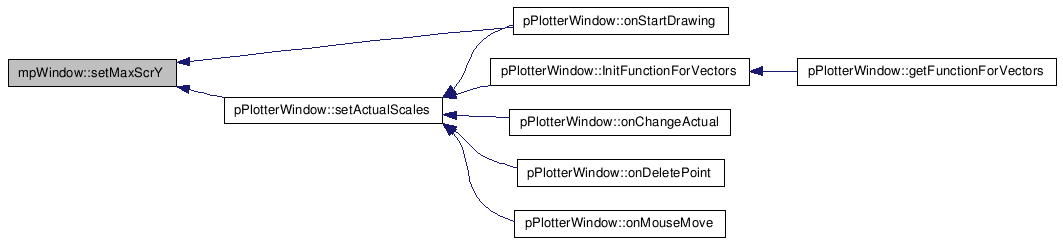

Referenced by pPlotterWindow::onStartDrawing(), and pPlotterWindow::setActualScales().

00480         {
00481                 maxScrY=maxY;
00482         }

Here is the caller graph for this function:

double mpWindow::getMaxScrX (  )  [inline]

Get maximum value in x

Returns:
maxScrX

Definition at line 488 of file mathplot.h.

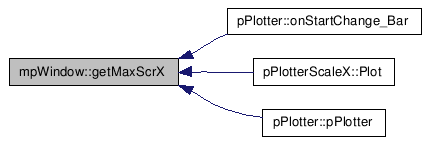

Referenced by pPlotter::onStartChange_Bar(), pPlotterScaleX::Plot(), and pPlotter::pPlotter().

00489         {
00490                 return maxScrX;
00491         }

Here is the caller graph for this function:

double mpWindow::getMaxScrY (  )  [inline]

Get maximum value in y

Returns:
maxScrY

Definition at line 495 of file mathplot.h.

Referenced by pPlotterScaleY::Plot().

00496         {
00497                 return maxScrY;
00498         }

Here is the caller graph for this function:

float mpWindow::getZoomFactor (  )  [inline]

Definition at line 502 of file mathplot.h.

Referenced by pPlotterScaleY::Plot(), and pPlotterScaleX::Plot().

00503         {
00504                 return zoomFactor;
00505         }

Here is the caller graph for this function:

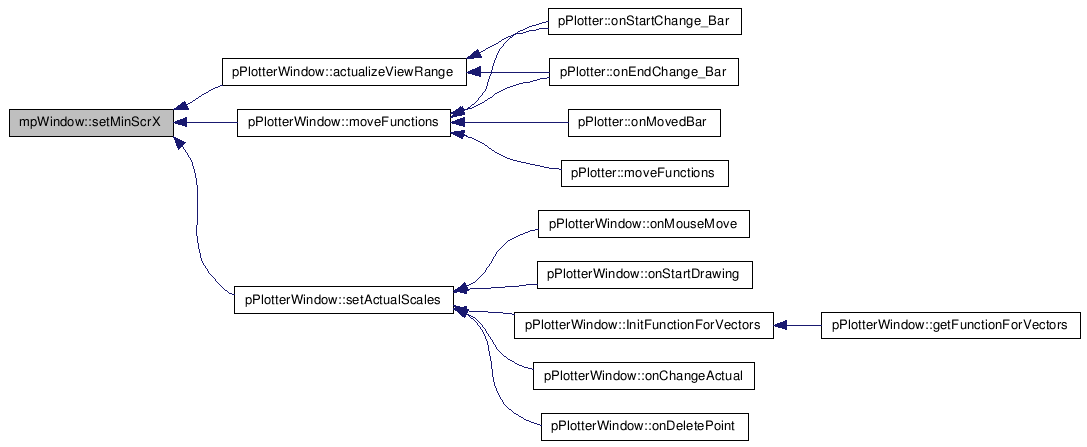

void mpWindow::setMinScrX ( int  minX  )  [inline]

set the min value in the x axis

Parameters:
minX

Definition at line 510 of file mathplot.h.

Referenced by pPlotterWindow::actualizeViewRange(), pPlotterWindow::moveFunctions(), and pPlotterWindow::setActualScales().

00511         {
00512                 minScrX=minX;
00513         }

Here is the caller graph for this function:

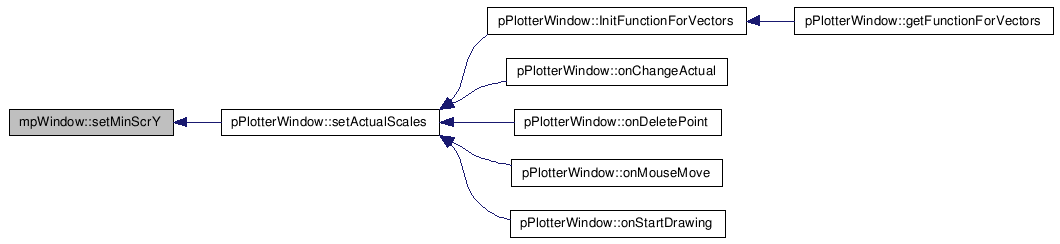

void mpWindow::setMinScrY ( int  minY  )  [inline]

set the min value in the y axis

Parameters:
minY

Definition at line 518 of file mathplot.h.

Referenced by pPlotterWindow::setActualScales().

00519         {
00520                 minScrY=minY;
00521         }

Here is the caller graph for this function:

double mpWindow::getMinScrX (  )  [inline]

Get miniimum value in x

Returns:
minScrX

Definition at line 527 of file mathplot.h.

Referenced by pPlotter::onEndChange_Bar(), and pPlotterScaleX::Plot().

00528         {
00529                 return minScrX;
00530         }

Here is the caller graph for this function:

double mpWindow::getMinScrY (  )  [inline]

Get minimum value in y

Returns:
minScrY

Definition at line 534 of file mathplot.h.

Referenced by pPlotterScaleY::Plot().

00535         {
00536                 return minScrY;
00537         }

Here is the caller graph for this function:

int mpWindow::getClickedX (  )  [inline]

Get the x-clicked by the user

Returns:
m_clickedX

Definition at line 543 of file mathplot.h.

00544         {
00545                 return m_clickedX;
00546         }

int mpWindow::getClickedY (  )  [inline]

Get the y-clicked by the user

Returns:
m_clickedY

Definition at line 552 of file mathplot.h.

00553         {
00554                 return m_clickedY;
00555         }

int mpWindow::getOffsetPixelsX (  )  [inline]

Gets the x-offset of the zoom in pixels

Definition at line 561 of file mathplot.h.

Referenced by pPlotterScaleX::Plot().

00562         {
00563                 return offsetPixelX;
00564         }

Here is the caller graph for this function:

int mpWindow::getOffsetPixelsY (  )  [inline]

Gets the offset of the zoom in pixels

Definition at line 570 of file mathplot.h.

Referenced by pPlotterScaleY::Plot().

00571         {
00572                 return offsetPixelY;
00573         }

Here is the caller graph for this function:

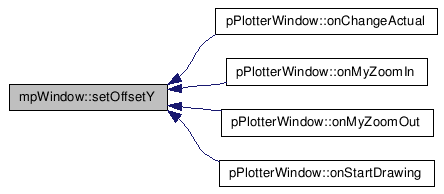

void mpWindow::setOffsetPixelX ( int  offX  )  [inline]

Set the x-offset of the zoom

Definition at line 577 of file mathplot.h.

Referenced by pPlotterWindow::onChangeActual(), pPlotterWindow::onMyZoomIn(), pPlotterWindow::onMyZoomOut(), and pPlotterWindow::onStartDrawing().

00578         {
00579                 offsetPixelX=offX;
00580         }

Here is the caller graph for this function:

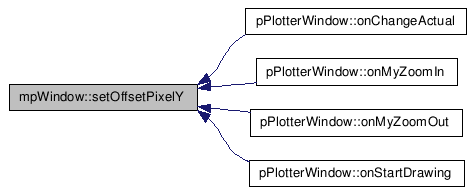

void mpWindow::setOffsetPixelY ( int  offY  )  [inline]

Set the y-offset of the zoom

Definition at line 584 of file mathplot.h.

Referenced by pPlotterWindow::onChangeActual(), pPlotterWindow::onMyZoomIn(), pPlotterWindow::onMyZoomOut(), and pPlotterWindow::onStartDrawing().

00585         {
00586                 offsetPixelY=offY;
00587         }

Here is the caller graph for this function:

int mpWindow::getOffsetX (  )  [inline]

Gets the x-offset of the zoom

Definition at line 592 of file mathplot.h.

Referenced by pPlotterScaleX::Plot().

00593         {
00594                 return offsetX;
00595         }

Here is the caller graph for this function:

int mpWindow::getOffsetY (  )  [inline]

Gets the offset of the zoom

Definition at line 600 of file mathplot.h.

Referenced by pPlotterScaleY::Plot().

00601         {
00602                 return offsetY;
00603         }

Here is the caller graph for this function:

void mpWindow::setOffsetX ( int  offX  )  [inline]

Set the x-offset of the zoom

Definition at line 607 of file mathplot.h.

Referenced by pPlotterWindow::actualizeViewRange(), pPlotterWindow::moveFunctions(), pPlotterWindow::onChangeActual(), pPlotterWindow::onMyZoomIn(), pPlotterWindow::onMyZoomOut(), and pPlotterWindow::onStartDrawing().

00608         {
00609                 offsetX=offX;
00610         }

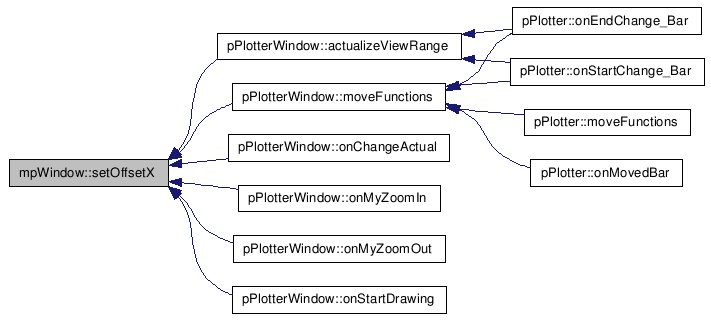

Here is the caller graph for this function:

void mpWindow::setOffsetY ( int  offY  )  [inline]

Set the y-offset of the zoom

Definition at line 614 of file mathplot.h.

Referenced by pPlotterWindow::onChangeActual(), pPlotterWindow::onMyZoomIn(), pPlotterWindow::onMyZoomOut(), and pPlotterWindow::onStartDrawing().

00615         {
00616                 offsetY=offY;
00617         }

Here is the caller graph for this function:

void mpWindow::setRealGuideX ( int  newX_realGuide  )  [inline]

Definition at line 623 of file mathplot.h.

Referenced by pPlotter::onActualChange_Bar(), pPlotter::onColorBar(), pPlotter::onMoved_ColorPoint(), and pPlotter::onSelectionEnd().

00624         {
00625                 real_guideLine_X = newX_realGuide;
00626                 if(real_guideLine_X!=-1)
00627                         UpdateAll();
00628         }

Here is the caller graph for this function:

int mpWindow::getRealGuideX (  )  [inline]

Definition at line 634 of file mathplot.h.

Referenced by pPlotterLayer::Plot().

00635         {
00636                 return real_guideLine_X;
00637         }

Here is the caller graph for this function:

void mpWindow::setRealGuideY ( int  newY_realGuide  )  [inline]

Definition at line 643 of file mathplot.h.

00644         {
00645                 real_guideLine_Y = newY_realGuide;
00646                 if(real_guideLine_Y!=-1)
00647                         UpdateAll();
00648         }

int mpWindow::getRealGuideY (  )  [inline]

Definition at line 654 of file mathplot.h.

Referenced by pPlotterLayer::Plot().

00655         {
00656                 return real_guideLine_Y;
00657         }

Here is the caller graph for this function:

bool mpWindow::drawGuideLines (  )

Reimplemented in pPlotterWindow.

Definition at line 746 of file mathplot.cxx.

References drawGuides.

Referenced by pPlotterLayer::drawLineToMousePoint().

00747         {
00748                 return drawGuides;
00749         }

Here is the caller graph for this function:

bool mpWindow::AddLayer ( mpLayer layer  )

Add a plot layer to the canvas.

Parameters:
layer Pointer to layer. The mpLayer object will get under control of mpWindow, i.e. it will be delete'd on mpWindow destruction
Return values:
TRUE Success
FALSE Failure due to out of memory.

Definition at line 544 of file mathplot.cxx.

References m_layers, and UpdateAll().

Referenced by pPlotterWindow::addFunction(), pPlotterWindow::onLoad(), and pPlotterWindow::onStartDrawing().

00545 {
00546         bool ret = m_layers.Append( layer) != NULL;
00547         UpdateAll();
00548         return ret;
00549 }

Here is the call graph for this function:

Here is the caller graph for this function:

void mpWindow::DelLayer ( mpLayer layer  )

Remove a plot layer from the canvas.

Parameters:
layer Pointer to layer. The mpLayer object will be destructed using delete.

Definition at line 551 of file mathplot.cxx.

References m_layers, and UpdateAll().

Referenced by pPlotterWindow::onStartDrawing(), and pPlotterWindow::onStopDrawing().

00552 {
00553         m_layers.DeleteObject( layer);
00554         UpdateAll();
00555 }

Here is the call graph for this function:

Here is the caller graph for this function:

double mpWindow::GetScaleX ( void   )  const [inline]

Get current view's X scale. See rules for coordinate transformation

Returns:
Scale

Definition at line 704 of file mathplot.h.

Referenced by OnScroll2(), mpScaleY::Plot(), mpScaleX::Plot(), mpFXY::Plot(), mpFY::Plot(), and mpFX::Plot().

00704 { return m_scaleX; }

Here is the caller graph for this function:

double mpWindow::GetScaleY ( void   )  const [inline]

Get current view's Y scale. See rules for coordinate transformation

Returns:
Scale

Definition at line 710 of file mathplot.h.

Referenced by OnScroll2(), mpScaleY::Plot(), mpScaleX::Plot(), mpFXY::Plot(), mpFY::Plot(), and mpFX::Plot().

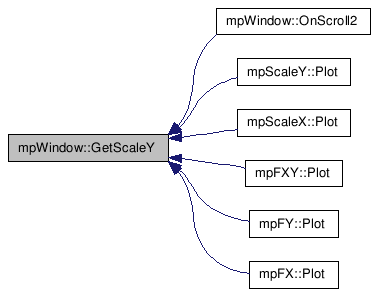

00710 { return m_scaleY; }

Here is the caller graph for this function:

double mpWindow::GetPosX ( void   )  const [inline]

Get current view's X position. See rules for coordinate transformation

Returns:
X Position in layer coordinate system, that corresponds to the center point of the view.

Definition at line 716 of file mathplot.h.

Referenced by mpScaleY::Plot(), mpScaleX::Plot(), mpFXY::Plot(), mpFY::Plot(), and mpFX::Plot().

00716 { return m_posX; }

Here is the caller graph for this function:

double mpWindow::GetPosY ( void   )  const [inline]

Get current view's Y position. See rules for coordinate transformation

Returns:
Y Position in layer coordinate system, that corresponds to the center point of the view.

Definition at line 722 of file mathplot.h.

Referenced by mpScaleY::Plot(), mpScaleX::Plot(), mpFXY::Plot(), mpFY::Plot(), and mpFX::Plot().

00722 { return m_posY; }

Here is the caller graph for this function:

int mpWindow::GetScrX ( void   )  const [inline]

Get current view's X dimension in device context units. Usually this is equal to wxDC::GetSize, but it might differ thus mpLayer implementations should rely on the value returned by the function. See rules for coordinate transformation

Returns:
X dimension.

Definition at line 730 of file mathplot.h.

Referenced by pPlotterScaleX::Plot(), mpScaleX::Plot(), mpFXY::Plot(), and mpFX::Plot().

00730 { return m_scrX; }

Here is the caller graph for this function:

int mpWindow::GetScrY ( void   )  const [inline]

Get current view's Y dimension in device context units. Usually this is equal to wxDC::GetSize, but it might differ thus mpLayer implementations should rely on the value returned by the function. See rules for coordinate transformation

Returns:
Y dimension.

Definition at line 738 of file mathplot.h.

Referenced by pPlotterScaleY::Plot(), mpScaleY::Plot(), mpFXY::Plot(), and mpFY::Plot().

00738 { return m_scrY; }

Here is the caller graph for this function:

void mpWindow::SetScaleX ( double  scaleX  )  [inline]

Set current view's X scale and refresh display.

Parameters:
scaleX New scale, must not be 0.

Definition at line 744 of file mathplot.h.

Referenced by pPlotterLayer::Plot().

00744 { if (scaleX!=0) m_scaleX=scaleX; /*UpdateAll();*/ }

Here is the caller graph for this function:

void mpWindow::SetScaleY ( double  scaleY  )  [inline]

Set current view's Y scale and refresh display.

Parameters:
scaleY New scale, must not be 0.

Definition at line 749 of file mathplot.h.

Referenced by pPlotterLayer::Plot().

00749 { if (scaleY!=0) m_scaleY=scaleY; /*UpdateAll();*/ }

Here is the caller graph for this function:

void mpWindow::SetPosX ( double  posX  )  [inline]

Set current view's X position and refresh display.

Parameters:
posX New position that corresponds to the center point of the view.

Definition at line 754 of file mathplot.h.

Referenced by OnScroll2().

00754 { m_posX=posX; UpdateAll(); }

Here is the caller graph for this function:

void mpWindow::SetPosY ( double  posY  )  [inline]

Set current view's Y position and refresh display.

Parameters:
posY New position that corresponds to the center point of the view.

Definition at line 759 of file mathplot.h.

Referenced by OnScroll2().

00759 { m_posY=posY; UpdateAll(); }

Here is the caller graph for this function:

void mpWindow::SetPos ( double  posX,
double  posY
) [inline]

Set current view's X and Y position and refresh display.

Parameters:
posX New position that corresponds to the center point of the view.
posY New position that corresponds to the center point of the view.

Definition at line 765 of file mathplot.h.

Referenced by OnCenter().

00765 { m_posX=posX; m_posY=posY; UpdateAll(); }

Here is the caller graph for this function:

void mpWindow::LockAspect ( bool  enable = TRUE  )

Enable or disable X/Y scale aspect locking for the view.

Note:
Explicit calls to mpWindow::SetScaleX and mpWindow::SetScaleY will set an unlocked apect, but any other action changing the view scale will lock the aspect again.

Definition at line 485 of file mathplot.cxx.

References m_lockaspect, m_popmenu, m_scaleX, m_scaleY, mpID_LOCKASPECT, and UpdateAll().

Referenced by OnLockAspect().

00486 {
00487         m_lockaspect = enable;
00488
00489         m_popmenu.Check(mpID_LOCKASPECT, enable);
00490
00491         if (m_lockaspect)
00492         {
00493                 double s = (m_scaleX + m_scaleY)/2;
00494                 m_scaleX = s;
00495                 m_scaleY = s;
00496         }
00497
00498         UpdateAll();
00499 }

Here is the call graph for this function:

Here is the caller graph for this function:

bool mpWindow::IsAspectLocked (  )  [inline]

Checks whether the X/Y scale aspect is locked.

Return values:
TRUE Locked
FALSE Unlocked

Definition at line 778 of file mathplot.h.

00778 { return m_lockaspect; }

void mpWindow::Fit (  )

Set view to fit global bounding box of all plot layers and refresh display. Scale and position will be set to a show all attached mpLayers. The X/Y scale aspect lock is taken into account.

Definition at line 439 of file mathplot.cxx.

References m_lockaspect, m_maxX, m_maxY, m_minX, m_minY, m_posX, m_posY, m_scaleX, m_scaleY, UpdateAll(), and UpdateBBox().

Referenced by OnFit().

00440 {
00441         if (UpdateBBox())
00442         {
00443                 int cx, cy;
00444                 GetClientSize( &cx, &cy);
00445
00446                 double d;
00447                 d = m_maxX - m_minX;
00448                 if (d!=0)
00449                 {
00450                         m_scaleX = cx/d;
00451                         m_posX = m_minX + d/2;
00452                 }
00453                 d = m_maxY - m_minY;
00454                 if (d!=0)
00455                 {
00456                         m_scaleY = cy/d;
00457                         m_posY = m_minY + d/2;
00458                 }
00459
00460                 if (m_lockaspect)
00461                 {
00462                         double s = (m_scaleX + m_scaleY)/2;
00463                         m_scaleX = s;
00464                         m_scaleY = s;
00465                 }
00466
00467                 UpdateAll();
00468         }
00469 }

Here is the call graph for this function:

Here is the caller graph for this function:

void mpWindow::ZoomIn (  )

Zoom into current view and refresh display

Definition at line 471 of file mathplot.cxx.

References m_scaleX, m_scaleY, and UpdateAll().

Referenced by OnZoomIn().

00472 {
00473         m_scaleX = m_scaleX * 2;
00474         m_scaleY = m_scaleY * 2;
00475         UpdateAll();
00476 }

Here is the call graph for this function:

Here is the caller graph for this function:

void mpWindow::ZoomOut (  )

Zoom out current view and refresh display

Definition at line 478 of file mathplot.cxx.

References m_scaleX, m_scaleY, and UpdateAll().

Referenced by OnZoomOut().

00479 {
00480         m_scaleX = m_scaleX / 2;
00481         m_scaleY = m_scaleY / 2;
00482         UpdateAll();
00483 }

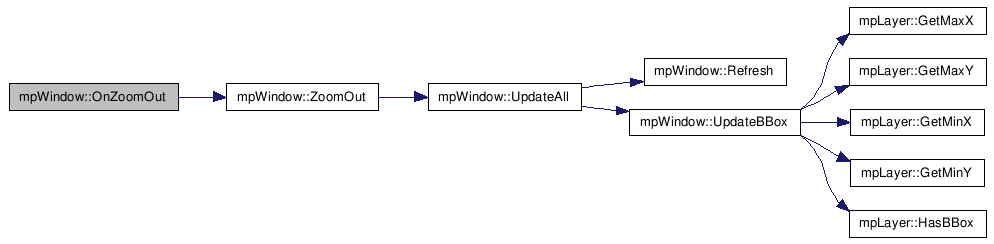

Here is the call graph for this function:

Here is the caller graph for this function:

void mpWindow::UpdateAll (  )

Refresh display

Definition at line 701 of file mathplot.cxx.

References Refresh(), and UpdateBBox().

Referenced by pPlotterWindow::actualizeViewRange(), pPlotterWindow::addFunction(), pPlotterWindow::addFunctionToMove(), AddLayer(), DelLayer(), Fit(), LockAspect(), pPlotter::onActualChange_Bar(), pPlotterWindow::onAddNewPoint(), pPlotterWindow::onAddPoint(), pPlotterWindow::onChangeActual(), pPlotterWindow::onChangeColor(), pPlotter::onColorBar(), pPlotterWindow::onDeletePoint(), pPlotterWindow::OnGuideLines(), pPlotterWindow::onLine(), pPlotterWindow::onLoad(), pPlotterWindow::onMouseMove(), pPlotter::onMoved_ColorPoint(), pPlotterWindow::onMyZoomIn(), pPlotterWindow::onMyZoomOut(), pPlotterWindow::onNoShowPoints(), pPlotter::onSelectionEnd(), pPlotterWindow::onShowPoints(), OnSize(), pPlotterWindow::onSplinePoints(), pPlotterWindow::onStopDrawing(), pPlotter::update(), ZoomIn(), and ZoomOut().

00702 {
00703         if (UpdateBBox())
00704         {
00705                 int cx, cy;
00706                 GetClientSize( &cx, &cy);
00707 printf("EED mpWindow::UpdateAll %d %d\n",cx,cy);
00708
00709                 //const int sx = (int)((m_maxX - m_minX) * GetScaleX()); // JPRx
00710                 //const int sy = (int)((m_maxY - m_minY) * GetScaleY()); // JPRx
00711                 //const int px = (int)((GetPosX() - m_minX) * GetScaleX() - (cx>>1)); // JPRx
00712                 //const int py = (int)((GetPosY() - m_minY) * GetScaleY() - (cy>>1)); // JPRx
00713                 //SetScrollbars( 1, 1, sx, sy, px, py);
00714         }
00715
00716         FitInside();
00717         Refresh( false );
00718 }

Here is the call graph for this function:

Here is the caller graph for this function:

int mpWindow::GetYTranslated ( wxSize  size,
double  y
) [inline]

Get the translation of the Y coordinate

Definition at line 798 of file mathplot.h.

00798                                                  {
00799                 return size.GetHeight()-y;
00800         }

void mpWindow::Refresh ( bool  eraseBackground = true,
const wxRect *  rect = NULL
) [protected]

Definition at line 557 of file mathplot.cxx.

Referenced by UpdateAll().

00558 {
00559         wxScrolledWindow::Refresh(false);
00560 }

Here is the caller graph for this function:

void mpWindow::OnPaint ( wxPaintEvent &  event  )  [protected]

Paint handler, will plot all attached layers.

Definition at line 563 of file mathplot.cxx.

References _bitmap_functions, m_layers, m_scrX, and m_scrY.

00564 {
00565         wxPaintDC dc(this);
00566         dc.GetSize(&m_scrX, &m_scrY);
00567 printf("EED mpWindow::OnPaint %d %d\n",m_scrX,m_scrY);
00568
00569         //m_scrX=200;
00570         //m_scrY=200;
00571
00572         wxMemoryDC temp_dc;
00573         //_bitmap_functions->SetWidth(m_scrX);
00574         //_bitmap_functions->SetHeight(m_scrY);
00575         _bitmap_functions=new wxBitmap(m_scrX,m_scrY);
00576         temp_dc.SelectObject(*_bitmap_functions);
00577
00578         // Background
00579         //      wxColour colourParent =  wxColour(255,0,0);
00580         temp_dc.SetBrush(wxBrush( *wxWHITE_BRUSH  ) );
00581         temp_dc.SetPen(wxPen( *wxBLACK_PEN  ));
00582         temp_dc.DrawRectangle(0,0,m_scrX,m_scrY);
00583
00584
00585         wxNode *node = m_layers.GetFirst();
00586         while (node)
00587         {
00588                 ((mpLayer*)node->GetData())->Plot( temp_dc, *this);
00589                 node = node->GetNext();
00590         }
00591
00592         //dc.SetDeviceOrigin(70,40);
00593         //dc.SetAxisOrientation(false,true);
00594         //temp_dc.SetAxisOrientation(true,false);
00595
00596         //EED 14mai2009
00597         //dc.Blit(0,0, m_scrX, m_scrY, &temp_dc,-70,-m_scrY+40);
00598
00599         temp_dc.SetDeviceOrigin(0,0);
00600         dc.Blit(0,0, m_scrX, m_scrY, &temp_dc,0,0);
00601
00602
00603         delete _bitmap_functions;
00604         //_bitmap_functions
00605         //dc.SetAxisOrientation(false,true);
00606
00607
00608 }

void mpWindow::OnSize ( wxSizeEvent &  event  )  [protected]

Size handler, will update scroll bar sizes.

Definition at line 539 of file mathplot.cxx.

References UpdateAll().

00540 {
00541         UpdateAll();
00542 }

Here is the call graph for this function:

void mpWindow::OnScroll2 ( wxScrollWinEvent &  event  )  [protected]

Scroll handler, will move canvas.

Definition at line 653 of file mathplot.cxx.

References GetScaleX(), GetScaleY(), m_maxY, m_minX, SetPosX(), and SetPosY().

00654 {
00655         int width, height;
00656         GetClientSize( &width, &height);
00657         int px, py;
00658         GetViewStart( &px, &py);
00659
00660         if (event.GetOrientation() == wxHORIZONTAL)
00661         {
00662                 SetPosX( (double)px / GetScaleX() + m_minX + (double)(width>>1)/GetScaleX());
00663         }
00664         else
00665         {
00666                 SetPosY( m_maxY - (double)py / GetScaleY() - (double)(height>>1)/GetScaleY());
00667         }
00668         event.Skip();
00669 }

Here is the call graph for this function:

void mpWindow::OnShowPopupMenu ( wxMouseEvent &  event  )  [protected]

Mouse handler, will show context menu.

Definition at line 501 of file mathplot.cxx.

References m_clickedX, m_clickedY, and m_popmenu.

00502 {
00503         m_clickedX = event.GetX();
00504         m_clickedY = event.GetY();
00505         PopupMenu( &m_popmenu, event.GetX(), event.GetY());
00506 }

void mpWindow::OnCenter ( wxCommandEvent &  event  )  [protected]

Context menu handler.

Definition at line 518 of file mathplot.cxx.

References m_clickedX, m_clickedY, m_posX, m_posY, m_scaleX, m_scaleY, and SetPos().

00519 {
00520         int cx, cy;
00521         GetClientSize(&cx, &cy);
00522         SetPos( (double)(m_clickedX-cx/2) / m_scaleX + m_posX, (double)(cy/2-m_clickedY) / m_scaleY + m_posY);
00523 }

Here is the call graph for this function:

void mpWindow::OnFit ( wxCommandEvent &  event  )  [protected]

Context menu handler.

Definition at line 513 of file mathplot.cxx.

References Fit().

00514 {
00515         Fit();
00516 }

Here is the call graph for this function:

void mpWindow::OnZoomIn ( wxCommandEvent &  event  )  [protected]

Context menu handler.

Definition at line 525 of file mathplot.cxx.

References m_clickedX, m_clickedY, m_posX, m_posY, m_scaleX, m_scaleY, and ZoomIn().

00526 {
00527         int cx, cy;
00528         GetClientSize(&cx, &cy);
00529         m_posX = (double)(m_clickedX-cx/2) / m_scaleX + m_posX;
00530         m_posY = (double)(cy/2-m_clickedY) / m_scaleY + m_posY;
00531         ZoomIn();
00532 }

Here is the call graph for this function:

void mpWindow::OnZoomOut ( wxCommandEvent &  event  )  [protected]

Context menu handler.

Definition at line 534 of file mathplot.cxx.

References ZoomOut().

00535 {
00536         ZoomOut();
00537 }

Here is the call graph for this function:

void mpWindow::OnLockAspect ( wxCommandEvent &  event  )  [protected]

Context menu handler.

Definition at line 508 of file mathplot.cxx.

References LockAspect(), m_popmenu, and mpID_LOCKASPECT.

00509 {
00510         LockAspect( !m_popmenu.IsChecked(mpID_LOCKASPECT) );
00511 }

Here is the call graph for this function:

bool mpWindow::UpdateBBox (  )  [protected]

Recalculate global layer bounding box.

Definition at line 671 of file mathplot.cxx.

References mpLayer::GetMaxX(), mpLayer::GetMaxY(), mpLayer::GetMinX(), mpLayer::GetMinY(), mpLayer::HasBBox(), m_layers, m_maxX, m_maxY, m_minX, and m_minY.

Referenced by Fit(), and UpdateAll().

00672 {
00673         bool first = TRUE;
00674
00675         wxNode *node = m_layers.GetFirst();
00676
00677         while(node)
00678         {
00679                 mpLayer* f = (mpLayer*)node->GetData();
00680
00681                 if (f->HasBBox())
00682                 {
00683                         if (first)
00684                         {
00685                                 first = FALSE;
00686                                 m_minX = f->GetMinX(); m_maxX=f->GetMaxX();
00687                                 m_minY = f->GetMinY(); m_maxY=f->GetMaxY();
00688                         }
00689                         else
00690                         {
00691                                 if (f->GetMinX()<m_minX) m_minX=f->GetMinX(); if (f->GetMaxX()>m_maxX) m_maxX=f->GetMaxX();
00692                                 if (f->GetMinY()<m_minY) m_minY=f->GetMinY(); if (f->GetMaxY()>m_maxY) m_maxY=f->GetMaxY();
00693                         }
00694                 }
00695                 node = node->GetNext();
00696         }
00697
00698         return first == FALSE;
00699 }

Here is the call graph for this function:

Here is the caller graph for this function:


Member Data Documentation

wxList mpWindow::m_layers [protected]

List of attached plot layers.

Definition at line 818 of file mathplot.h.

Referenced by AddLayer(), DelLayer(), OnPaint(), and UpdateBBox().

wxMenu mpWindow::m_popmenu [protected]

Canvas' context menu.

Definition at line 819 of file mathplot.h.

Referenced by pPlotterWindow::InitFunctionForVectors(), LockAspect(), pPlotterWindow::moveFunctions(), pPlotterWindow::onChangeActual(), pPlotterWindow::OnGuideLines(), pPlotterWindow::onLine(), pPlotterWindow::onLoad(), OnLockAspect(), pPlotterWindow::onMoveFunction(), pPlotterWindow::onNoShowPoints(), pPlotterWindow::onShowPoints(), OnShowPopupMenu(), pPlotterWindow::onSplinePoints(), pPlotterWindow::onStartDrawing(), pPlotterWindow::onStopDrawing(), and pPlotterWindow::setPopUpMenu().

bool mpWindow::m_lockaspect [protected]

Scale aspect is locked or not.

Definition at line 820 of file mathplot.h.

Referenced by Fit(), and LockAspect().

double mpWindow::m_minX [protected]

Global layer bounding box, left border incl.

Definition at line 822 of file mathplot.h.

Referenced by Fit(), OnScroll2(), and UpdateBBox().

double mpWindow::m_maxX [protected]

Global layer bounding box, right border incl.

Definition at line 823 of file mathplot.h.

Referenced by Fit(), and UpdateBBox().

double mpWindow::m_minY [protected]

Global layer bounding box, bottom border incl.

Definition at line 824 of file mathplot.h.

Referenced by Fit(), and UpdateBBox().

double mpWindow::m_maxY [protected]

Global layer bounding box, top border incl.

Definition at line 825 of file mathplot.h.

Referenced by Fit(), OnScroll2(), and UpdateBBox().

double mpWindow::m_scaleX [protected]

Current view's X scale.

Definition at line 826 of file mathplot.h.

Referenced by Fit(), pPlotterWindow::getRealPoint(), pPlotterWindow::InitFunctionForVectors(), LockAspect(), OnCenter(), OnZoomIn(), pPlotterWindow::setActualScales(), ZoomIn(), and ZoomOut().

double mpWindow::m_scaleY [protected]

Current view's Y scale.

Definition at line 827 of file mathplot.h.

Referenced by Fit(), pPlotterWindow::getRealPoint(), pPlotterWindow::InitFunctionForVectors(), LockAspect(), OnCenter(), OnZoomIn(), pPlotterWindow::setActualScales(), ZoomIn(), and ZoomOut().

double mpWindow::m_posX [protected]

Current view's X position.

Definition at line 828 of file mathplot.h.

Referenced by Fit(), OnCenter(), and OnZoomIn().

double mpWindow::m_posY [protected]

Current view's Y position.

Definition at line 829 of file mathplot.h.

Referenced by Fit(), OnCenter(), and OnZoomIn().

int mpWindow::m_scrX [protected]

Current view's X dimension.

Definition at line 830 of file mathplot.h.

Referenced by pPlotterWindow::actualizeViewRange(), pPlotterWindow::InitFunctionForVectors(), pPlotterWindow::onChangeActual(), pPlotterWindow::onMouseMove(), pPlotterWindow::onMyZoomIn(), pPlotterWindow::onMyZoomOut(), OnPaint(), and pPlotterWindow::setActualScales().

int mpWindow::m_scrY [protected]

Current view's Y dimension.

Definition at line 831 of file mathplot.h.

Referenced by pPlotterWindow::InitFunctionForVectors(), pPlotterWindow::onAddNewPoint(), pPlotterWindow::onAddPoint(), pPlotterWindow::onChangeActual(), pPlotterWindow::onDeletePoint(), pPlotterWindow::onMouseMove(), pPlotterWindow::onMyZoomIn(), pPlotterWindow::onMyZoomOut(), OnPaint(), and pPlotterWindow::setActualScales().

int mpWindow::m_clickedX [protected]

Last mouse click X position, for centering and zooming the view.

Definition at line 832 of file mathplot.h.

Referenced by pPlotterWindow::onAddNewPoint(), OnCenter(), pPlotterWindow::onDeletePoint(), pPlotterWindow::onMyZoomIn(), pPlotterWindow::onMyZoomOut(), OnShowPopupMenu(), and OnZoomIn().

int mpWindow::m_clickedY [protected]

Last mouse click Y position, for centering and zooming the view.

Definition at line 833 of file mathplot.h.

Referenced by pPlotterWindow::onAddNewPoint(), OnCenter(), pPlotterWindow::onDeletePoint(), pPlotterWindow::onMyZoomIn(), pPlotterWindow::onMyZoomOut(), OnShowPopupMenu(), and OnZoomIn().

int mpWindow::maxScrX [protected]

the max value in the x axis

Definition at line 841 of file mathplot.h.

Referenced by pPlotterWindow::actualizeViewRange(), pPlotterWindow::getRealPoint(), pPlotterWindow::InitFunctionForVectors(), and pPlotterWindow::onStartDrawing().

int mpWindow::maxScrY [protected]

the max value in the y axis

Definition at line 846 of file mathplot.h.

Referenced by pPlotterWindow::getRealPoint(), pPlotterWindow::InitFunctionForVectors(), and pPlotterWindow::onStartDrawing().

int mpWindow::minScrX [protected]

the min value in the x axis

Definition at line 850 of file mathplot.h.

Referenced by pPlotterWindow::actualizeViewRange(), pPlotterWindow::getRealPoint(), pPlotterWindow::InitFunctionForVectors(), and pPlotterWindow::onStartDrawing().

int mpWindow::minScrY [protected]

the min value in the y axis

Definition at line 855 of file mathplot.h.

Referenced by pPlotterWindow::getRealPoint(), pPlotterWindow::InitFunctionForVectors(), and pPlotterWindow::onStartDrawing().

float mpWindow::zoomFactor [protected]

Definition at line 860 of file mathplot.h.

Referenced by pPlotterWindow::actualizeViewRange(), pPlotterWindow::onChangeActual(), pPlotterWindow::onLoad(), pPlotterWindow::onMyZoomIn(), pPlotterWindow::onMyZoomOut(), pPlotterWindow::onStartDrawing(), and pPlotterWindow::setActualScales().

int mpWindow::offsetPixelX [protected]

offset in pixels where the user has clicked before changing the scale (in the actual function)

Definition at line 867 of file mathplot.h.

Referenced by pPlotterWindow::getRealPoint().

int mpWindow::offsetPixelY [protected]

Definition at line 868 of file mathplot.h.

Referenced by pPlotterWindow::getRealPoint().

int mpWindow::offsetX [protected]

Definition at line 872 of file mathplot.h.

Referenced by pPlotterWindow::getRealPoint().

int mpWindow::offsetY [protected]

Definition at line 873 of file mathplot.h.

Referenced by pPlotterWindow::getRealPoint().

int mpWindow::real_guideLine_X [protected]

Definition at line 878 of file mathplot.h.

int mpWindow::real_guideLine_Y [protected]

Definition at line 882 of file mathplot.h.

bool mpWindow::drawGuides [protected]

Definition at line 887 of file mathplot.h.

Referenced by drawGuideLines(), and pPlotterWindow::OnGuideLines().

int mpWindow::type [protected]

Definition at line 893 of file mathplot.h.

Referenced by pPlotterWindow::InitFunctionForVectors(), pPlotterWindow::moveFunctions(), pPlotterWindow::onChangeActual(), and pPlotterWindow::onMouseMove().

wxBitmap* mpWindow::_bitmap_functions [private]

Definition at line 897 of file mathplot.h.

Referenced by OnPaint().


The documentation for this class was generated from the following files:
Generated on Wed Jul 29 16:36:04 2009 for creaMaracasVisu_lib by  doxygen 1.5.3
