wxMaracasApp Class Reference

Maracas main application. More...

#include <wxMaracasApp.h>

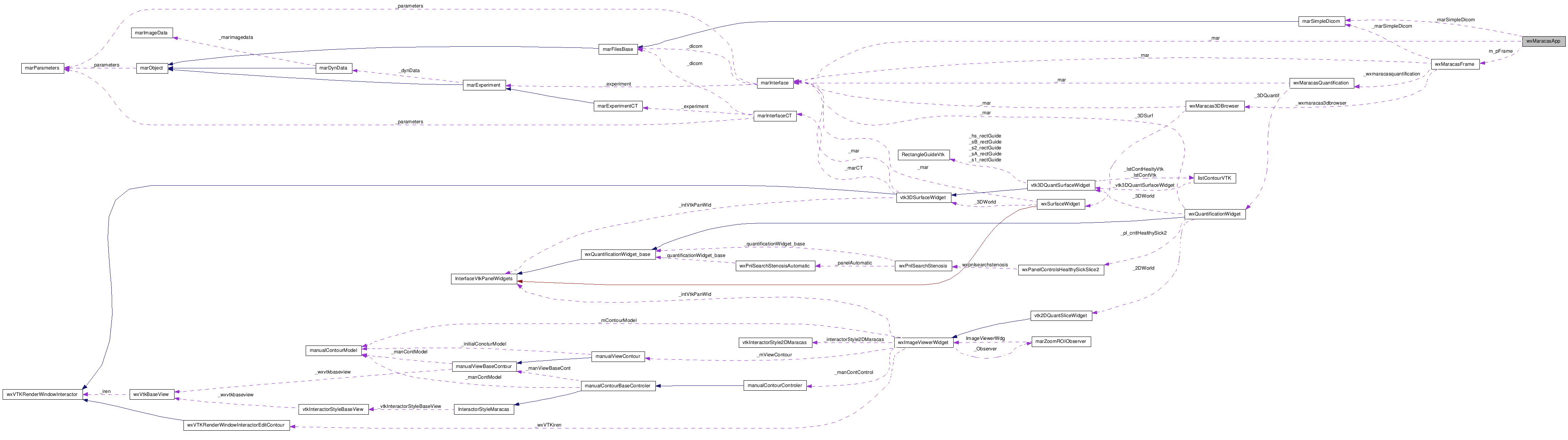

Collaboration diagram for wxMaracasApp:

Collaboration graph
[legend]

List of all members.

Public Member Functions

void SetVolumeData (int dimX, int dimY, int dimZ, float spacingX, float spacingY, float spacingZ, float rescaleSlope, float rescaleIntercept, unsigned short *pixels)
void ShowFrame (int cmdShow)
bool Initialized ()
void Reset ()
bool OnInit ()
int OnExit ()
void Run ()
wxBitmap * GetSnapshot ()

Private Member Functions

void Initialize ()

Private Attributes

bool initialized
marInterface_mar
marSimpleDicom_marSimpleDicom
wxMaracasFramem_pFrame


Detailed Description

Maracas main application.

Definition at line 46 of file wxMaracasApp.h.


Member Function Documentation

void wxMaracasApp::SetVolumeData ( int  dimX,
int  dimY,
int  dimZ,
float  spacingX,
float  spacingY,
float  spacingZ,
float  rescaleSlope,
float  rescaleIntercept,
unsigned short *  pixels
)

Definition at line 1151 of file wxMaracasApp.cxx.

References _mar, _marSimpleDicom, marInterface::_parameters, marParameters::getInvestSliceOrder(), Initialized(), marSimpleDicom::SetInvestSliceOrder(), and marSimpleDicom::SetVolumeData().

01155 {
01156         if (Initialized())
01157         {
01158                 _marSimpleDicom->SetInvestSliceOrder( _mar->_parameters->getInvestSliceOrder() );
01159                 _marSimpleDicom->SetVolumeData(dimX, dimY, dimZ,
01160                                                                            spacingX, spacingY, spacingZ,
01161                                                                            rescaleSlope, rescaleIntercept,
01162                                                                            pixels);
01163         }
01164 }

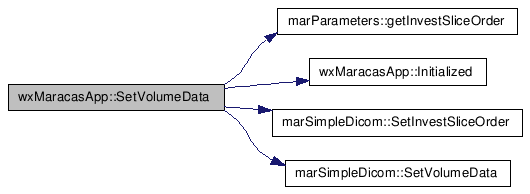

Here is the call graph for this function:

void wxMaracasApp::ShowFrame ( int  cmdShow  )

Definition at line 1119 of file wxMaracasApp.cxx.

References Initialized(), m_pFrame, SHOW_WINDOW_MAXIMIZED, SHOW_WINDOW_MINIMIZED, and SHOW_WINDOW_RESTORE.

01120 {
01121 //EEDxx2.4 DEBuG
01122 //      wxLogDebug("----------- Show Frame");
01123         if (Initialized())
01124         {
01125                 if ( SHOW_WINDOW_MINIMIZED == cmdShow )
01126                 {
01127                         m_pFrame->Iconize();
01128                 }
01129                 else if ( SHOW_WINDOW_RESTORE == cmdShow )
01130                 {
01131                         m_pFrame->Maximize(false);
01132                         m_pFrame->Raise();
01133                 }
01134                 else if (SW_NORMAL == cmdShow )
01135                 {
01136                         m_pFrame->Raise();
01137                 }
01138                 else if ( SHOW_WINDOW_MAXIMIZED == cmdShow )
01139                 {
01140                         m_pFrame->Maximize(true);
01141                         m_pFrame->Raise();
01142                 }
01143                 else
01144                 {
01145                         m_pFrame->Raise();
01146                 }
01147         }
01148 }

Here is the call graph for this function:

bool wxMaracasApp::Initialized (  )

Definition at line 1114 of file wxMaracasApp.cxx.

References initialized.

Referenced by OnExit(), SetVolumeData(), and ShowFrame().

01114                               {
01115         return initialized;
01116 }

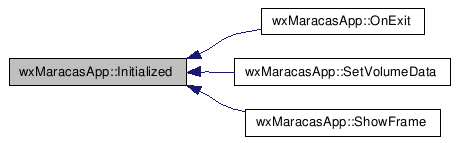

Here is the caller graph for this function:

void wxMaracasApp::Reset (  )

Definition at line 1052 of file wxMaracasApp.cxx.

References Initialize().

01052                         {
01053         // TODO : we can make it more nicely
01054 //EEDxx2.4 DEBuG
01055 //      wxLogDebug("---------------------------------------------------");
01056 //      wxLogDebug("----------- Reseting application");
01057 //      wxLogDebug("---------------------------------------------------");
01058         //OnExit();
01059 //      OnInit();
01060         Initialize();
01061 }

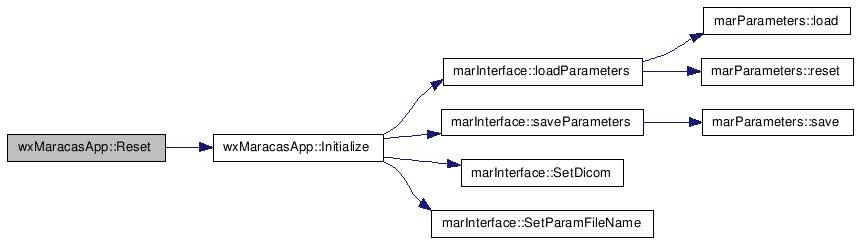

Here is the call graph for this function:

bool wxMaracasApp::OnInit (  )

Definition at line 1004 of file wxMaracasApp.cxx.

01005 {
01006 #ifdef __WXGTK__
01007         //See http://www.wxwindows.org/faqgtk.htm#locale
01008         setlocale(LC_NUMERIC, "C");
01009 #endif
01010
01011
01012 // PS -> #ifndef DXMM
01013 // PS ->        // GO !
01014 // PS ->        SetExitOnFrameDelete(true);
01015 // PS ->        m_pFrame->Show( true );
01016 // PS -> #else
01017         SetExitOnFrameDelete(false);
01018 // PS -> #endif
01019
01020         return( true );
01021 }

int wxMaracasApp::OnExit (  )

Definition at line 1023 of file wxMaracasApp.cxx.

References initialized, Initialized(), and m_pFrame.

01023                         {
01024         if (Initialized())
01025         {
01026                 initialized=false;
01027 //              delete  _mar;
01028                 m_pFrame->Destroy();
01029         }
01030         ProcessIdle();
01031
01032 //EEDxx2.4 DEBuG
01033 //      wxLogDebug("----------- Exiting application");
01034 //      wxLogDebug("---------------------------------------------------");
01035
01036         return true;
01037 }

Here is the call graph for this function:

void wxMaracasApp::Run (  )

Definition at line 1040 of file wxMaracasApp.cxx.

References m_pFrame, and wxMaracasFrame::OnStartExperiment().

01040                       {
01041
01042         m_pFrame->Show( true );
01043         wxCommandEvent cmdEvt=wxCommandEvent();
01044         m_pFrame->OnStartExperiment(cmdEvt);
01045         m_pFrame->Maximize(true);
01046
01047 //EEDxx2.4 DEBuG
01048 //      wxLogDebug("----------- Running application");
01049 }

Here is the call graph for this function:

wxBitmap * wxMaracasApp::GetSnapshot (  )

Definition at line 1166 of file wxMaracasApp.cxx.

References m_pFrame.

01166                                          {
01167         wxWindowDC *wxwindc = new wxWindowDC(m_pFrame);
01168         wxCoord w, h;
01169         wxwindc->GetSize(&w, &h);
01170         wxBitmap *wxbitmap      = new wxBitmap(w, h);
01171
01172         wxMemoryDC *wxmemorydc = new wxMemoryDC();
01173         wxmemorydc->SelectObject(*wxbitmap);
01174         wxmemorydc->Blit(0,0,w,h,wxwindc,0,0);
01175
01176         delete wxwindc;
01177         delete wxmemorydc;
01178
01179         return wxbitmap;
01180 }

void wxMaracasApp::Initialize (  )  [private]

Definition at line 1064 of file wxMaracasApp.cxx.

References _mar, _marSimpleDicom, marInterface::_parameters, initialized, marInterface::loadParameters(), m_pFrame, MAR_DEFAULT_FILE_DICTIONARY, MAR_DEFAULT_FILE_PARAMETERS, marInterface::saveParameters(), marInterface::SetDicom(), and marInterface::SetParamFileName().

Referenced by Reset().

01064                              {
01065 #ifdef __WXDEBUG__
01066         //static wxLogWindow * myLogWindow=new wxLogWindow(NULL,"Log Window",false,false);
01067         static wxLogWindow * myLogWindow=new wxLogWindow(NULL,"Log Window",true,false);
01068         wxLog::SetActiveTarget(myLogWindow);
01069         myLogWindow->ClearTraceMasks();
01070 #endif
01071 //EEDxx2.4 DEBuG
01072 //      wxLogDebug("---------------------------------------------------");
01073 //      wxLogDebug("----------- Initialising application");
01074
01075
01076         int nSize=_MAX_PATH;
01077         LPTSTR lpFilename=(LPTSTR) (new char[nSize]);
01078         GetModuleFileName(NULL,lpFilename,nSize);
01079
01080         wxString moduleFileName(lpFilename);
01081
01082         wxString paramFileName=moduleFileName.BeforeLast('\\')
01083                 +wxString('\\')
01084                 +wxString(MAR_DEFAULT_FILE_PARAMETERS);
01085
01086         wxString dictionaryFileName=moduleFileName.BeforeLast('\\')
01087                 +wxString('\\')
01088                 +wxString(MAR_DEFAULT_FILE_DICTIONARY);
01089
01090         // Initialize MARACAS
01091
01092
01093         _mar = new marInterface();
01094         _mar->SetParamFileName(paramFileName.c_str());
01095         _mar->loadParameters();
01096         _marSimpleDicom = new marSimpleDicom( _mar->_parameters );
01097         _mar->SetDicom(_marSimpleDicom);
01098
01099
01100
01101         // Create the main frame window
01102         m_pFrame = new wxMaracasFrame( ( wxFrame* )NULL,  -1 , _mar , _marSimpleDicom ,(const char*)dictionaryFileName.mb_str());
01103
01104
01105         m_pFrame->Maximize( );
01106         this->SetTopWindow( m_pFrame );
01107         _mar->saveParameters( );
01108
01109         initialized=true;
01110         SetExitOnFrameDelete(false);
01111 }

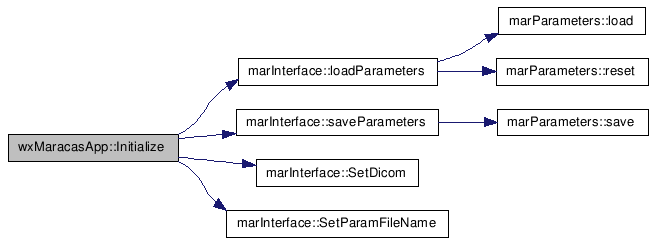

Here is the call graph for this function:

Here is the caller graph for this function:


Member Data Documentation

bool wxMaracasApp::initialized [private]

Definition at line 61 of file wxMaracasApp.h.

Referenced by Initialize(), Initialized(), and OnExit().

marInterface* wxMaracasApp::_mar [private]

Definition at line 62 of file wxMaracasApp.h.

Referenced by Initialize(), and SetVolumeData().

marSimpleDicom* wxMaracasApp::_marSimpleDicom [private]

Definition at line 63 of file wxMaracasApp.h.

Referenced by Initialize(), and SetVolumeData().

wxMaracasFrame* wxMaracasApp::m_pFrame [private]

Definition at line 64 of file wxMaracasApp.h.

Referenced by GetSnapshot(), Initialize(), OnExit(), Run(), and ShowFrame().


The documentation for this class was generated from the following files:
