wxMaracasIRMViewManager Class Reference

#include <wxMaracasIRMViewManager.h>

List of all members.

Public Member Functions

 wxMaracasIRMViewManager ()
 ~wxMaracasIRMViewManager ()
void setRenderer (vtkRenderer *renderer)
int addProp3D (vtkProp3D *prop3D, std::string dataname) throw (char*)
int addPropMHD (vtkImageData *imagedata, std::string dataname) throw (char*)
void changeOpacity (int propid, int value) throw (char*)
void changeIsoValue (int propid, double value) throw (char*)
vtkProp3D * getProp3D (std::string filename)
vtkImageData * getImageData (std::string filename)
void addRemoveActor (int propid, bool addremove) throw (char*)
void checkInvariant () throw (char*)
wxMaracasIRMViewManagerDatagetViewData (int id) throw (char*)
int getMaxIsoValue (int propid) throw (char*)
void changeColor (int propid, double red, double green, double blue) throw (char*)
void deleteActor (int propid) throw (char *)

Private Attributes

std::vector
< wxMaracasIRMViewManagerData * >
prop3Dvect
vtkRenderer * _renderer
int _idCount


Detailed Description

Definition at line 30 of file wxMaracasIRMViewManager.h.


Constructor & Destructor Documentation

wxMaracasIRMViewManager::wxMaracasIRMViewManager (  )

Start of the manager class

Definition at line 24 of file wxMaracasIRMViewManager.cxx.

References _idCount, and _renderer.

00024                                                 {
00025         _renderer = NULL;
00026         _idCount=0;
00027 }

wxMaracasIRMViewManager::~wxMaracasIRMViewManager (  )

Definition at line 28 of file wxMaracasIRMViewManager.cxx.

00028                                                  {
00029 }


Member Function Documentation

void wxMaracasIRMViewManager::setRenderer ( vtkRenderer *  renderer  )

Sets the renderer to manage the prop3D from the view

Definition at line 34 of file wxMaracasIRMViewManager.cxx.

References _renderer.

Referenced by wxMaracasIRMView::setRenderer().

00034                                                                {
00035         _renderer = renderer;
00036 }

Here is the caller graph for this function:

int wxMaracasIRMViewManager::addProp3D ( vtkProp3D *  prop3D,
std::string  dataname
) throw (char*)

Adds a prop3D to the manager and returns the identifier

Definition at line 40 of file wxMaracasIRMViewManager.cxx.

References _idCount, _renderer, checkInvariant(), wxMaracasIRMViewManagerData::getId(), wxMaracasIRMViewManagerData::getProp3D(), prop3Dvect, and wxMaracasIRMViewManagerData::setId().

Referenced by wxMaracasIRMView::addProp3D().

00040                                                                                          {
00041         checkInvariant();
00042         if(prop3D != NULL){
00043                 wxMaracasIRMViewManagerData* data = new wxMaracasIRMViewManagerData(prop3D, dataname);
00044                 prop3Dvect.push_back(data);
00045                 _renderer->AddActor(data->getProp3D());
00046                 data->setId(_idCount);
00047                 _idCount++;
00048                 return data->getId();
00049         }else{
00050                 throw "Check vtkProp3D file or input";
00051         }
00052         return -1;
00053 }

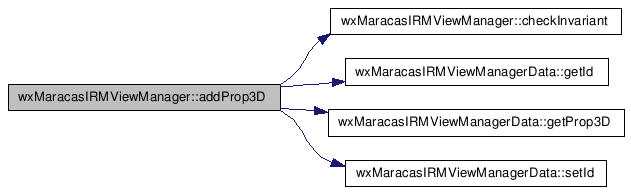

Here is the call graph for this function:

Here is the caller graph for this function:

int wxMaracasIRMViewManager::addPropMHD ( vtkImageData *  imagedata,
std::string  dataname
) throw (char*)

Adds a prop3D to the manager and returns the identifier

Definition at line 54 of file wxMaracasIRMViewManager.cxx.

References _idCount, _renderer, checkInvariant(), wxMaracasIRMViewManagerData::getId(), wxMaracasIRMViewManagerData::getProp3D(), prop3Dvect, and wxMaracasIRMViewManagerData::setId().

Referenced by wxMaracasIRMView::addPropMHD().

00054                                                                                                {
00055
00056         checkInvariant();
00057         if(imagedata != NULL){
00058                 wxMaracasIRMViewManagerData* data = new wxMaracasIRMViewManagerDataMhd(imagedata, dataname);
00059                 prop3Dvect.push_back(data);
00060                 _renderer->AddActor(data->getProp3D());
00061                 data->setId(_idCount);
00062                 _idCount++;
00063                 return data->getId();
00064         }else{
00065                 throw "Check ImageData file or input";
00066         }
00067         return -1;
00068
00069 }

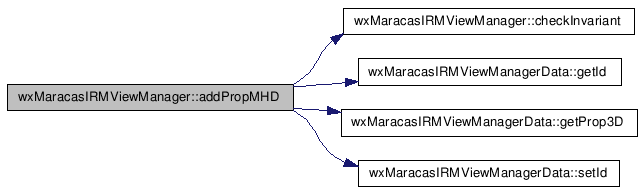

Here is the call graph for this function:

Here is the caller graph for this function:

void wxMaracasIRMViewManager::changeOpacity ( int  propid,
int  value
) throw (char*)

Changes the opacity in a prop3D

Definition at line 90 of file wxMaracasIRMViewManager.cxx.

References _renderer, wxMaracasIRMViewManagerData::changeOpacity(), checkInvariant(), and getViewData().

Referenced by wxMaracasIRMView::changeOpacity().

00090                                                                               {
00091         checkInvariant();
00092
00093
00094         this->getViewData(propid)->changeOpacity(value);
00095
00096         _renderer->Render();
00097
00098 }

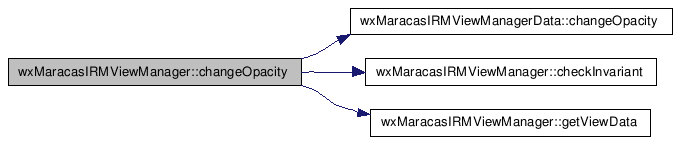

Here is the call graph for this function:

Here is the caller graph for this function:

void wxMaracasIRMViewManager::changeIsoValue ( int  propid,
double  value
) throw (char*)

changes the isovalue in a prop3D

Definition at line 103 of file wxMaracasIRMViewManager.cxx.

References _renderer, checkInvariant(), and getViewData().

Referenced by wxMaracasIRMView::changeIsoValue().

00103                                                                                  {
00104         checkInvariant();
00105
00106         wxMaracasIRMViewManagerData* data = this->getViewData(propid);
00107
00108         //_renderer->RemoveActor(data->getProp3D());
00109         ((wxMaracasIRMViewManagerDataMhd*)data)->changeIsoValue(value);
00110         //_renderer->AddActor(data->getProp3D());
00111
00112         _renderer->Render();
00113 }

Here is the call graph for this function:

Here is the caller graph for this function:

vtkProp3D * wxMaracasIRMViewManager::getProp3D ( std::string  filename  )

loads a prop3D from a nSTL file

Definition at line 115 of file wxMaracasIRMViewManager.cxx.

Referenced by wxMaracasIRMView::loadProp3D().

00115                                                                 {
00116         if(filename.compare("")!= 0){
00117                 vtkSTLReader *STLReader=vtkSTLReader::New();
00118                 STLReader->SetFileName(filename.c_str());
00119                 STLReader->Update();
00120                 vtkPolyDataMapper* dataMapper = vtkPolyDataMapper::New();
00121                 dataMapper->SetInput(STLReader->GetOutput());
00122
00123                 vtkActor* dataActor = vtkActor::New();
00124                 dataActor->SetMapper(dataMapper);
00125                 dataActor->GetProperty()->SetOpacity(1);
00126
00127                 return dataActor;
00128         }
00129         return NULL;
00130 }

Here is the caller graph for this function:

vtkImageData * wxMaracasIRMViewManager::getImageData ( std::string  filename  )

loads a MHD file to convert it into an actor

Definition at line 132 of file wxMaracasIRMViewManager.cxx.

Referenced by wxMaracasIRMView::loadPropMHD().

00132                                                                      {
00133         if(filename.compare("")!= 0){
00134
00135
00136                 vtkMetaImageReader* reader =  vtkMetaImageReader::New();
00137                 reader->SetFileName(filename.c_str());
00138                 reader->Update();
00139                 vtkImageData* img = reader->GetOutput();
00140                 //reader->Delete();
00141                 return img;
00142         }
00143         return NULL;
00144 }

Here is the caller graph for this function:

void wxMaracasIRMViewManager::addRemoveActor ( int  propid,
bool  addremove
) throw (char*)

adds or removes an actor depending of the bool value

Definition at line 73 of file wxMaracasIRMViewManager.cxx.

References _renderer, checkInvariant(), wxMaracasIRMViewManagerData::getProp3D(), and getViewData().

Referenced by wxMaracasIRMView::addRemoveActor(), and deleteActor().

00073                                                                                     {
00074         checkInvariant();
00075
00076         wxMaracasIRMViewManagerData* data = this->getViewData(propid);
00077         if(data->getProp3D()!=NULL){
00078                 if(addremove){
00079                         _renderer->AddViewProp(data->getProp3D());
00080                 }else{
00081                         _renderer->RemoveViewProp(data->getProp3D());
00082                 }
00083                 _renderer->Render();
00084         }
00085
00086 }

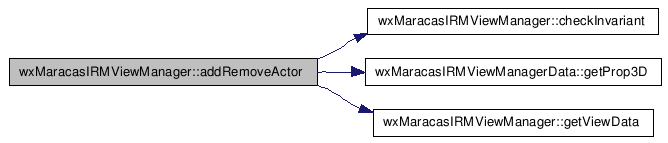

Here is the call graph for this function:

Here is the caller graph for this function:

void wxMaracasIRMViewManager::checkInvariant (  )  throw (char*)

Check if the variables are setted correctly

Definition at line 146 of file wxMaracasIRMViewManager.cxx.

Referenced by addProp3D(), addPropMHD(), addRemoveActor(), changeColor(), changeIsoValue(), changeOpacity(), and deleteActor().

00146                                                           {
00147         if(this->_renderer==NULL){
00148                 throw "Renderer not set";
00149         }
00150 }

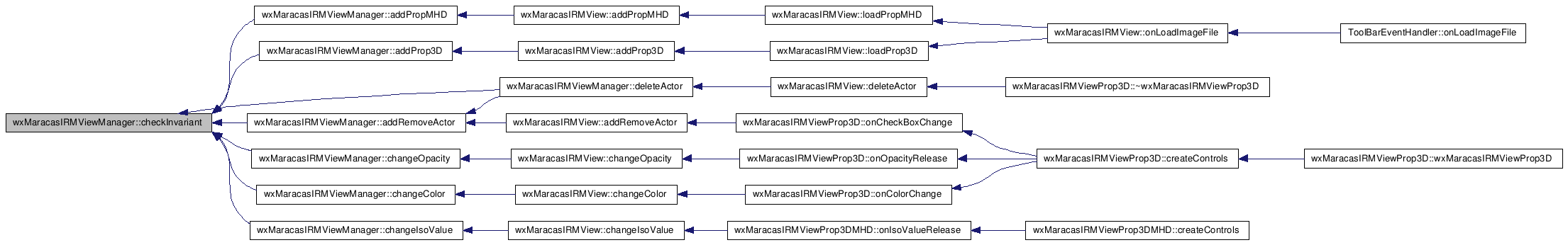

Here is the caller graph for this function:

wxMaracasIRMViewManagerData * wxMaracasIRMViewManager::getViewData ( int  id  )  throw (char*)

Given an id search the data in the vector

Definition at line 152 of file wxMaracasIRMViewManager.cxx.

References prop3Dvect.

Referenced by addRemoveActor(), changeColor(), changeIsoValue(), and changeOpacity().

00152                                                                                     {
00153     int i;
00154         for(i = 0; i < (int)(prop3Dvect.size());i++){
00155                 if(prop3Dvect[i]->getId() == id){
00156                         return prop3Dvect[i];
00157                 }
00158         }
00159         throw "id not found in the data";
00160
00161         return NULL;
00162 }

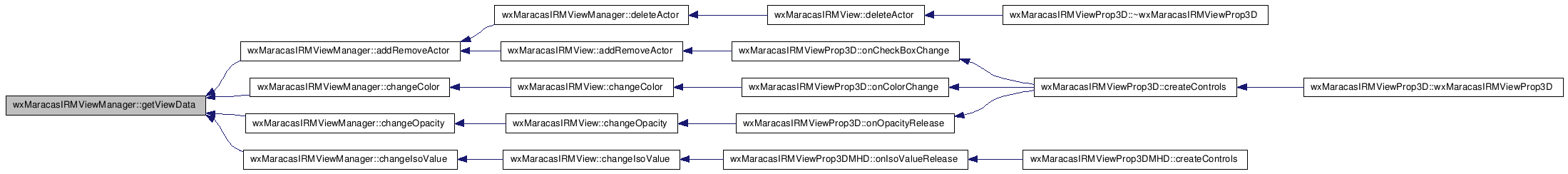

Here is the caller graph for this function:

int wxMaracasIRMViewManager::getMaxIsoValue ( int  propid  )  throw (char*)

Given the id, return the max iso value from the imagedata

Definition at line 164 of file wxMaracasIRMViewManager.cxx.

Referenced by wxMaracasIRMView::addPropMHD().

00164                                                                   {
00165
00166         return ((wxMaracasIRMViewManagerDataMhd*)this->getViewData(propid))->getMaxGreyLevel();
00167
00168 }

Here is the caller graph for this function:

void wxMaracasIRMViewManager::changeColor ( int  propid,
double  red,
double  green,
double  blue
) throw (char*)

Changes the color of the actor

Definition at line 170 of file wxMaracasIRMViewManager.cxx.

References _renderer, wxMaracasIRMViewManagerData::changeColor(), checkInvariant(), and getViewData().

Referenced by wxMaracasIRMView::changeColor().

00170                                                                                                        {
00171         checkInvariant();
00172         this->getViewData(propid)->changeColor(red, green, blue);
00173
00174         _renderer->Render();
00175 }

Here is the call graph for this function:

Here is the caller graph for this function:

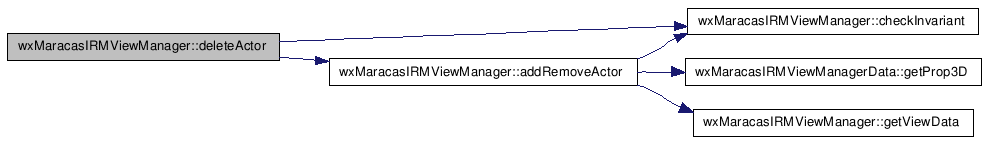

void wxMaracasIRMViewManager::deleteActor ( int  propid  )  throw (char *)

Definition at line 177 of file wxMaracasIRMViewManager.cxx.

References addRemoveActor(), checkInvariant(), and prop3Dvect.

Referenced by wxMaracasIRMView::deleteActor().

00177                                                                   {
00178         checkInvariant();
00179
00180         this->addRemoveActor(propid, false);
00181
00182         int i,n;
00183         bool exit = false;
00184         for(i = 0; i < (int)(prop3Dvect.size())&&!exit;i++){
00185                 if(prop3Dvect[i]->getId() == propid){
00186                         n=i;
00187                         exit = true;
00188                 }
00189         }
00190         if(exit){
00191                 wxMaracasIRMViewManagerData* data = prop3Dvect[n];
00192                 int j;
00193                 for(j = i; j < (int)(prop3Dvect.size())-1;j++){
00194                         prop3Dvect[j] = prop3Dvect[j+1];
00195                 }
00196                 delete data;
00197                 prop3Dvect.pop_back();
00198         }else{
00199                 throw "id not found in the data";
00200         }
00201
00202
00203
00204
00205 }

Here is the call graph for this function:

Here is the caller graph for this function:


Member Data Documentation

std::vector<wxMaracasIRMViewManagerData*> wxMaracasIRMViewManager::prop3Dvect [private]

Definition at line 96 of file wxMaracasIRMViewManager.h.

Referenced by addProp3D(), addPropMHD(), deleteActor(), and getViewData().

vtkRenderer* wxMaracasIRMViewManager::_renderer [private]

Definition at line 98 of file wxMaracasIRMViewManager.h.

Referenced by addProp3D(), addPropMHD(), addRemoveActor(), changeColor(), changeIsoValue(), changeOpacity(), setRenderer(), and wxMaracasIRMViewManager().

int wxMaracasIRMViewManager::_idCount [private]

Definition at line 100 of file wxMaracasIRMViewManager.h.

Referenced by addProp3D(), addPropMHD(), and wxMaracasIRMViewManager().


The documentation for this class was generated from the following files:
Generated on Wed Jul 29 16:36:20 2009 for creaMaracasVisu_lib by  doxygen 1.5.3
