wxSurfaceSTLWidget Class Reference

Panel class composed of a vtk renderwindow with double click available and add some buttons. More...

#include <wxSurfaceSTLWidget.h>

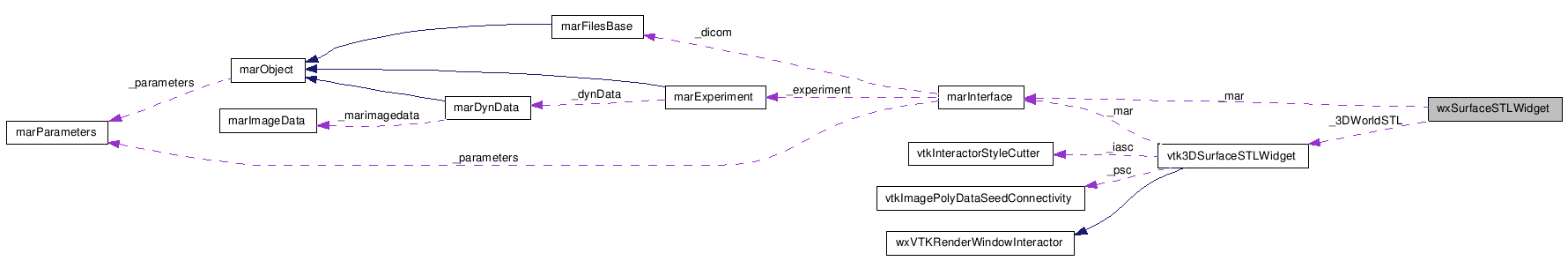

Collaboration diagram for wxSurfaceSTLWidget:

Collaboration graph
[legend]

List of all members.

Public Types

enum  ToolBarIDs {
  ID_TOOL_BAR = 300, ID_BUTTON_NEW_AXIS, ID_BUTTON_DELETE_AXIS, ID_CHECKBOX_ISOVISIBLE,
  ID_SLIDER_ISOVAL, ID_SLIDER_OPACITY, ID_BUTTON_CHOOSE_COLOR, ID_BUTTON_VESSELS_CONSTRUCTION,
  ID_BUTTON_3D_CUTTER, ID_BUTTON_EXPORT_STL, ID_CHECKBOX_STL_VISIBLE, ID_SLIDER_STL_THRESH,
  ID_CHECKBOX_INVERT_SLICE_ORDER
}
enum  WidgetsIDs { ID_WORLD3D = 800 }

Public Member Functions

 wxSurfaceSTLWidget (wxWindow *parent, wxWindowID id=-1, const wxPoint &pos=wxDefaultPosition, const wxSize &size=wxDefaultSize, long style=wxScrolledWindowStyle, const wxString &name=wxPanelNameStr)
 ~wxSurfaceSTLWidget ()
void OnVesselConstruction (wxCommandEvent &event)
void On3DCutter (wxCommandEvent &event)
void OnExportAsSTL (wxCommandEvent &event)
void OnChooseSurfaceColor (wxCommandEvent &event)
void OnIsoVisible (wxCommandEvent &event)
void OnSTLSurfaceVisible (wxCommandEvent &event)
void OnSliderIsovalueScrollThumbrelease (wxScrollEvent &event)
void OnSliderOpacityScrollThumbrelease (wxScrollEvent &event)
void OnInvertSliceOrder (wxCommandEvent &WXUNUSED(event))
void OnSliderSTLSurfaceValueThumbrelease (wxScrollEvent &event)
void ShowMARACASData (marInterface *mar)
 DECLARE_EVENT_TABLE ()

Public Attributes

wxToolBar * _axis_tb
wxToolBar * _vessels_tb
wxCheckBox * _isoVisible
wxSlider * _isoValue
wxSlider * _opacity
wxButton * _surface_color
wxCheckBox * _stlIntSurfaceVisible
wxCheckBox * _stlExtSurfaceVisible
wxSlider * _stlSurfaceValue
wxCheckBox * _chkInvertSliceOrder
marInterface * _mar
vtk3DSurfaceSTLWidget * _3DWorldSTL

Detailed Description

Panel class composed of a vtk renderwindow with double click available and add some buttons.

Definition at line 31 of file wxSurfaceSTLWidget.h.

Member Enumeration Documentation

enum wxSurfaceSTLWidget::ToolBarIDs

Enumerator:
ID_TOOL_BAR
ID_BUTTON_NEW_AXIS
ID_BUTTON_DELETE_AXIS
ID_CHECKBOX_ISOVISIBLE
ID_SLIDER_ISOVAL
ID_SLIDER_OPACITY
ID_BUTTON_CHOOSE_COLOR
ID_BUTTON_VESSELS_CONSTRUCTION
ID_BUTTON_3D_CUTTER
ID_BUTTON_EXPORT_STL
ID_CHECKBOX_STL_VISIBLE
ID_SLIDER_STL_THRESH
ID_CHECKBOX_INVERT_SLICE_ORDER

Definition at line 34 of file wxSurfaceSTLWidget.h.

00035     {
00036         ID_TOOL_BAR = 300,
00037         ID_BUTTON_NEW_AXIS,
00038         ID_BUTTON_DELETE_AXIS,
00039         ID_CHECKBOX_ISOVISIBLE,
00040         ID_SLIDER_ISOVAL,
00041         ID_SLIDER_OPACITY,
00042         ID_BUTTON_CHOOSE_COLOR,
00043         ID_BUTTON_VESSELS_CONSTRUCTION,
00044         ID_BUTTON_3D_CUTTER,
00045         ID_BUTTON_EXPORT_STL,
00046         ID_CHECKBOX_STL_VISIBLE,
00047         ID_SLIDER_STL_THRESH,
00048                 ID_CHECKBOX_INVERT_SLICE_ORDER,
00049     };

enum wxSurfaceSTLWidget::WidgetsIDs

Enumerator:
ID_WORLD3D

Definition at line 50 of file wxSurfaceSTLWidget.h.

00051     {
00052         ID_WORLD3D = 800
00053     };

Constructor & Destructor Documentation

wxSurfaceSTLWidget::wxSurfaceSTLWidget ( wxWindow *  parent,
wxWindowID  id = -1,
const wxPoint &  pos = wxDefaultPosition,
const wxSize &  size = wxDefaultSize,
long  style = wxScrolledWindowStyle,
const wxString &  name = wxPanelNameStr
)

Todo:
: what that ? mat

Definition at line 53 of file wxSurfaceSTLWidget.cxx.

00054                           : wxPanel( parent, id, pos, size, style, name )
00055 {
00056     _mar = NULL;
00057
00058     _3DWorldSTL = new vtk3DSurfaceSTLWidget( this, ID_WORLD3D );
00059
00060     // Set up axis toolbar
00061     wxBitmap axisToolBarBitmaps[ 2 ];
00062     axisToolBarBitmaps[ 0 ] = wxBITMAP( axistoolbar_extract );
00063     axisToolBarBitmaps[ 1 ] = wxBITMAP( axistoolbar_erase );
00064
00065
00066     //By default the Iso value is visible.
00067     _isoVisible = new wxCheckBox( this, ID_CHECKBOX_ISOVISIBLE, _T("Iso visible") );
00068     _isoVisible->SetValue( true );
00069     _isoValue = new wxSlider( this, ID_SLIDER_ISOVAL, 0, 0, 10000 , wxDefaultPosition, wxDefaultSize, wxSL_HORIZONTAL | wxSL_LABELS);
00070     _opacity = new wxSlider( this, ID_SLIDER_OPACITY, 0, 0, 100 , wxDefaultPosition, wxDefaultSize, wxSL_HORIZONTAL | wxSL_LABELS);
00071     _isoValue->SetLabel( _T("IsoValue") );
00072     _opacity->SetLabel( _T("Surface opacity") );
00073
00074     //I can't get to brighten the button when mouse over:
00075     //_surface_color = new wxButton(this, ID_BUTTON_CHOOSE_COLOR, "", wxPoint(0,0), wxSize(150,50), wxRAISED_BORDER);
00076     //_surface_color->SetBackgroundColour( wxColour(250, 235, 214));
00077
00078     // Set up vessels toolbar
00079     wxBitmap vesselsToolBarBitmaps[ 3 ];
00080     vesselsToolBarBitmaps[ 0 ] = wxBITMAP( vesselstoolbar_extract );
00081     vesselsToolBarBitmaps[ 1 ] = wxBITMAP( vesselstoolbar_cutter );
00082     vesselsToolBarBitmaps[ 2 ] = wxBITMAP( vesselstoolbar_stl );
00083
00084          _vessels_tb = new wxToolBar( this, -1);
00085     _vessels_tb->SetMargins( 4, 4 );
00086     _vessels_tb->SetToolBitmapSize( wxSize( vesselsToolBarBitmaps[ 0 ].GetWidth( ), vesselsToolBarBitmaps[ 0 ].GetHeight( ) ) );
00087     _vessels_tb->AddTool(ID_BUTTON_VESSELS_CONSTRUCTION, _T("Construct Surface"), vesselsToolBarBitmaps[ 0 ],  _T("Construct Surface"));
00088     _vessels_tb->AddSeparator( );
00089     //_vessels_tb->AddTool(ID_BUTTON_3D_CUTTER, vesselsToolBarBitmaps[ 1 ], "Delete axis", "short help string");
00090     _vessels_tb->AddCheckTool(ID_BUTTON_3D_CUTTER, _T("Delete axis"), vesselsToolBarBitmaps[ 1 ], wxNullBitmap, _T("Delete axis") ); //, "short help string"
00091     _vessels_tb->AddSeparator( );
00092     _vessels_tb->AddTool(ID_BUTTON_EXPORT_STL, _T("Export as STL"), vesselsToolBarBitmaps[ 2 ], _T("Export as STL"));
00093     _vessels_tb->Realize( );
00094     _vessels_tb->SetRows( 1 );
00095
00096
00097     //Set Properties:
00098     _isoValue->SetSize(wxSize(64, 16));
00099     //End set properties
00100
00101     //Do the layout:
00102     wxStaticBoxSizer* sizer_3 = new wxStaticBoxSizer(new wxStaticBox(this, -1, _T("Iso Surface values")), wxVERTICAL);
00103     //Some borders are needed on wxGTK otherwise static text and slider labels collides.
00104     sizer_3->Add(_isoVisible, 1, wxALL|wxEXPAND, 2);
00105     sizer_3->Add(new wxStaticText(this, -1, _T("Isovalue")), 1, wxALL|wxEXPAND, 2);
00106     sizer_3->Add(_isoValue, 1, wxALL|wxEXPAND, 2);
00107     sizer_3->Add(new wxStaticText(this, -1, _T("Opacity (%)")), 1, wxALL|wxEXPAND, 2);
00108     sizer_3->Add(_opacity, 1, wxALL|wxEXPAND, 2);
00109
00110     //By default the STL Iso value is visible.
00111     _stlIntSurfaceVisible = new wxCheckBox( this, ID_CHECKBOX_STL_VISIBLE, _T("Internal STL Surface visible") );
00112     _stlIntSurfaceVisible->SetValue( true );
00113     _stlExtSurfaceVisible = new wxCheckBox( this, ID_CHECKBOX_STL_VISIBLE, _T("External STL Surface visible") );
00114     _stlExtSurfaceVisible->SetValue( true );
00115     _stlSurfaceValue = new wxSlider( this, ID_SLIDER_STL_THRESH, 0, 0, 100 , wxDefaultPosition, wxDefaultSize, wxSL_HORIZONTAL | wxSL_LABELS);
00116     _stlSurfaceValue->SetLabel( _T("STL Surface Value") );
00117     _stlSurfaceValue->SetRange(0, 100);
00118     //hard coded value 'cause thie is still not reachable: (int)_3DWorldSTL->GetSTLThreshold()
00119     _stlSurfaceValue->SetValue( 45 ); //100*.45 remember to multiply by 100
00120
00121
00122     //Do the layout:
00123     wxStaticBoxSizer* sizer_4 = new wxStaticBoxSizer(new wxStaticBox(this, -1, _T("STL Surface values")), wxVERTICAL);
00124     sizer_4->Add(_stlIntSurfaceVisible, 1, wxALL|wxEXPAND, 2);
00125     sizer_4->Add(_stlExtSurfaceVisible, 1, wxALL|wxEXPAND, 2);
00126     sizer_4->Add(new wxStaticText(this, -1, _T("STL Isovalue")), 1, wxALL|wxEXPAND, 2);
00127     sizer_4->Add(_stlSurfaceValue, 1, wxALL|wxEXPAND, 2);
00128
00129     _stlIntSurfaceVisible->Disable();
00130     _stlExtSurfaceVisible->Disable();
00131     _stlSurfaceValue->Disable();
00132
00133     _chkInvertSliceOrder = new wxCheckBox(this, ID_CHECKBOX_INVERT_SLICE_ORDER, _T("Invert slice order"));
00134
00135     wxBoxSizer* sizer_2 = new wxBoxSizer(wxVERTICAL);
00136     sizer_2->Add(sizer_3, 1, wxEXPAND, 0);
00137 // EED Borrame
00138 //    sizer_2->Add(_axis_tb, 1, wxEXPAND|wxALL|wxALIGN_LEFT, 0);
00139     sizer_2->Add(sizer_4, 1, wxEXPAND, 0);
00140     sizer_2->Add(_vessels_tb, 1, wxEXPAND|wxALL|wxALIGN_LEFT, 0);
00141     sizer_2->Add(_chkInvertSliceOrder, 1, wxEXPAND|wxALL|wxALIGN_LEFT, 0);
00142
00143     wxBoxSizer* sizer_1 = new wxBoxSizer(wxHORIZONTAL);
00144     sizer_1->Add(_3DWorldSTL, 1, wxEXPAND, 0);
00145     sizer_1->Add(sizer_2, 0, wxALL|wxALIGN_RIGHT, 5);
00146
00147     SetAutoLayout(true);
00148     SetSizer(sizer_1);
00149     Layout();
00150
00151 }

wxSurfaceSTLWidget::~wxSurfaceSTLWidget (  )

Definition at line 154 of file wxSurfaceSTLWidget.cxx.

References _3DWorldSTL.

00155 {
00156         _3DWorldSTL->Delete();
00157 }

Member Function Documentation

void wxSurfaceSTLWidget::OnVesselConstruction ( wxCommandEvent &  event  )

void wxSurfaceSTLWidget::On3DCutter ( wxCommandEvent &  event  )

Definition at line 284 of file wxSurfaceSTLWidget.cxx.

References _3DWorldSTL, and vtk3DSurfaceSTLWidget::SetCuttingMode().

00285 {
00286         wxBusyCursor wait;
00287   _3DWorldSTL->SetCuttingMode( event.IsChecked() );
00288 }

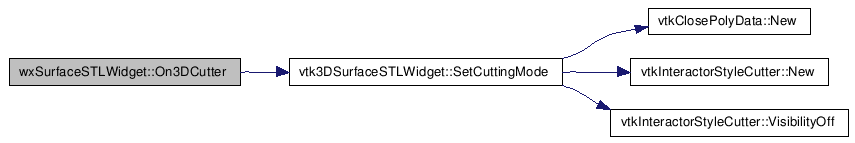

Here is the call graph for this function:

void wxSurfaceSTLWidget::OnExportAsSTL ( wxCommandEvent &  event  )

void wxSurfaceSTLWidget::OnChooseSurfaceColor ( wxCommandEvent &  event  )

void wxSurfaceSTLWidget::OnIsoVisible ( wxCommandEvent &  event  )

void wxSurfaceSTLWidget::OnSTLSurfaceVisible ( wxCommandEvent &  event  )

void wxSurfaceSTLWidget::OnSliderIsovalueScrollThumbrelease ( wxScrollEvent &  event  )

Definition at line 258 of file wxSurfaceSTLWidget.cxx.

References _3DWorldSTL, and vtk3DSurfaceSTLWidget::SetSurfaceIsoValue().

00259 {
00260   wxBusyCursor wait;
00261   _3DWorldSTL->SetSurfaceIsoValue( event.GetPosition() );
00262 }

Here is the call graph for this function:

void wxSurfaceSTLWidget::OnSliderOpacityScrollThumbrelease ( wxScrollEvent &  event  )

Definition at line 264 of file wxSurfaceSTLWidget.cxx.

References _3DWorldSTL, and vtk3DSurfaceSTLWidget::SetSurfaceOpacity().

00265 {
00266   _3DWorldSTL->SetSurfaceOpacity( event.GetPosition() );
00267 }

Here is the call graph for this function:

void wxSurfaceSTLWidget::OnInvertSliceOrder ( wxCommandEvent &  WXUNUSED(event)  )

Definition at line 233 of file wxSurfaceSTLWidget.cxx.

References _chkInvertSliceOrder, _mar, marInterface::_parameters, marParameters::e_invest_slice_order, marInterface::saveParameters(), and marParameters::setBoolParam().

00233                                                                           {
00234   wxMessageDialog *msgDlg = new wxMessageDialog(this, _T("You have to restart the application!"), _T("WARNING!!"), wxOK );
00235   msgDlg->ShowModal();
00236   delete msgDlg;
00237   _mar->_parameters->setBoolParam( marParameters::e_invest_slice_order, _chkInvertSliceOrder->GetValue( ) );
00238   _mar->saveParameters( );
00239 }

Here is the call graph for this function:

void wxSurfaceSTLWidget::OnSliderSTLSurfaceValueThumbrelease ( wxScrollEvent &  event  )

void wxSurfaceSTLWidget::ShowMARACASData ( marInterface *  mar  )

Definition at line 177 of file wxSurfaceSTLWidget.cxx.

References _3DWorldSTL, _chkInvertSliceOrder, marInterface::_experiment, _isoValue, _mar, _opacity, marInterface::_parameters, marParameters::e_invest_slice_order, marParameters::getBoolParam(), marExperiment::getDynData(), marDynData::getVolume(), min, and vtk3DSurfaceSTLWidget::ShowMARACASDataAndAxe().

00178 {
00179 wxBusyCursor wait;
00180
00181
00182 //    _width  = _mar->_experiment->getDynData( )->getVolume( )->getWidth( );
00183 //    _height = _mar->_experiment->getDynData( )->getVolume( )->getHeight( );
00184 //    _depth  = _mar->_experiment->getDynData( )->getVolume( )->getDepth( );
00185
00186
00187     double min, max; //backward compatibility
00188
00189     _mar = mar;
00190     //_3DWorldSTL->_mar = mar;
00191 //    _3DWorldSTL->ShowMARACASData( mar );
00192     _3DWorldSTL->ShowMARACASDataAndAxe( mar );
00193
00194
00195     //GUI stuff:
00196     _mar->_experiment->getDynData( )->getVolume( )->getMinMax( min, max );
00197
00198     _isoValue->SetRange((int)min, (int)max);
00199     _isoValue->SetValue( (int)(max/4) );
00200
00201     _opacity->SetValue( 50 );
00202         _chkInvertSliceOrder->SetValue( _mar->_parameters->getBoolParam( marParameters::e_invest_slice_order ) );
00203
00204 }

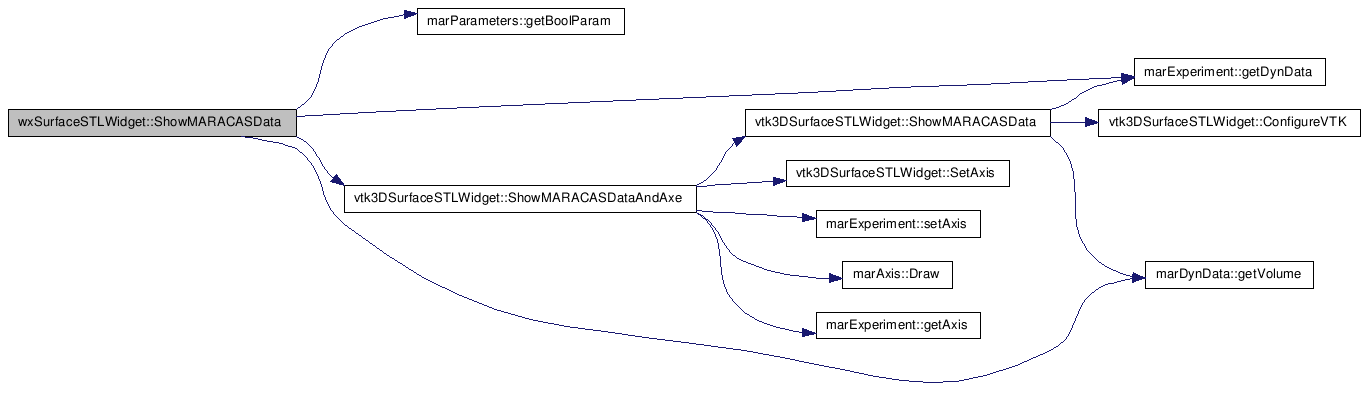

Here is the call graph for this function:

wxSurfaceSTLWidget::DECLARE_EVENT_TABLE (  )

Member Data Documentation

wxToolBar* wxSurfaceSTLWidget::_axis_tb

Definition at line 93 of file wxSurfaceSTLWidget.h.

wxToolBar* wxSurfaceSTLWidget::_vessels_tb

Definition at line 94 of file wxSurfaceSTLWidget.h.

wxCheckBox* wxSurfaceSTLWidget::_isoVisible

Definition at line 95 of file wxSurfaceSTLWidget.h.

wxSlider* wxSurfaceSTLWidget::_isoValue

Definition at line 96 of file wxSurfaceSTLWidget.h.

Referenced by ShowMARACASData().

wxSlider* wxSurfaceSTLWidget::_opacity

Definition at line 97 of file wxSurfaceSTLWidget.h.

Referenced by ShowMARACASData().

wxButton* wxSurfaceSTLWidget::_surface_color

Definition at line 98 of file wxSurfaceSTLWidget.h.

wxCheckBox* wxSurfaceSTLWidget::_stlIntSurfaceVisible

Definition at line 99 of file wxSurfaceSTLWidget.h.

wxCheckBox* wxSurfaceSTLWidget::_stlExtSurfaceVisible

Definition at line 100 of file wxSurfaceSTLWidget.h.

wxSlider* wxSurfaceSTLWidget::_stlSurfaceValue

Definition at line 101 of file wxSurfaceSTLWidget.h.

wxCheckBox* wxSurfaceSTLWidget::_chkInvertSliceOrder

Definition at line 102 of file wxSurfaceSTLWidget.h.

Referenced by OnInvertSliceOrder(), and ShowMARACASData().

marInterface* wxSurfaceSTLWidget::_mar

Definition at line 104 of file wxSurfaceSTLWidget.h.

Referenced by OnInvertSliceOrder(), and ShowMARACASData().

vtk3DSurfaceSTLWidget* wxSurfaceSTLWidget::_3DWorldSTL

Definition at line 106 of file wxSurfaceSTLWidget.h.

Referenced by On3DCutter(), OnSliderIsovalueScrollThumbrelease(), OnSliderOpacityScrollThumbrelease(), ShowMARACASData(), and ~wxSurfaceSTLWidget().

The documentation for this class was generated from the following files:
Generated on Wed Jul 29 16:36:27 2009 for creaMaracasVisu_lib by  doxygen 1.5.3
