wxVtkMPR2DView Class Reference

#include <wxVtkMPR2DView.h>

Inheritance diagram for wxVtkMPR2DView:

Inheritance graph
[legend]

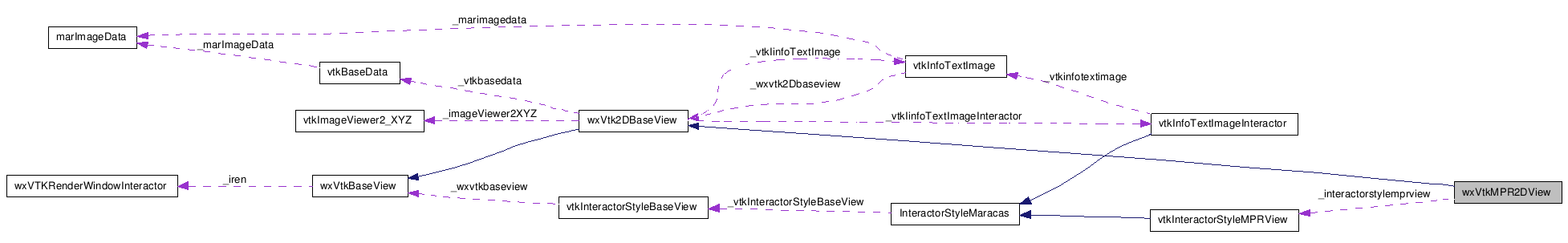

Collaboration diagram for wxVtkMPR2DView:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 wxVtkMPR2DView (wxWindow *parent, int direction)
 ~wxVtkMPR2DView ()
void Configure ()
virtual void Refresh ()

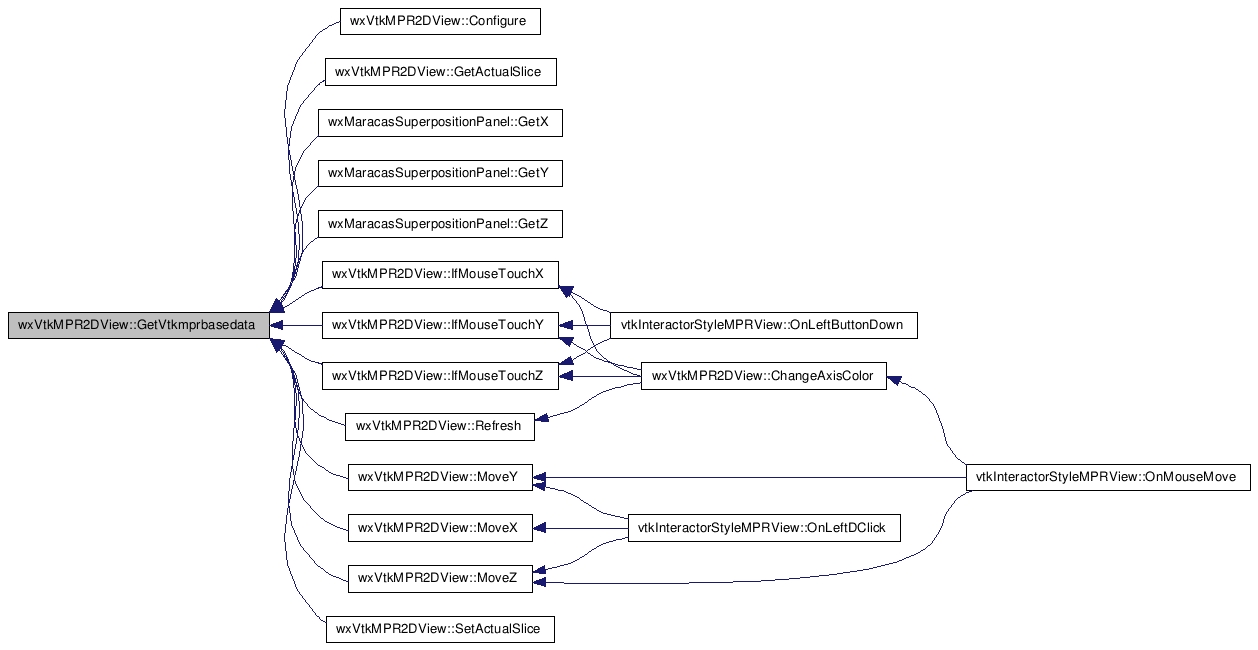

vtkMPRBaseDataGetVtkmprbasedata ()

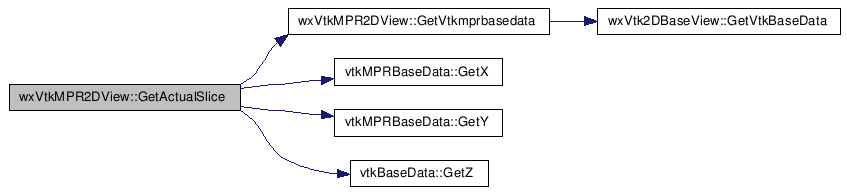

virtual int GetActualSlice ()

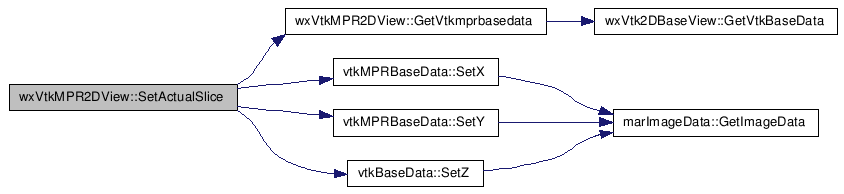

virtual void SetActualSlice (int slice)
bool IfMouseTouchX (double x, double y, double z)
bool IfMouseTouchY (double x, double y, double z)
bool IfMouseTouchZ (double x, double y, double z)
void MoveX (double x, double y, double z)
void MoveY (double x, double y, double z)
void MoveZ (double x, double y, double z)

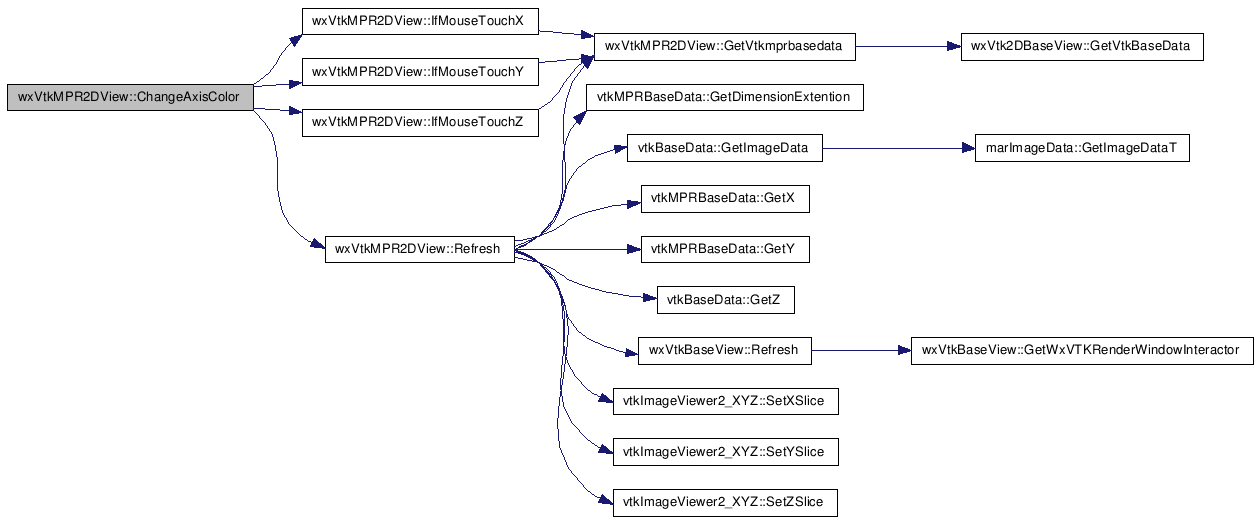

void ChangeAxisColor (double x, double y, double z)

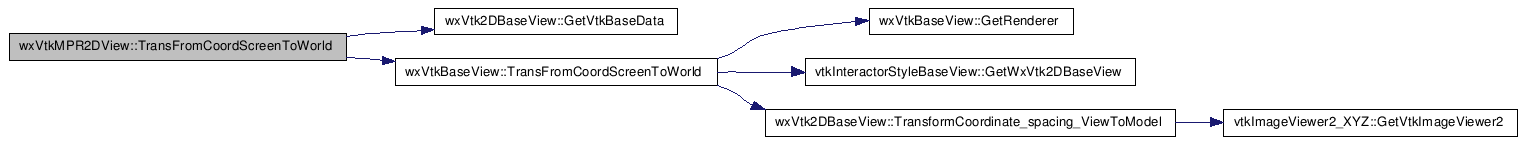

virtual void TransFromCoordScreenToWorld (double &X, double &Y, double &Z, bool keepNormalDirection=false, int type=2)
void SetVisibleAxis (bool ok)
virtual void Configure (bool okimage=true)
vtkBaseDataGetVtkBaseData ()
void SetVtkBaseData (vtkBaseData *vtkbasedata)
virtual void ResetView ()
void SetInteractorStyleImage (vtkInteractorStyleBaseView *interactorstylebaseview)
virtual vtkRenderer * GetRenderer ()
virtual vtkRenderWindow * GetRenWin ()
virtual void TransformCoordinate_spacing_ViewToModel (double &X, double &Y, double &Z)
virtual void TransformCoordinate_spacing_ModelToView (double &X, double &Y, double &Z)
virtual void GetSpacing (double spc[3])
void setColorTransferFunction (vtkColorTransferFunction *colortable)
wxVTKRenderWindowInteractorGetWxVTKRenderWindowInteractor () throw (char*)
virtual void RefreshView ()
void SetInteractorStyleBaseView (vtkInteractorStyleImage *interactorStyle)
vtkInteractorStyleImage * GetInteractorStyleBaseView ()

Public Attributes

vtkImageViewer2_XYZ_imageViewer2XYZ

Private Attributes

int _backX
int _backY
int _backZ
bool _visibleAxis
int _direction
vtkPoints * _ptsA
vtkActor * _lineAActor
vtkPolyDataMapper * _lineAMapper
vtkPolyData * _pdA
vtkPoints * _ptsB
vtkActor * _lineBActor
vtkPolyDataMapper * _lineBMapper
vtkPolyData * _pdB
vtkInteractorStyleMPRView_interactorstylemprview


Detailed Description

Definition at line 14 of file wxVtkMPR2DView.h.


Constructor & Destructor Documentation

wxVtkMPR2DView::wxVtkMPR2DView ( wxWindow *  parent,
int  direction
)

Definition at line 7 of file wxVtkMPR2DView.cxx.

References _backX, _backY, _backZ, _direction, _lineAActor, _lineAMapper, _lineBActor, _lineBMapper, _pdA, _pdB, _ptsA, and _ptsB.

00008  :wxVtk2DBaseView(parent)
00009 {
00010         _backX                  = -99999;
00011         _backY                  = -99999;
00012         _backZ                  = -99999;
00013         _direction              = direction;
00014         _ptsA                   = NULL;
00015         _lineAActor             = NULL;
00016         _lineAMapper    = NULL;
00017         _pdA                    = NULL;
00018         _ptsB                   = NULL;
00019         _lineBActor             = NULL;
00020         _lineBMapper    = NULL;
00021         _pdB                    = NULL;
00022 }

wxVtkMPR2DView::~wxVtkMPR2DView (  )

Definition at line 25 of file wxVtkMPR2DView.cxx.

References _lineAActor, _lineAMapper, _lineBActor, _lineBMapper, _pdA, _pdB, _ptsA, and _ptsB.

00026 {
00027         if (_ptsA!=NULL)        { _ptsA         -> Delete(); }
00028         if (_lineAActor!=NULL)  { _lineAActor   -> Delete(); }
00029         if (_lineAMapper!=NULL) { _lineAMapper  -> Delete(); }
00030         if (_pdA!=NULL)         { _pdA          -> Delete(); }
00031         if (_ptsB!=NULL)        { _ptsB         -> Delete(); }
00032         if (_lineBActor!=NULL)  { _lineBActor   -> Delete(); }
00033         if (_lineBMapper!=NULL) { _lineBMapper  -> Delete(); }
00034         if (_pdB!=NULL)         { _pdB          -> Delete(); }
00035 }


Member Function Documentation

void wxVtkMPR2DView::Configure (  )  [virtual]

Reimplemented from wxVtkBaseView.

Definition at line 42 of file wxVtkMPR2DView.cxx.

References _direction, wxVtk2DBaseView::_imageViewer2XYZ, _interactorstylemprview, _lineAActor, _lineAMapper, _lineBActor, _lineBMapper, _pdA, _pdB, _ptsA, _ptsB, _visibleAxis, wxVtkBaseView::Configure(), vtkBaseData::GetImageData(), wxVtkBaseView::GetInteractorStyleBaseView(), vtkImageViewer2_XYZ::GetVtkImageViewer2(), and GetVtkmprbasedata().

00042                               {
00043         wxVtk2DBaseView::Configure();
00044
00045         _interactorstylemprview = new vtkInteractorStyleMPRView();
00046         ((vtkInteractorStyleBaseView*)GetInteractorStyleBaseView())->AddInteractorStyleMaracas( _interactorstylemprview );
00047
00048         int x1,x2,y1,y2,z1,z2;
00049         GetVtkmprbasedata()     -> GetDimensionExtention(&x1,&x2,&y1,&y2,&z1,&z2);
00050
00051         double spc[3];
00052         vtkImageData* img =  GetVtkmprbasedata()->GetImageData();
00053         if(img!=NULL){
00054                 img->GetSpacing(spc);
00055                 x1 = (int)(x1*spc[0]);
00056                 y1 = (int)(y1*spc[1]);
00057                 z1 = (int)(z1*spc[2]);
00058
00059                 x2 = (int)(x2*spc[0]);
00060                 y2 = (int)(y2*spc[1]);
00061                 z2 = (int)(z2*spc[2]);
00062
00063                 _visibleAxis = true;
00064
00065         // Axe A
00066                 if(_lineAActor==NULL){
00067                         _ptsA = vtkPoints::New();
00068                         _ptsA->SetNumberOfPoints(2);
00069                         _ptsA->SetPoint(0, -1000        , -1000 , -1000 );
00070                         _ptsA->SetPoint(1,  1000        ,  1000 ,  1000 );
00071                         vtkCellArray *linesA;
00072                         linesA = vtkCellArray::New();
00073                         linesA->InsertNextCell(2);
00074                         linesA->InsertCellPoint(0);
00075                         linesA->InsertCellPoint(1);
00076                         _pdA = vtkPolyData::New();
00077                         _pdA->SetPoints( _ptsA );
00078                         _pdA->SetLines( linesA );
00079                         linesA->Delete();  //do not delete lines ??
00080                         _lineAActor                                             =       vtkActor::New();
00081                         _lineAMapper                                    =       vtkPolyDataMapper::New();
00082
00083                         _lineAMapper->SetInput(_pdA);
00084                         _lineAMapper->ImmediateModeRenderingOn();
00085                         _lineAActor->SetMapper(_lineAMapper);
00086         //              _lineAActor->GetProperty()->BackfaceCullingOn();
00087                         _lineAActor->GetProperty()->SetDiffuseColor(1,0,0);
00088                         _lineAActor->GetProperty()->SetLineWidth(2);
00089                         _imageViewer2XYZ->GetVtkImageViewer2()->GetRenderer()->AddActor( _lineAActor );
00090                 }
00091
00092
00093
00094
00095         // Axe B
00096                 if(_lineBActor==NULL){
00097                         _ptsB = vtkPoints::New();
00098                         _ptsB->SetNumberOfPoints(2);
00099                         _ptsB->SetPoint(0, -1000        , -1000 , -1000 );
00100                         _ptsB->SetPoint(1,  1000        ,  1000 ,  1000 );
00101                         vtkCellArray *linesB;
00102                         linesB = vtkCellArray::New();
00103                         linesB->InsertNextCell(2);
00104                         linesB->InsertCellPoint(0);
00105                         linesB->InsertCellPoint(1);
00106                         _pdB = vtkPolyData::New();
00107                         _pdB->SetPoints( _ptsB );
00108                         _pdB->SetLines( linesB );
00109                         linesB->Delete();  //do not delete lines ??
00110                         _lineBActor                                             =       vtkActor::New();
00111                         _lineBMapper                                    =       vtkPolyDataMapper::New();
00112                         _lineBMapper->SetInput(_pdB);
00113                         _lineBMapper->ImmediateModeRenderingOn();
00114                         _lineBActor->SetMapper(_lineBMapper);
00115         //              _lineBActor->GetProperty()->BackfaceCullingOn();
00116                         _lineBActor->GetProperty()->SetDiffuseColor(1,0,0);
00117                         _lineBActor->GetProperty()->SetLineWidth(2);
00118                         _imageViewer2XYZ->GetVtkImageViewer2()->GetRenderer()->AddActor( _lineBActor );
00119                 }
00120
00121
00122                 vtkCamera *camera =_imageViewer2XYZ->GetVtkImageViewer2()->GetRenderer()->GetActiveCamera();
00123
00124 //EED 17Avril2009
00125 /*
00126                 if (_direction==0) {
00127                         camera->SetViewUp               (   0   ,    -1         ,     0         );
00128                         camera->SetPosition             ( -10000,(y1+y2)/2      , (z1+z2)/2     );
00129                         camera->SetFocalPoint   (   0   , (y1+y2)/2     , (z1+z2)/2     );
00130                         camera->SetParallelScale( (z2-z1)/3.0 );
00131                 }
00132
00133                 if (_direction==1) {
00134                         camera->SetViewUp               (       0               ,       0       ,       -1              );
00135                         camera->SetPosition             ((x1+x2)/2      , 10000 , (z1+z2)/2     );
00136                         camera->SetFocalPoint   ((x1+x2)/2      ,   0   , (z1+z2)/2     );
00137                         camera->SetParallelScale( (x2-x1)/3.0 );
00138                 }
00139
00140                 if (_direction==2) {
00141                         camera->SetViewUp               (       0               ,       -1              ,       0       );
00142                         camera->SetPosition             ((x1+x2)/2      , (y1+y2)/2     , -10000);
00143                         camera->SetFocalPoint   ((x1+x2)/2      , (y1+y2)/2     ,       0       );
00144                         camera->SetParallelScale( (x2-x1)/3.0 );
00145                 }
00146  */
00147
00148                 if (_direction==0) {    // YZ
00149                         camera->SetViewUp               (   0   ,     1         ,     0         );
00150                         camera->SetPosition             (  10000,(y1+y2)/2      , (z1+z2)/2     );
00151                         camera->SetFocalPoint   (   0   , (y1+y2)/2     , (z1+z2)/2     );
00152                         camera->SetParallelScale( (z2-z1)/3.0 );
00153                 }
00154
00155                 if (_direction==1) {    // XZ
00156                         camera->SetViewUp               (       0               ,       0       ,       -1              );
00157                         camera->SetPosition             ((x1+x2)/2      , 10000 , (z1+z2)/2     );
00158                         camera->SetFocalPoint   ((x1+x2)/2      ,   0   , (z1+z2)/2     );
00159                         camera->SetParallelScale( (x2-x1)/3.0 );
00160                 }
00161
00162                 if (_direction==2) {    // XY
00163                         camera->SetViewUp               (       0               ,       1               ,       0       );
00164                         camera->SetPosition             ((x1+x2)/2      , (y1+y2)/2     ,  10000);
00165                         camera->SetFocalPoint   ((x1+x2)/2      , (y1+y2)/2     ,       0       );
00166                         camera->SetParallelScale( (x2-x1)/3.0 );
00167                 }
00168
00169
00170
00171         }
00172
00173 //      _imageViewer2XYZ->GetVtkImageViewer2()->SetColorWindow (160);
00174 //      _imageViewer2XYZ->GetVtkImageViewer2()->SetColorLevel (800);
00175
00176 }

Here is the call graph for this function:

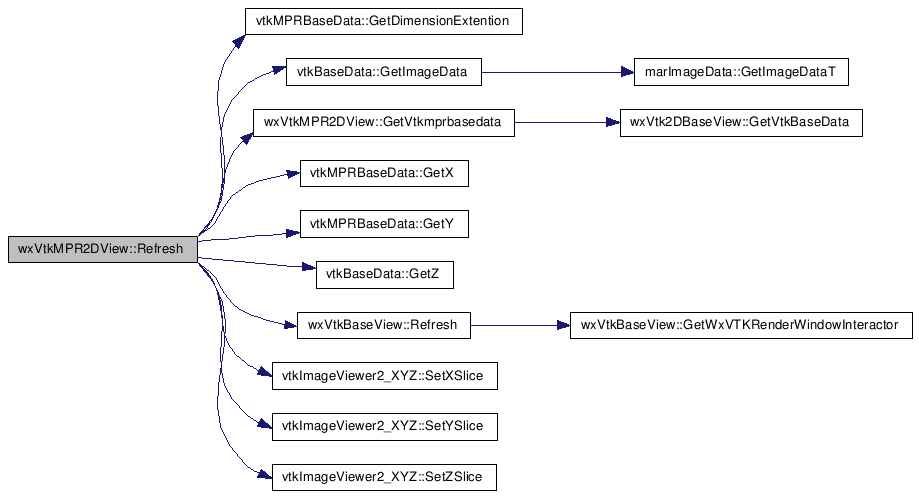

void wxVtkMPR2DView::Refresh (  )  [virtual]

Reimplemented from wxVtk2DBaseView.

Definition at line 198 of file wxVtkMPR2DView.cxx.

References _backX, _backY, _backZ, _direction, wxVtk2DBaseView::_imageViewer2XYZ, _ptsA, _ptsB, vtkMPRBaseData::GetDimensionExtention(), vtkBaseData::GetImageData(), GetVtkmprbasedata(), vtkMPRBaseData::GetX(), vtkMPRBaseData::GetY(), vtkBaseData::GetZ(), wxVtkBaseView::Refresh(), vtkImageViewer2_XYZ::SetXSlice(), vtkImageViewer2_XYZ::SetYSlice(), and vtkImageViewer2_XYZ::SetZSlice().

Referenced by ChangeAxisColor().

00199 {
00200         //wxVtk2DBaseView::Refresh();
00201
00202
00203         //vtkImageViewer2 *IV2=_imageViewer2XYZ->GetVtkImageViewer2(); // JPRx
00204         //vtkCamera *camera = IV2->GetRenderer()->GetActiveCamera(); // JPRx
00205
00206
00207
00208         int x1,x2,y1,y2,z1,z2;
00209         GetVtkmprbasedata()->GetDimensionExtention(&x1,&x2,&y1,&y2,&z1,&z2);
00210         double spc[3];
00211
00212         vtkImageData* img = GetVtkmprbasedata()->GetImageData();
00213         if(img!=NULL){
00214                 img->GetSpacing(spc);
00215                 x1 =  (int)(x1*spc[0]);
00216                 y1 =  (int)(y1*spc[1]);
00217                 z1 =  (int)(z1*spc[2]);
00218
00219                 x2 =  (int)(x2*spc[0]);
00220                 y2 =  (int)(y2*spc[1]);
00221                 z2 =  (int)(z2*spc[2]);
00222
00223                 int x = (int)(GetVtkmprbasedata()->GetX());
00224                 int y = (int)(GetVtkmprbasedata()->GetY());
00225                 int z = (int)(GetVtkmprbasedata()->GetZ());
00226
00227                 x =  (int)(x*spc[0]);
00228                 y =  (int)(y*spc[1]);
00229                 z =  (int)(z*spc[2]);
00230
00231                 if ((x!=_backX) || (y!=_backY) || (z!=_backZ)) {
00232
00233                         if (_direction==0) {    // YZ
00234                                 _imageViewer2XYZ->SetXSlice( (int)(GetVtkmprbasedata()->GetX()) );
00235                                 _ptsA->SetPoint(0, x2, y1  , z );
00236                                 _ptsA->SetPoint(1, x2, y2  , z );
00237                                 _ptsB->SetPoint(0, x2, y   , z1);
00238                                 _ptsB->SetPoint(1, x2, y   , z2);
00239                         }
00240                         if (_direction==1) {    // XZ
00241                                 _imageViewer2XYZ->SetYSlice( (int)(GetVtkmprbasedata()->GetY()) );
00242                             _ptsA->SetPoint(0, x1 , y2 , z );
00243                                 _ptsA->SetPoint(1, x2 , y2 , z );
00244                                 _ptsB->SetPoint(0, x  , y2 , z1);
00245                                 _ptsB->SetPoint(1, x  , y2 , z2);
00246                         }
00247                         if (_direction==2) {    // XY
00248                                 _imageViewer2XYZ->SetZSlice( (int)(GetVtkmprbasedata()->GetZ()) );
00249                                 _imageViewer2XYZ->SetZSlice( (int)(GetVtkmprbasedata()->GetZ()) );
00250                         //      _ptsA->SetPoint(0, x1 , y , -z2 );
00251                         //      _ptsA->SetPoint(1, x2 , y , -z2 );
00252                         //      _ptsB->SetPoint(0, x  , y1, -z2 );
00253                         //      _ptsB->SetPoint(1, x  , y2, -z2 );
00254
00255                                 _ptsA->SetPoint(0, x1 , y , z2 );
00256                                 _ptsA->SetPoint(1, x2 , y , z2 );
00257                                 _ptsB->SetPoint(0, x  , y1, z2 );
00258                                 _ptsB->SetPoint(1, x  , y2, z2 );
00259                         }
00260                         _backX=x;
00261                         _backY=y;
00262                         _backZ=z;
00263                 }
00264                 wxVtkBaseView::Refresh();
00265         }
00266 }

Here is the call graph for this function:

Here is the caller graph for this function:

vtkMPRBaseData * wxVtkMPR2DView::GetVtkmprbasedata (  )

Definition at line 37 of file wxVtkMPR2DView.cxx.

References wxVtk2DBaseView::GetVtkBaseData().

Referenced by Configure(), GetActualSlice(), wxMaracasSuperpositionPanel::GetX(), wxMaracasSuperpositionPanel::GetY(), wxMaracasSuperpositionPanel::GetZ(), IfMouseTouchX(), IfMouseTouchY(), IfMouseTouchZ(), MoveX(), MoveY(), MoveZ(), Refresh(), and SetActualSlice().

00038 {
00039         return (vtkMPRBaseData*)GetVtkBaseData();
00040 }

Here is the call graph for this function:

Here is the caller graph for this function:

int wxVtkMPR2DView::GetActualSlice (  )  [virtual]

Reimplemented from wxVtk2DBaseView.

Definition at line 268 of file wxVtkMPR2DView.cxx.

References _direction, GetVtkmprbasedata(), vtkMPRBaseData::GetX(), vtkMPRBaseData::GetY(), and vtkBaseData::GetZ().

00269 {
00270         int result;
00271         if (_direction==0)
00272         {
00273                 result = (int)(GetVtkmprbasedata()->GetX());
00274         }
00275         if (_direction==1)
00276         {
00277                 result = (int)(GetVtkmprbasedata()->GetY());
00278         }
00279         if (_direction==2)
00280         {
00281                 result = (int)(GetVtkmprbasedata()->GetZ());
00282         }
00283         return result;
00284 }

Here is the call graph for this function:

void wxVtkMPR2DView::SetActualSlice ( int  slice  )  [virtual]

Reimplemented from wxVtk2DBaseView.

Definition at line 286 of file wxVtkMPR2DView.cxx.

References _direction, GetVtkmprbasedata(), vtkMPRBaseData::SetX(), vtkMPRBaseData::SetY(), and vtkBaseData::SetZ().

00287 {
00288         if (_direction==0)
00289         {
00290                 GetVtkmprbasedata()->SetX(slice);
00291         }
00292         if (_direction==1)
00293         {
00294                 GetVtkmprbasedata()->SetY(slice);
00295         }
00296         if (_direction==2)
00297         {
00298                 GetVtkmprbasedata()->SetZ(slice);
00299         }
00300 }

Here is the call graph for this function:

bool wxVtkMPR2DView::IfMouseTouchX ( double  x,
double  y,
double  z
)

Definition at line 302 of file wxVtkMPR2DView.cxx.

References _direction, and GetVtkmprbasedata().

Referenced by ChangeAxisColor(), and vtkInteractorStyleMPRView::OnLeftButtonDown().

00303 {
00304         double delta=5;
00305         bool result=false;
00306         if (_direction==0)
00307         {
00308         }
00309         if (_direction==1)
00310         {
00311                 if (( x<GetVtkmprbasedata()->GetX()+delta ) && ( x>GetVtkmprbasedata()->GetX()-delta ))
00312                 {
00313                         result = true;
00314                 }
00315         }
00316         if (_direction==2)
00317         {
00318                 if (( x<GetVtkmprbasedata()->GetX()+delta ) && ( x>GetVtkmprbasedata()->GetX()-delta ))
00319                 {
00320                         result = true;
00321                 }
00322         }
00323         return result;
00324 }

Here is the call graph for this function:

Here is the caller graph for this function:

bool wxVtkMPR2DView::IfMouseTouchY ( double  x,
double  y,
double  z
)

Definition at line 326 of file wxVtkMPR2DView.cxx.

References _direction, and GetVtkmprbasedata().

Referenced by ChangeAxisColor(), and vtkInteractorStyleMPRView::OnLeftButtonDown().

00327 {
00328         double delta=5;
00329         bool result=false;
00330         if (_direction==0)
00331         {
00332                 if (( y<GetVtkmprbasedata()->GetY()+delta ) && ( y>GetVtkmprbasedata()->GetY()-delta ))
00333                 {
00334                         result = true;
00335                 }
00336         }
00337         if (_direction==1)
00338         {
00339         }
00340         if (_direction==2)
00341         {
00342                 if (( y<GetVtkmprbasedata()->GetY()+delta ) && ( y>GetVtkmprbasedata()->GetY()-delta ))
00343                 {
00344                         result = true;
00345                 }
00346         }
00347         return result;
00348 }

Here is the call graph for this function:

Here is the caller graph for this function:

bool wxVtkMPR2DView::IfMouseTouchZ ( double  x,
double  y,
double  z
)

Definition at line 350 of file wxVtkMPR2DView.cxx.

References _direction, and GetVtkmprbasedata().

Referenced by ChangeAxisColor(), and vtkInteractorStyleMPRView::OnLeftButtonDown().

00351 {
00352         double delta=5;
00353         bool result=false;
00354         if (_direction==0)
00355         {
00356                 if (( z<GetVtkmprbasedata()->GetZ()+delta ) && ( z>GetVtkmprbasedata()->GetZ()-delta ))
00357                 {
00358                         result = true;
00359                 }
00360         }
00361         if (_direction==1)
00362         {
00363                 if (( z<GetVtkmprbasedata()->GetZ()+delta ) && ( z>GetVtkmprbasedata()->GetZ()-delta ))
00364                 {
00365                         result = true;
00366                 }
00367         }
00368         if (_direction==2)
00369         {
00370         }
00371         return result;
00372 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtkMPR2DView::MoveX ( double  x,
double  y,
double  z
)

Definition at line 374 of file wxVtkMPR2DView.cxx.

References _direction, GetVtkmprbasedata(), and vtkMPRBaseData::SetX().

Referenced by vtkInteractorStyleMPRView::OnLeftDClick().

00375 {
00376         if (_direction==0)
00377         {
00378         }
00379         if (_direction==1)
00380         {
00381                 GetVtkmprbasedata()->SetX(x);
00382         }
00383         if (_direction==2)
00384         {
00385                 GetVtkmprbasedata()->SetX(x);
00386         }
00387 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtkMPR2DView::MoveY ( double  x,
double  y,
double  z
)

Definition at line 389 of file wxVtkMPR2DView.cxx.

References _direction, GetVtkmprbasedata(), and vtkMPRBaseData::SetY().

Referenced by vtkInteractorStyleMPRView::OnLeftDClick(), and vtkInteractorStyleMPRView::OnMouseMove().

00390 {
00391         if (_direction==0)
00392         {
00393                 GetVtkmprbasedata()->SetY(y);
00394         }
00395         if (_direction==1)
00396         {
00397         }
00398         if (_direction==2)
00399         {
00400                 GetVtkmprbasedata()->SetY(y);
00401         }
00402 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtkMPR2DView::MoveZ ( double  x,
double  y,
double  z
)

Definition at line 404 of file wxVtkMPR2DView.cxx.

References _direction, GetVtkmprbasedata(), and vtkBaseData::SetZ().

Referenced by vtkInteractorStyleMPRView::OnLeftDClick(), and vtkInteractorStyleMPRView::OnMouseMove().

00405 {
00406         if (_direction==0)
00407         {
00408                 GetVtkmprbasedata()->SetZ(z);
00409         }
00410         if (_direction==1)
00411         {
00412                 GetVtkmprbasedata()->SetZ(z);
00413         }
00414         if (_direction==2)
00415         {
00416         }
00417 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtkMPR2DView::ChangeAxisColor ( double  x,
double  y,
double  z
)

Definition at line 419 of file wxVtkMPR2DView.cxx.

References _direction, _lineAActor, _lineBActor, IfMouseTouchX(), IfMouseTouchY(), IfMouseTouchZ(), and Refresh().

Referenced by vtkInteractorStyleMPRView::OnMouseMove().

00420 {
00421         double c1r=1,c1g=1,c1b=0;
00422         double c2r=1,c2g=0,c2b=0;
00423
00424         if (_direction==0)
00425         {
00426                 if (IfMouseTouchY(x,y,z)==true)
00427                 {
00428                         _lineBActor->GetProperty()->SetDiffuseColor(c1r,c1g,c1b);
00429                 } else {
00430                         _lineBActor->GetProperty()->SetDiffuseColor(c2r,c2g,c2b);
00431                 }
00432                 if (IfMouseTouchZ(x,y,z)==true)
00433                 {
00434                         _lineAActor->GetProperty()->SetDiffuseColor(c1r,c1g,c1b);
00435                 } else {
00436                         _lineAActor->GetProperty()->SetDiffuseColor(c2r,c2g,c2b);
00437                 }
00438         }
00439
00440         if (_direction==1)
00441         {
00442                 if (IfMouseTouchX(x,y,z)==true)
00443                 {
00444                         _lineBActor->GetProperty()->SetDiffuseColor(c1r,c1g,c1b);
00445                 } else {
00446                         _lineBActor->GetProperty()->SetDiffuseColor(c2r,c2g,c2b);
00447                 }
00448                 if (IfMouseTouchZ(x,y,z)==true)
00449                 {
00450                         _lineAActor->GetProperty()->SetDiffuseColor(c1r,c1g,c1b);
00451                 } else {
00452                         _lineAActor->GetProperty()->SetDiffuseColor(c2r,c2g,c2b);
00453                 }
00454         }
00455
00456         if (_direction==2)
00457         {
00458                 if (IfMouseTouchX(x,y,z)==true)
00459                 {
00460                         _lineBActor->GetProperty()->SetDiffuseColor(c1r,c1g,c1b);
00461                 } else {
00462                         _lineBActor->GetProperty()->SetDiffuseColor(c2r,c2g,c2b);
00463                 }
00464                 if (IfMouseTouchY(x,y,z)==true)
00465                 {
00466                         _lineAActor->GetProperty()->SetDiffuseColor(c1r,c1g,c1b);
00467                 } else {
00468                         _lineAActor->GetProperty()->SetDiffuseColor(c2r,c2g,c2b);
00469                 }
00470         }
00471         Refresh();
00472 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtkMPR2DView::TransFromCoordScreenToWorld ( double &  X,
double &  Y,
double &  Z,
bool  keepNormalDirection = false,
int  type = 2
) [virtual]

Reimplemented from wxVtkBaseView.

Definition at line 477 of file wxVtkMPR2DView.cxx.

References _direction, wxVtk2DBaseView::GetVtkBaseData(), and wxVtkBaseView::TransFromCoordScreenToWorld().

00478 {
00479
00480         wxVtkBaseView::TransFromCoordScreenToWorld(X,Y,Z,keepNormalDirection,_direction);
00481
00482         if ((_direction==0) && (keepNormalDirection==true) )
00483         {
00484                 X = ((vtkMPRBaseData*)GetVtkBaseData())->GetX();
00485         }
00486
00487         if ((_direction==1) && (keepNormalDirection==true) )
00488         {
00489                 Y = ((vtkMPRBaseData*)GetVtkBaseData())->GetY();
00490         }
00491
00492         if ((_direction==2) && (keepNormalDirection==true) )
00493         {
00494                 Z = ((vtkMPRBaseData*)GetVtkBaseData())->GetZ();
00495         }
00496
00497 }

Here is the call graph for this function:

void wxVtkMPR2DView::SetVisibleAxis ( bool  ok  )

Definition at line 178 of file wxVtkMPR2DView.cxx.

References wxVtk2DBaseView::_imageViewer2XYZ, _lineAActor, _lineBActor, _visibleAxis, and vtkImageViewer2_XYZ::GetVtkImageViewer2().

Referenced by wxMaracasSuperpositionPanel::SetVisibleAxis().

00179 {
00180         if (ok!=_visibleAxis)
00181         {
00182                 _visibleAxis=ok;
00183                 if (_visibleAxis==true)
00184                 {
00185                         _imageViewer2XYZ->GetVtkImageViewer2()->GetRenderer()->AddActor( _lineAActor );
00186                         _imageViewer2XYZ->GetVtkImageViewer2()->GetRenderer()->AddActor( _lineBActor );
00187                 }
00188                 if (_visibleAxis==false)
00189                 {
00190                         _imageViewer2XYZ->GetVtkImageViewer2()->GetRenderer()->RemoveActor( _lineAActor );
00191                         _imageViewer2XYZ->GetVtkImageViewer2()->GetRenderer()->RemoveActor( _lineBActor );
00192                 }
00193
00194         }
00195 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtk2DBaseView::Configure ( bool  okimage = true  )  [virtual, inherited]

Definition at line 84 of file wxVtk2DBaseView.cxx.

References wxVtk2DBaseView::_imageViewer2XYZ, wxVtk2DBaseView::_vtkIinfoTextImage, wxVtk2DBaseView::_vtkIinfoTextImageInteractor, vtkInfoTextImage::Configure(), wxVtkBaseView::Configure(), marImageData::GetImageData(), vtkBaseData::GetMarImageData(), wxVtk2DBaseView::GetVtkBaseData(), vtkImageViewer2_XYZ::GetVtkImageViewer2(), wxVtkBaseView::GetWxVTKRenderWindowInteractor(), vtkInteractorStyleBaseView2D::New(), vtkImageViewer2_XYZ::SetExtentDimension(), wxVtk2DBaseView::SetInteractorStyleImage(), vtkInfoTextImage::SetMarImageData(), vtkInfoTextImageInteractor::SetModelVtkInfoTextImage(), and vtkInfoTextImage::SetWxVtk2DBaseView().

Referenced by wxQuantificationWidgetCT::ConfigureVTK(), wxProcessingCTWidget::ConfigureVTK(), wxEmptyPanel_3_Widget::ConfigureVTK(), and wxMaracasImageBrowser02::LoadData().

00085 {
00086         double spx,spy,spz;
00087         int x1,x2,y1,y2,z1,z2;
00088         wxVtkBaseView::Configure();
00089
00090 // EED 17 Oct 2007
00091         if (_imageViewer2XYZ==NULL)
00092         {
00093                 _imageViewer2XYZ = new vtkImageViewer2_XYZ();
00094                 wxVTKRenderWindowInteractor *iren = GetWxVTKRenderWindowInteractor();
00095                 _imageViewer2XYZ -> GetVtkImageViewer2()->SetupInteractor ( iren );
00096                 SetInteractorStyleImage( vtkInteractorStyleBaseView2D::New() );
00097         }
00098
00099
00100         vtkImageData *imageData = GetVtkBaseData()->GetMarImageData()->GetImageData();
00101         if (imageData!=NULL){
00102                 imageData->UpdateInformation();
00103                 imageData->SetUpdateExtent( imageData->GetWholeExtent());
00104                 imageData->Update();
00105                 if (okimage==true){
00106                         imageData->GetSpacing (spx,spy,spz);
00107                         imageData->GetExtent (x1,x2,y1,y2,z1,z2);
00108
00109
00110                         _imageViewer2XYZ->GetVtkImageViewer2()->SetInput(imageData );
00111                         _imageViewer2XYZ->SetExtentDimension(x1,x2,y1,y2,z1,z2);
00112                         double range[2];
00113                           imageData->GetScalarRange(range);
00114                           if (range[1]<20000){
00115                                  _imageViewer2XYZ->GetVtkImageViewer2()->SetColorWindow( (range[1]-range[0])/2 );
00116                                  _imageViewer2XYZ->GetVtkImageViewer2()->SetColorLevel( (range[1]+range[0])/4 );
00117                           } else {
00118                                  _imageViewer2XYZ->GetVtkImageViewer2()->SetColorWindow( 1000 );
00119                                  _imageViewer2XYZ->GetVtkImageViewer2()->SetColorLevel( 500 );
00120                           }
00121 // EED 31 Janvier 2007
00122 //vtkImageActor *vtkimageactor = _imageViewer2XYZ->GetVtkImageViewer2()->GetImageActor ();
00123 //vtkimageactor->InterpolateOff ();
00124 //vtkLookupTable * _collookup = vtkLookupTable::New( );
00125 //_collookup->SetNumberOfColors( 256 );
00126 //_collookup->SetTableRange( 0 , 255 );
00127 //_collookup->Build( );
00128 //_collookup->SetTableValue( 0  , 1 , 0 , 0 , 1 );
00129 //_collookup->SetTableValue(128 , 0 , 0 , 1 , 1 );
00130 //_collookup->SetTableValue(255 , 0 , 1 , 0 , 1 );
00131 //_imageViewer2XYZ->GetVtkImageViewer2()->GetWindowLevel ()->SetLookupTable(_collookup );
00132
00133
00134 // EED 17 Oct 2007
00135 //                      SetInteractorStyleImage( vtkInteractorStyleBaseView2D::New() );
00136
00137
00138                         vtkImageViewer2 *IV2=_imageViewer2XYZ->GetVtkImageViewer2();
00139                         vtkCamera *camera = IV2->GetRenderer()->GetActiveCamera();
00140
00141 //EED 17Avril2009
00142 /*
00143                         camera->SetViewUp               ( spx*0                 , -spy*1                        , spz*0         );
00144                         camera->SetPosition             ( spx*(x1+x2)/2 , spy*(y1+y2)/2 , -spz*10000    );
00145                         camera->SetFocalPoint   ( spx*(x1+x2)/2 , spy*(y1+y2)/2 , spz*0         );
00146 */
00147                         camera->SetViewUp               ( spx*0                 , spy*1                 , spz*0         );
00148                         camera->SetPosition             ( spx*(x1+x2)/2 , spy*(y1+y2)/2 , spz*10000     );
00149                         camera->SetFocalPoint   ( spx*(x1+x2)/2 , spy*(y1+y2)/2 , spz*0         );
00150
00151
00152                         camera->SetClippingRange( 0.01                  , 1000000 );
00153                         camera->ComputeViewPlaneNormal();
00154                         camera->SetParallelScale( spx*(x2-x1)/3.0 );
00155
00156                         // text information over the graphic window
00157                         _vtkIinfoTextImage              = new vtkInfoTextImage();
00158                         _vtkIinfoTextImageInteractor    = new vtkInfoTextImageInteractor();
00159                         _vtkIinfoTextImage->SetWxVtk2DBaseView(this);
00160                         _vtkIinfoTextImage->SetMarImageData( GetVtkBaseData()->GetMarImageData() );
00161                         _vtkIinfoTextImageInteractor->SetModelVtkInfoTextImage(_vtkIinfoTextImage);
00162                         _vtkIinfoTextImage->Configure();
00163                         ((vtkInteractorStyleBaseView*)this->GetInteractorStyleBaseView())->AddInteractorStyleMaracas(_vtkIinfoTextImageInteractor);
00164                 } // okimage
00165         } // imageData
00166
00167 }

Here is the call graph for this function:

Here is the caller graph for this function:

vtkBaseData * wxVtk2DBaseView::GetVtkBaseData (  )  [inherited]

Definition at line 184 of file wxVtk2DBaseView.cxx.

References wxVtk2DBaseView::_vtkbasedata.

Referenced by wxVtk2DBaseView::Configure(), wxSphereView::DefineImageSphere(), wxMaracasCoutourTool::GetDataValue(), wxVtk2DBaseView::GetSpacing(), ContourVOIWidget::GetVOI(), GetVtkmprbasedata(), vtkPlane2DView::GetVtkmprbasedata(), wxWidgetSliderMinMaxVOI::onActualChange_Bar(), wxWidgetSliderMinMaxVOI::onEndChange_Bar(), wxMaracasCoutourTool::OnSaveContour(), wxMaracasCoutourTool::OnSaveControlPoints(), wxWidgetSliderMinMaxVOI::onStartChange_Bar(), wxVtk2DBaseView::Refresh(), wxVtk2DBaseView::ResetView(), and TransFromCoordScreenToWorld().

00185 {
00186    return _vtkbasedata;
00187 }

Here is the caller graph for this function:

void wxVtk2DBaseView::SetVtkBaseData ( vtkBaseData vtkbasedata  )  [inherited]

Definition at line 191 of file wxVtk2DBaseView.cxx.

References wxVtk2DBaseView::_vtkbasedata.

Referenced by wxQuantificationWidgetCT::ConfigureVTK(), wxProcessingCTWidget::ConfigureVTK(), wxEmptyPanel_3_Widget::ConfigureVTK(), wxMPRWidget::CreateMPRPanel4View(), wxMPRWidget::CreateView(), wxMaracasImageBrowser02::LoadData(), wxMaracas_ViewerWidget::wxMaracas_ViewerWidget(), and wxSphereView::wxSphereView().

00192 {
00193    _vtkbasedata=vtkbasedata;
00194 }

Here is the caller graph for this function:

void wxVtk2DBaseView::ResetView (  )  [virtual, inherited]

Definition at line 59 of file wxVtk2DBaseView.cxx.

References wxVtk2DBaseView::_imageViewer2XYZ, wxVtkBaseView::Configure(), vtkBaseData::GetImageData(), wxVtk2DBaseView::GetVtkBaseData(), vtkImageViewer2_XYZ::GetVtkImageViewer2(), wxVtkBaseView::GetWxVTKRenderWindowInteractor(), vtkInteractorStyleBaseView2D::New(), and wxVtk2DBaseView::SetInteractorStyleImage().

Referenced by wxQuantificationWidgetCT::RefreshView().

00060 {
00061         double spx,spy,spz;
00062         int x1,x2,y1,y2,z1,z2;
00063         wxVtkBaseView::Configure();
00064
00065         wxVTKRenderWindowInteractor *iren = GetWxVTKRenderWindowInteractor();
00066         vtkImageData *imageData = GetVtkBaseData()->GetImageData();
00067         imageData->UpdateInformation();
00068         imageData->SetUpdateExtent( imageData->GetWholeExtent());
00069         imageData->Update();
00070
00071         _imageViewer2XYZ->GetVtkImageViewer2()->SetInput(imageData );
00072         imageData->GetSpacing (spx,spy,spz);
00073         imageData->GetExtent (x1,x2,y1,y2,z1,z2);
00074         _imageViewer2XYZ -> SetExtentDimension(x1,x2,y1,y2,z1,z2);
00075         _imageViewer2XYZ -> GetVtkImageViewer2()->SetupInteractor ( iren );
00076
00077         _imageViewer2XYZ->GetVtkImageViewer2()->Render();
00078         SetInteractorStyleImage( vtkInteractorStyleBaseView2D::New() );
00079
00080 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtk2DBaseView::SetInteractorStyleImage ( vtkInteractorStyleBaseView interactorstylebaseview  )  [inherited]

Definition at line 208 of file wxVtk2DBaseView.cxx.

References wxVtk2DBaseView::_imageViewer2XYZ, vtkImageViewer2_XYZ::GetVtkImageViewer2(), wxVtkBaseView::GetWxVTKRenderWindowInteractor(), vtkMaracasImageViewer2Callback::IV, vtkMaracasImageViewer2Callback::New(), wxVtkBaseView::SetInteractorStyleBaseView(), and vtkInteractorStyleBaseView::SetwxVtkBaseView().

Referenced by wxVtk2DBaseView::Configure(), vtkPlane2DView::Configure(), and wxVtk2DBaseView::ResetView().

00209 {
00210         SetInteractorStyleBaseView(interactorstylebaseview);
00211
00212         wxVTKRenderWindowInteractor *iren = GetWxVTKRenderWindowInteractor();
00213         interactorstylebaseview->SetInteractor ( iren );
00214         iren->SetInteractorStyle(interactorstylebaseview);
00215         interactorstylebaseview->SetwxVtkBaseView(this);
00216
00217         vtkMaracasImageViewer2Callback * cbk = vtkMaracasImageViewer2Callback::New();
00218         cbk->IV = _imageViewer2XYZ->GetVtkImageViewer2();
00219         interactorstylebaseview->AddObserver( vtkCommand::WindowLevelEvent, cbk );
00220         interactorstylebaseview->AddObserver( vtkCommand::StartWindowLevelEvent, cbk );
00221         interactorstylebaseview->AddObserver( vtkCommand::ResetWindowLevelEvent, cbk );
00222         cbk->Delete();
00223 }

Here is the call graph for this function:

Here is the caller graph for this function:

vtkRenderer * wxVtk2DBaseView::GetRenderer (  )  [virtual, inherited]

Reimplemented from wxVtkBaseView.

Definition at line 226 of file wxVtk2DBaseView.cxx.

References wxVtk2DBaseView::_imageViewer2XYZ, and vtkImageViewer2_XYZ::GetVtkImageViewer2().

Referenced by vtkInfoTextImage::Create_Text_Label().

00227 {
00228    return _imageViewer2XYZ->GetVtkImageViewer2()->GetRenderer();
00229 }

Here is the call graph for this function:

Here is the caller graph for this function:

vtkRenderWindow * wxVtk2DBaseView::GetRenWin (  )  [virtual, inherited]

Reimplemented from wxVtkBaseView.

Definition at line 231 of file wxVtk2DBaseView.cxx.

References wxVtk2DBaseView::_imageViewer2XYZ, and vtkImageViewer2_XYZ::GetVtkImageViewer2().

Referenced by wxMaracasSuperpositionPanel::Refresh().

00232 {
00233    return _imageViewer2XYZ->GetVtkImageViewer2()->GetRenderWindow();
00234 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtk2DBaseView::TransformCoordinate_spacing_ViewToModel ( double &  X,
double &  Y,
double &  Z
) [virtual, inherited]

Definition at line 31 of file wxVtk2DBaseView.cxx.

References wxVtk2DBaseView::_imageViewer2XYZ, and vtkImageViewer2_XYZ::GetVtkImageViewer2().

Referenced by wxVtkBaseView::TransFromCoordScreenToWorld().

00032 {
00033 //EEDx5
00034         double spc[3];
00035 //      GetVtkBaseData()->GetImageData()->GetSpacing(spc);
00036         this->_imageViewer2XYZ->GetVtkImageViewer2()->GetInput()->GetSpacing(spc);
00037
00038         X = X / spc[0];
00039         Y = Y / spc[1];
00040         Z = Z / spc[2];
00041
00042 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtk2DBaseView::TransformCoordinate_spacing_ModelToView ( double &  X,
double &  Y,
double &  Z
) [virtual, inherited]

Definition at line 45 of file wxVtk2DBaseView.cxx.

References wxVtk2DBaseView::_imageViewer2XYZ, and vtkImageViewer2_XYZ::GetVtkImageViewer2().

00046 {
00047 //EEDx5
00048         double spc[3];
00049 //      GetVtkBaseData()->GetImageData()->GetSpacing(spc);
00050         this->_imageViewer2XYZ->GetVtkImageViewer2()->GetInput()->GetSpacing(spc);
00051
00052         X=X*spc[0];
00053         Y=Y*spc[1];
00054         Z=Z*spc[2];
00055
00056 }

Here is the call graph for this function:

void wxVtk2DBaseView::GetSpacing ( double  spc[3]  )  [virtual, inherited]

Reimplemented from wxVtkBaseView.

Definition at line 238 of file wxVtk2DBaseView.cxx.

References vtkBaseData::GetImageData(), and wxVtk2DBaseView::GetVtkBaseData().

00239 {
00240    vtkImageData *imageData      = GetVtkBaseData()->GetImageData();
00241    imageData->GetSpacing(spc);
00242 }

Here is the call graph for this function:

void wxVtk2DBaseView::setColorTransferFunction ( vtkColorTransferFunction *  colortable  )  [inherited]

Definition at line 244 of file wxVtk2DBaseView.cxx.

References wxVtk2DBaseView::_imageViewer2XYZ, and vtkImageViewer2_XYZ::setColorTransferFunction().

Referenced by wxMaracas_ViewerWidget::setColorTransferFunction().

00244                                                                                   {
00245         if(_imageViewer2XYZ!=NULL){
00246                 _imageViewer2XYZ->setColorTransferFunction(colortable);
00247         }
00248 }

Here is the call graph for this function:

Here is the caller graph for this function:

wxVTKRenderWindowInteractor * wxVtkBaseView::GetWxVTKRenderWindowInteractor (  )  throw (char*) [inherited]

Reimplemented in wxVtk2DView_TMP.

Definition at line 38 of file wxVtkBaseView.cxx.

References wxVtkBaseView::_iren.

Referenced by wxVtkClipping3DView::Configure(), wxVtk3DBaseView::Configure(), wxVtk2DBaseView::Configure(), vtkPlane2DView::Configure(), wxWidgetMesure2D::ConfigureA(), wxManualRegistration3D::Create3DView(), wxManualTree_MPRWidget::Create3DViewContour(), wxSegmentationFM3DWidget::Create3DViewContour(), wxManualSegmentation_MPRWidget::Create3DViewContour(), wxMPRWidget::CreateMPRPanel4View(), wxPanelCuttingImageData::CreatePlotHistogrammeInterface(), wxMaracas_ManualContour_Panel::CreateSplitePanel(), wxMPRWidget::CreateView(), wxQuantificationWidgetCT::CreateView2DPanel(), wxProcessingCTWidget::CreateViewPanel(), wxEmptyPanelWidget::CreateViewPanel(), wxEmptyPanel_3_Widget::CreateViewPanel(), vtkInteractorStyleBaseView::EvaluateToRefresh(), wxMaracasImageBrowser02::LoadData(), wxVtkClipping3DViewCntrlPanel::OnBtnMeshVTKLoad(), wxVtkClipping3DViewCntrlPanel::OnBtnVolumeFunctions(), manualContourBaseControler::OnChar(), wxVtkClipping3DViewCntrlPanel::OnColor(), wxPanelCuttingImageData::OnExtract(), wxVtkClipping3DViewCntrlPanel::OnIsoValue(), manualContourBaseControler::OnLeftButtonDown(), manualContour3DControler::OnLeftButtonDown(), vtkInteractorStyleSphere::OnLeftButtonUp(), manualContourBaseControler::OnLeftButtonUp(), vtkInteractorStyleMPRView::OnLeftDClick(), manualContourBaseControler::OnLeftDClick(), manualInteractorWindowLevel::OnMiddleButtonDown(), manualContourBaseControler::OnMiddleButtonDown(), vtkInfoTextImageInteractorPlane2D::OnMouseMove(), vtkInfoTextImageInteractor::OnMouseMove(), manualInteractorWindowLevel::OnMouseMove(), manualContourBaseControler::OnMouseMove(), wxVtkClipping3DViewCntrlPanel::OnOpacity(), wxVtkMPR3DViewCntrlPanel::OnPositionX(), wxVtkMPR3DViewCntrlPanel::OnPositionY(), wxVtkMPR3DViewCntrlPanel::OnPositionZ(), wxVtkClipping3DViewCntrlPanel::OnRepresentationSurfaceWireFrame(), manualContourBaseControler::OnRightButtonDown(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisX(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisY(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisZ(), wxVtkClipping3DViewCntrlPanel::OnVisibleSurface(), wxVtkClipping3DViewCntrlPanel::OnVisibleVolume(), wxVtkBaseView::Refresh(), wxVtk3DBaseView::Refresh(), manualViewBaseContour::Refresh(), wxVtk2DBaseView::ResetView(), vtkInteractorStyle3DView::SelectMarchibCubePoint(), wxVtk2DBaseView::SetInteractorStyleImage(), and wxMaracas_ViewerWidget::wxMaracas_ViewerWidget().

00039 {
00040
00041         if(_iren==NULL){
00042                 throw "wxVtkBaseView::GetWxVTKRenderWindowInteractor() _iren wxVTKRenderWindowInteractorPlus =NULL";
00043         }
00044    return _iren;
00045 }

void wxVtkBaseView::RefreshView (  )  [virtual, inherited]

Reimplemented in wxSphereView.

Definition at line 70 of file wxVtkBaseView.cxx.

References wxVtkBaseView::GetRenWin().

Referenced by wxQuantificationWidgetCT::CreateManualContours(), wxWidgetMesure2D_Plane::OnActiveCirlcle(), wxWidgetMesure2D_Plane::OnActiveLine(), wxWidgetMesure2D_Plane_in_MPR::OnActiveLink(), wxWidgetMesure2D::OnActiveMessureTool(), wxWidgetMesure2D::OnCloseContour(), wxMaracas_ManualContour_Panel::OnRefreshView(), wxQuantificationWidgetCT::OnShowCalc(), wxQuantificationWidgetCT::OnShowHypo(), wxQuantificationWidgetCT::OnShowLumen(), wxQuantificationWidgetCT::OnShowWall(), wxWidgetMesure2D::OnVisibleInformation(), wxWidgetMesure2D::OnVisibleMessureTool(), and wxProcessingCTWidget::Refresh().

00071 {
00072 // EED 10 Oct 2007
00073
00074         #if defined(WIN32)
00075                 GetRenWin()->Render();
00076         #else
00077                 //GetRenWin()->Render();
00078         #endif
00079
00080 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtkBaseView::SetInteractorStyleBaseView ( vtkInteractorStyleImage *  interactorStyle  )  [inherited]

Definition at line 142 of file wxVtkBaseView.cxx.

References wxVtkBaseView::_interactorStyle.

Referenced by wxVtk3DBaseView::Configure(), wxVtk2DView_TMP::Configure(), and wxVtk2DBaseView::SetInteractorStyleImage().

00143 {
00144         _interactorStyle = interactorStyle;
00145 }

Here is the caller graph for this function:

vtkInteractorStyleImage * wxVtkBaseView::GetInteractorStyleBaseView (  )  [inherited]

Definition at line 134 of file wxVtkBaseView.cxx.

References wxVtkBaseView::_interactorStyle.

Referenced by wxWidgetMesure2D::ActiveMessureTool(), wxQuantificationWidgetCT::addManualContours(), Configure(), wxSphereView::Configure(), vtkPlane2DView::Configure(), wxWidgetMesure2D::ConfigureA(), wxManualTree_MPRWidget::ConfigureContour(), wxMPRWidget::ConfigureVTK(), wxManualTree_MPRWidget::ConfigureVTK(), wxSegmentationFM3DWidget::ConfigureVTK(), wxManualSegmentation_MPRWidget::ConfigureVTK(), wxManualRegistration3D::ConfigureVTK(), wxEmptyPanel_3_Widget::ConfigureVTK(), wxManualRegistration3D::ConfigureVTK_B(), wxImageViewerWidget::ConstructVTK(), vtkmyPWCallback_3DPointWidget::Execute(), wxMaracasImageBrowser02::LoadData(), wxQuantificationWidgetCT::OnContourLumen(), wxQuantificationWidgetCT::OnContourWall(), wxVTKRenderWindowInteractorPlus::OnLeftDClick(), wxVTKRenderWindowInteractorPlus::OnMiddleDClick(), wxVTKRenderWindowInteractorPlus::OnMouseWheel(), wxVTKRenderWindowInteractorPlus::OnRightDClick(), manualContourContainer::refreshCalc(), manualContourContainer::refreshHypo(), manualContourContainer::refreshLumen(), and manualContourContainer::refreshWall().

00135 {
00136         return _interactorStyle;
00137 }

Here is the caller graph for this function:


Member Data Documentation

int wxVtkMPR2DView::_backX [private]

Definition at line 39 of file wxVtkMPR2DView.h.

Referenced by Refresh(), and wxVtkMPR2DView().

int wxVtkMPR2DView::_backY [private]

Definition at line 40 of file wxVtkMPR2DView.h.

Referenced by Refresh(), and wxVtkMPR2DView().

int wxVtkMPR2DView::_backZ [private]

Definition at line 41 of file wxVtkMPR2DView.h.

Referenced by Refresh(), and wxVtkMPR2DView().

bool wxVtkMPR2DView::_visibleAxis [private]

Definition at line 43 of file wxVtkMPR2DView.h.

Referenced by Configure(), and SetVisibleAxis().

int wxVtkMPR2DView::_direction [private]

Definition at line 45 of file wxVtkMPR2DView.h.

Referenced by ChangeAxisColor(), Configure(), GetActualSlice(), IfMouseTouchX(), IfMouseTouchY(), IfMouseTouchZ(), MoveX(), MoveY(), MoveZ(), Refresh(), SetActualSlice(), TransFromCoordScreenToWorld(), and wxVtkMPR2DView().

vtkPoints* wxVtkMPR2DView::_ptsA [private]

Definition at line 46 of file wxVtkMPR2DView.h.

Referenced by Configure(), Refresh(), wxVtkMPR2DView(), and ~wxVtkMPR2DView().

vtkActor* wxVtkMPR2DView::_lineAActor [private]

Definition at line 47 of file wxVtkMPR2DView.h.

Referenced by ChangeAxisColor(), Configure(), SetVisibleAxis(), wxVtkMPR2DView(), and ~wxVtkMPR2DView().

vtkPolyDataMapper* wxVtkMPR2DView::_lineAMapper [private]

Definition at line 48 of file wxVtkMPR2DView.h.

Referenced by Configure(), wxVtkMPR2DView(), and ~wxVtkMPR2DView().

vtkPolyData* wxVtkMPR2DView::_pdA [private]

Definition at line 49 of file wxVtkMPR2DView.h.

Referenced by Configure(), wxVtkMPR2DView(), and ~wxVtkMPR2DView().

vtkPoints* wxVtkMPR2DView::_ptsB [private]

Definition at line 50 of file wxVtkMPR2DView.h.

Referenced by Configure(), Refresh(), wxVtkMPR2DView(), and ~wxVtkMPR2DView().

vtkActor* wxVtkMPR2DView::_lineBActor [private]

Definition at line 51 of file wxVtkMPR2DView.h.

Referenced by ChangeAxisColor(), Configure(), SetVisibleAxis(), wxVtkMPR2DView(), and ~wxVtkMPR2DView().

vtkPolyDataMapper* wxVtkMPR2DView::_lineBMapper [private]

Definition at line 52 of file wxVtkMPR2DView.h.

Referenced by Configure(), wxVtkMPR2DView(), and ~wxVtkMPR2DView().

vtkPolyData* wxVtkMPR2DView::_pdB [private]

Definition at line 53 of file wxVtkMPR2DView.h.

Referenced by Configure(), wxVtkMPR2DView(), and ~wxVtkMPR2DView().

vtkInteractorStyleMPRView* wxVtkMPR2DView::_interactorstylemprview [private]

Definition at line 55 of file wxVtkMPR2DView.h.

Referenced by Configure().

vtkImageViewer2_XYZ* wxVtk2DBaseView::_imageViewer2XYZ [inherited]

Definition at line 22 of file wxVtk2DBaseView.h.

Referenced by wxWidgetMesure2D_Plane::CircleLine(), Configure(), wxVtk2DBaseView::Configure(), vtkPlane2DView::Configure(), vtkPlane2DView::Extract_MIP_PlaneVTK(), vtkPlane2DView::Extract_One_PlaneVTK(), wxVtk2DBaseView::GetRenderer(), wxVtk2DBaseView::GetRenWin(), vtkPlane2DView::HorizontalLine(), wxMaracasImageBrowser02::OnBtnResetRoi(), vtkInfoTextImage::PutColorLevel(), vtkInfoTextImage::PutWindowLevel(), Refresh(), wxVtk2DBaseView::Refresh(), wxVtk2DBaseView::ResetView(), wxVtk2DBaseView::setColorTransferFunction(), wxVtk2DBaseView::SetInteractorStyleImage(), SetVisibleAxis(), wxVtk2DBaseView::TransformCoordinate_spacing_ModelToView(), wxVtk2DBaseView::TransformCoordinate_spacing_ViewToModel(), wxVtk2DBaseView::wxVtk2DBaseView(), and wxVtk2DBaseView::~wxVtk2DBaseView().


The documentation for this class was generated from the following files:
Generated on Wed Jul 29 16:36:29 2009 for creaMaracasVisu_lib by  doxygen 1.5.3
