ContourExtractData Class Reference

#include <ContourExtractData.h>

Public Member Functions
	ContourExtractData (bool imagesResults=false)
	~ContourExtractData ()
void	SetImage (vtkImageData *imagedata)
void	SetZtoBeAnalys (int z)
void	SetLstManualContourModel (std::vector< manualBaseModel * > lstManConMod)
void	GetValuesInsideCrown (int numberOfPixels, std::vector< double > pLstValue, std::vector< double > pLstValuePosX, std::vector< double > pLstValuePosY, std::vector< double > *pLstValuePosZ)
void	CalculateImageResult ()
vtkImageData *	GetVtkImageValueResult ()
vtkImageData *	GetVtkImageMaskResult ()
void	Statistics (std::vector< double > inputLstValue, int grayRangeMin, int grayRangeMax, int rCountRange, int rsize, double rmin, double rmax, double raverage, double *rstandardeviation)
void	SetTypeOperation (int type)
void	InitVolumeStatistics ()
void	GetVolumeStatistics (int vol_rCountRange, int vol_rsize, double vol_minValue, double vol_maxValue, double vol_average, double vol_standardeviation)
void	ResetImageResult (int z)
void	SetScalarRange (double min, double max)
void	InitLstContoursLinesYPoints ()
bool	isInside (int x, int y, int typeOperation)
void	SetSizeImageY (int pSizeImageY)
Private Member Functions
void	GetMinMaxPoint (int minPoint, int maxPoint, manualBaseModel *manualcontourmodel)
void	GetMinMaxPoint_Of_LstManConMod (int minPoint, int maxPoint)
int	AnalisisContourInsideV2 (int x, int y, int iContour)
double	GetDataValue (int x, int y, int z)
void	PutVtkImageDataResultValue (int x, int y, int z, double value)
void	InitVtkImagesResult ()
void	SetVolumeStatistics (int rCountRange, int rsize, double minValue, double maxValue, double acum_average, double acum_standardeviation)
void	Fill_lstlstlstVecXY (int iContour, int sizeY)
Private Attributes
double	scalarRange [2]
bool	okImagesResults
std::vector< manualBaseModel * >	lstManConMod
int	_typeOperation
int	zImage
vtkImageData *	imagedata
vtkImageData *	imagedataValueResult
vtkImageData *	imagedataMaskResult
int	_sizeImageY
int	vol_rCountRange
int	vol_rsize
double	vol_minValue
double	vol_maxValue
double	vol_acum_average
double	vol_acum_standardeviation
std::vector< std::vector < std::vector< double > > >	_lstlstlstVecX1
std::vector< std::vector < std::vector< double > > >	_lstlstlstVecY1
std::vector< std::vector < std::vector< double > > >	_lstlstlstVecX2
std::vector< std::vector < std::vector< double > > >	_lstlstlstVecY2

Detailed Description

Definition at line 11 of file ContourExtractData.h.

Constructor & Destructor Documentation

ContourExtractData::ContourExtractData ( bool imagesResults = false )

Definition at line 6 of file ContourExtractData.cxx.

References _typeOperation, imagedata, imagedataMaskResult, and imagedataValueResult.

00007 {
00008         this->imagedata                 = NULL;
00009         imagedataValueResult    = NULL;
00010         imagedataMaskResult             = NULL;
00011         this->okImagesResults   = okImagesResults;
00012         _typeOperation                  = 0;
00013 }

ContourExtractData::~ContourExtractData ( )

Definition at line 17 of file ContourExtractData.cxx.

00018 {
00019 }

Member Function Documentation

int ContourExtractData::AnalisisContourInsideV2	(	int	x,
		int	y,
		int	iContour
	)			`[private]`

Definition at line 101 of file ContourExtractData.cxx.

References _lstlstlstVecX1, _lstlstlstVecX2, _lstlstlstVecY1, and _lstlstlstVecY2.

Referenced by isInside().

00103 00104 00105 00106 00107 00108 00109 00110 00111 00112 00113 00114 00115 00116         { 00117 00118 00119 00120 00121 00122 00123 00124 00125 00126 00127 00128 00129 00130 00131 00132 00133 00134 00135 00136 00137 00138 00139 00140 00141 00142 00143 00144 00145 00146 00147 00148 00149 00150 00151 00152 00153 00154 00155 00156 00157 00158 00159 00160 00161 00162 00163 00164 00165 00166 00167 00168 00169 00170 00171 00172 00173 00174 00175 00176 00177 00178 00179 00180 00181 00182 00183 00184 00185 }

class="fragment">00102 { bool inBorder=false; int result = 0; int i; int nps=_lstlstlstVecX1[iContour][y].size(); double x1,y1,x2,y2; double borderX, borderY; double xx1, yy1,xx2, yy2; double xx=x, yy=y; double d; for (i=0; i<nps; i++) x1=_lstlstlstVecX1[iContour][y][i]; y1=_lstlstlstVecY1[iContour][y][i]; x2=_lstlstlstVecX2[iContour][y][i]; y2=_lstlstlstVecY2[iContour][y][i]; borderX=x1; borderY=y1; if (y1<y2) { xx1=x1; yy1=y1; xx2=x2; yy2=y2; } else { xx1=x2; yy1=y2; xx2=x1; yy2=y1; } double difxx2xx1=fabs(xx2-xx1); if (difxx2xx1==0) difxx2xx1=0.0000000001; // Finding border looking in vertical direction AND verifing if pixel is at right of the line if ( (yy>=yy1)&&(yy<=yy2) ) { //by triangle similarity d = ( fabs(xx2-xx1)*(yy-yy1) ) / (yy2-yy1) ; if ( (xx1<=xx2)&&(x<(xx1+d)) ) { result++; } if ( (xx1>xx2)&&(x<(xx1-d)) ) { result++; } if ( (yy2-yy1)/difxx2xx1 >= 1.0) { if (xx1<=xx2) { borderX = xx1+d; borderY = y; } else { borderX = xx1-d; borderY = y; } } } // if point inside y // Finding border looking in vertical direction if ( ((xx1<=xx2)&&(xx>=xx1)&&(xx<xx2)) || ((xx1>xx2)&&(xx>=xx2)&&(xx<xx1)) ) { if ( (yy2-yy1)/difxx2xx1 <= 1.0) { //by triangle similarity d = ( fabs(xx1-xx)*(yy2-yy1) ) / difxx2xx1; if (yy1+d<=yy2) { borderX=x; borderY=yy1+d; } } } // if point inside x //Border verification if ( (x==(int)borderX) && (y==(int)borderY) ) { inBorder=true; }// if point in border // Verification : border in horizontal line if ( ((int)y1==(int)y2) && ((int)y1==y) && (x1<x2) && (x>=x1) && (x<=x2)) { inBorder=true; } if ( ((int)y1==(int)y2) && ((int)y1==y) && (x2<x1) && (x>=x2) && (x<=x1)) { inBorder=true; } if (inBorder==true){ i=nps; } } // for i if (inBorder==true) { result=1; } return result;

Here is the caller graph for this function:

void ContourExtractData::CalculateImageResult ( )

Definition at line 393 of file ContourExtractData.cxx.

References _typeOperation, GetDataValue(), GetMinMaxPoint_Of_LstManConMod(), imagedata, imagedataMaskResult, imagedataValueResult, InitLstContoursLinesYPoints(), isInside(), okImagesResults, PutVtkImageDataResultValue(), ResetImageResult(), scalarRange, and zImage.

00394 {
00395         if (okImagesResults==true)
00396         {
00397                 ResetImageResult(zImage);
00398
00399                 int minPoint[2];
00400                 int maxPoint[2];
00401                 int i,j;
00402                 double value;
00403
00404                 minPoint[0] = 999999;
00405                 minPoint[1] = 999999;
00406                 maxPoint[0] = -999999;
00407                 maxPoint[1] = -999999;
00408
00409                 GetMinMaxPoint_Of_LstManConMod(minPoint,maxPoint);
00410                 InitLstContoursLinesYPoints();
00411
00412                 for (j=minPoint[1]; j<=maxPoint[1]; j++)
00413                 {
00414                         for (i=minPoint[0]; i<=maxPoint[0]; i++)
00415                         {
00416
00417                                 //RaC 20-11-09 Changes specified in isInside (C1)
00418                                 int ext[6];
00419                                 imagedata->GetExtent(ext);
00420
00421                                 if ((i>=0) && (i<=ext[1]) && (j>=0) && (j<=ext[3]))
00422                                 {
00423                   if (isInside(i,j,_typeOperation)==true)
00424                                         {
00425                                           value = GetDataValue(i,j,zImage);
00426                                           if ( (value>=scalarRange[0]) && (value<=scalarRange[1]) )
00427                                           {
00428                                                 PutVtkImageDataResultValue(i,j,zImage,  value );
00429                                           } // scalarRange
00430                                         } // if isInside
00431
00432                                 } // if ext
00433                         } // for i
00434                 } // for j
00435
00436
00437                 imagedataValueResult->Modified();
00438                 imagedataMaskResult->Modified();
00439                 imagedataValueResult->Update();
00440                 imagedataMaskResult->Update();
00441         } // if
00442
00443 }

Here is the call graph for this function:

void ContourExtractData::Fill_lstlstlstVecXY	(	int	iContour,
		int	sizeY
	)			`[private]`

Definition at line 673 of file ContourExtractData.cxx.

References _lstlstlstVecX1, _lstlstlstVecX2, _lstlstlstVecY1, _lstlstlstVecY2, manualBaseModel::GetNumberOfPointsSpline(), manualBaseModel::GetSpline_i_Point(), lstManConMod, and manualBaseModel::UpdateSpline().

Referenced by InitLstContoursLinesYPoints().

00674 {
00675         int i,y;
00676         double x1,y1,z1,x2,y2,z2;
00677         manualBaseModel *manualcontourmodel= lstManConMod[iContour];
00678         int nps = manualcontourmodel->GetNumberOfPointsSpline(); // number of points in the spline
00679         manualcontourmodel->UpdateSpline();
00680         //------------------------------------------------------------------------------------------------------
00681
00682         for (y=0;y<sizeY;y++)
00683         {
00684                 manualcontourmodel->GetSpline_i_Point(0,&x1,&y1,&z1);
00685                 x1=x1+0.5; y1=y1+0.5;
00686                 for (i=1; i<nps; i++)
00687                 {
00688                         manualcontourmodel->GetSpline_i_Point(i,&x2,&y2,&z2);
00689                         x2=x2+0.5; y2=y2+0.5;
00690                         if ( ((y1<y2)&&(y>=y1)&&(y<=y2)) || ((y1>y2)&&(y>=y2)&&(y<=y1)) || ((int)y1==y) || ((int)y2==y)  )
00691                         {
00692                                 _lstlstlstVecX1[iContour][y].push_back(x1);
00693                                 _lstlstlstVecY1[iContour][y].push_back(y1);
00694                                 _lstlstlstVecX2[iContour][y].push_back(x2);
00695                                 _lstlstlstVecY2[iContour][y].push_back(y2);
00696                         }
00697                         x1=x2; y1=y2; z1=z2;
00698                 } // for i  Points in spline
00699         } // y
00700
00701 }

Here is the call graph for this function:

Here is the caller graph for this function:

double ContourExtractData::GetDataValue	(	int	x,
		int	y,
		int	z
	)			`[private]`

Definition at line 290 of file ContourExtractData.cxx.

References imagedata.

Referenced by CalculateImageResult(), and GetValuesInsideCrown().

00291 {
00292         //      wxVtk2DBaseView *wxvtk2dbaseview = (wxVtk2DBaseView*)wxvtkbaseview;
00293         //      int z = (int)wxvtk2dbaseview->GetVtkBaseData()->GetZ();
00294         //JSTG 13-03-08-----
00295         //EED OJO avec JS       _zz = z;
00296         //------------------
00297         double result;
00298         void *p;
00299         p = imagedata->GetScalarPointer(x,y,z);
00300
00301         if (imagedata->GetScalarType()==VTK_CHAR)
00302         {
00303                 char *pp = (char*)p;
00304                 result = (double)(*pp);
00305         }
00306         else if (imagedata->GetScalarType()==VTK_SIGNED_CHAR)
00307         {
00308                 signed char *pp = (signed char*)p;
00309                 result = (double)(*pp);
00310         }
00311         else if (imagedata->GetScalarType()==VTK_UNSIGNED_CHAR)
00312         {
00313                 unsigned char *pp = (unsigned char*)p;
00314                 result = (double)(*pp);
00315         }
00316         else if (imagedata->GetScalarType()==VTK_SHORT)
00317         {
00318                 short *pp = (short*)p;
00319                 result = (double)(*pp);
00320         }
00321         else if (imagedata->GetScalarType()==VTK_UNSIGNED_SHORT)
00322         {
00323                 unsigned short *pp = (unsigned short*)p;
00324                 result = (double)(*pp);
00325         }
00326         else if (imagedata->GetScalarType()==VTK_INT)
00327         {
00328                 int *pp = (int*)p;
00329                 result = (double)(*pp);
00330         }
00331         else if (imagedata->GetScalarType()==VTK_UNSIGNED_INT)
00332         {
00333                 unsigned int *pp = (unsigned int*)p;
00334                 result = (double)(*pp);
00335         }
00336         else if (imagedata->GetScalarType()==VTK_LONG)
00337         {
00338                 long *pp = (long*)p;
00339                 result = (double)(*pp);
00340         }
00341         else if (imagedata->GetScalarType()==VTK_UNSIGNED_LONG)
00342         {
00343                 unsigned long *pp = (unsigned long*)p;
00344                 result = (double)(*pp);
00345         }
00346         else if (imagedata->GetScalarType()==VTK_FLOAT)
00347         {
00348                 float *pp = (float*)p;
00349                 result = (double)(*pp);
00350         }
00351         else if (imagedata->GetScalarType()==VTK_DOUBLE)
00352         {
00353                 double *pp = (double*)p;
00354                 result = (double)(*pp);
00355         }
00356
00357         return result;
00358 }

Here is the caller graph for this function:

void ContourExtractData::GetMinMaxPoint	(	int *	minPoint,
		int *	maxPoint,
		manualBaseModel *	manualcontourmodel
	)			`[private]`

Definition at line 50 of file ContourExtractData.cxx.

References manualBaseModel::GetNumberOfPointsSpline(), manualBaseModel::GetSpline_i_Point(), and manualBaseModel::UpdateSpline().

Referenced by GetMinMaxPoint_Of_LstManConMod().

00054 {
00055         int i;
00056         //int   np              = manualcontourmodel->GetSizeLstPoints( );  // number of control points // JPRx
00057
00058         // JSTG 26-02-08 ---------------------------------------------------------------------------------------
00059         //int nps = manualviewbaseecontour->GetNumberOfPointsSpline(); // number of points in the spline
00060         int nps = manualcontourmodel->GetNumberOfPointsSpline(); // number of points in the spline
00061         //------------------------------------------------------------------------------------------------------
00062
00063         // JSTG 26-02-08 ---------------------------------------------------------------------------------------
00064         //double x,y,z,t;
00065         double x,y,z;
00066         //double delta=( double ) ( np  ) / ( double ) ( nps  );
00067         manualcontourmodel->UpdateSpline();
00068         for (i=0; i<nps; i++)
00069         {
00070                 //t= delta * (double)i;
00071                 //manualcontourmodel->GetSplinePoint(t,x,y,z);
00072                 manualcontourmodel->GetSpline_i_Point(i,&x,&y,&z);
00073                 if (x<minPoint[0]){ minPoint[0]=(int)x; }
00074                 if (y<minPoint[1]){ minPoint[1]=(int)y; }
00075                 if (x>maxPoint[0]){ maxPoint[0]=(int)x; }
00076                 if (y>maxPoint[1]){ maxPoint[1]=(int)y; }
00077         }
00078         minPoint[0]--;
00079         minPoint[1]--;
00080         maxPoint[0]++;
00081         maxPoint[1]++;
00082         //------------------------------------------------------------------------------------------------------
00083 }

Here is the call graph for this function:

Here is the caller graph for this function:

void ContourExtractData::GetMinMaxPoint_Of_LstManConMod	(	int *	minPoint,
		int *	maxPoint
	)			`[private]`

Definition at line 86 of file ContourExtractData.cxx.

References GetMinMaxPoint(), and lstManConMod.

Referenced by CalculateImageResult(), and GetValuesInsideCrown().

00090 {
00091         int i,size = lstManConMod.size();
00092
00093         for(i=0 ; i<size ; i++)
00094         {
00095                 GetMinMaxPoint(minPoint,maxPoint,lstManConMod[i]);
00096         }
00097 }

Here is the call graph for this function:

Here is the caller graph for this function:

void ContourExtractData::GetValuesInsideCrown	(	int *	numberOfPixels,
		std::vector< double > *	pLstValue,
		std::vector< double > *	pLstValuePosX,
		std::vector< double > *	pLstValuePosY,
		std::vector< double > *	pLstValuePosZ
	)

Definition at line 446 of file ContourExtractData.cxx.

References _typeOperation, GetDataValue(), GetMinMaxPoint_Of_LstManConMod(), imagedata, InitLstContoursLinesYPoints(), isInside(), scalarRange, and zImage.

00451 {
00452         pLstValue->clear();
00453         pLstValuePosX->clear();
00454         pLstValuePosY->clear();
00455         pLstValuePosZ->clear();
00456
00457         //      if (okImagesResults==true)
00458         //      {
00459         //              ResetImageResult(zImage);
00460         //      }
00461
00462         int minPoint[2];
00463         int maxPoint[2];
00464         int i,j;
00465         double value;
00466         int acum=0;
00467
00468         minPoint[0] = 999999;
00469         minPoint[1] = 999999;
00470         maxPoint[0] = -999999;
00471         maxPoint[1] = -999999;
00472
00473         GetMinMaxPoint_Of_LstManConMod(minPoint,maxPoint);
00474         InitLstContoursLinesYPoints();
00475
00476         for (j=minPoint[1]; j<=maxPoint[1]; j++)
00477         {
00478                 for (i=minPoint[0]; i<=maxPoint[0]; i++)
00479                 {
00480                         //RaC 20-11-09 Changes specified in isInside (C1)
00481                         int ext[6];
00482                         imagedata->GetExtent(ext);
00483
00484                         if ((i>=0) && (i<=ext[1]) && (j>=0) && (j<=ext[3]))
00485                         {
00486                     if (isInside(i,j,_typeOperation)==true)
00487                                 {
00488
00489                                         acum++;
00490                                         value = GetDataValue(i,j,zImage);
00491                                         if ( (value>=scalarRange[0]) && (value<=scalarRange[1]) )
00492                                         {
00493                                                 pLstValue               -> push_back( value );
00494                                                 pLstValuePosX   -> push_back( i );
00495                                                 pLstValuePosY   -> push_back( j );
00496                                                 pLstValuePosZ   -> push_back( -1 );
00497                                         } // scalarRange
00498                                 } // if isInside
00499                         } // if ext
00500                 } // for
00501         } // for
00502
00503         *numberOfPixels = acum;
00504 }

Here is the call graph for this function:

void ContourExtractData::GetVolumeStatistics	(	int *	vol_rCountRange,
		int *	vol_rsize,
		double *	vol_minValue,
		double *	vol_maxValue,
		double *	vol_average,
		double *	vol_standardeviation
	)

Definition at line 586 of file ContourExtractData.cxx.

References vol_acum_average, and vol_acum_standardeviation.

00592 {
00593         *vol_rCountRange                = this->vol_rCountRange;
00594         *vol_rsize                              = this->vol_rsize;
00595         *vol_minValue                   = this->vol_minValue;
00596         *vol_maxValue                   = this->vol_maxValue;
00597         *vol_average                    = this->vol_acum_average / this->vol_rsize;
00598         *vol_standardeviation   = sqrt(this->vol_acum_standardeviation / this->vol_rsize);
00599 }

vtkImageData * ContourExtractData::GetVtkImageMaskResult ( )

Definition at line 513 of file ContourExtractData.cxx.

References imagedataMaskResult.

00514 {
00515         return imagedataMaskResult;
00516 }

vtkImageData * ContourExtractData::GetVtkImageValueResult ( )

Definition at line 508 of file ContourExtractData.cxx.

References imagedataValueResult.

00509 {
00510         return imagedataValueResult;
00511 }

void ContourExtractData::InitLstContoursLinesYPoints ( )

Definition at line 703 of file ContourExtractData.cxx.

References _lstlstlstVecX1, _lstlstlstVecX2, _lstlstlstVecY1, _lstlstlstVecY2, _sizeImageY, Fill_lstlstlstVecXY(), and lstManConMod.

Referenced by CalculateImageResult(), CutModelPolygon::cutInputImage(), and GetValuesInsideCrown().

00704 {
00705         // init InInside Optimisation
00706         int i;
00707
00708         _lstlstlstVecX1.clear();
00709         _lstlstlstVecY1.clear();
00710         _lstlstlstVecX2.clear();
00711         _lstlstlstVecY2.clear();
00712
00713         /* RaC 20-11-09
00714         int ext[6];
00715         this->imagedata->GetWholeExtent(ext);
00716         int sizeY = ext[3]-ext[2]+1;
00717         */
00718         std::vector<double> vecDouble;
00719         std::vector< std::vector<double> > vecVecDouble;
00720         for ( i=0 ; i<_sizeImageY ; i++ )
00721         {
00722                 vecVecDouble.push_back( vecDouble );
00723         }
00724
00725         //Fill structure with points
00726         int sizeContours = lstManConMod.size();
00727         for( i=0 ; i<sizeContours ; i++ )
00728         {
00729                 _lstlstlstVecX1.push_back( vecVecDouble );
00730                 _lstlstlstVecY1.push_back( vecVecDouble );
00731                 _lstlstlstVecX2.push_back( vecVecDouble );
00732                 _lstlstlstVecY2.push_back( vecVecDouble );
00733                 Fill_lstlstlstVecXY(i,_sizeImageY);
00734         }
00735
00736 }

Here is the call graph for this function:

Here is the caller graph for this function:

void ContourExtractData::InitVolumeStatistics ( )

Definition at line 557 of file ContourExtractData.cxx.

References vol_acum_average, vol_acum_standardeviation, vol_maxValue, vol_minValue, vol_rCountRange, and vol_rsize.

00558 {
00559         vol_rCountRange                         = 0;
00560         vol_rsize                                       = 0;
00561         vol_minValue                            = 9999999;
00562         vol_maxValue                            =-9999999;
00563         vol_acum_average                        = 0;
00564         vol_acum_standardeviation       = 0;
00565 }

void ContourExtractData::InitVtkImagesResult ( ) [private]

Definition at line 518 of file ContourExtractData.cxx.

References imagedata, imagedataMaskResult, and imagedataValueResult.

Referenced by SetImage().

00519 {
00520         int ext[6];
00521         int newDim[3];
00522         double spc[3];
00523         int scalartype;
00524
00525         imagedata->GetSpacing(spc);
00526         imagedata->GetExtent(ext);
00527         newDim[0]=ext[1]-ext[0]+1;
00528         newDim[1]=ext[3]-ext[2]+1;
00529         newDim[2]=ext[5]-ext[4]+1;
00530         scalartype = imagedata->GetScalarType();
00531
00532         if (imagedataValueResult!=NULL)
00533         {
00534                 imagedataValueResult->Delete();
00535         }
00536         imagedataValueResult = vtkImageData::New();
00537         //        imagedataValueResult->SetScalarType(scalartype);
00538         imagedataValueResult->SetScalarTypeToUnsignedShort();
00539         imagedataValueResult->SetSpacing(spc);
00540         imagedataValueResult->SetDimensions( newDim );
00541         imagedataValueResult->AllocateScalars();
00542
00543         if (imagedataMaskResult!=NULL)
00544         {
00545                 imagedataMaskResult->Delete();
00546         }
00547         imagedataMaskResult  = vtkImageData::New();
00548         //        imagedataMaskResult->SetScalarType(scalartype);
00549         imagedataMaskResult->SetScalarTypeToUnsignedShort();
00550         imagedataMaskResult->SetSpacing(spc);
00551         imagedataMaskResult->SetDimensions( newDim );
00552         imagedataMaskResult->AllocateScalars();
00553 }

Here is the caller graph for this function:

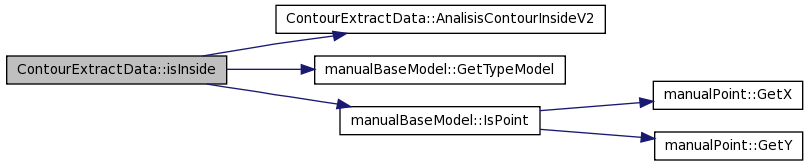

bool ContourExtractData::isInside	(	int	x,
		int	y,
		int	typeOperation
	)

Definition at line 193 of file ContourExtractData.cxx.

References AnalisisContourInsideV2(), manualBaseModel::GetTypeModel(), manualBaseModel::IsPoint(), and lstManConMod.

Referenced by CalculateImageResult(), CutModelPolygon::cutInputImage(), and GetValuesInsideCrown().

00194 {
00195         bool result                             = false;
00196         int numberLeft                  = 0;
00197         int i,size                              = this->lstManConMod.size();
00198         int numberInside        = 0;
00199
00200         /* RaC 20-11-09 (C1) Changes to use the method without the image.
00201         int ext[6];
00202         imagedata->GetExtent(ext);
00203
00204         if ((x>=0) && (x<=ext[1]) && (y>=0) && (y<=ext[3]))
00205         {
00206         */
00207
00208         if (typeOperation==0)  // AND  Intersection
00209         {
00210                 for (i=0;i<size;i++)
00211                 {
00212                         // To process the statistics of the Points contour the procedure is different
00213                         // RaC 19-09-09
00214                         manualBaseModel *mbm = lstManConMod[i];
00215                         if(mbm->GetTypeModel()==7)
00216                         {
00217                                 if(mbm->IsPoint(x,y)==true)
00218                                 {
00219                                         numberLeft=1;
00220                                 }
00221                         }//if
00222                         else
00223                         {
00224                                 numberLeft =  AnalisisContourInsideV2(x,y, i );
00225                         }//else
00226
00227                         if ( (numberLeft % 2) ==1){         numberInside++;  }
00228                 }
00229                 if ( numberInside == (size) ){ result=true; }
00230         } // AND  Intersection
00231
00232         numberLeft=0;
00233
00234         if (typeOperation==1)  // OR  All
00235         {
00236                 for (i=0;i<size;i++)
00237                 {
00238                         // To process the statistics of the Points contour the procedure is different
00239                         // RaC 19-09-09
00240                         manualBaseModel *mbm = lstManConMod[i];
00241                         if(mbm->GetTypeModel()==7)
00242                         {
00243                                 if(mbm->IsPoint(x,y)==true)
00244                                 {
00245                                         numberLeft=1;
00246                                 }
00247                         }//if
00248                         else
00249                         {
00250                                 numberLeft =  AnalisisContourInsideV2(x,y, i );
00251                         }//else
00252                         if ( (numberLeft % 2) ==1){ result=true;  }
00253                 }
00254         } // OR  All
00255
00256         numberLeft=0;
00257
00258         if (typeOperation==2)  // XOR  crown
00259         {
00260                 for (i=0;i<size;i++)
00261                 {
00262                         // To process the statistics of the Points contour the procedure is different
00263                         // RaC 19-09-09
00264                         manualBaseModel *mbm = lstManConMod[i];
00265                         if(mbm->GetTypeModel()==7)
00266                         {
00267                                 if(mbm->IsPoint(x,y)==true)
00268                                 {
00269                                         numberLeft=1;
00270                                 }
00271                         }//if
00272                         else
00273                         {
00274                                 numberLeft =  numberLeft + AnalisisContourInsideV2(x,y, i );
00275                         }//else
00276
00277                 }
00278                 if ( numberLeft % 2 ==1){       result = true;  }
00279         }// XOR  crown
00280
00281
00282
00283         //RaC }
00284
00285         return result;
00286 }

Here is the call graph for this function:

Here is the caller graph for this function:

void ContourExtractData::PutVtkImageDataResultValue	(	int	x,
		int	y,
		int	z,
		double	value
	)			`[private]`

Definition at line 362 of file ContourExtractData.cxx.

References imagedataMaskResult, and imagedataValueResult.

Referenced by CalculateImageResult().

00363 {
00364         unsigned short *pValue;
00365         unsigned short *pMask;
00366         pValue  = (unsigned short *)imagedataValueResult->GetScalarPointer(x,y,z);
00367         pMask   = (unsigned short *)imagedataMaskResult->GetScalarPointer(x,y,z);
00368         *pMask  = 255;
00369         *pValue = (unsigned short)value;
00370 }

Here is the caller graph for this function:

void ContourExtractData::ResetImageResult ( int z )

Definition at line 373 of file ContourExtractData.cxx.

References imagedataMaskResult, imagedataValueResult, and okImagesResults.

Referenced by CalculateImageResult().

00374 {
00375         if (okImagesResults==true)
00376         {
00377                 unsigned short *pValue;
00378                 unsigned short *pMask;
00379                 pValue  = (unsigned short *)imagedataValueResult->GetScalarPointer(0,0,z);
00380                 pMask   = (unsigned short *)imagedataMaskResult->GetScalarPointer(0,0,z);
00381
00382                 int ext[6];
00383                 imagedataValueResult->GetExtent(ext);
00384
00385                 int size = (ext[1]-ext[0]+1) * (ext[3]-ext[2]+1);
00386                 memset(pValue,0,size*2);
00387                 memset(pMask,0,size*2);
00388         } // if
00389 }

Here is the caller graph for this function:

void ContourExtractData::SetImage ( vtkImageData * imagedata )

Definition at line 23 of file ContourExtractData.cxx.

References _sizeImageY, InitVtkImagesResult(), okImagesResults, and scalarRange.

00024 {
00025         this->imagedata                 = imagedata;
00026         this->imagedata->GetScalarRange(scalarRange);
00027
00028         // RaC 20-11-09 Changes in InitLstContoursLinesYPoints
00029         int ext[6];
00030         this->imagedata->GetWholeExtent(ext);
00031         _sizeImageY = ext[3]-ext[2]+1;
00032
00033         // init vtk image result : valuesImage maskImage
00034         if (this->okImagesResults==true){  InitVtkImagesResult(); }
00035 }

Here is the call graph for this function:

void ContourExtractData::SetLstManualContourModel ( std::vector< manualBaseModel * > lstManConMod )

Definition at line 43 of file ContourExtractData.cxx.

Referenced by CutModelPolygon::cutInputImage().

00044 {
00045         this->lstManConMod = lstManConMod;
00046 }

Here is the caller graph for this function:

void ContourExtractData::SetScalarRange	(	double	min,
		double	max
	)

Definition at line 738 of file ContourExtractData.cxx.

References scalarRange.

00739 {
00740         scalarRange[0]=min;
00741         scalarRange[1]=max;
00742 }

void ContourExtractData::SetSizeImageY ( int pSizeImageY )

Definition at line 744 of file ContourExtractData.cxx.

References _sizeImageY.

Referenced by CutModelPolygon::cutInputImage().

00745 {
00746         _sizeImageY=pSizeImageY;
00747 }

Here is the caller graph for this function:

void ContourExtractData::SetTypeOperation ( int type )

Definition at line 667 of file ContourExtractData.cxx.

References _typeOperation.

00668 {
00669         _typeOperation=type;
00670 }

void ContourExtractData::SetVolumeStatistics	(	int	rCountRange,
		int	rsize,
		double	minValue,
		double	maxValue,
		double	acum_average,
		double	acum_standardeviation
	)			`[private]`

Definition at line 568 of file ContourExtractData.cxx.

References vol_acum_average, vol_acum_standardeviation, vol_maxValue, vol_minValue, vol_rCountRange, and vol_rsize.

Referenced by Statistics().

00574 {
00575         vol_rCountRange                         = vol_rCountRange + rCountRange;
00576         vol_rsize                                       = vol_rsize + rsize;
00577
00578         if (minValue<vol_minValue){ vol_minValue = minValue;  }
00579         if (maxValue>vol_maxValue){ vol_maxValue = maxValue;  }
00580
00581         vol_acum_average                        = vol_acum_average + acum_average;
00582         vol_acum_standardeviation       = vol_acum_standardeviation + acum_standardeviation;
00583 }

Here is the caller graph for this function:

void ContourExtractData::SetZtoBeAnalys ( int z )

Definition at line 37 of file ContourExtractData.cxx.

References zImage.

00038 {
00039         this->zImage                    = z;
00040 }

void ContourExtractData::Statistics	(	std::vector< double > *	inputLstValue,
		int	grayRangeMin,
		int	grayRangeMax,
		int *	rCountRange,
		int *	rsize,
		double *	rmin,
		double *	rmax,
		double *	raverage,
		double *	rstandardeviation
	)

Definition at line 603 of file ContourExtractData.cxx.

References min, and SetVolumeStatistics().

00613 {
00614         double min                                              = 0;
00615         double max                                              = 0;
00616         double average                                  = 0;
00617         double standardeviation                 = 0;
00618         double acum_average                             = 0;
00619         double acum_standardeviation            = 0;
00620         int      size                                           = 0;
00621         int      countRange                                     = 0;
00622         double ng;
00623
00624         if (inputLstValue!=NULL)
00625         {
00626                 size=inputLstValue->size();
00627                 if (size>0){
00628                         max=(*inputLstValue)[0];
00629                         min=(*inputLstValue)[0];
00630                         // Average , countRange
00631                         int i;
00632                         for ( i=0; i<size; i++ )
00633                         {
00634                                 ng=(*inputLstValue)[i];
00635                                 acum_average = acum_average + ng;
00636                                 if (max<ng) max=ng;             // Max
00637                                 if (min>ng) min=ng;     // Min
00638                                 if ((ng>=grayRangeMin) && (ng<=grayRangeMax)) countRange++;  // countRange
00639                         } // for average
00640                         average = acum_average / size;
00641
00642                         // Standar Deviation
00643                         acum_standardeviation=0;
00644                         double tmp;
00645                         for ( i=0; i<size; i++ )
00646                         {
00647                                 tmp = (*inputLstValue)[i] - average;
00648                                 acum_standardeviation = acum_standardeviation + tmp*tmp;
00649                         } // for standar deviation
00650                         standardeviation = sqrt(acum_standardeviation/size);
00651                         SetVolumeStatistics(countRange, (*rsize),
00652                                                                 min,max,
00653                                                             acum_average,acum_standardeviation);
00654                 } // if size
00655         } // if NULL
00656
00657         // OUTPUT
00658         *rsize                          = size;
00659         *rCountRange            = countRange;
00660         *rmin                           = min;
00661         *rmax                           = max;
00662         *raverage                       = average;
00663         *rstandardeviation      = standardeviation;
00664 }

Here is the call graph for this function:

Member Data Documentation

std::vector< std::vector< std::vector<double> > > ContourExtractData::_lstlstlstVecX1 [private]

Definition at line 117 of file ContourExtractData.h.

Referenced by AnalisisContourInsideV2(), Fill_lstlstlstVecXY(), and InitLstContoursLinesYPoints().

std::vector< std::vector< std::vector<double> > > ContourExtractData::_lstlstlstVecX2 [private]

Definition at line 119 of file ContourExtractData.h.

Referenced by AnalisisContourInsideV2(), Fill_lstlstlstVecXY(), and InitLstContoursLinesYPoints().

std::vector< std::vector< std::vector<double> > > ContourExtractData::_lstlstlstVecY1 [private]

Definition at line 118 of file ContourExtractData.h.

Referenced by AnalisisContourInsideV2(), Fill_lstlstlstVecXY(), and InitLstContoursLinesYPoints().

std::vector< std::vector< std::vector<double> > > ContourExtractData::_lstlstlstVecY2 [private]

Definition at line 120 of file ContourExtractData.h.

Referenced by AnalisisContourInsideV2(), Fill_lstlstlstVecXY(), and InitLstContoursLinesYPoints().

int ContourExtractData::_sizeImageY [private]

Definition at line 78 of file ContourExtractData.h.

Referenced by InitLstContoursLinesYPoints(), SetImage(), and SetSizeImageY().

int ContourExtractData::_typeOperation [private]

Definition at line 70 of file ContourExtractData.h.

Referenced by CalculateImageResult(), ContourExtractData(), GetValuesInsideCrown(), and SetTypeOperation().

vtkImageData* ContourExtractData::imagedata [private]

Definition at line 73 of file ContourExtractData.h.

Referenced by CalculateImageResult(), ContourExtractData(), GetDataValue(), GetValuesInsideCrown(), and InitVtkImagesResult().

vtkImageData* ContourExtractData::imagedataMaskResult [private]

Definition at line 75 of file ContourExtractData.h.

Referenced by CalculateImageResult(), ContourExtractData(), GetVtkImageMaskResult(), InitVtkImagesResult(), PutVtkImageDataResultValue(), and ResetImageResult().

vtkImageData* ContourExtractData::imagedataValueResult [private]

Definition at line 74 of file ContourExtractData.h.

Referenced by CalculateImageResult(), ContourExtractData(), GetVtkImageValueResult(), InitVtkImagesResult(), PutVtkImageDataResultValue(), and ResetImageResult().

std::vector<manualBaseModel*> ContourExtractData::lstManConMod [private]

Definition at line 65 of file ContourExtractData.h.

Referenced by Fill_lstlstlstVecXY(), GetMinMaxPoint_Of_LstManConMod(), InitLstContoursLinesYPoints(), and isInside().

bool ContourExtractData::okImagesResults [private]

Definition at line 60 of file ContourExtractData.h.

Referenced by CalculateImageResult(), ResetImageResult(), and SetImage().

double ContourExtractData::scalarRange[2] [private]

Definition at line 59 of file ContourExtractData.h.

Referenced by CalculateImageResult(), GetValuesInsideCrown(), SetImage(), and SetScalarRange().

double ContourExtractData::vol_acum_average [private]

Definition at line 109 of file ContourExtractData.h.

Referenced by GetVolumeStatistics(), InitVolumeStatistics(), and SetVolumeStatistics().

double ContourExtractData::vol_acum_standardeviation [private]

Definition at line 110 of file ContourExtractData.h.

Referenced by GetVolumeStatistics(), InitVolumeStatistics(), and SetVolumeStatistics().

double ContourExtractData::vol_maxValue [private]

Definition at line 108 of file ContourExtractData.h.

Referenced by InitVolumeStatistics(), and SetVolumeStatistics().

double ContourExtractData::vol_minValue [private]

Definition at line 107 of file ContourExtractData.h.

Referenced by InitVolumeStatistics(), and SetVolumeStatistics().

int ContourExtractData::vol_rCountRange [private]

Definition at line 105 of file ContourExtractData.h.

Referenced by InitVolumeStatistics(), and SetVolumeStatistics().

int ContourExtractData::vol_rsize [private]

Definition at line 106 of file ContourExtractData.h.

Referenced by InitVolumeStatistics(), and SetVolumeStatistics().

int ContourExtractData::zImage [private]

Definition at line 72 of file ContourExtractData.h.

Referenced by CalculateImageResult(), GetValuesInsideCrown(), and SetZtoBeAnalys().

The documentation for this class was generated from the following files:

/home/davila/Creatis/creaMaracasVisu/lib/maracasVisuLib/src/interface/wxWindows/Contour/ContourExtractData.h
/home/davila/Creatis/creaMaracasVisu/lib/maracasVisuLib/src/interface/wxWindows/Contour/ContourExtractData.cxx

ContourExtractData Class Reference

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
