CutModelView Class Reference

#include <CutModelView.h>

Public Member Functions
	CutModelView (wxWindow parent, double range)
	~CutModelView ()
virtual void	Execute (vtkObject wdg, unsigned long eventId, void calldata)
int	getId ()
void	setId (int id)
void	ExecuteCut ()
void	SetCurrentColor (wxColour colour)
Private Member Functions
double *	getRange ()
bool	isCut ()
bool	isInside ()
wxSizer *	getBoxControls (wxWindow parent, double range)
wxSizer *	getActorProperties (wxWindow *parent)
wxSizer *	getColorChooseActor (wxWindow *parent)
wxSizer *	getOpacityActor (wxWindow *parent)
void	checkInvariant () throw ( CutModelException)
Private Attributes
int	_id
wxSlider *	_sliderrange
wxRadioBox *	_radioinsideout
wxStaticText *	_currentcolor

Detailed Description

Definition at line 36 of file CutModelView.h.

Constructor & Destructor Documentation

CutModelView::CutModelView	(	wxWindow *	parent,
		double *	range
	)

Definition at line 37 of file CutModelView.cxx.

References getActorProperties(), getBoxControls(), and CutModelViewEventHandler::onExecute().

00038 : wxPanel(parent, -1, wxDefaultPosition, wxDefaultSize){
00039
00040         wxBoxSizer* sizer = new wxBoxSizer(wxVERTICAL);
00041
00042         this->SetSizer(sizer);
00043
00044         sizer->Add(getBoxControls(this, range),wxSizerFlags().FixedMinSize());
00045
00046         sizer->AddSpacer(5);
00047
00048         sizer->Add(getActorProperties(this),wxSizerFlags().FixedMinSize());
00049
00050
00051         wxBitmap bitmapok(Ok1_xpm);
00052         wxBitmapButton* okbutton = new wxBitmapButton(this, -1, bitmapok,wxDefaultPosition,wxSize(30,30));
00053         Connect(okbutton->GetId(), wxEVT_COMMAND_BUTTON_CLICKED, (wxObjectEventFunction)(&CutModelViewEventHandler::onExecute));
00054
00055         sizer->AddSpacer(5);
00056         sizer->Add(okbutton,wxSizerFlags().FixedMinSize());
00057
00058
00059
00060
00061
00062 }

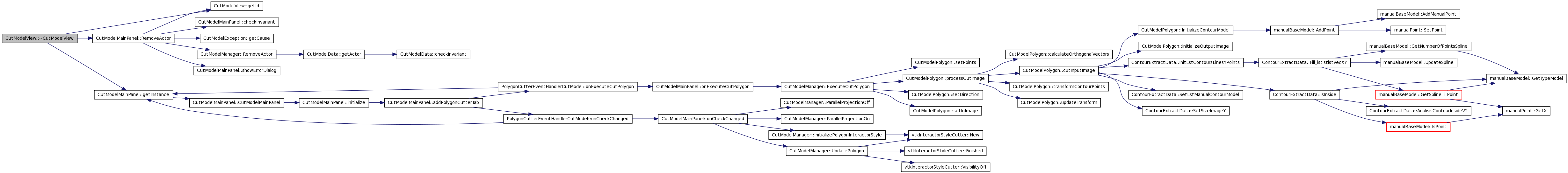

Here is the call graph for this function:

CutModelView::~CutModelView ( )

Definition at line 63 of file CutModelView.cxx.

References getId(), CutModelMainPanel::getInstance(), and CutModelMainPanel::RemoveActor().

00063                             {
00064         CutModelMainPanel::getInstance()->RemoveActor(this->getId());
00065 }

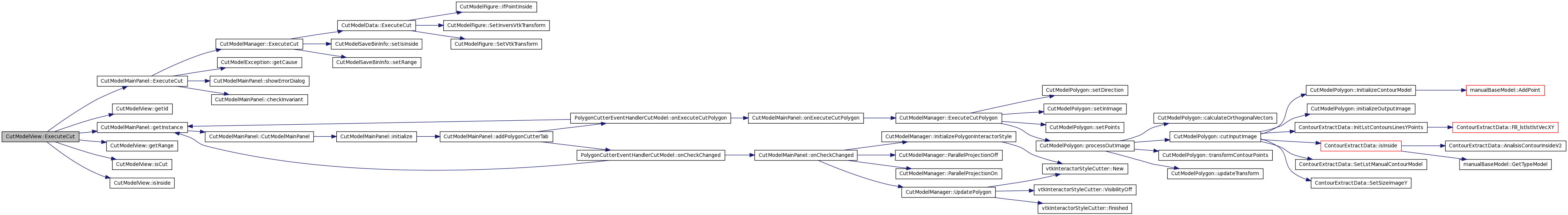

Here is the call graph for this function:

Member Function Documentation

void CutModelView::checkInvariant ( ) throw ( CutModelException) [private]

Definition at line 158 of file CutModelView.cxx.

00158                                                           {
00159
00160 }

void CutModelView::Execute	(	vtkObject *	wdg,
		unsigned long	eventId,
		void *	calldata
	)			`[virtual]`

Definition at line 162 of file CutModelView.cxx.

References getId(), CutModelMainPanel::getInstance(), CutModelMainPanel::ShowCurrentPanel(), CutModelMainPanel::ShowPopUpMenu(), and CutModelMainPanel::updateActorDirection().

00162                                                                                 {  // virtual
00163         //vtkBoxWidget *boxwidget = reinterpret_cast<vtkBoxWidget*>(wdg);
00164
00165         if(eventId==vtkCommand::StartInteractionEvent){
00166         CutModelMainPanel::getInstance()->ShowCurrentPanel(this->getId());
00167         }else if(eventId==vtkCommand::InteractionEvent){
00168                 CutModelMainPanel::getInstance()->updateActorDirection(this->getId());
00169         }else if(eventId==vtkCommand::RightButtonReleaseEvent){
00170                 //  =(
00171         CutModelMainPanel::getInstance()->ShowPopUpMenu(this->getId());
00172         }
00173 }

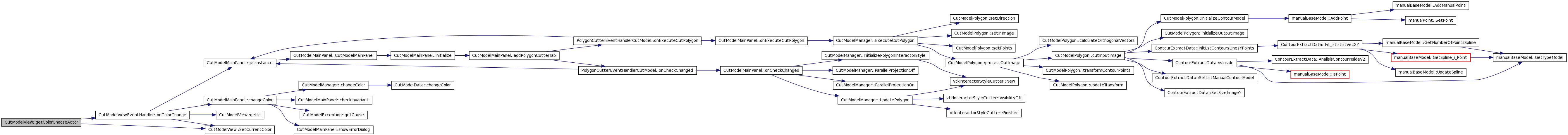

Here is the call graph for this function:

void CutModelView::ExecuteCut ( )

Definition at line 175 of file CutModelView.cxx.

References CutModelMainPanel::ExecuteCut(), getId(), CutModelMainPanel::getInstance(), getRange(), isCut(), and isInside().

Referenced by CutModelViewEventHandler::onExecute().

00175                              {
00176         if(this->isCut()){
00177                 CutModelMainPanel::getInstance()->ExecuteCut(this->getId(),this->getRange(),this->isInside());
00178         }else{
00179         }
00180
00181 }

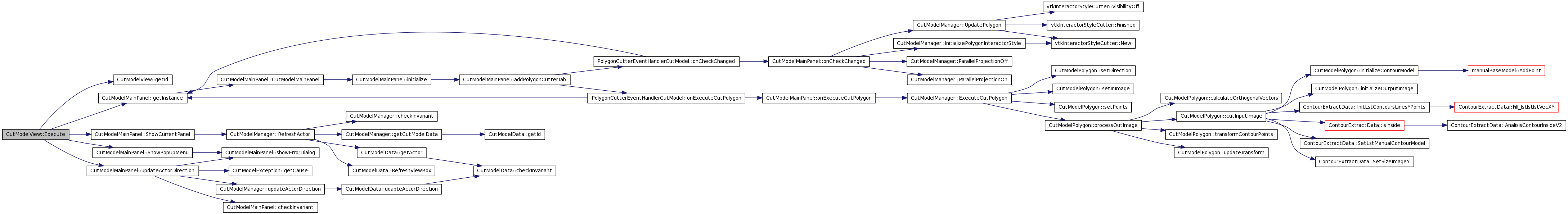

Here is the call graph for this function:

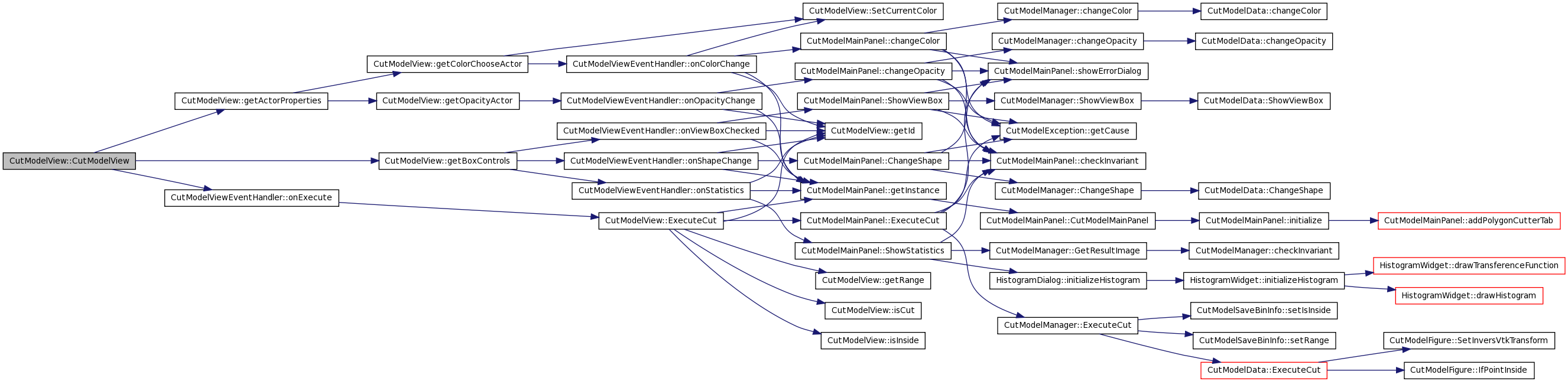

Here is the caller graph for this function:

wxSizer * CutModelView::getActorProperties ( wxWindow * parent ) [private]

Definition at line 113 of file CutModelView.cxx.

References getColorChooseActor(), and getOpacityActor().

Referenced by CutModelView().

00113                                                          {
00114
00115         wxBoxSizer* sizeractorproperties = new wxBoxSizer(wxVERTICAL);
00116
00117         wxStaticText* labelshapeactor = new wxStaticText(parent, -1, wxString(_T("Actor's properties")));
00118
00119         sizeractorproperties->Add(labelshapeactor,wxSizerFlags().FixedMinSize());
00120
00121         sizeractorproperties->Add(getColorChooseActor(parent),wxSizerFlags().FixedMinSize());
00122
00123         sizeractorproperties->Add(getOpacityActor(parent),wxSizerFlags().FixedMinSize());
00124
00125         return sizeractorproperties;
00126
00127 }

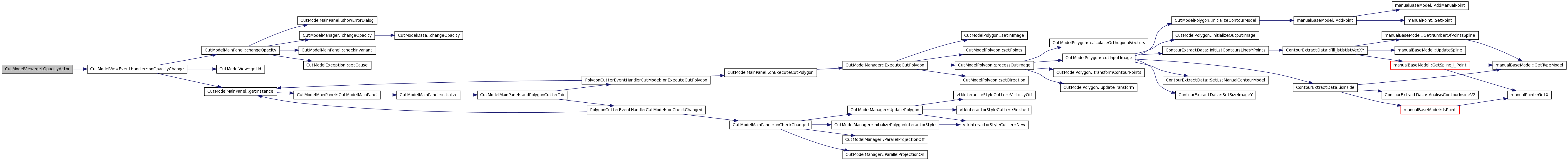

Here is the call graph for this function:

Here is the caller graph for this function:

wxSizer * CutModelView::getBoxControls	(	wxWindow *	parent,
		double *	range
	)			`[private]`

Definition at line 67 of file CutModelView.cxx.

References _radioinsideout, _sliderrange, CutModelViewEventHandler::onShapeChange(), CutModelViewEventHandler::onStatistics(), and CutModelViewEventHandler::onViewBoxChecked().

Referenced by CutModelView().

00068 00069 00070 00071 00072 00073 00074 00075 00076 00077 00078 00079 00080 00081 00082 00083 00084 00085 00086 00087 00088 00089 00090 00091 00092 00093 00094 00095 00096 00097 00098 00099 00100 00101 00102 00103 00104 00105 00106 00107 00108 00109 00110 00111 00112 }

class="fragment">00067 { wxBoxSizer* sizer = new wxBoxSizer(wxVERTICAL); wxCheckBox* checkbox = new wxCheckBox(parent,-1,_T("View Box")); sizer->Add(checkbox,wxSizerFlags().FixedMinSize()); checkbox->SetValue(true); Connect(checkbox->GetId(), wxEVT_COMMAND_CHECKBOX_CLICKED,(wxObjectEventFunction)(&CutModelViewEventHandler::onViewBoxChecked)); wxString choices1[3]; //choices1[0] = _T("Select a shape..."); choices1[0] = _T("Sphere"); choices1[1] = _T("Cylinder"); choices1[2] = _T("Cube"); wxComboBox* combo = new wxComboBox(parent, -1,_T(""),wxDefaultPosition,wxDefaultSize,3,choices1); combo->SetValue(_T("Sphere")); sizer->Add(combo,wxSizerFlags().FixedMinSize()); Connect(combo->GetId(), wxEVT_COMMAND_COMBOBOX_SELECTED,(wxObjectEventFunction)(&CutModelViewEventHandler::onShapeChange)); wxStaticText* labelgreyv = new wxStaticText(parent, -1, wxString(_T("Grey value range"))); _sliderrange = new wxSlider(parent, -1, range[0],range[0],range[1],wxDefaultPosition,wxDefaultSize,wxSL_LABELS|wxSL_SELRANGE); wxBoxSizer* sizergreyv = new wxBoxSizer(wxVERTICAL); sizergreyv->Add(labelgreyv,wxSizerFlags().FixedMinSize()); sizergreyv->Add(_sliderrange,wxSizerFlags().FixedMinSize()); sizer->Add(sizergreyv,wxSizerFlags().FixedMinSize().Border()); wxString choices0[2]; choices0[0] = _T("inside"); choices0[1] = _T("outside"); _radioinsideout = new wxRadioBox(parent,-1,_T(""), wxDefaultPosition, wxDefaultSize,2,choices0); sizer->Add(_radioinsideout,wxSizerFlags().FixedMinSize()); /*wxString choices[2]; choices[0] = _T("Cut"); choices[1] = _T("Statistics"); _radiocutstat = new wxRadioBox(parent,-1,_T(""), wxDefaultPosition, wxDefaultSize,2,choices); sizer->Add(_radiocutstat,wxSizerFlags().FixedMinSize());*/ wxBitmap bitmap(Statistics_xpm); wxBitmapButton* statbut = new wxBitmapButton(parent, -1, bitmap,wxDefaultPosition,wxSize(30,30)); Connect(statbut->GetId(), wxEVT_COMMAND_BUTTON_CLICKED, (wxObjectEventFunction)(&CutModelViewEventHandler::onStatistics)); sizer->Add(statbut,wxSizerFlags().FixedMinSize()); return sizer;

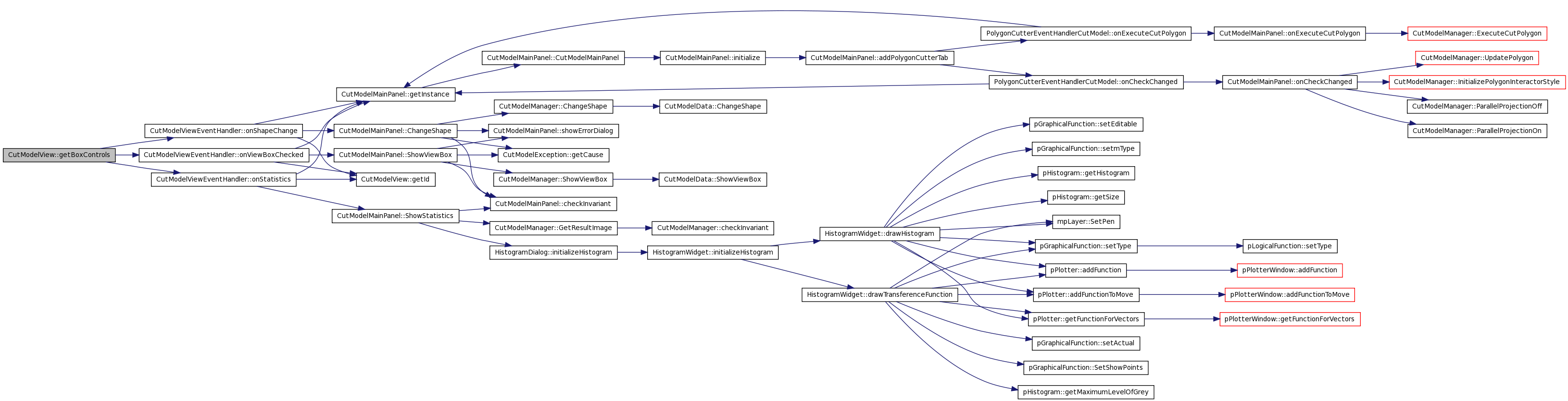

Here is the call graph for this function:

Here is the caller graph for this function:

wxSizer * CutModelView::getColorChooseActor ( wxWindow * parent ) [private]

Definition at line 142 of file CutModelView.cxx.

References _currentcolor, CutModelViewEventHandler::onColorChange(), and SetCurrentColor().

Referenced by getActorProperties().

00142                                                           {
00143     wxBoxSizer* sizercolor = new wxBoxSizer(wxHORIZONTAL);
00144         wxBitmap bitmap(Color_xpm);
00145         wxBitmapButton* colorchoose = new wxBitmapButton(parent, -1, bitmap,wxDefaultPosition,wxSize(30,30));
00146         wxObjectEventFunction f = (wxObjectEventFunction)(&CutModelViewEventHandler::onColorChange);
00147         Connect(colorchoose->GetId(), wxEVT_COMMAND_BUTTON_CLICKED, f);
00148
00149         _currentcolor = new wxStaticText(parent,-1,_T(""),wxDefaultPosition,wxSize(20,20));
00150         this->SetCurrentColor(wxColour(255.0,0.0,0.0));
00151
00152         sizercolor->Add(colorchoose,wxSizerFlags().FixedMinSize());
00153         sizercolor->AddSpacer(5);
00154         sizercolor->Add(_currentcolor,wxSizerFlags().FixedMinSize().Centre());
00155         return sizercolor;
00156 }

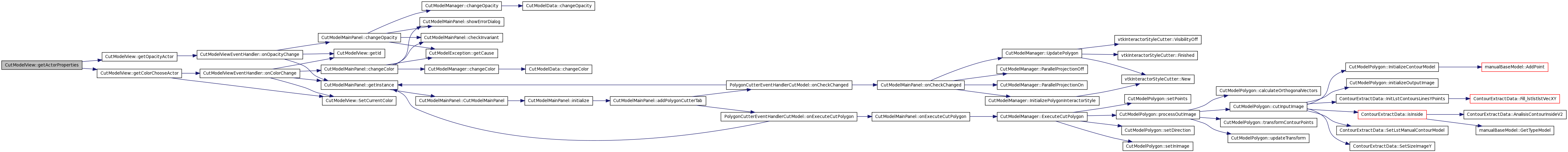

Here is the call graph for this function:

Here is the caller graph for this function:

int CutModelView::getId ( ) [inline]

Definition at line 45 of file CutModelView.h.

Referenced by CutModelMainPanel::addNewViewPanel(), Execute(), ExecuteCut(), CutModelViewEventHandler::onColorChange(), CutModelViewEventHandler::onOpacityChange(), CutModelViewEventHandler::onShapeChange(), CutModelViewEventHandler::onStatistics(), CutModelViewEventHandler::onViewBoxChecked(), CutModelMainPanel::RemoveActor(), and ~CutModelView().

00045                    {
00046                 return _id;
00047         }

Here is the caller graph for this function:

wxSizer * CutModelView::getOpacityActor ( wxWindow * parent ) [private]

Definition at line 129 of file CutModelView.cxx.

References CutModelViewEventHandler::onOpacityChange().

Referenced by getActorProperties().

00129                                                       {
00130         wxBoxSizer* sizeropacity = new wxBoxSizer(wxVERTICAL);
00131
00132         wxStaticText* labelopacity = new wxStaticText(parent, -1, wxString(_T("Opacity")));
00133         wxSlider* slider0 = new wxSlider(parent, -1, 60,0,100,wxDefaultPosition,wxDefaultSize,wxSL_LABELS);
00134         Connect(slider0->GetId(), wxEVT_SCROLL_THUMBRELEASE,(wxObjectEventFunction)(&CutModelViewEventHandler::onOpacityChange));
00135
00136         sizeropacity->Add(labelopacity,wxSizerFlags().FixedMinSize());
00137         sizeropacity->Add(slider0,wxSizerFlags().FixedMinSize());
00138
00139         return sizeropacity;
00140 }

Here is the call graph for this function:

Here is the caller graph for this function:

double * CutModelView::getRange ( ) [private]

Definition at line 183 of file CutModelView.cxx.

References _sliderrange.

Referenced by ExecuteCut().

00183                               {
00184         double* x = new double[3];
00185         x[0] = 0;
00186         x[1] = _sliderrange->GetValue();
00187         x[2] = 100000;
00188
00189         return x;
00190 }

Here is the caller graph for this function:

bool CutModelView::isCut ( ) [private]

Definition at line 191 of file CutModelView.cxx.

Referenced by ExecuteCut().

00191                         {
00192         return true;
00193         //return _radiocutstat->GetSelection()==0;
00194 }

Here is the caller graph for this function:

bool CutModelView::isInside ( ) [private]

Definition at line 195 of file CutModelView.cxx.

References _radioinsideout.

Referenced by ExecuteCut().

00195                            {
00196         return _radioinsideout->GetSelection()==0;
00197 }

Here is the caller graph for this function:

void CutModelView::SetCurrentColor ( wxColour colour )

Definition at line 198 of file CutModelView.cxx.

References _currentcolor.

Referenced by getColorChooseActor(), and CutModelViewEventHandler::onColorChange().

00198                                                  {
00199         _currentcolor->SetBackgroundColour(colour);
00200
00201         this->Refresh();
00202         this->Layout();
00203 }

Here is the caller graph for this function:

void CutModelView::setId ( int id ) [inline]

Definition at line 48 of file CutModelView.h.

Referenced by CutModelMainPanel::addNewViewPanel().

00048                           {
00049                 _id = id;
00050         }

Here is the caller graph for this function:

Member Data Documentation

wxStaticText* CutModelView::_currentcolor [private]

Definition at line 63 of file CutModelView.h.

Referenced by getColorChooseActor(), and SetCurrentColor().

int CutModelView::_id [private]

Definition at line 58 of file CutModelView.h.

wxRadioBox* CutModelView::_radioinsideout [private]

Definition at line 61 of file CutModelView.h.

Referenced by getBoxControls(), and isInside().

wxSlider* CutModelView::_sliderrange [private]

Definition at line 60 of file CutModelView.h.

Referenced by getBoxControls(), and getRange().

The documentation for this class was generated from the following files:

/home/davila/Creatis/creaMaracasVisu/lib/maracasVisuLib/src/CutModule/interface/CutModelView.h
/home/davila/Creatis/creaMaracasVisu/lib/maracasVisuLib/src/CutModule/interface/CutModelView.cxx
