ContourExtractData Class Reference

#include <ContourExtractData.h>

List of all members.

Public Member Functions

ContourExtractData (bool imagesResults=false)

~ContourExtractData ()

void SetImage (vtkImageData *imagedata)

void SetZtoBeAnalys (int z)

void SetLstManualContourModel (std::vector< manualContourModel * > lstManConMod)

void GetValuesInsideCrown (std::vector< double > *pLstValue, std::vector< double > *pLstValuePosX, std::vector< double > *pLstValuePosY, std::vector< double > *pLstValuePosZ)

void CalculateImageResult ()

vtkImageData * GetVtkImageValueResult ()

vtkImageData * GetVtkImageMaskResult ()

void Statistics (std::vector< double > *inputLstValue, int grayRangeMin, int grayRangeMax, int *rCountRange, int *rsize, double *rmin, double *rmax, double *raverage, double *rstandardeviation)

void SetTypeOperation (int type)

Private Member Functions

bool isInside (int x, int y, int typeOperation)

void GetMinMaxPoint (int *minPoint, int *maxPoint, manualContourModel *manualcontourmodel)

void GetMinMaxPoint_Of_LstManConMod (int *minPoint, int *maxPoint)

int AnalisisContourInside (int x, int y, manualContourModel *manualcontourmodel)

double GetDataValue (int x, int y, int z)

void ResetImageResult (int z)

void PutVtkImageDataResultValue (int x, int y, int z, double value)

void InitVtkImagesResult ()

Private Attributes

bool okImagesResults

std::vector< manualContourModel * > lstManConMod

int _typeOperation

int zImage

vtkImageData * imagedata

vtkImageData * imagedataValueResult

vtkImageData * imagedataMaskResult

Detailed Description

Definition at line 11 of file ContourExtractData.h.

Constructor & Destructor Documentation

ContourExtractData::ContourExtractData ( bool imagesResults = false )

Definition at line 6 of file ContourExtractData.cxx.

References _typeOperation, imagedata, imagedataMaskResult, and imagedataValueResult.

00007   {
00008     this->imagedata                     = NULL;
00009         imagedataValueResult    = NULL;
00010         imagedataMaskResult             = NULL;
00011         this->okImagesResults   = okImagesResults;
00012         _typeOperation                  = 0;
00013   }

ContourExtractData::~ContourExtractData ( )

Definition at line 17 of file ContourExtractData.cxx.

00018   {
00019   }

Member Function Documentation

int ContourExtractData::AnalisisContourInside	(	int	x,
		int	y,
		manualContourModel *	manualcontourmodel
	)			`[private]`

Definition at line 89 of file ContourExtractData.cxx.

References manualContourModel::GetNumberOfPointsSpline(), manualContourModel::GetSpline_i_Point(), and manualContourModel::UpdateSpline().

Referenced by isInside().

00093 {
00094         int result      = 0;
00095         int i;
00096         //int   np              = manualcontourmodel->GetSizeLstPoints( );  // number of control points // JPRx
00097
00098 // JSTG 26-02-08 ---------------------------------------------------------------------------------------
00099         //int nps = manualviewbaseecontour->GetNumberOfPointsSpline(); // number of points in the spline
00100         int nps = manualcontourmodel->GetNumberOfPointsSpline(); // number of points in the spline
00101         //double x1,y1,z1,x2,y2,z2,t;
00102         double x1,y1,z1,x2,y2,z2;
00103         double xx1, yy1,xx2, yy2;
00104         //double delta=( double ) ( np  ) / ( double ) ( nps  );
00105         manualcontourmodel->UpdateSpline();
00106 //------------------------------------------------------------------------------------------------------
00107         double d;
00108         bool ok;
00109 //      if (np>=2)
00110 //      {
00111 // JSTG 26-02-08 ---------------------------------------------------------------------------------------
00112                 nps--;
00113                 //manualcontourmodel->GetSplinePoint(0,x1,y1,z1);
00114                 manualcontourmodel->GetSpline_i_Point(0,&x1,&y1,&z1);
00115                 for (i=1; i<=nps; i++)
00116                 {
00117                         ok=false;
00118                         //t= delta * (double)(i%nps);
00119                         //manualcontourmodel->GetSplinePoint(t,x2,y2,z2);
00120                         manualcontourmodel->GetSpline_i_Point(i,&x2,&y2,&z2);
00121 //------------------------------------------------------------------------------------------------------
00122                         //by triangle similarity
00123                         if ( ((y1<y2)&&(y>=y1)&&(y<y2)) || ((y1>y2)&&(y<=y1)&&(y>y2)) )
00124                         {
00125                                 if (y1<y2) { xx1=x1; yy1=y1; xx2=x2; yy2=y2;} else { xx1=x2; yy1=y2; xx2=x1; yy2=y1; }
00126                                 d = ( fabs(xx2-xx1)*(y-yy1) ) / (yy2-yy1) ;
00127                                 if (  ((xx1<xx2)&&(x<(xx1+d)))  ||  ((xx1>xx2)&&(x<(xx1-d)))  ) { result++; }
00128                         } // if
00129                         x1=x2; y1=y2; z1=z2;
00130                 } // for i
00131 //      } //if
00132         return result;
00133 }

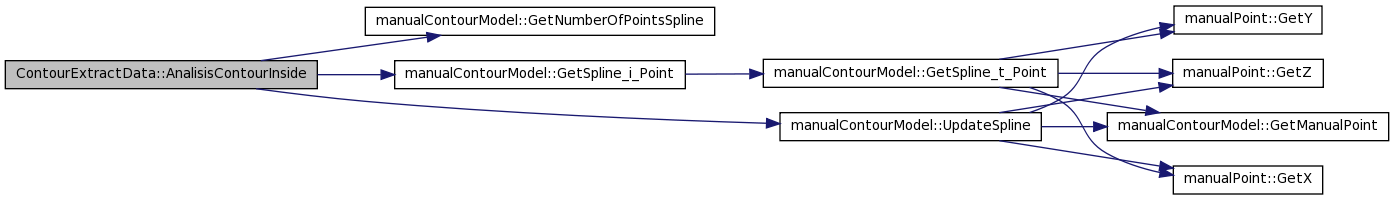

Here is the call graph for this function:

Here is the caller graph for this function:

void ContourExtractData::CalculateImageResult ( )

Definition at line 297 of file ContourExtractData.cxx.

References _typeOperation, GetDataValue(), GetMinMaxPoint_Of_LstManConMod(), imagedataMaskResult, imagedataValueResult, isInside(), okImagesResults, PutVtkImageDataResultValue(), ResetImageResult(), and zImage.

00298 {
00299         if (okImagesResults==true)
00300         {
00301                 ResetImageResult(zImage);
00302
00303                 int minPoint[2];
00304                 int maxPoint[2];
00305                 int i,j;
00306                 double value;
00307
00308                 minPoint[0] = 999999;
00309                 minPoint[1] = 999999;
00310                 maxPoint[0] = -999999;
00311                 maxPoint[1] = -999999;
00312
00313                 GetMinMaxPoint_Of_LstManConMod(minPoint,maxPoint);
00314                 for (j=minPoint[1]; j<maxPoint[1]; j++)
00315                 {
00316                         for (i=minPoint[0]; i<maxPoint[0]; i++)
00317                         {
00318                                 if (isInside(i,j,_typeOperation)==true)
00319                                 {
00320                                         value = GetDataValue(i,j,zImage);
00321                                         PutVtkImageDataResultValue(i,j,zImage,  value );
00322                                 } // if
00323                         } // for i
00324                 } // for j
00325
00326
00327                 imagedataValueResult->Modified();
00328                 imagedataMaskResult->Modified();
00329         }
00330
00331 }

Here is the call graph for this function:

double ContourExtractData::GetDataValue	(	int	x,
		int	y,
		int	z
	)			`[private]`

Definition at line 189 of file ContourExtractData.cxx.

References imagedata.

Referenced by CalculateImageResult(), and GetValuesInsideCrown().

00190 {
00191 //      wxVtk2DBaseView *wxvtk2dbaseview = (wxVtk2DBaseView*)wxvtkbaseview;
00192 //      int z = (int)wxvtk2dbaseview->GetVtkBaseData()->GetZ();
00193         //JSTG 13-03-08-----
00194 //EED OJO avec JS       _zz = z;
00195         //------------------
00196         double result;
00197         void *p;
00198         p = imagedata->GetScalarPointer(x,y,z);
00199
00200         if (imagedata->GetScalarType()==VTK_CHAR)
00201         {
00202                 char *pp = (char*)p;
00203                 result = (double)(*pp);
00204         }
00205         else if (imagedata->GetScalarType()==VTK_SIGNED_CHAR)
00206         {
00207                 signed char *pp = (signed char*)p;
00208                 result = (double)(*pp);
00209         }
00210         else if (imagedata->GetScalarType()==VTK_UNSIGNED_CHAR)
00211         {
00212                 unsigned char *pp = (unsigned char*)p;
00213                 result = (double)(*pp);
00214         }
00215         else if (imagedata->GetScalarType()==VTK_SHORT)
00216         {
00217                 short *pp = (short*)p;
00218                 result = (double)(*pp);
00219         }
00220         else if (imagedata->GetScalarType()==VTK_UNSIGNED_SHORT)
00221         {
00222                 unsigned short *pp = (unsigned short*)p;
00223                 result = (double)(*pp);
00224         }
00225         else if (imagedata->GetScalarType()==VTK_INT)
00226         {
00227                 int *pp = (int*)p;
00228                 result = (double)(*pp);
00229         }
00230         else if (imagedata->GetScalarType()==VTK_UNSIGNED_INT)
00231         {
00232                 unsigned int *pp = (unsigned int*)p;
00233                 result = (double)(*pp);
00234         }
00235         else if (imagedata->GetScalarType()==VTK_LONG)
00236         {
00237                 long *pp = (long*)p;
00238                 result = (double)(*pp);
00239         }
00240         else if (imagedata->GetScalarType()==VTK_UNSIGNED_LONG)
00241         {
00242                 unsigned long *pp = (unsigned long*)p;
00243                 result = (double)(*pp);
00244         }
00245         else if (imagedata->GetScalarType()==VTK_FLOAT)
00246         {
00247                 float *pp = (float*)p;
00248                 result = (double)(*pp);
00249         }
00250         else if (imagedata->GetScalarType()==VTK_DOUBLE)
00251         {
00252                 double *pp = (double*)p;
00253                 result = (double)(*pp);
00254         }
00255
00256         return result;
00257 }

Here is the caller graph for this function:

void ContourExtractData::GetMinMaxPoint	(	int *	minPoint,
		int *	maxPoint,
		manualContourModel *	manualcontourmodel
	)			`[private]`

Definition at line 44 of file ContourExtractData.cxx.

References manualContourModel::GetNumberOfPointsSpline(), manualContourModel::GetSpline_i_Point(), and manualContourModel::UpdateSpline().

Referenced by GetMinMaxPoint_Of_LstManConMod().

00048 {
00049         int i;
00050         //int   np              = manualcontourmodel->GetSizeLstPoints( );  // number of control points // JPRx
00051
00052 // JSTG 26-02-08 ---------------------------------------------------------------------------------------
00053         //int nps = manualviewbaseecontour->GetNumberOfPointsSpline(); // number of points in the spline
00054         int nps = manualcontourmodel->GetNumberOfPointsSpline(); // number of points in the spline
00055 //------------------------------------------------------------------------------------------------------
00056
00057 // JSTG 26-02-08 ---------------------------------------------------------------------------------------
00058         //double x,y,z,t;
00059         double x,y,z;
00060         //double delta=( double ) ( np  ) / ( double ) ( nps  );
00061         manualcontourmodel->UpdateSpline();
00062         for (i=0; i<nps; i++)
00063         {
00064                 //t= delta * (double)i;
00065                 //manualcontourmodel->GetSplinePoint(t,x,y,z);
00066                 manualcontourmodel->GetSpline_i_Point(i,&x,&y,&z);
00067                 if (x<minPoint[0]){ minPoint[0]=(int)x; }
00068                 if (y<minPoint[1]){ minPoint[1]=(int)y; }
00069                 if (x>maxPoint[0]){ maxPoint[0]=(int)x; }
00070                 if (y>maxPoint[1]){ maxPoint[1]=(int)y; }
00071         }
00072 //------------------------------------------------------------------------------------------------------
00073 }

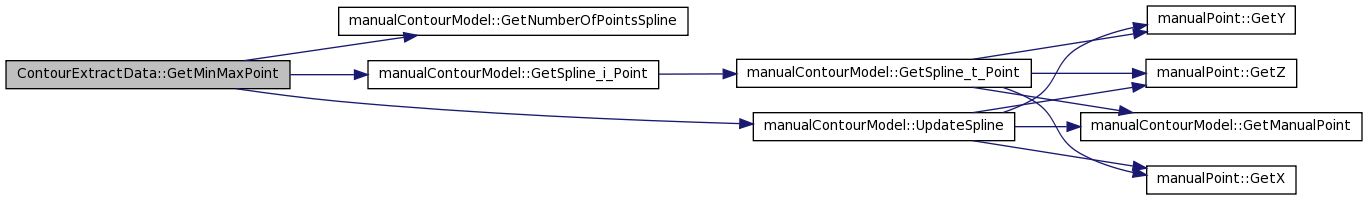

Here is the call graph for this function:

Here is the caller graph for this function:

void ContourExtractData::GetMinMaxPoint_Of_LstManConMod	(	int *	minPoint,
		int *	maxPoint
	)			`[private]`

Definition at line 76 of file ContourExtractData.cxx.

References GetMinMaxPoint(), and lstManConMod.

Referenced by CalculateImageResult(), and GetValuesInsideCrown().

00080 {
00081         int i,size = lstManConMod.size();
00082         for(i=0 ; i<size ; i++)
00083         {
00084                 GetMinMaxPoint(minPoint,maxPoint,lstManConMod[i]);
00085         }
00086 }

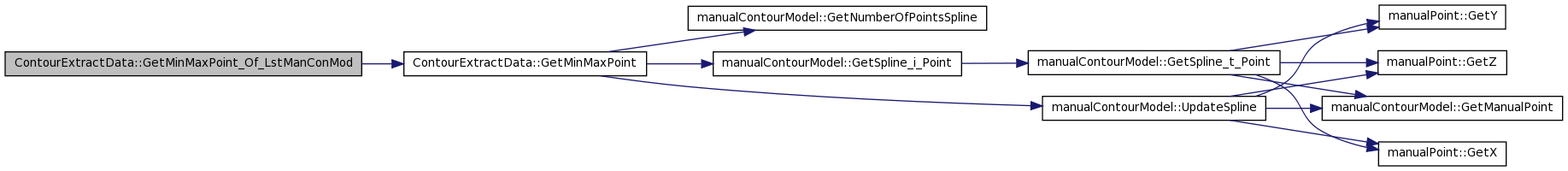

Here is the call graph for this function:

Here is the caller graph for this function:

void ContourExtractData::GetValuesInsideCrown	(	std::vector< double > *	pLstValue,
		std::vector< double > *	pLstValuePosX,
		std::vector< double > *	pLstValuePosY,
		std::vector< double > *	pLstValuePosZ
	)

Definition at line 334 of file ContourExtractData.cxx.

References _typeOperation, GetDataValue(), GetMinMaxPoint_Of_LstManConMod(), isInside(), and zImage.

00338 {
00339         pLstValue->clear();
00340         pLstValuePosX->clear();
00341         pLstValuePosY->clear();
00342         pLstValuePosZ->clear();
00343
00344 //      if (okImagesResults==true)
00345 //      {
00346 //              ResetImageResult(zImage);
00347 //      }
00348
00349         int minPoint[2];
00350         int maxPoint[2];
00351         int i,j;
00352         double value;
00353
00354
00355         minPoint[0] = 999999;
00356         minPoint[1] = 999999;
00357         maxPoint[0] = -999999;
00358         maxPoint[1] = -999999;
00359
00360         GetMinMaxPoint_Of_LstManConMod(minPoint,maxPoint);
00361
00362
00363         for (j=minPoint[1]; j<maxPoint[1]; j++)
00364         {
00365                 for (i=minPoint[0]; i<maxPoint[0]; i++)
00366                 {
00367                         if (isInside(i,j,_typeOperation)==true)
00368                         {
00369                                 value = GetDataValue(i,j,zImage);
00370
00371 // Borrame
00372 //                              if (okImagesResults==true){
00373 //                                      PutVtkImageDataResultValue(i,j,zImage,  value );
00374 //                              }
00375
00376                                 pLstValue               -> push_back( value );
00377                                 pLstValuePosX   -> push_back( i );
00378                                 pLstValuePosY   -> push_back( j );
00379                                 pLstValuePosZ   -> push_back( -1 );
00380                         } // if
00381                 } // for
00382         } // for
00383
00384
00385 // Borrame
00386 //      if (this->okImagesResults==true){
00387 //              imagedataValueResult->Modified();
00388 //              imagedataMaskResult->Modified();
00389 //      }
00390
00391
00392 }

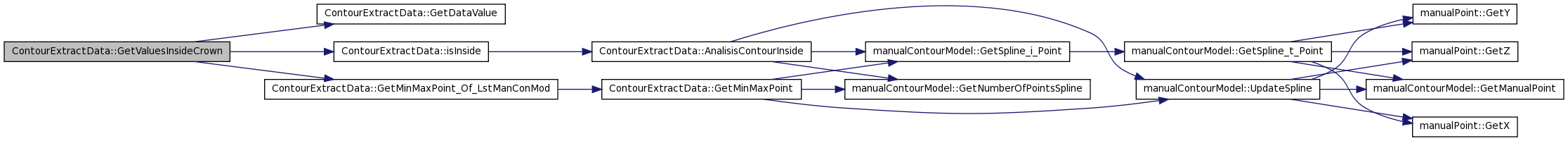

Here is the call graph for this function:

vtkImageData * ContourExtractData::GetVtkImageMaskResult ( )

Definition at line 401 of file ContourExtractData.cxx.

References imagedataMaskResult.

00402 {
00403         return imagedataMaskResult;
00404 }

vtkImageData * ContourExtractData::GetVtkImageValueResult ( )

Definition at line 396 of file ContourExtractData.cxx.

References imagedataValueResult.

00397 {
00398         return imagedataValueResult;
00399 }

void ContourExtractData::InitVtkImagesResult ( ) [private]

Definition at line 406 of file ContourExtractData.cxx.

References imagedata, imagedataMaskResult, and imagedataValueResult.

Referenced by SetImage().

00407 {
00408           int ext[6];
00409           int newDim[3];
00410           double spc[3];
00411           int scalartype;
00412
00413           imagedata->GetSpacing(spc);
00414           imagedata->GetExtent(ext);
00415           newDim[0]=ext[1]-ext[0]+1;
00416           newDim[1]=ext[3]-ext[2]+1;
00417           newDim[2]=ext[5]-ext[4]+1;
00418           scalartype = imagedata->GetScalarType();
00419
00420           if (imagedataValueResult!=NULL)
00421           {
00422                   imagedataValueResult->Delete();
00423           }
00424           imagedataValueResult = vtkImageData::New();
00425 //        imagedataValueResult->SetScalarType(scalartype);
00426           imagedataValueResult->SetScalarTypeToUnsignedShort();
00427           imagedataValueResult->SetSpacing(spc);
00428           imagedataValueResult->SetDimensions( newDim );
00429           imagedataValueResult->AllocateScalars();
00430
00431           if (imagedataMaskResult!=NULL)
00432           {
00433                   imagedataMaskResult->Delete();
00434           }
00435           imagedataMaskResult  = vtkImageData::New();
00436 //        imagedataMaskResult->SetScalarType(scalartype);
00437           imagedataMaskResult->SetScalarTypeToUnsignedShort();
00438           imagedataMaskResult->SetSpacing(spc);
00439           imagedataMaskResult->SetDimensions( newDim );
00440           imagedataMaskResult->AllocateScalars();
00441 }

Here is the caller graph for this function:

bool ContourExtractData::isInside	(	int	x,
		int	y,
		int	typeOperation
	)			`[private]`

Definition at line 138 of file ContourExtractData.cxx.

References AnalisisContourInside(), imagedata, and lstManConMod.

Referenced by CalculateImageResult(), and GetValuesInsideCrown().

00139 {
00140         bool result                             = false;
00141         int numberLeft                  = 0;
00142         int i,size                              = this->lstManConMod.size();
00143         int numberInside        = 0;
00144
00145         int ext[6];
00146         imagedata->GetExtent(ext);
00147
00148         if ((x>=0) && (x<=ext[1]) && (y>=0) && (y<=ext[3]))
00149         {
00150
00151                 if (typeOperation==0)  // AND  Intersection
00152                 {
00153                         for (i=0;i<size;i++)
00154                         {
00155                                 numberLeft =  AnalisisContourInside(x,y, lstManConMod[i] );
00156                                 if ( (numberLeft % 2) ==1){         numberInside++;  }
00157                         }
00158                         if ( numberInside == (size) ){ result=true; }
00159                 } // AND  Intersection
00160
00161
00162                 if (typeOperation==1)  // OR  All
00163                 {
00164                         for (i=0;i<size;i++)
00165                         {
00166                                 numberLeft =  AnalisisContourInside(x,y, lstManConMod[i] );
00167                                 if ( (numberLeft % 2) ==1){ result=true;  }
00168                         }
00169                 } // OR  All
00170
00171                 if (typeOperation==2)  // XOR  crown
00172                 {
00173                         for (i=0;i<size;i++)
00174                         {
00175                                 numberLeft = numberLeft + AnalisisContourInside(x,y, lstManConMod[i] );
00176                         }
00177                         if ( numberLeft % 2 ==1){       result = true;  }
00178                 }// XOR  crown
00179
00180
00181
00182         }
00183
00184         return result;
00185 }

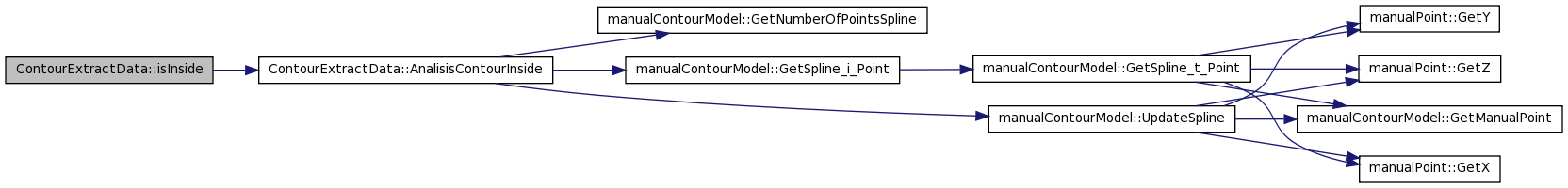

Here is the call graph for this function:

Here is the caller graph for this function:

void ContourExtractData::PutVtkImageDataResultValue	(	int	x,
		int	y,
		int	z,
		double	value
	)			`[private]`

Definition at line 261 of file ContourExtractData.cxx.

References imagedataMaskResult, and imagedataValueResult.

Referenced by CalculateImageResult().

00262 {
00263         unsigned short *pValue;
00264         unsigned short *pMask;
00265         pValue  = (unsigned short *)imagedataValueResult->GetScalarPointer(x,y,z);
00266         pMask   = (unsigned short *)imagedataMaskResult->GetScalarPointer(x,y,z);
00267         *pMask  = 255;
00268         *pValue = (unsigned short)value;
00269 }

Here is the caller graph for this function:

void ContourExtractData::ResetImageResult ( int z ) [private]

Definition at line 272 of file ContourExtractData.cxx.

References imagedataMaskResult, imagedataValueResult, and okImagesResults.

Referenced by CalculateImageResult().

00273 {
00274         if (okImagesResults==true)
00275         {
00276                 unsigned short *pValue;
00277                 unsigned short *pMask;
00278                 pValue  = (unsigned short *)imagedataValueResult->GetScalarPointer(0,0,z);
00279                 pMask   = (unsigned short *)imagedataMaskResult->GetScalarPointer(0,0,z);
00280
00281                 int ext[6];
00282                 imagedataValueResult->GetExtent(ext);
00283
00284                 int i,size = (ext[1]-ext[0]+1) * (ext[3]-ext[2]+1);
00285                 for(i=0; i<size; i++)
00286                 {
00287                         *pMask  = 0;
00288                         *pValue = 0;
00289                         pMask++;
00290                         pValue++;
00291                 }// for
00292         } // if
00293 }

Here is the caller graph for this function:

void ContourExtractData::SetImage ( vtkImageData * imagedata )

Definition at line 23 of file ContourExtractData.cxx.

References InitVtkImagesResult(), and okImagesResults.

00024   {
00025     this->imagedata                     = imagedata;
00026         if (this->okImagesResults==true){
00027                 InitVtkImagesResult();
00028         }
00029   }

Here is the call graph for this function:

void ContourExtractData::SetLstManualContourModel ( std::vector< manualContourModel * > lstManConMod )

Definition at line 37 of file ContourExtractData.cxx.

00038   {
00039           this->lstManConMod = lstManConMod;
00040   }

void ContourExtractData::SetTypeOperation ( int type )

Definition at line 506 of file ContourExtractData.cxx.

References _typeOperation.

00507 {
00508         _typeOperation=type;
00509 }

void ContourExtractData::SetZtoBeAnalys ( int z )

Definition at line 31 of file ContourExtractData.cxx.

References zImage.

00032   {
00033         this->zImage                    = z;
00034   }

void ContourExtractData::Statistics	(	std::vector< double > *	inputLstValue,
		int	grayRangeMin,
		int	grayRangeMax,
		int *	rCountRange,
		int *	rsize,
		double *	rmin,
		double *	rmax,
		double *	raverage,
		double *	rstandardeviation
	)

Definition at line 446 of file ContourExtractData.cxx.

References min.

00455 {
00456           double min                            = 0;
00457           double max                            = 0;
00458           double average                        = 0;
00459           double standardeviation       = 0;
00460           double acum                           = 0;
00461           int    size                           = 0;
00462           int    countRange                     = 0;
00463           double ng;
00464
00465           if (inputLstValue!=NULL)
00466           {
00467                 size=inputLstValue->size();
00468                 if (size>0){
00469                max=(*inputLstValue)[0];
00470                    min=(*inputLstValue)[0];
00471      // Average , countRange
00472                         int i;
00473                         for ( i=0; i<size; i++ )
00474                         {
00475                                 ng=(*inputLstValue)[i];
00476                                 acum = acum + ng;
00477                                 if (max<ng) max=ng;             // Max
00478                                 if (min>ng) min=ng;     // Min
00479                                 if ((ng>=grayRangeMin) && (ng<=grayRangeMax)) countRange++;  // countRange
00480                         }
00481                         average = acum / size;
00482
00483           // Standar Deviation
00484                         acum=0;
00485                         double tmp;
00486                         for ( i=0; i<size; i++ )
00487                         {
00488                 tmp = (*inputLstValue)[i] - average;
00489                                 acum = acum + tmp*tmp;
00490                         }
00491                         standardeviation = sqrt(acum/size);
00492
00493                 }
00494           }
00495
00496           // OUTPUT
00497                 *rsize                          = size;
00498                 *rCountRange            = countRange;
00499                 *rmin                           = min;
00500                 *rmax                           = max;
00501                 *raverage                       = average;
00502                 *rstandardeviation      = standardeviation;
00503 }

Member Data Documentation

int ContourExtractData::_typeOperation [private]

Definition at line 44 of file ContourExtractData.h.

Referenced by CalculateImageResult(), ContourExtractData(), GetValuesInsideCrown(), and SetTypeOperation().

vtkImageData* ContourExtractData::imagedata [private]

Definition at line 47 of file ContourExtractData.h.

Referenced by ContourExtractData(), GetDataValue(), InitVtkImagesResult(), and isInside().

vtkImageData* ContourExtractData::imagedataMaskResult [private]

Definition at line 49 of file ContourExtractData.h.

Referenced by CalculateImageResult(), ContourExtractData(), GetVtkImageMaskResult(), InitVtkImagesResult(), PutVtkImageDataResultValue(), and ResetImageResult().

vtkImageData* ContourExtractData::imagedataValueResult [private]

Definition at line 48 of file ContourExtractData.h.

Referenced by CalculateImageResult(), ContourExtractData(), GetVtkImageValueResult(), InitVtkImagesResult(), PutVtkImageDataResultValue(), and ResetImageResult().

std::vector<manualContourModel*> ContourExtractData::lstManConMod [private]

Definition at line 43 of file ContourExtractData.h.

Referenced by GetMinMaxPoint_Of_LstManConMod(), and isInside().

bool ContourExtractData::okImagesResults [private]

Definition at line 42 of file ContourExtractData.h.

Referenced by CalculateImageResult(), ResetImageResult(), and SetImage().

int ContourExtractData::zImage [private]

Definition at line 46 of file ContourExtractData.h.

Referenced by CalculateImageResult(), GetValuesInsideCrown(), and SetZtoBeAnalys().

The documentation for this class was generated from the following files:

/Users/davila/Creatis/creaMaracasVisu/lib/maracasVisuLib/src/interface/wxWindows/Contour/ContourExtractData.h
/Users/davila/Creatis/creaMaracasVisu/lib/maracasVisuLib/src/interface/wxWindows/Contour/ContourExtractData.cxx


Public Member Functions
	ContourExtractData (bool imagesResults=false)
	~ContourExtractData ()
void	SetImage (vtkImageData *imagedata)
void	SetZtoBeAnalys (int z)
void	SetLstManualContourModel (std::vector< manualContourModel * > lstManConMod)
void	GetValuesInsideCrown (std::vector< double > pLstValue, std::vector< double > pLstValuePosX, std::vector< double > pLstValuePosY, std::vector< double > pLstValuePosZ)
void	CalculateImageResult ()
vtkImageData *	GetVtkImageValueResult ()
vtkImageData *	GetVtkImageMaskResult ()
void	Statistics (std::vector< double > inputLstValue, int grayRangeMin, int grayRangeMax, int rCountRange, int rsize, double rmin, double rmax, double raverage, double *rstandardeviation)
void	SetTypeOperation (int type)
Private Member Functions
bool	isInside (int x, int y, int typeOperation)
void	GetMinMaxPoint (int minPoint, int maxPoint, manualContourModel *manualcontourmodel)
void	GetMinMaxPoint_Of_LstManConMod (int minPoint, int maxPoint)
int	AnalisisContourInside (int x, int y, manualContourModel *manualcontourmodel)
double	GetDataValue (int x, int y, int z)
void	ResetImageResult (int z)
void	PutVtkImageDataResultValue (int x, int y, int z, double value)
void	InitVtkImagesResult ()
Private Attributes
bool	okImagesResults
std::vector< manualContourModel * >	lstManConMod
int	_typeOperation
int	zImage
vtkImageData *	imagedata
vtkImageData *	imagedataValueResult
vtkImageData *	imagedataMaskResult
