wxVtkMPR3DView Class Reference

#include <wxVtkMPR3DView.h>

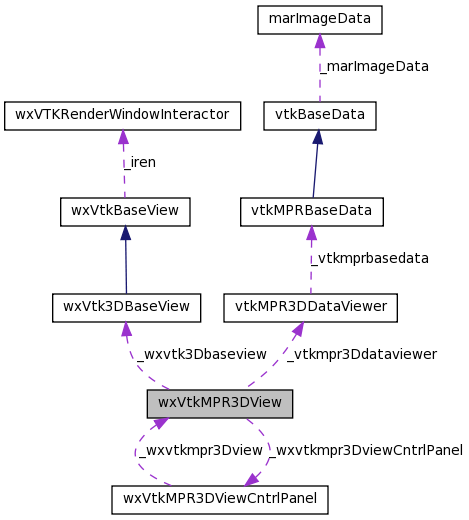

Collaboration diagram for wxVtkMPR3DView:

[legend]

List of all members.

Public Member Functions
	wxVtkMPR3DView (wxVtk3DBaseView *wxvtk3Dbaseview)
virtual	~wxVtkMPR3DView ()
void	VisibleImageActor (int idPosition, bool visible)
void	VisiblePointWidget (bool visible)
void	VisiblePlaneWidget (bool visible)
void	SetVisibleTissue (int idTissue, bool visible)
bool	GetVisibleTissue (int idTissue)
virtual void	Refresh ()
virtual void	RefreshView ()
virtual void	Configure ()
void	SetVtkMPR3DDataViewer (vtkMPR3DDataViewer *vtkmpr3Ddataviewer)
wxPanel *	CreateControlPanel (wxWindow *parent)
vtkMPR3DDataViewer *	GetVtkMPR3DDataViewer ()
wxVtk3DBaseView *	GetWxvtk3Dbaseview () throw (char*)
void	InitOrientationPointWidget ()
void	TestLoic1 ()
void	TestLoic2 ()
void	RemoveActor (vtkActor *actor)
void	ResetCamera (int *ext=NULL, double *origin=NULL, double *spc=NULL)
Private Attributes
wxVtk3DBaseView *	_wxvtk3Dbaseview
vtkMPR3DDataViewer *	_vtkmpr3Ddataviewer
wxVtkMPR3DViewCntrlPanel *	_wxvtkmpr3DviewCntrlPanel
vtkPolyData *	_vtkplane
vtkActor *	_contourPlaneActor
vtkPlaneWidget *	_planeWidget
vtkPointWidget *	_pointWidget
vtkProbeFilter *	_probe
vtkPolyDataMapper *	_contourMapper

---

Detailed Description

Definition at line 16 of file wxVtkMPR3DView.h.

---

Constructor & Destructor Documentation

wxVtkMPR3DView::wxVtkMPR3DView

(

wxVtk3DBaseView *

wxvtk3Dbaseview

)

Definition at line 17 of file wxVtkMPR3DView.cxx.

References _contourMapper, _planeWidget, _pointWidget, _probe, _vtkmpr3Ddataviewer, _vtkplane, _wxvtk3Dbaseview, and _wxvtkmpr3DviewCntrlPanel.

{
        _wxvtk3Dbaseview                        =       wxvtk3Dbaseview;
        _vtkmpr3Ddataviewer                     =       NULL;
        _wxvtkmpr3DviewCntrlPanel       =       NULL;
        //_myCallback=NULL;
        _pointWidget=NULL;
        _planeWidget=NULL;
        _vtkplane=NULL;
        _probe=NULL;
        _contourMapper=NULL;
}

wxVtkMPR3DView::~wxVtkMPR3DView

(

)

[virtual]

Definition at line 184 of file wxVtkMPR3DView.cxx.

References _contourMapper, _contourPlaneActor, _planeWidget, _pointWidget, _probe, and _vtkplane.

{
        if(_pointWidget!=NULL){
                _pointWidget->Delete();
        }
        if(_planeWidget!=NULL){
                _planeWidget->Delete();
        }

        if(_vtkplane!=NULL){
                _vtkplane->Delete();
                _probe->Delete();
                _contourMapper->Delete();
                _contourPlaneActor->Delete();
        }

}

---

Member Function Documentation

void wxVtkMPR3DView::Configure

(

)

[virtual]

Definition at line 62 of file wxVtkMPR3DView.cxx.

References _contourMapper, _contourPlaneActor, _planeWidget, _pointWidget, _probe, _vtkmpr3Ddataviewer, _vtkplane, _wxvtk3Dbaseview, _wxvtkmpr3DviewCntrlPanel, wxVtk3DBaseView::Configure(), wxVtk3DBaseView::GetCamera(), vtkBaseData::GetImageData(), vtkMPR3DDataViewer::GetOutlineActor(), wxVtk3DBaseView::GetRenderer(), wxVtk3DBaseView::GetRenWin(), GetVtkMPR3DDataViewer(), vtkMPR3DDataViewer::GetVtkMPRBaseData(), GetWxvtk3Dbaseview(), vtkmyPWCallback_3DPointWidget::New(), ResetCamera(), vtkmyPWCallback_3DPointWidget::SetVtkPlaneWidget(), vtkmyPWCallback_3DPointWidget::SetVtkPointWidget(), vtkmyPWCallback_3DPointWidget::SetWxVtkMPR3DView(), and wxVtkMPR3DViewCntrlPanel::UpdateControlPanel().

                              {


        _wxvtk3Dbaseview->Configure();
        _wxvtkmpr3DviewCntrlPanel->UpdateControlPanel();

//EED 27 Mai 2009
//      _wxvtk3Dbaseview->GetRenderer()->Clear();

        // Actors are added to the renderer.
        vtkActor* _outlineActor = _vtkmpr3Ddataviewer->GetOutlineActor();
        _wxvtk3Dbaseview->GetRenderer()->AddActor( _outlineActor );
//      _wxvtk3Dbaseview->GetRenderer()->AddActor( _vtkmpr3Ddataviewer->GetImageActor(0)  );    // _saggital
//      _wxvtk3Dbaseview->GetRenderer()->AddActor( _vtkmpr3Ddataviewer->GetImageActor(1)  );    // _axial
//      _wxvtk3Dbaseview->GetRenderer()->AddActor( _vtkmpr3Ddataviewer->GetImageActor(2)  );    // _coronal


        // An initial camera view is created.  The Dolly() method moves
        // the camera towards the FocalPoint, thereby enlarging the image.
        _wxvtk3Dbaseview->GetRenderer()->SetActiveCamera(_wxvtk3Dbaseview->GetCamera());
        this->ResetCamera();


        // Set a background color for the renderer and set the size of the
        // render window (expressed in pixels).
        _wxvtk3Dbaseview->GetRenderer()->SetBackground( 0.36 , 0.36 , 0.36 );
        _wxvtk3Dbaseview->GetRenWin()->SetSize(400, 400);

        // Note that when camera movement occurs (as it does in the Dolly()
        // method), the clipping planes often need adjusting. Clipping planes
        // consist of two planes: near and far along the view direction. The
        // near plane clips out objects in front of the plane; the far plane
        // clips out objects behind the plane. This way only what is drawn
        // between the planes is actually rendered.
        _wxvtk3Dbaseview->GetRenderer()->ResetCameraClippingRange();


        // vtkPointWidget
        //if(_myCallback!=NULL){
                //_myCallback->Delete();

        //}
        vtkmyPWCallback_3DPointWidget *_myCallback = vtkmyPWCallback_3DPointWidget::New();
        _myCallback->SetWxVtkMPR3DView(this);

        if(_pointWidget!=NULL){
                _pointWidget->Delete();
        }
        _pointWidget = vtkPointWidget::New();
        _myCallback->SetVtkPointWidget(_pointWidget);
        _pointWidget->SetInteractor( GetWxvtk3Dbaseview()->GetWxVTKRenderWindowInteractor() );
        _pointWidget->SetInput( GetVtkMPR3DDataViewer()->GetVtkMPRBaseData()->GetImageData() );

        _pointWidget->AllOff();

        _pointWidget->PlaceWidget();
//      _pointWidget->SetPosition( x,y,z );

//EED01 29Mars2009
// MACOS probleme vtk-window out of wx-window
//      _pointWidget->On();

        _pointWidget->AddObserver(vtkCommand::InteractionEvent,_myCallback);


// PlaneWidget
        if(_planeWidget!=NULL){
                _planeWidget->Delete();
        }
        _planeWidget = vtkPlaneWidget::New();
        _myCallback->SetVtkPlaneWidget(_planeWidget);
        _planeWidget->SetInput( GetVtkMPR3DDataViewer()->GetVtkMPRBaseData()->GetImageData() );
        _planeWidget->NormalToXAxisOn();
        _planeWidget->SetResolution(50);
        _planeWidget->SetRepresentationToOutline();
        int dim[3];
        GetVtkMPR3DDataViewer()->GetVtkMPRBaseData()->GetImageData()->GetDimensions(dim);
        int px=(dim[0]/2);
        int py=(dim[1]/2);
        int pz=(dim[2]/2);
        int dd=20;
        _planeWidget->PlaceWidget( px-dd , px+dd , py-dd , py+dd , pz-dd , pz+dd );


        if(_vtkplane==NULL){
                _vtkplane = vtkPolyData::New();

                _probe = vtkProbeFilter::New();
                _probe->SetInput(_vtkplane);

                _contourMapper = vtkPolyDataMapper::New();

                _contourMapper->SetInput( _probe->GetPolyDataOutput() );

                _contourPlaneActor = vtkActor::New();
                _contourPlaneActor->SetMapper(_contourMapper);

                _contourPlaneActor->VisibilityOff();

                _planeWidget->SetInteractor( GetWxvtk3Dbaseview()->GetWxVTKRenderWindowInteractor() );
                _planeWidget->AddObserver(vtkCommand::InteractionEvent,_myCallback);

                _planeWidget->Off();
                _wxvtk3Dbaseview->GetRenderer()->AddActor( _contourPlaneActor );

        }else{

        }
        _planeWidget->GetPolyData(_vtkplane);


        vtkImageData *imageData = GetVtkMPR3DDataViewer()->GetVtkMPRBaseData()->GetImageData();
        _probe->SetSource( imageData );


        _contourMapper->SetScalarRange( imageData->GetScalarRange() );




}

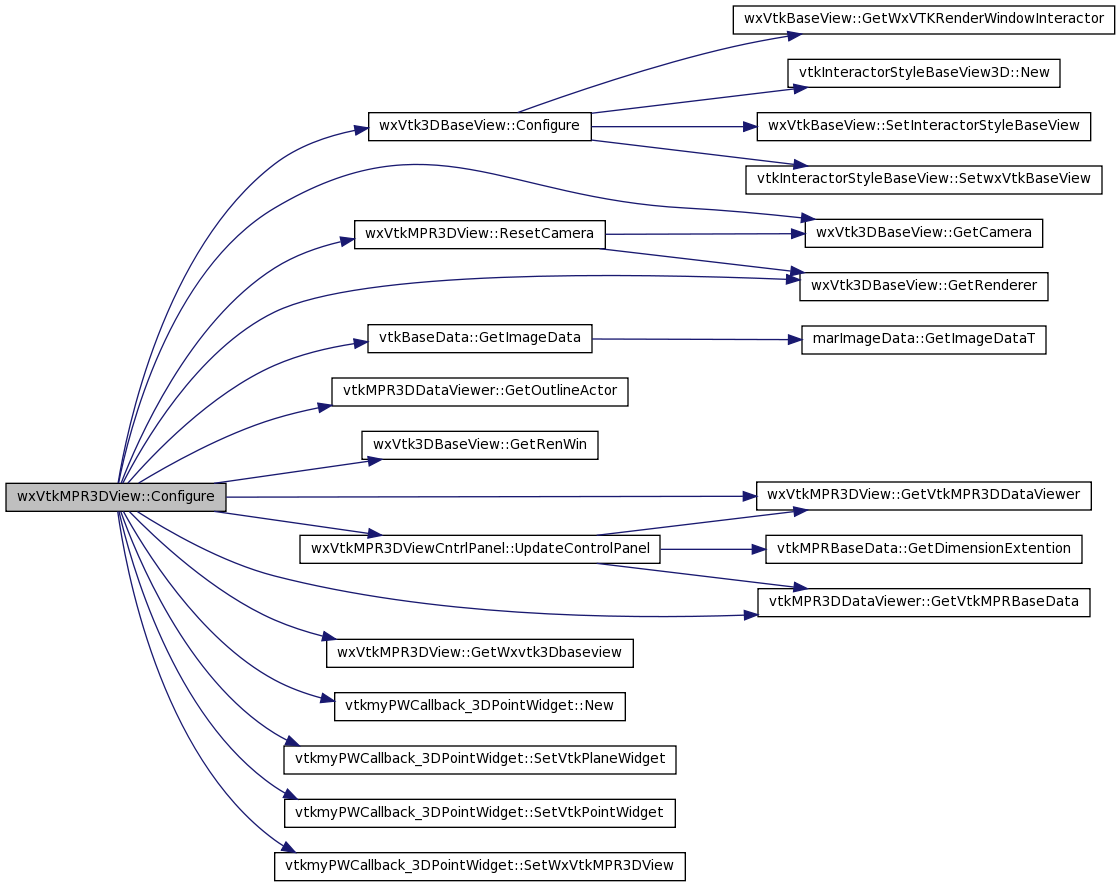

Here is the call graph for this function:

wxPanel * wxVtkMPR3DView::CreateControlPanel

(

wxWindow *

parent

)

Definition at line 244 of file wxVtkMPR3DView.cxx.

References _wxvtkmpr3DviewCntrlPanel.

Referenced by wxManualRegistration3D::AddPanelControl_B(), wxManualRegistration3D::Create3DView(), wxManualTree_MPRWidget::Create3DViewContour(), wxSegmentationFM3DWidget::Create3DViewContour(), wxManualSegmentation_MPRWidget::Create3DViewContour(), wxMPRWidget::CreateMPRPanel4View(), wxMPRWidget::CreateView(), and wxMaracas_ViewerWidget::wxMaracas_ViewerWidget().

{
        _wxvtkmpr3DviewCntrlPanel = new wxVtkMPR3DViewCntrlPanel(parent,this);
        return _wxvtkmpr3DviewCntrlPanel;
}

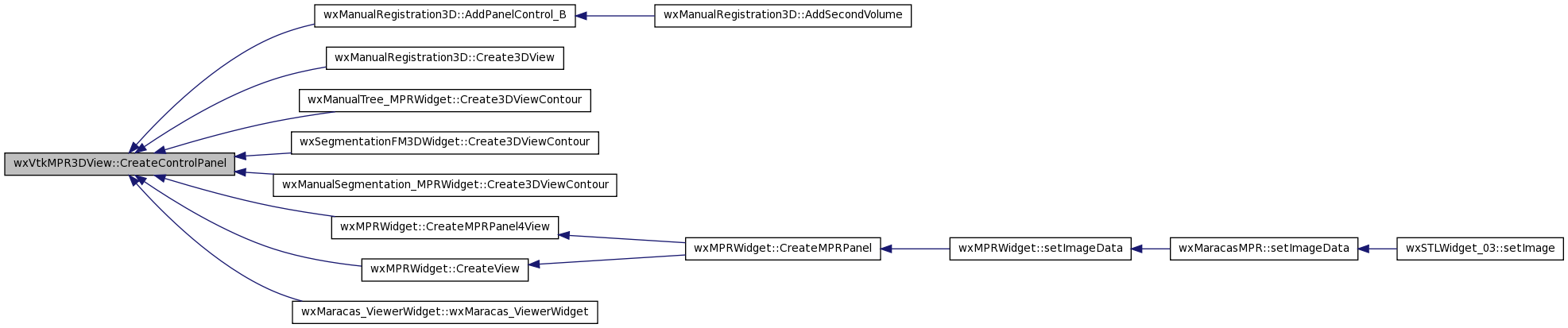

Here is the caller graph for this function:

bool wxVtkMPR3DView::GetVisibleTissue

(

int

idTissue

)

vtkMPR3DDataViewer * wxVtkMPR3DView::GetVtkMPR3DDataViewer

(

)

Definition at line 250 of file wxVtkMPR3DView.cxx.

References _vtkmpr3Ddataviewer.

Referenced by Configure(), wxManualTree_MPRWidget::ConfigureContour(), vtkmyPWCallback_3DPointWidget::Execute(), wxVtkMPR3DViewCntrlPanel::OnEditColorTable(), wxVtkMPR3DViewCntrlPanel::OnPositionX(), wxVtkMPR3DViewCntrlPanel::OnPositionY(), wxVtkMPR3DViewCntrlPanel::OnPositionZ(), wxManualRegistration3D::OnTracking(), wxVtkMPR3DViewCntrlPanel::Refresh(), RefreshView(), wxManualRegistration3D::RefreshView(), vtkInteractorStyle3DView::SelectMarchibCubePoint(), TestLoic1(), TestLoic2(), and wxVtkMPR3DViewCntrlPanel::UpdateControlPanel().

{
        return _vtkmpr3Ddataviewer;
}

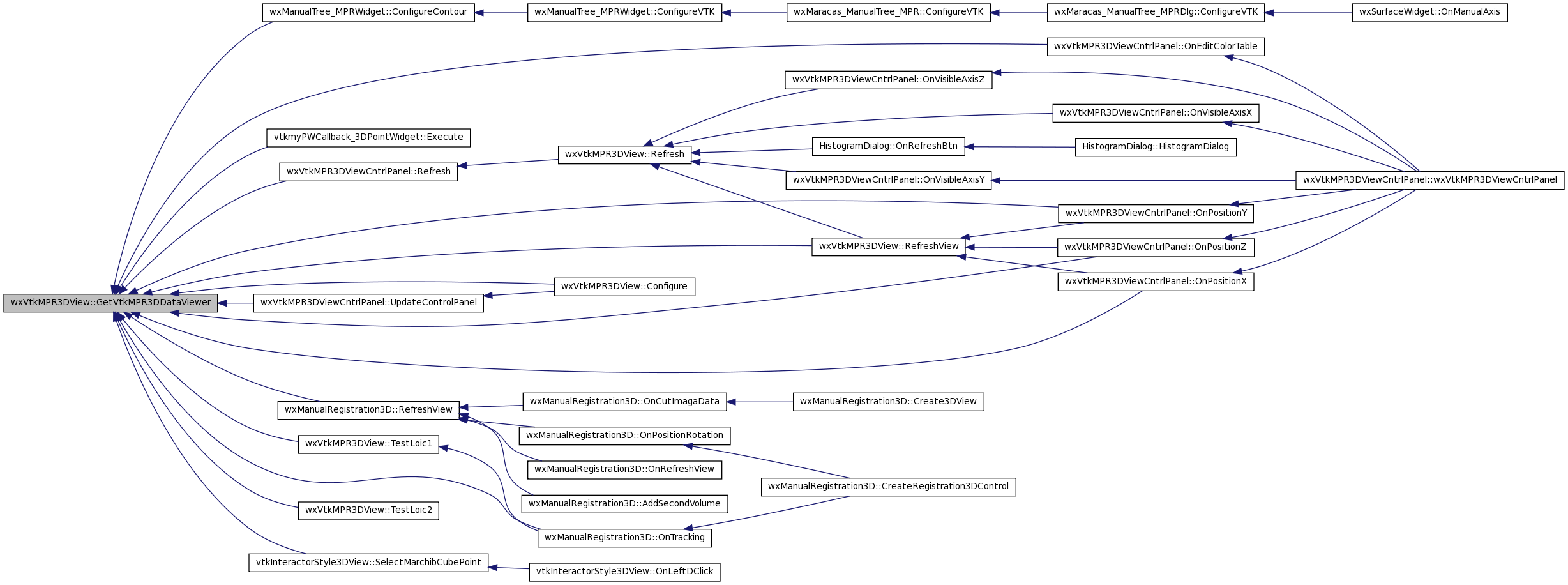

Here is the caller graph for this function:

wxVtk3DBaseView * wxVtkMPR3DView::GetWxvtk3Dbaseview

(

)

throw (char*)

Definition at line 255 of file wxVtkMPR3DView.cxx.

References _wxvtk3Dbaseview.

Referenced by Configure(), wxSTLWidget_02::ConfigureSTL(), wxSTLWidget_03::ConfigureSTL(), vtkmyPWCallback_3DPointWidget::Execute(), wxSTLWidget_03::ExtractSurface(), wxSTLWidget_02::ExtractTree2_JF(), wxManualSegmentation_MPRWidget::GetRenderer(), wxSegmentationFM3DWidget::OnBtnSegment(), wxSTLWidget_02::OnBtnSTLFileLoad(), wxSTLWidget_03::OnBtnSTLFileLoad(), wxSegmentationFM3DWidget::OnBtnUndo(), wxSTLWidget_02::OnJoinRegions(), wxVtkMPR3DViewCntrlPanel::OnPositionX(), wxVtkMPR3DViewCntrlPanel::OnPositionY(), wxVtkMPR3DViewCntrlPanel::OnPositionZ(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisX(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisY(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisZ(), wxSTLWidget_02::Reset_vtk_STLFile(), wxSTLWidget_03::Reset_vtk_STLFile(), wxSTLWidget_02::ResetTree2_JF(), wxSTLWidget_03::ResetTree2_JF(), and vtkInteractorStyle3DView::SelectMarchibCubePoint().

{
        if(_wxvtk3Dbaseview==NULL){
                throw "wxVtk3DBaseView* wxVtkMPR3DView::GetWxvtk3Dbaseview() _wxvtk3Dbaseview=NULL";
        }
        return _wxvtk3Dbaseview;
}

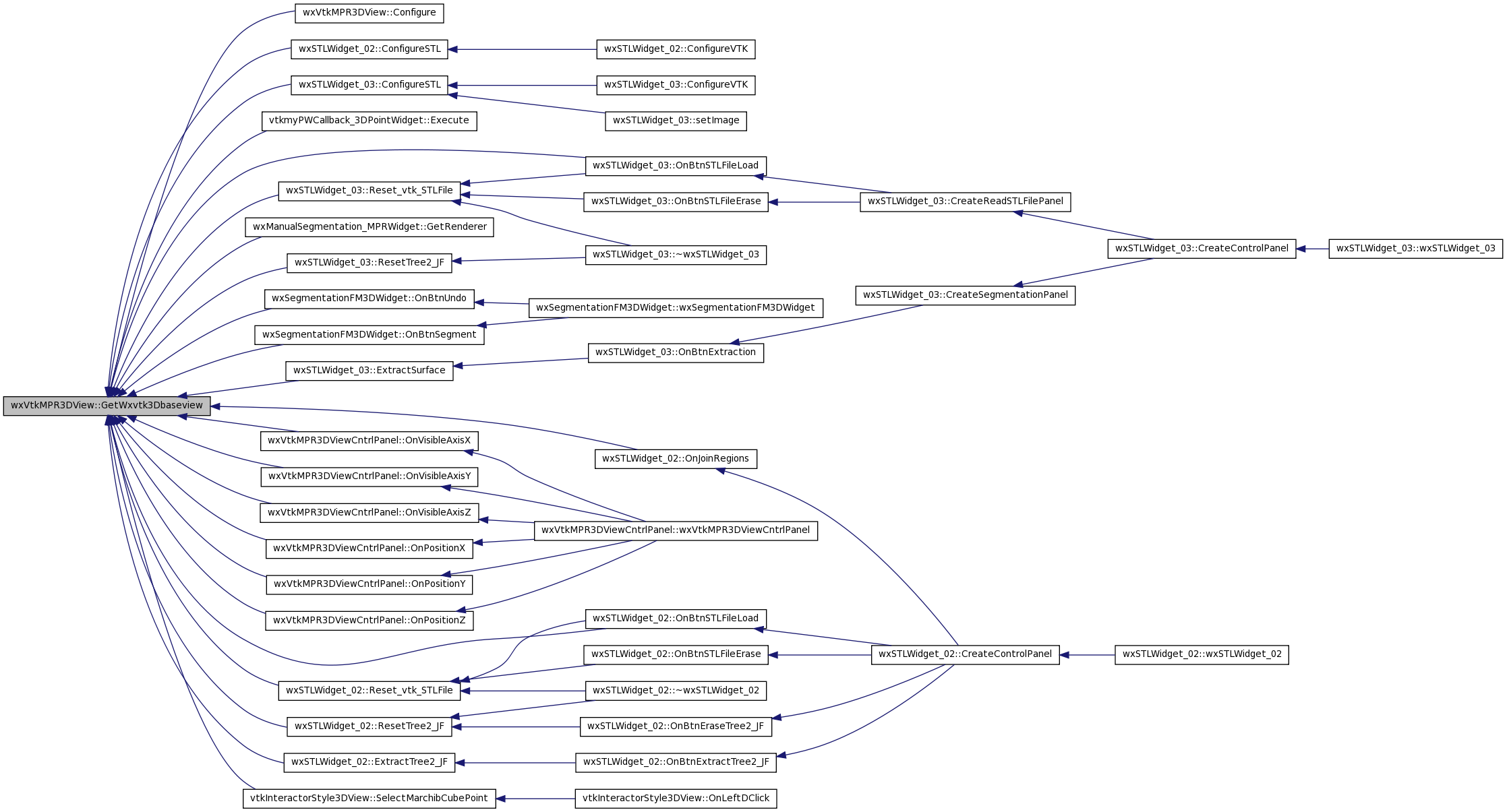

Here is the caller graph for this function:

void wxVtkMPR3DView::InitOrientationPointWidget

(

)

Definition at line 309 of file wxVtkMPR3DView.cxx.

References _planeWidget.

Referenced by wxManualRegistration3D::OnTracking().

{
        this->_planeWidget->SetNormal(1,0,0);
}

Here is the caller graph for this function:

void wxVtkMPR3DView::Refresh

(

)

[virtual]

Definition at line 203 of file wxVtkMPR3DView.cxx.

References _vtkmpr3Ddataviewer, _wxvtkmpr3DviewCntrlPanel, and wxVtkMPR3DViewCntrlPanel::Refresh().

Referenced by HistogramDialog::OnRefreshBtn(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisX(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisY(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisZ(), and RefreshView().

{
        _vtkmpr3Ddataviewer     ->      Refresh();
        if (_wxvtkmpr3DviewCntrlPanel!=NULL)
        {
                _wxvtkmpr3DviewCntrlPanel->Refresh();
        }

}

Here is the call graph for this function:

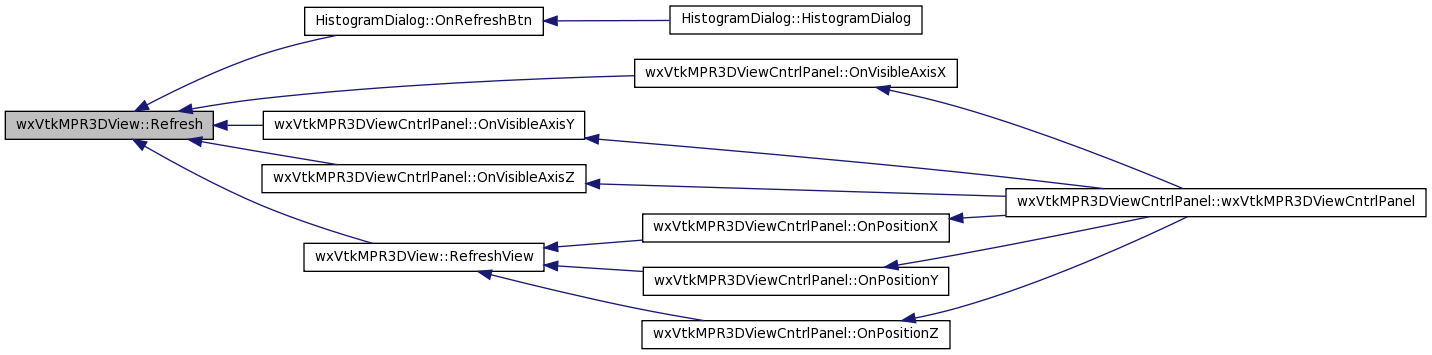

Here is the caller graph for this function:

void wxVtkMPR3DView::RefreshView

(

)

[virtual]

Definition at line 213 of file wxVtkMPR3DView.cxx.

References _planeWidget, _pointWidget, _vtkplane, vtkBaseData::GetImageData(), vtkMPRBaseData::GetTransformOrientation(), GetVtkMPR3DDataViewer(), vtkMPR3DDataViewer::GetVtkMPRBaseData(), vtkMPRBaseData::GetX(), vtkMPRBaseData::GetY(), vtkBaseData::GetZ(), and Refresh().

Referenced by wxVtkMPR3DViewCntrlPanel::OnPositionX(), wxVtkMPR3DViewCntrlPanel::OnPositionY(), and wxVtkMPR3DViewCntrlPanel::OnPositionZ().

{
        double spc[3];
        this->GetVtkMPR3DDataViewer()->GetVtkMPRBaseData()->GetImageData()->GetSpacing(spc);

        //double nx=1,ny=0,nz=0; // JPRx
        Refresh();
        double x=GetVtkMPR3DDataViewer ()->GetVtkMPRBaseData()->GetX();
        double y=GetVtkMPR3DDataViewer ()->GetVtkMPRBaseData()->GetY();
        double z=GetVtkMPR3DDataViewer ()->GetVtkMPRBaseData()->GetZ();

        x=x*spc[0];
        y=y*spc[1];
        z=z*spc[2];

        _pointWidget->SetPosition( x,y,z );


        double in[3];
        double normal[3];
        vtkTransform *transform = GetVtkMPR3DDataViewer ()->GetVtkMPRBaseData()->GetTransformOrientation();
        in[0]=1;                in[1]=0;                        in[2]=0;
        transform->TransformPoint(in,normal);
        _planeWidget->SetNormal( normal[0],normal[1],normal[2] );


        _planeWidget->SetCenter( x,y,z );
        _planeWidget->UpdatePlacement();
        _planeWidget->GetPolyData(_vtkplane);
}

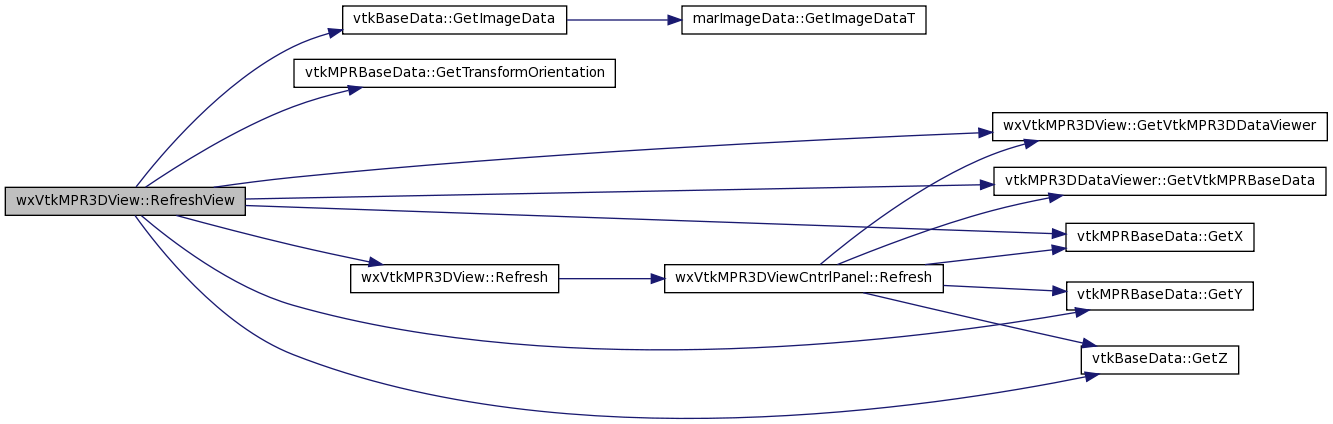

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtkMPR3DView::RemoveActor

(

vtkActor *

actor

)

Definition at line 29 of file wxVtkMPR3DView.cxx.

References _wxvtk3Dbaseview, and wxVtk3DBaseView::GetRenderer().

                                               {

        _wxvtk3Dbaseview->GetRenderer()->RemoveActor(actor);


}

Here is the call graph for this function:

void wxVtkMPR3DView::ResetCamera	(	int *	ext = NULL,
		double *	origin = NULL,
		double *	spc = NULL
	)

Definition at line 35 of file wxVtkMPR3DView.cxx.

References _wxvtk3Dbaseview, wxVtk3DBaseView::GetCamera(), and wxVtk3DBaseView::GetRenderer().

Referenced by Configure(), and wxMaracas_ViewerWidget::ConfigureVTK().

                                                                    {
        if(ext == NULL){

                _wxvtk3Dbaseview->GetRenderer()->ResetCamera ();
                _wxvtk3Dbaseview->GetCamera()->Dolly(1.5);
        }else{
                /*double x = (spc[0])*(origin[0]+(((double)ext[1]-(double)ext[0])/2.0));
                double y = (spc[1])*(origin[1]+(double)ext[3]);
                double z = (spc[2])*(origin[2]+(((double)ext[5]-(double)ext[4])/2.0));*/
                /*double x0=(spc[0])*((double)ext[0]+origin[0]);
                double x1=(spc[0])*((double)ext[1]+origin[0]);
                double y0=(spc[1])*((double)ext[2]+origin[1]);
                double y1=(spc[1])*((double)ext[3]+origin[1]);
                double z0=(spc[2])*((double)ext[4]+origin[2]);
                double z1=(spc[2])*((double)ext[5]+origin[2]);*/
                double x0=(spc[0])*((double)ext[0]);
                double x1=(spc[0])*((double)ext[1]);
                double y0=(spc[1])*((double)ext[2]);
                double y1=(spc[1])*((double)ext[3]);
                double z0=(spc[2])*((double)ext[4]);
                double z1=(spc[2])*((double)ext[5]);

                _wxvtk3Dbaseview->GetRenderer()->ResetCamera(x0,x1,y0,y1,z0,z1);
                //_wxvtk3Dbaseview->GetCamera()->SetPosition(x,y,z);
                _wxvtk3Dbaseview->GetCamera()->Dolly(1.5);
        }
}

Here is the call graph for this function:

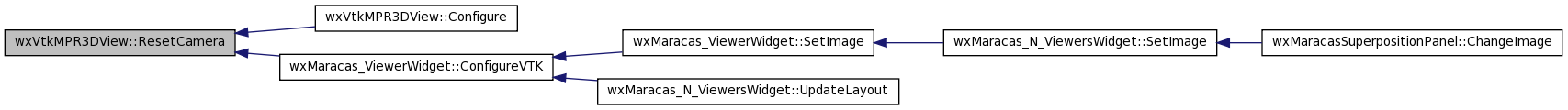

Here is the caller graph for this function:

void wxVtkMPR3DView::SetVisibleTissue	(	int	idTissue,
		bool	visible
	)

void wxVtkMPR3DView::SetVtkMPR3DDataViewer

(

vtkMPR3DDataViewer *

vtkmpr3Ddataviewer

)

Definition at line 303 of file wxVtkMPR3DView.cxx.

References _vtkmpr3Ddataviewer.

Referenced by wxManualRegistration3D::AddPanelControl_B(), wxManualRegistration3D::Create3DView(), wxManualTree_MPRWidget::Create3DViewContour(), wxSegmentationFM3DWidget::Create3DViewContour(), wxManualSegmentation_MPRWidget::Create3DViewContour(), wxMPRWidget::CreateMPRPanel4View(), wxMPRWidget::CreateView(), and wxMaracas_ViewerWidget::wxMaracas_ViewerWidget().

{
        _vtkmpr3Ddataviewer = vtkmpr3Ddataviewer;
}

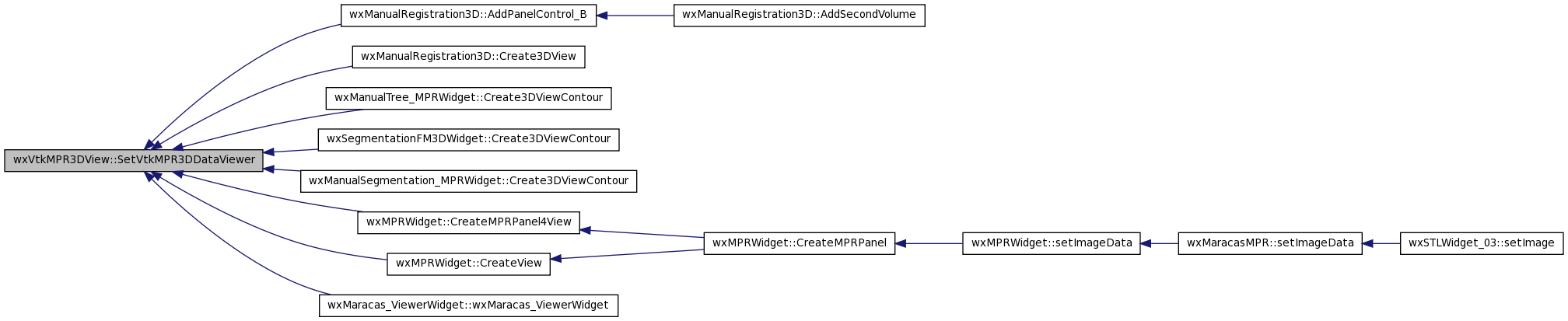

Here is the caller graph for this function:

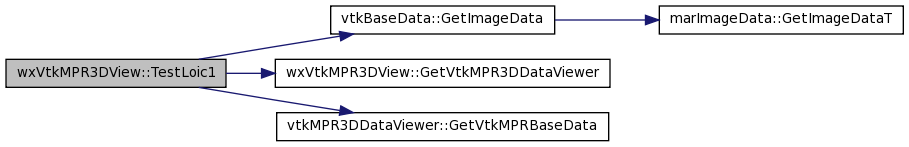

void wxVtkMPR3DView::TestLoic1

(

)

Definition at line 319 of file wxVtkMPR3DView.cxx.

References _planeWidget, vtkBaseData::GetImageData(), GetVtkMPR3DDataViewer(), and vtkMPR3DDataViewer::GetVtkMPRBaseData().

Referenced by wxManualRegistration3D::OnTracking().

{

        int sizeIma     = 128;
  double dimIma = sizeIma*2;

        vtkImageData *vtkimagedata =  this->GetVtkMPR3DDataViewer()->GetVtkMPRBaseData()->GetImageData();

        double spc[3];
        vtkimagedata->GetSpacing(spc);

        vtkimagedata->Update();


         double p[3], n[3];
     this->_planeWidget->GetOrigin(p);
     this->_planeWidget->GetNormal(n);



    vtkPlaneSource* pSource = vtkPlaneSource::New( );
    pSource->SetResolution( sizeIma - 1, sizeIma - 1 );
    pSource->SetOrigin( p[ 0 ], p[ 1 ], p[ 2 ] );
    pSource->SetPoint1( p[ 0 ] + dimIma - 1.0, p[ 1 ], p[ 2 ] );
    pSource->SetPoint2( p[ 0 ], p[ 1 ]+ dimIma - 1.0 , p[ 2 ] );
    pSource->Update( );
    pSource->SetCenter( p[ 0 ], p[ 1 ], p[ 2 ] );
    pSource->SetNormal( n[ 0 ], n[ 1 ], n[ 2 ] );
    pSource->Update( );

    vtkProbeFilter* slices = vtkProbeFilter::New();
    slices->SetInput( ( vtkDataSet* )pSource->GetOutput( ) );
    slices->SetSource( vtkimagedata );
    slices->Update( );
    pSource->Delete( );

        vtkStructuredPoints   *stPoints = vtkStructuredPoints::New();
        stPoints -> GetPointData( )->SetScalars(  slices->GetOutput()->GetPointData()->GetScalars()  );
        stPoints -> SetDimensions( sizeIma, sizeIma, 1 );
        stPoints -> SetScalarType( vtkimagedata->GetScalarType() );
        stPoints -> SetScalarTypeToShort();
        stPoints -> Update();

        vtkImageChangeInformation  *change = vtkImageChangeInformation ::New();
        change    -> SetInput( stPoints );
        change    -> Update();    //important

        double _range[2];
        vtkimagedata->GetScalarRange(_range);
   vtkWindowLevelLookupTable *_bwlookup = vtkWindowLevelLookupTable::New( );
   _bwlookup->SetHueRange( 0 , 1 );
   _bwlookup->SetNumberOfColors( (int)(_range[1] - _range[0] + 1) );
   _bwlookup->SetTableRange( _range[0] , _range[1] );
   _bwlookup->SetSaturationRange( 0 , 0 );
   _bwlookup->SetValueRange( 0 , 1 );
   _bwlookup->SetAlphaRange( 1 , 1 );
   _bwlookup->Build( );

   vtkLookupTable * _collookup = vtkLookupTable::New( );
   _collookup->SetNumberOfColors( 256 );
   _collookup->SetTableRange( 0 , 255 );
   _collookup->Build( );
   _collookup->SetTableValue( 0  , 1 , 0 , 0 , 1 );
   _collookup->SetTableValue(128 , 0 , 0 , 1 , 1 );
   _collookup->SetTableValue(255 , 0 , 1 , 0 , 1 );


        vtkMetaImageWriter *writer = vtkMetaImageWriter::New( );
        writer->SetInput( stPoints );
        writer->SetFileName( "C:/Users/Images/temp_EED/image.mhd" );
        writer->SetFileDimensionality( 2 );
        writer->Write( );



        vtkDataSetMapper *_3DSliceMapper = vtkDataSetMapper::New( );
        _3DSliceMapper->SetInput(change->GetOutput( ) );
        _3DSliceMapper->SetLookupTable( _bwlookup );
        _3DSliceMapper->SetScalarRange( _range );
        _3DSliceMapper->ImmediateModeRenderingOn( );

        vtkActor *_3DSliceActor = vtkActor::New( );
        _3DSliceActor->SetMapper( _3DSliceMapper );

 // The usual rendering stuff.
  vtkCamera *camera = vtkCamera::New();
      camera->SetPosition(1,1,1);
      camera->SetFocalPoint(0,0,0);

  vtkRenderer *renderer = vtkRenderer::New();
  vtkRenderWindow *renWin = vtkRenderWindow::New();
    renWin->AddRenderer(renderer);

  vtkRenderWindowInteractor *iren = vtkRenderWindowInteractor::New();
    iren->SetRenderWindow(renWin);

  renderer->AddActor( _3DSliceActor );
      renderer->SetActiveCamera(camera);
      renderer->ResetCamera();
      renderer->SetBackground(1,1,1);

  renWin->SetSize(300,300);

  // interact with data
  renWin->Render();
  iren->Start();





}

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtkMPR3DView::TestLoic2

(

)

Definition at line 434 of file wxVtkMPR3DView.cxx.

References _planeWidget, vtkBaseData::GetImageData(), GetVtkMPR3DDataViewer(), and vtkMPR3DDataViewer::GetVtkMPRBaseData().

{
/*
 vtkVectorNorm *vecMagnitude = vtkVectorNorm::New();
                vecMagnitude->SetInput(VtkMainGrid);
                vecMagnitude->NormalizeOff();
                vecMagnitude->Update();
*/

        vtkPlane *slicePlane = vtkPlane::New();
                                this->_planeWidget->GetPlane( slicePlane );


        vtkCutter* sliceCutter = vtkCutter::New();
                vtkImageData *vtkimagedata =  this->GetVtkMPR3DDataViewer()->GetVtkMPRBaseData()->GetImageData();
                sliceCutter->SetInput( vtkimagedata );
                sliceCutter->SetCutFunction( slicePlane );

//EED
//        vtkLookupTable *lut = BuildHueWeightBaseMap();


        vtkPolyDataMapper *slice = vtkPolyDataMapper::New();
                slice->SetInput( sliceCutter->GetOutput() );
        double range[2];
// EED
//                slice->Update();
                                  vtkimagedata->GetScalarRange(range);
//                vecMagnitude->GetOutput()->GetScalarRange( range );
//                range[1] *= 0.7; // reduce the upper range by 30%
//                slice->SetScalarRange( range );
//                slice->SetLookupTable( lut );

//       vtkActor *sliceActor = vtkActor::New();
//                sliceActor->SetMapper( slice );

        vtkPolyDataMapper *contourMapper = vtkPolyDataMapper::New();
                contourMapper->SetInput( sliceCutter->GetOutput() );
                contourMapper->SetScalarRange( range );
  //              contourMapper->SetLookupTable( lut );


        vtkActor *contourActor = vtkActor::New();
                contourActor->SetMapper( contourMapper );



 // The usual rendering stuff.
  vtkCamera *camera = vtkCamera::New();
      camera->SetPosition(1,1,1);
      camera->SetFocalPoint(0,0,0);

  vtkRenderer *renderer = vtkRenderer::New();
  vtkRenderWindow *renWin = vtkRenderWindow::New();
    renWin->AddRenderer(renderer);

  vtkRenderWindowInteractor *iren = vtkRenderWindowInteractor::New();
    iren->SetRenderWindow(renWin);

  renderer->AddActor( contourActor );
//  renderer->AddActor(cubeActor);
      renderer->SetActiveCamera(camera);
      renderer->ResetCamera();
      renderer->SetBackground(1,1,1);

  renWin->SetSize(300,300);

  // interact with data
  renWin->Render();
  iren->Start();


}

Here is the call graph for this function:

void wxVtkMPR3DView::VisibleImageActor	(	int	idPosition,
		bool	visible
	)

Definition at line 265 of file wxVtkMPR3DView.cxx.

References _vtkmpr3Ddataviewer, _wxvtk3Dbaseview, vtkMPR3DDataViewer::GetImageActor(), wxVtk3DBaseView::GetRenderer(), vtkMPR3DDataViewer::GetVisiblePosition(), and vtkMPR3DDataViewer::SetVisiblePosition().

Referenced by wxVtkMPR3DViewCntrlPanel::OnVisibleAxisX(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisY(), and wxVtkMPR3DViewCntrlPanel::OnVisibleAxisZ().

                                                                  {
        if (visible!=_vtkmpr3Ddataviewer->GetVisiblePosition(idPosition)){
                if (visible==false){
                        _wxvtk3Dbaseview->GetRenderer()->RemoveActor( _vtkmpr3Ddataviewer->GetImageActor(idPosition)  );
                } else {
                        _wxvtk3Dbaseview->GetRenderer()->AddActor( _vtkmpr3Ddataviewer->GetImageActor(idPosition)  );
                }
                _vtkmpr3Ddataviewer->SetVisiblePosition(idPosition,visible);
        }
}

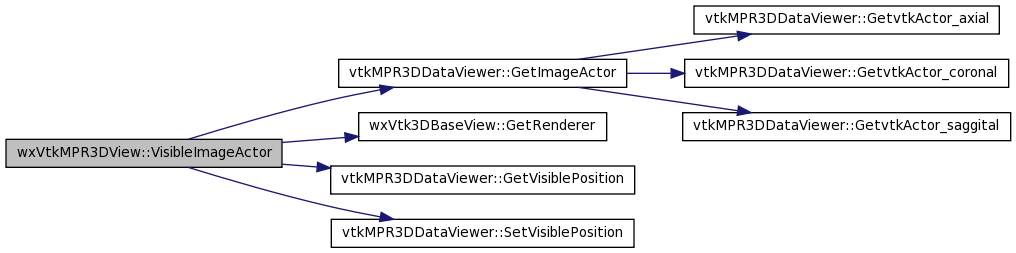

Here is the call graph for this function:

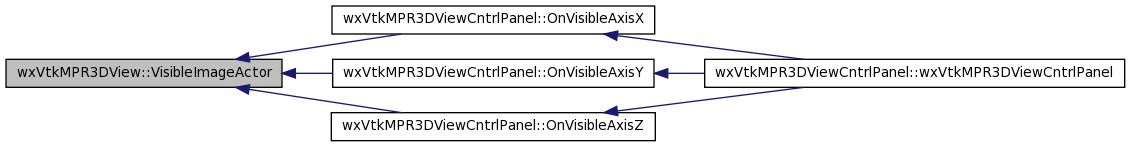

Here is the caller graph for this function:

void wxVtkMPR3DView::VisiblePlaneWidget

(

bool

visible

)

Definition at line 289 of file wxVtkMPR3DView.cxx.

References _contourPlaneActor, and _planeWidget.

Referenced by wxVtkMPR3DViewCntrlPanel::OnVisiblePlane().

{
        if (visible==true)
        {
                _planeWidget->On();
                _contourPlaneActor->VisibilityOn();

        } else {
                _planeWidget->Off();
                _contourPlaneActor->VisibilityOff();
        }
}

Here is the caller graph for this function:

void wxVtkMPR3DView::VisiblePointWidget

(

bool

visible

)

Definition at line 278 of file wxVtkMPR3DView.cxx.

References _pointWidget.

Referenced by wxVtkMPR3DViewCntrlPanel::OnVisibleAxisXYZ().

{
        if (visible==true)
        {
                _pointWidget->On();
        } else {
                _pointWidget->Off();
        }
}

Here is the caller graph for this function:

---

Member Data Documentation

vtkPolyDataMapper* wxVtkMPR3DView::_contourMapper [private]

Definition at line 59 of file wxVtkMPR3DView.h.

Referenced by Configure(), wxVtkMPR3DView(), and ~wxVtkMPR3DView().

vtkActor* wxVtkMPR3DView::_contourPlaneActor [private]

Definition at line 52 of file wxVtkMPR3DView.h.

Referenced by Configure(), VisiblePlaneWidget(), and ~wxVtkMPR3DView().

vtkPlaneWidget* wxVtkMPR3DView::_planeWidget [private]

Definition at line 53 of file wxVtkMPR3DView.h.

Referenced by Configure(), InitOrientationPointWidget(), RefreshView(), TestLoic1(), TestLoic2(), VisiblePlaneWidget(), wxVtkMPR3DView(), and ~wxVtkMPR3DView().

vtkPointWidget* wxVtkMPR3DView::_pointWidget [private]

Definition at line 56 of file wxVtkMPR3DView.h.

Referenced by Configure(), RefreshView(), VisiblePointWidget(), wxVtkMPR3DView(), and ~wxVtkMPR3DView().

vtkProbeFilter* wxVtkMPR3DView::_probe [private]

Definition at line 58 of file wxVtkMPR3DView.h.

Referenced by Configure(), wxVtkMPR3DView(), and ~wxVtkMPR3DView().

vtkMPR3DDataViewer* wxVtkMPR3DView::_vtkmpr3Ddataviewer [private]

Definition at line 47 of file wxVtkMPR3DView.h.

Referenced by Configure(), GetVtkMPR3DDataViewer(), Refresh(), SetVtkMPR3DDataViewer(), VisibleImageActor(), and wxVtkMPR3DView().

vtkPolyData* wxVtkMPR3DView::_vtkplane [private]

Definition at line 51 of file wxVtkMPR3DView.h.

Referenced by Configure(), RefreshView(), wxVtkMPR3DView(), and ~wxVtkMPR3DView().

wxVtk3DBaseView* wxVtkMPR3DView::_wxvtk3Dbaseview [private]

Definition at line 46 of file wxVtkMPR3DView.h.

Referenced by Configure(), GetWxvtk3Dbaseview(), RemoveActor(), ResetCamera(), VisibleImageActor(), and wxVtkMPR3DView().

wxVtkMPR3DViewCntrlPanel* wxVtkMPR3DView::_wxvtkmpr3DviewCntrlPanel [private]

Definition at line 48 of file wxVtkMPR3DView.h.

Referenced by Configure(), CreateControlPanel(), Refresh(), and wxVtkMPR3DView().

---

The documentation for this class was generated from the following files:

• /Users/davila/Creatis/creaMaracasVisu/lib/maracasVisuLib/src/interface/wxWindows/widgets/wxVtkMPR3DView.h
• /Users/davila/Creatis/creaMaracasVisu/lib/maracasVisuLib/src/interface/wxWindows/widgets/wxVtkMPR3DView.cxx
