Node of an attributed Tree structure. More...

#include <creaImageIOTreeNode.h>

Inheritance diagram for creaImageIO::tree::Node:

Collaboration diagram for creaImageIO::tree::Node:

Public Types
typedef std::map< std::string, std::string >	AttributeMapType

typedef std::vector< Node * >	ChildrenListType
	The type of children container. More...

Public Member Functions
	Node (Node *parent)
	Ctor with parent. More...

	Node (Node *parent, const AttributeMapType &)
	Ctor with parent and attributes map. More...

virtual	~Node ()
	Virtual destructor. More...

void	InitializeAttributeMap ()
	Initializes the attribute map i.e. creates the entries. More...

const LevelDescriptor &	GetLevelDescriptor () const
	Returns the level descriptor of the node. More...

virtual Tree *	GetTree ()
	Returns the tree to which the node belongs. More...

virtual const Tree *	GetTree () const
	Returns the tree to which the node belongs. More...

virtual int	GetLevel () const
	Returns the level of the node in the tree. More...

Node *	GetParent () const
	Returns the parent of the node. More...

unsigned int	GetNumberOfChildren () const

bool	GetChildrenLoaded () const
	Returns true iff the node's children are loaded. More...

void	SetChildrenLoaded (bool l)
	Sets the node's children. More...

ChildrenListType &	GetChildrenList ()
	Returns the list of children. More...

const ChildrenListType &	GetChildrenList () const
	Returns the list of children (const) More...

int	RemoveChildrenFromList (Node *)
	Remove the given children from the children list. More...

AttributeMapType &	GetAttributeMap ()
	Get the Attributes Map. More...

const AttributeMapType &	GetAttributeMap () const
	Get the Attributes Map. More...

const std::string &	GetAttribute (const std::string &k) const
	Get the Attribute for a specific key. More...

const std::string &	GetCleanAttribute (const std::string &k) const
	Get the Attribute for a specific key without OS dependance (not implemented) More...

void	SetAttribute (const std::string &k, const std::string &v)
	Set an Attribute for a specific key. More...

void	UnsafeSetAttribute (const std::string &k, const std::string &v)
	Set an Attribute for a specific key(unsafe mode) More...

const AttributeDescriptor &	GetAttributeDescriptor (const std::string &k) const
	Get Descriptor for an Attribute. More...

bool	Matches (const AttributeMapType &) const
	Returns true if the KEY attributes of the node match those of the map provided. More...

template<class T >
T	GetData () const
	Returns the node data casted into the type T. More...

void	SetData (boost::shared_ptr< NodeData > d)
	Sets the node data. Deletes existing data if any. More...

void	SortChildren (const LexicographicalComparator &)
	Sorts the children of the node. More...

virtual void	Print () const
	Print the node. More...

std::string	GetLabel () const
	Get the Label of the node. More...

Private Attributes
Node *	mParent
	The parent of the node. More...

ChildrenListType	mChildren
	The list of children. More...

AttributeMapType	mAttributeMap
	The map of attributes. More...

boost::shared_ptr< NodeData >	mData
	User data. More...

bool	mChildrenLoaded
	Are the children loaded ? More...

Detailed Description

Node of an attributed Tree structure.

Definition at line 64 of file creaImageIOTreeNode.h.

Member Typedef Documentation

typedef std::map<std::string,std::string> creaImageIO::tree::Node::AttributeMapType

Definition at line 67 of file creaImageIOTreeNode.h.

typedef std::vector<Node*> creaImageIO::tree::Node::ChildrenListType

The type of children container.

Definition at line 108 of file creaImageIOTreeNode.h.

Constructor & Destructor Documentation

creaImageIO::tree::Node::Node ( Node * parent )

Ctor with parent.

Definition at line 41 of file creaImageIOTreeNode.cpp.

References GetChildrenList(), GetLevel(), GimmickDebugMessage, InitializeAttributeMap(), and mData.

       : mParent(parent),//mData(0),
         mChildrenLoaded(false)
     {
         mData.reset();
       if (parent)
         {
           GimmickDebugMessage(6,"Default Node constructor (level "<<GetLevel()<<")"
                          << std::endl);
           // Insert into parent's children list
           InitializeAttributeMap();
          parent->GetChildrenList().push_back(this);
         }
       else
         {
           GimmickDebugMessage(6,"Default Node constructor without parent"
                          << std::endl);
         }
     }

Here is the call graph for this function:

creaImageIO::tree::Node::Node	(	Node *	parent,
		const AttributeMapType &	attr
	)

Ctor with parent and attributes map.

Definition at line 64 of file creaImageIOTreeNode.cpp.

References creaImageIO::tree::Tree::GetAttributeDescriptorList(), GetChildrenList(), GetLevel(), GetTree(), GimmickDebugMessage, mData, and UnsafeSetAttribute().

      : mParent(parent),//mData(0),
         mChildrenLoaded(false)
     {
         mData.reset();
       GimmickDebugMessage(6,"Node constructor (level "<<GetLevel()<<")"
                      << std::endl);

      if (parent)
         {
           // Insert into parent's children list
           parent->GetChildrenList().push_back(this);
           // Initialize attributes
           LevelDescriptor::AttributeDescriptorListType::const_iterator a;
           for (a = GetTree()->GetAttributeDescriptorList(GetLevel()).begin();
                a!= GetTree()->GetAttributeDescriptorList(GetLevel()).end();
                ++a)
             {
               std::string v;
               AttributeMapType::const_iterator i = attr.find(a->GetKey());
               if ( i != attr.end() )
                 {
                   v = i->second;
                 }
               GimmickDebugMessage(6,"Setting attribute '"<<a->GetName()<<"' = '"
                              <<v<<"'"<<std::endl);
               UnsafeSetAttribute( a->GetKey(), v );
             }
         }

     }

Here is the call graph for this function:

creaImageIO::tree::Node::~Node ( )

virtual

Virtual destructor.

Definition at line 99 of file creaImageIOTreeNode.cpp.

References GetChildrenList(), GimmickDebugMessage, and mData.

     {
       GimmickDebugMessage(6,"Node destructor"
                      << std::endl);
       ChildrenListType::iterator i;
       for (i=GetChildrenList().begin(); i!=GetChildrenList().end(); i++)
         {
           delete *i;
         }
         mData.reset();
     }

Here is the call graph for this function:

Member Function Documentation

const std::string & creaImageIO::tree::Node::GetAttribute ( const std::string & k ) const

Get the Attribute for a specific key.

Definition at line 172 of file creaImageIOTreeNode.cpp.

References mAttributeMap.

Referenced by creaImageIO::WxGimmickView::CreateTreeView(), creaImageIO::SQLiteTreeHandler::DBGraftToParent(), creaImageIO::SQLiteTreeHandler::DBLoadChildren(), creaImageIO::SQLiteTreeHandler::DBRecursiveRemoveNode(), creaImageIO::SQLiteTreeHandler::DBSetAttribute(), creaImageIO::TreeHandlerImageAdder::FindNode(), creaImageIO::TreeHandlerImageAdder::FindNodePartial(), creaImageIO::SQLiteTreeHandler::GetNumberOfChildren(), creaImageIO::WxEditFieldsPanel::OnComboChange(), creaImageIO::WxTreeView::OnDumpTags(), creaImageIO::WxTreeView::OnPopupFilter(), creaImageIO::TreeHandlerImageAdder::remove(), creaImageIO::TimestampDatabaseHandler::RemoveNode(), creaImageIO::GimmickView::RequestReading(), and creaImageIO::WxEditFieldsPanel::WxEditFieldsPanel().

     {
       //    std::cout << "this = "<<(void*)this<<std::endl;
       //    std::cout << "mFieldValueMap="<<(void*)(&mFieldValueMap)<<std::endl;
       AttributeMapType::const_iterator i = mAttributeMap.find(k);
       if (i == mAttributeMap.end())
         {
           static std::string def("");
           return def;
           //    CREAIMAGEIO_ERROR("DicomNode::GetFieldValue : no field with key '"<<k<<"'");
         }
       return i->second;
   }

Here is the caller graph for this function:

const AttributeDescriptor & creaImageIO::tree::Node::GetAttributeDescriptor ( const std::string & k ) const

Get Descriptor for an Attribute.

Returns the attribute descriptor of the passed parameter.

Definition at line 139 of file creaImageIOTreeNode.cpp.

References creaImageIO::tree::Tree::GetAttributeDescriptorList(), GetLevel(), and GetTree().

Referenced by creaImageIO::WxTreeView::SortLevel().

         {
                 LevelDescriptor::AttributeDescriptorListType::const_iterator a;
       for (a = GetTree()->GetAttributeDescriptorList(GetLevel()).begin();
            a!= GetTree()->GetAttributeDescriptorList(GetLevel()).end();
            ++a)
                 {

                         if(a->GetKey()==k)
                         {
                                 return *a;
                         }

                 }
                 return *a;
         }

Here is the call graph for this function:

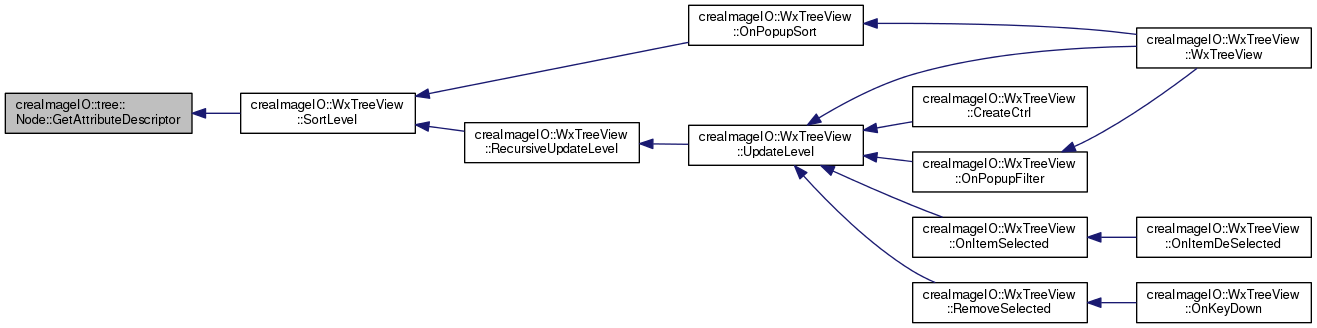

Here is the caller graph for this function:

AttributeMapType& creaImageIO::tree::Node::GetAttributeMap ( )

inline

Get the Attributes Map.

Definition at line 119 of file creaImageIOTreeNode.h.

References mAttributeMap.

Referenced by creaImageIO::SQLiteTreeHandler::SQLAppendAttributesValues().

119 { return mAttributeMap; }

Here is the caller graph for this function:

const AttributeMapType& creaImageIO::tree::Node::GetAttributeMap ( ) const

inline

Get the Attributes Map.

Definition at line 122 of file creaImageIOTreeNode.h.

References mAttributeMap.

122 { return mAttributeMap; }

ChildrenListType& creaImageIO::tree::Node::GetChildrenList ( )

inline

Returns the list of children.

Definition at line 110 of file creaImageIOTreeNode.h.

References mChildren.

Referenced by creaImageIO::SQLiteTreeHandler::DBGetParent(), creaImageIO::SQLiteTreeHandler::DBLoadChildren(), creaImageIO::SQLiteTreeHandler::DBRecursiveRemoveNode(), creaImageIO::TreeHandlerImageAdder::DeleteDriveFromMainDB(), creaImageIO::TreeHandlerImageAdder::FindNode(), creaImageIO::TreeHandlerImageAdder::FindNodePartial(), Node(), creaImageIO::tree::Tree::Print(), Print(), RemoveChildrenFromList(), creaImageIO::TreeHandlerImageAdder::RemoveFile(), creaImageIO::TimestampDatabaseHandler::RemoveNode(), creaImageIO::TreeHandlerImageAdder::Synchronize(), and ~Node().

110 { return mChildren; }

Here is the caller graph for this function:

const ChildrenListType& creaImageIO::tree::Node::GetChildrenList ( ) const

inline

Returns the list of children (const)

Definition at line 112 of file creaImageIOTreeNode.h.

References mChildren.

112 { return mChildren; }

bool creaImageIO::tree::Node::GetChildrenLoaded ( ) const

inline

Returns true iff the node's children are loaded.

Definition at line 102 of file creaImageIOTreeNode.h.

References mChildrenLoaded.

Referenced by creaImageIO::SQLiteTreeHandler::DBLoadChildren().

102 { return mChildrenLoaded; }

Here is the caller graph for this function:

const std::string& creaImageIO::tree::Node::GetCleanAttribute ( const std::string & k ) const

Get the Attribute for a specific key without OS dependance (not implemented)

template<class T >

T creaImageIO::tree::Node::GetData ( ) const

inline

Returns the node data casted into the type T.

Definition at line 145 of file creaImageIOTreeNode.h.

References mData.

146 { if (mData!=0) return dynamic_cast<T>(mData); return 0; }

std::string creaImageIO::tree::Node::GetLabel ( ) const

Get the Label of the node.

Definition at line 239 of file creaImageIOTreeNode.cpp.

References creaImageIO::tree::LevelDescriptor::GetLabelList(), GetLevelDescriptor(), GimmickDebugMessage, GimmickError, and mAttributeMap.

Referenced by creaImageIO::WxGimmickView::CreateEditFieldsDialog(), creaImageIO::SQLiteTreeHandler::DBInsert(), creaImageIO::SQLiteTreeHandler::DBLoadChildren(), creaImageIO::SQLiteTreeHandler::DBSetAttribute(), Matches(), creaImageIO::tree::Tree::Print(), and Print().

     {
       std::string l;
       const std::vector<std::string>& label
         = GetLevelDescriptor().GetLabelList();

       std::vector<std::string>::const_iterator i;
       for (i = label.begin(); i != label.end(); )
         {
           GimmickDebugMessage(9,"LABEL '"<<*i<<"'"<<std::endl);
           AttributeMapType::const_iterator j = mAttributeMap.find(*i);
           if (j != mAttributeMap.end())
             {
               l += j->second;
               ++i;
               if (i != label.end()) l += "|";
             }
           else
             {
               GimmickError("Node::GetLabel() : LABEL attribute '"
                            <<*i
                            <<"' is not in node attribute map (should be!)" );
             }
         }
       if (l.size()==0) l="?";
       return l;
     }

Here is the call graph for this function:

Here is the caller graph for this function:

virtual int creaImageIO::tree::Node::GetLevel ( ) const

inlinevirtual

Returns the level of the node in the tree.

Reimplemented in creaImageIO::tree::Tree.

Definition at line 89 of file creaImageIOTreeNode.h.

References GetLevel(), and mParent.

89 { return mParent->GetLevel()+1; }

Here is the call graph for this function:

Here is the caller graph for this function:

const LevelDescriptor & creaImageIO::tree::Node::GetLevelDescriptor ( ) const

Returns the level descriptor of the node.

Definition at line 130 of file creaImageIOTreeNode.cpp.

References GetLevel(), creaImageIO::tree::Tree::GetLevelDescriptor(), and GetTree().

Referenced by GetLabel(), and Matches().

     {
       return GetTree()->GetLevelDescriptor(GetLevel());
     }

Here is the call graph for this function:

Here is the caller graph for this function:

unsigned int creaImageIO::tree::Node::GetNumberOfChildren ( ) const

inline

Returns the number of children of the node. Warning : if the children are not loaded then might return 0 even if the node has children ! see TreeHandler::GetNumberOfChildren

Definition at line 99 of file creaImageIOTreeNode.h.

References mChildren.

Referenced by creaImageIO::SQLiteTreeHandler::DBRecursiveRemoveNode(), creaImageIO::TreeHandlerImageAdder::RemoveFile(), and creaImageIO::TimestampDatabaseHandler::RemoveNode().

99 { return (int)mChildren.size(); }

Here is the caller graph for this function:

Node* creaImageIO::tree::Node::GetParent ( ) const

inline

Returns the parent of the node.

Definition at line 93 of file creaImageIOTreeNode.h.

References mParent.

Referenced by creaImageIO::SQLiteTreeHandler::Remove().

93 { return mParent; }

Here is the caller graph for this function:

virtual Tree* creaImageIO::tree::Node::GetTree ( )

inlinevirtual

Returns the tree to which the node belongs.

Reimplemented in creaImageIO::tree::Tree.

Definition at line 85 of file creaImageIOTreeNode.h.

References GetTree(), and mParent.

Referenced by creaImageIO::SQLiteTreeHandler::DBLoadChildren(), GetAttributeDescriptor(), GetLevelDescriptor(), GetTree(), InitializeAttributeMap(), and Node().

85 { return mParent->GetTree(); }

Here is the call graph for this function:

Here is the caller graph for this function:

virtual const Tree* creaImageIO::tree::Node::GetTree ( ) const

inlinevirtual

Returns the tree to which the node belongs.

Reimplemented in creaImageIO::tree::Tree.

Definition at line 87 of file creaImageIOTreeNode.h.

References GetTree(), and mParent.

87 { return mParent->GetTree(); }

Here is the call graph for this function:

void creaImageIO::tree::Node::InitializeAttributeMap ( )

Initializes the attribute map i.e. creates the entries.

Definition at line 115 of file creaImageIOTreeNode.cpp.

References creaImageIO::tree::Tree::GetAttributeDescriptorList(), GetLevel(), GetTree(), and UnsafeSetAttribute().

Referenced by creaImageIO::SQLiteTreeHandler::DBCreate(), and Node().

     {
       // Initialize attributes
       LevelDescriptor::AttributeDescriptorListType::const_iterator a;
       for (a = GetTree()->GetAttributeDescriptorList(GetLevel()).begin();
            a!= GetTree()->GetAttributeDescriptorList(GetLevel()).end();
            ++a)
         {
           UnsafeSetAttribute( a->GetKey(), "" );
         }
     }

Here is the call graph for this function:

Here is the caller graph for this function:

bool creaImageIO::tree::Node::Matches ( const AttributeMapType & m ) const

Returns true if the KEY attributes of the node match those of the map provided.

Definition at line 204 of file creaImageIOTreeNode.cpp.

References creaImageIO::tree::LevelDescriptor::GetIdentifierList(), GetLabel(), GetLevelDescriptor(), GimmickDebugMessage, and mAttributeMap.

     {
       GimmickDebugMessage(2,"'"<<GetLabel()<<"' matching..."<<std::endl);
       const std::vector<std::string>& id
         = GetLevelDescriptor().GetIdentifierList();
       std::vector<std::string>::const_iterator i;
       for (i = id.begin(); i != id.end(); ++i)
         {
           if (mAttributeMap.find(*i)->second != m.find(*i)->second )
             {
               GimmickDebugMessage(2,"IDENTIFIER '"<<*i<<"' values do not match"<<std::endl);
               return false;
             }
           GimmickDebugMessage(2,"IDENTIFIER '"<<*i<<"' values match"<<std::endl);
         }
       return true;
     }

Here is the call graph for this function:

void creaImageIO::tree::Node::Print ( ) const

virtual

Print the node.

Reimplemented in creaImageIO::tree::Tree.

Definition at line 224 of file creaImageIOTreeNode.cpp.

References GetChildrenList(), GetLabel(), GetLevel(), and GimmickMessage.

     {
       std::string mess;
       for (int i = 0; i<GetLevel(); ++i) mess += "  ";
       mess += "|_ " + GetLabel();
       GimmickMessage(1,mess<<std::endl);
       ChildrenListType::const_iterator j;
       for (j=GetChildrenList().begin(); j!=GetChildrenList().end(); j++)
         {
           (*j)->Print();
         }
     }

Here is the call graph for this function:

int creaImageIO::tree::Node::RemoveChildrenFromList ( Node * node )

Remove the given children from the children list.

Definition at line 158 of file creaImageIOTreeNode.cpp.

References GetChildrenList().

Referenced by creaImageIO::SQLiteTreeHandler::Remove().

     {
       ChildrenListType::iterator i = find(GetChildrenList().begin(),
                                           GetChildrenList().end(),
                                           node);
       if (i != GetChildrenList().end())
         {
           GetChildrenList().erase(i);
         }
         return (int)GetChildrenList().size();
     }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::tree::Node::SetAttribute	(	const std::string &	k,
		const std::string &	v
	)

Set an Attribute for a specific key.

Definition at line 188 of file creaImageIOTreeNode.cpp.

References mAttributeMap.

Referenced by creaImageIO::SQLiteTreeHandler::DBGraftToParent(), creaImageIO::SQLiteTreeHandler::DBInsert(), creaImageIO::SQLiteTreeHandler::DBSetAttribute(), and creaImageIO::TreeHandlerImageAdder::EditField().

   {
     AttributeMapType::iterator i = mAttributeMap.find(k);
     if (i==mAttributeMap.end())
       {
         std::cout<<"[Gimmick!] Node::SetAttribute : no attribute with key '"
                  <<k<<"'"<<std::endl;
         creaError( "[Gimmick!] Node::SetAttribute : no attribute with key '"
                    <<k<<"'");
       }
     i->second = v;
   }

Here is the caller graph for this function:

void creaImageIO::tree::Node::SetChildrenLoaded ( bool l )

inline

Sets the node's children.

Definition at line 105 of file creaImageIOTreeNode.h.

References mChildrenLoaded.

Referenced by creaImageIO::SQLiteTreeHandler::DBCreate(), creaImageIO::SQLiteTreeHandler::DBGraftToParent(), and creaImageIO::SQLiteTreeHandler::DBLoadChildren().

105 { mChildrenLoaded = l; }

Here is the caller graph for this function:

void creaImageIO::tree::Node::SetData ( boost::shared_ptr< NodeData > d )

inline

Sets the node data. Deletes existing data if any.

Definition at line 149 of file creaImageIOTreeNode.h.

References mData.

149 {mData.reset(); mData = d; }//{ if (mData) delete mData; mData = d; }

void creaImageIO::tree::Node::SortChildren ( const LexicographicalComparator & )

Sorts the children of the node.

void creaImageIO::tree::Node::UnsafeSetAttribute	(	const std::string &	k,
		const std::string &	v
	)

inline

Set an Attribute for a specific key(unsafe mode)

Definition at line 135 of file creaImageIOTreeNode.h.

References mAttributeMap.

Referenced by creaImageIO::SQLiteTreeHandler::DBImportTreeDescription(), creaImageIO::SQLiteTreeHandler::DBLoadChildren(), InitializeAttributeMap(), and Node().

136 { mAttributeMap[k] = v; }

Here is the caller graph for this function:

Member Data Documentation

AttributeMapType creaImageIO::tree::Node::mAttributeMap

private

The map of attributes.

Definition at line 167 of file creaImageIOTreeNode.h.

Referenced by GetAttribute(), GetAttributeMap(), GetLabel(), Matches(), SetAttribute(), and UnsafeSetAttribute().

ChildrenListType creaImageIO::tree::Node::mChildren

private

The list of children.

Definition at line 165 of file creaImageIOTreeNode.h.

Referenced by GetChildrenList(), and GetNumberOfChildren().

bool creaImageIO::tree::Node::mChildrenLoaded

private

Are the children loaded ?

Definition at line 171 of file creaImageIOTreeNode.h.

Referenced by GetChildrenLoaded(), and SetChildrenLoaded().

boost::shared_ptr<NodeData> creaImageIO::tree::Node::mData

private

User data.

Definition at line 169 of file creaImageIOTreeNode.h.

Referenced by GetData(), Node(), SetData(), and ~Node().

Node* creaImageIO::tree::Node::mParent

private

The parent of the node.

Definition at line 163 of file creaImageIOTreeNode.h.

Referenced by GetLevel(), GetParent(), and GetTree().

The documentation for this class was generated from the following files:

/home/davila/Creatis/All/creatools_source/creaImageIO/src/creaImageIOTreeNode.h
/home/davila/Creatis/All/creatools_source/creaImageIO/src/creaImageIOTreeNode.cpp

Public Types

Public Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
