gdcm::DataEntry

gdcm::DataEntry Class Reference

Any Dicom Document (File or DicomDir, or ...) contains a set of DocEntry - Dicom entries - (when successfuly parsed against a given Dicom dictionary) DataEntry is an elementary DocEntry (as opposed to SeqEntry). Depending on the type of its content,. More...

#include <gdcmDataEntry.h>

Inheritance diagram for gdcm::DataEntry:

Inheritance graph
[legend]

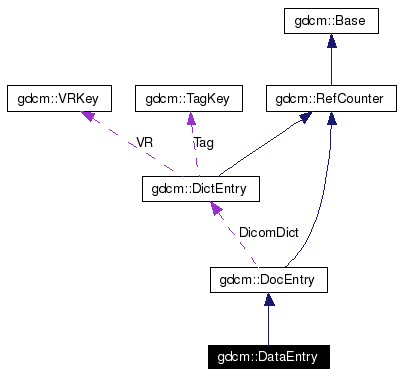

Collaboration diagram for gdcm::DataEntry:

Collaboration graph
[legend]
List of all members.

Public Types

enum  TValueState { STATE_LOADED = 0x00, STATE_NOTLOADED = 0x01, STATE_UNFOUND = 0x02, STATE_UNREAD = 0x03 }
 values for current state of a DataEntry (internal use only) More...
enum  TValueFlag { FLAG_NONE = 0x00, FLAG_PIXELDATA = 0x01 }
 values for current pixel status of a DataEntry (internal use only) More...

Public Member Functions

void Print (std::ostream &os=std::cout, std::string const &indent="")
 Prints a DataEntry (Dicom entry).
virtual void WriteContent (std::ofstream *fp, FileType filetype)
 Writes the 'value' area of a DataEntry.
uint32_t ComputeFullLength ()
 Compute the full length of the elementary DataEntry (not only value length) depending on the VR.
uint8_t * GetBinArea ()
 Returns the area value of the current Dicom Entry when it's not string-translatable (e.g : LUT table, overlay, icon).
void SetBinArea (uint8_t *area, bool self=true)
 Sets the value (non string) of the current DataEntry.
void CopyBinArea (uint8_t *area, uint32_t length)
 Inserts the value (non string) into the current DataEntry.
void SetValue (const uint32_t &id, const double &val)
 Inserts the elementary (non string) value into the current DataEntry.
double GetValue (const uint32_t &id) const
 returns, as a double (?!?) one of the values (when entry is multivaluated), identified by its index. Returns 0.0 if index is wrong FIXME : warn the user there was a problem !
uint32_t GetValueCount (void) const
 returns the number of elementary values
bool IsValueCountValid () const
 Checks if the multiplicity of the value follows Dictionary VM.
void SetString (std::string const &value)
 Sets the 'value' of a DataEntry, passed as a std::string.
std::string const & GetString () const
 returns as a string (when possible) the value of the DataEntry
void SetSelfArea (bool area)
 Sets SelfArea.
bool IsSelfArea ()
 True if Entry owns its BinArea.
void SetState (const TValueState &state)
 Sets the state (Loaded, NotLoaded, UnFound, ...) of the DataEntry.
const TValueState & GetState () const
 Returns the state (Loaded, NotLoaded, ...) of the DataEntry.
bool IsNotLoaded ()
 true when value Entry not loaded
bool IsUnfound ()
 true if Entry not found
bool IsUnread ()
 true if Entry not read
bool IsGoodValue ()
 true if Entry value properly loaded
void SetFlag (const TValueFlag &flag)
 sets the 'pixel data flag'
const TValueFlag & GetFlag () const
 returns the 'pixel data flag'
bool IsPixelData ()
 true id Entry is a Pixel Data entry
virtual void Copy (DocEntry *doc)
 Copies all the attributes from an other DocEntry.
DictEntry * GetDictEntry ()
 Gets the DicEntry of the current Dicom entry.
const uint16_t & GetGroup () const
 Returns the Dicom Group number of the current Dicom entry.
const uint16_t & GetElement () const
 Returns the Dicom Element number of the current Dicom entry.
TagKey GetKey () const
 Returns the 'key' of the current Dicom entry.
std::string const & GetName () const
 Returns the 'Name' '(e.g. "Patient's Name") found in the Dicom Dictionnary of the current Dicom Header Entry.
VRKey const & GetVR () const
 Returns the 'Value Representation' (e.g. "PN" : Person Name, "SL" : Signed Long), found in the Dicom header or in the Dicom Dictionnary, of the current Dicom entry.
std::string const & GetVM () const
 Returns the 'Value Multiplicity' (e.g. "1", 6", "1-n", "3-n"), found in the Dicom entry or in the Dicom Dictionnary of the current Dicom entry.
void SetVM (TagName const &v)
 Sets the 'Value Multiplicity' of the current Dicom entry.
const size_t & GetOffset () const
 Returns offset (since the beginning of the file, including the File Preamble, if any) of the value of the current Dicom entry.
void SetReadLength (uint32_t l)
 Sets only 'Read Length' (*not* 'Usable Length') of the current Dicom entry.
const uint32_t & GetReadLength () const
 Returns the 'read length' of the current Dicom entry.
virtual void SetLength (uint32_t l)
 Sets both 'Read Length' and 'Usable Length' of the current Dicom entry.
const uint32_t & GetLength () const
 Returns the actual value length of the current Dicom entry.
uint32_t GetFullLength ()
 Gets the full length of the elementary DocEntry (not only value length) depending on the VR.
void SetOffset (size_t of)
 Sets the offset of the Dicom entry.
void SetImplicitVR ()
 Sets to TRUE the ImplicitVr flag of the current Dicom entry.
bool IsImplicitVR () const
 Tells us if the current Dicom entry was checked as ImplicitVr.
bool IsVRUnknown () const
 Tells us if the VR of the current Dicom entry is Unknown.
bool IsVMUnknown () const
 Tells us if the VM of the current Dicom entry is Unknown.
bool IsItemDelimitor ()
 tells us if entry is the last one of a 'no length' SequenceItem (fffe,e00d)
bool IsItemStarter ()
 tells us if entry is the first one of an Item (fffe,e000)
bool IsSequenceDelimitor ()
 tells us if entry is the last one of a 'no length' Sequence (fffe,e0dd)
void Delete ()
 Delete the object.
void Register ()
 Register the object.
void Unregister ()
 Unregister the object.
const unsigned long & GetRefCount () const
 Get the reference counting.
void SetPrintLevel (int level)
 Sets the print level for the Dicom Header Elements.
int GetPrintLevel ()
 Gets the print level for the Dicom Entries.

Static Public Member Functions

static DataEntry * New (DictEntry *e)
 Contructs a DataEntry with a RefCounter from DictEntry.
static DataEntry * New (DocEntry *d)
 Contructs a DataEntry with a RefCounter from DocEntry.
static const uint32_t & GetMaxSizePrintEntry ()
 returns the size threshold above which an element value will NOT be *printed* in order no to polute the screen output
static void SetMaxSizePrintEntry (const uint32_t &size)
 Header Elements too long will not be printed.

Protected Member Functions

 DataEntry (DictEntry *e)
 Constructor for a given DictEntry.
 DataEntry (DocEntry *d)
 Constructor for a given DocEntry.
 ~DataEntry ()
 Canonical destructor.
void NewBinArea (void)
 Creates a DataEntry owned BinArea (remove previous one if any).
void DeleteBinArea (void)
 Removes the BinArea, if owned by the DataEntry.

Protected Attributes

uint8_t * BinArea
 memory area to hold 'non std::string' representable values (ie : Lookup Tables, overlays, icons)
bool SelfArea
 Whether DataEntry has its own BinArea or not.
std::string StrArea
 std::string representable value of the Entry. Parts of a multivaluated data are separated by back-slash
DictEntry * DicomDict
 pointer to the underlying Dicom dictionary element
uint32_t Length
 Correspond to the real length of the data This length might always be even.
uint32_t ReadLength
 Length to read in the file to obtain data.
bool ImplicitVR
 Even when reading explicit vr files, some elements happen to be implicit. Flag them here since we can't use the entry->vr without breaking the underlying dictionary.
size_t Offset
 Offset from the beginning of file for direct user access.
int PrintLevel
 Amount of printed details for each Dicom Entries : 0 : stands for the least detail level.

Private Member Functions

 gdcmTypeMacro (DataEntry)

Private Attributes

TValueFlag Flag
 0 for straight entries, FLAG_PIXELDATA for Pixel Data entries
TValueState State
 Entry status:STATE_NOTLOADED,STATE_UNFOUND,STATE_UNREAD,STATE_LOADED.

Static Private Attributes

static uint32_t MaxSizePrintEntry = MAX_SIZE_PRINT_ELEMENT_VALUE
 Size threshold above which an element is printed.

Detailed Description

Any Dicom Document (File or DicomDir, or ...) contains a set of DocEntry - Dicom entries - (when successfuly parsed against a given Dicom dictionary) DataEntry is an elementary DocEntry (as opposed to SeqEntry). Depending on the type of its content,.

Definition at line 36 of file gdcmDataEntry.h.

Member Enumeration Documentation

enum gdcm::DataEntry::TValueFlag


values for current pixel status of a DataEntry (internal use only)

Enumerator:
FLAG_NONE
FLAG_PIXELDATA

Definition at line 86 of file gdcmDataEntry.h.

00087    {
00088       FLAG_NONE       = 0x00,
00089       FLAG_PIXELDATA  = 0x01
00090    };

enum gdcm::DataEntry::TValueState


values for current state of a DataEntry (internal use only)

Enumerator:
STATE_LOADED
STATE_NOTLOADED
STATE_UNFOUND
STATE_UNREAD

Definition at line 77 of file gdcmDataEntry.h.

00078    {
00079       STATE_LOADED    = 0x00,
00080       STATE_NOTLOADED = 0x01,
00081       STATE_UNFOUND   = 0x02,
00082       STATE_UNREAD    = 0x03
00083    };

Constructor & Destructor Documentation

gdcm::DataEntry::DataEntry (  DictEntry *  e  )  [protected]


Constructor for a given DictEntry.

Parameters:
e Pointer to existing dictionary entry

Definition at line 40 of file gdcmDataEntry.cxx.

References BinArea, Flag, FLAG_NONE, SelfArea, State, and STATE_LOADED.

00041             : DocEntry(e)
00042 {
00043    State = STATE_LOADED;
00044    Flag = FLAG_NONE;
00045
00046    BinArea = 0;
00047    SelfArea = true;
00048 }

gdcm::DataEntry::DataEntry (  DocEntry *  e  )  [protected]


Constructor for a given DocEntry.

Parameters:
e Pointer to existing Doc entry

Definition at line 54 of file gdcmDataEntry.cxx.

References BinArea, Copy(), Flag, FLAG_NONE, and SelfArea.

00055             : DocEntry(e->GetDictEntry())
00056 {
00057    Flag = FLAG_NONE;
00058    BinArea = 0;
00059    SelfArea = true;
00060
00061    Copy(e);
00062 }

gdcm::DataEntry::~DataEntry (   )  [protected]


Canonical destructor.

Definition at line 67 of file gdcmDataEntry.cxx.

References DeleteBinArea().

00068 {
00069    DeleteBinArea();
00070 }

Member Function Documentation

uint32_t gdcm::DataEntry::ComputeFullLength (   )  [virtual]


Compute the full length of the elementary DataEntry (not only value length) depending on the VR.

Implements gdcm::DocEntry.

Definition at line 585 of file gdcmDataEntry.cxx.

References gdcm::DocEntry::GetFullLength().

00586 {
00587    return GetFullLength();
00588 }

void gdcm::DataEntry::Copy (  DocEntry *  doc  )  [virtual]


Copies all the attributes from an other DocEntry.

Parameters:
doc entry to copy from
Remarks:
The content BinArea is copied too

Reimplemented from gdcm::DocEntry.

Definition at line 471 of file gdcmDataEntry.cxx.

References BinArea, gdcm::DocEntry::Copy(), CopyBinArea(), Flag, gdcm::DocEntry::GetLength(), and State.

Referenced by gdcm::FileHelper::CopyDataEntry(), DataEntry(), gdcm::File::DoTheLoadingJob(), and gdcm::FileHelper::SetWriteToLibido().

00472 {
00473    DocEntry::Copy(doc);
00474
00475    DataEntry *entry = dynamic_cast<DataEntry *>(doc);
00476    if ( entry )
00477    {
00478       State = entry->State;
00479       Flag = entry->Flag;
00480       CopyBinArea(entry->BinArea,entry->GetLength());
00481    }
00482 }

void gdcm::DataEntry::CopyBinArea (  uint8_t *  area,
uint32_t  length
)


Inserts the value (non string) into the current DataEntry.

Parameters:
area area
length length

Definition at line 96 of file gdcmDataEntry.cxx.

References BinArea, DeleteBinArea(), NewBinArea(), gdcm::DocEntry::SetLength(), State, and STATE_LOADED.

Referenced by Copy(), and gdcm::DicomDirMeta::WriteContent().

00097 {
00098    DeleteBinArea();
00099
00100    uint32_t lgh = length + length%2;
00101    SetLength(lgh);
00102
00103    if( area && length > 0 )
00104    {
00105       NewBinArea();
00106       memcpy(BinArea,area,length);
00107       if( length!=lgh )
00108          BinArea[length]=0;
00109
00110       State = STATE_LOADED;
00111    }
00112 }

void gdcm::RefCounter::Delete (   )  [inline, inherited]


Delete the object.

Remarks:
The object is deleted only if its reference counting is to zero

Definition at line 39 of file gdcmRefCounter.h.

Referenced by gdcm::SerieHelper::AddFileName(), gdcm::Document::Backtrack(), gdcm::FileHelper::CheckMandatoryElements(), gdcm::FileHelper::CheckMandatoryEntry(), gdcm::FileHelper::CopyMandatoryEntry(), gdcm::DicomDir::CreateDicomDirChainedList(), gdcm::File::DoTheLoadingJob(), gdcm::Dict::DoTheLoadingJob(), gdcm::DicomDirObject::FillObject(), gdcm::DocEntrySet::InsertEntryBinArea(), gdcm::DocEntrySet::InsertEntryString(), gdcm::DocEntrySet::InsertSeqEntry(), vtkGdcmReader::LoadFileInformation(), vtkGdcmReader::LoadImageInMemory(), main(), gdcm::DicomDir::NewMeta(), gdcm::DicomDirStudy::NewVisit(), gdcm::Document::ParseDES(), gdcm::Document::ParseSQ(), gdcm::Document::ReadNextDocEntry(), gdcm::DicomDir::SetElement(), gdcm::FileHelper::SetMandatoryEntry(), gdcm::FileHelper::SetWriteFileTypeToExplicitVR(), gdcm::FileHelper::SetWriteFileTypeToImplicitVR(), gdcm::FileHelper::SetWriteFileTypeToJPEG(), gdcm::FileHelper::SetWriteToLibido(), gdcm::FileHelper::SetWriteToNoLibido(), gdcm::FileHelper::SetWriteToRaw(), gdcm::FileHelper::SetWriteToRGB(), vtkGdcmWriter::WriteDcmFile(), gdcm::DicomDir::~DicomDir(), and gdcm::Global::~Global().

00039 { Unregister(); }

void gdcm::DataEntry::DeleteBinArea (  void   )  [protected]


Removes the BinArea, if owned by the DataEntry.

Definition at line 601 of file gdcmDataEntry.cxx.

References BinArea, and SelfArea.

Referenced by CopyBinArea(), NewBinArea(), SetBinArea(), SetString(), and ~DataEntry().

00602 {
00603    if (BinArea && SelfArea)
00604    {
00605       delete[] BinArea;
00606       BinArea = NULL;
00607    }
00608 }

gdcm::DataEntry::gdcmTypeMacro (  DataEntry   )  [private]


uint8_t* gdcm::DataEntry::GetBinArea (   )  [inline]


Returns the area value of the current Dicom Entry when it's not string-translatable (e.g : LUT table, overlay, icon).

Definition at line 59 of file gdcmDataEntry.h.

Referenced by gdcm::File::DoTheLoadingJob(), gdcm::DocEntrySet::GetEntryBinArea(), gdcm::Document::LoadEntryBinArea(), and Print().

00059 { return BinArea; }

DictEntry* gdcm::DocEntry::GetDictEntry (   )  [inline, inherited]


Gets the DicEntry of the current Dicom entry.

Returns:
The DicEntry of the current Dicom entry

Definition at line 48 of file gdcmDocEntry.h.

Referenced by gdcm::FileHelper::CopyDataEntry(), gdcm::DocEntryArchive::Push(), and gdcm::FileHelper::SetWriteToLibido().

00048 { return DicomDict; }

const uint16_t& gdcm::DocEntry::GetElement (   )  const [inline, inherited]


Returns the Dicom Element number of the current Dicom entry.

Definition at line 54 of file gdcmDocEntry.h.

Referenced by gdcm::SQItem::AddEntry(), gdcm::Document::Backtrack(), gdcm::Document::ComputeGroup0002Length(), gdcm::DicomDirMeta::ComputeGroup0002Length(), gdcm::Document::FixDocEntryFoundLength(), gdcm::Document::IsDocEntryAnInteger(), gdcm::DocEntry::IsItemDelimitor(), gdcm::DocEntry::IsItemStarter(), gdcm::DocEntry::IsSequenceDelimitor(), gdcm::Document::LoadDocEntry(), gdcm::Document::LoadEntryBinArea(), gdcm::Document::ParseDES(), gdcm::DocEntry::Print(), Print(), gdcm::Document::ReadNextDocEntry(), and gdcm::DocEntry::WriteContent().

00054 { return DicomDict->GetElement();}

const TValueFlag& gdcm::DataEntry::GetFlag (   )  const [inline]


returns the 'pixel data flag'

Definition at line 110 of file gdcmDataEntry.h.

00110 { return Flag; }

uint32_t gdcm::DocEntry::GetFullLength (   )  [inherited]


Gets the full length of the elementary DocEntry (not only value length) depending on the VR.

Definition at line 178 of file gdcmDocEntry.cxx.

References gdcm::DocEntry::GetReadLength(), gdcm::DocEntry::GetVR(), and gdcm::DocEntry::IsImplicitVR().

Referenced by ComputeFullLength().

00179 {
00180    uint32_t l = GetReadLength();
00181    if ( IsImplicitVR() )
00182    {
00183       l = l + 8;  // 2 (gr) + 2 (el) + 4 (lgth)
00184    }
00185    else
00186    {
00187       if ( GetVR()=="OB" || GetVR()=="OW" || GetVR()=="SQ" )
00188       {
00189          l = l + 12; // 2 (gr) + 2 (el) + 2 (vr) + 2 (unused) + 4 (lgth)
00190       }
00191       else
00192       {
00193          l = l + 8;  // 2 (gr) + 2 (el) + 2 (vr) + 2 (lgth)
00194       }
00195    }
00196    return l;
00197 }

const uint16_t& gdcm::DocEntry::GetGroup (   )  const [inline, inherited]


Returns the Dicom Group number of the current Dicom entry.

Definition at line 51 of file gdcmDocEntry.h.

Referenced by gdcm::SQItem::AddEntry(), gdcm::Document::Backtrack(), gdcm::Document::ComputeGroup0002Length(), gdcm::DicomDirMeta::ComputeGroup0002Length(), gdcm::Document::FixDocEntryFoundLength(), gdcm::Document::IsDocEntryAnInteger(), gdcm::DocEntry::IsItemDelimitor(), gdcm::DocEntry::IsItemStarter(), gdcm::DocEntry::IsSequenceDelimitor(), gdcm::Document::LoadDocEntry(), gdcm::Document::LoadEntryBinArea(), gdcm::Document::ParseDES(), gdcm::DocEntry::Print(), Print(), gdcm::Document::ReadNextDocEntry(), gdcm::Document::SkipToNextDocEntry(), gdcm::DocEntry::WriteContent(), and WriteContent().

00051 { return DicomDict->GetGroup();  }

TagKey gdcm::DocEntry::GetKey (   )  const [inline, inherited]


Returns the 'key' of the current Dicom entry.

Definition at line 57 of file gdcmDocEntry.h.

Referenced by gdcm::ElementSet::AddEntry(), gdcm::Document::ParseDES(), gdcm::SQItem::RemoveEntry(), gdcm::ElementSet::RemoveEntry(), gdcm::Validator::SetInput(), and WriteContent().

00057 { return DicomDict->GetKey(); }

const uint32_t& gdcm::DocEntry::GetLength (   )  const [inline, inherited]


Returns the actual value length of the current Dicom entry.

Warning:
this value is not *always* the one stored in the Dicom header in case of well known bugs

Definition at line 96 of file gdcmDocEntry.h.

Referenced by gdcm::Document::Backtrack(), gdcm::Document::ComputeGroup0002Length(), gdcm::DicomDirMeta::ComputeGroup0002Length(), Copy(), gdcm::Document::DoTheLoadingDocumentJob(), gdcm::DocEntrySet::GetEntryLength(), gdcm::File::GetPixelAreaLength(), GetString(), GetValue(), GetValueCount(), gdcm::Document::IsDocEntryAnInteger(), gdcm::Document::LoadDocEntry(), gdcm::Document::LoadEntryBinArea(), NewBinArea(), Print(), gdcm::Document::SkipDocEntry(), gdcm::DocEntry::WriteContent(), and WriteContent().

00096 { return Length; }

static const uint32_t& gdcm::DataEntry::GetMaxSizePrintEntry (   )  [inline, static]


returns the size threshold above which an element value will NOT be *printed* in order no to polute the screen output

Definition at line 118 of file gdcmDataEntry.h.

Referenced by Print().

00118 { return MaxSizePrintEntry; }

std::string const& gdcm::DocEntry::GetName (   )  const [inline, inherited]


Returns the 'Name' '(e.g. "Patient's Name") found in the Dicom Dictionnary of the current Dicom Header Entry.

Definition at line 61 of file gdcmDocEntry.h.

Referenced by gdcm::DocEntry::Print().

00061 { return DicomDict->GetName(); }

const size_t& gdcm::DocEntry::GetOffset (   )  const [inline, inherited]


Returns offset (since the beginning of the file, including the File Preamble, if any) of the value of the current Dicom entry.

Warning:
offset of the *value*, not of the Dicom entry

Definition at line 79 of file gdcmDocEntry.h.

Referenced by gdcm::Document::Backtrack(), gdcm::File::DoTheLoadingJob(), gdcm::File::GetPixelOffset(), gdcm::Document::LoadDocEntry(), gdcm::Document::LoadEntryBinArea(), gdcm::Document::ParseDES(), gdcm::DocEntry::Print(), gdcm::SeqEntry::SeqEntry(), and gdcm::Document::SkipToNextDocEntry().

00079 { return Offset; }

int gdcm::Base::GetPrintLevel (   )  [inline, inherited]


Gets the print level for the Dicom Entries.

Definition at line 50 of file gdcmBase.h.

00050 { return PrintLevel; }

const uint32_t& gdcm::DocEntry::GetReadLength (   )  const [inline, inherited]


Returns the 'read length' of the current Dicom entry.

Warning:
this value is the one stored in the Dicom header but not mandatoryly the one thats's used (in case on SQ, or delimiters, the usable length is set to zero)

Definition at line 88 of file gdcmDocEntry.h.

Referenced by gdcm::DocEntry::GetFullLength(), gdcm::Document::ParseDES(), gdcm::Document::ParseSQ(), gdcm::SeqEntry::Print(), gdcm::DocEntry::Print(), gdcm::Document::SkipToNextDocEntry(), and gdcm::SeqEntry::WriteContent().

00088 { return ReadLength; }

const unsigned long& gdcm::RefCounter::GetRefCount (   )  const [inline, inherited]


Get the reference counting.

Returns:
Reference count

Definition at line 56 of file gdcmRefCounter.h.

00057    {
00058       return RefCount;
00059    }

const TValueState& gdcm::DataEntry::GetState (   )  const [inline]


Returns the state (Loaded, NotLoaded, ...) of the DataEntry.

Definition at line 96 of file gdcmDataEntry.h.

00096 { return State; }

std::string const & gdcm::DataEntry::GetString (   )  const


returns as a string (when possible) the value of the DataEntry

Definition at line 393 of file gdcmDataEntry.cxx.

References BinArea, gdcm::DocEntry::GetLength(), GetValueCount(), gdcm::DocEntry::GetVR(), and StrArea.

Referenced by gdcm::FileHelper::CheckMandatoryElements(), gdcm::CheckVM(), gdcm::DocEntrySet::GetEntryString(), gdcm::Document::ParseDES(), Print(), gdcm::FileHelper::SetWriteToLibido(), gdcm::FileHelper::SetWriteToNoLibido(), and userSuppliedLessThanFunction().

00394 {
00395    static std::ostringstream s;
00396    const VRKey &vr = GetVR();
00397
00398    s.str("");
00399    StrArea="";
00400
00401    if( !BinArea )
00402       return StrArea;
00403
00404    // When short integer(s) are stored, convert the following (n * 2) characters
00405    // as a displayable string, the values being separated by a back-slash
00406
00407    if( vr == "US" || vr == "SS" )
00408    {
00409       uint16_t *data=(uint16_t *)BinArea;
00410
00411       for (unsigned int i=0; i < GetValueCount(); i++)
00412       {
00413          if( i!=0 )
00414             s << '\\';
00415          s << data[i];
00416       }
00417       StrArea=s.str();
00418    }
00419    // See above comment on multiple short integers (mutatis mutandis).
00420    else if( vr == "UL" || vr == "SL" )
00421    {
00422       uint32_t *data=(uint32_t *)BinArea;
00423
00424       for (unsigned int i=0; i < GetValueCount(); i++)
00425       {
00426          if( i!=0 )
00427             s << '\\';
00428          s << data[i];
00429       }
00430       StrArea=s.str();
00431    }
00432    else if( vr == "FL" )
00433    {
00434       float *data=(float *)BinArea;
00435
00436       for (unsigned int i=0; i < GetValueCount(); i++)
00437       {
00438          if( i!=0 )
00439             s << '\\';
00440          s << data[i];
00441       }
00442       StrArea=s.str();
00443    }
00444    else if( vr == "FD" )
00445    {
00446       double *data=(double *)BinArea;
00447
00448       for (unsigned int i=0; i < GetValueCount(); i++)
00449       {
00450          if( i!=0 )
00451             s << '\\';
00452          s << data[i];
00453       }
00454       StrArea=s.str();
00455    }
00456    else
00457    {
00458       StrArea.append((const char *)BinArea,GetLength());
00459       // to avoid gdcm propagate oddities in lengthes
00460       if ( GetLength()%2)
00461          StrArea.append(" ",1);
00462    }
00463    return StrArea;
00464 }

double gdcm::DataEntry::GetValue (  const uint32_t &  id  )  const


returns, as a double (?!?) one of the values (when entry is multivaluated), identified by its index. Returns 0.0 if index is wrong FIXME : warn the user there was a problem !

Parameters:
id id

Definition at line 168 of file gdcmDataEntry.cxx.

References BinArea, gdcmErrorMacro, gdcm::DocEntry::GetLength(), GetValueCount(), gdcm::Global::GetVR(), gdcm::DocEntry::GetVR(), and gdcm::VR::IsVROfStringRepresentable().

Referenced by gdcm::File::GetBitsAllocated(), gdcm::File::GetBitsStored(), gdcm::File::GetHighBitPosition(), gdcm::File::GetPlanarConfiguration(), gdcm::File::GetRescaleIntercept(), gdcm::File::GetRescaleSlope(), gdcm::File::GetSamplesPerPixel(), gdcm::File::GetXOrigin(), gdcm::File::GetXSize(), gdcm::File::GetXSpacing(), gdcm::File::GetYOrigin(), gdcm::File::GetYSize(), gdcm::File::GetYSpacing(), gdcm::File::GetZOrigin(), gdcm::File::GetZSize(), gdcm::File::GetZSpacing(), and gdcm::File::IsSignedPixelData().

00169 {
00170    if( !BinArea )
00171    {
00172       gdcmErrorMacro("BinArea not set. Can't get the value");
00173       return 0.0;
00174    }
00175
00176    uint32_t count = GetValueCount();
00177    if( id > count )
00178    {
00179       gdcmErrorMacro("Index (" << id << ")is greater than the data size");
00180       return 0.0;
00181    }
00182
00183    // FIX the API : user *knows* that entry contains a US
00184    //               and he receives a double ?!?
00185
00186    const VRKey &vr = GetVR();
00187    if( vr == "US" || vr == "SS" )
00188       return ((uint16_t *)BinArea)[id];
00189    else if( vr == "UL" || vr == "SL" )
00190       return ((uint32_t *)BinArea)[id];
00191    else if( vr == "FL" )
00192       return ((float *)BinArea)[id];
00193    else if( vr == "FD" )
00194       return ((double *)BinArea)[id];
00195    else if( Global::GetVR()->IsVROfStringRepresentable(vr) )
00196    {
00197       if( GetLength() )
00198       {
00199          // Don't use std::string to accelerate processing
00200          double val;
00201          char *tmp = new char[GetLength()+1];
00202          memcpy(tmp,BinArea,GetLength());
00203          tmp[GetLength()]=0;
00204
00205          if( count == 0 )
00206          {
00207             val = atof(tmp);
00208          }
00209          else
00210          {
00211             count = id;
00212             char *beg = tmp;
00213             for(uint32_t i=0;i<GetLength();i++)
00214             {
00215                if( tmp[i] == '\\' )
00216                {
00217                   if( count == 0 )
00218                   {
00219                      tmp[i] = 0;
00220                      break;
00221                   }
00222                   else
00223                   {
00224                      count--;
00225                      beg = &(tmp[i+1]);
00226                   }
00227                }
00228             }
00229             val = atof(beg);
00230          }
00231
00232          delete[] tmp;
00233          return val;
00234       }
00235       else
00236          return 0.0;
00237    }
00238    else
00239       return BinArea[id];
00240 }

uint32_t gdcm::DataEntry::GetValueCount (  void   )  const


returns the number of elementary values

Definition at line 292 of file gdcmDataEntry.cxx.

References BinArea, gdcm::DocEntry::GetLength(), gdcm::Global::GetVR(), gdcm::DocEntry::GetVR(), and gdcm::VR::IsVROfStringRepresentable().

Referenced by GetString(), GetValue(), gdcm::File::GetXOrigin(), gdcm::File::GetXSpacing(), gdcm::File::GetYOrigin(), gdcm::File::GetZOrigin(), IsValueCountValid(), and SetValue().

00293 {
00294    const VRKey &vr = GetVR();
00295    if( vr == "US" || vr == "SS" )
00296       return GetLength()/sizeof(uint16_t);
00297    else if( vr == "UL" || vr == "SL" )
00298       return GetLength()/sizeof(uint32_t);
00299    else if( vr == "FL" || vr == "OF" )
00300       return GetLength()/4 ; // FL has a *4* length! sizeof(float);
00301    else if( vr == "FD" )
00302       return GetLength()/8;  // FD has a *8* length! sizeof(double);
00303    else if( Global::GetVR()->IsVROfStringRepresentable(vr) )
00304    {
00305       // Some element in DICOM are allowed to be empty
00306       if( !GetLength() )
00307          return 0;
00308       // Don't use std::string to accelerate processing
00309       uint32_t count = 1;
00310       for(uint32_t i=0;i<GetLength();i++)
00311       {
00312          if( BinArea[i] == '\\')
00313             count++;
00314       }
00315       return count;
00316    }
00317    return GetLength();
00318 }

std::string const& gdcm::DocEntry::GetVM (   )  const [inline, inherited]


Returns the 'Value Multiplicity' (e.g. "1", 6", "1-n", "3-n"), found in the Dicom entry or in the Dicom Dictionnary of the current Dicom entry.

Definition at line 71 of file gdcmDocEntry.h.

Referenced by gdcm::CheckVM(), and IsValueCountValid().

00071 { return DicomDict->GetVM(); }

VRKey const& gdcm::DocEntry::GetVR (   )  const [inline, inherited]


Returns the 'Value Representation' (e.g. "PN" : Person Name, "SL" : Signed Long), found in the Dicom header or in the Dicom Dictionnary, of the current Dicom entry.

Definition at line 66 of file gdcmDocEntry.h.

Referenced by gdcm::CheckVM(), gdcm::Document::ComputeGroup0002Length(), gdcm::DicomDirMeta::ComputeGroup0002Length(), gdcm::FileHelper::CopyDataEntry(), gdcm::File::DoTheLoadingJob(), gdcm::Document::FixDocEntryFoundLength(), gdcm::DocEntry::GetFullLength(), GetString(), GetValue(), GetValueCount(), gdcm::DocEntrySet::InsertEntryBinArea(), gdcm::DocEntrySet::InsertEntryString(), gdcm::Document::IsDocEntryAnInteger(), gdcm::Document::LoadDocEntry(), gdcm::Document::LoadEntryBinArea(), gdcm::Document::ParseDES(), gdcm::DocEntry::Print(), Print(), SetString(), SetValue(), and gdcm::DocEntry::WriteContent().

00066 { return DicomDict->GetVR(); }

bool gdcm::DataEntry::IsGoodValue (   )  [inline]


true if Entry value properly loaded

Definition at line 104 of file gdcmDataEntry.h.

00104 { return State == STATE_LOADED; }

bool gdcm::DocEntry::IsImplicitVR (   )  const [inline, inherited]


Tells us if the current Dicom entry was checked as ImplicitVr.

Returns:
true if the current Dicom entry was checked as ImplicitVr

Definition at line 112 of file gdcmDocEntry.h.

References gdcm::ImplicitVR.

Referenced by gdcm::DocEntry::GetFullLength(), and gdcm::SeqEntry::SeqEntry().

00112 { return ImplicitVR; }

bool gdcm::DocEntry::IsItemDelimitor (   )  [inherited]


tells us if entry is the last one of a 'no length' SequenceItem (fffe,e00d)

Definition at line 203 of file gdcmDocEntry.cxx.

References gdcm::DocEntry::GetElement(), and gdcm::DocEntry::GetGroup().

Referenced by gdcm::Document::ParseDES().

00204 {
00205    return (GetGroup() == 0xfffe && GetElement() == 0xe00d);
00206 }

bool gdcm::DocEntry::IsItemStarter (   )  [inherited]


tells us if entry is the first one of an Item (fffe,e000)

Definition at line 212 of file gdcmDocEntry.cxx.

References gdcm::DocEntry::GetElement(), and gdcm::DocEntry::GetGroup().

Referenced by gdcm::Document::ParseDES().

00213 {
00214    return (GetGroup() == 0xfffe && GetElement() == 0xe000);
00215 }

bool gdcm::DataEntry::IsNotLoaded (   )  [inline]


true when value Entry not loaded

Definition at line 98 of file gdcmDataEntry.h.

Referenced by gdcm::DocEntrySet::GetEntryString(), and Print().

00098 { return State == STATE_NOTLOADED; }

bool gdcm::DataEntry::IsPixelData (   )  [inline]


true id Entry is a Pixel Data entry

Definition at line 112 of file gdcmDataEntry.h.

Referenced by Print().

00112 { return (Flag &FLAG_PIXELDATA) != 0; }

bool gdcm::DataEntry::IsSelfArea (   )  [inline]


True if Entry owns its BinArea.

Definition at line 74 of file gdcmDataEntry.h.

Referenced by gdcm::File::DoTheLoadingJob().

00074 { return SelfArea; }

bool gdcm::DocEntry::IsSequenceDelimitor (   )  [inherited]


tells us if entry is the last one of a 'no length' Sequence (fffe,e0dd)

Definition at line 221 of file gdcmDocEntry.cxx.

References gdcm::DocEntry::GetElement(), and gdcm::DocEntry::GetGroup().

Referenced by gdcm::Document::ParseSQ().

00222 {
00223    return (GetGroup() == 0xfffe && GetElement() == 0xe0dd);
00224 }

bool gdcm::DataEntry::IsUnfound (   )  [inline]


true if Entry not found

Definition at line 100 of file gdcmDataEntry.h.

Referenced by gdcm::DocEntrySet::GetEntryString(), and Print().

00100 { return State == STATE_UNFOUND; }

bool gdcm::DataEntry::IsUnread (   )  [inline]


true if Entry not read

Definition at line 102 of file gdcmDataEntry.h.

Referenced by gdcm::DocEntrySet::GetEntryString(), and Print().

00102 { return State == STATE_UNREAD; }

bool gdcm::DataEntry::IsValueCountValid (   )  const


Checks if the multiplicity of the value follows Dictionary VM.

Definition at line 245 of file gdcmDataEntry.cxx.

References GetValueCount(), and gdcm::DocEntry::GetVM().

Referenced by gdcm::File::GetXOrigin(), gdcm::File::GetYOrigin(), and gdcm::File::GetZOrigin().

00246 {
00247   uint32_t vm;
00248   const std::string &strVM = GetVM();
00249   uint32_t vc = GetValueCount();
00250   bool valid = vc == 0;
00251   if( valid )
00252     return true;
00253
00254   // FIXME : what shall we do with VM = "2-n", "3-n", etc
00255
00256   if( strVM == "1-n" )
00257   {
00258     // make sure there is at least one ??? FIXME
00259     valid = vc >= 1;
00260   }
00261   else
00262   {
00263     std::istringstream os;
00264     os.str( strVM );
00265     os >> vm;
00266     // Two cases:
00267     // vm respects the one from the dict
00268     // vm is 0 (we need to check if this element is allowed to be empty) FIXME
00269
00270     // note  (JPR)
00271     // ----
00272     // Entries whose type is 1 are mandatory, with a mandatory value.
00273     // Entries whose type is 1c are mandatory-inside-a-Sequence,
00274     //                          with a mandatory value.
00275     // Entries whose type is 2 are mandatory, with an optional value.
00276     // Entries whose type is 2c are mandatory-inside-a-Sequence,
00277     //                          with an optional value.
00278     // Entries whose type is 3 are optional.
00279
00280     // case vc == 0 is only applicable for 'type 2' entries.
00281     // Problem : entry type may depend on the modality and/or the Sequence
00282     //           it's embedded in !
00283     //          (Get the information in the 'Conformance Statements' ...)
00284     valid = vc == vm;
00285   }
00286   return valid;
00287 }

bool gdcm::DocEntry::IsVMUnknown (   )  const [inline, inherited]


Tells us if the VM of the current Dicom entry is Unknown.

Returns:
true if the VM is unknown

Definition at line 120 of file gdcmDocEntry.h.

00120 { return DicomDict->IsVMUnknown(); }

bool gdcm::DocEntry::IsVRUnknown (   )  const [inline, inherited]


Tells us if the VR of the current Dicom entry is Unknown.

Returns:
true if the VR is unknown

Definition at line 116 of file gdcmDocEntry.h.

Referenced by gdcm::DocEntry::WriteContent().

00116 { return DicomDict->IsVRUnknown(); }

static DataEntry* gdcm::DataEntry::New (  DocEntry *  d  )  [inline, static]


Contructs a DataEntry with a RefCounter from DocEntry.

Definition at line 44 of file gdcmDataEntry.h.

00044 {return new DataEntry(d);}

static DataEntry* gdcm::DataEntry::New (  DictEntry *  e  )  [inline, static]


Contructs a DataEntry with a RefCounter from DictEntry.

Definition at line 42 of file gdcmDataEntry.h.

Referenced by gdcm::FileHelper::CheckMandatoryElements(), gdcm::FileHelper::CheckMandatoryEntry(), gdcm::FileHelper::CopyDataEntry(), gdcm::File::DoTheLoadingJob(), gdcm::DicomDirObject::FillObject(), gdcm::DocEntrySet::NewDataEntry(), gdcm::DicomDir::SetElement(), gdcm::FileHelper::SetMandatoryEntry(), and gdcm::FileHelper::SetWriteToLibido().

00042 {return new DataEntry(e);}

void gdcm::DataEntry::NewBinArea (  void   )  [protected]


Creates a DataEntry owned BinArea (remove previous one if any).

Definition at line 593 of file gdcmDataEntry.cxx.

References BinArea, DeleteBinArea(), gdcm::DocEntry::GetLength(), and SelfArea.

Referenced by CopyBinArea(), SetString(), and SetValue().

00594 {
00595    DeleteBinArea();
00596    if( GetLength() > 0 )
00597       BinArea = new uint8_t[GetLength()];
00598    SelfArea = true;
00599 }

void gdcm::DataEntry::Print (  std::ostream &  os = std::cout,
std::string const &  indent = ""
)  [virtual]


Prints a DataEntry (Dicom entry).

Parameters:
os ostream we want to print in
indent Indentation string to be prepended during printing

Reimplemented from gdcm::DocEntry.

Definition at line 620 of file gdcmDataEntry.cxx.

References BinArea, gdcm::Util::CreateCleanString(), gdcm::GDCM_BINLOADED, gdcm::GDCM_NOTLOADED, gdcm::GDCM_PIXELDATA, gdcm::GDCM_UNFOUND, gdcm::GDCM_UNREAD, GetBinArea(), gdcm::DocEntry::GetElement(), gdcm::DocEntry::GetGroup(), gdcm::DocEntry::GetLength(), GetMaxSizePrintEntry(), GetString(), gdcm::Global::GetTS(), gdcm::TS::GetValue(), gdcm::Global::GetVR(), gdcm::DocEntry::GetVR(), gdcm::Util::IsCleanArea(), IsNotLoaded(), IsPixelData(), IsUnfound(), IsUnread(), gdcm::VR::IsVROfStringRepresentable(), gdcm::DocEntry::Print(), and gdcm::Base::PrintLevel.

00621 {
00622    os << "D ";
00623    DocEntry::Print(os);
00624
00625    uint16_t g = GetGroup();
00626    if (g == 0xfffe) // delimiters have NO value
00627    {
00628       return; // just to avoid identing all the remaining code
00629    }
00630
00631    std::ostringstream s;
00632    TSAtr v;
00633
00634    if( BinArea )
00635    {
00636       v = GetString();
00637       const VRKey &vr = GetVR();
00638
00639       if( vr == "US" || vr == "SS" )
00640          s << " [" << GetString() << "]";
00641       else if( vr == "UL" || vr == "SL" )
00642          s << " [" << GetString() << "]";
00643       else if ( vr == "FL" )
00644          s << " [" << GetString() << "]";
00645       else if ( vr == "FD" )
00646          s << " [" << GetString() << "]";
00647       else
00648       {
00649          if(Global::GetVR()->IsVROfStringRepresentable(vr))
00650          {
00651             // replace non printable characters by '.'
00652             std::string cleanString = Util::CreateCleanString(v);
00653             if ( cleanString.length() <= GetMaxSizePrintEntry()
00654               || PrintLevel >= 3
00655               || IsNotLoaded() )
00656            // FIXME : when IsNotLoaded(), you create a Clean String ?!?
00657            // FIXME : PrintLevel<2 *does* print the values
00658            //        (3 is only for extra offsets printing)
00659            // What do you wanted to do ? JPR
00660             {
00661                s << " [" << cleanString << "]";
00662             }
00663             else
00664             {
00665                s << " [gdcm::too long for print (" << cleanString.length() << ") ]";
00666             }
00667          }
00668          else
00669          {
00670             // A lot of Private elements (with no VR) contain actually
00671             // only printable characters;
00672             // Let's deal with them as is they were VR std::string representable
00673
00674             if ( Util::IsCleanArea( GetBinArea(), GetLength()  ) )
00675             {
00676                // FIXME : since the 'Area' *is* clean, just use
00677                //         a 'CreateString' method, to save CPU time.
00678                std::string cleanString =
00679                      Util::CreateCleanString( BinArea,GetLength()  );
00680                s << " [" << cleanString << "]";
00681             }
00682             else
00683             {
00684                s << " [" << GDCM_BINLOADED << ";"
00685                << "length = " << GetLength() << "]";
00686             }
00687          }
00688       }
00689    }
00690    else
00691    {
00692       if( IsNotLoaded() )
00693          s << " [" << GDCM_NOTLOADED << "]";
00694       else if( IsUnfound() )
00695          s << " [" << GDCM_UNFOUND << "]";
00696       else if( IsUnread() )
00697          s << " [" << GDCM_UNREAD << "]";
00698       else if ( GetLength() == 0 )
00699          s << " []";
00700    }
00701
00702    if( IsPixelData() )
00703       s << " (" << GDCM_PIXELDATA << ")";
00704
00705    // Display the UID value (instead of displaying only the rough code)
00706    // First 'clean' trailing character (space or zero)
00707    if(BinArea)
00708    {
00709       const uint16_t &gr = GetGroup();
00710       const uint16_t &elt = GetElement();
00711       TS *ts = Global::GetTS();
00712
00713       if (gr == 0x0002)
00714       {
00715          // Any more to be displayed ?
00716          if ( elt == 0x0010 || elt == 0x0002 )
00717          {
00718             if ( v.length() != 0 )  // for brain damaged headers
00719             {
00720                if ( ! isdigit((unsigned char)v[v.length()-1]) )
00721                {
00722                   v.erase(v.length()-1, 1);
00723                }
00724             }
00725             s << "  ==>\t[" << ts->GetValue(v) << "]";
00726          }
00727       }
00728       else if (gr == 0x0008)
00729       {
00730          if ( elt == 0x0016 || elt == 0x1150 )
00731          {
00732             if ( v.length() != 0 )  // for brain damaged headers
00733             {
00734                if ( ! isdigit((unsigned char)v[v.length()-1]) )
00735                {
00736                   v.erase(v.length()-1, 1);
00737                }
00738             }
00739             s << "  ==>\t[" << ts->GetValue(v) << "]";
00740          }
00741       }
00742       else if (gr == 0x0004)
00743       {
00744          if ( elt == 0x1510 || elt == 0x1512  )
00745          {
00746             if ( v.length() != 0 )  // for brain damaged headers
00747             {
00748                if ( ! isdigit((unsigned char)v[v.length()-1]) )
00749                {
00750                   v.erase(v.length()-1, 1);
00751                }
00752             }
00753             s << "  ==>\t[" << ts->GetValue(v) << "]";
00754          }
00755       }
00756    }
00757
00758    os << s.str();
00759 }

void gdcm::RefCounter::Register (   )  [inline, inherited]


Register the object.

Remarks:
It increments the reference counting

Definition at line 44 of file gdcmRefCounter.h.

Referenced by gdcm::SQItem::AddEntry(), gdcm::ElementSet::AddEntry(), gdcm::Dict::AddEntry(), gdcm::SeqEntry::AddSQItem(), gdcm::SeqEntry::Copy(), gdcm::DicomDir::Copy(), gdcm::DocEntry::DocEntry(), gdcm::FileHelper::FileHelper(), gdcm::DocEntrySet::GetDictEntry(), gdcm::CommandManager::InSetCommand(), gdcm::DocEntryArchive::Push(), gdcm::Dict::ReplaceEntry(), and gdcm::SeqEntry::SetDelimitationItem().

00044 { RefCount++; }

void gdcm::DataEntry::SetBinArea (  uint8_t *  area,
bool  self = true
)


Sets the value (non string) of the current DataEntry.

Parameters:
area area
self self

Definition at line 82 of file gdcmDataEntry.cxx.

References BinArea, DeleteBinArea(), SelfArea, State, and STATE_LOADED.

Referenced by gdcm::FileHelper::CheckMandatoryElements(), gdcm::File::DoTheLoadingJob(), gdcm::Document::LoadDocEntry(), gdcm::Document::LoadEntryBinArea(), gdcm::DocEntrySet::SetEntryBinArea(), gdcm::FileHelper::SetWriteToRaw(), and gdcm::FileHelper::SetWriteToRGB().

00083 {
00084    DeleteBinArea();
00085
00086    BinArea = area;
00087    SelfArea = self;
00088
00089    State = STATE_LOADED;
00090 }

void gdcm::DataEntry::SetFlag (  const TValueFlag &  flag  )  [inline]


sets the 'pixel data flag'

Definition at line 108 of file gdcmDataEntry.h.

Referenced by gdcm::ElementSet::Print(), gdcm::FileHelper::SetWriteToRaw(), and gdcm::FileHelper::SetWriteToRGB().

00108 { Flag = flag; }

void gdcm::DocEntry::SetImplicitVR (   )  [inline, inherited]


Sets to TRUE the ImplicitVr flag of the current Dicom entry.

Definition at line 108 of file gdcmDocEntry.h.

References gdcm::ImplicitVR.

Referenced by gdcm::Document::ReadNextDocEntry().

00108 { ImplicitVR = true; }

virtual void gdcm::DocEntry::SetLength (  uint32_t  l  )  [inline, virtual, inherited]


Sets both 'Read Length' and 'Usable Length' of the current Dicom entry.

Definition at line 92 of file gdcmDocEntry.h.

Referenced by gdcm::Document::Backtrack(), gdcm::FileHelper::CheckMandatoryElements(), CopyBinArea(), gdcm::Document::FixDocEntryFoundLength(), gdcm::DocEntrySet::SetEntryBinArea(), SetString(), gdcm::FileHelper::SetWriteToRaw(), and gdcm::FileHelper::SetWriteToRGB().

00092 { Length = l; }

static void gdcm::DataEntry::SetMaxSizePrintEntry (  const uint32_t &  size  )  [inline, static]


Header Elements too long will not be printed.

Definition at line 120 of file gdcmDataEntry.h.

00121                                                  { MaxSizePrintEntry = size; }

void gdcm::DocEntry::SetOffset (  size_t  of  )  [inline, inherited]


Sets the offset of the Dicom entry.

Warning:
use with caution !
Parameters:
of offset to be set

Definition at line 105 of file gdcmDocEntry.h.

Referenced by gdcm::Document::Backtrack(), gdcm::DicomDirObject::FillObject(), gdcm::Document::ReadNextDocEntry(), and gdcm::DicomDir::SetElement().

00105 { Offset = of; }

void gdcm::Base::SetPrintLevel (  int  level  )  [inline, inherited]


Sets the print level for the Dicom Header Elements.

Note:
0 for Light Print; 1 for 'medium' Print, 2 for Heavy Print

Definition at line 47 of file gdcmBase.h.

Referenced by gdcm::SQItem::Print(), gdcm::SeqEntry::Print(), gdcm::FileHelper::Print(), gdcm::ElementSet::Print(), and gdcm::DicomDir::Print().

00047 { PrintLevel = level; }

void gdcm::DocEntry::SetReadLength (  uint32_t  l  )  [inline, inherited]


Sets only 'Read Length' (*not* 'Usable Length') of the current Dicom entry.

Definition at line 83 of file gdcmDocEntry.h.

Referenced by gdcm::Document::FixDocEntryFoundLength().

00083 { ReadLength = l; }

void gdcm::DataEntry::SetSelfArea (  bool  area  )  [inline]


Sets SelfArea.

Definition at line 72 of file gdcmDataEntry.h.

Referenced by gdcm::File::DoTheLoadingJob().

00072 { SelfArea = area; }

void gdcm::DataEntry::SetState (  const TValueState &  state  )  [inline]


Sets the state (Loaded, NotLoaded, UnFound, ...) of the DataEntry.

Definition at line 94 of file gdcmDataEntry.h.

Referenced by gdcm::Document::LoadDocEntry(), and gdcm::Document::LoadEntryBinArea().

00094 { State = state; }

void gdcm::DataEntry::SetString (  std::string const &  value  )


Sets the 'value' of a DataEntry, passed as a std::string.

Parameters:
value string representation of the value to be set

Definition at line 323 of file gdcmDataEntry.cxx.

References BinArea, DeleteBinArea(), gdcm::DocEntry::GetVR(), NewBinArea(), gdcm::DocEntry::SetLength(), State, STATE_LOADED, and gdcm::Util::Tokenize().

Referenced by gdcm::DicomDir::Anonymize(), gdcm::FileHelper::CheckMandatoryElements(), gdcm::FileHelper::CheckMandatoryEntry(), gdcm::FileHelper::CopyMandatoryEntry(), gdcm::DicomDirObject::FillObject(), gdcm::DicomDir::SetElement(), gdcm::DocEntrySet::SetEntryString(), gdcm::FileHelper::SetMandatoryEntry(), gdcm::FileHelper::SetWriteFileTypeToExplicitVR(), gdcm::FileHelper::SetWriteFileTypeToImplicitVR(), gdcm::FileHelper::SetWriteFileTypeToJPEG(), gdcm::FileHelper::SetWriteToLibido(), gdcm::FileHelper::SetWriteToNoLibido(), gdcm::FileHelper::SetWriteToRaw(), gdcm::FileHelper::SetWriteToRGB(), gdcm::File::Write(), and gdcm::DicomDirMeta::WriteContent().

00324 {
00325    DeleteBinArea();
00326
00327    const VRKey &vr = GetVR();
00328    if ( vr == "US" || vr == "SS" )
00329    {
00330       std::vector<std::string> tokens;
00331       Util::Tokenize (value, tokens, "\\");
00332       SetLength(tokens.size()*sizeof(uint16_t));
00333       NewBinArea();
00334
00335       uint16_t *data = (uint16_t *)BinArea;
00336       for (unsigned int i=0; i<tokens.size();i++)
00337          data[i] = atoi(tokens[i].c_str());
00338       tokens.clear();
00339    }
00340    else if ( vr == "UL" || vr == "SL" )
00341    {
00342       std::vector<std::string> tokens;
00343       Util::Tokenize (value, tokens, "\\");
00344       SetLength(tokens.size()*sizeof(uint32_t));
00345       NewBinArea();
00346
00347       uint32_t *data = (uint32_t *)BinArea;
00348       for (unsigned int i=0; i<tokens.size();i++)
00349          data[i] = atoi(tokens[i].c_str());
00350       tokens.clear();
00351    }
00352    else if ( vr == "FL" )
00353    {
00354       std::vector<std::string> tokens;
00355       Util::Tokenize (value, tokens, "\\");
00356       SetLength(tokens.size()*sizeof(float));
00357       NewBinArea();
00358
00359       float *data = (float *)BinArea;
00360       for (unsigned int i=0; i<tokens.size();i++)
00361          data[i] = (float)atof(tokens[i].c_str());
00362       tokens.clear();
00363    }
00364    else if ( vr == "FD" )
00365    {
00366       std::vector<std::string> tokens;
00367       Util::Tokenize (value, tokens, "\\");
00368       SetLength(tokens.size()*sizeof(double));
00369       NewBinArea();
00370
00371       double *data = (double *)BinArea;
00372       for (unsigned int i=0; i<tokens.size();i++)
00373          data[i] = atof(tokens[i].c_str());
00374       tokens.clear();
00375    }
00376    else
00377    {
00378       if( value.size() > 0 )
00379       {
00380          size_t l =  value.size();
00381          SetLength(l + l%2);
00382          NewBinArea();
00383          memcpy(BinArea, value.c_str(), l);
00384          if (l%2)
00385             BinArea[l] = '\0';
00386       }
00387    }
00388    State = STATE_LOADED;
00389 }

void gdcm::DataEntry::SetValue (  const uint32_t &  id,
const double &  val
)


Inserts the elementary (non string) value into the current DataEntry.

Parameters:
id index of the elementary value to be set
val value, passed as a double

Definition at line 119 of file gdcmDataEntry.cxx.

References BinArea, gdcmErrorMacro, GetValueCount(), gdcm::Global::GetVR(), gdcm::DocEntry::GetVR(), gdcm::VR::IsVROfStringRepresentable(), NewBinArea(), State, and STATE_LOADED.

00120 {
00121    if( !BinArea )
00122       NewBinArea();
00123    State = STATE_LOADED;
00124
00125    if( id > GetValueCount() )
00126    {
00127       gdcmErrorMacro("Index (" << id << ")is greater than the data size");
00128       return;
00129    }
00130
00131    const VRKey &vr = GetVR();
00132    if( vr == "US" || vr == "SS" )
00133    {
00134       uint16_t *data = (uint16_t *)BinArea;
00135       data[id] = (uint16_t)val;
00136    }
00137    else if( vr == "UL" || vr == "SL" )
00138    {
00139       uint32_t *data = (uint32_t *)BinArea;
00140       data[id] = (uint32_t)val;
00141    }
00142    else if( vr == "FL" )
00143    {
00144       float *data = (float *)BinArea;
00145       data[id] = (float)val;
00146    }
00147    else if( vr == "FD" )
00148    {
00149       double *data = (double *)BinArea;
00150       data[id] = (double)val;
00151    }
00152    else if( Global::GetVR()->IsVROfStringRepresentable(vr) )
00153    {
00154       gdcmErrorMacro("SetValue on String representable not implemented yet");
00155    }
00156    else
00157    {
00158       BinArea[id] = (uint8_t)val;
00159    }
00160 }

void gdcm::DocEntry::SetVM (  TagName const &  v  )  [inline, inherited]


Sets the 'Value Multiplicity' of the current Dicom entry.

Definition at line 74 of file gdcmDocEntry.h.

00074 { DicomDict->SetVM(v); }

void gdcm::RefCounter::Unregister (   )  [inline, inherited]


Unregister the object.

Remarks:
It decrements the reference counting

Definition at line 48 of file gdcmRefCounter.h.

Referenced by gdcm::SeqEntry::ClearSQItem(), gdcm::DicomDir::Copy(), gdcm::DocEntrySet::GetDictEntry(), gdcm::CommandManager::InSetCommand(), gdcm::DocEntrySet::NewDataEntry(), gdcm::DocEntrySet::NewSeqEntry(), gdcm::Document::ReadNextDocEntry(), gdcm::SQItem::RemoveEntry(), gdcm::ElementSet::RemoveEntry(), gdcm::SeqEntry::SetDelimitationItem(), gdcm::DocEntry::~DocEntry(), and gdcm::FileHelper::~FileHelper().

00049    {
00050       RefCount--;
00051       if(RefCount<=0)
00052          delete this;
00053    }

void gdcm::DataEntry::WriteContent (  std::ofstream *  fp,
FileType  filetype
)  [virtual]


Writes the 'value' area of a DataEntry.

Parameters:
fp already open ofstream pointer
filetype type of the file (ACR, ImplicitVR, ExplicitVR, ...)

Reimplemented from gdcm::DocEntry.

Definition at line 489 of file gdcmDataEntry.cxx.

References BinArea, gdcm::binary_write(), gdcmDebugMacro, gdcm::VR::GetAtomicElementLength(), gdcm::DocEntry::GetGroup(), gdcm::DocEntry::GetKey(), gdcm::DocEntry::GetLength(), gdcm::Global::GetVR(), and gdcm::DocEntry::WriteContent().

00490 {
00491    DocEntry::WriteContent(fp, filetype);
00492
00493    if ( GetGroup() == 0xfffe )
00494    {
00495       return; //delimitors have NO value
00496    }
00497
00498    // --> We only deal with Little Endian writting.
00499    // --> forget Big Endian Transfer Syntax writting!
00500    //     Next DICOM version will give it up ...
00501
00502    // WARNING - For Implicit VR private element,
00503    //           we have *no choice* but considering them as
00504    //           something like 'OB' values.
00505    //           we rewrite them as we found them on disc.
00506    //           Some trouble will occur if element was
00507    //           *actually* OW, if image was produced
00508    //           on Big endian based processor, read and writen
00509    //           on Little endian based processor
00510    //           and, later on, somebody needs
00511    //           this 'OW' Implicit VR private element (?!?)
00512    //           (Same stuff, mutatis mutandis, for Little/Big)
00513
00514    // 8/16 bits Pixels problem should be solved automatiquely,
00515    // since we ensure the VR (OB vs OW) is conform to Pixel size.
00516
00517    uint8_t *data = BinArea; //safe notation
00518    size_t l = GetLength();
00519    gdcmDebugMacro("in DataEntry::WriteContent " << GetKey() << " AtomicLength: "
00520               << Global::GetVR()->GetAtomicElementLength(this->GetVR() ) // << " BinArea in :" << &BinArea
00521              );
00522    if (BinArea) // the binArea was *actually* loaded
00523    {
00524 #if defined(GDCM_WORDS_BIGENDIAN) || defined(GDCM_FORCE_BIGENDIAN_EMULATION)
00525       unsigned short vrLgth =
00526                         Global::GetVR()->GetAtomicElementLength(this->GetVR());
00527       unsigned int i;
00528       switch(vrLgth)
00529       {
00530          case 1:
00531          {
00532             binary_write (*fp, data, l );
00533             break;
00534          }
00535          case 2:
00536          {
00537             uint16_t *data16 = (uint16_t *)data;
00538             for(i=0;i<l/vrLgth;i++)
00539                binary_write( *fp, data16[i]);
00540             break;
00541          }
00542          case 4:
00543          {
00544             uint32_t *data32 = (uint32_t *)data;
00545             for(i=0;i<l/vrLgth;i++)
00546                binary_write( *fp, data32[i]);
00547             break;
00548          }
00549          case 8:
00550          {
00551             double *data64 = (double *)data;
00552             for(i=0;i<l/vrLgth;i++)
00553                binary_write( *fp, data64[i]);
00554             break;
00555          }
00556       }
00557 #else
00558    binary_write (*fp, data, l );
00559 #endif //GDCM_WORDS_BIGENDIAN
00560
00561    }
00562    else
00563    {
00564       // nothing was loaded, but we need to skip space on disc
00565       if (l != 0)
00566       {
00567       //  --> WARNING : nothing is written;
00568       //  --> the initial data (on the the source image) is lost
00569       //  --> user is *not* informed !
00570          gdcmDebugMacro ("Nothing was loaded, but we need to skip space on disc. "
00571                       << "Length =" << l << " for " << GetKey() );
00572          fp->seekp(l, std::ios::cur);
00573       }
00574    }
00575    // to avoid gdcm to propagate oddities
00576    // (length was already modified)
00577    if (l%2)
00578       fp->seekp(1, std::ios::cur);
00579 }

Member Data Documentation

uint8_t* gdcm::DataEntry::BinArea [protected]


memory area to hold 'non std::string' representable values (ie : Lookup Tables, overlays, icons)

Definition at line 135 of file gdcmDataEntry.h.

Referenced by Copy(), CopyBinArea(), DataEntry(), DeleteBinArea(), GetString(), GetValue(), GetValueCount(), NewBinArea(), Print(), SetBinArea(), SetString(), SetValue(), and WriteContent().

DictEntry* gdcm::DocEntry::DicomDict [protected, inherited]


pointer to the underlying Dicom dictionary element

Definition at line 133 of file gdcmDocEntry.h.

Referenced by gdcm::DocEntry::DocEntry(), and gdcm::DocEntry::~DocEntry().

TValueFlag gdcm::DataEntry::Flag [private]


0 for straight entries, FLAG_PIXELDATA for Pixel Data entries

Definition at line 144 of file gdcmDataEntry.h.

Referenced by Copy(), and DataEntry().

bool gdcm::DocEntry::ImplicitVR [protected, inherited]


Even when reading explicit vr files, some elements happen to be implicit. Flag them here since we can't use the entry->vr without breaking the underlying dictionary.

Definition at line 145 of file gdcmDocEntry.h.

Referenced by gdcm::DocEntry::Copy(), gdcm::DocEntry::DocEntry(), and gdcm::SeqEntry::SeqEntry().

uint32_t gdcm::DocEntry::Length [protected, inherited]


Correspond to the real length of the data This length might always be even.

Definition at line 137 of file gdcmDocEntry.h.

Referenced by gdcm::DocEntry::Copy(), gdcm::DocEntry::DocEntry(), and gdcm::SeqEntry::SeqEntry().

uint32_t gdcm::DataEntry::MaxSizePrintEntry = MAX_SIZE_PRINT_ELEMENT_VALUE [static, private]


Size threshold above which an element is printed.

Definition at line 149 of file gdcmDataEntry.h.

size_t gdcm::DocEntry::Offset [protected, inherited]


Offset from the beginning of file for direct user access.

Definition at line 148 of file gdcmDocEntry.h.

Referenced by gdcm::DocEntry::Copy(), gdcm::DocEntry::DocEntry(), and gdcm::SeqEntry::SeqEntry().

int gdcm::Base::PrintLevel [protected, inherited]


Amount of printed details for each Dicom Entries : 0 : stands for the least detail level.

Definition at line 55 of file gdcmBase.h.

Referenced by gdcm::SQItem::Print(), gdcm::SeqEntry::Print(), gdcm::FileHelper::Print(), gdcm::ElementSet::Print(), gdcm::DocEntry::Print(), gdcm::DictEntry::Print(), gdcm::DicomDirStudy::Print(), gdcm::DicomDirSerie::Print(), gdcm::DicomDirPatient::Print(), gdcm::DicomDirMeta::Print(), gdcm::DicomDir::Print(), and Print().

uint32_t gdcm::DocEntry::ReadLength [protected, inherited]


Length to read in the file to obtain data.

Definition at line 140 of file gdcmDocEntry.h.

Referenced by gdcm::DocEntry::Copy(), gdcm::DocEntry::DocEntry(), and gdcm::SeqEntry::SeqEntry().

bool gdcm::DataEntry::SelfArea [protected]


Whether DataEntry has its own BinArea or not.

Definition at line 137 of file gdcmDataEntry.h.

Referenced by DataEntry(), DeleteBinArea(), NewBinArea(), and SetBinArea().

TValueState gdcm::DataEntry::State [private]


Entry status:STATE_NOTLOADED,STATE_UNFOUND,STATE_UNREAD,STATE_LOADED.

Definition at line 146 of file gdcmDataEntry.h.

Referenced by Copy(), CopyBinArea(), DataEntry(), SetBinArea(), SetString(), and SetValue().

std::string gdcm::DataEntry::StrArea [mutable, protected]


std::string representable value of the Entry. Parts of a multivaluated data are separated by back-slash

Definition at line 140 of file gdcmDataEntry.h.

Referenced by GetString().

The documentation for this class was generated from the following files:
Generated on Fri Jan 20 10:14:32 2006 for gdcm by  doxygen 1.4.4
