bbtk::BlackBoxInputDescriptor Class Reference

Abstract descriptor of an input of a black box. More...

#include <bbtkBlackBoxInputDescriptor.h>

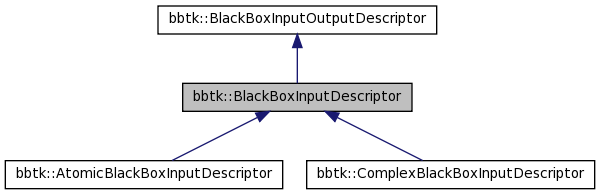

Inheritance diagram for bbtk::BlackBoxInputDescriptor:

[legend]

Collaboration diagram for bbtk::BlackBoxInputDescriptor:

[legend]

List of all members.

Public Types
enum	OptionType { MANDATORY, OPTIONAL }
Public Member Functions
	BlackBoxInputDescriptor (TypeInfo creator_type_info, const std::string &name, const std::string &description, const std::string &nature, bool copy_construct=true, OptionType option=MANDATORY)
	Ctor with name and description.
OptionType	GetOption () const
	Returns the option of the input.
TypeInfo	GetCreatorTypeInfo () const
	Returns the TypeInfo of the BlackBoxDescriptor which created this descriptor.
const std::string &	GetName () const
	Returns the name of the in/output.
const std::string &	GetDescription () const
	Returns the description of the in/output.
const std::string &	GetNature () const
	Returns the nature of the in/output.
virtual TypeInfo	GetTypeInfo () const =0
	Returns the type of the in/output.
virtual std::string	GetTypeName () const =0
	Returns the name of the type of the in/output.
virtual DataInfo	GetDataInfo () const
	Returns the DataInfo of the input (Type+Nature).
virtual std::string	GetHumanTypeName () const =0
	Returns the name of the type of the in/output.
virtual bool	IsPointerType () const =0
	Returns true iff the type is a pointer to class.
bool	GetCopyConstruct () const
Protected Member Functions
	BlackBoxInputDescriptor ()
	Default ctor is reserved to children.
Private Attributes
OptionType	mOption
	The option of the input.

---

Detailed Description

Abstract descriptor of an input of a black box.

Definition at line 48 of file bbtkBlackBoxInputDescriptor.h.

---

Member Enumeration Documentation

enum bbtk::BlackBoxInputDescriptor::OptionType

Enumerator:

MANDATORY
OPTIONAL

Definition at line 52 of file bbtkBlackBoxInputDescriptor.h.

                 {
      MANDATORY,
      OPTIONAL
    } OptionType;

---

Constructor & Destructor Documentation

bbtk::BlackBoxInputDescriptor::BlackBoxInputDescriptor	(	TypeInfo	creator_type_info,
		const std::string &	name,
		const std::string &	description,
		const std::string &	nature,
		bool	copy_construct = true,
		OptionType	option = MANDATORY
	)			[inline]

Ctor with name and description.

Definition at line 59 of file bbtkBlackBoxInputDescriptor.h.

      : BlackBoxInputOutputDescriptor(creator_type_info,name,
                                      description,nature,
                                      copy_construct),
        mOption(option)
    {}

bbtk::BlackBoxInputDescriptor::BlackBoxInputDescriptor

(

)

[inline, protected]

Default ctor is reserved to children.

Definition at line 76 of file bbtkBlackBoxInputDescriptor.h.

                              : BlackBoxInputOutputDescriptor(),
                                mOption(OPTIONAL) {}

---

Member Function Documentation

bool bbtk::BlackBoxInputOutputDescriptor::GetCopyConstruct

(

)

const [inline, inherited]

Returns true iff the in/output must be copied by the copy constructor of the box

Definition at line 91 of file bbtkBlackBoxInputOutputDescriptor.h.

{ return mCopyConstruct; }

TypeInfo bbtk::BlackBoxInputOutputDescriptor::GetCreatorTypeInfo

(

)

const [inline, inherited]

Returns the TypeInfo of the BlackBoxDescriptor which created this descriptor.

Definition at line 71 of file bbtkBlackBoxInputOutputDescriptor.h.

Referenced by bbtk::Interpreter::commandNewGUI().

{ return mCreatorTypeInfo; }

Here is the caller graph for this function:

virtual DataInfo bbtk::BlackBoxInputOutputDescriptor::GetDataInfo

(

)

const [inline, virtual, inherited]

Returns the DataInfo of the input (Type+Nature).

Definition at line 83 of file bbtkBlackBoxInputOutputDescriptor.h.

Referenced by bbtk::Interpreter::commandNewGUI().

    { return DataInfo(this->GetTypeInfo(),mNature); }

Here is the caller graph for this function:

const std::string& bbtk::BlackBoxInputOutputDescriptor::GetDescription

(

)

const [inline, inherited]

Returns the description of the in/output.

Definition at line 75 of file bbtkBlackBoxInputOutputDescriptor.h.

Referenced by bbtk::WxGUIBlackBoxInfo::InsertInputOutput().

{ return mDescription; }

Here is the caller graph for this function:

virtual std::string bbtk::BlackBoxInputOutputDescriptor::GetHumanTypeName

(

)

const [pure virtual, inherited]

Returns the name of the type of the in/output.

Implemented in bbtk::AtomicBlackBoxInputDescriptor, bbtk::AtomicBlackBoxOutputDescriptor, bbtk::ComplexBlackBoxInputDescriptor, and bbtk::ComplexBlackBoxOutputDescriptor.

const std::string& bbtk::BlackBoxInputOutputDescriptor::GetName

(

)

const [inline, inherited]

Returns the name of the in/output.

Definition at line 73 of file bbtkBlackBoxInputOutputDescriptor.h.

Referenced by bbtk::BlackBoxDescriptor::AddInputDescriptor(), bbtk::BlackBoxDescriptor::AddOutputDescriptor(), bbtk::ComplexBlackBox::bbWriteDotFileBlackBox(), bbtk::WxGUIBlackBoxInfo::InsertInputOutput(), bbtk::AtomicBlackBoxInputDescriptor::~AtomicBlackBoxInputDescriptor(), bbtk::AtomicBlackBoxOutputDescriptor::~AtomicBlackBoxOutputDescriptor(), bbtk::ComplexBlackBoxInputDescriptor::~ComplexBlackBoxInputDescriptor(), and bbtk::ComplexBlackBoxOutputDescriptor::~ComplexBlackBoxOutputDescriptor().

{ return mName; }

Here is the caller graph for this function:

const std::string& bbtk::BlackBoxInputOutputDescriptor::GetNature

(

)

const [inline, inherited]

Returns the nature of the in/output.

Definition at line 77 of file bbtkBlackBoxInputOutputDescriptor.h.

Referenced by bbtk::ComplexBlackBoxDescriptor::DefineInput(), bbtk::ComplexBlackBoxDescriptor::DefineOutput(), and bbtk::WxGUIBlackBoxInfo::InsertInputOutput().

{ return mNature; }

Here is the caller graph for this function:

OptionType bbtk::BlackBoxInputDescriptor::GetOption

(

)

const [inline]

Returns the option of the input.

Definition at line 72 of file bbtkBlackBoxInputDescriptor.h.

{ return mOption; }

virtual TypeInfo bbtk::BlackBoxInputOutputDescriptor::GetTypeInfo

(

)

const [pure virtual, inherited]

Returns the type of the in/output.

Implemented in bbtk::AtomicBlackBoxInputDescriptor, bbtk::AtomicBlackBoxOutputDescriptor, bbtk::ComplexBlackBoxInputDescriptor, and bbtk::ComplexBlackBoxOutputDescriptor.

Referenced by bbtk::Interpreter::commandNewGUI(), bbtk::ComplexBlackBoxDescriptor::DefineInput(), and bbtk::ComplexBlackBoxDescriptor::DefineOutput().

Here is the caller graph for this function:

virtual std::string bbtk::BlackBoxInputOutputDescriptor::GetTypeName

(

)

const [pure virtual, inherited]

Returns the name of the type of the in/output.

Implemented in bbtk::AtomicBlackBoxInputDescriptor, bbtk::AtomicBlackBoxOutputDescriptor, bbtk::ComplexBlackBoxInputDescriptor, and bbtk::ComplexBlackBoxOutputDescriptor.

Referenced by bbtk::WxGUIBlackBoxInfo::InsertInputOutput().

Here is the caller graph for this function:

virtual bool bbtk::BlackBoxInputOutputDescriptor::IsPointerType

(

)

const [pure virtual, inherited]

Returns true iff the type is a pointer to class.

Implemented in bbtk::AtomicBlackBoxInputDescriptor, bbtk::AtomicBlackBoxOutputDescriptor, bbtk::ComplexBlackBoxInputDescriptor, and bbtk::ComplexBlackBoxOutputDescriptor.

---

Member Data Documentation

OptionType bbtk::BlackBoxInputDescriptor::mOption [private]

The option of the input.

Definition at line 81 of file bbtkBlackBoxInputDescriptor.h.

---

The documentation for this class was generated from the following file:

• /Users/davila/Creatis/All5/creatools_source/bbtk/kernel/src/bbtkBlackBoxInputDescriptor.h
