bbtk::WxGUIConsole Class Reference

A console in which user can enter commands. More...

#include <bbtkWxGUIConsole.h>

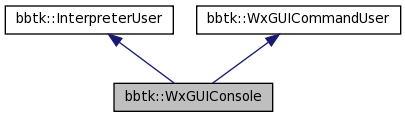

Inheritance diagram for bbtk::WxGUIConsole:

Inheritance graph
[legend]

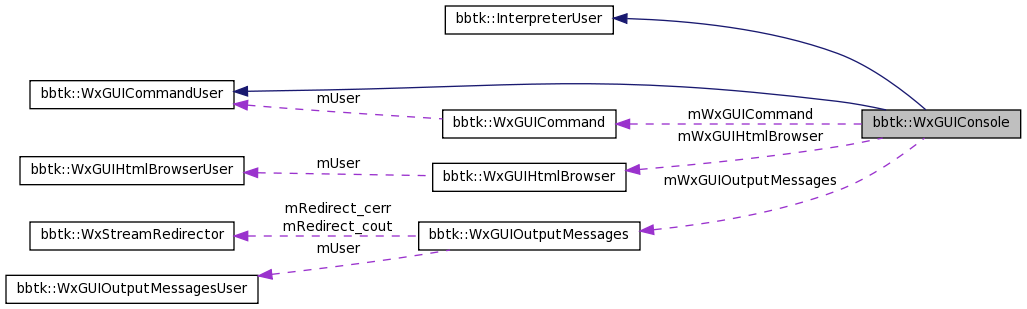

Collaboration diagram for bbtk::WxGUIConsole:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 WxGUIConsole (wxWindow *parent, wxString title, wxSize size)
 ~WxGUIConsole ()
Interpreter::Pointer GetInterpreter () const
 Returns the Interpreter used (const).
void SetInputs (const std::map< std::string, std::string > &m)
void SetNoExecMode (bool b)
void SetDialogMode (Interpreter::DialogModeType t)
bool InterpretFile (const std::string &filename)
 Runs the interpretation of a file.
void OnMenuQuit (wxCommandEvent &event)
void OnMenuAbout (wxCommandEvent &event)
void OnMenuEditConfig (wxCommandEvent &WXUNUSED(event))
void OnMenuCreatePackage (wxCommandEvent &WXUNUSED(event))
void OnMenuCreateBlackBox (wxCommandEvent &WXUNUSED(event))
void OnMenuShowImageGraph (wxCommandEvent &WXUNUSED(event))
void OnMenuShowHTMLDoc (wxCommandEvent &WXUNUSED(event))
void OnMenuCreateIndex (wxCommandEvent &WXUNUSED(event))
void OnButtonRun (wxCommandEvent &WXUNUSED(event))
bool InterpreterUserHasOwnHtmlPageViewer ()
void InterpreterUserViewHtmlPage (const std::string &)
void WxGUICommandEnter (const std::string &)
 Callback invoked when a command is entered in the WxGUICommand.
virtual bool Show (bool show=true)
void OnClose (wxCloseEvent &event)
void OnWxSignal ()

Private Attributes

wxAuiManager m_mgr
Interpreter::Pointer mInterpreter
wxAuiNotebook * mwxNotebook
wxPanel * mwxPageCommand
wxPanel * mwxPageHelp
WxGUICommandmWxGUICommand
WxGUIOutputMessagesmWxGUIOutputMessages
WxGUIHtmlBrowsermWxGUIHtmlBrowser
wxButton * mwxButtonRun


Detailed Description

A console in which user can enter commands.

Definition at line 70 of file bbtkWxGUIConsole.h.


Constructor & Destructor Documentation

bbtk::WxGUIConsole::WxGUIConsole ( wxWindow *  parent,
wxString  title,
wxSize  size
)

Definition at line 77 of file bbtkWxGUIConsole.cxx.

References _T, bbtkAddWxSignalObserver, bbtk::ID_Button_Run, bbtk::ID_Menu_About, bbtk::ID_Menu_CreateBlackBox, bbtk::ID_Menu_CreateIndex, bbtk::ID_Menu_CreatePackage, bbtk::ID_Menu_EditConfig, bbtk::ID_Menu_Quit, bbtk::ID_Menu_ShowHTMLDoc, bbtk::ID_Menu_ShowImageGraph, m_mgr, mInterpreter, mwxButtonRun, mWxGUICommand, mWxGUIHtmlBrowser, mWxGUIOutputMessages, mwxNotebook, mwxPageCommand, mwxPageHelp, bbtk::InterpreterVirtual::New(), OnWxSignal(), and bbtk::Wx::SetTopWindow().

00078     : wxFrame((wxFrame *)parent, -1, title, wxDefaultPosition, size)
00079   {
00080 //    m_mgr = new wxAuiManager(this);
00081         m_mgr.SetManagedWindow(this);
00082
00083         mInterpreter = bbtk::Interpreter::New();
00084     mInterpreter->SetUser(this);
00085     mInterpreter->SetCommandLine(true);
00086     mInterpreter->SetThrow(false);
00087     //==============
00088     // Menu
00089     wxInitAllImageHandlers();
00090
00091     wxMenu *menuFile = new wxMenu;
00092     menuFile->Append( ID_Menu_Quit, _T("&Quit") );
00093
00094     wxMenu *menuAbout = new wxMenu;
00095     menuAbout->Append( ID_Menu_About, _T("&About...") );
00096
00097     wxMenu *menuTools = new wxMenu;
00098     menuTools->Append( ID_Menu_EditConfig, _T("&Edit bbtk config") );
00099     menuTools->Append( ID_Menu_CreatePackage, _T("Create &package") );
00100     menuTools->Append( ID_Menu_CreateBlackBox, _T("Create &blackbox") );
00101     menuTools->Append( ID_Menu_ShowImageGraph, _T("&Show last image graph") );
00102     menuTools->Append( ID_Menu_ShowHTMLDoc, _T("Show &HTML documentation") );
00103     menuTools->Append( ID_Menu_CreateIndex, _T("&Generate index") );
00104
00105
00106     wxMenuBar *menuBar = new wxMenuBar;
00107     menuBar->Append( menuFile, _T("&File") );
00108     menuBar->Append( menuTools, _T("&Tools") );
00109     menuBar->Append( menuAbout, _T("About") );
00110
00111     SetMenuBar( menuBar );
00112
00113     CreateStatusBar();
00114     SetStatusText( _T("Welcome to bbi !") );
00115
00116     //==============
00117     // Notebook
00118
00119     //    wxFlexGridSizer *sizer = new wxFlexGridSizer(1);
00120
00121 //EED    wxBoxSizer* sizer = new wxBoxSizer(wxVERTICAL);
00122 //    mwxNotebook = new wxNotebook(this,-1,wxDefaultPosition, wxDefaultSize, 0);
00123     mwxNotebook = new wxAuiNotebook(this,
00124                                     -1,
00125                                     wxPoint(0, 0),
00126                                     wxSize(500,500),
00127                                     wxAUI_NB_TAB_SPLIT | wxAUI_NB_TAB_EXTERNAL_MOVE | wxNO_BORDER);
00128
00129     mwxPageCommand = new wxPanel(mwxNotebook,-1);
00130     mwxPageHelp = new wxPanel(mwxNotebook,-1);
00131
00132
00133     wxBoxSizer *cmdsizer = new wxBoxSizer(wxVERTICAL);
00134
00135     mwxPageCommand->SetAutoLayout(true);
00136     mwxPageCommand->SetSizer(cmdsizer);
00137     cmdsizer->Fit(mwxPageCommand);
00138     cmdsizer->SetSizeHints(mwxPageCommand);
00139
00140     wxBoxSizer *helpsizer = new wxBoxSizer(wxVERTICAL);
00141
00142     mwxPageHelp->SetAutoLayout(true);
00143     mwxPageHelp->SetSizer(helpsizer);
00144     helpsizer->Fit(mwxPageHelp);
00145     helpsizer->SetSizeHints(mwxPageHelp);
00146
00147     mWxGUIHtmlBrowser = new WxGUIHtmlBrowser(mwxPageHelp,
00148                                              //EED                                wxSize(1200,0));
00149                                              wxSize(200,0));
00150
00151     //    mWxGUIHtmlBrowser->SetSize(wxSize(800,1000));
00152     helpsizer->Add (mWxGUIHtmlBrowser,1, wxGROW|wxLEFT|wxRIGHT|wxTOP, 5  );
00153 //    helpsizer->Add ( new wxButton(mwxPageHelp,-1,"perro"), 0,  wxEXPAND  );
00154     wxBitmap bmp_run(cc_run_xpm);
00155     mwxButtonRun = new wxBitmapButton( mwxPageHelp,ID_Button_Run,bmp_run);//_T("Run")  );
00156     helpsizer->Add( mwxButtonRun, 0, wxALL, 5  );
00157
00158
00159     //==============
00160     // Command page
00161     mWxGUIOutputMessages = new WxGUIOutputMessages(mwxPageCommand);
00162
00163     mWxGUICommand = new WxGUICommand(mwxPageCommand,this);
00164
00165     mWxGUICommand->SetFocus();
00166
00167     cmdsizer->Add (mWxGUIOutputMessages, 1, wxALL | wxGROW, 5);
00168     cmdsizer->Add (mWxGUICommand, 0, wxALL | wxGROW, 5);
00169
00170
00171     // Set the parent window of all bbtk windows as a child of this
00172     //    bbtk::Wx::SetTopWindowParent(this);
00173     bbtk::Wx::SetTopWindow(this);
00174     // Top Window Auto Destroys when no more black box window alive
00175     // : this is the default
00176     //    bbtk::Wx::SetAutoDestroyTopWindow(true);
00177     // Add the method OnWxSignal as a Wx::Signal observer
00178     bbtkAddWxSignalObserver(WxGUIConsole::OnWxSignal);
00179
00180
00181     // Layout
00182 //EED    SetSizer(sizer);
00183
00184     mwxNotebook->AddPage( mwxPageCommand, _T("Command"));
00185     mwxNotebook->AddPage( mwxPageHelp, _T("Help"));
00186     m_mgr.AddPane(mwxNotebook, wxAuiPaneInfo().Name(wxT("notebook_content")).CenterPane().PaneBorder(false));
00187     m_mgr.Update();
00188
00189     SetAutoLayout(true);
00190     Layout();
00191 //    Refresh();
00192 //    m_mgr.Update();
00193   }

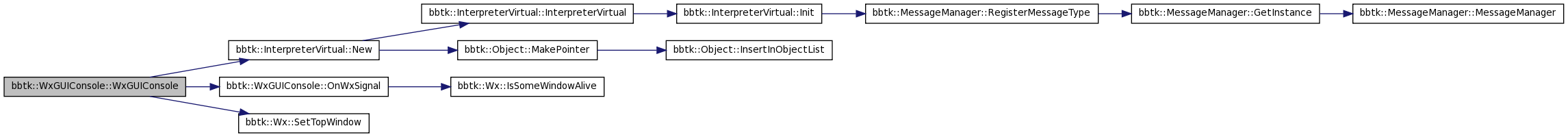

Here is the call graph for this function:

bbtk::WxGUIConsole::~WxGUIConsole (  )

Definition at line 197 of file bbtkWxGUIConsole.cxx.

References m_mgr.

00198   {
00199     m_mgr.UnInit();
00200   }


Member Function Documentation

Interpreter::Pointer bbtk::WxGUIConsole::GetInterpreter (  )  const [inline]

Returns the Interpreter used (const).

Returns the Interpreter used ONLY ONE FOR THE MOMENT BUT IN THE FUTURE CAN BE DIFFERENT (DIFFERENT WORKSPACES)

Definition at line 83 of file bbtkWxGUIConsole.h.

Referenced by wxBBIApp::OnInit().

00083 { return mInterpreter; }

Here is the caller graph for this function:

bool bbtk::WxGUIConsole::InterpreterUserHasOwnHtmlPageViewer (  )  [inline, virtual]

Reimplemented from bbtk::InterpreterUser.

Definition at line 115 of file bbtkWxGUIConsole.h.

00115 { return true; }

void bbtk::WxGUIConsole::InterpreterUserViewHtmlPage ( const std::string &  page  )  [virtual]

Reimplemented from bbtk::InterpreterUser.

Definition at line 438 of file bbtkWxGUIConsole.cxx.

References bbtk::WxGUIHtmlBrowser::GoTo(), mWxGUIHtmlBrowser, and mwxNotebook.

00439   {
00440     std::string s(page);
00441     //  std::cout << "WxGUIConsole::ShowHtmlPage('"<<page<<"')"<<std::endl;
00442     if (mWxGUIHtmlBrowser->GoTo(s))
00443       {
00444 //EED   mwxNotebook->ChangeSelection(1);
00445         mwxNotebook->SetSelection(1);
00446       }
00447     else
00448       {
00449          // std::cout << "ERROR html"<<std::endl;
00450       }
00451   }

Here is the call graph for this function:

bool bbtk::WxGUIConsole::InterpretFile ( const std::string &  filename  )

Runs the interpretation of a file.

Runs the interpretation of a file Returns false on error

Definition at line 255 of file bbtkWxGUIConsole.cxx.

References bbtk::InterpreterVirtual::Interpreter_ERROR, and mInterpreter.

Referenced by wxBBIApp::OnInit().

00256   {
00257     if ( mInterpreter->InterpretFile(filename) ==
00258          Interpreter::Interpreter_ERROR )
00259       {
00260         return false;
00261       }
00262     return true;
00263   }

Here is the caller graph for this function:

void bbtk::WxGUIConsole::OnButtonRun ( wxCommandEvent &  WXUNUSEDevent  )

Definition at line 267 of file bbtkWxGUIConsole.cxx.

References _T, bbtk::WxGUIHtmlBrowser::GetCurrentPage(), mWxGUIHtmlBrowser, bbtk::InterpreterVirtual::New(), and bbtk::std2wx().

00268   {
00269 //    wxString temp = mWxGUIHtmlBrowser->GetCurrentPage();
00270     std::string filename = mWxGUIHtmlBrowser->GetCurrentPage();//wx2std(temp);
00271     size_t s = filename.length();
00272
00273     Interpreter::Pointer I = Interpreter::New();
00274
00275     if ((s>3) && (filename[s-1]=='s')
00276         && (filename[s-2]=='b')
00277         && (filename[s-3]=='b')
00278         && (filename[s-4]=='.'))
00279       {
00280         std::string tmp("Executing ");
00281         tmp += filename;
00282         SetStatusText(std2wx(tmp));
00283         I->InterpretFile(filename);
00284       }
00285     else
00286       {
00287         SetStatusText(_T("The current page is not a bbs file : cannot execute it"));
00288       }
00289
00290   }

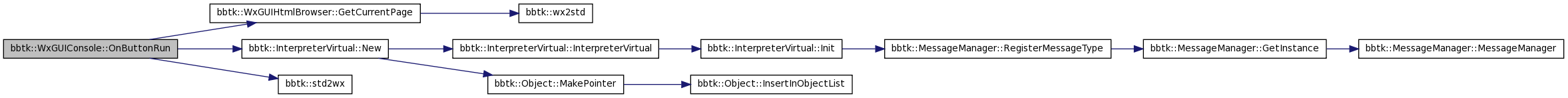

Here is the call graph for this function:

void bbtk::WxGUIConsole::OnClose ( wxCloseEvent &  event  )

Definition at line 204 of file bbtkWxGUIConsole.cxx.

References bbtkDebugMessage.

00205   {
00206     bbtkDebugMessage("widget",9,"bbi::OnClose()"<<std::endl);
00207     //Wx::SetWindowsHaveBeenDestroyedByParent();
00208     //mInterpreter.reset();
00209     wxWindowList& list = GetChildren();
00210     wxWindowList::iterator iter;
00211     for (iter = list.begin(); iter != list.end(); ++iter)
00212       {
00213         (*iter)->Close();
00214       }
00215     this->Destroy();
00216   }

void bbtk::WxGUIConsole::OnMenuAbout ( wxCommandEvent &  event  )

void bbtk::WxGUIConsole::OnMenuCreateBlackBox ( wxCommandEvent &  WXUNUSEDevent  )

Definition at line 343 of file bbtkWxGUIConsole.cxx.

References bbtkMessage, and bbtk::InterpreterVirtual::New().

00344   {
00345     std::string command("toolsbbtk/appli/GUICreateBlackBox");
00346     bbtkMessage("Debug",1,"Executing : '"<<command<<"'"<<std::endl);
00347     Interpreter::Pointer I = Interpreter::New();
00348     I->InterpretFile(command);
00349   }

Here is the call graph for this function:

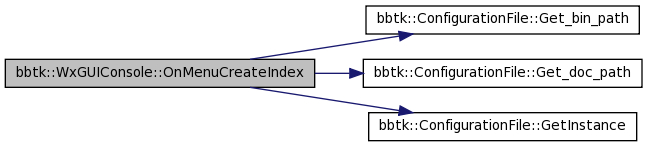

void bbtk::WxGUIConsole::OnMenuCreateIndex ( wxCommandEvent &  WXUNUSEDevent  )

Definition at line 393 of file bbtkWxGUIConsole.cxx.

References bbtk::ConfigurationFile::Get_bin_path(), bbtk::ConfigurationFile::Get_doc_path(), and bbtk::ConfigurationFile::GetInstance().

00394   {
00395 /*
00396     std::string doc_path = ConfigurationFile::GetInstance().Get_doc_path();
00397     std::string filepath = doc_path+"/bbdoc/make-index.bbs";
00398     Interpreter* I = new Interpreter;
00399     I->InterpretLine( "exec freeze");
00400     I->InterpretLine( "include *");
00401     I->InterpretLine( "help packages");
00402     I->InterpretLine( "index "+doc_path+"/bbdoc/index-alpha.html Initials");
00403     I->InterpretLine( "index "+doc_path+"/bbdoc/index-package.html Packages");
00404     I->InterpretLine( "index "+doc_path+"/bbdoc/index-category.html Categories");
00405     I->InterpretLine( "index "+doc_path+"/bbdoc/index-adaptors.html Adaptors");
00406     delete I;
00407 */
00408
00409         std::string bin_path            = ConfigurationFile::GetInstance().Get_bin_path();
00410         std::string doc_path            = ConfigurationFile::GetInstance().Get_doc_path();
00411         std::string bbdoc_path          = doc_path+"/bbdoc";
00412     std::string make_index_path = "\"" + bbdoc_path+"/make-index.bbs\"";
00413
00414         std::string strcommand0         = "cd "+bbdoc_path+" && mkdir tmp && cd tmp";
00415
00416         std::string strcommand1         = "cd "+bbdoc_path+"/tmp";
00417     std::string strcommand2             = "\""+bin_path+"/bbi\" -N "+make_index_path;
00418 #ifdef WIN32
00419     std::string strcommand3             = "move index*.html ../.";
00420 #else
00421     std::string strcommand3             = "mv index*.html ../.";
00422 #endif
00423
00424         std::string strcommand          =       strcommand1 +" && "+
00425                                                                         strcommand2 +" && "+
00426                                                                         strcommand3;
00427
00428         std::cout << "system: " << strcommand0 << std::endl;
00429         std::cout << "system: " << strcommand << std::endl;
00430
00431         system ( strcommand0.c_str() );
00432         system ( strcommand.c_str() );
00433   }

Here is the call graph for this function:

void bbtk::WxGUIConsole::OnMenuCreatePackage ( wxCommandEvent &  WXUNUSEDevent  )

Definition at line 331 of file bbtkWxGUIConsole.cxx.

References bbtkMessage, and bbtk::InterpreterVirtual::New().

00332   {
00333     std::string command("toolsbbtk/appli/GUICreatePackage");
00334
00335     bbtkMessage("Debug",1,"Executing : '"<<command<<"'"<<std::endl);
00336     Interpreter::Pointer I = Interpreter::New();
00337     I->InterpretFile(command);
00338   }

Here is the call graph for this function:

void bbtk::WxGUIConsole::OnMenuEditConfig ( wxCommandEvent &  WXUNUSEDevent  )

Definition at line 314 of file bbtkWxGUIConsole.cxx.

References bbtk::ConfigurationFile::Get_config_xml_full_path(), and bbtk::ConfigurationFile::GetInstance().

00315   {
00316         std::string commandStr;
00317     std::string configFile = ConfigurationFile::GetInstance().Get_config_xml_full_path();
00318 #ifdef WIN32
00319         commandStr = "notepad.exe ";
00320 #else
00321         commandStr = "gedit ";
00322 #endif
00323         commandStr = commandStr + configFile;
00324         std::cout << "system: " << commandStr << std::endl;
00325         system ( commandStr.c_str() );
00326   }

Here is the call graph for this function:

void bbtk::WxGUIConsole::OnMenuQuit ( wxCommandEvent &  event  )

void bbtk::WxGUIConsole::OnMenuShowHTMLDoc ( wxCommandEvent &  WXUNUSEDevent  )

Definition at line 372 of file bbtkWxGUIConsole.cxx.

References bbtk::ConfigurationFile::Get_doc_path(), and bbtk::ConfigurationFile::GetInstance().

00373   {
00374         std::string doc_path            = ConfigurationFile::GetInstance().Get_doc_path();
00375
00376 #if defined(WIN32)
00377     std::string strappli="start ";
00378 #else
00379     std::string strappli="gnome-open ";
00380 #endif
00381     std::string strcommand0 = "cd \"" + doc_path+"\"";
00382     std::string strcommand1 = strappli + "index.html";
00383     std::string strcommand = strcommand0 + " && " + strcommand1;
00384         std::cout << "system: " << strcommand << std::endl;
00385     system ( strcommand.c_str() );
00386
00387   }

Here is the call graph for this function:

void bbtk::WxGUIConsole::OnMenuShowImageGraph ( wxCommandEvent &  WXUNUSEDevent  )

Definition at line 353 of file bbtkWxGUIConsole.cxx.

References bbtk::ConfigurationFile::Get_default_temp_dir(), and bbtk::ConfigurationFile::GetInstance().

00354   {
00355     std::string default_temp_dir = ConfigurationFile::GetInstance().Get_default_temp_dir();
00356
00357 #if defined(WIN32)
00358     std::string strappli="start ";
00359 #else
00360     std::string strappli="gnome-open ";
00361 #endif
00362     std::string strcommand0 = "cd \"" + default_temp_dir+"/temp_dir/" +"\"";
00363     std::string strcommand1 = strappli + "workspace_workspacePrototype.png";
00364     std::string strcommand = strcommand0 + " && " + strcommand1;
00365         std::cout << "system: " << strcommand << std::endl;
00366     system ( strcommand.c_str() );
00367
00368   }

Here is the call graph for this function:

void bbtk::WxGUIConsole::OnWxSignal (  )

Definition at line 220 of file bbtkWxGUIConsole.cxx.

References bbtkDebugMessage, and bbtk::Wx::IsSomeWindowAlive().

Referenced by WxGUIConsole().

00221   {
00222     if ((!bbtk::Wx::IsSomeWindowAlive())&&(!IsShown()))
00223       {
00224         bbtkDebugMessage("wx",2,"  --> bbtk top window destroyed and WxGUIConsole not shown => destructing"<<std::endl);
00225         /*
00226         wxWindowList& list = GetChildren();
00227         wxWindowList::iterator iter;
00228         for (iter = list.begin(); iter != list.end(); ++iter)
00229           {
00230             (*iter)->Close();
00231           }
00232         */
00233         Close();
00234       }
00235   }

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::WxGUIConsole::SetDialogMode ( Interpreter::DialogModeType  t  )  [inline]

Definition at line 94 of file bbtkWxGUIConsole.h.

Referenced by wxBBIApp::OnInit().

00095     { mInterpreter->SetDialogMode(t); }

Here is the caller graph for this function:

void bbtk::WxGUIConsole::SetInputs ( const std::map< std::string, std::string > &  m  )  [inline]

Sets the inputs of the workspace : the map is passed as is to the Executer

Definition at line 87 of file bbtkWxGUIConsole.h.

Referenced by wxBBIApp::OnInit().

00088     { mInterpreter->SetInputs(m); }

Here is the caller graph for this function:

void bbtk::WxGUIConsole::SetNoExecMode ( bool  b  )  [inline]

Puts the executer in "no exec" mode, which creates but does not execute pipelines.

Definition at line 92 of file bbtkWxGUIConsole.h.

Referenced by wxBBIApp::OnInit().

00092 { mInterpreter->SetNoExecMode(b); }

Here is the caller graph for this function:

bool bbtk::WxGUIConsole::Show ( bool  show = true  )  [virtual]

Definition at line 457 of file bbtkWxGUIConsole.cxx.

Referenced by wxBBIApp::OnInit().

00458   {
00459     //    bbtk::Wx::SetAutoDestroyTopWindow(!show);
00460     return wxFrame::Show(show);
00461   }

Here is the caller graph for this function:

void bbtk::WxGUIConsole::WxGUICommandEnter ( const std::string &  command  )  [virtual]

Callback invoked when a command is entered in the WxGUICommand.

Reimplemented from bbtk::WxGUICommandUser.

Definition at line 239 of file bbtkWxGUIConsole.cxx.

References bbtk::InterpreterVirtual::Interpreter_QUIT, mInterpreter, mWxGUIOutputMessages, and bbtk::WxGUIOutputMessages::Print().

00240   {
00241     std::string s("> ");
00242     s += command + "\n";
00243     mWxGUIOutputMessages->Print(s,wxRED);
00244
00245     if (  mInterpreter->InterpretLine( command ) ==
00246           Interpreter::Interpreter_QUIT )
00247       {
00248         Close(true);
00249       }
00250   }

Here is the call graph for this function:


Member Data Documentation

wxAuiManager bbtk::WxGUIConsole::m_mgr [private]

Definition at line 129 of file bbtkWxGUIConsole.h.

Referenced by WxGUIConsole(), and ~WxGUIConsole().

Definition at line 130 of file bbtkWxGUIConsole.h.

Referenced by InterpretFile(), WxGUICommandEnter(), and WxGUIConsole().

wxButton* bbtk::WxGUIConsole::mwxButtonRun [private]

Definition at line 141 of file bbtkWxGUIConsole.h.

Referenced by WxGUIConsole().

Definition at line 137 of file bbtkWxGUIConsole.h.

Referenced by WxGUIConsole().

Definition at line 139 of file bbtkWxGUIConsole.h.

Referenced by InterpreterUserViewHtmlPage(), OnButtonRun(), and WxGUIConsole().

Definition at line 138 of file bbtkWxGUIConsole.h.

Referenced by WxGUICommandEnter(), and WxGUIConsole().

wxAuiNotebook* bbtk::WxGUIConsole::mwxNotebook [private]

Definition at line 134 of file bbtkWxGUIConsole.h.

Referenced by InterpreterUserViewHtmlPage(), and WxGUIConsole().

Definition at line 135 of file bbtkWxGUIConsole.h.

Referenced by WxGUIConsole().

wxPanel * bbtk::WxGUIConsole::mwxPageHelp [private]

Definition at line 135 of file bbtkWxGUIConsole.h.

Referenced by WxGUIConsole().


The documentation for this class was generated from the following files:

Generated on Thu May 31 14:15:20 2012 for BBTK by  doxygen 1.5.7.1
