bbtk::WxGUIScriptingInterface Class Reference

A scripting interface window. More...

#include <bbtkWxGUIScriptingInterface.h>

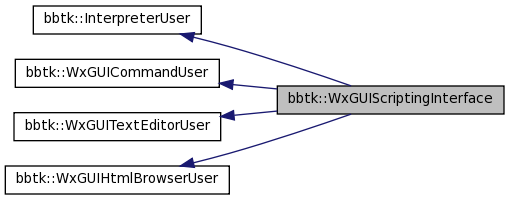

Inheritance diagram for bbtk::WxGUIScriptingInterface:

[legend]

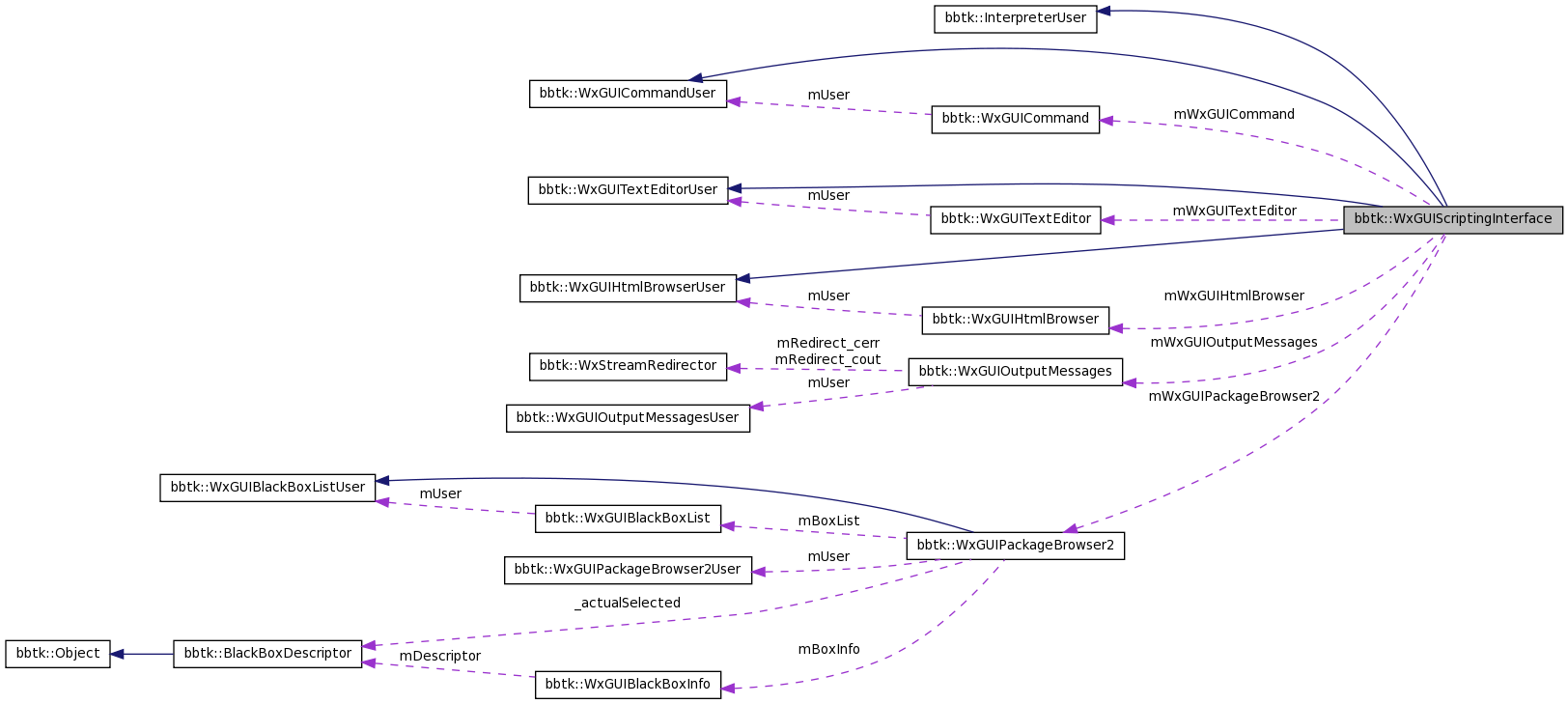

Collaboration diagram for bbtk::WxGUIScriptingInterface:

[legend]

List of all members.

Public Member Functions
	WxGUIScriptingInterface (wxWindow *parent)
	~WxGUIScriptingInterface ()
Interpreter::Pointer	GetInterpreter () const
void	SetInputs (const std::map< std::string, std::string > &m)
void	SetNoExecMode (bool b)
void	SetDialogMode (Interpreter::DialogModeType t)
bool	InterpretFile (const std::string &filename)
	Runs the interpretation of a file.
void	Open (const std::string &filename)
void	OnMenuQuit (wxCommandEvent &event)
void	OnMenuAbout (wxCommandEvent &event)
void	OnMenuEditConfig (wxCommandEvent &WXUNUSED(event))
void	OnMenuCreatePackage (wxCommandEvent &WXUNUSED(event))
void	OnMenuCreateBlackBox (wxCommandEvent &WXUNUSED(event))
void	OnMenuShowImageGraph (wxCommandEvent &WXUNUSED(event))
void	OnMenuRegeneratePackageDoc (wxCommandEvent &WXUNUSED(event))
void	OnMenuRegenerateBoxesLists (wxCommandEvent &WXUNUSED(event))
void	OnMenuRegenerateAll (wxCommandEvent &WXUNUSED(event))
void	OnMenuPlugPackage (wxCommandEvent &WXUNUSED(event))
void	OnMenuWindowsFiles (wxCommandEvent &event)
void	OnMenuWindowsHelp (wxCommandEvent &event)
void	OnMenuWindowsPackageBrowser (wxCommandEvent &event)
void	OnMenuWindowsMessages (wxCommandEvent &event)
void	OnMenuWindowsCommand (wxCommandEvent &event)
void	OnMenuWindowsSave (wxCommandEvent &WXUNUSED(event))
void	OnMenuWindowsCheck (wxCommandEvent &event, wxWindow *w)
void	OnPaneClose (wxAuiManagerEvent &evt)
void	SavePerspective ()
void	LoadPerspective ()
bool	InterpreterUserHasOwnHtmlPageViewer ()
void	InterpreterUserViewHtmlPage (const std::string &)
void	WxGUICommandEnter (const std::string &)
	Callback invoked when a command is entered in the WxGUICommand.
void	WxGUITextEditorRun ()
	Callback invoked when the 'run' button is pressed.
void	WxGUITextEditorRunBBI ()
void	WxGUITextEditorGraphSimple ()
void	WxGUITextEditorGraphDetail ()
bool	WxGUIHtmlBrowserUserOnLinkClicked (const std::string &target)
void	DoRegeneratePackageDoc (const std::string &pack)
void	DoRegenerateBoxesLists ()
void	OnClose (wxCloseEvent &event)
Private Attributes
wxAuiManager	m_mgr
Interpreter::Pointer	mInterpreter
wxAuiNotebook *	mwxNotebook
WxGUICommand *	mWxGUICommand
WxGUIOutputMessages *	mWxGUIOutputMessages
WxGUIHtmlBrowser *	mWxGUIHtmlBrowser
WxGUITextEditor *	mWxGUITextEditor
WxGUIPackageBrowser2 *	mWxGUIPackageBrowser2
wxMenuItem *	mwxMenuItemReset
bool	mBreaked

---

Detailed Description

A scripting interface window.

Definition at line 72 of file bbtkWxGUIScriptingInterface.h.

---

Constructor & Destructor Documentation

bbtk::WxGUIScriptingInterface::WxGUIScriptingInterface

(

wxWindow *

parent

)

Definition at line 89 of file bbtkWxGUIScriptingInterface.cxx.

References _T, DoRegenerateBoxesLists(), DoRegeneratePackageDoc(), bbtk::ConfigurationFile::DotBbtkIsNew(), bbtk::ConfigurationFile::Get_data_path(), bbtk::ConfigurationFile::GetInstance(), bbtk::WxGUIHtmlBrowser::GoHome(), bbtk::ID_Menu_About, bbtk::ID_Menu_CreateBlackBox, bbtk::ID_Menu_CreatePackage, bbtk::ID_Menu_EditConfig, bbtk::ID_Menu_PlugPackage, bbtk::ID_Menu_Quit, bbtk::ID_Menu_RegenerateAll, bbtk::ID_Menu_RegenerateBoxesLists, bbtk::ID_Menu_RegeneratePackageDoc, bbtk::ID_Menu_ShowImageGraph, bbtk::ID_Menu_Windows_Command, bbtk::ID_Menu_Windows_Files, bbtk::ID_Menu_Windows_Help, bbtk::ID_Menu_Windows_Messages, bbtk::ID_Menu_Windows_PackageBrowser, LoadPerspective(), m_mgr, mBreaked, mInterpreter, mWxGUICommand, mWxGUIHtmlBrowser, mWxGUIOutputMessages, mWxGUITextEditor, mwxMenuItemReset, mwxNotebook, bbtk::InterpreterVirtual::New(), bbtk::WxGUITextEditor::SetFileNameFilter(), bbtk::Wx::SetTopWindow(), and bbtk::std2wx().

    : wxFrame((wxFrame *)parent, -1, _T("bbStudio"),
              wxDefaultPosition, wxSize(1200,800) )
  {
    m_mgr.SetManagedWindow(this);

    mInterpreter = bbtk::Interpreter::New();
    mInterpreter->SetUser(this);
        mInterpreter->SetCommandLine(true);
    mInterpreter->SetThrow(true);
    //    mInterpreter->AddBreakObserver
    //boost::bind( &WxGUIScriptingInterface::InterpreterUserOnBreak, this ));
    //==============
    // Menu
    wxInitAllImageHandlers();

    wxMenu *menuFile = new wxMenu;
    menuFile->Append( ID_Menu_EditConfig, _T("Open bbtk &Config file") );
    menuFile->Append( ID_Menu_Quit, _T("&Quit") );

    wxMenu *menuAbout = new wxMenu;
    menuAbout->Append( ID_Menu_About, _T("&About...") );

    wxMenu *menuTools = new wxMenu;
    menuTools->Append( ID_Menu_CreatePackage,  _T("Create &package") );
    menuTools->Append( ID_Menu_CreateBlackBox, _T("Create &black box") );
    menuTools->Append( ID_Menu_PlugPackage,    _T("&Plug package") );
    menuTools->AppendSeparator();
    menuTools->Append( ID_Menu_RegeneratePackageDoc,_T("Regenerate package &doc") );
    menuTools->Append( ID_Menu_RegenerateBoxesLists,_T("Regenerate boxes &lists") );
    menuTools->Append( ID_Menu_RegenerateAll,       _T("Regenerate &all") );
    menuTools->AppendSeparator();
    menuTools->Append( ID_Menu_ShowImageGraph, _T("&Show last graph") );

    wxMenu *menuWindows = new wxMenu;
    menuWindows->AppendCheckItem(ID_Menu_Windows_Files,
                                 _T("Show 'files' panel") )->Check();
    menuWindows->AppendCheckItem(ID_Menu_Windows_Help,
                                 _T("Show 'help' panel") )->Check();
    menuWindows->AppendCheckItem(ID_Menu_Windows_Messages,
                                 _T("Show 'messages' panel") )->Check();
    menuWindows->AppendCheckItem(ID_Menu_Windows_Command,
                                 _T("Show 'command' panel") )->Check();
    menuWindows->AppendSeparator();
    menuWindows->Append( ID_Menu_Windows_PackageBrowser, _T("Start Package &Browser") );

    //    menuWindows->AppendSeparator();
    //    menuWindows->Append ( ID_Menu_Windows_Save, _T("Save interface configuration"));

    wxMenu *menuOptions = new wxMenu;
    mwxMenuItemReset = menuOptions->AppendCheckItem(-1,
                                                    _T("Reset before running") );
    mwxMenuItemReset->Check();

    wxMenuBar *menuBar = new wxMenuBar;
    menuBar->Append( menuFile, _T("&File") );
    menuBar->Append( menuTools, _T("&Tools") );
    menuBar->Append( menuOptions, _T("&Options") );
    menuBar->Append( menuWindows, _T("&Windows") );
    menuBar->Append( menuAbout, _T("About") );

    SetMenuBar( menuBar );

    //===
    // Status bar
    CreateStatusBar();
    SetStatusText( _T("Welcome to bbStudio !") );

    //===
    // Panes (Files, Messages, Help, Command)
    mWxGUITextEditor = new WxGUITextEditor(this,this);
    mWxGUITextEditor->SetFileNameFilter("*.bbs");

    mWxGUIHtmlBrowser = new WxGUIHtmlBrowser(this,wxSize(200,0),this);

    mWxGUIOutputMessages = new WxGUIOutputMessages(this);

    mWxGUICommand = new WxGUICommand(this,this);

    mWxGUICommand->SetFocus();


#if NOTEBOOK

    mwxNotebook = new wxAuiNotebook(this,
                                    -1,
                                    wxPoint(0, 0),
                                    wxSize(500,500),
                                    wxAUI_NB_TAB_SPLIT
                                    | wxAUI_NB_TAB_MOVE
                                    | wxAUI_NB_TAB_EXTERNAL_MOVE
                                    //| wxAUI_NB_WINDOWLIST_BUTTON
                                    //|wxAUI_NB_SCROLL_BUTTONS
                                    // | wxAUI_NB_CLOSE_BUTTON
                                    //| wxAUI_NB_CLOSE_ON_ACTIVE_TAB
                                    //| wxAUI_NB_CLOSE_ON_ALL_TABS
                                    | wxNO_BORDER);


    mwxNotebook->AddPage(mWxGUITextEditor,_T("Files"),true);
    mwxNotebook->AddPage(mWxGUIHtmlBrowser,_T("Help"),true);

    mwxNotebook->AddPage(mWxGUIOutputMessages,_T("Messages"),true);

    mwxNotebook->AddPage(mWxGUICommand,_T("Command"),true);


    m_mgr.AddPane(mwxNotebook,
                  wxAuiPaneInfo().Name(wxT("nb"))
                  .CaptionVisible(false)
                  .MinimizeButton(false)
                  .MaximizeButton(false)
                  .Center()
                  //              .MinSize(wxSize(100,100))
                  );
#else

    //
    m_mgr.AddPane(mWxGUITextEditor,
                  wxAuiPaneInfo().Name(wxT("editor_content"))
                  .Caption(wxT("Files"))
                  .MinimizeButton(true)
                  .MaximizeButton(true)
                  .Center()
                  .MinSize(wxSize(100,100))
                  );

    m_mgr.AddPane(mWxGUIHtmlBrowser,
                  wxAuiPaneInfo().Name(wxT("browser_content"))
                  .Caption(wxT("Help"))
                  .MinimizeButton(true)
                  .MaximizeButton(true)
                  .Right()
                  .Layer(2)
                  .MinSize(wxSize(400,100))
                  );

    m_mgr.AddPane(mWxGUIOutputMessages,
                  wxAuiPaneInfo().Name(wxT("messages_content"))
                  .Caption(wxT("Messages"))
                  .MinimizeButton(true)
                  .MaximizeButton(true)
                  .Bottom()
                  .MinSize(wxSize(100,100))
                  );

    m_mgr.AddPane(mWxGUICommand,
                  wxAuiPaneInfo().Name(wxT("command_content"))
                  .Caption(wxT("Command"))
                  .MinimizeButton(true)
                  .MaximizeButton(true)
                  .Bottom()
                  .Layer(1)
                  .MinSize(wxSize(100,100))
                  );
#endif

    // parent window of all bbtk windows will be a child of this
    //    Wx::SetTopWindowParent(this);
    Wx::SetTopWindow(this);
    // Wx::SetAutoDestroyTopWindow(false);
  // Add the method OnWxSignal as a Wx::Signal observer
    //bbtkAddWxSignalObserver(WxGUIPackageBrowser2Window::OnWxSignal);

    //.PaneBorder(false));
    // Load the interface appearance saved on last closing
    LoadPerspective();

    // Done in LoadPerspective
    //    m_mgr.Update();

    SetAutoLayout(true);
    Layout();
    //    mwxNotebook->SetSelection(1);
    mWxGUIHtmlBrowser->GoHome();
//    Refresh();
    m_mgr.Update();
    //   LoadPerspective();

    mBreaked = false;

    wxBitmap bitmap;
    wxSplashScreen* splash;
    long style = wxSPLASH_CENTRE_ON_SCREEN | wxSPLASH_TIMEOUT;
    if (ConfigurationFile::GetInstance().DotBbtkIsNew())
      style = wxSPLASH_CENTRE_ON_SCREEN | wxSPLASH_NO_TIMEOUT;
    std::string splash_file = ConfigurationFile::GetInstance().Get_data_path();
    splash_file += "/kernel/icons/bbStudioSplashScreen.png";

    if (bitmap.LoadFile(std2wx(splash_file),wxBITMAP_TYPE_PNG))
      splash =
        new wxSplashScreen(bitmap,
                           style,
                           1000, 0, -1, wxDefaultPosition, wxDefaultSize,
                           wxSIMPLE_BORDER|wxSTAY_ON_TOP);

    if (ConfigurationFile::GetInstance().DotBbtkIsNew())
      {

        DoRegeneratePackageDoc("-a");
        DoRegenerateBoxesLists();

        /*
        wxTipWindow* tip = new wxTipWindow(this,
                                           _T("\n                  Welcome to bbStudio !\n\n   To run a demo or example:\n     1. click on the 'Demos' or 'Examples' link\n     2. select a demo or example\n     3. click on the '[source]' link : the source file is loaded in bbStudio\n     4. click on the 'Run' button (the arrow at the bottom right of the source file)   \n"),1000);
        tip->CenterOnParent();
        tip->Show();
        */
        if (splash) splash->Destroy();
      }

  }

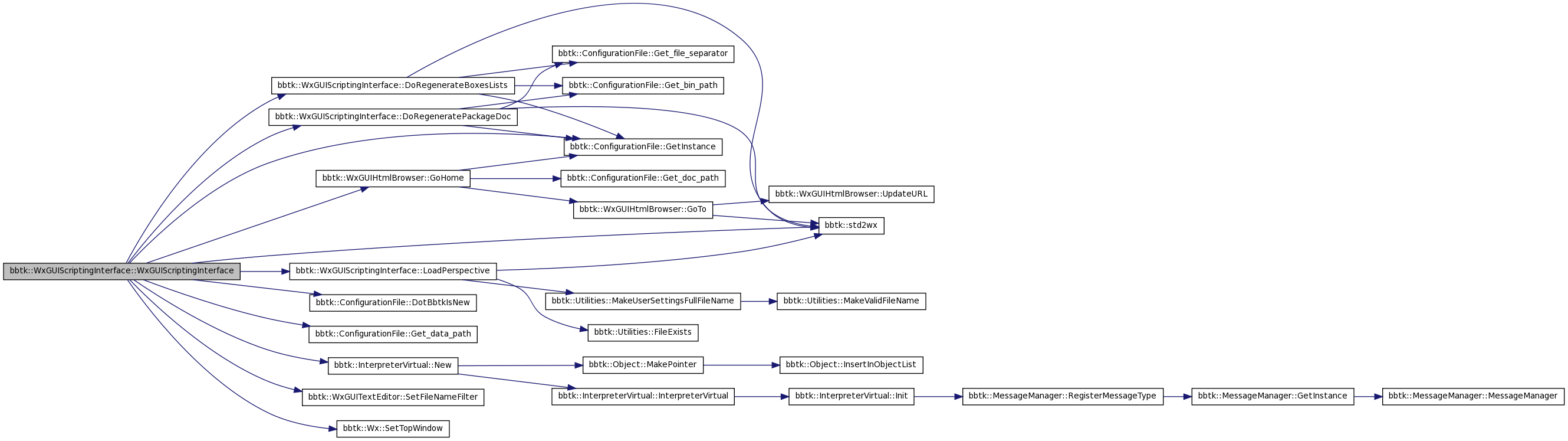

Here is the call graph for this function:

bbtk::WxGUIScriptingInterface::~WxGUIScriptingInterface

(

)

Definition at line 304 of file bbtkWxGUIScriptingInterface.cxx.

References bbtkDebugMessage, m_mgr, and SavePerspective().

  {
  bbtkDebugMessage("widget",9,"bbStudio::~bbStudio()"<<std::endl);
    SavePerspective();
    m_mgr.UnInit();
  }

Here is the call graph for this function:

---

Member Function Documentation

void bbtk::WxGUIScriptingInterface::DoRegenerateBoxesLists

(

)

Definition at line 686 of file bbtkWxGUIScriptingInterface.cxx.

References _T, BBTK_BUSY_CURSOR, bbtkMessage, bbtk::ConfigurationFile::Get_bin_path(), bbtk::ConfigurationFile::Get_file_separator(), bbtk::ConfigurationFile::GetInstance(), and bbtk::std2wx().

Referenced by OnMenuPlugPackage(), OnMenuRegenerateAll(), OnMenuRegenerateBoxesLists(), and WxGUIScriptingInterface().

  {
    SetStatusText( _T("Regenerating boxes lists ... please wait") );
    BBTK_BUSY_CURSOR ;

    std::string command;
#if defined(WIN32)
        command = "\"";
#endif
    command += ConfigurationFile::GetInstance().Get_bin_path();
    command += ConfigurationFile::GetInstance().Get_file_separator();
    command += "bbRegenerateBoxesLists";
#if defined(WIN32)
        command += "\"";
#endif
        command += " -q";
        bbtkMessage("debug",1,"Executing system command '"<<command<<"'"<<std::endl);

std::cout << "==========================================================================================================" << command.c_str() << std::endl;
    if ( ! system ( command.c_str() ) )
      {
        SetStatusText( _T("Done !"));
        /*
        wxMessageBox(_T("Done !"),_T("Regenerate boxes lists"),
                     wxOK | wxICON_INFORMATION);
        */
      }
    else
      {
        SetStatusText( _T("Done !"));
        wxString err(_T("An error occured while running '"));
        err +=  bbtk::std2wx(command) + _T("'");
        wxMessageBox(err,_T("Regenerate boxes lists"),wxOK | wxICON_ERROR);
      }
  }

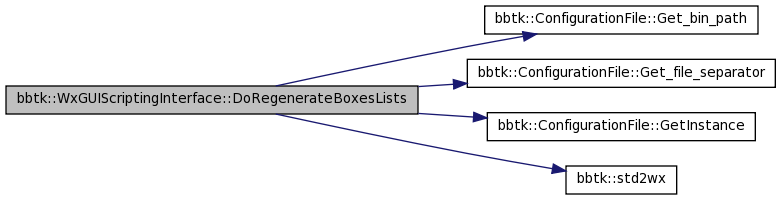

Here is the call graph for this function:

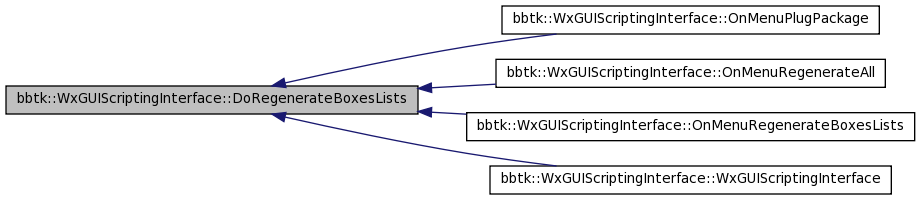

Here is the caller graph for this function:

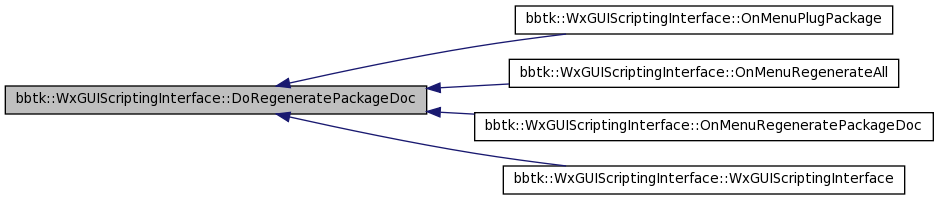

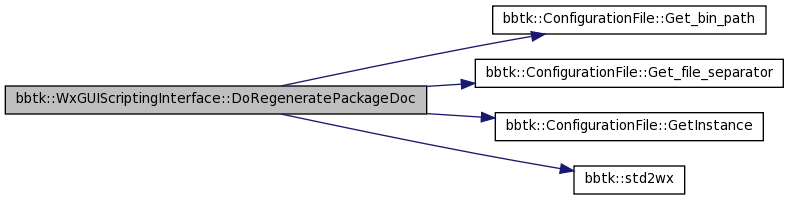

void bbtk::WxGUIScriptingInterface::DoRegeneratePackageDoc

(

const std::string &

pack

)

Definition at line 625 of file bbtkWxGUIScriptingInterface.cxx.

References _T, BBTK_BUSY_CURSOR, bbtkMessage, bbtk::ConfigurationFile::Get_bin_path(), bbtk::ConfigurationFile::Get_file_separator(), bbtk::ConfigurationFile::GetInstance(), and bbtk::std2wx().

Referenced by OnMenuPlugPackage(), OnMenuRegenerateAll(), OnMenuRegeneratePackageDoc(), and WxGUIScriptingInterface().

  {
    std::string mess("Regenerating doc for package '");
    if (pack!="-a")
      mess += pack + "'";
    else
      mess = "Regenerating doc for all packages";
    mess += " ... please wait";

    SetStatusText( std2wx(mess) );

    BBTK_BUSY_CURSOR;

    std::string command;
#if defined(WIN32)
    command = "\"";
#endif
    command += ConfigurationFile::GetInstance().Get_bin_path();
    command += ConfigurationFile::GetInstance().Get_file_separator();
    command += "bbRegeneratePackageDoc";
#if defined(WIN32)
        command += "\"";
#endif
        command += " " + pack + " -q";
    bbtkMessage("debug",1,"Executing system command '"<<command<<"'"<<std::endl);


    if ( ! system ( command.c_str() ) )
      {
        SetStatusText( _T("Done !"));
        /*
        wxMessageBox(_T("Done !"),_T("Regenerate package '")
                     +std2wx(pack)+_T("' doc"),
                     wxOK | wxICON_INFORMATION);
        */
      }
    else
      {
        SetStatusText( _T("Done !"));
        wxString err(_T("An error occured while running '"));
        err +=  bbtk::std2wx(command) + _T("'");
        wxMessageBox(err,_T("Regenerate package doc"),wxOK | wxICON_ERROR);
      }
  }

Here is the call graph for this function:

Here is the caller graph for this function:

Interpreter::Pointer bbtk::WxGUIScriptingInterface::GetInterpreter

(

)

const [inline]

Returns the Interpreter used ONLY ONE FOR THE MOMENT BUT IN THE FUTURE CAN BE DIFFERENT (DIFFERENT WORKSPACES)

Definition at line 85 of file bbtkWxGUIScriptingInterface.h.

{ return mInterpreter; }

bool bbtk::WxGUIScriptingInterface::InterpreterUserHasOwnHtmlPageViewer

(

)

[inline, virtual]

Reimplemented from bbtk::InterpreterUser.

Definition at line 131 of file bbtkWxGUIScriptingInterface.h.

{ return true; }

void bbtk::WxGUIScriptingInterface::InterpreterUserViewHtmlPage

(

const std::string &

page

)

[virtual]

Reimplemented from bbtk::InterpreterUser.

Definition at line 777 of file bbtkWxGUIScriptingInterface.cxx.

References bbtk::WxGUIHtmlBrowser::GoTo(), and mWxGUIHtmlBrowser.

  {
    std::string s(page);
    //  std::cout << "WxGUIScriptingInterface::ShowHtmlPage('"<<page<<"')"<<std::endl;
    if (mWxGUIHtmlBrowser->GoTo(s))
      {
//EED   mwxNotebook->ChangeSelection(1);
//      mwxNotebook->SetSelection(1);
      }
    else
      {
         // std::cout << "ERROR html"<<std::endl;
      }
  }

Here is the call graph for this function:

bool bbtk::WxGUIScriptingInterface::InterpretFile

(

const std::string &

filename

)

Runs the interpretation of a file.

Runs the interpretation of a file Returns false on error

Definition at line 402 of file bbtkWxGUIScriptingInterface.cxx.

References CATCH_MACRO, and mInterpreter.

  {
    try
      {
        mInterpreter->InterpretFile(filename);
      }
    CATCH_MACRO;
    return true;
  }

void bbtk::WxGUIScriptingInterface::LoadPerspective

(

)

Definition at line 928 of file bbtkWxGUIScriptingInterface.cxx.

References bbtk::Utilities::FileExists(), m_mgr, bbtk::Utilities::MakeUserSettingsFullFileName(), and bbtk::std2wx().

Referenced by WxGUIScriptingInterface().

  {
    std::string fname =
      Utilities::MakeUserSettingsFullFileName("bbStudio.aui");
    if ( Utilities::FileExists( fname ))
      {
        //      std::cout  << "Loading configuration..."<<std::endl;

        std::ifstream f;
        f.open(fname.c_str());
        std::string conf;
        f >> conf;

        //      int x,y;
        //      f >> x >> y ;

        int w,h;
        f >> w >> h ;

        f.close();

        //      std::cout << conf << std::endl;

        //      Move(x,y);
        SetSize(w,h);
        m_mgr.LoadPerspective(std2wx(conf));
      }
    else
      {
        m_mgr.Update();
      }
  }

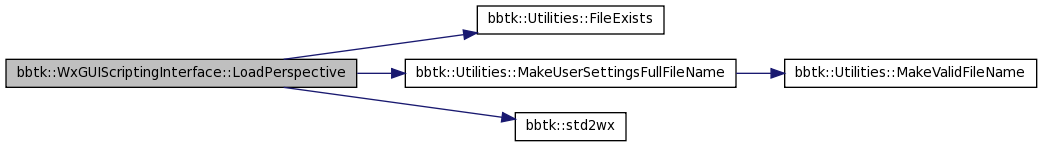

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::WxGUIScriptingInterface::OnClose

(

wxCloseEvent &

event

)

Definition at line 313 of file bbtkWxGUIScriptingInterface.cxx.

References bbtkDebugMessage.

  {
    bbtkDebugMessage("widget",9,"bbStudio::OnClose()"<<std::endl);
    //Wx::SetWindowsHaveBeenDestroyedByParent();
    //mInterpreter.reset();
    wxWindowList& list = GetChildren();
    wxWindowList::iterator iter;
    for (iter = list.begin(); iter != list.end(); ++iter)
      {
        (*iter)->Close();
      }
    this->Destroy();
  }

void bbtk::WxGUIScriptingInterface::OnMenuAbout

(

wxCommandEvent &

event

)

void bbtk::WxGUIScriptingInterface::OnMenuCreateBlackBox

(

wxCommandEvent &

WXUNUSEDevent

)

Definition at line 580 of file bbtkWxGUIScriptingInterface.cxx.

References bbtkMessage, mWxGUICommand, and bbtk::WxGUICommand::SendCommand().

  {
          /*
    std::string command("toolsbbtk/appli/GUICreateBlackBox");
    bbtkMessage("Debug",1,"Executing : '"<<command<<"'"<<std::endl);

    Interpreter::Pointer I = Interpreter::New();
    I->InterpretFile(command);
*/
    std::string command("reset");
        mWxGUICommand->SendCommand(command);
    command = "include toolsbbtk/appli/GUICreateBlackBox";
    bbtkMessage("Debug",1,"Executing : '"<<command<<"'"<<std::endl);
        mWxGUICommand->SendCommand(command);
  }

Here is the call graph for this function:

void bbtk::WxGUIScriptingInterface::OnMenuCreatePackage

(

wxCommandEvent &

WXUNUSEDevent

)

Definition at line 561 of file bbtkWxGUIScriptingInterface.cxx.

References bbtkMessage, mWxGUICommand, and bbtk::WxGUICommand::SendCommand().

  {
/*
    std::string command("toolsbbtk/appli/GUICreatePackage");
    bbtkMessage("Debug",1,"Executing : '"<<command<<"'"<<std::endl);

        Interpreter::Pointer I = Interpreter::New();
    I->InterpretFile(command);
*/
    std::string command("reset");
        mWxGUICommand->SendCommand(command);
    command = "include toolsbbtk/appli/GUICreatePackage";
    bbtkMessage("Debug",1,"Executing : '"<<command<<"'"<<std::endl);
        mWxGUICommand->SendCommand(command);
  }

Here is the call graph for this function:

void bbtk::WxGUIScriptingInterface::OnMenuEditConfig

(

wxCommandEvent &

WXUNUSEDevent

)

Definition at line 516 of file bbtkWxGUIScriptingInterface.cxx.

References _T, bbtk::ConfigurationFile::Get_config_xml_full_path(), bbtk::ConfigurationFile::GetInstance(), and Open().

  {

    std::string configFile =
      ConfigurationFile::GetInstance().Get_config_xml_full_path();
    Open(configFile);
        wxMessageDialog ww(NULL,_T("If you change the bbtk_config.xml, you have to restart this appliaction..."), _T("Alert !"), wxOK);
        ww.ShowModal();
  }

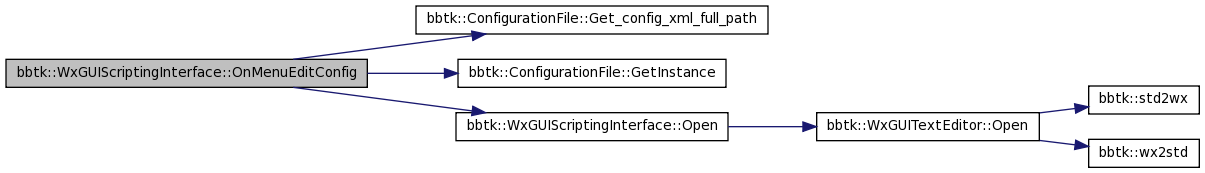

Here is the call graph for this function:

void bbtk::WxGUIScriptingInterface::OnMenuPlugPackage

(

wxCommandEvent &

WXUNUSEDevent

)

Definition at line 742 of file bbtkWxGUIScriptingInterface.cxx.

References _T, bbtk::ConfigurationFile::AddPackagePathsAndWrite(), DoRegenerateBoxesLists(), DoRegeneratePackageDoc(), bbtk::Utilities::FileExists(), bbtk::ConfigurationFile::GetInstance(), and bbtk::wx2std().

  {
    long style = wxDD_DEFAULT_STYLE | wxDD_DIR_MUST_EXIST;
    wxDirDialog* FD =
      new wxDirDialog( 0,
                       _T("Select package directory"),
                       _T(""),
                       style);

    if (FD->ShowModal()==wxID_OK)
      {
        std::string path = wx2std (FD->GetPath()) ;
        std::string fname = path + "/bbtkPackage";
        if ( ! Utilities::FileExists( fname ) )
          {
            wxString err(_T("The directory does not contain a 'bbtkPackage' file"));
            wxMessageBox(err,_T("Plug package"),wxOK | wxICON_ERROR);
            return;
          }

        std::ifstream f;
        f.open(fname.c_str());
        std::string pname;
        f >> pname;
        f.close();

        bbtk::ConfigurationFile::GetInstance().AddPackagePathsAndWrite( path );

        DoRegeneratePackageDoc(pname);
        DoRegenerateBoxesLists();
      }
  }

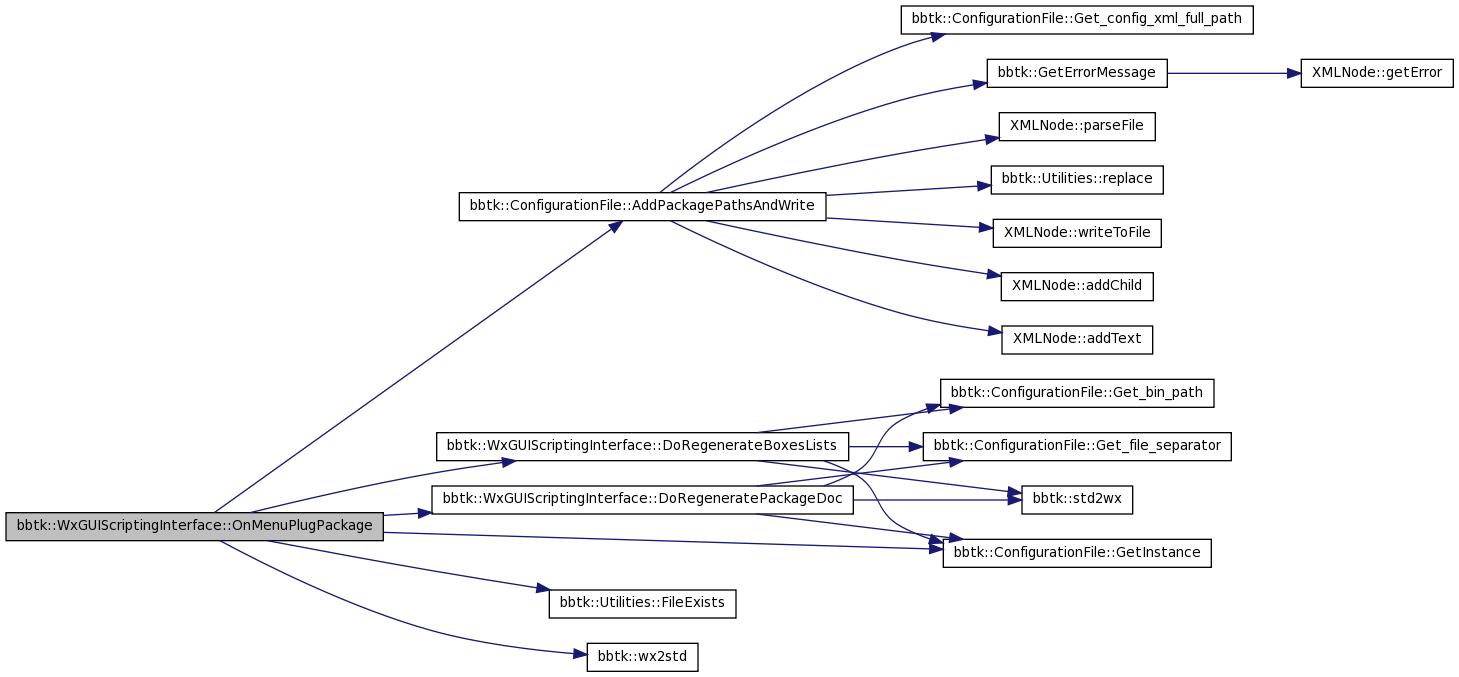

Here is the call graph for this function:

void bbtk::WxGUIScriptingInterface::OnMenuQuit

(

wxCommandEvent &

event

)

void bbtk::WxGUIScriptingInterface::OnMenuRegenerateAll

(

wxCommandEvent &

WXUNUSEDevent

)

Definition at line 732 of file bbtkWxGUIScriptingInterface.cxx.

References DoRegenerateBoxesLists(), and DoRegeneratePackageDoc().

  {

    DoRegeneratePackageDoc("-a");
        DoRegenerateBoxesLists();
  }

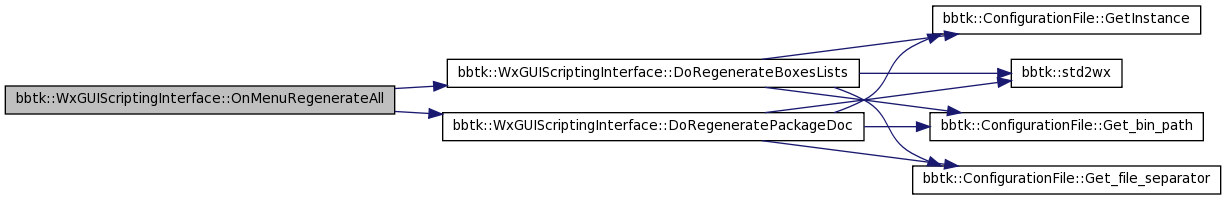

Here is the call graph for this function:

void bbtk::WxGUIScriptingInterface::OnMenuRegenerateBoxesLists

(

wxCommandEvent &

WXUNUSEDevent

)

Definition at line 725 of file bbtkWxGUIScriptingInterface.cxx.

References DoRegenerateBoxesLists().

  {
        DoRegenerateBoxesLists();
  }

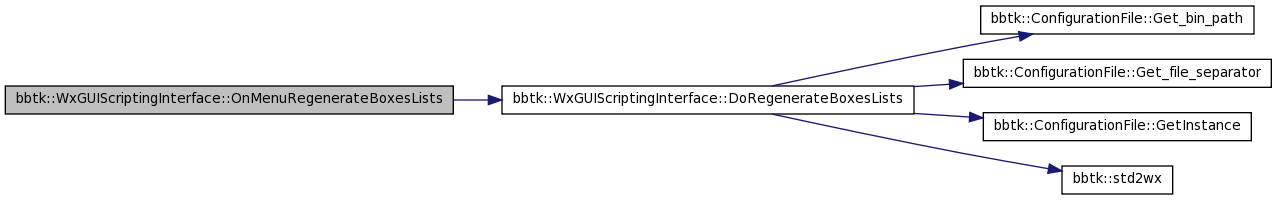

Here is the call graph for this function:

void bbtk::WxGUIScriptingInterface::OnMenuRegeneratePackageDoc

(

wxCommandEvent &

WXUNUSEDevent

)

Definition at line 672 of file bbtkWxGUIScriptingInterface.cxx.

References _T, DoRegeneratePackageDoc(), and bbtk::wx2std().

  {
    wxString name = wxGetTextFromUser(_T("Enter package name (-a for all)"),
                                      _T("Regenerate package doc"),
                                      _T(""));
    if (name.IsEmpty()) return;
    std::string pack = bbtk::wx2std(name);

        DoRegeneratePackageDoc(pack);
  }

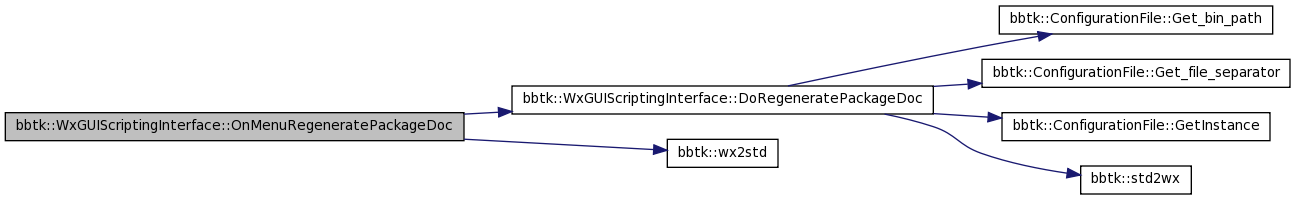

Here is the call graph for this function:

void bbtk::WxGUIScriptingInterface::OnMenuShowImageGraph

(

wxCommandEvent &

WXUNUSEDevent

)

Definition at line 598 of file bbtkWxGUIScriptingInterface.cxx.

References bbtk::ConfigurationFile::Get_doc_path(), bbtk::ConfigurationFile::Get_file_separator(), and bbtk::ConfigurationFile::GetInstance().

  {

      std::string doc_path = bbtk::ConfigurationFile::GetInstance().Get_doc_path();
      doc_path += bbtk::ConfigurationFile::GetInstance().Get_file_separator();
      doc_path += "bbdoc";
      doc_path += bbtk::ConfigurationFile::GetInstance().Get_file_separator();

          std::string pack_name("User");
          std::string pack_path = doc_path + pack_name;

#if defined(WIN32)
    std::string strappli="start ";
#else
  #if defined(MACOSX)
      std::string strappli="open ";
  #else
      std::string strappli="gnome-open ";
  #endif
#endif
          std::string strcommand = strappli +pack_path+"/workspace_workspacePrototype.png";
    //  std::cout << "system: " << strcommand << std::endl;
    system ( strcommand.c_str() );

  }

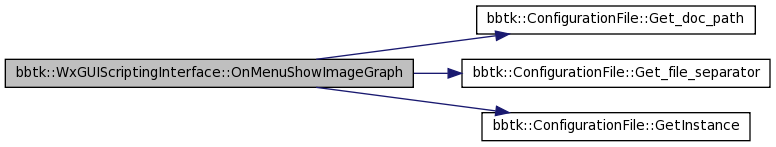

Here is the call graph for this function:

void bbtk::WxGUIScriptingInterface::OnMenuWindowsCheck	(	wxCommandEvent &	event,
		wxWindow *	w
	)

Definition at line 855 of file bbtkWxGUIScriptingInterface.cxx.

References m_mgr.

Referenced by OnMenuWindowsCommand(), OnMenuWindowsFiles(), OnMenuWindowsHelp(), and OnMenuWindowsMessages().

  {
    bool checked = event.IsChecked();
    bool shown = m_mgr.GetPane(w).IsShown();
    //    std::cout << "checked = "<<checked<<" - shown = "<<shown<<std::endl;
    if (checked ^ shown)
      {
        m_mgr.GetPane(w).Show(checked);
        m_mgr.Update();
      }
  }

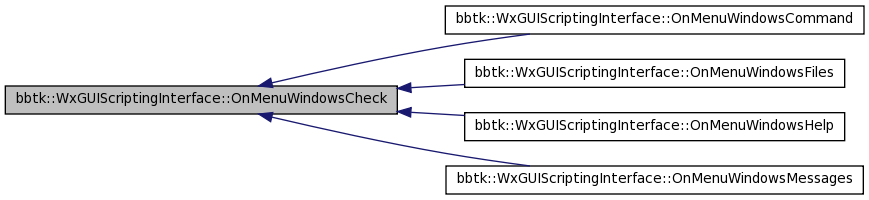

Here is the caller graph for this function:

void bbtk::WxGUIScriptingInterface::OnMenuWindowsCommand

(

wxCommandEvent &

event

)

Definition at line 890 of file bbtkWxGUIScriptingInterface.cxx.

References mWxGUICommand, and OnMenuWindowsCheck().

  {
    OnMenuWindowsCheck(event,mWxGUICommand);
  }

Here is the call graph for this function:

void bbtk::WxGUIScriptingInterface::OnMenuWindowsFiles

(

wxCommandEvent &

event

)

Definition at line 869 of file bbtkWxGUIScriptingInterface.cxx.

References mWxGUITextEditor, and OnMenuWindowsCheck().

  {
    OnMenuWindowsCheck(event,mWxGUITextEditor);
  }

Here is the call graph for this function:

void bbtk::WxGUIScriptingInterface::OnMenuWindowsHelp

(

wxCommandEvent &

event

)

Definition at line 876 of file bbtkWxGUIScriptingInterface.cxx.

References mWxGUIHtmlBrowser, and OnMenuWindowsCheck().

  {
    OnMenuWindowsCheck(event,mWxGUIHtmlBrowser);
  }

Here is the call graph for this function:

void bbtk::WxGUIScriptingInterface::OnMenuWindowsMessages

(

wxCommandEvent &

event

)

Definition at line 883 of file bbtkWxGUIScriptingInterface.cxx.

References mWxGUIOutputMessages, and OnMenuWindowsCheck().

  {
    OnMenuWindowsCheck(event,mWxGUIOutputMessages);
  }

Here is the call graph for this function:

void bbtk::WxGUIScriptingInterface::OnMenuWindowsPackageBrowser

(

wxCommandEvent &

event

)

void bbtk::WxGUIScriptingInterface::OnMenuWindowsSave

(

wxCommandEvent &

WXUNUSEDevent

)

Definition at line 897 of file bbtkWxGUIScriptingInterface.cxx.

References SavePerspective().

  {
    SavePerspective();
  }

Here is the call graph for this function:

void bbtk::WxGUIScriptingInterface::OnPaneClose

(

wxAuiManagerEvent &

evt

)

Definition at line 963 of file bbtkWxGUIScriptingInterface.cxx.

  {
    std::cout  << "Closing panel '"<<evt.pane->name<<"'"<<std::endl;
    // TO DO : Uncheck
    //    OnMenuWindowsCheck( wxCommandEvent& event, wxWindow* w);
  }

void bbtk::WxGUIScriptingInterface::Open

(

const std::string &

filename

)

Definition at line 330 of file bbtkWxGUIScriptingInterface.cxx.

References mWxGUITextEditor, and bbtk::WxGUITextEditor::Open().

Referenced by OnMenuEditConfig().

  {
    mWxGUITextEditor->Open(filename);
  }

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::WxGUIScriptingInterface::SavePerspective

(

)

Definition at line 904 of file bbtkWxGUIScriptingInterface.cxx.

References m_mgr, bbtk::Utilities::MakeUserSettingsFullFileName(), and bbtk::wx2std().

Referenced by OnMenuWindowsSave(), and ~WxGUIScriptingInterface().

  {
    //    std::cout  << "Saving configuration..."<<std::endl;
    std::string conf = wx2std(m_mgr.SavePerspective());
    std::string fname = Utilities::MakeUserSettingsFullFileName("bbStudio.aui");
    std::ofstream f;
    f.open(fname.c_str(), std::ios::out );
    f << conf << std::endl;

    //    int x,y;
    //    GetPosition(&x,&y);
    //    f << x << "  " << y << std::endl;


    int w,h;
    GetSize(&w,&h);

    f << w << " " << h << std::endl;

    f.close();
  }

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::WxGUIScriptingInterface::SetDialogMode

(

Interpreter::DialogModeType

t

)

[inline]

Definition at line 96 of file bbtkWxGUIScriptingInterface.h.

    { mInterpreter->SetDialogMode(t); }

void bbtk::WxGUIScriptingInterface::SetInputs

(

const std::map< std::string, std::string > &

m

)

[inline]

Sets the inputs of the workspace : the map is passed as is to the Executer

Definition at line 89 of file bbtkWxGUIScriptingInterface.h.

    { mInterpreter->SetInputs(m); }

void bbtk::WxGUIScriptingInterface::SetNoExecMode

(

bool

b

)

[inline]

Puts the executer in "no exec" mode, which creates but does not execute pipelines.

Definition at line 94 of file bbtkWxGUIScriptingInterface.h.

{ mInterpreter->SetNoExecMode(b); }

void bbtk::WxGUIScriptingInterface::WxGUICommandEnter

(

const std::string &

command

)

[virtual]

Callback invoked when a command is entered in the WxGUICommand.

Reimplemented from bbtk::WxGUICommandUser.

Definition at line 386 of file bbtkWxGUIScriptingInterface.cxx.

References CATCH_MACRO, mInterpreter, mWxGUIOutputMessages, and bbtk::WxGUIOutputMessages::Print().

Referenced by WxGUITextEditorGraphDetail(), WxGUITextEditorGraphSimple(), and WxGUITextEditorRun().

  {
    std::string s("> ");
    s += command + "\n";
    mWxGUIOutputMessages->Print(s,wxRED);

    try
      {
        mInterpreter->InterpretLine( command );
      }
    CATCH_MACRO;
  }

Here is the call graph for this function:

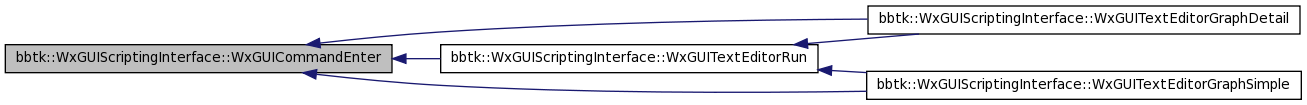

Here is the caller graph for this function:

bool bbtk::WxGUIScriptingInterface::WxGUIHtmlBrowserUserOnLinkClicked

(

const std::string &

target

)

[virtual]

Reimplemented from bbtk::WxGUIHtmlBrowserUser.

Definition at line 804 of file bbtkWxGUIScriptingInterface.cxx.

References mWxGUITextEditor, mwxNotebook, and bbtk::WxGUITextEditor::Open().

  {
    size_t s = target.length();
    if ((s>3) && (target[s-1]=='s')
              && (target[s-2]=='b')
              && (target[s-3]=='b')
              && (target[s-4]=='.'))
        {
                        mWxGUITextEditor->Open(target);
                        #if NOTEBOOK
                                mwxNotebook->SetSelection(0);
                        #endif
                        mWxGUITextEditor->SetFocus();
                        return false;
        }

        if ((s>3) && (target[s-1]=='f')
                  && (target[s-2]=='d')
                  && (target[s-3]=='p')
                  && (target[s-4]=='.'))
        {

                // Open pdf in linux
                  // gnome-open target

                // Open pdf in macOS

                // Open pdf in windows
                        int size=target.size();
                        int pos=target.rfind("\\");
                        std::string commandStart("start ");
                        std::string commandPath("/D \""+target.substr(0,pos) +"\"");
                        std::string commandPDF( target.substr(pos+1,size-pos+1) );

                        printf("EED WxGUIScriptingInterface::WxGUIHtmlBrowserUserOnLinkClicked cc %s \n",commandPath.c_str() );
                        // cleanning path
                        while (commandPath.rfind("\\\\")!=-1 )
                        {
                                commandPath.erase( commandPath.rfind("\\\\") , 1 );
                        printf("EED WxGUIScriptingInterface::WxGUIHtmlBrowserUserOnLinkClicked cc %s \n",commandPath.c_str() );
                        }

                        std::string command = commandStart+commandPath+" "+commandPDF;
                        printf("EED WxGUIScriptingInterface::WxGUIHtmlBrowserUserOnLinkClicked BB %s \n",command.c_str() );
                        system( command.c_str() );
                        return false;
     }
    return true;
  }

Here is the call graph for this function:

void bbtk::WxGUIScriptingInterface::WxGUITextEditorGraphDetail

(

)

[virtual]

Reimplemented from bbtk::WxGUITextEditorUser.

Definition at line 425 of file bbtkWxGUIScriptingInterface.cxx.

References WxGUICommandEnter(), and WxGUITextEditorRun().

        {
                WxGUICommandEnter("exec freeze_no_error");
                WxGUITextEditorRun();
                WxGUICommandEnter("exec unfreeze");
                WxGUICommandEnter("graph . 1");
        }

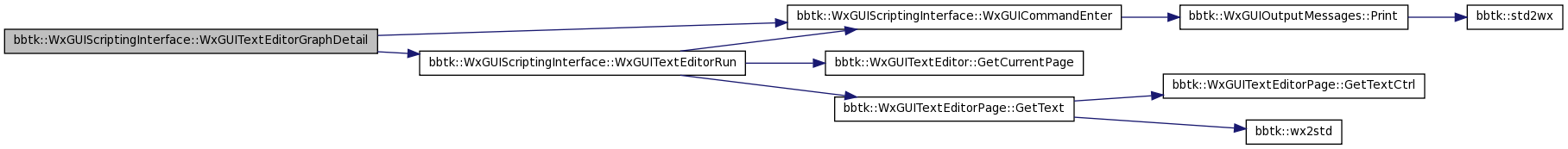

Here is the call graph for this function:

void bbtk::WxGUIScriptingInterface::WxGUITextEditorGraphSimple

(

)

[virtual]

Reimplemented from bbtk::WxGUITextEditorUser.

Definition at line 415 of file bbtkWxGUIScriptingInterface.cxx.

References WxGUICommandEnter(), and WxGUITextEditorRun().

        {
                WxGUICommandEnter("exec freeze_no_error");
                WxGUITextEditorRun();
                WxGUICommandEnter("exec unfreeze");
                WxGUICommandEnter("graph");
        }

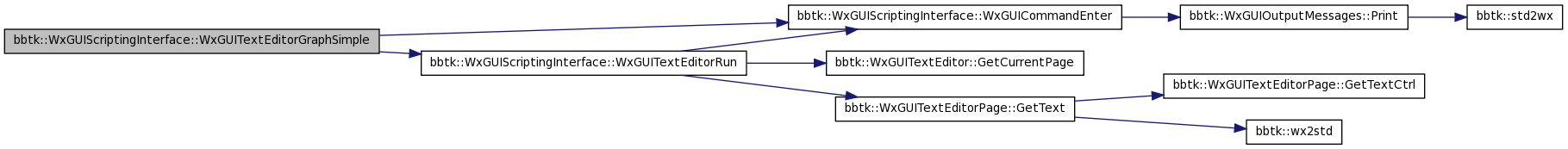

Here is the call graph for this function:

void bbtk::WxGUIScriptingInterface::WxGUITextEditorRun

(

)

[virtual]

Callback invoked when the 'run' button is pressed.

Reimplemented from bbtk::WxGUITextEditorUser.

Definition at line 470 of file bbtkWxGUIScriptingInterface.cxx.

References CATCH_MACRO, bbtk::WxGUITextEditor::GetCurrentPage(), bbtk::WxGUITextEditorPage::GetText(), mBreaked, mInterpreter, mWxGUITextEditor, mwxMenuItemReset, and WxGUICommandEnter().

Referenced by WxGUITextEditorGraphDetail(), and WxGUITextEditorGraphSimple().

  {
    //    wxString temp = mWxGUIHtmlBrowser->GetCurrentPage();
    std::stringstream* buf = new std::stringstream;
    (*buf) << mWxGUITextEditor->GetCurrentPage()->GetText();
    try
      {
        if (!mBreaked)
          {
            if (mwxMenuItemReset->IsChecked()) WxGUICommandEnter("reset");
            mInterpreter->InterpretBuffer(buf);
          }
        else
          {
            mBreaked = false;
            mInterpreter->InterpretCurrentStreams();
          }
        //      std::cout << "EO RUN"<<std::endl;
      }
    CATCH_MACRO;
    //    std::cout << "EO RUN 3"<<std::endl;
  }

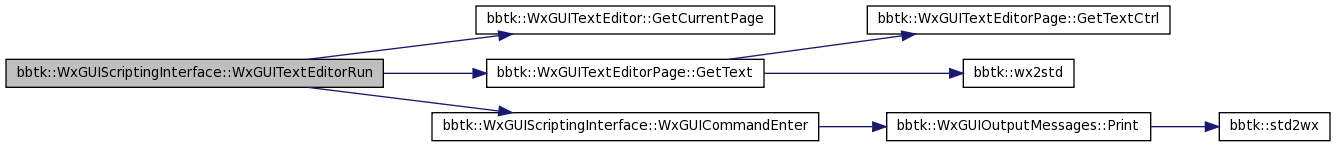

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::WxGUIScriptingInterface::WxGUITextEditorRunBBI

(

)

[virtual]

Reimplemented from bbtk::WxGUITextEditorUser.

Definition at line 436 of file bbtkWxGUIScriptingInterface.cxx.

References bbtk::ConfigurationFile::Get_bin_path(), bbtk::ConfigurationFile::Get_default_temp_dir(), bbtk::ConfigurationFile::Get_file_separator(), bbtk::WxGUITextEditor::GetCurrentPage(), bbtk::ConfigurationFile::GetInstance(), mWxGUITextEditor, and bbtk::WxGUITextEditorPage::SaveFile().

        {
          std::string separator = ConfigurationFile::GetInstance().Get_file_separator ();
          std::string dir = ConfigurationFile::GetInstance().Get_default_temp_dir();
          std::string filename = dir + separator + "tmp_bbtk.bbs";
          mWxGUITextEditor->GetCurrentPage()->SaveFile(filename);

        std::string command = "\"";

#ifdef WIN32
        command += "\"";
#endif

          command += ConfigurationFile::GetInstance().Get_bin_path();
#ifdef MACOSX
          command += separator + "bbi.app/Contents/MacOS/bbi\" ";
#else
          command += separator + "bbi\" ";
#endif
          command += "\""+filename + "\"";

#ifdef WIN32
        command += "\"";
#endif

          command += " & ";

          printf ("EED WxGUIScriptingInterface::WxGUITextEditorRunBBI %s \n" , command.c_str() );
          system( command.c_str() );
        }

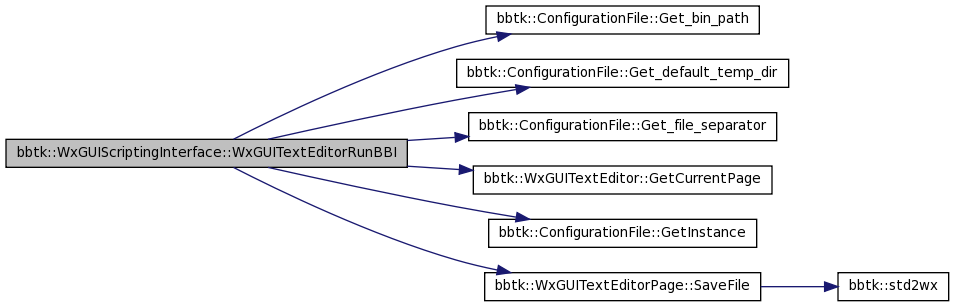

Here is the call graph for this function:

---

Member Data Documentation

wxAuiManager bbtk::WxGUIScriptingInterface::m_mgr [private]

Definition at line 153 of file bbtkWxGUIScriptingInterface.h.

Referenced by LoadPerspective(), OnMenuWindowsCheck(), SavePerspective(), WxGUIScriptingInterface(), and ~WxGUIScriptingInterface().

bool bbtk::WxGUIScriptingInterface::mBreaked [private]

Definition at line 172 of file bbtkWxGUIScriptingInterface.h.

Referenced by WxGUIScriptingInterface(), and WxGUITextEditorRun().

Interpreter::Pointer bbtk::WxGUIScriptingInterface::mInterpreter [private]

Definition at line 154 of file bbtkWxGUIScriptingInterface.h.

Referenced by InterpretFile(), WxGUICommandEnter(), WxGUIScriptingInterface(), and WxGUITextEditorRun().

WxGUICommand* bbtk::WxGUIScriptingInterface::mWxGUICommand [private]

Definition at line 163 of file bbtkWxGUIScriptingInterface.h.

Referenced by OnMenuCreateBlackBox(), OnMenuCreatePackage(), OnMenuWindowsCommand(), and WxGUIScriptingInterface().

WxGUIHtmlBrowser* bbtk::WxGUIScriptingInterface::mWxGUIHtmlBrowser [private]

Definition at line 165 of file bbtkWxGUIScriptingInterface.h.

Referenced by InterpreterUserViewHtmlPage(), OnMenuWindowsHelp(), and WxGUIScriptingInterface().

WxGUIOutputMessages* bbtk::WxGUIScriptingInterface::mWxGUIOutputMessages [private]

Definition at line 164 of file bbtkWxGUIScriptingInterface.h.

Referenced by OnMenuWindowsMessages(), WxGUICommandEnter(), and WxGUIScriptingInterface().

WxGUIPackageBrowser2* bbtk::WxGUIScriptingInterface::mWxGUIPackageBrowser2 [private]

Definition at line 167 of file bbtkWxGUIScriptingInterface.h.

WxGUITextEditor* bbtk::WxGUIScriptingInterface::mWxGUITextEditor [private]

Definition at line 166 of file bbtkWxGUIScriptingInterface.h.

Referenced by OnMenuWindowsFiles(), Open(), WxGUIHtmlBrowserUserOnLinkClicked(), WxGUIScriptingInterface(), WxGUITextEditorRun(), and WxGUITextEditorRunBBI().

wxMenuItem* bbtk::WxGUIScriptingInterface::mwxMenuItemReset [private]

Definition at line 169 of file bbtkWxGUIScriptingInterface.h.

Referenced by WxGUIScriptingInterface(), and WxGUITextEditorRun().

wxAuiNotebook* bbtk::WxGUIScriptingInterface::mwxNotebook [private]

Definition at line 156 of file bbtkWxGUIScriptingInterface.h.

Referenced by WxGUIHtmlBrowserUserOnLinkClicked(), and WxGUIScriptingInterface().

---

The documentation for this class was generated from the following files:

• /Users/davila/Creatis/All5/creatools_source/bbtk/kernel/src/bbtkWxGUIScriptingInterface.h
• /Users/davila/Creatis/All5/creatools_source/bbtk/kernel/src/bbtkWxGUIScriptingInterface.cxx
