bbtk::ComplexBlackBoxOutputDescriptor Class Reference

Structure containing the description of a ComplexBlackBox output (name, description, type, mapping). More...

#include <bbtkComplexBlackBoxOutputDescriptor.h>

List of all members.

Public Member Functions
	ComplexBlackBoxOutputDescriptor (TypeInfo creator_type_info, const std::string &name, const std::string &description, const std::string &nature, const std::string &target, const std::string &output, TypeInfo type)
	~ComplexBlackBoxOutputDescriptor ()
TypeInfo	GetTypeInfo () const
	Returns the type of the output.
std::string	GetTypeName () const
	Returns the name of the type of the output.
std::string	GetHumanTypeName () const
	Returns the name of the type of the output.
bool	IsPointerType () const
const std::string &	GetTarget () const
	Returns the target black box.
const std::string &	GetOutput () const
	Returns the output.
Private Member Functions
	ComplexBlackBoxOutputDescriptor ()
	Default ctor is private.
Private Attributes
std::string	mTarget
std::string	mOutput
TypeInfo	mType

---

Detailed Description

Structure containing the description of a ComplexBlackBox output (name, description, type, mapping).

Definition at line 51 of file bbtkComplexBlackBoxOutputDescriptor.h.

---

Constructor & Destructor Documentation

bbtk::ComplexBlackBoxOutputDescriptor::ComplexBlackBoxOutputDescriptor	(	TypeInfo	creator_type_info,
		const std::string &	name,
		const std::string &	description,
		const std::string &	nature,
		const std::string &	target,
		const std::string &	output,
		TypeInfo	type
	)

Definition at line 43 of file bbtkComplexBlackBoxOutputDescriptor.cxx.

References bbtkDebugMessage.

    :
    BlackBoxOutputDescriptor(creator_type_info,name,description,nature),
    mTarget(target),
    mOutput(output),
    mType(type)
  {

    bbtkDebugMessage("Kernel",9,"ComplexBlackBoxOutputDescriptor::ComplexBlackBoxOutputDescriptor(\""<<name<<"\",\""<<description<<"\",\""<<target<<"\",\""<<output<<"\")"<<std::endl);
  }

bbtk::ComplexBlackBoxOutputDescriptor::~ComplexBlackBoxOutputDescriptor

(

)

Definition at line 64 of file bbtkComplexBlackBoxOutputDescriptor.cxx.

References bbtkDebugMessage, GetOutput(), and GetTarget().

  {
    bbtkDebugMessage("Kernel",9,"ComplexBlackBoxOutputDescriptor::~ComplexBlackBoxOutputDescriptor(\""<<GetName()<<"\",\""<<GetDescription()<<"\",\""<<GetTarget()<<"\",\""<<GetOutput()<<"\")"<<std::endl);
  }

Here is the call graph for this function:

bbtk::ComplexBlackBoxOutputDescriptor::ComplexBlackBoxOutputDescriptor

(

)

[inline, private]

Default ctor is private.

Definition at line 83 of file bbtkComplexBlackBoxOutputDescriptor.h.

                                      :
      BlackBoxOutputDescriptor(typeid(void),"","",""),
      mType(typeid(void))  {}

---

Member Function Documentation

TypeInfo bbtk::ComplexBlackBoxOutputDescriptor::GetTypeInfo

(

)

const [inline]

Returns the type of the output.

Definition at line 67 of file bbtkComplexBlackBoxOutputDescriptor.h.

{ return mType; }

std::string bbtk::ComplexBlackBoxOutputDescriptor::GetTypeName

(

)

const [inline]

Returns the name of the type of the output.

Definition at line 69 of file bbtkComplexBlackBoxOutputDescriptor.h.

References bbtk::TypeName().

{ return TypeName(mType); }

Here is the call graph for this function:

std::string bbtk::ComplexBlackBoxOutputDescriptor::GetHumanTypeName

(

)

const [inline]

Returns the name of the type of the output.

Definition at line 71 of file bbtkComplexBlackBoxOutputDescriptor.h.

References bbtk::HumanTypeName().

{ return HumanTypeName(mType); }

Here is the call graph for this function:

bool bbtk::ComplexBlackBoxOutputDescriptor::IsPointerType

(

)

const [inline]

Definition at line 73 of file bbtkComplexBlackBoxOutputDescriptor.h.

{ return false; }

const std::string& bbtk::ComplexBlackBoxOutputDescriptor::GetTarget

(

)

const [inline]

Returns the target black box.

Definition at line 77 of file bbtkComplexBlackBoxOutputDescriptor.h.

Referenced by bbtk::ComplexBlackBox::bbAllocateConnectors(), bbtk::ComplexBlackBox::bbBackwardUpdate(), bbtk::ComplexBlackBox::bbGetOutput(), bbtk::ComplexBlackBox::bbSetOutput(), bbtk::ComplexBlackBox::bbWriteDotFileBlackBox(), and ~ComplexBlackBoxOutputDescriptor().

{ return mTarget; }

Here is the caller graph for this function:

const std::string& bbtk::ComplexBlackBoxOutputDescriptor::GetOutput

(

)

const [inline]

Returns the output.

Definition at line 79 of file bbtkComplexBlackBoxOutputDescriptor.h.

Referenced by bbtk::ComplexBlackBox::bbAllocateConnectors(), bbtk::ComplexBlackBox::bbGetOutput(), bbtk::ComplexBlackBox::bbSetOutput(), bbtk::ComplexBlackBox::bbWriteDotFileBlackBox(), and ~ComplexBlackBoxOutputDescriptor().

{ return mOutput; }

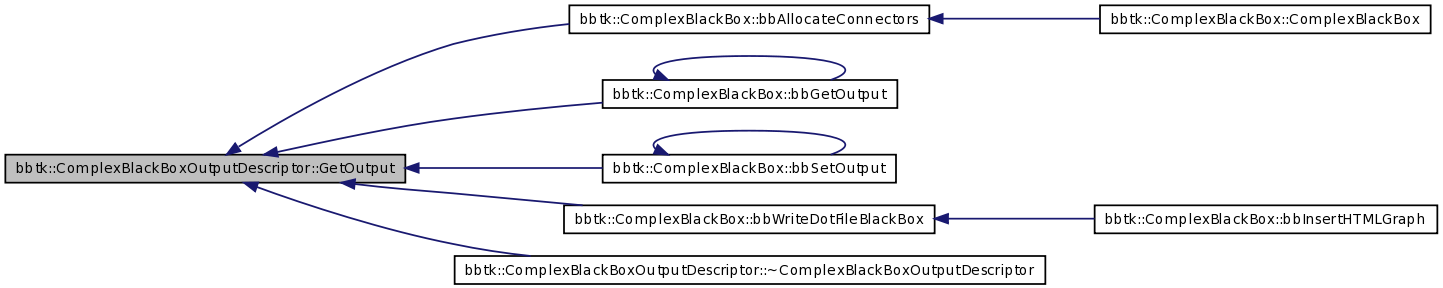

Here is the caller graph for this function:

---

Member Data Documentation

std::string bbtk::ComplexBlackBoxOutputDescriptor::mTarget [private]

Definition at line 86 of file bbtkComplexBlackBoxOutputDescriptor.h.

std::string bbtk::ComplexBlackBoxOutputDescriptor::mOutput [private]

Definition at line 87 of file bbtkComplexBlackBoxOutputDescriptor.h.

TypeInfo bbtk::ComplexBlackBoxOutputDescriptor::mType [private]

Definition at line 88 of file bbtkComplexBlackBoxOutputDescriptor.h.

---

The documentation for this class was generated from the following files:

• /home/guigues/bbtk-build-tmp/bbtk/kernel/src/bbtkComplexBlackBoxOutputDescriptor.h
• /home/guigues/bbtk-build-tmp/bbtk/kernel/src/bbtkComplexBlackBoxOutputDescriptor.cxx
