bbtk::ComplexBlackBox Class Reference

Abstract user defined black boxes. More...

#include <bbtkComplexBlackBox.h>

List of all members.

Public Types

typedef ComplexBlackBox Self

typedef boost::shared_ptr< Self > Pointer

typedef boost::weak_ptr< Self > WeakPointer

typedef std::map< std::string,
BlackBox::Pointer > BlackBoxMapType

The type of map of black boxes.

Public Member Functions

std::string GetObjectName () const

std::string GetObjectInfo () const

size_t GetObjectSize () const

size_t GetObjectInternalSize () const

size_t GetObjectRecursiveSize () const

BlackBoxDescriptor::Pointer bbGetDescriptor () const

Returns the pointer on the box' descriptor.

BlackBox::Pointer bbClone (const std::string &name)

Returns a pointer on a new instance with name <name>.

void Clear ()

Clear.

void SetAsPrototype ()

Set as prototype.

bool IsAPrototype () const

Returns true if it is a prototype.

std::string bbGetNameWithParent () const

Returns the name with the name of the parent prepended if any.

void bbExecute (bool force=false)

Data bbGetOutput (const std::string &label)

Data bbGetInput (const std::string &label)

Gets the input Data of a given name.

void bbSetOutput (const std::string &name, Data data)

Sets the data of the output called <name>.

void bbSetInput (const std::string &name, Data data, bool setModified=true)

Sets the data of the input called <name>.

void bbBruteForceSetInputPointer (const std::string &name, void *data, bool setModified=true)

Sets the data of the input called <name>.

virtual void bbConnectInput (const std::string &name, Connection *c)

Connects the input <name> to the connection c.

virtual void bbConnectOutput (const std::string &name, Connection *c)

Connects the output <name> to the connection c.

BlackBox::Pointer bbGetBlackBox (const std::string &name)

Returns the black box with name <name>.

const BlackBoxMapType & bbGetBlackBoxMap ()

void bbPrintBlackBoxes ()

void bbInsertHTMLGraph (std::ofstream &s, int detail, int level, bool instanceOrtype, const std::string &output_dir, bool relative_link)

virtual void bbWriteDotFileBlackBox (FILE *ff, BlackBox::Pointer parentblackbox, int detail, int level, bool instanceOrtype, bool relative_link)

Write Graphviz-dot description in file.

virtual void bbWriteDotInputOutputName (FILE *ff, bool inputoutput, int detail, int level)

Virtual.

virtual BlackBox::Pointer bbFindBlackBox (const std::string &blackboxname)

void Check (bool recursive=true)

IOStatus bbBackwardUpdate (Connection::Pointer caller)

void bbSetModifiedStatus (BlackBoxInputConnector *c)

Protected Types

typedef BlackBox Superclass

Protected Member Functions

ComplexBlackBox ()

ComplexBlackBox (const ComplexBlackBox &)

~ComplexBlackBox ()

Destructor.

void bbAddBlackBox (BlackBox::Pointer)

Adds the black box to the complex box.

void bbAddToExecutionList (const std::string &name)

void bbUnsafeAddBlackBox (BlackBox::Pointer)

Adds the black box to the complex box (unsafe).

void bbRemoveBlackBox (const std::string &name, bool remove_connections=true)

Removes the black box from the complex box.

void bbAddConnection (Connection::Pointer)

Adds the connection to the complex box.

BlackBox::Pointer bbUnsafeGetBlackBox (const std::string &name)

void bbAllocateConnectors ()

Allocates the i/o connectors of the black box.

void bbDesallocateConnectors ()

Desallocates the i/o connectors of the black box.

Static Protected Member Functions

static ComplexBlackBox::Pointer New (const std::string &name, ComplexBlackBoxDescriptor::Pointer desc)

Creates a new complex black box.

Private Types

typedef std::list
< Connection::Pointer > ConnectionListType

The type of list of connections.

Private Member Functions

ComplexBlackBox (const std::string &name, ComplexBlackBoxDescriptor::Pointer desc)

Constructor that takes the ComplexBlackBox name.

ComplexBlackBox (ComplexBlackBox &from, const std::string &name)

Constructor from an existing box (copy) with a new name.

Private Attributes

ComplexBlackBoxDescriptor::Pointer mLockedDescriptor

Default constructor : derived classes must use the constructor with the ComplexBlackBox's name.

ComplexBlackBoxDescriptor::WeakPointer mDescriptor

The descriptor pointer.

BlackBoxMapType mBlackBoxMap

The map of black boxes.

ConnectionListType mConnectionList

The list of connections.

std::vector< std::string > mExecutionList

The execution list.

Friends

struct Object::Deleter

class ComplexBlackBoxDescriptor

Detailed Description

Abstract user defined black boxes.

Definition at line 58 of file bbtkComplexBlackBox.h.

Member Typedef Documentation

typedef ComplexBlackBox bbtk::ComplexBlackBox::Self

Definition at line 60 of file bbtkComplexBlackBox.h.

typedef boost::shared_ptr<Self> bbtk::ComplexBlackBox::Pointer

Definition at line 60 of file bbtkComplexBlackBox.h.

typedef boost::weak_ptr<Self> bbtk::ComplexBlackBox::WeakPointer

Definition at line 60 of file bbtkComplexBlackBox.h.

typedef BlackBox bbtk::ComplexBlackBox::Superclass [protected]

Definition at line 62 of file bbtkComplexBlackBox.h.

typedef std::map<std::string, BlackBox::Pointer> bbtk::ComplexBlackBox::BlackBoxMapType

The type of map of black boxes.

Definition at line 101 of file bbtkComplexBlackBox.h.

typedef std::list<Connection::Pointer> bbtk::ComplexBlackBox::ConnectionListType [private]

The type of list of connections.

Definition at line 199 of file bbtkComplexBlackBox.h.

Constructor & Destructor Documentation

bbtk::ComplexBlackBox::ComplexBlackBox ( ) [protected]

bbtk::ComplexBlackBox::ComplexBlackBox ( const ComplexBlackBox & ) [protected]

bbtk::ComplexBlackBox::~ComplexBlackBox ( ) [protected]

Destructor.

Definition at line 139 of file bbtkComplexBlackBox.cxx.

References bbDesallocateConnectors(), bbtkDebugMessage, mBlackBoxMap, and mConnectionList.

00140   {
00141     bbtkDebugMessage("object",3,
00142                      "==> ComplexBlackBox::~ComplexBlackBox() ["
00143                      <<bbGetName()<<"]"<<std::endl);
00144
00145     bbtkDebugMessage("object",4,
00146                      " -> Releasing connections"<<std::endl);
00147     mConnectionList.clear();
00148     bbtkDebugMessage("object",4,
00149                      " -> Releasing boxes"<<std::endl);
00150     mBlackBoxMap.clear();
00151
00152     //    Clear();
00153     this->bbDesallocateConnectors();
00154
00155     bbtkDebugMessage("object",3,
00156                      "<== ComplexBlackBox::~ComplexBlackBox() ["
00157                      <<bbGetName()<<"]"<<std::endl);
00158   }

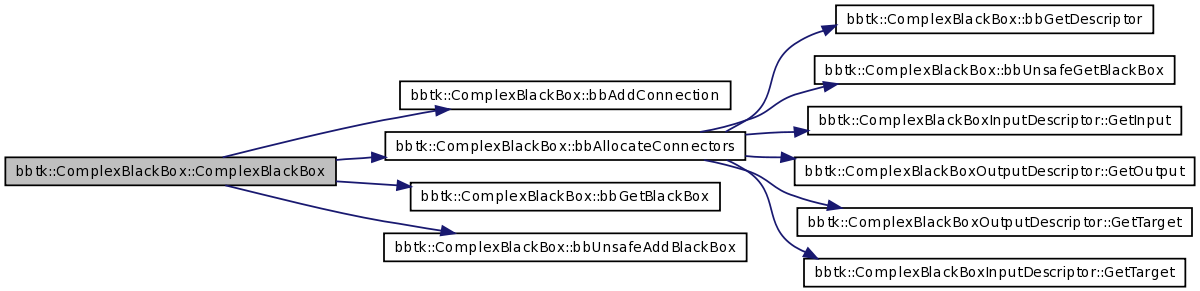

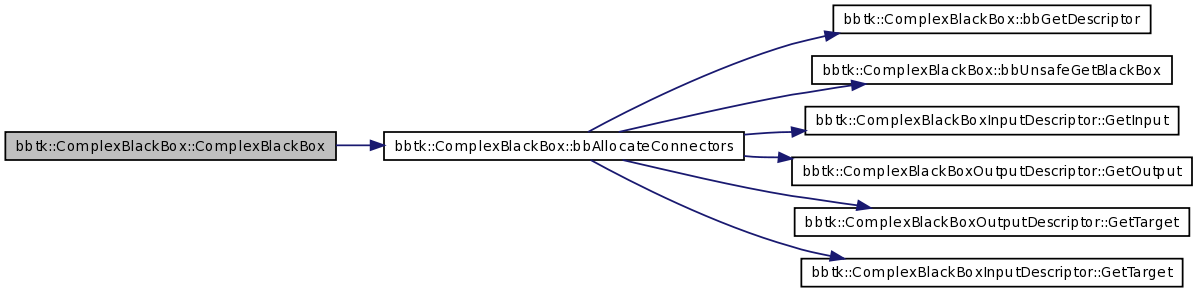

Here is the call graph for this function:

bbtk::ComplexBlackBox::ComplexBlackBox	(	const std::string &	name,
		ComplexBlackBoxDescriptor::Pointer	desc
	)			`[private]`

Constructor that takes the ComplexBlackBox name.

Usefull constructor.

Definition at line 62 of file bbtkComplexBlackBox.cxx.

References bbAllocateConnectors(), and bbtkDebugMessage.

00064     :
00065     BlackBox(name),
00066     mLockedDescriptor(desc),
00067     mDescriptor(desc)
00068   {
00069     bbtkDebugMessage("object",3,
00070                      "##> ComplexBlackBox::ComplexBlackBox(\""
00071                      <<name<<"\")"<<std::endl);
00072     bbAllocateConnectors();
00073     bbtkDebugMessage("object",3,
00074                      "<## ComplexBlackBox::ComplexBlackBox(\""
00075                      <<name<<"\")"<<std::endl);
00076   }

Here is the call graph for this function:

bbtk::ComplexBlackBox::ComplexBlackBox	(	ComplexBlackBox &	from,
		const std::string &	name
	)			`[private]`

Constructor from an existing box (copy) with a new name.

Definition at line 81 of file bbtkComplexBlackBox.cxx.

References bbAddConnection(), bbAllocateConnectors(), bbGetBlackBox(), bbtkDebugMessage, bbtkDebugMessageInc, bbUnsafeAddBlackBox(), bbtk::i, mBlackBoxMap, mConnectionList, mDescriptor, mExecutionList, and mLockedDescriptor.

00083     : BlackBox(from,name),
00084       // The locked descriptor is copied from the unlocked one
00085       // to make the box a non-prototype !!
00086       mLockedDescriptor(from.mDescriptor),
00087       mDescriptor(from.mDescriptor),
00088      mExecutionList(from.mExecutionList)
00089   {
00090     bbtkDebugMessage("object",3,
00091                         "##> ComplexBlackBox::ComplexBlackBox(\""
00092                         <<from.bbGetName()<<"\",\""
00093                         <<name<<"\")"<<std::endl);
00094     bbtkDebugMessage("object",4,"  * Cloning Black Boxes"<<std::endl);
00095
00096     // We have to make the shared_ptr on this because it is used
00097     // in bbUnsafeAddBlackBox !
00098     MakeBlackBoxPointer(this,true);
00099
00100     BlackBoxMapType::const_iterator i;
00101     for ( i = from.mBlackBoxMap.begin(); i != from.mBlackBoxMap.end(); ++i )
00102       {
00103         bbtkDebugMessageInc("object",5,"    * Cloning \""<<i->first<<"\""<<std::endl);
00104         BlackBox::Pointer B = i->second->bbClone(i->second->bbGetName());
00105         bbUnsafeAddBlackBox(B);
00106       }
00107
00108     bbtkDebugMessage("object",4,"  * Cloning Connections"<<std::endl);
00109     ConnectionListType::const_iterator j;
00110     for ( j = from.mConnectionList.begin(); j != from.mConnectionList.end(); ++j )
00111       {
00112         bbtkDebugMessage("object",5,"    * Cloning \""<<
00113                          (*j)->GetFullName()<<"\""<<std::endl);
00114
00115         BlackBox::Pointer bbfrom = bbGetBlackBox( (*j)->GetOriginalBlackBoxFrom()->bbGetName() );
00116         BlackBox::Pointer bbto = bbGetBlackBox( (*j)->GetOriginalBlackBoxTo()->bbGetName() );
00117
00118         Connection::Pointer c = mDescriptor.lock()->GetFactory()->
00119           NewConnection( bbfrom,
00120                          (*j)->GetOriginalBlackBoxFromOutput(),
00121                          bbto,
00122                          (*j)->GetOriginalBlackBoxToInput() );
00123
00124         //c->Check();
00125         bbAddConnection(c);
00126
00127       }
00128
00129     bbAllocateConnectors();
00130     bbtkDebugMessage("object",3,
00131                         "<## ComplexBlackBox::ComplexBlackBox(\""
00132                         <<from.bbGetName()<<"\",\""
00133                         <<name<<"\")"<<std::endl);
00134   }

Here is the call graph for this function:

Member Function Documentation

std::string bbtk::ComplexBlackBox::GetObjectName ( ) const

Definition at line 1130 of file bbtkComplexBlackBox.cxx.

References bbGetNameWithParent().

01131   {
01132     return std::string("ComplexBlackBox '")+bbGetNameWithParent()
01133       +std::string("'");
01134   }

Here is the call graph for this function:

std::string bbtk::ComplexBlackBox::GetObjectInfo ( ) const

Definition at line 1138 of file bbtkComplexBlackBox.cxx.

References bbtk::i, mBlackBoxMap, and mConnectionList.

01139   {
01140     std::stringstream i;
01141     i << "  - "<<mBlackBoxMap.size() << " boxes / "
01142       <<mConnectionList.size() << " connections" << std::endl;
01143     return i.str();
01144   }

size_t bbtk::ComplexBlackBox::GetObjectSize ( ) const

Definition at line 1148 of file bbtkComplexBlackBox.cxx.

01149   {
01150     size_t s = Superclass::GetObjectSize();
01151     s += ComplexBlackBox::GetObjectInternalSize();
01152     return s;
01153   }

size_t bbtk::ComplexBlackBox::GetObjectInternalSize ( ) const

Definition at line 1156 of file bbtkComplexBlackBox.cxx.

01157   {
01158     size_t s = sizeof(ComplexBlackBox);
01159     return s;
01160   }

size_t bbtk::ComplexBlackBox::GetObjectRecursiveSize ( ) const

Definition at line 1163 of file bbtkComplexBlackBox.cxx.

References bbtk::i, mBlackBoxMap, and mConnectionList.

01164   {
01165     size_t s = Superclass::GetObjectRecursiveSize();
01166     s += ComplexBlackBox::GetObjectInternalSize();
01167     BlackBoxMapType::const_iterator i;
01168     for ( i = mBlackBoxMap.begin(); i != mBlackBoxMap.end(); ++i )
01169       {
01170         s += i->second->GetObjectRecursiveSize();
01171       }
01172     ConnectionListType::const_iterator j;
01173     for ( j = mConnectionList.begin();
01174           j != mConnectionList.end(); ++j )
01175       {
01176         s += (*j)->GetObjectRecursiveSize();
01177       }
01178     return s;
01179   }

BlackBoxDescriptor::Pointer bbtk::ComplexBlackBox::bbGetDescriptor ( ) const [inline]

Returns the pointer on the box' descriptor.

Definition at line 67 of file bbtkComplexBlackBox.h.

Referenced by bbAllocateConnectors(), bbBackwardUpdate(), bbBruteForceSetInputPointer(), bbConnectInput(), bbConnectOutput(), bbGetInput(), bbGetNameWithParent(), bbGetOutput(), bbSetInput(), and bbSetOutput().

00067 { return mDescriptor.lock(); }

Here is the caller graph for this function:

BlackBox::Pointer bbtk::ComplexBlackBox::bbClone ( const std::string & name )

Returns a pointer on a new instance with name <name>.

Returns a pointer on a clone of the box with name <name>

Definition at line 235 of file bbtkComplexBlackBox.cxx.

References bbtkDebugMessageInc.

00236   {
00237     bbtkDebugMessageInc("Kernel",9,
00238                         "ComplexBlackBox::bbClone(\""<<name<<"\") ["
00239                         <<bbGetFullName()<<"]"<<std::endl);
00240
00241     ComplexBlackBox* CBB = new ComplexBlackBox(*this,name);
00242     return MakeBlackBoxPointer(CBB);
00243   }

void bbtk::ComplexBlackBox::Clear ( )

Clear.

void bbtk::ComplexBlackBox::SetAsPrototype ( ) [inline]

Set as prototype.

Definition at line 76 of file bbtkComplexBlackBox.h.

00076 { mLockedDescriptor.reset(); }

bool bbtk::ComplexBlackBox::IsAPrototype ( ) const [inline]

Returns true if it is a prototype.

Definition at line 78 of file bbtkComplexBlackBox.h.

Referenced by bbGetNameWithParent().

00078 { return (!mLockedDescriptor); }

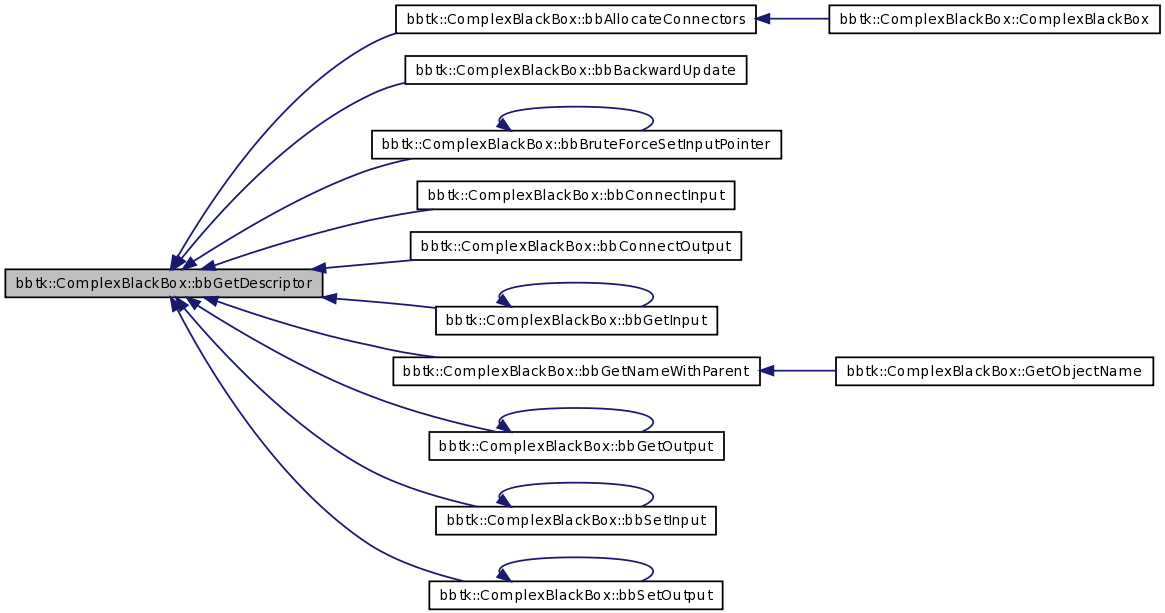

Here is the caller graph for this function:

std::string bbtk::ComplexBlackBox::bbGetNameWithParent ( ) const

Returns the name with the name of the parent prepended if any.

Definition at line 1115 of file bbtkComplexBlackBox.cxx.

References bbGetDescriptor(), and IsAPrototype().

Referenced by GetObjectName().

01116   {
01117     if (!IsAPrototype()) return BlackBox::bbGetNameWithParent();
01118     if (bbGetDescriptor())
01119       {
01120         return bbGetDescriptor()->GetFullTypeName() + ":" + bbGetName();
01121       }
01122     else
01123       {
01124         return std::string(":") + bbGetName();
01125       }
01126   }

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::ComplexBlackBox::bbExecute ( bool force = false )

Main processing method of the box. Executes the box so that its outputs are up-to-date on exit

Definition at line 249 of file bbtkComplexBlackBox.cxx.

References bbtkDebugMessage, bbtkDebugMessageInc, bbtk::i, mBlackBoxMap, and mExecutionList.

00250   {
00251     bbtkDebugMessageInc("process",2,
00252                         "=> ComplexBlackBox::bbExecute() ["
00253                         <<bbGetFullName()<<"]"<<std::endl);
00254
00255
00256     Wx::BusyCursor wait;
00257
00258     if (mExecutionList.size() != 0)
00259       {
00260
00261         std::vector<std::string>::const_iterator i;
00262         for (i=mExecutionList.begin();
00263              i!=mExecutionList.end();
00264              ++i)
00265           {
00266             bbtkDebugMessage("process",3," -> Executing '"<<*i<<"'"<<std::endl);
00267             mBlackBoxMap[*i]->bbExecute(force);
00268           }
00269       }
00270     else
00271       {
00272         std::map<std::string, BlackBox::Pointer>::iterator i;
00273         for (i=mBlackBoxMap.begin(); i!=mBlackBoxMap.end(); ++i)
00274           {
00275             i->second->bbExecute(force);
00276           }
00277       }
00278
00279   }

Data bbtk::ComplexBlackBox::bbGetOutput ( const std::string & label )

Definition at line 384 of file bbtkComplexBlackBox.cxx.

References bbGetBlackBox(), bbGetDescriptor(), bbGetOutput(), bbtkDebugDecTab, bbtkDebugMessageInc, bbtk::ComplexBlackBoxOutputDescriptor::GetOutput(), and bbtk::ComplexBlackBoxOutputDescriptor::GetTarget().

Referenced by bbGetOutput().

00385   {
00386     bbtkDebugMessageInc("Data",7,
00387                         "ComplexBlackBox::bbGetOutput(\""<<name<<"\") ["
00388                         <<bbGetFullName()<<"]"<<std::endl);
00389
00390     ComplexBlackBoxOutputDescriptor* d =
00391       (ComplexBlackBoxOutputDescriptor*)
00392       bbGetDescriptor()->GetOutputDescriptor(name);
00393
00394     Data p = bbGetBlackBox(d->GetTarget())->bbGetOutput(d->GetOutput());
00395
00396
00397     bbtkDebugDecTab("Data",7);
00398     return p;
00399   }

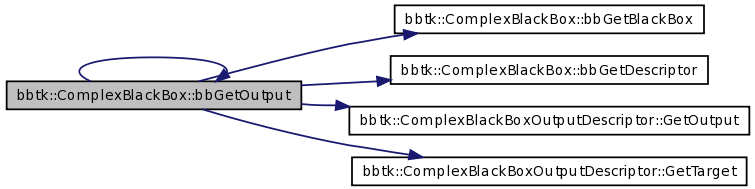

Here is the call graph for this function:

Here is the caller graph for this function:

Data bbtk::ComplexBlackBox::bbGetInput ( const std::string & label )

Gets the input Data of a given name.

Definition at line 404 of file bbtkComplexBlackBox.cxx.

References bbGetBlackBox(), bbGetDescriptor(), bbGetInput(), bbtkDebugDecTab, bbtkDebugMessageInc, bbtk::ComplexBlackBoxInputDescriptor::GetInput(), and bbtk::ComplexBlackBoxInputDescriptor::GetTarget().

Referenced by bbGetInput().

00405   {
00406     bbtkDebugMessageInc("Data",7,
00407                         "ComplexBlackBox::bbGetInput(\""<<name<<"\") ["
00408                         <<bbGetFullName()<<"]"<<std::endl);
00409
00410     ComplexBlackBoxInputDescriptor* d =
00411       (ComplexBlackBoxInputDescriptor*)
00412       bbGetDescriptor()->GetInputDescriptor(name);
00413
00414     Data p = bbGetBlackBox(d->GetTarget())->bbGetInput(d->GetInput());
00415
00416     bbtkDebugDecTab("Data",7);
00417     return p;
00418   }

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::ComplexBlackBox::bbSetOutput	(	const std::string &	name,
		Data	data
	)

Sets the data of the output called <name>.

Definition at line 423 of file bbtkComplexBlackBox.cxx.

References bbGetBlackBox(), bbGetDescriptor(), bbSetOutput(), bbtkDebugDecTab, bbtkDebugMessageInc, bbtk::ComplexBlackBoxOutputDescriptor::GetOutput(), and bbtk::ComplexBlackBoxOutputDescriptor::GetTarget().

Referenced by bbSetOutput().

00424   {
00425     bbtkDebugMessageInc("Data",7,
00426                         "ComplexBlackBox::bbSetOutput(\""<<name<<"\",data) ["
00427                         <<bbGetFullName()<<"]"<<std::endl);
00428
00429     ComplexBlackBoxOutputDescriptor* d =
00430       (ComplexBlackBoxOutputDescriptor*)
00431       bbGetDescriptor()->GetOutputDescriptor(name);
00432
00433     bbGetBlackBox(d->GetTarget())->bbSetOutput(d->GetOutput(),data);
00434
00435     bbtkDebugDecTab("Data",7);
00436   }

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::ComplexBlackBox::bbSetInput	(	const std::string &	name,
		Data	data,
		bool	setModified = `true`
	)

Sets the data of the input called <name>.

Definition at line 441 of file bbtkComplexBlackBox.cxx.

References bbGetBlackBox(), bbGetDescriptor(), bbSetInput(), bbtkDebugDecTab, bbtkDebugMessageInc, bbtk::ComplexBlackBoxInputDescriptor::GetInput(), and bbtk::ComplexBlackBoxInputDescriptor::GetTarget().

Referenced by bbSetInput().

00443   {
00444     bbtkDebugMessageInc("Data",7,
00445                         "ComplexBlackBox::bbSetInput(\""<<name<<"\",data) ["
00446                         <<bbGetFullName()<<"]"<<std::endl);
00447
00448     ComplexBlackBoxInputDescriptor* d = (ComplexBlackBoxInputDescriptor*)
00449       bbGetDescriptor()->GetInputDescriptor(name);
00450
00451     bbGetBlackBox(d->GetTarget())->bbSetInput(d->GetInput(),data,setModified);
00452
00453     bbtkDebugDecTab("Data",7);
00454   }

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::ComplexBlackBox::bbBruteForceSetInputPointer	(	const std::string &	name,
		void *	data,
		bool	setModified = `true`
	)

Sets the data of the input called <name>.

Definition at line 460 of file bbtkComplexBlackBox.cxx.

References bbBruteForceSetInputPointer(), bbGetBlackBox(), bbGetDescriptor(), bbtkDebugDecTab, bbtkDebugMessageInc, bbtk::ComplexBlackBoxInputDescriptor::GetInput(), and bbtk::ComplexBlackBoxInputDescriptor::GetTarget().

Referenced by bbBruteForceSetInputPointer().

00463   {
00464     bbtkDebugMessageInc("Data",7,
00465                         "ComplexBlackBox::bbBruteForceSetInputPointer('"
00466                         <<name<<"',"<<data<<") ["
00467                         <<bbGetFullName()<<"]"<<std::endl);
00468
00469     ComplexBlackBoxInputDescriptor* d = (ComplexBlackBoxInputDescriptor*)
00470       bbGetDescriptor()->GetInputDescriptor(name);
00471
00472     bbGetBlackBox(d->GetTarget())->bbBruteForceSetInputPointer(d->GetInput(),
00473                                                                data,
00474                                                                setModified);
00475
00476     bbtkDebugDecTab("Data",7);
00477   }

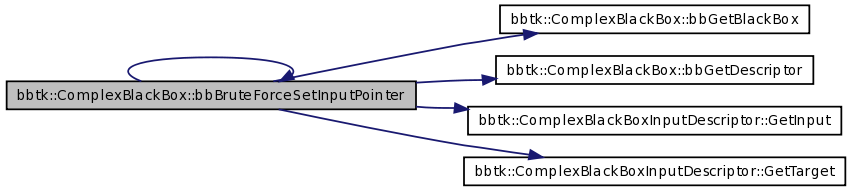

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::ComplexBlackBox::bbConnectInput	(	const std::string &	name,
		Connection *	c
	)			`[virtual]`

Connects the input <name> to the connection c.

Definition at line 482 of file bbtkComplexBlackBox.cxx.

References bbGetBlackBox(), bbGetDescriptor(), bbtkDebugMessage, bbtk::Connection::GetFullName(), bbtk::Connection::SetBlackBoxTo(), and bbtk::Connection::SetBlackBoxToInput().

00483   {
00484     bbtkDebugMessage("connection",2,
00485                      "==> ComplexBlackBox::bbConnectInput(\""
00486                      <<name<<"\","<<c->GetFullName()<<") ["
00487                      <<bbGetFullName()<<"]"
00488                      <<std::endl);
00489
00490    ComplexBlackBoxInputDescriptor* d = (ComplexBlackBoxInputDescriptor*)
00491       bbGetDescriptor()->GetInputDescriptor(name);
00492
00493
00494    BlackBox::Pointer t = bbGetBlackBox(d->GetTarget());
00495
00496    bbtkDebugMessage("connection",2," - Target = "<<d->GetTarget()<<" = "<<t->bbGetFullName()<<std::endl);
00497
00498    c->SetBlackBoxTo(t);
00499    c->SetBlackBoxToInput(d->GetInput());
00500
00501    bbtkDebugMessage("connection",2," - New conn = "<<c->GetFullName()<<std::endl);
00502    t->bbConnectInput(d->GetInput(),c);
00503
00504    bbtkDebugMessage("connection",2,
00505                      "<== ComplexBlackBox::bbConnectInput(\""
00506                      <<name<<"\","<<c->GetFullName()<<") ["
00507                      <<bbGetFullName()<<"]"
00508                      <<std::endl);
00509   }

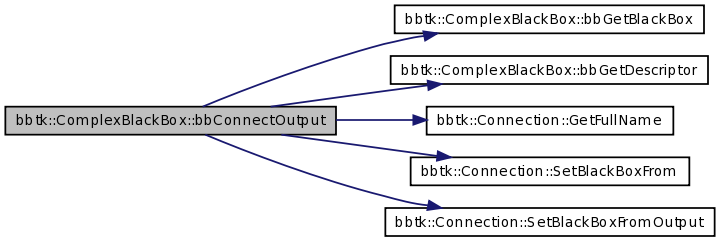

Here is the call graph for this function:

void bbtk::ComplexBlackBox::bbConnectOutput	(	const std::string &	name,
		Connection *	c
	)			`[virtual]`

Connects the output <name> to the connection c.

Definition at line 515 of file bbtkComplexBlackBox.cxx.

References bbGetBlackBox(), bbGetDescriptor(), bbtkDebugMessage, bbtk::Connection::GetFullName(), bbtk::Connection::SetBlackBoxFrom(), and bbtk::Connection::SetBlackBoxFromOutput().

00516   {
00517     bbtkDebugMessage("connection",2,
00518                      "==> ComplexBlackBox::bbConnectOutput(\""
00519                      <<name<<"\","<<c->GetFullName()<<") ["
00520                      <<bbGetFullName()<<"]"<<std::endl);
00521
00522    ComplexBlackBoxOutputDescriptor* d = (ComplexBlackBoxOutputDescriptor*)
00523       bbGetDescriptor()->GetOutputDescriptor(name);
00524
00525    BlackBox::Pointer t = bbGetBlackBox(d->GetTarget());
00526
00527   bbtkDebugMessage("connection",2," - Target = "<<d->GetTarget()<<" = "<<t->bbGetFullName()<<std::endl);
00528
00529    c->SetBlackBoxFrom(t);
00530    c->SetBlackBoxFromOutput(d->GetOutput());
00531
00532    bbtkDebugMessage("connection",2," - New conn = "<<c->GetFullName()<<std::endl);
00533
00534    t->bbConnectOutput(d->GetOutput(),c);
00535
00536     bbtkDebugMessage("connection",2,
00537                      "<== ComplexBlackBox::bbConnectOutput(\""
00538                      <<name<<"\","<<c->GetFullName()<<") ["
00539                      <<bbGetFullName()<<"]"<<std::endl);
00540   }

Here is the call graph for this function:

BlackBox::Pointer bbtk::ComplexBlackBox::bbGetBlackBox ( const std::string & name )

Returns the black box with name <name>.

Definition at line 638 of file bbtkComplexBlackBox.cxx.

References bbtkDebugDecTab, bbtkDebugMessageInc, bbtkError, bbtk::i, and mBlackBoxMap.

Referenced by bbBruteForceSetInputPointer(), bbConnectInput(), bbConnectOutput(), bbGetInput(), bbGetOutput(), bbSetInput(), bbSetOutput(), and ComplexBlackBox().

00639   {
00640     bbtkDebugMessageInc("Kernel",9,
00641                         "ComplexBlackBox::GetBlackBox(\""<<name<<"\") ["
00642                         <<bbGetFullName()<<"]"<<std::endl);
00643
00644     BlackBoxMapType::iterator i = mBlackBoxMap.find(name);
00645     if ( i == mBlackBoxMap.end() )
00646       {
00647         bbtkError("the black box \""<<name<<"\" does not exist");
00648       }
00649
00650     bbtkDebugDecTab("Kernel",9);
00651     return i->second;
00652   }

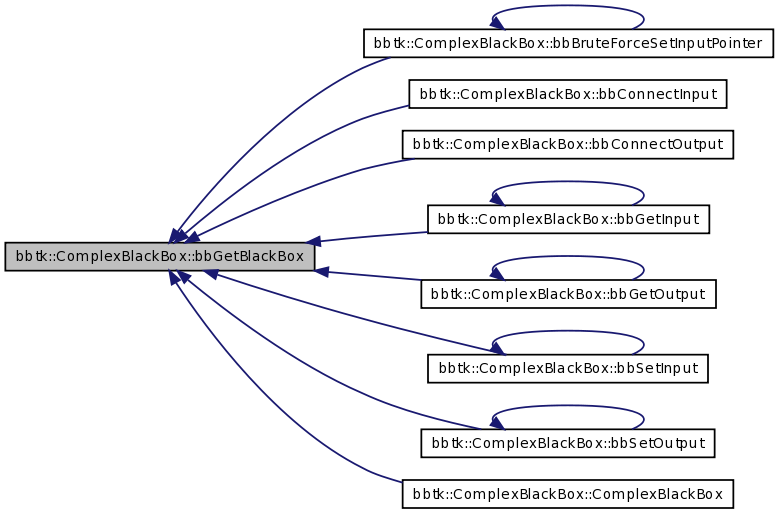

Here is the caller graph for this function:

const BlackBoxMapType& bbtk::ComplexBlackBox::bbGetBlackBoxMap ( ) [inline]

Definition at line 103 of file bbtkComplexBlackBox.h.

00103 { return mBlackBoxMap; }

void bbtk::ComplexBlackBox::bbPrintBlackBoxes ( )

Definition at line 679 of file bbtkComplexBlackBox.cxx.

References bbtkDebugDecTab, bbtkDebugMessageInc, bbtkMessage, bbtk::i, and mBlackBoxMap.

00680   {
00681     bbtkDebugMessageInc("Kernel",9,
00682                         "ComplexBlackBox::PrintBlackBoxes() ["
00683                         <<bbGetFullName()<<"]"
00684                         <<std::endl);
00685
00686     BlackBoxMapType::iterator i;
00687     for ( i = mBlackBoxMap.begin(); i != mBlackBoxMap.end(); ++i )
00688       {
00689         bbtkMessage("Help",1,i->second->bbGetFullName()<<std::endl);
00690       }
00691
00692     bbtkDebugDecTab("Kernel",9);
00693   }

void bbtk::ComplexBlackBox::bbInsertHTMLGraph	(	std::ofstream &	s,
		int	detail,
		int	level,
		bool	instanceOrtype,
		const std::string &	output_dir,
		bool	relative_link
	)

Generates a png image representing the pipeline graph of the complex box and writes html code to insert it into the output file stream. detail : level : depth of nested complex boxes graph development (0:only this box level output_dir is the directory in which to write the files

Definition at line 747 of file bbtkComplexBlackBox.cxx.

References bbWriteDotFileBlackBox().

00753   {
00754
00755     std::string directory(output_dir);
00756
00757     if (output_dir.length() == 0)
00758     {
00759            // Don't pollute the file store with  "temp_dir" directories ...
00760            std::string default_temp_dir = ConfigurationFile::GetInstance().Get_default_temp_dir();
00761            directory =  default_temp_dir + "/" + "temp_dir";
00762     }
00763
00764     std::string simplefilename  (this->bbGetTypeName()+"_"+this->bbGetName());
00765     std::string simplefilename_png (simplefilename+".png");
00766     std::string filename           (directory+"/"+simplefilename);
00767     std::string filename_png       (filename+".png");
00768     std::string filename_cmap      (filename+".cmap");
00769     std::string filename_dot       (filename+".dot");
00770
00771     std::string filename_png2   ("\""   + filename_png  + "\"");
00772     std::string filename_cmap2  ("\""   + filename_cmap + "\"");
00773     std::string filename_dot2   ("\""   + filename_dot  + "\"");
00774
00775
00776     std::string command1 ("dot -T png -o "
00777                           + filename_png2  + " " + filename_dot2);
00778     std::string command1a("dot -T cmap -o "
00779                           + filename_cmap2 + " " + filename_dot2);
00780
00781     // 1. Generating .dot file
00782     FILE *ff;
00783     ff = fopen(filename_dot.c_str(),"w");
00784     fprintf(ff,"digraph bbtk_graph{\n");
00785     fprintf(ff,"rankdir=LR%s\n",";");
00786     fprintf(ff,"node [shape=record]%s\n",";");
00787
00788     this->bbWriteDotFileBlackBox(ff,
00789                                  GetThisPointer<ComplexBlackBox>(),
00790                                  detail,level,
00791                                  instanceOrtype,
00792                                  relative_link );
00793
00794     fprintf(ff,"}\n");
00795     fclose(ff);
00796
00797     // 2. Executing .dot file -> png
00798     system( command1.c_str() );
00799     // 3. Executing .dot file -> cmap
00800     system( command1a.c_str() );
00801
00802     // 4. HTML code insertion
00803     // 4.1 image
00804     (s) << "<center><img src=\"" << simplefilename_png
00805          <<   "\" border=\"0\" usemap=\"#map_"<< simplefilename
00806          <<"\" alt=\"\"></center>\n";
00807
00808     // 4.2 map
00809     (s) << "<map name=\"map_"<< simplefilename <<"\">\n";
00810     FILE *ff2;
00811     char c;
00812     ff2=fopen(filename_cmap.c_str(),"r");
00813     while (!feof(ff2))
00814     {
00815            c=fgetc(ff2);
00816            if (c!=-1)
00817            {
00818               (s) << c;
00819            }
00820     }
00821     (s) << "</map>\n\n";
00822
00823     // End
00824   }

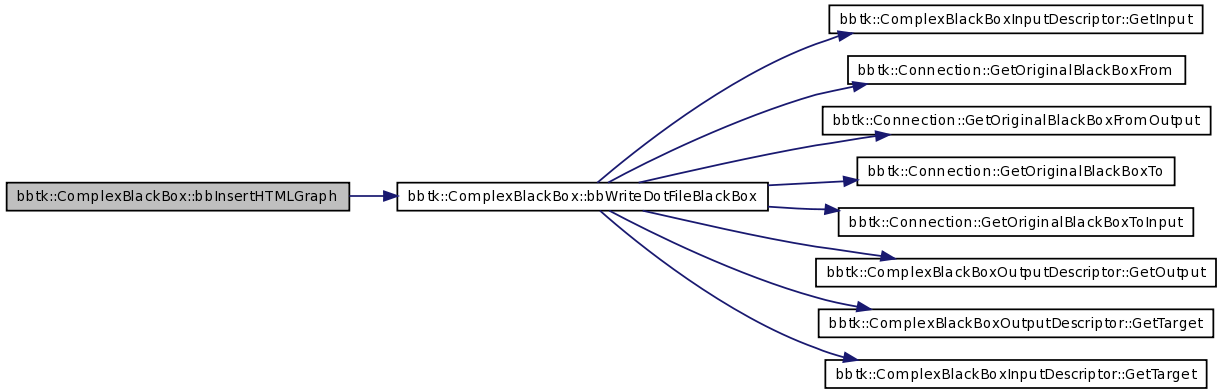

Here is the call graph for this function:

void bbtk::ComplexBlackBox::bbWriteDotFileBlackBox	(	FILE *	ff,
		BlackBox::Pointer	parentblackbox,
		int	detail,
		int	level,
		bool	instanceOrtype,
		bool	relative_link
	)			`[virtual]`

Write Graphviz-dot description in file.

Writes Graphviz-dot description in file. Generates own description and recursively calls itself on internal boxes with level-1

Definition at line 830 of file bbtkComplexBlackBox.cxx.

References bbtk::ComplexBlackBoxInputDescriptor::GetInput(), bbtk::Connection::GetOriginalBlackBoxFrom(), bbtk::Connection::GetOriginalBlackBoxFromOutput(), bbtk::Connection::GetOriginalBlackBoxTo(), bbtk::Connection::GetOriginalBlackBoxToInput(), bbtk::ComplexBlackBoxOutputDescriptor::GetOutput(), bbtk::ComplexBlackBoxOutputDescriptor::GetTarget(), bbtk::ComplexBlackBoxInputDescriptor::GetTarget(), and bbtk::i.

Referenced by bbInsertHTMLGraph().

00835   {
00836     std::string tmp1;
00837     std::string valueStr("");
00838     Package::Pointer package = this->bbGetDescriptor()->GetPackage();
00839
00840     if (package!=NULL)
00841     {
00842       if (relative_link)
00843              tmp1 = this->bbGetDescriptor()->GetPackage()->GetDocRelativeURL();
00844            else
00845              tmp1 = this->bbGetDescriptor()->GetPackage()->GetDocURL();
00846     }
00847     else
00848     {
00849            tmp1 = "Caspitas";
00850     }
00851
00852     std::string tmp2=bbGetTypeName();
00853     std::string url(tmp1 + "#" + tmp2 );
00854     fprintf( ff , "subgraph cluster_%s_%p {\n",bbGetName().c_str(),this);
00855
00856     if (!(   (bbGetTypeName()=="workspace") && (bbGetName()=="workspacePrototype")) )
00857     {
00858            fprintf( ff , "  URL = \"%s\" %s",url.c_str(),";");
00859     }
00860
00861     std::string boxname="["+bbGetTypeName()+"]";
00862     if (GetThisPointer<ComplexBlackBox>()!=parentblackbox)
00863     {
00864        if (detail==0)
00865             {
00866           boxname=bbGetName();
00867        }
00868        else
00869        {
00870           boxname = bbGetName();
00871           boxname = boxname + "   [" +this->bbGetDescriptor()->GetPackage()->GetName()+"::"+ bbGetTypeName() + "]";
00872             }
00873
00874     }
00875     fprintf( ff , "  label = \"%s\"%s\n",  boxname.c_str() ,";");
00876
00877
00878
00879     //  fprintf( ff , "  style=filled%s\n",";");
00880     //  fprintf( ff , "  color=grey%s\n",";");
00881     fprintf( ff , "  node [style=filled]%s\n",";");
00882     fprintf( ff , "  fillcolor=grey%s\n",";");
00883     fprintf( ff , "  edge [color=blue]%s\n",";");
00884
00885
00886     // Labels Salida
00887     std::string labelStr1;
00888     std::string labelStr2;
00889     labelStr1 = boxname + "\\n(output)" ;
00890     labelStr2 = " | {{ ";
00891     bool tmp;
00892     tmp=false;
00893     OutputConnectorMapType::iterator i;
00894
00895     const BlackBoxDescriptor::OutputDescriptorMapType& omap = this->bbGetDescriptor()->GetOutputDescriptorMap();
00896     BlackBoxDescriptor::OutputDescriptorMapType::const_iterator o;
00897     for ( o = omap.begin();  o != omap.end(); ++o )
00898       {
00899         if (tmp==true)
00900           {
00901             labelStr2=labelStr2+" | ";
00902           }
00903         tmp=true;
00904         if (instanceOrtype==true)
00905           {
00906             valueStr = this->bbGetOutputAsString(o->second->GetName()/*
00907                                                                    ,factory*/) + " = ";
00908           }
00909         labelStr2=labelStr2+"<"+o->second->GetName().c_str()+"> " + valueStr + o->second->GetName().c_str();
00910       }
00911
00912     labelStr2 = labelStr2+ " } }";
00913
00914
00915
00916     if (detail==1)
00917       {
00918         labelStr1 = labelStr1 + labelStr2;
00919       }
00920
00921     if (tmp){
00922       fprintf(ff,"  " );
00923       bbWriteDotInputOutputName(ff,false,detail,level);
00924       fprintf( ff , " [shape=record, style=filled,fillcolor=grey,color=red,label=\"%s\"]%s\n",labelStr1.c_str(),";" );
00925     }
00926
00927
00928     // label Entrada
00929     labelStr1 = boxname + "\\n(input)" ;
00930     labelStr2 = " | {{ ";
00931     tmp=false;
00932     InputConnectorMapType::iterator ii;
00933
00934     const BlackBoxDescriptor::InputDescriptorMapType& imap = this->bbGetDescriptor()->GetInputDescriptorMap();
00935     BlackBoxDescriptor::InputDescriptorMapType::const_iterator iii;
00936     for ( iii = imap.begin();  iii != imap.end(); ++iii )
00937       {
00938         if (tmp==true)
00939           {
00940             labelStr2=labelStr2+" | ";
00941           }
00942         tmp=true;
00943         if (instanceOrtype==true)
00944           {
00945             valueStr = this->bbGetInputAsString(iii->second->GetName()/*,factory*/) + " = ";
00946           }
00947         labelStr2=labelStr2+"<"+iii->second->GetName().c_str()+"> " + valueStr + iii->second->GetName().c_str();
00948       }
00949
00950
00951     labelStr2 = labelStr2+ " } }";
00952     if (detail==1)
00953       {
00954         labelStr1 = labelStr1 + labelStr2;
00955       }
00956     if (tmp){
00957       fprintf(ff,"  " );
00958       bbWriteDotInputOutputName(ff,true,detail,level);
00959       fprintf( ff , " [shape=record, style=filled,fillcolor=grey,color=red,label=\"%s\"]%s\n",labelStr1.c_str(),";" );
00960     }
00961
00962
00963     // Body
00964     BlackBoxMapType::iterator j;
00965     for ( j = mBlackBoxMap.begin(); j != mBlackBoxMap.end(); ++j )
00966       {
00967         if (level>-1)
00968           {
00969             j->second->bbWriteDotFileBlackBox(ff,
00970                                               parentblackbox,
00971                                               detail,
00972                                               level-1,
00973                                               instanceOrtype,
00974                                               relative_link);
00975           }
00976       }
00977
00978     fprintf( ff , "}\n\n");
00979
00980     fprintf( ff , "  edge[color=blue]%s\n",";");
00981
00982     if (level>-1)
00983       {
00984         // Relation Input  with the inside BlackBox of the this ComplexBlackbox
00985         ComplexBlackBoxDescriptor::InputDescriptorMapType::iterator xx;
00986         ComplexBlackBoxDescriptor::InputDescriptorMapType idmt=bbGetDescriptor()->GetInputDescriptorMap();
00987         for ( xx = idmt.begin(); xx != idmt.end(); ++xx )
00988           {
00989             ComplexBlackBoxInputDescriptor *cbbid = (ComplexBlackBoxInputDescriptor*)xx->second;
00990
00991             fprintf(ff,"  ");
00992             bbWriteDotInputOutputName(ff,true,detail,level);
00993             if (detail==1)
00994               {
00995                 fprintf(ff,":%s",cbbid->GetName().c_str() );
00996               }
00997             fprintf(ff,"->" );
00998             BlackBox::Pointer bb = bbGetBlackBox( cbbid->GetTarget() );
00999             bb->bbWriteDotInputOutputName(ff,true,detail,level);
01000             if (detail==1)
01001               {
01002                 fprintf(ff,":%s \n", cbbid->GetInput().c_str() );
01003               }
01004           }// for xx
01005
01006
01007
01008         fprintf(ff,"\n \n");
01009
01010
01011
01012         // Relation Output ComplexBlackBox
01013         ComplexBlackBoxDescriptor::OutputDescriptorMapType::iterator yy;
01014         ComplexBlackBoxDescriptor::OutputDescriptorMapType odmt=bbGetDescriptor()->GetOutputDescriptorMap();
01015         for ( yy = odmt.begin(); yy != odmt.end(); ++yy )
01016           {
01017             ComplexBlackBoxOutputDescriptor *cbbod = (ComplexBlackBoxOutputDescriptor*)yy->second;
01018             fprintf(ff,"  ");
01019             BlackBox::Pointer bb = bbGetBlackBox( cbbod->GetTarget() );
01020             bb->bbWriteDotInputOutputName(ff,false,detail,level);
01021             if (detail==1)
01022               {
01023                 fprintf(ff,":%s", cbbod->GetOutput().c_str() );
01024               }
01025             fprintf(ff,"->" );
01026             bbWriteDotInputOutputName(ff,false,detail,level);
01027             if (detail==1)
01028               {
01029                 fprintf(ff,":%s",cbbod->GetName().c_str() );
01030               }
01031             fprintf(ff,"\n");
01032           } // for yy
01033
01034       } // if level
01035
01036
01037
01038         // Relation from the out side of this ComplexBlackBox with its Inputs
01039     if (GetThisPointer<ComplexBlackBox>()!=parentblackbox) {
01040       for ( ii = bbGetInputConnectorMap().begin();
01041             ii != bbGetInputConnectorMap().end(); ++ii )
01042         {
01043           if (ii->second)
01044             {
01045               Connection* con = ii->second->GetConnection();
01046               if (con!=NULL){
01047                 BlackBox::Pointer a=con->GetOriginalBlackBoxFrom();
01048                 BlackBox::Pointer b=con->GetOriginalBlackBoxTo();
01049                 fprintf(ff,"  ");
01050                 a->bbWriteDotInputOutputName(ff,false,detail,level);
01051                 if (detail==1)
01052                   {
01053                     fprintf(ff,":%s",con->GetOriginalBlackBoxFromOutput().c_str());
01054                   }
01055                 fprintf(ff,"->");
01056                 b->bbWriteDotInputOutputName(ff,true,detail,level);
01057                 if (detail==1)
01058                   {
01059                     fprintf(ff,":%s",con->GetOriginalBlackBoxToInput().c_str());
01060                   }
01061                 fprintf(ff,"%s\n",";");
01062               } // if con
01063             } // if second
01064         } // for
01065     } // if parentblackbox
01066   }

Here is the call graph for this function:

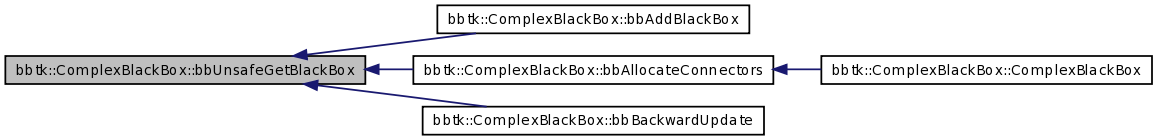

Here is the caller graph for this function:

void bbtk::ComplexBlackBox::bbWriteDotInputOutputName	(	FILE *	ff,
		bool	inputoutput,
		int	detail,
		int	level
	)			`[virtual]`

Virtual.

Definition at line 700 of file bbtkComplexBlackBox.cxx.

00701   {
00702     if (inputoutput)
00703       {
00704         fprintf(ff,"%s_IN_%p",bbGetTypeName().c_str(),this);
00705       } else {
00706       fprintf(ff,"%s_OUT_%p",bbGetTypeName().c_str(),this);
00707     } // if inputoutput
00708   }

BlackBox::Pointer bbtk::ComplexBlackBox::bbFindBlackBox ( const std::string & blackboxname ) [virtual]

Definition at line 713 of file bbtkComplexBlackBox.cxx.

References bbtk::i, and mBlackBoxMap.

00714   {
00715     BlackBox::Pointer blackbox;
00716     std::string subname="";
00717     std::string restname="";
00718     std::string delimiters(">");
00719     // Skip delimiters at beginning.
00720     std::string::size_type lastPos = blackboxname.find_first_not_of(delimiters, 0);
00721     // Find first "non-delimiter".
00722     std::string::size_type pos     = blackboxname.find_first_of(delimiters, lastPos);
00723
00724     // Found a token, add it to the vector.
00725     subname = blackboxname.substr(lastPos, pos - lastPos);
00726     restname = blackboxname.substr(lastPos+pos - lastPos+1, 999);
00727
00728     if (restname==subname)
00729     {
00730            restname="";
00731     }
00732
00733     BlackBoxMapType::iterator i = mBlackBoxMap.find(subname);
00734     if ( i != mBlackBoxMap.end() )
00735     {
00736        blackbox = i->second;
00737        if (restname!="")
00738             {
00739              blackbox = blackbox->bbFindBlackBox(restname);
00740             }
00741     }
00742     return blackbox;
00743   }

void bbtk::ComplexBlackBox::Check ( bool recursive = true )

Definition at line 1091 of file bbtkComplexBlackBox.cxx.

References bbtkMessage, bbtk::i, mBlackBoxMap, and mConnectionList.

01092   {
01093      bbtkMessage("debug",1,"**** Checking Complex Black Box "<<(void*)this
01094                  <<" ["<<bbGetFullName()<<"]"<<std::endl);
01095
01096      BlackBoxMapType::const_iterator i;
01097      for ( i = mBlackBoxMap.begin(); i != mBlackBoxMap.end(); ++i )
01098        {
01099          i->second->Check(recursive);
01100        }
01101      ConnectionListType::const_iterator j;
01102      for ( j = mConnectionList.begin();
01103            j != mConnectionList.end(); ++j )
01104        {
01105          (*j)->Check();
01106        }
01107      bbtkMessage("debug",1,"**** Checking Complex Black Box "<<(void*)this
01108                  <<" ["<<bbGetFullName()<<"] ... OK"<<std::endl);
01109
01110   }

ComplexBlackBox::Pointer bbtk::ComplexBlackBox::New	(	const std::string &	name,
		ComplexBlackBoxDescriptor::Pointer	desc
	)			`[static, protected]`

Creates a new complex black box.

Definition at line 47 of file bbtkComplexBlackBox.cxx.

References bbtkDebugMessage, and bbtkendl.

00049   {
00050     bbtkDebugMessage("object",1,"##> ComplexBlackBox::New('"<<name<<"','"<<
00051                      desc->GetTypeName()<<"')" <<bbtkendl);
00052     ComplexBlackBox::Pointer p =
00053       MakeBlackBoxPointer(new ComplexBlackBox(name,desc));
00054     bbtkDebugMessage("object",2,"<## ComplexBlackBox::New('"<<name<<"','"<<
00055                      desc->GetTypeName()<<"')" <<bbtkendl);
00056     return p;
00057   }

IOStatus bbtk::ComplexBlackBox::bbBackwardUpdate ( Connection::Pointer caller )

Definition at line 315 of file bbtkComplexBlackBox.cxx.

References bbGetDescriptor(), bbtkDebugMessageInc, bbtkError, bbtkInternalError, bbUnsafeGetBlackBox(), bbtk::ComplexBlackBoxOutputDescriptor::GetTarget(), bbtk::i, bbtk::MODIFIED, and bbtk::UPTODATE.

00316   {
00317     bbtkDebugMessageInc("process",3,
00318                         "==> ComplexBlackBox::bbBackwardUpdate("
00319                         <<(caller?caller->GetFullName():"0")<<") ["
00320                         <<bbGetFullName()<<"]"<<std::endl);
00321     //    bbtkInternalError("ComplexBlackBox::bbBackwardUpdate should never be called !");
00322
00323     if (caller==0)
00324       {
00325         bbtkInternalError("ComplexBlackBox::bbBackwardUpdate called with caller=0");
00326       }
00327
00328     /*
00329     std::cout << "CBB BUP : "<<caller->GetBlackBoxFrom()->bbGetFullName()
00330               <<"."<<caller->GetBlackBoxFromOutput()<<"----"
00331               <<caller->GetOriginalBlackBoxFrom()->bbGetFullName()
00332               <<"."<<caller->GetOriginalBlackBoxFromOutput()<<std::endl;
00333     */
00334
00335
00336
00337     IOStatus s = UPTODATE;
00338     const BlackBoxDescriptor::OutputDescriptorMapType& omap
00339       = bbGetDescriptor()->GetOutputDescriptorMap();
00340     BlackBoxDescriptor::OutputDescriptorMapType::const_iterator i
00341       = omap.find(caller->GetBlackBoxFromOutput());
00342     if (i!=omap.end())
00343       {
00344         // Cast the BBOutputDescriptor into a ComplexBBOutputDescriptor
00345         ComplexBlackBoxOutputDescriptor* d =
00346           (ComplexBlackBoxOutputDescriptor*)i->second;
00347         // Get the internal box
00348         BlackBox::Pointer b = bbUnsafeGetBlackBox ( d->GetTarget() );
00349         // Calls BackwardUpdate on it
00350         bbtkDebugMessageInc("process",4,"Internal box connected to output : "<<d->GetTarget()<<std::endl);
00351         // Because internal box can also be a complex box we have to
00352         // temporarily change the connection BlackBoxFromOutput to the
00353         // mapped one
00354
00355         //      std::string oldout = caller->GetBlackBoxFromOutput();
00356         //      std::cout << "oldout = "<<oldout<<std::endl;
00357         //      std::cout << "tmpout = "<<d->GetOutput()<<std::endl;
00358         //      caller->SetBlackBoxFromOutput(d->GetOutput());
00359         //
00360         //Connection newcaller(*caller);
00361         //newcaller.SetBlackBoxFromOutput(d->GetOutput());
00362         //IOStatus s1 = b->bbBackwardUpdate(&newcaller);
00363         IOStatus s1 = b->bbBackwardUpdate(caller);
00364         //newcaller.Clear();
00365         // restore old output
00366         //      caller->SetBlackBoxFromOutput(oldout);
00367
00368         // ??? STATUS OF CBBs ???
00369         // ??? Here it is only the final status of the boxes connected to the output
00370         if (s1==MODIFIED) s=MODIFIED;
00371       }
00372     else
00373       {
00374         bbtkError("Connection '"<<caller->GetFullName()<<"' does not point to a valid output of the complex box !");
00375       }
00376
00377     return s;
00378
00379   }

Here is the call graph for this function:

void bbtk::ComplexBlackBox::bbSetModifiedStatus ( BlackBoxInputConnector * c )

Definition at line 283 of file bbtkComplexBlackBox.cxx.

References bbtkDebugMessage, and bbtk::BlackBoxInputConnector::GetBlackBox().

00284   {
00285     bbtkDebugMessage("modified",1,
00286                         "==> ComplexBlackBox::bbSetModifiedStatus("
00287                      <<c<<") ["<<bbGetFullName()<<"]"<<std::endl);
00288
00289     c->GetBlackBox()->bbSetModifiedStatus(c);
00290
00291     /*
00292     bbtkDebugMessage("modified",1,
00293                      "<== ComplexBlackBox::bbSetModifiedStatus("
00294                      <<c<<") ["<<bbGetFullName()<<"]"<<std::endl);
00295     */
00296   }

Here is the call graph for this function:

void bbtk::ComplexBlackBox::bbAddBlackBox ( BlackBox::Pointer b ) [protected]

Adds the black box to the complex box.

Definition at line 546 of file bbtkComplexBlackBox.cxx.

References bbtkDebugDecTab, bbtkDebugMessageInc, bbtkError, bbUnsafeGetBlackBox(), and mBlackBoxMap.

00547   {
00548     bbtkDebugMessageInc("Kernel",7,
00549                         "ComplexBlackBox::AddBlackBox(\""<<b->bbGetName()
00550                         <<"\") ["
00551                         <<bbGetFullName()<<"]"<<std::endl);
00552
00553     if ( bbUnsafeGetBlackBox(b->bbGetName()) )
00554       {
00555         bbtkError("a black box called \""<<b->bbGetName()
00556                   <<"\" already exists");
00557       }
00558     b->bbSetParent(GetThisPointer<ComplexBlackBox>());
00559     mBlackBoxMap[b->bbGetName()] = b;
00560
00561     bbtkDebugDecTab("Kernel",7);
00562   }

Here is the call graph for this function:

void bbtk::ComplexBlackBox::bbAddToExecutionList ( const std::string & name ) [protected]

Definition at line 300 of file bbtkComplexBlackBox.cxx.

References bbtkDebugDecTab, bbtkDebugMessageInc, and mExecutionList.

00301   {
00302         bbtkDebugMessageInc("Kernel",9,
00303                         "ComplexBlackBox::bbAddToExecutionList(\""
00304                         <<name<<"\") ["
00305                         <<bbGetFullName()<<"]"<<std::endl);
00306
00307         mExecutionList.push_back( name );
00308
00309      bbtkDebugDecTab("Kernel",9);
00310
00311   }

void bbtk::ComplexBlackBox::bbUnsafeAddBlackBox ( BlackBox::Pointer b ) [protected]

Adds the black box to the complex box (unsafe).

Definition at line 567 of file bbtkComplexBlackBox.cxx.

References bbtkDebugDecTab, bbtkDebugMessageInc, and mBlackBoxMap.

Referenced by ComplexBlackBox().

00568   {
00569     bbtkDebugMessageInc("Kernel",7,
00570                         "ComplexBlackBox::UnsafeAddBlackBox(\""<<b->bbGetName()
00571                         <<"\") ["
00572                         <<bbGetFullName()<<"]"<<std::endl);
00573
00574     b->bbSetParent(GetThisPointer<ComplexBlackBox>());
00575     mBlackBoxMap[b->bbGetName()] = b;
00576
00577     bbtkDebugDecTab("Kernel",7);
00578   }

Here is the caller graph for this function:

void bbtk::ComplexBlackBox::bbRemoveBlackBox	(	const std::string &	name,
		bool	remove_connections = `true`
	)			`[protected]`

Removes the black box from the complex box.

Definition at line 583 of file bbtkComplexBlackBox.cxx.

References bbtkDebugDecTab, bbtkDebugMessageInc, bbtkError, bbtk::i, mBlackBoxMap, and mConnectionList.

00585   {
00586     bbtkDebugMessageInc("Kernel",7,
00587                         "ComplexBlackBox::RemoveBlackBox(\""<<name<<"\") ["
00588                         <<bbGetFullName()<<"]"<<std::endl);
00589
00590     BlackBoxMapType::iterator i = mBlackBoxMap.find(name);
00591     if ( i == mBlackBoxMap.end() )
00592       {
00593         bbtkError("the black box \""<<name<<"\" does not exist");
00594       }
00595     BlackBox::WeakPointer p = i->second;
00596
00597     if (remove_connections)
00598       {
00599         ConnectionListType::const_iterator j;
00600         for ( j = mConnectionList.begin();
00601               j != mConnectionList.end(); ++j )
00602           {
00603             (*j)->Check();
00604           }
00605       }
00606     if (p.use_count()!=1)
00607       {
00608         bbtkError("the black box \""<<name<<"\" is still connected");
00609       }
00610
00611     mBlackBoxMap.erase(i);
00612
00613
00614     // Unload orphan dl packages
00615     Package::UnLoadReleasedDynamicallyLoadedPackages();
00616
00617     bbtkDebugDecTab("Kernel",7);
00618   }

void bbtk::ComplexBlackBox::bbAddConnection ( Connection::Pointer c ) [protected]

Adds the connection to the complex box.

Definition at line 623 of file bbtkComplexBlackBox.cxx.

References bbtkDebugDecTab, bbtkDebugMessageInc, and mConnectionList.

Referenced by ComplexBlackBox().

00624   {
00625     bbtkDebugMessageInc("Kernel",7,
00626                         "ComplexBlackBox::AddConnection(\""<<"..."<<"\") ["
00627                         <<bbGetFullName()<<"]"<<std::endl);
00628
00629     mConnectionList.push_back(c);
00630
00631     bbtkDebugDecTab("Kernel",7);
00632   }

Here is the caller graph for this function:

BlackBox::Pointer bbtk::ComplexBlackBox::bbUnsafeGetBlackBox ( const std::string & name ) [protected]

Returns the black box with name <name> : does not throw an exception if it does not exist but return a null pointer

Definition at line 658 of file bbtkComplexBlackBox.cxx.

References bbtkDebugDecTab, bbtkDebugMessageInc, bbtk::i, and mBlackBoxMap.

Referenced by bbAddBlackBox(), bbAllocateConnectors(), and bbBackwardUpdate().

00659   {
00660     bbtkDebugMessageInc("Kernel",9,
00661                         "ComplexBlackBox::UnsafeGetBlackBox(\""<<name<<"\") ["
00662                         <<bbGetFullName()<<"]"
00663                         <<std::endl);
00664
00665     BlackBoxMapType::iterator i = mBlackBoxMap.find(name);
00666     if ( i == mBlackBoxMap.end() )
00667       {
00668         bbtkDebugDecTab("Kernel",9);
00669         return BlackBox::Pointer();
00670       }
00671
00672     bbtkDebugDecTab("Kernel",9);
00673     return i->second;
00674
00675   }

Here is the caller graph for this function:

void bbtk::ComplexBlackBox::bbAllocateConnectors ( ) [protected]

Allocates the i/o connectors of the black box.

Definition at line 164 of file bbtkComplexBlackBox.cxx.

References bbGetDescriptor(), bbtkDebugDecTab, bbtkDebugMessage, bbtkDebugMessageInc, bbUnsafeGetBlackBox(), bbtk::ComplexBlackBoxInputDescriptor::GetInput(), bbtk::ComplexBlackBoxOutputDescriptor::GetOutput(), bbtk::ComplexBlackBoxOutputDescriptor::GetTarget(), bbtk::ComplexBlackBoxInputDescriptor::GetTarget(), and bbtk::i.

Referenced by ComplexBlackBox().

00165   {
00166     bbtkDebugMessageInc("Kernel",8,
00167                         "ComplexBlackBox::bbAllocateConnectors() ["
00168                         <<bbGetFullName()<<"]"
00169                         <<std::endl);
00170
00171     // Input connectors
00172     const BlackBoxDescriptor::InputDescriptorMapType& imap
00173       = bbGetDescriptor()->GetInputDescriptorMap();
00174     BlackBoxDescriptor::InputDescriptorMapType::const_iterator i;
00175     for ( i = imap.begin(); i != imap.end(); ++i )
00176       {
00177         bbtkDebugMessage("Kernel",8,"* Allocate \""<<i->first<<"\""<<std::endl);
00178         // Redirect the connector to the internal box connector
00179         // Cast the BBInputDescriptor into a ComplexBBInputDescriptor
00180         ComplexBlackBoxInputDescriptor* d =
00181           (ComplexBlackBoxInputDescriptor*)i->second;
00182         // Get the internal box connector
00183         BlackBoxInputConnector* c =
00184           bbUnsafeGetBlackBox ( d->GetTarget() )
00185           ->bbGetInputConnectorMap()[ d->GetInput() ];
00186
00187         bbGetInputConnectorMap()[i->second->GetName()] = c;
00188       }
00189
00190     // Output connectors
00191     const BlackBoxDescriptor::OutputDescriptorMapType& omap
00192       = bbGetDescriptor()->GetOutputDescriptorMap();
00193     BlackBoxDescriptor::OutputDescriptorMapType::const_iterator o;
00194     for ( o = omap.begin(); o != omap.end(); ++o )
00195       {
00196         bbtkDebugMessage("Kernel",8,"* Allocate \""<<o->first<<"\""<<std::endl);
00197         // Redirect the connector to the internal box connector
00198         // Cast the BBOutputDescriptor into a ComplexBBOutputDescriptor
00199         ComplexBlackBoxOutputDescriptor* d =
00200           (ComplexBlackBoxOutputDescriptor*)o->second;
00201         // Get the internal box connector
00202         BlackBoxOutputConnector* c =
00203           bbUnsafeGetBlackBox ( d->GetTarget() )
00204           ->bbGetOutputConnectorMap()[ d->GetOutput() ];
00205
00206         bbGetOutputConnectorMap()[o->second->GetName()] = c;
00207       }
00208
00209     bbtkDebugDecTab("Kernel",8);
00210   }

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::ComplexBlackBox::bbDesallocateConnectors ( ) [protected]

Desallocates the i/o connectors of the black box.

Definition at line 216 of file bbtkComplexBlackBox.cxx.

References bbtkDebugDecTab, and bbtkDebugMessageInc.

Referenced by ~ComplexBlackBox().

00217   {
00218     bbtkDebugMessageInc("Kernel",8,
00219                         "ComplexBlackBox::DesallocateConnectors()"
00220                         <<std::endl);
00221
00222     // The connectors have not been allocated by the complex box
00223     // but by the internal boxes. Hence **DO NOT** desallocate !
00224     // just clear the maps to avoid that
00225     // BlackBox::bbDesallocateConnectors delete the connectors
00226     bbGetInputConnectorMap().clear();
00227     bbGetOutputConnectorMap().clear();
00228
00229     bbtkDebugDecTab("Kernel",8);
00230
00231   }

Here is the caller graph for this function:

Friends And Related Function Documentation

friend struct Object::Deleter [friend]

Definition at line 60 of file bbtkComplexBlackBox.h.

friend class ComplexBlackBoxDescriptor [friend]

Definition at line 60 of file bbtkComplexBlackBox.h.

Member Data Documentation

ComplexBlackBoxDescriptor::Pointer bbtk::ComplexBlackBox::mLockedDescriptor [private]

Default constructor : derived classes must use the constructor with the ComplexBlackBox's name.

The descriptor pointer : is 0 if the box is a prototype

Definition at line 190 of file bbtkComplexBlackBox.h.

Referenced by ComplexBlackBox().

ComplexBlackBoxDescriptor::WeakPointer bbtk::ComplexBlackBox::mDescriptor [private]

The descriptor pointer.

Definition at line 192 of file bbtkComplexBlackBox.h.

Referenced by ComplexBlackBox().

BlackBoxMapType bbtk::ComplexBlackBox::mBlackBoxMap [private]

The map of black boxes.

Definition at line 195 of file bbtkComplexBlackBox.h.

Referenced by bbAddBlackBox(), bbExecute(), bbFindBlackBox(), bbGetBlackBox(), bbPrintBlackBoxes(), bbRemoveBlackBox(), bbUnsafeAddBlackBox(), bbUnsafeGetBlackBox(), Check(), ComplexBlackBox(), GetObjectInfo(), GetObjectRecursiveSize(), and ~ComplexBlackBox().

ConnectionListType bbtk::ComplexBlackBox::mConnectionList [private]

The list of connections.

Definition at line 201 of file bbtkComplexBlackBox.h.

Referenced by bbAddConnection(), bbRemoveBlackBox(), Check(), ComplexBlackBox(), GetObjectInfo(), GetObjectRecursiveSize(), and ~ComplexBlackBox().

std::vector<std::string> bbtk::ComplexBlackBox::mExecutionList [private]

The execution list.

Definition at line 204 of file bbtkComplexBlackBox.h.

Referenced by bbAddToExecutionList(), bbExecute(), and ComplexBlackBox().

The documentation for this class was generated from the following files:

/home/guigues/bbtk-build-tmp/bbtk/kernel/src/bbtkComplexBlackBox.h
/home/guigues/bbtk-build-tmp/bbtk/kernel/src/bbtkComplexBlackBox.cxx


Public Types
typedef ComplexBlackBox	Self
typedef boost::shared_ptr< Self >	Pointer
typedef boost::weak_ptr< Self >	WeakPointer
typedef std::map< std::string, BlackBox::Pointer >	BlackBoxMapType
	The type of map of black boxes.
Public Member Functions
std::string	GetObjectName () const
std::string	GetObjectInfo () const
size_t	GetObjectSize () const
size_t	GetObjectInternalSize () const
size_t	GetObjectRecursiveSize () const
BlackBoxDescriptor::Pointer	bbGetDescriptor () const
	Returns the pointer on the box' descriptor.
BlackBox::Pointer	bbClone (const std::string &name)
	Returns a pointer on a new instance with name <name>.
void	Clear ()
	Clear.
void	SetAsPrototype ()
	Set as prototype.
bool	IsAPrototype () const
	Returns true if it is a prototype.
std::string	bbGetNameWithParent () const
	Returns the name with the name of the parent prepended if any.
void	bbExecute (bool force=false)
Data	bbGetOutput (const std::string &label)
Data	bbGetInput (const std::string &label)
	Gets the input Data of a given name.
void	bbSetOutput (const std::string &name, Data data)
	Sets the data of the output called <name>.
void	bbSetInput (const std::string &name, Data data, bool setModified=true)
	Sets the data of the input called <name>.
void	bbBruteForceSetInputPointer (const std::string &name, void *data, bool setModified=true)
	Sets the data of the input called <name>.
virtual void	bbConnectInput (const std::string &name, Connection *c)
	Connects the input <name> to the connection c.
virtual void	bbConnectOutput (const std::string &name, Connection *c)
	Connects the output <name> to the connection c.
BlackBox::Pointer	bbGetBlackBox (const std::string &name)
	Returns the black box with name <name>.
const BlackBoxMapType &	bbGetBlackBoxMap ()
void	bbPrintBlackBoxes ()
void	bbInsertHTMLGraph (std::ofstream &s, int detail, int level, bool instanceOrtype, const std::string &output_dir, bool relative_link)
virtual void	bbWriteDotFileBlackBox (FILE *ff, BlackBox::Pointer parentblackbox, int detail, int level, bool instanceOrtype, bool relative_link)
	Write Graphviz-dot description in file.
virtual void	bbWriteDotInputOutputName (FILE *ff, bool inputoutput, int detail, int level)
	Virtual.
virtual BlackBox::Pointer	bbFindBlackBox (const std::string &blackboxname)
void	Check (bool recursive=true)
IOStatus	bbBackwardUpdate (Connection::Pointer caller)
void	bbSetModifiedStatus (BlackBoxInputConnector *c)
Protected Types
typedef BlackBox	Superclass
Protected Member Functions
	ComplexBlackBox ()
	ComplexBlackBox (const ComplexBlackBox &)
	~ComplexBlackBox ()
	Destructor.
void	bbAddBlackBox (BlackBox::Pointer)
	Adds the black box to the complex box.
void	bbAddToExecutionList (const std::string &name)
void	bbUnsafeAddBlackBox (BlackBox::Pointer)
	Adds the black box to the complex box (unsafe).
void	bbRemoveBlackBox (const std::string &name, bool remove_connections=true)
	Removes the black box from the complex box.
void	bbAddConnection (Connection::Pointer)
	Adds the connection to the complex box.
BlackBox::Pointer	bbUnsafeGetBlackBox (const std::string &name)
void	bbAllocateConnectors ()
	Allocates the i/o connectors of the black box.
void	bbDesallocateConnectors ()
	Desallocates the i/o connectors of the black box.
Static Protected Member Functions
static ComplexBlackBox::Pointer	New (const std::string &name, ComplexBlackBoxDescriptor::Pointer desc)
	Creates a new complex black box.
Private Types
typedef std::list < Connection::Pointer >	ConnectionListType
	The type of list of connections.
Private Member Functions
	ComplexBlackBox (const std::string &name, ComplexBlackBoxDescriptor::Pointer desc)
	Constructor that takes the ComplexBlackBox name.
	ComplexBlackBox (ComplexBlackBox &from, const std::string &name)
	Constructor from an existing box (copy) with a new name.
Private Attributes
ComplexBlackBoxDescriptor::Pointer	mLockedDescriptor
	Default constructor : derived classes must use the constructor with the ComplexBlackBox's name.
ComplexBlackBoxDescriptor::WeakPointer	mDescriptor
	The descriptor pointer.
BlackBoxMapType	mBlackBoxMap
	The map of black boxes.
ConnectionListType	mConnectionList
	The list of connections.
std::vector< std::string >	mExecutionList
	The execution list.
Friends
struct	Object::Deleter
class	ComplexBlackBoxDescriptor
