Simple Wxwidgets interface to select file(s) or directory or from creaImageIO database to display. More...
#include <creaImageIOWxAnySimpleDlg.h>
Collaboration diagram for creaImageIO::WxAnySimpleDlg:
Public Member Functions | |
| WxAnySimpleDlg (wxWindow *parent, wxString i_title=_T(""), const std::string i_namedescp="localdatabase_Descriptor.dscp", const std::string i_namedb="Local Database") | |
| Ctor. | |
| ~WxAnySimpleDlg () | |
| void | setExts (std::vector< std::string >) |
| void | OnReadFile (wxCommandEvent &event) |
| Callback to read file(s). | |
| void | OnReadDirectory (wxCommandEvent &event) |
| Callback to read directory, no recursive. | |
| void | OnReadGimmick (wxCommandEvent &event) |
| Callback to select from creaImageIO database. | |
| std::vector< vtkImageData * > | getVtkImagesSelected () |
| return a vtkImageData vector of selected images, if available | |
| wxString | getInfoImage () |
| void | set (bool i_dicom) |
| std::vector< boost::any > & | getImagesSelected () |
| std::vector< size_t > | getDims () |
| std::vector< std::type_info * > | getTypes () |
| template<typename TImage > | |
| std::vector< typename TImage::Pointer > | getTemplatedImagesSelected () |
| bool | AllSameType () |
Private Member Functions | |
| template<class TImage > | |
| void | split3Din3Dvtk (TImage *i_Img) |
| template<typename TImage > | |
| void | split4Din3Dvtk (TImage *i_Img) |
| void | readImg (const std::string &i_name) |
| void | readDicomImg (const std::vector< std::string > &i_names) |
| const size_t | getNumberOfDimensions (const std::string &i_name) |
| const std::type_info & | getType (const std::string &i_name) |
Private Attributes | |
| std::vector< size_t > | m_AnyDims |
| std::vector< std::type_info * > | m_AnyType |
| std::vector< boost::any > | m_AnyImages |
| std::vector< std::string > | m_exts |
| std::string | namedescp |
| std::string | namedb |
| wxString | infoimage |
| std::string | m_dir |
| bool | m_dicom |
| SimpleView | m_view |
| interface to read data | |
| std::vector< vtkImageData * > | m_Vresults |
Detailed Description
Simple Wxwidgets interface to select file(s) or directory or from creaImageIO database to display.
Definition at line 21 of file creaImageIOWxAnySimpleDlg.h.
Constructor & Destructor Documentation
| creaImageIO::WxAnySimpleDlg::WxAnySimpleDlg | ( | wxWindow * | parent, | |
| wxString | i_title = _T(""), |
|||
| const std::string | i_namedescp = "localdatabase_Descriptor.dscp", |
|||
| const std::string | i_namedb = "Local Database" | |||
| ) |
Ctor.
Button to select Bruker directory
Definition at line 25 of file creaImageIOWxAnySimpleDlg.cpp.
References m_dicom, namedb, namedescp, OnReadDirectory(), OnReadFile(), and OnReadGimmick().
: wxDialog(parent, -1,_T("DISPLAY IMAGES"), wxDefaultPosition, wxSize(230,150)) { namedescp = i_namedescp; namedb = i_namedb; if(!i_title.empty()) { this->SetTitle(i_title); } // Button to select file(s) wxButton *fileBut = new wxButton(this, -1,_T("Select a file to display"), wxPoint(10,7) ); Connect( fileBut->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxAnySimpleDlg::OnReadFile ); // Button to select directory wxButton *directoryBut = new wxButton(this, -1,_T("Select a directory to display"), wxPoint(10,40) ); Connect( directoryBut->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxAnySimpleDlg::OnReadDirectory ); // button to select creaImageIO wxButton *gimmickBut = new wxButton(this, -1,_T("Select Gimmick"), wxPoint(10,70) ); Connect( gimmickBut->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxAnySimpleDlg::OnReadGimmick ); m_dicom = true;

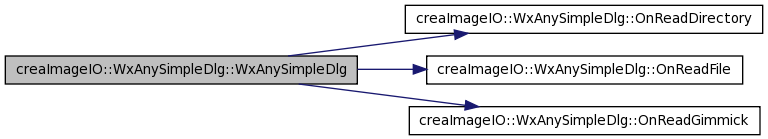

Here is the call graph for this function:
| creaImageIO::WxAnySimpleDlg::~WxAnySimpleDlg | ( | ) | [inline] |
Definition at line 31 of file creaImageIOWxAnySimpleDlg.h.
{};
Member Function Documentation
| bool creaImageIO::WxAnySimpleDlg::AllSameType | ( | ) |
Definition at line 581 of file creaImageIOWxAnySimpleDlg.cpp.
{
if(m_AnyType.size() == 1)
{
return true;
}
else
{
return false;
}
| std::vector< size_t> creaImageIO::WxAnySimpleDlg::getDims | ( | ) | [inline] |
Definition at line 52 of file creaImageIOWxAnySimpleDlg.h.
{ return m_AnyDims;} // comment out const // JPR
| std::vector<boost::any>& creaImageIO::WxAnySimpleDlg::getImagesSelected | ( | ) | [inline] |
Definition at line 49 of file creaImageIOWxAnySimpleDlg.h.
{ return m_AnyImages;}
| wxString creaImageIO::WxAnySimpleDlg::getInfoImage | ( | ) |
| const size_t creaImageIO::WxAnySimpleDlg::getNumberOfDimensions | ( | const std::string & | i_name | ) | [private] |
Definition at line 195 of file creaImageIOWxAnySimpleDlg.cpp.
{
typedef itk::ImageIOBase::IOComponentType ScalarPixelType;
itk::ImageIOBase::Pointer imageIO = itk::ImageIOFactory::CreateImageIO(i_name.c_str(), itk::ImageIOFactory::ReadMode);
imageIO->SetFileName(i_name.c_str());
imageIO->ReadImageInformation();
template<typename TImage >
| std::vector<typename TImage::Pointer> creaImageIO::WxAnySimpleDlg::getTemplatedImagesSelected | ( | ) | [inline] |
Definition at line 72 of file creaImageIOWxAnySimpleDlg.h.
{
std::vector<typename TImage::Pointer> imgs;
std::vector<boost::any>::iterator it = m_AnyImages.begin();
for(; it != m_AnyImages.end(); it++)
{
imgs.push_back(boost::any_cast<TImage*> (*it));
}
return imgs;
}
| const std::type_info & creaImageIO::WxAnySimpleDlg::getType | ( | const std::string & | i_name | ) | [private] |
Definition at line 186 of file creaImageIOWxAnySimpleDlg.cpp.
: just to check but not needed, we hardly suppose that we load only same type and dim of images
const std::type_info & WxAnySimpleDlg::getType(const std::string &i_name)
{
typedef itk::ImageIOBase::IOComponentType ScalarPixelType;
itk::ImageIOBase::Pointer imageIO = itk::ImageIOFactory::CreateImageIO(i_name.c_str(), itk::ImageIOFactory::ReadMode);
imageIO->SetFileName(i_name.c_str());
imageIO->ReadImageInformation();
| std::vector<std::type_info *> creaImageIO::WxAnySimpleDlg::getTypes | ( | ) | [inline] |
Definition at line 55 of file creaImageIOWxAnySimpleDlg.h.
{ return m_AnyType;} // comment out const // JPR
| std::vector<vtkImageData*> creaImageIO::WxAnySimpleDlg::getVtkImagesSelected | ( | ) | [inline] |
return a vtkImageData vector of selected images, if available
Definition at line 44 of file creaImageIOWxAnySimpleDlg.h.
{return m_Vresults;}
| void creaImageIO::WxAnySimpleDlg::OnReadDirectory | ( | wxCommandEvent & | event | ) |
Callback to read directory, no recursive.
Definition at line 95 of file creaImageIOWxAnySimpleDlg.cpp.
Referenced by WxAnySimpleDlg().
{
int resultShowModal;
bool bvalid = false;
long style = wxDD_DEFAULT_STYLE | wxDD_DIR_MUST_EXIST;
wxDirDialog* dirDlg = new wxDirDialog( 0, _T("Select the directory to display"), _T(""), style);
resultShowModal = dirDlg->ShowModal();
if ( resultShowModal==wxID_OK )
{
std::string path = crea::wx2std(dirDlg->GetPath());
typedef boost::filesystem::directory_iterator dir_it;
dir_it itr(path);
dir_it end_itr;
/*if (boost::filesystem::exists(path))
{*/
for(;itr != end_itr; ++itr)
{
bvalid = m_exts.size() == 0? true : false;
std::vector<std::string>::iterator it = m_exts.begin();
std::string ext = itr->filename().substr(itr->filename().find_last_of("."));
for(; it != m_exts.end(); it++)
{
if(ext == (*it) )
{
bvalid = true;
break;
}
}
if (!boost::filesystem::is_directory(itr->status()) && bvalid)
{
readImg(itr->string().c_str());
}
}
}
SetReturnCode( resultShowModal );
// Close();
Here is the caller graph for this function:
| void creaImageIO::WxAnySimpleDlg::OnReadFile | ( | wxCommandEvent & | event | ) |
Callback to read file(s).
Definition at line 59 of file creaImageIOWxAnySimpleDlg.cpp.
Referenced by WxAnySimpleDlg().
{
int resultShowModal;
wxFileDialog* fileDlg = new wxFileDialog( 0, _T("Select file"), _T(""), _T(""), crea::std2wx("*"), wxOPEN |wxFD_MULTIPLE, wxDefaultPosition);
resultShowModal = fileDlg->ShowModal();
if ( resultShowModal==wxID_OK )
{
wxArrayString wxArray;
fileDlg->GetPaths(wxArray);
if(wxArray.size() >0)
{
for( int i = 0; i < wxArray.GetCount(); i++)
{
std::string name = crea::wx2std(wxArray[i]);
// FOR THE MOMENT ONLY short 3D et short 4D
readImg(name);
}
}
else {
// TO DO WARNING MESSAGES
}
}
SetReturnCode( resultShowModal );
// Close();
Here is the caller graph for this function:
| void creaImageIO::WxAnySimpleDlg::OnReadGimmick | ( | wxCommandEvent & | event | ) |
Callback to select from creaImageIO database.
Definition at line 139 of file creaImageIOWxAnySimpleDlg.cpp.
Referenced by WxAnySimpleDlg().
{
// Run Gimmick
WxGimmickReaderDialog dlg(0,-1,
namedescp,
namedb,
_T("Select image(s) - Gimmick! (c) CREATIS-LRMN 2008"),
wxDefaultPosition,
wxSize(810,750),
GIMMICK_2D_IMAGE_SELECTION,
GIMMICK_3D_IMAGE_SELECTION,
_3D,
1);
dlg.ShowModal();
if (dlg.GetReturnCode() == wxID_OK)
{
std::vector<std::string> out;
dlg.stopReading();
dlg.GetSelectedFiles(out);
if(m_dicom)
{
readDicomImg( out);
}
else
{
std::vector<std::string>::iterator ii = out.begin();
for (;ii != out.end();ii++)
{
readImg( (*ii).c_str() );
}
}
dlg.OnExit();
}
SetReturnCode( dlg.GetReturnCode() );
// Close();
Here is the caller graph for this function:
| void creaImageIO::WxAnySimpleDlg::readDicomImg | ( | const std::vector< std::string > & | i_names | ) | [private] |
Definition at line 483 of file creaImageIOWxAnySimpleDlg.cpp.
{
typedef itk::Image<short,3> TImage;
typedef itk::GDCMImageIO GDCMType;
typedef itk::DICOMSeriesFileNames dicnames;
GDCMType::Pointer gdcmIO = GDCMType::New();
dicnames::Pointer generator = dicnames::New();
typedef itk::ImageSeriesReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetImageIO(gdcmIO);
reader->SetFileNames(i_names);
// reader->SetFileName( i_name );
try
{
reader->Update();
}
catch( itk::ExceptionObject & err )
{
// std::cout << "Caught an exception reading" << i_name << ": " << std::endl;
std::cout << err << " " << __FILE__ << " " << __LINE__ << std::endl;
throw err;
}
catch(...)
{
//std::cout << "Error while reading image " << i_name << std::endl;
throw;
}
//m_Iresults.push_back(reader->GetOutput());
| void creaImageIO::WxAnySimpleDlg::readImg | ( | const std::string & | i_name | ) | [private] |
Definition at line 204 of file creaImageIOWxAnySimpleDlg.cpp.
{
size_t dims = getNumberOfDimensions(i_name);
const std::type_info *type= &getType(i_name);
switch(dims)
{
case 3:
if (getType(i_name) == typeid(unsigned char))
{
typedef itk::Image<unsigned char, 3> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
}
else if (getType(i_name) == typeid(signed char))
{
typedef itk::Image<signed char, 3> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
}
else if (getType(i_name) == typeid(short))
{
typedef itk::Image<short, 3> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
}
else if (getType(i_name) == typeid(unsigned short))
{
typedef itk::Image<unsigned short, 3> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
}
else if (getType(i_name) == typeid(unsigned int))
{
typedef itk::Image<unsigned int, 3> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
}
else if (getType(i_name) == typeid(signed int))
{
typedef itk::Image<signed int, 3> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
}
else if (getType(i_name) == typeid(unsigned long))
{
typedef itk::Image<unsigned long, 3> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
}
else if (getType(i_name) == typeid(signed long))
{
typedef itk::Image<signed long, 3> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
}
else if (getType(i_name) == typeid(float))
{
typedef itk::Image<float, 3> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
}
else if (getType(i_name) == typeid(double))
{
typedef itk::Image<double, 3> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
}
else
{
//????FCY, so what the type????
}
break;
//assume that we have only one 4D file
case 4:
if (getType(i_name) == typeid(unsigned char))
{
typedef itk::Image<unsigned char, 4> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
split4Din3Dvtk<TImage>(reader->GetOutput());
}
else if (getType(i_name) == typeid(signed char))
{
typedef itk::Image<signed char, 4> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
split4Din3Dvtk<TImage>(reader->GetOutput());
}
else if (getType(i_name) == typeid(unsigned short))
{
typedef itk::Image<unsigned short, 4> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
split4Din3Dvtk<TImage>(reader->GetOutput());
}
else if(getType(i_name) == typeid(short))
{
typedef itk::Image<short, 4> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
try
{
reader->Update();
}
catch( itk::ExceptionObject & err )
{
std::cout << "Caught an exception reading" << i_name << ": " << std::endl;
std::cout << err << " " << __FILE__ << " " << __LINE__ << std::endl;
throw err;
}
catch(...)
{
std::cout << "Error while reading image " << i_name << std::endl;
throw;
}
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
split4Din3Dvtk<TImage>(reader->GetOutput());
}
else if (getType(i_name) == typeid(unsigned short))
{
typedef itk::Image<unsigned short, 4> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
split4Din3Dvtk<TImage>(reader->GetOutput());
}
else if (getType(i_name) == typeid(unsigned int))
{
typedef itk::Image<unsigned int, 4> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
split4Din3Dvtk<TImage>(reader->GetOutput());
}
else if (getType(i_name) == typeid(signed int))
{
typedef itk::Image<signed int, 4> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
split4Din3Dvtk<TImage>(reader->GetOutput());
}
else if (getType(i_name) == typeid(unsigned long))
{
typedef itk::Image<unsigned long, 4> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
split4Din3Dvtk<TImage>(reader->GetOutput());
}
else if (getType(i_name) == typeid(signed long))
{
typedef itk::Image<signed long, 4> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
split4Din3Dvtk<TImage>(reader->GetOutput());
}
else if (getType(i_name) == typeid(float))
{
typedef itk::Image<float, 4> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
split4Din3Dvtk<TImage>(reader->GetOutput());
}
else if (getType(i_name) == typeid(double))
{
typedef itk::Image<double, 4> TImage;
typedef itk::ImageFileReader<TImage> ReaderType;
ReaderType::Pointer reader = ReaderType::New();
reader->SetFileName( i_name );
reader->Update();
reader->GetOutput()->Register();
m_AnyImages.push_back(reader->GetOutput());
split4Din3Dvtk<TImage>(reader->GetOutput());
}
else
{
//????FCY, so what the type????
}
break;
}
// Test to know if we have to add new type
bool btest = false;
if( m_AnyDims.size() != 0)
{
btest = true;
}
else
{
m_AnyDims.push_back(dims);
m_AnyType.push_back((std::type_info*)&getType(i_name)); //JPR cast
}
if (btest)
{
if(m_AnyDims.front() != dims || m_AnyType.front()->before(getType(i_name)))
{
m_AnyDims.push_back(dims);
m_AnyType.push_back((std::type_info*)&getType(i_name)); //JPR cast
}
else{}
}
| void creaImageIO::WxAnySimpleDlg::set | ( | bool | i_dicom | ) | [inline] |
Definition at line 48 of file creaImageIOWxAnySimpleDlg.h.
{m_dicom= i_dicom;}
| void creaImageIO::WxAnySimpleDlg::setExts | ( | std::vector< std::string > | i_exts | ) |
Definition at line 87 of file creaImageIOWxAnySimpleDlg.cpp.
{
template<typename TImage >
| void creaImageIO::WxAnySimpleDlg::split3Din3Dvtk | ( | TImage * | i_Img | ) | [private] |
Definition at line 517 of file creaImageIOWxAnySimpleDlg.cpp.
References m_Vresults.
{
typedef itk::ImageToVTKImageFilter< TImage > ConnectorType;
typename ConnectorType::Pointer connector = ConnectorType::New();
connector->SetInput(i_Img);
connector->GetImporter()->SetDataScalarTypeToUnsignedChar();
connector->Update();
vtkImageData *im = vtkImageData::New();
im->ShallowCopy(connector->GetOutput());
im->Update();
template<typename TImage >
| void creaImageIO::WxAnySimpleDlg::split4Din3Dvtk | ( | TImage * | i_Img | ) | [private] |
Definition at line 532 of file creaImageIOWxAnySimpleDlg.cpp.
References m_dir, and m_Vresults.
{
if(i_Img->GetImageDimension() == 4)
{
// size of fourth dimension
int dsize = i_Img->GetLargestPossibleRegion().GetSize(3);
// Output Type
typedef itk::Image<unsigned char,3> ImageOutputType;
typedef itk::ImageSeriesWriter<TImage, ImageOutputType > SeriesWriterType;
typedef itk::MetaImageIO MetaImageType;
MetaImageType::Pointer metaIO;
typename SeriesWriterType::Pointer seriesWriter = SeriesWriterType::New();
// from JPR file to generate output files
typedef itk::NumericSeriesFileNames NamesGeneratorType;
NamesGeneratorType::Pointer namesGenerator = NamesGeneratorType::New();
namesGenerator->SetStartIndex(0);
namesGenerator->SetEndIndex(dsize-1);
namesGenerator->SetIncrementIndex(1);
std::string format = m_dir;
format += "/image%03d.mhd";
namesGenerator->SetSeriesFormat( format.c_str() );
const std::vector<std::string> names = namesGenerator->GetFileNames();
seriesWriter->SetFileNames( names );
seriesWriter->SetInput(i_Img);
seriesWriter->SetImageIO(metaIO);
try
{
seriesWriter->Update();
vtkMetaImageReader *vReader = vtkMetaImageReader::New();
std::vector<std::string>::const_iterator it = names.begin();
for( ;it != names.end(); ++it)
{
vReader->SetFileName((*it).c_str());
vReader->Update();
m_Vresults.push_back(vReader->GetOutput());
}
}
catch( itk::ExceptionObject & excp )
{
std::cerr << "Exception thrown while writing the series " << std::endl;
std::cerr << excp << std::endl;
//return EXIT_FAILURE;
}
Member Data Documentation
wxString creaImageIO::WxAnySimpleDlg::infoimage [private] |
Definition at line 92 of file creaImageIOWxAnySimpleDlg.h.
Referenced by getInfoImage().
std::vector< size_t> creaImageIO::WxAnySimpleDlg::m_AnyDims [private] |
Definition at line 86 of file creaImageIOWxAnySimpleDlg.h.
std::vector<boost::any> creaImageIO::WxAnySimpleDlg::m_AnyImages [private] |
Definition at line 88 of file creaImageIOWxAnySimpleDlg.h.
std::vector< std::type_info *> creaImageIO::WxAnySimpleDlg::m_AnyType [private] |
Definition at line 87 of file creaImageIOWxAnySimpleDlg.h.
bool creaImageIO::WxAnySimpleDlg::m_dicom [private] |
Definition at line 100 of file creaImageIOWxAnySimpleDlg.h.
Referenced by WxAnySimpleDlg().
std::string creaImageIO::WxAnySimpleDlg::m_dir [private] |
Definition at line 93 of file creaImageIOWxAnySimpleDlg.h.
Referenced by split4Din3Dvtk().
std::vector<std::string> creaImageIO::WxAnySimpleDlg::m_exts [private] |
Definition at line 89 of file creaImageIOWxAnySimpleDlg.h.
interface to read data
Definition at line 102 of file creaImageIOWxAnySimpleDlg.h.
std::vector<vtkImageData*> creaImageIO::WxAnySimpleDlg::m_Vresults [private] |
Definition at line 105 of file creaImageIOWxAnySimpleDlg.h.
Referenced by split3Din3Dvtk(), and split4Din3Dvtk().
std::string creaImageIO::WxAnySimpleDlg::namedb [private] |
Definition at line 91 of file creaImageIOWxAnySimpleDlg.h.
Referenced by WxAnySimpleDlg().
std::string creaImageIO::WxAnySimpleDlg::namedescp [private] |
Definition at line 90 of file creaImageIOWxAnySimpleDlg.h.
Referenced by WxAnySimpleDlg().
The documentation for this class was generated from the following files:
- /home/davila/Creatis/All7/creatools_source/creaImageIO/src/creaImageIOWxAnySimpleDlg.h
- /home/davila/Creatis/All7/creatools_source/creaImageIO/src/creaImageIOWxAnySimpleDlg.cpp
