Namespaces
namespace	tree
Classes
class	AbstractImageReader
	Abstract image reader. More...
class	DicomImageReader
	Concrete image reader for DICOM images. More...
class	DicomImageScanner
	Concrete image reader for DICOM images. More...
struct	OutputAttr
	Central controler of the gimmick application. More...
class	Gimmick
class	ImageExtent
	Class used to represent the actual state of the image selected and to perform comparisons on its values. More...
struct	OutStrGimmick
class	GimmickView
	Abstract class that handles views, attributes and previews (GUI) for Gimmick. More...
class	ImagePointerHolder
class	ImageReader
	Generic image reader which uses all the specific concrete image reader of the lib (tif, jpg, dicom, ...). More...
class	IndexedHeap
	Indexed priority queues handled by binary trees. More...
class	Listener
class	ThreadedImageReader
class	MultiThreadImageReaderUser
class	MultiThreadImageReader
	Class that allows parallel lectures of several images. More...
class	OutputModel
class	PACSConnection
class	Settings
class	SimpleView
class	SQLiteTreeHandler
	Concrete TreeHandler which manages a Tree stored in a sqlite database. More...
class	AddList
	Represents the list of currently added files. More...
class	RemoveList
	Represents the list of currently removed files. More...
class	Synchronizer
	In charge of the synchronization of the database and the disk state. More...
class	TimestampDatabaseHandler
	Concrete TreeHandler which manages a Tree stored in a sqlite database. More...
class	TreeHandler
	Abstract class which 'handles' a Tree structure. More...
class	TreeHandlerImageAdder
	Object which can add images files to a TreeHandler. Is able to parse (recursively) a part of a filesystem to look for known images and load their attributes in order to add the images to a Tree (submission via a TreeHandler::AddBranch). More...
class	TreeView
	Abstract class that handles the view of a Tree through its TreeHandler. More...
struct	Ultrasonix_header
class	UltrasonixImageReader
	Concrete image reader for ultrasonix 'rf' files. More...
class	VtkImageReader
	Concrete image reader based on a vtkImageReader2. More...
class	WxAnySimpleDlg
	Simple Wxwidgets interface to select file(s) or directory or from creaImageIO database to display. More...
class	WxAttributeSelectionPanel
class	WxCustomizeConfigPanel
class	WxDescriptorPanel
class	WxDumpPanel
	Display all dicom tags from a given DICOM file. More...
class	WxEditFieldsPanel
class	WxExportDlg
class	WxGimmickFrame
class	WxGimmickPanel
class	WxGimmickReaderDialog
class	WxGimmickTools
class	WxGimmickView
	Concrete derivative of GimmickView which implements a wxWidgets-based view. More...
class	WxListenerPanel
class	WxOutputDlg
class	WxPACSConnectionPanel
class	WxSimpleDlg
	Simple Wxwidgets interface to select file(s) or directory or from creaImageIO database to display. More...
struct	ItemData
	Data stored by the list items. More...
class	WxTreeView
	Abstract class that handles the view of a Tree through its TreeHandler. More...
class	RemoveAlertDlg
class	WxViewerPlayer
class	WxViewer
Typedefs
typedef std::map< std::string, std::string >	mapInfoDicom
Enumerations
enum	{ TOOL_ADDFILES_ID = 1, TOOL_ADDDIR_ID = 2, TOOL_ADDDATABASE_ID = 3, TOOL_REMOVE_ID = 4, TOOL_SYNCHRONIZE_ID = 5, TOOL_HELP_ID = 6, TOOL_SETTINGS_ID = 7, TOOL_TOOLS_ID = 8, TOOL_CREATEDB_ID = 9, TOOL_PACS_ID = 10 }
enum	icon_id { Icon_create_database, Icon_accept, Icon_add, Icon_folder_down, Icon_page_down, Icon_database_add, Icon_remove, Icon_synchronize, Icon_help, Icon_settings, Icon_tools }
Functions
std::string	irclean (const std::string &str)
bool	GimmickReaderDialog (std::vector< vtkImageData * > &images, const std::string i_namedescp, const std::string i_namedb="Local Database", const std::string &title="Select images", int posx=0, int posy=0, int sizex=1200, int sizey=800, int image_min_type=2, int image_max_type=3, int image_out_dim=2, int nb_threads=1)
	Pops up a WxGimmickReaderDialog returns true if the user clicked 'Ok', false if 'Cancel' and fills the vector of images.
template<class T , class C , class I >
std::ostream &	operator<< (std::ostream &, const IndexedHeap< T, C, I > &)
template<class T , class CT , class IT >
std::ostream &	operator<< (std::ostream &s, const IndexedHeap< T, CT, IT > &t)
char *	format_sql (const std::string &s)
void	SQLformat (std::string i_str, std::string &o_str)
void	RegisterGimmickMessageTypes ()
void	SetGimmickMessageLevel (int l)
void	SetGimmickDebugMessageLevel (int l)
void	deleteGimmickDebugMessage ()
bool	ReadHeader (FILE *Ultrasonix_file, Ultrasonix_header &h)
void	SplitExtensionsString (const std::string &str, const std::string &delimiters, std::vector< std::string > &tokens)
template<typename TImage >
class	__declspec (dllexport) WxISimpleDlg
	Simple Wxwidgets interface to select file(s) or directory or from creaImageIO database to display.
Variables
const int	ID_COMBO = 180
const int	icon_number = 11

Typedef Documentation

typedef std::map<std::string, std::string> creaImageIO::mapInfoDicom

Definition at line 35 of file creaImageIOGimmickView.h.

Enumeration Type Documentation

anonymous enum

Enumerator:

TOOL_ADDFILES_ID
TOOL_ADDDIR_ID
TOOL_ADDDATABASE_ID
TOOL_REMOVE_ID
TOOL_SYNCHRONIZE_ID
TOOL_HELP_ID
TOOL_SETTINGS_ID
TOOL_TOOLS_ID
TOOL_CREATEDB_ID
TOOL_PACS_ID

Definition at line 33 of file creaImageIOWxGimmickView.cpp.

enum creaImageIO::icon_id

Enumerator:

Icon_create_database
Icon_accept
Icon_add
Icon_folder_down
Icon_page_down
Icon_database_add
Icon_remove
Icon_synchronize
Icon_help
Icon_settings
Icon_tools

Definition at line 52 of file creaImageIOWxGimmickView.cpp.

Function Documentation

void creaImageIO::deleteGimmickDebugMessage ( ) [inline]

Definition at line 51 of file creaImageIOSystem.h.

        {
                delete crea::MessageManager::GetInstance();
        }

char* creaImageIO::format_sql ( const std::string & s )

Definition at line 190 of file creaImageIOSQLiteTreeHandler.cpp.

  {
    return sqlite3_mprintf("%q",s.c_str());
  }

std::string creaImageIO::irclean ( const std::string & str )

Definition at line 82 of file creaImageIODicomImageReader2.cpp.

  {
          if(str.size() > 0)
          {
                if (str == "GDCM::Unfound")
                  {
                return "";
                  }
                if (str[str.size()-1]==' ')
                  {
                return irclean(str.substr(0,str.size()-1));
                  }
                if (str[str.size()-1]==0)
                  {
                return irclean(str.substr(0,str.size()-1));
                  }
          }

    return str;
  }

template<class T , class CT , class IT >

std::ostream& creaImageIO::operator<<	(	std::ostream &	s,
		const IndexedHeap< T, CT, IT > &	t
	)

Definition at line 10 of file creaImageIOIndexedHeap.h.

template<class T , class C , class I >

std::ostream& creaImageIO::operator<<	(	std::ostream &	,
		const IndexedHeap< T, C, I > &
	)

bool creaImageIO::ReadHeader	(	FILE *	Ultrasonix_file,
		Ultrasonix_header &	h
	)

Definition at line 34 of file creaImageIOUltrasonixImageReader.cpp.

References creaImageIO::Ultrasonix_header::frame, creaImageIO::Ultrasonix_header::frequency, HEADER_SIZE, creaImageIO::Ultrasonix_header::height, creaImageIO::Ultrasonix_header::samplingRate, creaImageIO::Ultrasonix_header::type, and creaImageIO::Ultrasonix_header::width.

Referenced by creaImageIO::UltrasonixImageReader::CanRead().

  {
    //int *header=(int*)malloc(sizeof(int)*HEADER_SIZE);
    int header[HEADER_SIZE];
    fread(header, sizeof(int), HEADER_SIZE, Ultrasonix_file);
    if (ferror(Ultrasonix_file))
        return false;
    h.type         = header[1];
    h.frame        = header[2];
    h.height       = header[3];
    h.width        = header[4];
    h.frequency    = header[14];
    h.samplingRate = header[15];

Here is the caller graph for this function:

void creaImageIO::RegisterGimmickMessageTypes ( ) [inline]

Definition at line 25 of file creaImageIOSystem.h.

Referenced by creaImageIO::Gimmick::Gimmick(), SetGimmickDebugMessageLevel(), and SetGimmickMessageLevel().

  {
    static bool first_time = true;
    if (first_time)
      {
        crea::MessageManager::RegisterMessageType("Gimmick!",
                                                  "Gimmick",1);
        crea::MessageManager::RegisterMessageType("Gimmick! DEBUG",
                                                  "Gimmick",0);
        first_time = false;
      }
  }

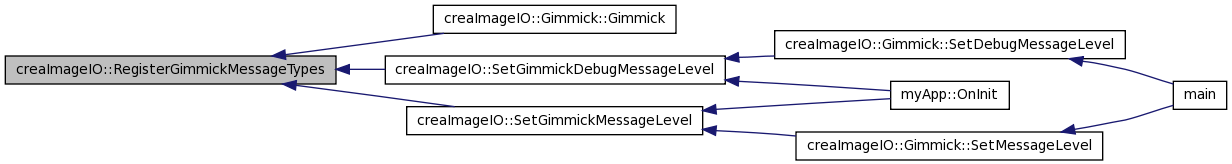

Here is the caller graph for this function:

void creaImageIO::SetGimmickDebugMessageLevel ( int l ) [inline]

Definition at line 44 of file creaImageIOSystem.h.

References RegisterGimmickMessageTypes().

Referenced by myApp::OnInit(), and creaImageIO::Gimmick::SetDebugMessageLevel().

  {
    RegisterGimmickMessageTypes();
    crea::MessageManager::SetMessageLevel("Gimmick! DEBUG",l);
  }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::SetGimmickMessageLevel ( int l ) [inline]

Definition at line 38 of file creaImageIOSystem.h.

References RegisterGimmickMessageTypes().

Referenced by myApp::OnInit(), and creaImageIO::Gimmick::SetMessageLevel().

  {
    RegisterGimmickMessageTypes();
    crea::MessageManager::SetMessageLevel("Gimmick!",l);
  }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::SplitExtensionsString	(	const std::string &	str,
		const std::string &	delimiters,
		std::vector< std::string > &	tokens
	)

Definition at line 79 of file creaImageIOVtkImageReader.cpp.

Referenced by creaImageIO::VtkImageReader::PushBackExtensions().

  {
    // Skip delimiters at beginning.
    std::string::size_type lastPos = str.find_first_not_of(delimiters, 0);
    // Find first delimiter.
    std::string::size_type pos     = str.find_first_of(delimiters, lastPos);

    while (std::string::npos != pos || std::string::npos != lastPos)
      {
        // Found a token, add it to the vector.
        // SPECIFIC : REMOVE INITIAL DOT (lastPos + 1)
        tokens.push_back(str.substr(lastPos+1, pos - lastPos));
        // Skip delimiters.  Note the "not_of"
        lastPos = str.find_first_not_of(delimiters, pos);
        // Find next delimiter
        pos = str.find_first_of(delimiters, lastPos);
      }

    }

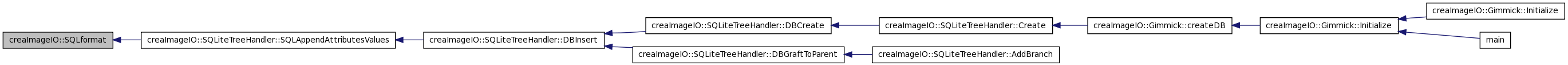

Here is the caller graph for this function:

void creaImageIO::SQLformat	(	std::string	i_str,
		std::string &	o_str
	)

Definition at line 540 of file creaImageIOSQLiteTreeHandler.cpp.

Referenced by creaImageIO::SQLiteTreeHandler::SQLAppendAttributesValues().

  {
                // quote must be doubled
                boost::algorithm::replace_all(i_str,"'","''");
                // Found strange strings which contained NULL char INSIDE string
                int i,size=i_str.size();
                for (i=0;i<size;++i)
                {
                        if (i_str[i]==0)
                        {
                                i_str = i_str.substr(0,i);
                                break;
                          }
                }
                o_str = i_str;
  }

Here is the caller graph for this function:
