#include <creaImageIOWxDescriptorPanel.h>
Public Member Functions | |
| WxDescriptorPanel () | |
| WxDescriptorPanel (wxWindow *parent, const std::string path) | |
| ~WxDescriptorPanel () | |
| Destructor. | |
| const std::string & | GetDescriptor () |
Private Member Functions | |
| void | OnAddAttribute (wxCommandEvent &event) |
| Add an attribute (DICOM or own). | |
| void | onAddAttribute (const std::string &att, const std::string &name_att, std::string level="") |
| Add an attribute (DICOM or own). | |
| void | OnAddLevel (wxCommandEvent &event) |
| Add a Level. | |
| void | onAddLevel (const std::string &level) |
| Add a Level. | |
| void | OnDicomAttribute (wxCommandEvent &event) |
| Find a DICOM attribute from group and element values. | |
| void | OnRemove (wxCommandEvent &event) |
| Remove a value (level or attribute). | |
| void | OnNew (wxCommandEvent &event) |
| Create a new descriptor. | |
| void | OnLoad (wxCommandEvent &event) |
| Load an exsitant descriptor. | |
| void | OnOK (wxCommandEvent &event) |
| Save a descriptor. | |
| void | OnApply (wxCommandEvent &event) |
| Save a descriptor and use it. | |
| void | OnCancel (wxCommandEvent &event) |
| Cancel. | |
| void | CreateDescriptor (int type) |
| Create a descriptor structure. | |
| bool | addLevel (const std::string &name) |
| add a level | |
| bool | addAtribute (const std::string &level, const std::string &name) |
| add an attribute | |
| bool | RemoveAttribute (const std::string &level, const std::string &name) |
| remove an attribute | |
| bool | RemoveLevel (const std::string &name) |
| remove a level | |
| void | createDescriptorFile () |
| Create a descriptor file. | |
| void | loadDescriptor (const std::string i_name) |
| load a descriptor file | |
| std::string | findLevel () |
| find a level'name | |
| std::string | OwnAttribute (const std::string name) |
| determine values for own attributes | |
| const std::string | saveDescriptor () |
| save a descriptor in a file | |
Private Attributes | |
| wxTextCtrl * | LevelCtrl |
| wxTextCtrl * | GRCtrl |
| wxTextCtrl * | ELCtrl |
| wxTextCtrl * | ResultCtrl |
| wxComboBox * | AttributeCombo |
| int | lv |
| number of level | |
| long | InsertPt |
| Insert point in result control. | |
| std::string | m_DscpFile |
| Output file for Descriptor. | |
| std::string | outDscp |
| Output Descriptor. | |
| std::vector< std::string > | VLevel |
| std::map< std::string, std::vector< std::string > > | DscpTree |
| std::map< std::string, std::string > | ownatt |
| std::map< int, std::string > | lvlist |
| std::string | m_path |
Detailed Description
Gimmick DB are based on descriptors with a tree structure . Each level contains attributes (DICOM or other) to identify data WxDescriptorPanel allows creation, modification and save of descriptors.
Definition at line 38 of file creaImageIOWxDescriptorPanel.h.
Constructor & Destructor Documentation
| creaImageIO::WxDescriptorPanel::WxDescriptorPanel | ( | ) |
| creaImageIO::WxDescriptorPanel::WxDescriptorPanel | ( | wxWindow * | parent, | |
| const std::string | path | |||
| ) |
Definition at line 5 of file creaImageIOWxDescriptorPanel.cpp.
References GimmickDebugMessage, ID_ATTRIBUTE_ADD, ID_ATTRIBUTE_CTRL, ID_EL_CTRL, ID_GR_CTRL, ID_LEVEL_ADD, ID_REMOVE_ADD, OnAddAttribute(), OnAddLevel(), OnDicomAttribute(), OnLoad(), OnNew(), OnRemove(), and WxDescriptorPanel().
{
// CTor
WxDescriptorPanel::WxDescriptorPanel(wxWindow *parent, const std::string path)
: wxDialog(parent, -1,_T("Descriptor Creation"), wxDefaultPosition, wxSize(550,550)) , m_path(path)
{
GimmickDebugMessage(1,"WxDescriptorPanel::WxDescriptorPanel"
<<std::endl);
lv = 0;
ownatt["FullFileName"] = "Full_File_Name";
ownatt["FullFileDirectory"] = "Full_File_Directory";
// START BUTTONS
wxButton *NewDescriptor = new wxButton(this, -1,_T("Create a new descriptor"), wxPoint(10,7) );
Connect( NewDescriptor->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxDescriptorPanel::OnNew );
wxButton *LoadDescriptor = new wxButton(this, -1,_T("Load a descriptor"), wxPoint(150,7) );
Connect( LoadDescriptor->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxDescriptorPanel::OnLoad );
wxStaticLine *line1 = new wxStaticLine(this, -1, wxPoint(5,40), wxSize(540,2));
// LEVEL
wxStaticText * LevelText=new wxStaticText(this,-1,_T(" Level: "), wxPoint(5,50));
LevelCtrl=new wxTextCtrl(this, ID_GR_CTRL,_T("patient"), wxPoint(50,50), wxSize(50,25));
wxButton *addLevel = new wxButton(this, ID_LEVEL_ADD,_T("add a level"), wxPoint(150,50) );
Connect( addLevel->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxDescriptorPanel::OnAddLevel );
wxStaticLine *line2 = new wxStaticLine(this, -1, wxPoint(5,75), wxSize(540,2));
// ATTRIBUTES
wxStaticText * GR=new wxStaticText(this,-1,_T(" DICOM Group: "), wxPoint(5,110));
GRCtrl=new wxTextCtrl(this, ID_GR_CTRL,_T("0x0010"), wxPoint(82,110), wxSize(50,25));
Connect( GRCtrl->GetId(), wxEVT_COMMAND_TEXT_UPDATED , (wxObjectEventFunction) &WxDescriptorPanel::OnDicomAttribute );
wxStaticText * EL=new wxStaticText(this,-1,_T(" DICOM Element: "), wxPoint(140,110));
ELCtrl=new wxTextCtrl(this, ID_EL_CTRL,_T("0x0010"), wxPoint(230,110), wxSize(50,25));
Connect( ELCtrl->GetId(), wxEVT_COMMAND_TEXT_UPDATED , (wxObjectEventFunction) &WxDescriptorPanel::OnDicomAttribute );
wxString choices[3];
choices[0] = _T("Unknow Attribute");
std::map<std::string, std::string>::iterator it_att =ownatt.begin();
for(int i = 1; it_att != ownatt.end(); it_att++, i++)
{
choices[i] = crea::std2wx(it_att->second);
}
AttributeCombo = new wxComboBox(this, ID_ATTRIBUTE_CTRL,_T(""),wxPoint(300,110), wxSize(120,25),3,choices, wxCB_READONLY);
AttributeCombo->SetSelection(0);
wxButton *addAttribute = new wxButton(this, ID_ATTRIBUTE_ADD,_T("add an attribute"), wxPoint(440,110) );
Connect( addAttribute->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxDescriptorPanel::OnAddAttribute );
wxStaticLine *line3 = new wxStaticLine(this, -1, wxPoint(5,140), wxSize(540,2));
// RESULT
ResultCtrl=new wxTextCtrl(this, ID_EL_CTRL,_T(""), wxPoint(5,150), wxSize(250,310), wxTE_READONLY| wxMac | wxTE_MULTILINE | wxTE_RICH );
wxButton *RemoveCtrl = new wxButton(this, ID_REMOVE_ADD,_T("Remove an entry"), wxPoint(280,200) );
Connect( RemoveCtrl->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxDescriptorPanel::OnRemove );

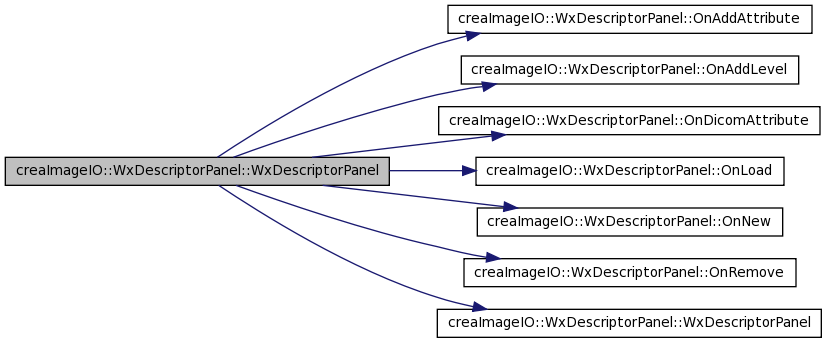

Here is the call graph for this function:
| creaImageIO::WxDescriptorPanel::~WxDescriptorPanel | ( | ) |
Destructor.
Definition at line 86 of file creaImageIOWxDescriptorPanel.cpp.
Member Function Documentation
| bool creaImageIO::WxDescriptorPanel::addAtribute | ( | const std::string & | level, | |
| const std::string & | name | |||
| ) | [private] |
add an attribute
Definition at line 467 of file creaImageIOWxDescriptorPanel.cpp.
: level's name to add attribute // // @param name : attribute's name // // @return : boolean result // bool WxDescriptorPanel::addAtribute(const std::string &level, const std::string &name) { bool bresult = true; std::map<std::string, std::vector <std::string> >::iterator it_tree = DscpTree.begin(); for (;it_tree != DscpTree.end(); it_tree++) { if (it_tree->first.c_str() == level) { std::vector<std::string>::iterator it_branch = it_tree->second.begin(); for(;it_branch != it_tree->second.end(); it_branch++) {
| bool creaImageIO::WxDescriptorPanel::addLevel | ( | const std::string & | name | ) | [private] |
add a level
Definition at line 406 of file creaImageIOWxDescriptorPanel.cpp.
: level's name to add // // @return : boolean result // bool WxDescriptorPanel::addLevel(const std::string &name) { bool bfound = false; std::map<std::string, std::vector <std::string> >::iterator it_tree = DscpTree.begin(); for (;it_tree != DscpTree.end(); it_tree++) {
| void creaImageIO::WxDescriptorPanel::CreateDescriptor | ( | int | type | ) | [private] |
Create a descriptor structure.
Definition at line 358 of file creaImageIOWxDescriptorPanel.cpp.
: level's name to add // // @return : boolean result // void WxDescriptorPanel::CreateDescriptor(int type) { if(type == 0) // First initialization { outDscp.clear(); outDscp += "<level>"; outDscp += "\n"; outDscp += "root"; outDscp += "\n"; outDscp += "O Name Name 4"; outDscp += "\n"; } if(type == 1) { if(lv > 1) { outDscp += "O NumberOfChildren "; outDscp += crea::wx2std(LevelCtrl->GetValue()); outDscp += "s"; outDscp += "\n"; } outDscp += "<level>"; outDscp += "\n"; outDscp += crea::wx2std(LevelCtrl->GetValue()); outDscp += "\n"; }
| void creaImageIO::WxDescriptorPanel::createDescriptorFile | ( | ) | [private] |
Create a descriptor file.
Definition at line 628 of file creaImageIOWxDescriptorPanel.cpp.
: WxEvent // // @return : - // void WxDescriptorPanel::OnCancel(wxCommandEvent& event) { } // create a descriptor file // // @param - : // // @return : - // void WxDescriptorPanel::createDescriptorFile() { outDscp.clear(); outDscp += "<level>"; outDscp += "\n"; outDscp += "Root"; outDscp += "\n"; outDscp += "O Name Name 4"; outDscp += "\n"; std::map<std::string, std::vector <std::string> >::iterator it_tree = DscpTree.begin(); std::map<int, std::string >::iterator it_lv_nb = lvlist.begin(); std::map<int, std::string >::iterator it_lv = lvlist.begin(); it_lv_nb++; for (;it_lv != lvlist.end(); it_lv++) { outDscp +="<level>"; outDscp += "\n"; outDscp += it_lv->second.c_str(); outDscp += "\n"; if(it_lv_nb != lvlist.end()) { outDscp += "O NumberOfChildren "; outDscp += it_lv_nb->second.c_str(); outDscp += "s"; outDscp += "\n"; it_lv_nb++; } std::vector<std::string>::iterator it_branch = DscpTree[it_lv->second.c_str()].begin(); for(;it_branch != DscpTree[it_lv->second.c_str()].end(); it_branch++) { std::string att = it_branch->c_str(); if(att[0] == 'D' && att[7] == '_' && att.size() == 14) { outDscp += "D "; outDscp += att.substr(1,6) + " "; // GR outDscp += att.substr(8,6) + " ";// EL outDscp += "3"; outDscp += "\n"; }
| std::string creaImageIO::WxDescriptorPanel::findLevel | ( | ) | [private] |
find a level'name
Definition at line 287 of file creaImageIOWxDescriptorPanel.cpp.
{
result = it_att->first.c_str();
break;
}
}
return result;
}
// Find a level in function of position in Return Ctrl //
// @param - : //
// @return : - //
std::string WxDescriptorPanel::findLevel()
{
long column;
long line;
ResultCtrl->PositionToXY( ResultCtrl->GetInsertionPoint(),&column, &line);
| const std::string& creaImageIO::WxDescriptorPanel::GetDescriptor | ( | ) | [inline] |
Definition at line 46 of file creaImageIOWxDescriptorPanel.h.
References m_DscpFile.
{ return m_DscpFile;}
| void creaImageIO::WxDescriptorPanel::loadDescriptor | ( | const std::string | i_name | ) | [private] |
load a descriptor file
Definition at line 689 of file creaImageIOWxDescriptorPanel.cpp.
: file name to load // // @return : - // void WxDescriptorPanel::loadDescriptor(const std::string i_name) { std::ifstream i_file(i_name.c_str()); std::stringstream buffer; buffer << i_file.rdbuf(); std::string line; std::string level; #if defined(USE_GDCM2) const gdcm::Global& g = gdcm::Global::GetInstance(); // sum of all knowledge ! const gdcm::Dicts &dicts = g.GetDicts(); const gdcm::Dict &dict = dicts.GetPublicDict(); // Part 6 #endif bool bname; int ilevel = -1; while(std::getline(buffer, line)) { if(line =="<level>") { //increment levels. ilevel++; bname = true; } else if(bname) { // For each level, a name to describe it level = line; if(ilevel>0) { onAddLevel(level); } bname = false; } else { // split line to find all tags std::vector<std::string> descriptors; std::string separator = " "; std::string::size_type last_pos = line.find_first_not_of(separator); //find first separator std::string::size_type pos = line.find_first_of(separator, last_pos); while(std::string::npos != pos || std::string::npos != last_pos) { descriptors.push_back(line.substr(last_pos, pos - last_pos)); last_pos = line.find_first_not_of(separator, pos); pos = line.find_first_of(separator, last_pos); } // By default, the last tag is at zero and not recorded but if take in count unsigned int flag = 0; if(descriptors.size() == 4) { std::stringstream val; val << std::dec << descriptors[3]; val>> flag; } // if Dicom tag, use "group" and "element" descriptor if(descriptors[0] == "D") { std::stringstream val, val2; unsigned short group; unsigned short element; val << std::dec << descriptors[1] ; val >> std::hex >> group; val2 << std::dec << descriptors[2]; val2 >> std::hex >> element; std::string compose = "D"; compose += descriptors[1]; compose += "_"; compose += descriptors[2]; #if defined(USE_GDCM) GDCM_NAME_SPACE::DictEntry* entry = GDCM_NAME_SPACE::Global::GetDicts()->GetDefaultPubDict()->GetEntry(group, element); if(ilevel>0) { onAddAttribute( entry->GetName(),compose, level); } #endif #if defined(USE_GDCM2) gdcm::DictEntry dictentry = dict.GetDictEntry(gdcm::Tag(group, element)); if(ilevel>0) { onAddAttribute( dictentry.GetName(),compose, level); } #endif } else if(descriptors[0].find("#") != -1)
| void creaImageIO::WxDescriptorPanel::OnAddAttribute | ( | wxCommandEvent & | event | ) | [private] |
Add an attribute (DICOM or own).
Definition at line 97 of file creaImageIOWxDescriptorPanel.cpp.
Referenced by WxDescriptorPanel().
{
GimmickDebugMessage(1,"WxCustomizeConfigPanel::~WxCustomizeConfigPanel"
<<std::endl);
}
// Add an attribute //
// @param event : Wxevent //
// @return : - //
void WxDescriptorPanel::OnAddAttribute(wxCommandEvent& event)
{
Here is the caller graph for this function:
| void creaImageIO::WxDescriptorPanel::onAddAttribute | ( | const std::string & | att, | |
| const std::string & | name_att, | |||
| std::string | level = "" | |||
| ) | [private] |
Add an attribute (DICOM or own).
Definition at line 120 of file creaImageIOWxDescriptorPanel.cpp.
References AttributeCombo, and OwnAttribute().
{
wxString wd = AttributeCombo->GetValue();
std::string st = crea::wx2std(wd);
name_att = OwnAttribute(st);
}
onAddAttribute(crea::wx2std(AttributeCombo->GetValue()), name_att);
}
// add an attribute //
// @param att : attribute //
// @param name_att : 's name //
// @param level : level to add the attribute //
// @return : - //
void WxDescriptorPanel::onAddAttribute( const std::string &att, const std::string &name_att,std::string level )
{
if(lv == 0)
{
wxMessageBox(_T("Need a level first!"),crea::std2wx("WARNING"),wxOK,this);
}
else
{
if( !att.empty() )
{
// Find Name of level
if(level.empty())
{
level = findLevel();
}
if (!addAtribute(level, name_att))
{
wxMessageBox(_T("Attribute already used in this level"),crea::std2wx("WARNING"),wxOK,this);
}
else
{
ResultCtrl->SetInsertionPoint(InsertPt);
for (int i = 1; i<=lv;i++)
{
ResultCtrl->WriteText(_T(" "));
}
ResultCtrl->WriteText(_T("| - "));
Here is the call graph for this function:
| void creaImageIO::WxDescriptorPanel::OnAddLevel | ( | wxCommandEvent & | event | ) | [private] |
Add a Level.
Definition at line 168 of file creaImageIOWxDescriptorPanel.cpp.
Referenced by WxDescriptorPanel().
: Wxevent //
Here is the caller graph for this function:
| void creaImageIO::WxDescriptorPanel::onAddLevel | ( | const std::string & | level | ) | [private] |
Add a Level.
Definition at line 181 of file creaImageIOWxDescriptorPanel.cpp.
{
if( !LevelCtrl->GetValue().IsEmpty() )
{
onAddLevel(crea::wx2std(LevelCtrl->GetValue()));
}
}
// add a level //
// @param level : level's name //
// @return : - //
void WxDescriptorPanel::onAddLevel(const std::string &level)
{
if(addLevel(level))
{
wxMessageBox(_T("Level already used"),crea::std2wx(("WARNING")),wxOK,this);
return;
}
lv++;
ResultCtrl->SetInsertionPoint(InsertPt);
for (int i = 1; i<lv;i++)
{
ResultCtrl->WriteText(_T(" "));
}
if(lv>1)
{ ResultCtrl->WriteText(_T("| \n"));
for (int i = 1; i<lv;i++)
{
ResultCtrl->WriteText(_T(" "));
| void creaImageIO::WxDescriptorPanel::OnApply | ( | wxCommandEvent & | event | ) | [private] |
Save a descriptor and use it.
Definition at line 580 of file creaImageIOWxDescriptorPanel.cpp.
References saveDescriptor().
: WxEvent // // @return : - // void WxDescriptorPanel::OnOK(wxCommandEvent &Event) { saveDescriptor();
Here is the call graph for this function:
| void creaImageIO::WxDescriptorPanel::OnCancel | ( | wxCommandEvent & | event | ) | [private] |
| void creaImageIO::WxDescriptorPanel::OnDicomAttribute | ( | wxCommandEvent & | event | ) | [private] |
Find a DICOM attribute from group and element values.
Definition at line 220 of file creaImageIOWxDescriptorPanel.cpp.
Referenced by WxDescriptorPanel().
: Wxevent // // @return : - // void WxDescriptorPanel::OnDicomAttribute(wxCommandEvent& event) { int i = 0; if(!GRCtrl->GetValue().IsEmpty() && !ELCtrl->GetValue().IsEmpty() && GRCtrl->GetValue().Len() == 6 && ELCtrl->GetValue().Len() == 6 && AttributeCombo->GetSelection() == 0) { std::string gr = crea::wx2std(GRCtrl->GetValue()); std::string el = crea::wx2std(ELCtrl->GetValue()); std::stringstream val; unsigned short group; unsigned short element; val << std::dec << gr ; val >> std::hex >> group; val.clear(); val << std::dec << el ; val >> std::hex >> element; #if defined(USE_GDCM) // Retrieve the name from gdcm dict GDCM_NAME_SPACE::DictEntry* entry = GDCM_NAME_SPACE::Global::GetDicts()->GetDefaultPubDict()->GetEntry(group, element); // AttributeCombo->Clear(); if(entry) {
Here is the caller graph for this function:
| void creaImageIO::WxDescriptorPanel::OnLoad | ( | wxCommandEvent & | event | ) | [private] |
Load an exsitant descriptor.
Definition at line 541 of file creaImageIOWxDescriptorPanel.cpp.
Referenced by WxDescriptorPanel().
{
LevelCtrl->SetValue(_T("patient"));
ResultCtrl->Clear();
DscpTree.clear();
lv = 0;
}
// Load a descriptor file //
// @param event : WxEvent //
// @return : - //
void WxDescriptorPanel::OnLoad(wxCommandEvent &Event)
{
long style = wxOPEN | wxFILE_MUST_EXIST;
LevelCtrl->SetValue(_T("patient"));
ResultCtrl->Clear();
DscpTree.clear();
lv = 0;
Here is the caller graph for this function:
| void creaImageIO::WxDescriptorPanel::OnNew | ( | wxCommandEvent & | event | ) | [private] |
Create a new descriptor.
Definition at line 528 of file creaImageIOWxDescriptorPanel.cpp.
Referenced by WxDescriptorPanel().
: WxEvent //
Here is the caller graph for this function:
| void creaImageIO::WxDescriptorPanel::OnOK | ( | wxCommandEvent & | event | ) | [private] |
Save a descriptor.
Definition at line 569 of file creaImageIOWxDescriptorPanel.cpp.
{
loadDescriptor(crea::wx2std(FD->GetPath()).c_str());
| void creaImageIO::WxDescriptorPanel::OnRemove | ( | wxCommandEvent & | event | ) | [private] |
Remove a value (level or attribute).
Definition at line 313 of file creaImageIOWxDescriptorPanel.cpp.
Referenced by WxDescriptorPanel().
{
level_pos_start += 2;
}
std::string::size_type level_pos_end = tx.find_first_of("\n",level_pos_start);
return tx.substr(level_pos_start,level_pos_end - level_pos_start);
}
// Remove an item //
// @param event : Wxevent //
// @return : - //
void WxDescriptorPanel::OnRemove(wxCommandEvent& event)
{
long line;
long column;
long pos_start;
long pos_end;
pos_start = ResultCtrl->GetInsertionPoint();
ResultCtrl->PositionToXY( pos_start,&column, &line);
if (line == 0)
{
std::string name("root");
RemoveLevel(name);
ResultCtrl->Clear();
lv = 0;
}
else
{
wxString text = ResultCtrl->GetLineText(line);
if ( text.Find(_T("|_")) == -1)
{
std::string level = findLevel();
// find GR and EL values to remove
std::string tx = crea::wx2std(text);
std::string::size_type EL_start_pos = tx.find_last_of(" ");
RemoveAttribute(level, tx.substr(EL_start_pos+1,tx.size() - EL_start_pos));
Here is the caller graph for this function:
| std::string creaImageIO::WxDescriptorPanel::OwnAttribute | ( | const std::string | name | ) | [private] |
determine values for own attributes
Definition at line 266 of file creaImageIOWxDescriptorPanel.cpp.
Referenced by onAddAttribute().
: attribute's name // // @param key : indicates key map or not // // @return : - // std::string WxDescriptorPanel::OwnAttribute(const std::string name)
Here is the caller graph for this function:
| bool creaImageIO::WxDescriptorPanel::RemoveAttribute | ( | const std::string & | level, | |
| const std::string & | name | |||
| ) | [private] |
remove an attribute
Definition at line 499 of file creaImageIOWxDescriptorPanel.cpp.
: level's name to remove attribute // // @param name : attribute's name // // @return : boolean result // bool WxDescriptorPanel::RemoveAttribute(const std::string &level, const std::string &name) { bool bresult = false; std::map<std::string, std::vector <std::string> >::iterator it_tree = DscpTree.begin(); for (;it_tree != DscpTree.end(); it_tree++) { if(it_tree->first == level) { std::vector<std::string>::iterator it_branch = it_tree->second.begin();
| bool creaImageIO::WxDescriptorPanel::RemoveLevel | ( | const std::string & | name | ) | [private] |
remove a level
Definition at line 432 of file creaImageIOWxDescriptorPanel.cpp.
References DscpTree, and lvlist.
{
lvlist[lv] = name;
std::vector <std::string> branch;
DscpTree[name] = branch;
}
return bfound;
}
// remove a level //
// @param name : level's name to remove //
// @return : boolean result //
bool WxDescriptorPanel::RemoveLevel(const std::string &name)
{
bool bresult = false;
std::map<int, std::string>::iterator it_list= lvlist.begin();
for(; it_list != lvlist.end(); it_list++)
{
if(it_list->second == name)
{
break;
}
}
std::map<int, std::string>::iterator it_list2 = it_list;
for(;it_list != lvlist.end(); it_list++)
| const std::string creaImageIO::WxDescriptorPanel::saveDescriptor | ( | ) | [private] |
save a descriptor in a file
Definition at line 587 of file creaImageIOWxDescriptorPanel.cpp.
Referenced by OnApply().
: WxEvent // // @return : - // void WxDescriptorPanel::OnApply(wxCommandEvent &Event) { m_DscpFile = saveDescriptor(); wxWindow::Close(); SetReturnCode(ID_DSCP_APPLY); } const std::string WxDescriptorPanel::saveDescriptor() { std::string file = ""; long style = wxSAVE; std::string wc("*.dscp"); wxFileDialog* FD = new wxFileDialog( 0, _T("Select file"), _T(""), _T(""), crea::std2wx(wc), style,
Here is the caller graph for this function:
Member Data Documentation
wxComboBox* creaImageIO::WxDescriptorPanel::AttributeCombo [private] |
Definition at line 55 of file creaImageIOWxDescriptorPanel.h.
Referenced by onAddAttribute().
std::map<std::string, std::vector<std::string> > creaImageIO::WxDescriptorPanel::DscpTree [private] |
Definition at line 136 of file creaImageIOWxDescriptorPanel.h.
Referenced by RemoveLevel().
wxTextCtrl* creaImageIO::WxDescriptorPanel::ELCtrl [private] |
Definition at line 53 of file creaImageIOWxDescriptorPanel.h.
wxTextCtrl* creaImageIO::WxDescriptorPanel::GRCtrl [private] |
Definition at line 52 of file creaImageIOWxDescriptorPanel.h.
long creaImageIO::WxDescriptorPanel::InsertPt [private] |
Insert point in result control.
Definition at line 124 of file creaImageIOWxDescriptorPanel.h.
wxTextCtrl* creaImageIO::WxDescriptorPanel::LevelCtrl [private] |
Definition at line 51 of file creaImageIOWxDescriptorPanel.h.
int creaImageIO::WxDescriptorPanel::lv [private] |
number of level
Definition at line 121 of file creaImageIOWxDescriptorPanel.h.
std::map<int, std::string> creaImageIO::WxDescriptorPanel::lvlist [private] |
Definition at line 142 of file creaImageIOWxDescriptorPanel.h.
Referenced by RemoveLevel().
std::string creaImageIO::WxDescriptorPanel::m_DscpFile [private] |
Output file for Descriptor.
Definition at line 127 of file creaImageIOWxDescriptorPanel.h.
Referenced by GetDescriptor().
std::string creaImageIO::WxDescriptorPanel::m_path [private] |
Definition at line 145 of file creaImageIOWxDescriptorPanel.h.
std::string creaImageIO::WxDescriptorPanel::outDscp [private] |
Output Descriptor.
Definition at line 130 of file creaImageIOWxDescriptorPanel.h.
std::map<std::string, std::string> creaImageIO::WxDescriptorPanel::ownatt [private] |
Definition at line 139 of file creaImageIOWxDescriptorPanel.h.
wxTextCtrl* creaImageIO::WxDescriptorPanel::ResultCtrl [private] |
Definition at line 54 of file creaImageIOWxDescriptorPanel.h.
std::vector<std::string> creaImageIO::WxDescriptorPanel::VLevel [private] |
Definition at line 133 of file creaImageIOWxDescriptorPanel.h.
The documentation for this class was generated from the following files:
- /home/davila/Creatis/All7/creatools_source/creaImageIO/src/creaImageIOWxDescriptorPanel.h
- /home/davila/Creatis/All7/creatools_source/creaImageIO/src/creaImageIOWxDescriptorPanel.cpp
