Simple Wxwidgets interface to select file(s) or directory or from creaImageIO database to display. More...

#include <creaImageIOWxSimpleDlg.h>

Collaboration diagram for creaImageIO::WxSimpleDlg:

Public Member Functions
	WxSimpleDlg (wxWindow *parent, wxString i_title=_T(""), const std::string i_namedescp="localdatabase_Descriptor.dscp", const std::string i_namedb="Local Database")
	Ctor.
	~WxSimpleDlg ()
	Dtor.
void	OnReadFile (wxCommandEvent &event)
	Callback to read file(s).
void	OnReadDirectory (wxCommandEvent &event)
	Callback to read directory, no recursive.
void	OnReadGimmick (wxCommandEvent &event)
	Callback to select from creaImageIO database.
std::vector< vtkImageData * >	getImagesSelected ()
	return a vtkImageData vector of selected images, if available
wxString	getInfoImage ()
Private Attributes
std::string	namedescp
std::string	namedb
wxString	infoimage
SimpleView	m_view
	interface to read data
std::vector< vtkImageData * >	m_results
	vtkImageData vector

Detailed Description

Simple Wxwidgets interface to select file(s) or directory or from creaImageIO database to display.

Definition at line 11 of file creaImageIOWxSimpleDlg.h.

Constructor & Destructor Documentation

creaImageIO::WxSimpleDlg::WxSimpleDlg	(	wxWindow *	parent,
		wxString	i_title = `_T("")`,
		const std::string	i_namedescp = `"localdatabase_Descriptor.dscp"`,
		const std::string	i_namedb = `"Local Database"`
	)

Ctor.

Button to select Bruker directory

Definition at line 6 of file creaImageIOWxSimpleDlg.cpp.

References OnReadDirectory(), OnReadFile(), and OnReadGimmick().

{


   WxSimpleDlg::WxSimpleDlg(wxWindow *parent,
                            wxString i_title,
                            const std::string i_namedescp ,
                            const std::string i_namedb)
    : wxDialog(parent, -1,_T("SELECT IMAGE(S)"), wxDefaultPosition, wxSize(230,150))
   {
                namedescp       = i_namedescp;
                namedb          = i_namedb;

           if(!i_title.empty())
           {
                        this->SetTitle(i_title);
           }
           // Button to select file(s)
           wxButton *fileBut = new wxButton(this, -1,_T("Select a single file"), wxPoint(10,7) );
           Connect( fileBut->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxSimpleDlg::OnReadFile );

           // Button to select directory
           wxButton *directoryBut = new wxButton(this, -1,_T("Select all the files in a directory"), wxPoint(10,40) );
           Connect( directoryBut->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxSimpleDlg::OnReadDirectory );

           // button to select creaImageIO
           wxButton *gimmickBut = new wxButton(this, -1,_T("Select thru Dicom browser"), wxPoint(10,70) );
           Connect( gimmickBut->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxSimpleDlg::OnReadGimmick );

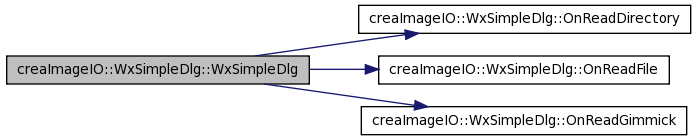

Here is the call graph for this function:

creaImageIO::WxSimpleDlg::~WxSimpleDlg ( ) [inline]

Dtor.

Definition at line 21 of file creaImageIOWxSimpleDlg.h.

{};

Member Function Documentation

std::vector< vtkImageData * > creaImageIO::WxSimpleDlg::getImagesSelected ( )

return a vtkImageData vector of selected images, if available

Definition at line 150 of file creaImageIOWxSimpleDlg.cpp.

Referenced by getImageDataDialog().

Here is the caller graph for this function:

wxString creaImageIO::WxSimpleDlg::getInfoImage ( )

Definition at line 142 of file creaImageIOWxSimpleDlg.cpp.

Referenced by getImageDataDialog().

Here is the caller graph for this function:

void creaImageIO::WxSimpleDlg::OnReadDirectory ( wxCommandEvent & event )

Callback to read directory, no recursive.

Definition at line 77 of file creaImageIOWxSimpleDlg.cpp.

Referenced by WxSimpleDlg().

          {
                  int resultShowModal;
             long style = wxDD_DEFAULT_STYLE | wxDD_DIR_MUST_EXIST;
                 wxDirDialog* dirDlg = new wxDirDialog( 0, _T("Select the directory to display"), _T(""), style);

                 resultShowModal = dirDlg->ShowModal();
                 if ( resultShowModal==wxID_OK )
                 {
                        infoimage=_T("DIRECTORY:")+dirDlg->GetPath();
                        if(! m_view.readDirectory(crea::wx2std(dirDlg->GetPath()),m_results))
                        {
                                //TO DO WARNING MESSAGE;

Here is the caller graph for this function:

void creaImageIO::WxSimpleDlg::OnReadFile ( wxCommandEvent & event )

Callback to read file(s).

Definition at line 39 of file creaImageIOWxSimpleDlg.cpp.

Referenced by WxSimpleDlg().

          {
                  int resultShowModal;
                  wxFileDialog* fileDlg = new wxFileDialog( 0,  _T("Select file"), _T(""), _T(""), crea::std2wx("*"), wxOPEN |wxFD_MULTIPLE, wxDefaultPosition);

                    resultShowModal = fileDlg->ShowModal();
                        if ( resultShowModal==wxID_OK )
                        {
                                wxArrayString wxArray;
                                fileDlg->GetPaths(wxArray);
                                if(wxArray.size() >0)
                                {
                                /*      typedef itk::Image< float, 4 >         ImageType;
                                        ReadImage<ImageType>(crea::wx2std(wxArray[0]).c_str());*/

                                        infoimage=_T("FILE(s):")+wxArray[0];
                                        std::vector<std::string> files;
                                        for( int i = 0; i < wxArray.GetCount(); i++)
                                        {
                                                files.push_back( crea::wx2std(wxArray[i]));
                                        }
                                        if(!m_view.readFile(files,m_results))
                                        {
                                                //TO DO WARNING MESSAGE;
                                        }
                                } else {
                                        // TO DO WARNING MESSAGES

Here is the caller graph for this function:

void creaImageIO::WxSimpleDlg::OnReadGimmick ( wxCommandEvent & event )

Callback to select from creaImageIO database.

Definition at line 101 of file creaImageIOWxSimpleDlg.cpp.

Referenced by WxSimpleDlg().

          {
                  // Run Gimmick
                   WxGimmickReaderDialog dlg(0,-1,
                                   namedescp,
                                   namedb,
                                   _T("Select image(s)        - Gimmick! (c) CREATIS-LRMN 2008"),
                   wxDefaultPosition,
                   wxSize(810,750),
                   GIMMICK_2D_IMAGE_SELECTION,
                   GIMMICK_3D_IMAGE_SELECTION,
                   _3D,
                                   1);
                 dlg.ShowModal();
                 if (dlg.GetReturnCode() == wxID_OK)
             {
        //              infoimage=_T("DICOM: ???_EED_???");
//EED 07JUIN2010                        dlg.GetSelectedImages(m_results,3);
                        std::vector<creaImageIO::OutStrGimmick> out;
                        std::vector<std::string> attr;
//                              attr.push_back("D0028_0010");
//                              attr.push_back("D0008_0023");
//                              attr.push_back("D0008_1070");
                                dlg.stopReading();
                                dlg.getSelected(out, attr,true,"");
//                              crea::VtkBasicSlicer(out.front().img);
                        m_results.clear();
                        int size=out.size();
                        int ii;
                        for (ii=0;ii<size;ii++)
                        {
                                m_results.push_back(out[ii].img);
                        }

Here is the caller graph for this function:

Member Data Documentation

wxString creaImageIO::WxSimpleDlg::infoimage [private]

Definition at line 41 of file creaImageIOWxSimpleDlg.h.

std::vector<vtkImageData*> creaImageIO::WxSimpleDlg::m_results [private]

vtkImageData vector

Definition at line 47 of file creaImageIOWxSimpleDlg.h.

SimpleView creaImageIO::WxSimpleDlg::m_view [private]

interface to read data

Definition at line 44 of file creaImageIOWxSimpleDlg.h.

std::string creaImageIO::WxSimpleDlg::namedb [private]

Definition at line 40 of file creaImageIOWxSimpleDlg.h.

std::string creaImageIO::WxSimpleDlg::namedescp [private]

Definition at line 39 of file creaImageIOWxSimpleDlg.h.

The documentation for this class was generated from the following files:

/home/davila/Creatis/All7/creatools_source/creaImageIO/src/creaImageIOWxSimpleDlg.h
/home/davila/Creatis/All7/creatools_source/creaImageIO/src/creaImageIOWxSimpleDlg.cpp
