Descriptor of the structure of a Tree (number of levels, descriptors of each level, ...). More...

#include <creaImageIOTreeDescriptor.h>

Public Types
typedef std::vector < LevelDescriptor >	LevelDescriptorListType
	The type of LevelDescriptor container.
Public Member Functions
	Descriptor ()
	Ctor : creates the mandatory level 0 descriptor called "Root".
	~Descriptor ()
	Destructor.
void	LoadXML (const std::string &filename)
	Loads from a xml description file.
void	CreateDefault ()
	Creates the default descriptor.
unsigned int	GetNumberOfLevels ()
	Returns the number of levels of the tree.
const LevelDescriptor &	GetLevelDescriptor (int level) const
	Returns the LevelDescriptor of a given level (const ref).
const LevelDescriptor::AttributeDescriptorListType &	GetAttributeDescriptorList (int level, int type=0) const
	type = 1 without ID and PATIENT_ID
void	CopyAttributeDescriptorList (int level)
	Copy the AttributeDescriptorList without ID tag.
void	Add (const LevelDescriptor &)
	Adds a LevelDescriptor at the end of the list.
void	Add (const AttributeDescriptor &, int l)
	Adds an AttributeDescriptor to level l.
void	BuildAttributeMap (AttributeMapType &) const
	Builds the key to value map of all the attributes of the tree.
const LevelDescriptorListType &	GetLevelDescriptorList () const
	Returns the list of tree levels (const).
void	Clear ()
	Clears the Descriptor.
void	createDescriptorfromFile (const std::string &i_file)
const std::string	isExist (const std::string i_attr)
Private Member Functions
void	CreateLevel0Descriptor ()
Private Attributes
LevelDescriptorListType	mLevelDescriptorList

Detailed Description

Descriptor of the structure of a Tree (number of levels, descriptors of each level, ...).

Definition at line 21 of file creaImageIOTreeDescriptor.h.

Member Typedef Documentation

typedef std::vector<LevelDescriptor> creaImageIO::tree::Descriptor::LevelDescriptorListType

The type of LevelDescriptor container.

Definition at line 67 of file creaImageIOTreeDescriptor.h.

Constructor & Destructor Documentation

creaImageIO::tree::Descriptor::Descriptor ( )

Ctor : creates the mandatory level 0 descriptor called "Root".

Definition at line 29 of file creaImageIOTreeDescriptor.cpp.

References CreateLevel0Descriptor().

    {
      CreateLevel0Descriptor();
    }

Here is the call graph for this function:

creaImageIO::tree::Descriptor::~Descriptor ( )

Destructor.

Definition at line 36 of file creaImageIOTreeDescriptor.cpp.

    {
    }

Member Function Documentation

void creaImageIO::tree::Descriptor::Add ( const LevelDescriptor & d )

Adds a LevelDescriptor at the end of the list.

Definition at line 232 of file creaImageIOTreeDescriptor.cpp.

References mLevelDescriptorList.

Referenced by CreateDefault(), createDescriptorfromFile(), CreateLevel0Descriptor(), creaImageIO::SQLiteTreeHandler::DBCreate(), and creaImageIO::SQLiteTreeHandler::DBImportTreeDescription().

    {
      mLevelDescriptorList.push_back(d);
    }

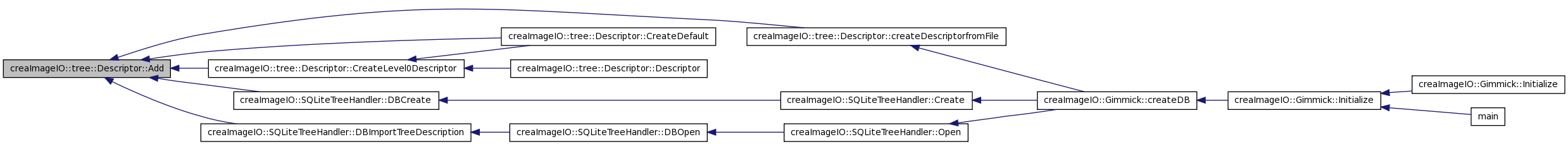

Here is the caller graph for this function:

void creaImageIO::tree::Descriptor::Add	(	const AttributeDescriptor &	d,
		int	l
	)

Adds an AttributeDescriptor to level l.

Definition at line 240 of file creaImageIOTreeDescriptor.cpp.

References mLevelDescriptorList.

    {
      mLevelDescriptorList[l].Add(d);
      // TO DO : update DicomTagToName and NameToDicomTag map
    }

void creaImageIO::tree::Descriptor::BuildAttributeMap ( AttributeMapType & ) const

Builds the key to value map of all the attributes of the tree.

Referenced by creaImageIO::TreeHandlerImageAdder::AddFile(), creaImageIO::Synchronizer::AttributesMatch(), and creaImageIO::TreeHandlerImageAdder::CheckAttributes().

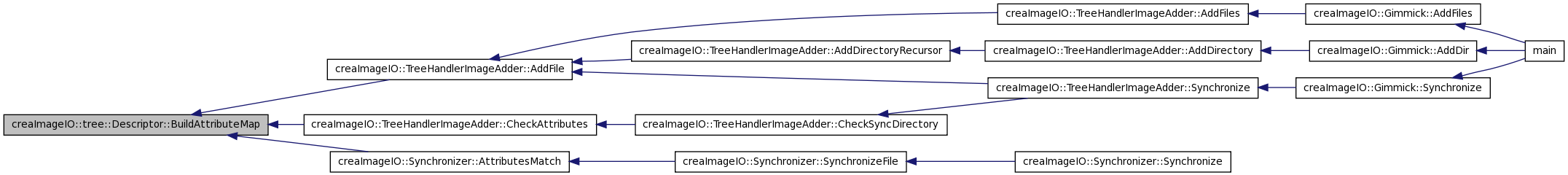

Here is the caller graph for this function:

void creaImageIO::tree::Descriptor::Clear ( )

Clears the Descriptor.

Definition at line 249 of file creaImageIOTreeDescriptor.cpp.

References mLevelDescriptorList.

Referenced by CreateDefault(), createDescriptorfromFile(), and creaImageIO::SQLiteTreeHandler::DBImportTreeDescription().

    {
      mLevelDescriptorList.clear();
    }

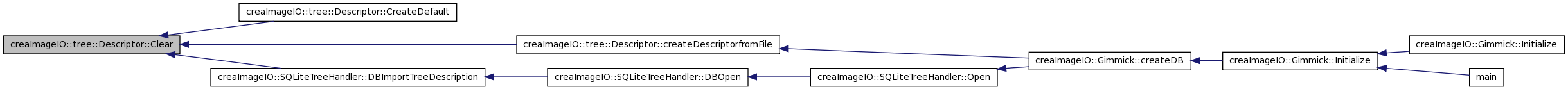

Here is the caller graph for this function:

void creaImageIO::tree::Descriptor::CopyAttributeDescriptorList ( int level ) [inline]

Copy the AttributeDescriptorList without ID tag.

Definition at line 51 of file creaImageIOTreeDescriptor.h.

Referenced by creaImageIO::tree::Tree::CopyAttributeDescriptorList().

          {
                  mLevelDescriptorList[level].CopyAttributeDescriptorList();
          }

Here is the caller graph for this function:

void creaImageIO::tree::Descriptor::CreateDefault ( )

Creates the default descriptor.

Definition at line 50 of file creaImageIOTreeDescriptor.cpp.

References Add(), Clear(), CreateLevel0Descriptor(), creaImageIO::tree::AttributeDescriptor::IDENTIFIER, and creaImageIO::tree::AttributeDescriptor::LABEL.

    {
      // clears the existing one
      Clear();

      // Creates the level 0 descriptor
      CreateLevel0Descriptor();
      // Creates the attribute "Name"
      Add(AttributeDescriptor("Name","Name",
                              AttributeDescriptor::LABEL),0);

      // Patient level
      Add(LevelDescriptor("Patient"));
      Add(AttributeDescriptor("NumberOfChildren","#Series",0),1);   // Number of Series
      Add(AttributeDescriptor(0x0010,0x0010,   // Patient name
                              AttributeDescriptor::LABEL),1);
      Add(AttributeDescriptor(0x0010,0x0040),1); // Patient sex
      Add(AttributeDescriptor(0x0010,0x0030),1); // Patient birthday
      Add(AttributeDescriptor(0x0010,0x0020,   // Patient ID
                              AttributeDescriptor::IDENTIFIER),1);

      // Study-series level
      Add(LevelDescriptor("Series"));
      Add(AttributeDescriptor("NumberOfChildren","#Images",0),2);   // Number of images
      Add(AttributeDescriptor(0x0008,0x0060,    // Modality
                              AttributeDescriptor::LABEL),2);
      Add(AttributeDescriptor(0x0008,0x1030),2); // Study Description
      Add(AttributeDescriptor(0x0008,0x103E),2); // Description
      Add(AttributeDescriptor(0x0008,0x0080),2); // Institution Name
      Add(AttributeDescriptor(0x0008,0x0081),2); // Institution Adress
      Add(AttributeDescriptor(0x0008,0x1010),2); // Station Name
      Add(AttributeDescriptor(0x0008,0x1048),2); // Physician of Record
      Add(AttributeDescriptor(0x0008,0x1050),2); // Performing Physician's Name
      Add(AttributeDescriptor(0x0018,0x1030),2); // Protocol Name

      Add(AttributeDescriptor(0x0020,0x0010),2); // Study ID
      Add(AttributeDescriptor(0x0008,0x0020),2); // Study Date
      Add(AttributeDescriptor(0x0008,0x0030),2); // Study Time
      Add(AttributeDescriptor(0x0008,0x0050),2); // Study Accession Number
      Add(AttributeDescriptor(0x0008,0x0005),2); // Specific character set
      Add(AttributeDescriptor(0x0008,0x0021),2); // Series Date
      Add(AttributeDescriptor(0x0008,0x0031),2); // Series time

      Add(AttributeDescriptor(0x0020,0x000D   // Study Instance UID
                                                    ),2);//AttributeDescriptor::IDENTIFIER),2);
      Add(AttributeDescriptor(0x0020,0x000E,   // Series Instance UID
                                AttributeDescriptor::IDENTIFIER),2);
      // |
      //                        AttributeDescriptor::LABEL),2);


      // Image level
      Add(LevelDescriptor("Image"));

      Add(AttributeDescriptor(0x0020,0x0013),3); // Image Number

      Add(AttributeDescriptor(0x0028,0x0010),3); // Rows
      Add(AttributeDescriptor(0x0028,0x0011),3); // Columns
      Add(AttributeDescriptor(0x0028,0x0012),3); // Planes
      Add(AttributeDescriptor(0x0028,0x0002),3); // Sample per pixels
      Add(AttributeDescriptor(0x0028,0x0008),3); // Number of Frames
      Add(AttributeDescriptor(0x0028,0x0004),3); // Photometric Interpretation
      Add(AttributeDescriptor(0x0028,0x0103),3); // Pixel Representation

      Add(AttributeDescriptor(0x0020,0x0032),3); // Image Position Patient
      Add(AttributeDescriptor(0x0020,0x0037),3); // Image Orientation Patient
      Add(AttributeDescriptor(0x0020,0x1041),3); // Slice Location
      Add(AttributeDescriptor(0x0028,0x0006),3); // Planar Configuration

      Add(AttributeDescriptor(0x0028,0x0030),3); // Pixel Spacing
      Add(AttributeDescriptor(0x0028,0x0100),3); // AlocatedBits
      Add(AttributeDescriptor(0x0028,0x0101),3); // StoredBits

      Add(AttributeDescriptor(0x0008,0x0008),3); // Image Type
      Add(AttributeDescriptor(0x0008,0x0023),3); // Content Date
      Add(AttributeDescriptor(0x0008,0x0033),3); // Content Time

      Add(AttributeDescriptor(0x0020,0x4000),3); // Image Comments

      Add(AttributeDescriptor(0x0004,0x1500,   // File Name
                                AttributeDescriptor::LABEL),3);
      Add(AttributeDescriptor(0x0028,0x1052),3); // Rescale Intercept
      Add(AttributeDescriptor(0x0028,0x1053),3); // Rescale Slope

      Add(AttributeDescriptor(0x0050,0x0004),3); // Calibration Image

      Add(AttributeDescriptor(0x0020,0x0052   // Frame Reference UID
                                           ),3);
      Add(AttributeDescriptor(0x0008,0x0016),3); // SOP Class UID
      Add(AttributeDescriptor("FullFileName",  // Full file name
                                "Full file name",
                                AttributeDescriptor::IDENTIFIER),3);

    }

Here is the call graph for this function:

void creaImageIO::tree::Descriptor::createDescriptorfromFile ( const std::string & i_file )

Definition at line 150 of file creaImageIOTreeDescriptor.cpp.

References Add(), and Clear().

Referenced by creaImageIO::Gimmick::createDB().

        {
                Clear();

                // read file and put in buffer
                std::ifstream i_file(i_name.c_str());
                std::stringstream buffer;
                buffer << i_file.rdbuf();
                std::string line;
                bool bname;
                int ilevel = -1;


                while(std::getline(buffer, line))
                {
                        if(line =="<level>")
                        {       //increment levels.
                                ilevel++;
                                bname = true;
                        }
                        else if(bname)
                        {
                                // For each level, a name to describe it
                                Add(LevelDescriptor(line));
                                bname = false;
                        }
                        else if(line.empty()) // to avoid end line
                        {
                                return;
                        }
                        else
                        {
                                // split line to find all tags
                                std::vector<std::string> descriptors;
                                std::string separator = " ";
                                std::string::size_type last_pos = line.find_first_not_of(separator);
                                //find first separator
                                std::string::size_type pos = line.find_first_of(separator, last_pos);
                                while(std::string::npos != pos || std::string::npos != last_pos)
                                {
                                        descriptors.push_back(line.substr(last_pos, pos - last_pos));
                                        last_pos = line.find_first_not_of(separator, pos);
                                        pos = line.find_first_of(separator, last_pos);
                                }

                                // By default, the last tag is at zero and not recorded but if take in count
                                unsigned int flag = 0;
                                if(descriptors.size() == 4)
                                {
                                        std::stringstream val;
                                        val << std::dec << descriptors[3];
                                        val>> flag;
                                }

                                // if Dicom tag, use "group" and "element" descriptor
                                if(descriptors[0] == "D")
                                {       std::stringstream val, val2;
                                        unsigned short group;
                                        unsigned short element;
                                        val <<   std::dec << descriptors[1] ;
                                        val >> std::hex >> group;
                                        val2 << std::dec <<  descriptors[2];
                                        val2 >> std::hex >> element;
                                        Add(AttributeDescriptor( group,element,flag), ilevel);
                                }

                                else if(descriptors[0].find("#") != -1)
                                {
                                        // commented line continue to next line
                                }
                                else
                                {       boost::algorithm::replace_all(descriptors[2],"_"," ");
                                        Add(AttributeDescriptor( descriptors[1].c_str(),descriptors[2].c_str(),flag), ilevel);
                                }
                        }
                }
        }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::tree::Descriptor::CreateLevel0Descriptor ( ) [private]

Creates the mandatory level 0 descriptor called "Root" (assumes the list is empty)

Definition at line 42 of file creaImageIOTreeDescriptor.cpp.

References Add().

Referenced by CreateDefault(), and Descriptor().

    {
      Add(LevelDescriptor("Root"));
    }

Here is the call graph for this function:

Here is the caller graph for this function:

const LevelDescriptor::AttributeDescriptorListType& creaImageIO::tree::Descriptor::GetAttributeDescriptorList	(	int	level,
		int	type = `0`
	)			const `[inline]`

type = 1 without ID and PATIENT_ID

Returns the AttributeDescriptorList of a given level (const ref) type = 0 all attributes

Definition at line 46 of file creaImageIOTreeDescriptor.h.

Referenced by creaImageIO::tree::Tree::GetAttributeDescriptorList().

      { return mLevelDescriptorList[level].GetAttributeDescriptorList(type); }

Here is the caller graph for this function:

const LevelDescriptor& creaImageIO::tree::Descriptor::GetLevelDescriptor ( int level ) const [inline]

Returns the LevelDescriptor of a given level (const ref).

Definition at line 39 of file creaImageIOTreeDescriptor.h.

Referenced by creaImageIO::tree::Tree::GetLevelDescriptor().

      { return mLevelDescriptorList[level]; }

Here is the caller graph for this function:

const LevelDescriptorListType& creaImageIO::tree::Descriptor::GetLevelDescriptorList ( ) const [inline]

Returns the list of tree levels (const).

Definition at line 70 of file creaImageIOTreeDescriptor.h.

Referenced by isExist().

{ return mLevelDescriptorList; }

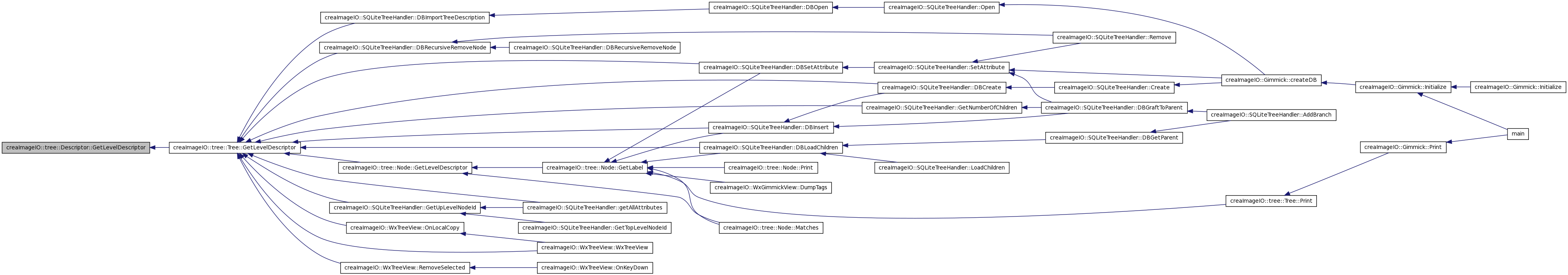

Here is the caller graph for this function:

unsigned int creaImageIO::tree::Descriptor::GetNumberOfLevels ( ) [inline]

Returns the number of levels of the tree.

Definition at line 35 of file creaImageIOTreeDescriptor.h.

Referenced by creaImageIO::tree::Tree::GetNumberOfLevels().

      { return mLevelDescriptorList.size(); }

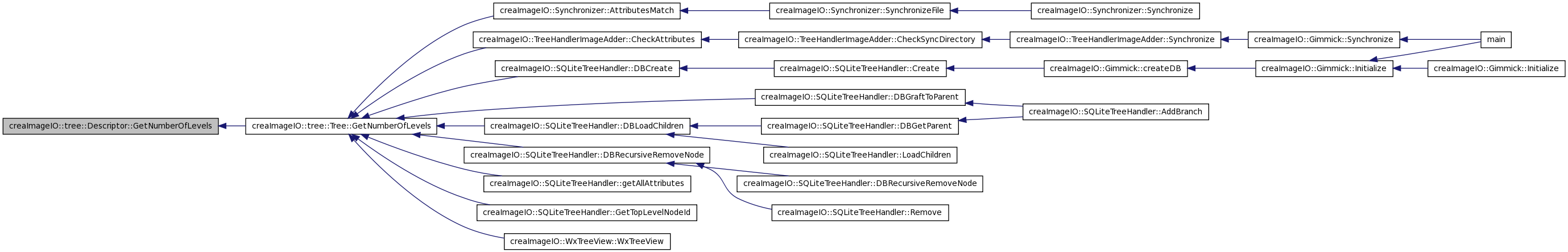

Here is the caller graph for this function:

const std::string creaImageIO::tree::Descriptor::isExist ( const std::string i_attr )

test if an attribute is present in DescriptionList return level's name

Definition at line 280 of file creaImageIOTreeDescriptor.cpp.

References GetLevelDescriptorList().

Referenced by creaImageIO::tree::Tree::isAttributeExist().

        {
                std::string name = "";
                LevelDescriptorListType::const_iterator l = GetLevelDescriptorList().begin();
                for (;     l!= GetLevelDescriptorList().end(); ++l)
                {
                        LevelDescriptor::AttributeDescriptorListType::const_iterator a = l->GetAttributeDescriptorList().begin();
                for(;a!= l->GetAttributeDescriptorList().end(); ++a)
                        {
                                if (a->GetKey() == i_attr)
                                {
                                        name = l->GetName();
                                        break;
                                }
                        }
                }
                return name.c_str();
        }

Here is the call graph for this function:

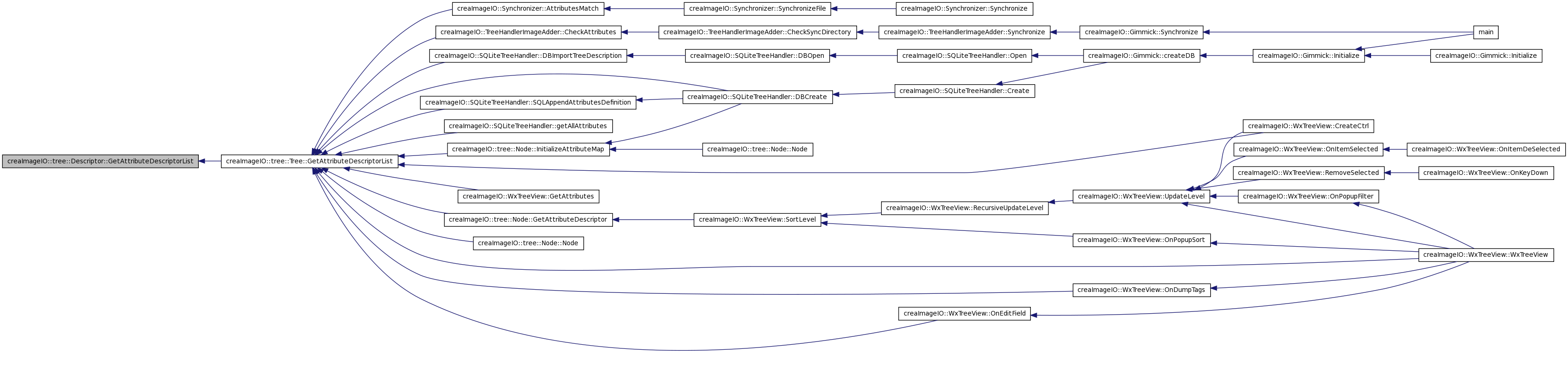

Here is the caller graph for this function:

void creaImageIO::tree::Descriptor::LoadXML ( const std::string & filename )

Loads from a xml description file.

Member Data Documentation

LevelDescriptorListType creaImageIO::tree::Descriptor::mLevelDescriptorList [private]

Definition at line 84 of file creaImageIOTreeDescriptor.h.

Referenced by Add(), and Clear().

The documentation for this class was generated from the following files:

/home/davila/Creatis/All7/creatools_source/creaImageIO/src/creaImageIOTreeDescriptor.h
/home/davila/Creatis/All7/creatools_source/creaImageIO/src/creaImageIOTreeDescriptor.cpp

creaImageIO::tree::Descriptor Class Reference [Attributed tree management]

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

creaImageIO::tree::Descriptor Class Reference
[Attributed tree management]
