CutModelManager Class Reference

#include <CutModelManager.h>

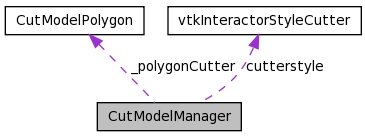

Collaboration diagram for CutModelManager:

Public Member Functions
	CutModelManager (std::string path)
	~CutModelManager ()
void	setImageData (vtkImageData *img)
vtkImageData *	getImageData ()
void	setInteractor (vtkRenderWindowInteractor *interactor)
void	setRenderer (vtkRenderer *renderer)
void	setBaseView (wxVtkBaseView *baseView)
void	onAddCutModel (int id, vtkCommand *observer) throw ( CutModelException)
double *	getImageRange () throw ( CutModelException)
void	changeOpacity (int id, int opacity) throw ( CutModelException)
void	ShowViewBox (int id, bool check) throw ( CutModelException)
void	ChangeShape (int id, int selection) throw ( CutModelException)
void	changeColor (int id, double r, double g, double b) throw ( CutModelException)
void	updateActorDirection (int id) throw ( CutModelException)
void	RemoveActor (int id) throw ( CutModelException)
void	ExecuteCut (int id, double *range, bool isinside) throw ( CutModelException)
vtkImageData *	GetResultImage ()
void	RefreshActor (int id)
void	SaveCutModelData (std::string filename) throw ( CutModelException)
void	LoadCutModelData (std::string filename) throw ( CutModelException)
CutModelSaveBinInfo *	AddActionUndo (int id, UNDOTYPE type) throw ( CutModelException)
int	Undo () throw ( CutModelException)
int	Redo () throw ( CutModelException)
void	ParallelProjectionOn ()
void	ParallelProjectionOff ()
void	UpdatePolygon (bool mode)
void	ExecuteCutPolygon (bool inOutCut)
void	InitializePolygonInteractorStyle ()
Private Member Functions
void	checkInvariant () throw ( CutModelException)
CutModelData *	getCutModelData (int id) throw ( CutModelException)
Private Attributes
int	_currentaction
std::string	_path
vtkImageData *	_img
vtkImageData *	_img2
vtkRenderer *	_render
vtkRenderWindowInteractor *	_interactor
std::vector< CutModelData * >	_vectordata
std::vector < CutModelSaveBinInfo * >	_undoredo
CutModelPolygon *	_polygonCutter
vtkPoints *	contourPoints
double *	contourDirection
vtkInteractorStyleTrackballCamera *	interactorstyle
vtkInteractorStyleCutter *	cutterstyle
vtkContourFilter *	contour
vtkSampleFunction *	sample
vtkPolyData *	actor
vtkActor *	actor3D
vtkImplicitSelectionLoop *	loop
vtkPolyDataMapper *	mapper

Detailed Description

Definition at line 53 of file CutModelManager.h.

Constructor & Destructor Documentation

CutModelManager::CutModelManager ( std::string path )

Start of the manager class

Definition at line 25 of file CutModelManager.cxx.

References _currentaction, _img, _img2, _interactor, _path, and _render.

00025                                               {
00026         _path = path;
00027         _img = NULL;
00028         _img2 = NULL;
00029         _interactor = NULL;
00030         _render = NULL;
00031         _currentaction=0;
00032
00033 }

CutModelManager::~CutModelManager ( )

Definition at line 34 of file CutModelManager.cxx.

References _img, _img2, _interactor, _path, _render, and _vectordata.

00034                                  {
00035         std::string files = _path;
00036         files+="/infounrd_0_fig_0.info";
00037         remove(files.c_str());
00038         _vectordata.clear();
00039         _img = NULL;
00040         _img2 = NULL;
00041         _interactor = NULL;
00042         _render = NULL;
00043 }

Member Function Documentation

CutModelSaveBinInfo * CutModelManager::AddActionUndo	(	int	id,
		UNDOTYPE	type
	)			throw ( CutModelException)

Definition at line 248 of file CutModelManager.cxx.

References CUTMODEL_CUT, CutModelSaveBinInfo::saveMatrix4x4(), and CutModelSaveBinInfo::setCurrentShape().

00248                                                                                                   {
00249
00250         for(int i = _undoredo.size()-1; i > _currentaction;i--){
00251                 delete _undoredo[i];
00252                 _undoredo.pop_back();
00253         }
00254
00255         CutModelSaveBinInfo* cutmodel = new CutModelSaveBinInfo(idc, _currentaction, type, _path);
00256         if(type == CUTMODEL_CUT){
00257                 cutmodel->saveMatrix4x4(this->getCutModelData(idc)->getCurrentMatrix()->GetMatrix());
00258                 cutmodel->setCurrentShape(this->getCutModelData(idc)->getCurrentShape());
00259         }
00260
00261         _undoredo.push_back(cutmodel);
00262
00263         _currentaction++;// = _undoredo.size();
00264         //std::cout<<"current index "<<_currentaction;
00265
00266         return cutmodel;
00267 }

Here is the call graph for this function:

void CutModelManager::changeColor	(	int	id,
		double	r,
		double	g,
		double	b
	)			throw ( CutModelException)

Definition at line 170 of file CutModelManager.cxx.

References CutModelData::changeColor().

Referenced by CutModelMainPanel::changeColor().

00170                                                                                            {
00171
00172         checkInvariant();
00173         CutModelData* current = getCutModelData(id);
00174         current->changeColor(r,g,b);
00175         _render->Render();
00176 }

Here is the call graph for this function:

Here is the caller graph for this function:

void CutModelManager::changeOpacity	(	int	id,
		int	opacity
	)			throw ( CutModelException)

Definition at line 123 of file CutModelManager.cxx.

References CutModelData::changeOpacity().

Referenced by CutModelMainPanel::changeOpacity().

00123                                                                               {
00124         checkInvariant();
00125         CutModelData* current = getCutModelData(id);
00126         current->changeOpacity(opacity);
00127 }

Here is the call graph for this function:

Here is the caller graph for this function:

void CutModelManager::ChangeShape	(	int	id,
		int	selection
	)			throw ( CutModelException)

Definition at line 135 of file CutModelManager.cxx.

References CutModelData::ChangeShape().

Referenced by CutModelMainPanel::ChangeShape().

00135                                                                               {
00136         checkInvariant();
00137         CutModelData* current = getCutModelData(id);
00138         current->ChangeShape(selection);
00139         _render->Render();
00140 }

Here is the call graph for this function:

Here is the caller graph for this function:

void CutModelManager::checkInvariant ( ) throw ( CutModelException) [private]

Definition at line 103 of file CutModelManager.cxx.

References _img, _img2, _interactor, and _render.

Referenced by getImageRange(), GetResultImage(), and RefreshActor().

00103                                                               {
00104         if(_img==NULL){
00105                 throw CutModelException("The image is not set");
00106         }
00107         if(_img2==NULL){
00108                 throw CutModelException("The image is not set");
00109         }
00110         if(_interactor==NULL){
00111                 throw CutModelException("Interactor not set");
00112         }
00113         if(_render==NULL){
00114                 throw CutModelException("Render not set");
00115         }
00116 }

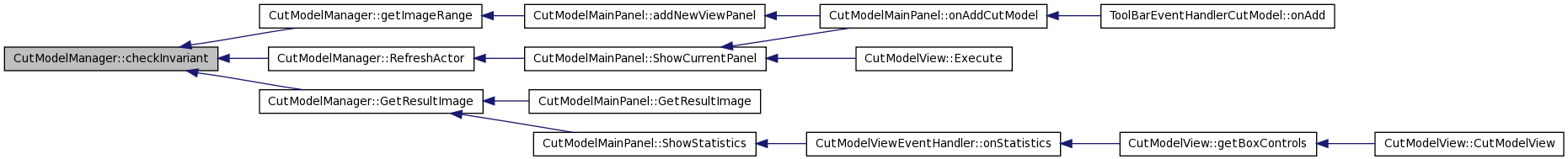

Here is the caller graph for this function:

void CutModelManager::ExecuteCut	(	int	id,
		double *	range,
		bool	isinside
	)			throw ( CutModelException)

Definition at line 200 of file CutModelManager.cxx.

References CUTMODEL_CUT, CutModelData::ExecuteCut(), CutModelSaveBinInfo::setIsInside(), and CutModelSaveBinInfo::setRange().

Referenced by CutModelMainPanel::ExecuteCut().

00200                                                                                              {
00201         checkInvariant();
00202
00203         CutModelData* current = getCutModelData(id);
00204         current->ExecuteCut(range, isinside,_img2);
00205
00206
00207         /*
00208         Setting extra information for the undo
00209         */
00210         CutModelSaveBinInfo* undoaction = this->AddActionUndo(id, CUTMODEL_CUT);
00211         undoaction->setRange(range);
00212         undoaction->setIsInside(isinside);
00213
00214 }

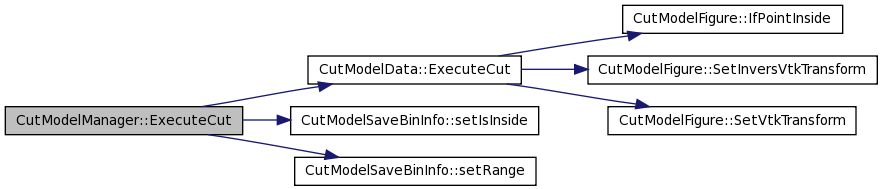

Here is the call graph for this function:

Here is the caller graph for this function:

void CutModelManager::ExecuteCutPolygon ( bool inOutCut )

Definition at line 398 of file CutModelManager.cxx.

References _img2, _polygonCutter, contourDirection, contourPoints, CutModelPolygon::processOutImage(), CutModelPolygon::setDirection(), CutModelPolygon::setInImage(), and CutModelPolygon::setPoints().

Referenced by CutModelMainPanel::onExecuteCutPolygon().

00398                                                     {
00399
00400         _polygonCutter->setInImage(_img2);
00401         _polygonCutter->setPoints(contourPoints);
00402         _polygonCutter->setDirection(contourDirection);
00403         _polygonCutter->processOutImage(inOutCut);
00404 }

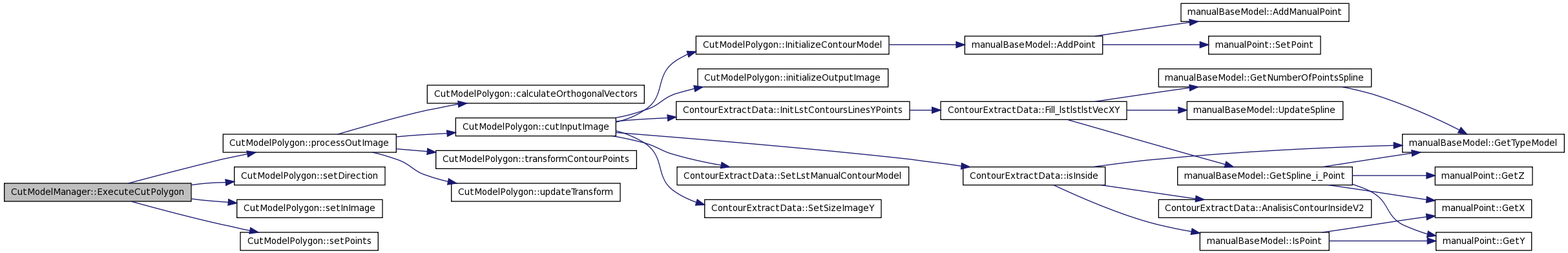

Here is the call graph for this function:

Here is the caller graph for this function:

CutModelData * CutModelManager::getCutModelData ( int id ) throw ( CutModelException) [private]

Definition at line 142 of file CutModelManager.cxx.

References CutModelData::getId().

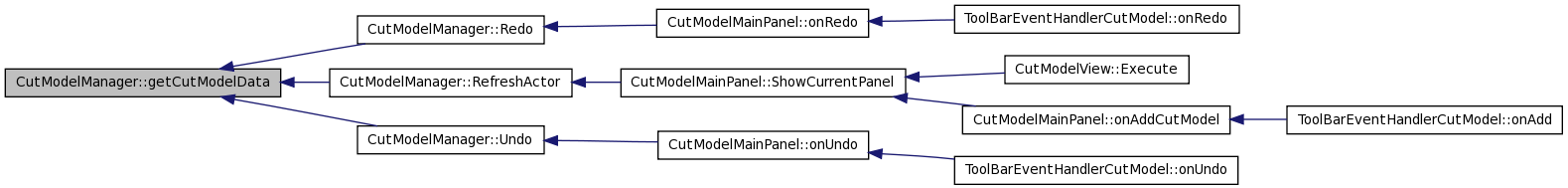

Referenced by Redo(), RefreshActor(), and Undo().

00142                                                                              {
00143
00144         CutModelData* current = NULL;
00145         int i;
00146         for(i= 0; i < (int)_vectordata.size();i++)
00147         {
00148                 CutModelData* temp = _vectordata[i];
00149                 std::cout<<"id in CutModelManager:: "<<id<<std::endl;
00150                 std::cout<<"vectordataid in CutModelManager:: "<<temp->getId()<<std::endl;
00151
00152                 if(temp->getId() == id){
00153                         current =  temp;
00154                 }
00155         }
00156         if(current ==NULL){
00157
00158                 throw CutModelException("Data not found");
00159         }
00160         return current;
00161 }

Here is the call graph for this function:

Here is the caller graph for this function:

vtkImageData * CutModelManager::getImageData ( )

Definition at line 46 of file CutModelManager.cxx.

References _img2.

00046                                            {
00047         return _img2;
00048 }

double * CutModelManager::getImageRange ( ) throw ( CutModelException)

Definition at line 118 of file CutModelManager.cxx.

References _img, and checkInvariant().

Referenced by CutModelMainPanel::addNewViewPanel().

00118                                                                {
00119         checkInvariant();
00120         return _img->GetScalarRange();
00121 }

Here is the call graph for this function:

Here is the caller graph for this function:

vtkImageData * CutModelManager::GetResultImage ( )

Definition at line 216 of file CutModelManager.cxx.

References _img2, and checkInvariant().

Referenced by CutModelMainPanel::GetResultImage(), and CutModelMainPanel::ShowStatistics().

00216                                              {
00217         checkInvariant();
00218         return _img2;
00219 }

Here is the call graph for this function:

Here is the caller graph for this function:

void CutModelManager::InitializePolygonInteractorStyle ( )

Definition at line 406 of file CutModelManager.cxx.

References _interactor, cutterstyle, interactorstyle, and vtkInteractorStyleCutter::New().

Referenced by CutModelMainPanel::onCheckChanged().

00406                                                       {
00407
00408         cutterstyle = vtkInteractorStyleCutter::New();
00409         interactorstyle = vtkInteractorStyleTrackballCamera ::New();
00410         interactorstyle->SetInteractor (  _interactor );
00411         _interactor->SetInteractorStyle( interactorstyle );
00412 }

Here is the call graph for this function:

Here is the caller graph for this function:

void CutModelManager::LoadCutModelData ( std::string filename ) throw ( CutModelException)

Definition at line 242 of file CutModelManager.cxx.

Referenced by CutModelMainPanel::LoadCutModelData().

00242                                                                                  {
00243
00244         throw CutModelException("not implemented");
00245
00246 }

Here is the caller graph for this function:

void CutModelManager::onAddCutModel	(	int	id,
		vtkCommand *	observer
	)			throw ( CutModelException)

Definition at line 90 of file CutModelManager.cxx.

References CutModelData::getActor().

Referenced by CutModelMainPanel::onAddCutModel().

00090                                                                                          {
00091         checkInvariant();
00092
00093
00094         CutModelData* data = new CutModelData(id,_interactor, observer, _img);
00095         _vectordata.push_back(data);
00096
00097         _render->AddActor(data->getActor());
00098
00099         //_render->UpdateCamera();
00100         _render->Render();
00101 }

Here is the call graph for this function:

Here is the caller graph for this function:

void CutModelManager::ParallelProjectionOff ( )

Definition at line 323 of file CutModelManager.cxx.

References _render.

Referenced by CutModelMainPanel::onCheckChanged().

00323                                            {
00324         _render->GetActiveCamera()->ParallelProjectionOff();
00325 }

Here is the caller graph for this function:

void CutModelManager::ParallelProjectionOn ( )

Definition at line 319 of file CutModelManager.cxx.

References _render.

Referenced by CutModelMainPanel::onCheckChanged().

00319                                           {
00320         _render->GetActiveCamera()->ParallelProjectionOn();
00321 }

Here is the caller graph for this function:

int CutModelManager::Redo ( ) throw ( CutModelException)

Definition at line 296 of file CutModelManager.cxx.

References _currentaction, _img2, _undoredo, CUTMODEL_CUT, CutModelData::ExecuteCut(), CutModelSaveBinInfo::getActionType(), CutModelSaveBinInfo::getCurrentShape(), getCutModelData(), CutModelSaveBinInfo::getId(), CutModelSaveBinInfo::getIsInside(), CutModelSaveBinInfo::getRange(), CutModelSaveBinInfo::getTransformFromMatrixFile(), CutModelData::setCurrentShape(), and CutModelData::setTransform().

Referenced by CutModelMainPanel::onRedo().

00296                                                          {
00297
00298         if(_currentaction >= 0 && _currentaction < (int)_undoredo.size()){
00299
00300                 CutModelSaveBinInfo* currentundo = _undoredo[_currentaction];
00301                 CutModelData* currentmodel;
00302
00303                 if(currentundo->getActionType()==CUTMODEL_CUT){
00304                         //Redo the cut
00305                         vtkTransform* transform = currentundo->getTransformFromMatrixFile();
00306                         currentmodel = getCutModelData(currentundo->getId());
00307                         currentmodel->setTransform(transform, _img2);
00308                         currentmodel->setCurrentShape(currentundo->getCurrentShape());
00309                         currentmodel->ExecuteCut(currentundo->getRange(), currentundo->getIsInside(), _img2);
00310                 }
00311
00312                 _currentaction++;
00313
00314                 return 0;
00315         }
00316         return -1;
00317 }

Here is the call graph for this function:

Here is the caller graph for this function:

void CutModelManager::RefreshActor ( int id )

Definition at line 221 of file CutModelManager.cxx.

References _render, checkInvariant(), CutModelData::getActor(), getCutModelData(), and CutModelData::RefreshViewBox().

Referenced by CutModelMainPanel::ShowCurrentPanel().

00221                                         {
00222         checkInvariant();
00223         CutModelData* current = getCutModelData(id);
00224         _render->RemoveActor(current->getActor());
00225         _render->AddActor(current->getActor());
00226         current->RefreshViewBox();
00227         _render->Render();
00228 }

Here is the call graph for this function:

Here is the caller graph for this function:

void CutModelManager::RemoveActor ( int id ) throw ( CutModelException)

Definition at line 177 of file CutModelManager.cxx.

References CutModelData::getActor().

Referenced by CutModelMainPanel::RemoveActor().

00177                                                                 {
00178
00179         checkInvariant();
00180
00181         CutModelData* current = getCutModelData(id);
00182         int i,j;
00183         for(i = 0; i < (int)_vectordata.size()-1;i++)
00184         {
00185                 if(_vectordata[i]->getId()==id){
00186                         for(j = i; j < (int)_vectordata.size()-1;j++){
00187                                 _vectordata[j]=_vectordata[j+1];
00188                         }
00189                         i = _vectordata.size();
00190                 }
00191         }
00192         _render->RemoveViewProp(current->getActor());
00193         //_render->RemoveViewProp(current->get
00194         delete current;
00195         _vectordata.pop_back();
00196         _render->Render();
00197
00198 }

Here is the call graph for this function:

Here is the caller graph for this function:

void CutModelManager::SaveCutModelData ( std::string filename ) throw ( CutModelException)

Definition at line 230 of file CutModelManager.cxx.

Referenced by CutModelMainPanel::SaveCutModelData().

00230                                                                                  {
00231
00232
00233         throw CutModelException("not implemented");
00234
00235
00236
00237
00238 }

Here is the caller graph for this function:

void CutModelManager::setBaseView ( wxVtkBaseView * baseView )

void CutModelManager::setImageData ( vtkImageData * img )

Definition at line 50 of file CutModelManager.cxx.

References _img, _img2, CutModelMainPanel::getInstance(), and CutModelMainPanel::GetType().

Referenced by CutModelMainPanel::setImageData().

00051 00052 00053         { 00054 00055 00056 00057 00058 00059 00060 00061 00062 00063 00064 00065         } 00066 00067         { 00068 00069 00070 00071 00072 00073 00074 00075 00076 00077 00078 00079         } 00080 }

class="fragment">00050 { int type = CutModelMainPanel::getInstance()->GetType(); if( type == 0) _img = img; if(_img2!=NULL){ _img2->Delete(); } _img2 = vtkImageData::New(); _img2->SetExtent(_img->GetExtent()); _img2->SetSpacing(_img->GetSpacing()); _img2->AllocateScalars(); _img2->DeepCopy(_img); else _img2 = img; if(_img!=NULL){ _img->Delete(); } _img = vtkImageData::New(); _img->SetExtent(_img2->GetExtent()); _img->SetSpacing(_img2->GetSpacing()); _img->AllocateScalars(); _img->DeepCopy(_img2);

Here is the call graph for this function:

Here is the caller graph for this function:

void CutModelManager::setInteractor ( vtkRenderWindowInteractor * interactor )

Definition at line 82 of file CutModelManager.cxx.

References _interactor.

Referenced by CutModelMainPanel::setInteractor().

00082                                                                         {
00083         _interactor = interactor;
00084 }

Here is the caller graph for this function:

void CutModelManager::setRenderer ( vtkRenderer * renderer )

Definition at line 86 of file CutModelManager.cxx.

References _render.

Referenced by CutModelMainPanel::setRenderer().

00086                                                       {
00087         _render = renderer;
00088 }

Here is the caller graph for this function:

void CutModelManager::ShowViewBox	(	int	id,
		bool	check
	)			throw ( CutModelException)

Definition at line 129 of file CutModelManager.cxx.

References CutModelData::ShowViewBox().

Referenced by CutModelMainPanel::ShowViewBox().

00129                                                                            {
00130         checkInvariant();
00131         CutModelData* current = getCutModelData(id);
00132         current->ShowViewBox(check);
00133 }

Here is the call graph for this function:

Here is the caller graph for this function:

int CutModelManager::Undo ( ) throw ( CutModelException)

Definition at line 269 of file CutModelManager.cxx.

References _currentaction, _img, _img2, _undoredo, CUTMODEL_CUT, CutModelData::ExecuteUnCut(), CutModelSaveBinInfo::getActionType(), CutModelSaveBinInfo::getCurrentShape(), getCutModelData(), CutModelSaveBinInfo::getId(), CutModelSaveBinInfo::getIsInside(), CutModelSaveBinInfo::getTransformFromMatrixFile(), CutModelData::setCurrentShape(), and CutModelData::setTransform().

Referenced by CutModelMainPanel::onUndo().

00269                                                          {
00270         //&& _currentaction < _undoredo.size()
00271         if(_currentaction > 0){
00272                 int tempaction = _currentaction-1;
00273                 CutModelSaveBinInfo* currentundo = _undoredo[tempaction];
00274                 CutModelData* currentmodel;
00275
00276                 if(currentundo->getActionType()==CUTMODEL_CUT){
00277                         //Undo the cut
00278                         vtkTransform* transform = currentundo->getTransformFromMatrixFile();
00279
00280                         currentmodel = getCutModelData(currentundo->getId());
00281
00282                         currentmodel->setTransform(transform, _img2);
00283
00284                         currentmodel->setCurrentShape(currentundo->getCurrentShape());
00285
00286                         currentmodel->ExecuteUnCut(currentundo->getIsInside(), _img, _img2);
00287
00288                 }
00289                 //Every thing ok
00290                 _currentaction--;
00291                 return 0;
00292         }
00293         return -1;
00294 }

Here is the call graph for this function:

Here is the caller graph for this function:

void CutModelManager::updateActorDirection ( int id ) throw ( CutModelException)

Definition at line 163 of file CutModelManager.cxx.

References CutModelData::udapteActorDirection().

Referenced by CutModelMainPanel::updateActorDirection().

00163                                                                          {
00164         checkInvariant();
00165         CutModelData* current = getCutModelData(id);
00166         current->udapteActorDirection();
00167
00168 }

Here is the call graph for this function:

Here is the caller graph for this function:

void CutModelManager::UpdatePolygon ( bool mode )

Printing Points

Definition at line 329 of file CutModelManager.cxx.

References _interactor, _polygonCutter, _render, actor, actor3D, contour, contourDirection, contourPoints, cutterstyle, vtkInteractorStyleCutter::Finished(), interactorstyle, loop, mapper, vtkInteractorStyleCutter::New(), sample, and vtkInteractorStyleCutter::VisibilityOff().

Referenced by CutModelMainPanel::onCheckChanged().

00330 {
00331         if(mode)
00332         {
00333                 cutterstyle->Delete();
00334                 cutterstyle = vtkInteractorStyleCutter::New();
00335
00336                 cutterstyle->SetInteractor ( _interactor );
00337                 _interactor ->SetInteractorStyle( cutterstyle );
00338         }
00339         else
00340         {
00341                 cutterstyle->VisibilityOff();
00342
00343                 loop = vtkImplicitSelectionLoop::New();
00344                 mapper = vtkPolyDataMapper::New();
00345                 if(cutterstyle->Finished())
00346                 {
00347                         if(actor3D != NULL)
00348                         {
00349                                 _render->RemoveActor(actor3D);
00350                         }
00351
00352                         loop->SetLoop( cutterstyle->GetLoopPoints() );
00353                         loop->SetNormal( cutterstyle->GetDirection());
00354
00355
00357                         int numPoints = cutterstyle->GetLoopPoints()->GetNumberOfPoints();
00358                         contourDirection = cutterstyle->GetDirection();
00359
00360                         contourPoints = cutterstyle->GetLoopPoints();
00361
00362                         _polygonCutter = new CutModelPolygon();
00363
00364                         cout<<"RaC Printing points......"<<endl;
00365                         for(int t=0;t<numPoints;t++)
00366                         {
00367                                 double point[3];
00368                                 cutterstyle->GetLoopPoints()->GetPoint(t,point);
00369                                 cout<<"Initial Point:"<<t<<" XX:"<<point[0]<<" YY:"<<point[1]<<" ZZ:"<<point[2]<<endl;
00370                         }
00371                         cout<<endl;
00372
00373                         sample = vtkSampleFunction::New();
00374
00375                         sample->SetImplicitFunction(loop);
00376                         sample->CappingOn();
00377
00378                         contour = vtkContourFilter::New();
00379                         contour->SetInput((vtkDataObject *)sample->GetOutput());
00380                         contour->SetValue(0,1);
00381
00382                         actor = contour->GetOutput();
00383
00384                         actor3D = vtkActor::New();
00385                         mapper->SetInput(actor);
00386                         mapper->SetScalarModeToUseCellData();
00387                         actor3D->SetMapper( mapper);
00388                         _render->AddActor(actor3D);
00389                 }
00390
00391                 interactorstyle->SetInteractor (  _interactor );
00392                 _interactor->SetInteractorStyle( interactorstyle );
00393         }
00394
00395         _interactor->Render();
00396         _render->ResetCameraClippingRange();
00397 }

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

int CutModelManager::_currentaction [private]

Definition at line 113 of file CutModelManager.h.

Referenced by CutModelManager(), Redo(), and Undo().

vtkImageData* CutModelManager::_img [private]

Definition at line 117 of file CutModelManager.h.

Referenced by checkInvariant(), CutModelManager(), getImageRange(), setImageData(), Undo(), and ~CutModelManager().

vtkImageData* CutModelManager::_img2 [private]

Definition at line 118 of file CutModelManager.h.

Referenced by checkInvariant(), CutModelManager(), ExecuteCutPolygon(), getImageData(), GetResultImage(), Redo(), setImageData(), Undo(), and ~CutModelManager().

vtkRenderWindowInteractor* CutModelManager::_interactor [private]

Definition at line 120 of file CutModelManager.h.

Referenced by checkInvariant(), CutModelManager(), InitializePolygonInteractorStyle(), setInteractor(), UpdatePolygon(), and ~CutModelManager().

std::string CutModelManager::_path [private]

Definition at line 116 of file CutModelManager.h.

Referenced by CutModelManager(), and ~CutModelManager().

CutModelPolygon* CutModelManager::_polygonCutter [private]

Definition at line 126 of file CutModelManager.h.

Referenced by ExecuteCutPolygon(), and UpdatePolygon().

vtkRenderer* CutModelManager::_render [private]

Definition at line 119 of file CutModelManager.h.

Referenced by checkInvariant(), CutModelManager(), ParallelProjectionOff(), ParallelProjectionOn(), RefreshActor(), setRenderer(), UpdatePolygon(), and ~CutModelManager().

std::vector<CutModelSaveBinInfo*> CutModelManager::_undoredo [private]

Definition at line 123 of file CutModelManager.h.

Referenced by Redo(), and Undo().

std::vector<CutModelData*> CutModelManager::_vectordata [private]

Definition at line 122 of file CutModelManager.h.

Referenced by ~CutModelManager().

vtkPolyData* CutModelManager::actor [private]

Definition at line 133 of file CutModelManager.h.

Referenced by UpdatePolygon().

vtkActor* CutModelManager::actor3D [private]

Definition at line 134 of file CutModelManager.h.

Referenced by UpdatePolygon().

vtkContourFilter* CutModelManager::contour [private]

Definition at line 131 of file CutModelManager.h.

Referenced by UpdatePolygon().

double* CutModelManager::contourDirection [private]

Definition at line 128 of file CutModelManager.h.

Referenced by ExecuteCutPolygon(), and UpdatePolygon().

vtkPoints* CutModelManager::contourPoints [private]

Definition at line 127 of file CutModelManager.h.

Referenced by ExecuteCutPolygon(), and UpdatePolygon().

vtkInteractorStyleCutter* CutModelManager::cutterstyle [private]

Definition at line 130 of file CutModelManager.h.

Referenced by InitializePolygonInteractorStyle(), and UpdatePolygon().

vtkInteractorStyleTrackballCamera* CutModelManager::interactorstyle [private]

Definition at line 129 of file CutModelManager.h.

Referenced by InitializePolygonInteractorStyle(), and UpdatePolygon().

vtkImplicitSelectionLoop* CutModelManager::loop [private]

Definition at line 135 of file CutModelManager.h.

Referenced by UpdatePolygon().

vtkPolyDataMapper* CutModelManager::mapper [private]

Definition at line 136 of file CutModelManager.h.

Referenced by UpdatePolygon().

vtkSampleFunction* CutModelManager::sample [private]

Definition at line 132 of file CutModelManager.h.

Referenced by UpdatePolygon().

The documentation for this class was generated from the following files:

/home/davila/Creatis/All2/creatools_source/creaMaracasVisu/lib/maracasVisuLib/src/CutModule/kernel/CutModelManager.h
/home/davila/Creatis/All2/creatools_source/creaMaracasVisu/lib/maracasVisuLib/src/CutModule/kernel/CutModelManager.cxx

CutModelManager Class Reference

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
