wxVtk2DBaseView Class Reference

#include <wxVtk2DBaseView.h>

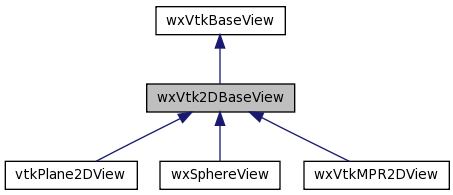

Inheritance diagram for wxVtk2DBaseView:
Inheritance graph
[legend]

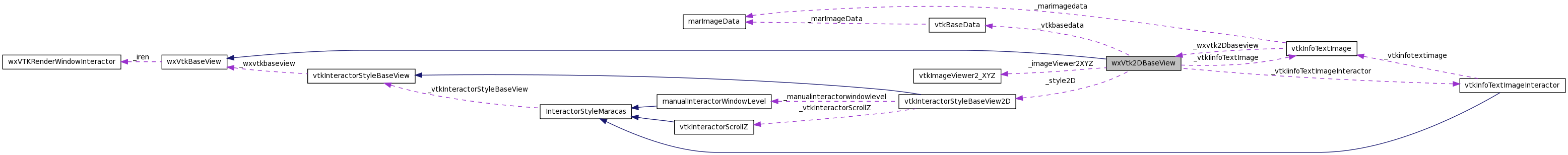

Collaboration diagram for wxVtk2DBaseView:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 wxVtk2DBaseView (wxWindow *parent)
virtual ~wxVtk2DBaseView ()
virtual void Configure (bool okimage=true)
vtkBaseData * GetVtkBaseData ()
void SetVtkBaseData (vtkBaseData *vtkbasedata)
virtual void Refresh ()
virtual void ResetView ()
virtual int GetActualSlice ()
virtual void SetActualSlice (int slice)
void SetInteractorStyleImage (vtkInteractorStyleBaseView *interactorstylebaseview)
virtual vtkRenderer * GetRenderer ()
virtual vtkRenderWindow * GetRenWin ()
virtual void TransformCoordinate_spacing_ViewToModel (double &X, double &Y, double &Z)
virtual void TransformCoordinate_spacing_ModelToView (double &X, double &Y, double &Z)
virtual void GetSpacing (double spc[3])
void setColorTransferFunction (vtkColorTransferFunction *colortable)
void setWindowLevel (double level)
void setColorLevel (double level)
wxVTKRenderWindowInteractor * GetWxVTKRenderWindowInteractor () throw (char*)
virtual void Configure ()
virtual void RefreshView ()
virtual void TransFromCoordScreenToWorld (double &X, double &Y, double &Z, bool keepNormalDirection=false, int type=2)
void TransCoordScreenToWorld (double &X, double &Y, double &Z, int type=2)
void SetInteractorStyleBaseView (vtkInteractorStyleImage *interactorStyle)
vtkInteractorStyleImage * GetInteractorStyleBaseView ()

Public Attributes

vtkImageViewer2_XYZ * _imageViewer2XYZ

Private Attributes

vtkBaseData * _vtkbasedata
vtkInfoTextImage * _vtkIinfoTextImage
vtkInfoTextImageInteractor * _vtkIinfoTextImageInteractor
vtkInteractorStyleBaseView2D * _style2D

Detailed Description

Definition at line 18 of file wxVtk2DBaseView.h.

Constructor & Destructor Documentation

wxVtk2DBaseView::wxVtk2DBaseView ( wxWindow *  parent  )

Definition at line 8 of file wxVtk2DBaseView.cxx.

References _imageViewer2XYZ, and _vtkIinfoTextImage.

00009 :wxVtkBaseView(parent)
00010 {
00011    _imageViewer2XYZ   = NULL;
00012    _vtkIinfoTextImage = NULL;
00013 }

wxVtk2DBaseView::~wxVtk2DBaseView (  )  [virtual]

Definition at line 17 of file wxVtk2DBaseView.cxx.

References _imageViewer2XYZ, and _vtkIinfoTextImage.

00018 {
00019         if (_vtkIinfoTextImage!=NULL)
00020         {
00021            delete _vtkIinfoTextImage;
00022         }
00023
00024         if (_imageViewer2XYZ!=NULL)
00025         {
00026            delete _imageViewer2XYZ;
00027         }
00028 }

Member Function Documentation

void wxVtkBaseView::Configure (  )  [virtual, inherited]

Reimplemented in wxVtk2DView_TMP, vtkPlane2DView, wxSphereView, wxVtk3DBaseView, and wxVtkMPR2DView.

Definition at line 45 of file wxVtkBaseView.cxx.

Referenced by Configure(), wxPanelCuttingImageData::CreatePlotHistogrammeInterface(), and ResetView().

00046 {
00047 }

Here is the caller graph for this function:

void wxVtk2DBaseView::Configure ( bool  okimage = true  )  [virtual]

Definition at line 123 of file wxVtk2DBaseView.cxx.

References _imageViewer2XYZ, _vtkIinfoTextImage, _vtkIinfoTextImageInteractor, vtkInfoTextImage::Configure(), wxVtkBaseView::Configure(), marImageData::GetImageData(), wxVtkBaseView::GetInteractorStyleBaseView(), vtkBaseData::GetMarImageData(), GetVtkBaseData(), vtkImageViewer2_XYZ::GetVtkImageViewer2(), wxVtkBaseView::GetWxVTKRenderWindowInteractor(), vtkInteractorStyleBaseView2D::New(), vtkImageViewer2_XYZ::SetExtentDimension(), vtkInteractorStyleBaseView2D::SetInteractorScrollZ(), SetInteractorStyleImage(), vtkInteractorStyleBaseView2D::SetInteractorWindowLevel(), vtkInfoTextImage::SetMarImageData(), vtkInfoTextImageInteractor::SetModelVtkInfoTextImage(), and vtkInfoTextImage::SetWxVtk2DBaseView().

Referenced by wxMaracas_ViewerWidget::ConfigureVTK(), wxQuantificationWidgetCT::ConfigureVTK(), wxProcessingCTWidget::ConfigureVTK(), wxEmptyPanel_3_Widget::ConfigureVTK(), and wxMaracasImageBrowser02::LoadData().

00124 {
00125         double spx,spy,spz;
00126         int x1,x2,y1,y2,z1,z2;
00127         wxVtkBaseView::Configure();
00128
00129 // EED 17 Oct 2007
00130         if (_imageViewer2XYZ==NULL)
00131         {
00132                 _imageViewer2XYZ = new vtkImageViewer2_XYZ();
00133                 wxVTKRenderWindowInteractor *iren = GetWxVTKRenderWindowInteractor();
00134                 _imageViewer2XYZ -> GetVtkImageViewer2()->SetupInteractor ( iren );
00135
00137                 //RaC 04-2010 Look for the description of new changes in vtkInteractorStyleBaseView2D constructor.
00138                 //
00139                 // Previous version
00140                 // SetInteractorStyleImage( vtkInteractorStyleBaseView2D::New() );
00141                 //
00142                 // Actual version
00143                 vtkInteractorStyleBaseView2D *style2D = vtkInteractorStyleBaseView2D::New();
00144
00145                 manualInteractorWindowLevel *_manualinteractorwindowlevel= new manualInteractorWindowLevel();
00146                 style2D->SetInteractorWindowLevel( _manualinteractorwindowlevel );
00147
00148                 vtkInteractorScrollZ *_vtkInteractorScrollZ = new vtkInteractorScrollZ();
00149                 style2D->SetInteractorScrollZ(_vtkInteractorScrollZ);
00150
00151                 SetInteractorStyleImage( style2D );
00152
00153                 // RaC
00155         }
00156
00157
00158         vtkImageData *imageData = GetVtkBaseData()->GetMarImageData()->GetImageData();
00159         if (imageData!=NULL){
00160
00161                 imageData->UpdateInformation();
00162                 imageData->SetUpdateExtent( imageData->GetWholeExtent());
00163                 imageData->Update();
00164                 if (okimage==true){
00165                         imageData->GetSpacing (spx,spy,spz);
00166                         imageData->GetExtent (x1,x2,y1,y2,z1,z2);
00167                         _imageViewer2XYZ->GetVtkImageViewer2()->SetInput(imageData );
00168                         _imageViewer2XYZ->SetExtentDimension(x1,x2,y1,y2,z1,z2);
00169                         double range[2];
00170                         imageData->GetScalarRange(range);
00171                         if (range[1]<20000){
00172                                  _imageViewer2XYZ->GetVtkImageViewer2()->SetColorWindow( (range[1]-range[0])/2 );
00173                                  _imageViewer2XYZ->GetVtkImageViewer2()->SetColorLevel( (range[1]+range[0])/4 );
00174                         } else {
00175                                  _imageViewer2XYZ->GetVtkImageViewer2()->SetColorWindow( 1000 );
00176                                  _imageViewer2XYZ->GetVtkImageViewer2()->SetColorLevel( 500 );
00177                         }
00178 // EED 31 Janvier 2007
00179 //vtkImageActor *vtkimageactor = _imageViewer2XYZ->GetVtkImageViewer2()->GetImageActor ();
00180 //vtkimageactor->InterpolateOff ();
00181 //vtkLookupTable * _collookup = vtkLookupTable::New( );
00182 //_collookup->SetNumberOfColors( 256 );
00183 //_collookup->SetTableRange( 0 , 255 );
00184 //_collookup->Build( );
00185 //_collookup->SetTableValue( 0  , 1 , 0 , 0 , 1 );
00186 //_collookup->SetTableValue(128 , 0 , 0 , 1 , 1 );
00187 //_collookup->SetTableValue(255 , 0 , 1 , 0 , 1 );
00188 //_imageViewer2XYZ->GetVtkImageViewer2()->GetWindowLevel ()->SetLookupTable(_collookup );
00189
00190
00191 // EED 17 Oct 2007
00192 //                      SetInteractorStyleImage( vtkInteractorStyleBaseView2D::New() );
00193
00194
00195                         vtkImageViewer2 *IV2=_imageViewer2XYZ->GetVtkImageViewer2();
00196                         vtkCamera *camera = IV2->GetRenderer()->GetActiveCamera();
00197
00198 //EED 17Avril2009
00199 /*
00200                         camera->SetViewUp               ( spx*0                 , -spy*1                        , spz*0         );
00201                         camera->SetPosition             ( spx*(x1+x2)/2 , spy*(y1+y2)/2 , -spz*10000    );
00202                         camera->SetFocalPoint   ( spx*(x1+x2)/2 , spy*(y1+y2)/2 , spz*0         );
00203 */
00204                         camera->SetViewUp               ( spx*0                 , spy*1                 , spz*0         );
00205                         camera->SetPosition             ( spx*(x1+x2)/2 , spy*(y1+y2)/2 , spz*10000     );
00206                         camera->SetFocalPoint   ( spx*(x1+x2)/2 , spy*(y1+y2)/2 , spz*0         );
00207
00208
00209                         camera->SetClippingRange( 0.01                  , 1000000 );
00210                         camera->ComputeViewPlaneNormal();
00211                         camera->SetParallelScale( spx*(x2-x1)/3.0 );
00212
00213                         // text information over the graphic window
00214                         if(_vtkIinfoTextImage == NULL){
00215                                 _vtkIinfoTextImage              = new vtkInfoTextImage();
00216                                 _vtkIinfoTextImageInteractor    = new vtkInfoTextImageInteractor();
00217                                 ((vtkInteractorStyleBaseView*)this->GetInteractorStyleBaseView())->AddInteractorStyleMaracas(_vtkIinfoTextImageInteractor);
00218                         }
00219                         _vtkIinfoTextImage->SetWxVtk2DBaseView(this);
00220                         _vtkIinfoTextImage->SetMarImageData( GetVtkBaseData()->GetMarImageData() );
00221                         _vtkIinfoTextImageInteractor->SetModelVtkInfoTextImage(_vtkIinfoTextImage);
00222                         _vtkIinfoTextImage->Configure();
00223
00224                 } // okimage
00225         } // imageData
00226 }

Here is the call graph for this function:

Here is the caller graph for this function:

int wxVtk2DBaseView::GetActualSlice (  )  [virtual]

Reimplemented in vtkPlane2DView, and wxVtkMPR2DView.

Definition at line 230 of file wxVtk2DBaseView.cxx.

References _vtkbasedata, and vtkBaseData::GetZ().

Referenced by vtkInteractorManualPaint::OnMouseMove().

00231 {
00232    return (int)(_vtkbasedata->GetZ());
00233 }

Here is the call graph for this function:

Here is the caller graph for this function:

vtkInteractorStyleImage * wxVtkBaseView::GetInteractorStyleBaseView (  )  [inherited]

Definition at line 166 of file wxVtkBaseView.cxx.

References wxVtkBaseView::_interactorStyle.

Referenced by wxWidgetMesure2D::ActiveMessureTool(), wxQuantificationWidgetCT::addManualContours(), wxMaracasRenderTabbedPanel::addMPROptions(), ManualPaintControler::Config(), wxVtkMPR2DView::Configure(), Configure(), wxSphereView::Configure(), vtkPlane2DView::Configure(), wxWidgetMesure2D::ConfigureA(), wxManualTree_MPRWidget::ConfigureContour(), wxMPRWidget::ConfigureVTK(), wxManualTree_MPRWidget::ConfigureVTK(), wxSegmentationFM3DWidget::ConfigureVTK(), wxManualSegmentation_MPRWidget::ConfigureVTK(), wxManualRegistration3D::ConfigureVTK(), wxEmptyPanel_3_Widget::ConfigureVTK(), ContourVOIWidget::ConfigureVTK(), wxMaracasCoutourTool::ConfigureVTK(), wxManualRegistration3D::ConfigureVTK_B(), wxImageViewerWidget::ConstructVTK(), vtkmyPWCallback_3DPointWidget::Execute(), wxMaracasImageBrowser02::LoadData(), wxQuantificationWidgetCT::OnContourLumen(), wxQuantificationWidgetCT::OnContourWall(), wxVTKRenderWindowInteractorPlus::OnLeftDClick(), wxVTKRenderWindowInteractorPlus::OnMiddleDClick(), wxVTKRenderWindowInteractorPlus::OnMouseWheel(), wxVTKRenderWindowInteractorPlus::OnRightDClick(), manualContourContainer::refreshCalc(), manualContourContainer::refreshHypo(), manualContourContainer::refreshLumen(), manualContourContainer::refreshWall(), and wxVtkBaseView::TransFromCoordScreenToWorld().

00167 {
00168         return _interactorStyle;
00169 }

Here is the caller graph for this function:

vtkRenderer * wxVtk2DBaseView::GetRenderer (  )  [virtual]

Reimplemented from wxVtkBaseView.

Definition at line 285 of file wxVtk2DBaseView.cxx.

References _imageViewer2XYZ, and vtkImageViewer2_XYZ::GetVtkImageViewer2().

Referenced by vtkInfoTextImage::Create_Text_Label().

00286 {
00287    return _imageViewer2XYZ->GetVtkImageViewer2()->GetRenderer();
00288 }

Here is the call graph for this function:

Here is the caller graph for this function:

vtkRenderWindow * wxVtk2DBaseView::GetRenWin (  )  [virtual]

Reimplemented from wxVtkBaseView.

Definition at line 290 of file wxVtk2DBaseView.cxx.

References _imageViewer2XYZ, and vtkImageViewer2_XYZ::GetVtkImageViewer2().

Referenced by wxMaracasSuperpositionPanel::Refresh().

00291 {
00292    return _imageViewer2XYZ->GetVtkImageViewer2()->GetRenderWindow();
00293 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtk2DBaseView::GetSpacing ( double  spc[3]  )  [virtual]

Reimplemented from wxVtkBaseView.

Definition at line 297 of file wxVtk2DBaseView.cxx.

References vtkBaseData::GetImageData(), and GetVtkBaseData().

00298 {
00299    vtkImageData *imageData      = GetVtkBaseData()->GetImageData();
00300    if(imageData){
00301         imageData->GetSpacing(spc);
00302    }else{
00303          spc[0] = 0;
00304          spc[1] = 0;
00305          spc[2] = 0;
00306    }
00307 }

Here is the call graph for this function:

vtkBaseData * wxVtk2DBaseView::GetVtkBaseData (  )

Definition at line 243 of file wxVtk2DBaseView.cxx.

References _vtkbasedata.

Referenced by Configure(), wxSphereView::DefineImageSphere(), wxMaracasCoutourTool::GetDataValue(), GetSpacing(), ContourVOIWidget::GetVOI(), wxVtkMPR2DView::GetVtkmprbasedata(), vtkPlane2DView::GetVtkmprbasedata(), wxWidgetSliderMinMaxVOI::onActualChange_Bar(), wxWidgetSliderMinMaxVOI::onEndChange_Bar(), wxMaracasCoutourTool::OnSaveContour(), wxMaracasCoutourTool::OnSaveControlPoints(), wxWidgetSliderMinMaxVOI::onStartChange_Bar(), Refresh(), ResetView(), vtkPlane2DView::RotationDrag(), vtkPlane2DView::RotationStart(), vtkPlane2DView::SetPSource(), and wxVtkMPR2DView::TransFromCoordScreenToWorld().

00244 {
00245    return _vtkbasedata;
00246 }

Here is the caller graph for this function:

wxVTKRenderWindowInteractor * wxVtkBaseView::GetWxVTKRenderWindowInteractor (  )  throw (char*) [inherited]

Reimplemented in wxVtk2DView_TMP.

Definition at line 36 of file wxVtkBaseView.cxx.

References wxVtkBaseView::_iren.

Referenced by wxMaracasRenderTabbedPanel::addRemoveActorMPR(), wxVtkClipping3DView::Configure(), wxVtk3DBaseView::Configure(), Configure(), vtkPlane2DView::Configure(), wxWidgetMesure2D::ConfigureA(), wxManualRegistration3D::Create3DView(), wxManualTree_MPRWidget::Create3DViewContour(), wxSegmentationFM3DWidget::Create3DViewContour(), wxManualSegmentation_MPRWidget::Create3DViewContour(), wxMPRWidget::CreateMPRPanel4View(), wxPanelCuttingImageData::CreatePlotHistogrammeInterface(), wxMaracas_ManualContour_Panel::CreateSplitePanel(), wxMPRWidget::CreateView(), wxQuantificationWidgetCT::CreateView2DPanel(), wxProcessingCTWidget::CreateViewPanel(), wxEmptyPanelWidget::CreateViewPanel(), wxEmptyPanel_3_Widget::CreateViewPanel(), vtkInteractorStyleBaseView::EvaluateToRefresh(), wxMaracasImageBrowser02::LoadData(), wxVtkClipping3DViewCntrlPanel::OnBtnMeshVTKLoad(), wxVtkClipping3DViewVolCntrlPanel::OnBtnVolumeFunctions(), wxVtkClipping3DViewCntrlPanel::OnBtnVolumeFunctions(), manualContourBaseControler::OnChar(), wxVtkClipping3DViewCntrlPanel::OnColor(), wxPanelCuttingImageData::OnExtract(), wxVtkClipping3DViewCntrlPanel::OnIsoValue(), manualContourBaseControler::OnLeftButtonDown(), manualContour3DControler::OnLeftButtonDown(), vtkInteractorStyleSphere::OnLeftButtonUp(), manualContourBaseControler::OnLeftButtonUp(), vtkInteractorStyleMPRView::OnLeftDClick(), manualContourBaseControler::OnLeftDClick(), manualInteractorWindowLevel::OnMiddleButtonDown(), manualContourBaseControler::OnMiddleButtonDown(), vtkInfoTextImageInteractorPlane2D::OnMouseMove(), vtkInfoTextImageInteractor::OnMouseMove(), vtkInteractorManualPaint::OnMouseMove(), manualInteractorWindowLevel::OnMouseMove(), manualContourBaseControler::OnMouseMove(), wxVtkClipping3DViewCntrlPanel::OnOpacity(), wxVtkMPR3DViewCntrlPanel::OnPositionX(), wxVtkMPR3DViewCntrlPanel::OnPositionY(), wxVtkMPR3DViewCntrlPanel::OnPositionZ(), wxMaracasRenderTabbedPanel::OnRefreshView(), wxVtkClipping3DViewCntrlPanel::OnRepresentationSurfaceWireFrame(), manualContourBaseControler::OnRightButtonDown(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisX(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisY(), wxVtkMPR3DViewCntrlPanel::OnVisibleAxisZ(), wxVtkClipping3DViewCntrlPanel::OnVisibleSurface(), wxVtkClipping3DViewVolCntrlPanel::OnVisibleVolume(), wxVtkClipping3DViewCntrlPanel::OnVisibleVolume(), wxVtkBaseView::Refresh(), wxVtk3DBaseView::Refresh(), manualViewBaseContour::Refresh(), ResetView(), vtkInteractorStyle3DView::SelectMarchibCubePoint(), SetInteractorStyleImage(), wxVtkMPR3DViewCntrlPanel::SetVisibleX(), wxVtkMPR3DViewCntrlPanel::SetVisibleY(), wxVtkMPR3DViewCntrlPanel::SetVisibleZ(), and wxMaracas_ViewerWidget::wxMaracas_ViewerWidget().

00037 {
00038
00039         if(_iren==NULL){
00040                 throw "wxVtkBaseView::GetWxVTKRenderWindowInteractor() _iren wxVTKRenderWindowInteractorPlus =NULL";
00041         }
00042    return _iren;
00043 }

void wxVtk2DBaseView::Refresh (  )  [virtual]

Reimplemented from wxVtkBaseView.

Reimplemented in vtkPlane2DView, and wxVtkMPR2DView.

Definition at line 257 of file wxVtk2DBaseView.cxx.

References _imageViewer2XYZ, GetVtkBaseData(), vtkBaseData::GetZ(), and vtkImageViewer2_XYZ::SetZSlice().

Referenced by wxQuantificationWidgetCT::CreateManualContours(), wxWidgetMesure2D::OnActiveMessureTool(), wxWidgetSliderMinMaxVOI::onActualChange_Bar(), wxMaracasImageBrowser02::OnBtnResetRoi(), wxWidgetMesure2D::OnCloseContour(), wxWidgetSliderMinMaxVOI::onEndChange_Bar(), wxMaracasImageBrowser02::OnRefreshView2(), wxQuantificationWidgetCT::OnShowCalc(), wxQuantificationWidgetCT::OnShowHypo(), wxQuantificationWidgetCT::OnShowLumen(), wxQuantificationWidgetCT::OnShowWall(), wxWidgetSliderMinMaxVOI::onStartChange_Bar(), wxWidgetMesure2D::OnVisibleInformation(), wxWidgetMesure2D::OnVisibleMessureTool(), wxQuantificationWidgetCT::Refresh(), wxProcessingCTWidget::Refresh(), wxEmptyPanel_3_Widget::Refresh(), wxSphereView::RefreshView(), wxMaracas_ViewerWidget::RefreshView(), setColorLevel(), setColorTransferFunction(), and setWindowLevel().

00258 {
00259    int z = (int)(GetVtkBaseData()->GetZ());
00260   _imageViewer2XYZ->SetZSlice( z );
00261
00262    wxVtkBaseView::Refresh();
00263 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtkBaseView::RefreshView (  )  [virtual, inherited]

Reimplemented in wxSphereView.

Definition at line 68 of file wxVtkBaseView.cxx.

References wxVtkBaseView::GetRenWin().

Referenced by wxQuantificationWidgetCT::CreateManualContours(), wxWidgetMesure2D_Plane::OnActiveCirlcle(), wxWidgetMesure2D_Plane::OnActiveLine(), wxWidgetMesure2D_Plane_in_MPR::OnActiveLink(), wxWidgetMesure2D::OnActiveMessureTool(), wxWidgetMesure2D::OnCloseContour(), wxMaracas_ManualContour_Panel::OnRefreshView(), wxQuantificationWidgetCT::OnShowCalc(), wxQuantificationWidgetCT::OnShowHypo(), wxQuantificationWidgetCT::OnShowLumen(), wxQuantificationWidgetCT::OnShowWall(), wxWidgetMesure2D::OnVisibleInformation(), wxWidgetMesure2D::OnVisibleMessureTool(), and wxProcessingCTWidget::Refresh().

00069 {
00070 // EED 10 Oct 2007
00071
00072         #if defined(WIN32)
00073                 GetRenWin()->Render();
00074         #else
00075                 //GetRenWin()->Render();
00076         #endif
00077
00078 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtk2DBaseView::ResetView (  )  [virtual]

Definition at line 76 of file wxVtk2DBaseView.cxx.

References _imageViewer2XYZ, wxVtkBaseView::Configure(), vtkBaseData::GetImageData(), GetVtkBaseData(), vtkImageViewer2_XYZ::GetVtkImageViewer2(), wxVtkBaseView::GetWxVTKRenderWindowInteractor(), vtkInteractorStyleBaseView2D::New(), vtkInteractorStyleBaseView2D::SetInteractorScrollZ(), SetInteractorStyleImage(), and vtkInteractorStyleBaseView2D::SetInteractorWindowLevel().

Referenced by wxQuantificationWidgetCT::RefreshView().

00077 {
00078         double spx = 0,spy = 0,spz = 0;
00079         int x1 = 1,x2 = 1,y1 = 1,y2 = 1,z1 = 1,z2 = 1;
00080         wxVtkBaseView::Configure();
00081
00082         wxVTKRenderWindowInteractor *iren = GetWxVTKRenderWindowInteractor();
00083         vtkImageData *imageData = GetVtkBaseData()->GetImageData();
00084         if(imageData){
00085                 imageData->UpdateInformation();
00086                 imageData->SetUpdateExtent( imageData->GetWholeExtent());
00087                 imageData->Update();
00088                 _imageViewer2XYZ->GetVtkImageViewer2()->SetInput(imageData );
00089                 imageData->GetSpacing (spx,spy,spz);
00090                 imageData->GetExtent (x1,x2,y1,y2,z1,z2);
00091         }
00092
00093
00094         _imageViewer2XYZ -> SetExtentDimension(x1,x2,y1,y2,z1,z2);
00095         _imageViewer2XYZ -> GetVtkImageViewer2()->SetupInteractor ( iren );
00096
00097         _imageViewer2XYZ->GetVtkImageViewer2()->Render();
00098
00100         //RaC 04-2010 Look for the description of new changes in vtkInteractorStyleBaseView2D constructor.
00101         //
00102         // Previous version
00103         // SetInteractorStyleImage( vtkInteractorStyleBaseView2D::New() );
00104         //
00105         // Actual version
00106         vtkInteractorStyleBaseView2D *style2D = vtkInteractorStyleBaseView2D::New();
00107
00108         manualInteractorWindowLevel *_manualinteractorwindowlevel= new manualInteractorWindowLevel();
00109         style2D->SetInteractorWindowLevel( _manualinteractorwindowlevel );
00110
00111         vtkInteractorScrollZ *_vtkInteractorScrollZ = new vtkInteractorScrollZ();
00112         style2D->SetInteractorScrollZ(_vtkInteractorScrollZ);
00113
00114         SetInteractorStyleImage( style2D );
00115
00116         // RaC
00118
00119 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtk2DBaseView::SetActualSlice ( int  slice  )  [virtual]

Reimplemented in vtkPlane2DView, and wxVtkMPR2DView.

Definition at line 236 of file wxVtk2DBaseView.cxx.

References _vtkbasedata, and vtkBaseData::SetZ().

Referenced by wxQuantificationWidgetCT::RefreshView().

00237 {
00238    _vtkbasedata->SetZ(slice);
00239 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtk2DBaseView::setColorLevel ( double  level  )

Definition at line 324 of file wxVtk2DBaseView.cxx.

References _imageViewer2XYZ, vtkImageViewer2_XYZ::GetVtkImageViewer2(), and Refresh().

Referenced by wxMaracas_ViewerWidget::setColorLevel().

00324                                                {
00325 //      _imageViewer2XYZ->GetVtkImageViewer2()->SetColorLevel(level);
00326         vtkImageMapToWindowLevelColors* imagemaptowindowlevel = _imageViewer2XYZ->GetVtkImageViewer2()->GetWindowLevel();
00327         imagemaptowindowlevel->SetLevel(level);
00328         this->Refresh();
00329 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtk2DBaseView::setColorTransferFunction ( vtkColorTransferFunction *  colortable  )

Definition at line 309 of file wxVtk2DBaseView.cxx.

References _imageViewer2XYZ, Refresh(), and vtkImageViewer2_XYZ::setColorTransferFunction().

Referenced by wxMaracas_ViewerWidget::setColorTransferFunction().

00309                                                                                   {
00310         if(_imageViewer2XYZ!=NULL){
00311                 _imageViewer2XYZ->setColorTransferFunction(colortable);
00312                 this->Refresh();
00313         }
00314 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtkBaseView::SetInteractorStyleBaseView ( vtkInteractorStyleImage *  interactorStyle  )  [inherited]

Definition at line 173 of file wxVtkBaseView.cxx.

References wxVtkBaseView::_interactorStyle.

Referenced by wxVtk3DBaseView::Configure(), wxVtk2DView_TMP::Configure(), and SetInteractorStyleImage().

00174 {
00175         _interactorStyle = interactorStyle;
00176 }

Here is the caller graph for this function:

void wxVtk2DBaseView::SetInteractorStyleImage ( vtkInteractorStyleBaseView *  interactorstylebaseview  )

Definition at line 267 of file wxVtk2DBaseView.cxx.

References _imageViewer2XYZ, vtkImageViewer2_XYZ::GetVtkImageViewer2(), wxVtkBaseView::GetWxVTKRenderWindowInteractor(), vtkMaracasImageViewer2Callback::IV, vtkMaracasImageViewer2Callback::New(), wxVtkBaseView::SetInteractorStyleBaseView(), and vtkInteractorStyleBaseView::SetwxVtkBaseView().

Referenced by Configure(), vtkPlane2DView::Configure(), and ResetView().

00268 {
00269         SetInteractorStyleBaseView(interactorstylebaseview);
00270
00271         wxVTKRenderWindowInteractor *iren = GetWxVTKRenderWindowInteractor();
00272         interactorstylebaseview->SetInteractor ( iren );
00273         iren->SetInteractorStyle(interactorstylebaseview);
00274         interactorstylebaseview->SetwxVtkBaseView(this);
00275
00276         vtkMaracasImageViewer2Callback * cbk = vtkMaracasImageViewer2Callback::New();
00277         cbk->IV = _imageViewer2XYZ->GetVtkImageViewer2();
00278         interactorstylebaseview->AddObserver( vtkCommand::WindowLevelEvent, cbk );
00279         interactorstylebaseview->AddObserver( vtkCommand::StartWindowLevelEvent, cbk );
00280         interactorstylebaseview->AddObserver( vtkCommand::ResetWindowLevelEvent, cbk );
00281         cbk->Delete();
00282 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtk2DBaseView::SetVtkBaseData ( vtkBaseData *  vtkbasedata  )

Definition at line 250 of file wxVtk2DBaseView.cxx.

References _vtkbasedata.

Referenced by wxQuantificationWidgetCT::ConfigureVTK(), wxProcessingCTWidget::ConfigureVTK(), wxEmptyPanel_3_Widget::ConfigureVTK(), wxMPRWidget::CreateMPRPanel4View(), wxMPRWidget::CreateView(), wxMaracasImageBrowser02::LoadData(), wxMaracas_ViewerWidget::wxMaracas_ViewerWidget(), and wxSphereView::wxSphereView().

00251 {
00252    _vtkbasedata=vtkbasedata;
00253 }

Here is the caller graph for this function:

void wxVtk2DBaseView::setWindowLevel ( double  level  )

Definition at line 316 of file wxVtk2DBaseView.cxx.

References _imageViewer2XYZ, vtkImageViewer2_XYZ::GetVtkImageViewer2(), and Refresh().

Referenced by wxMaracas_ViewerWidget::setWindowLevel().

00316                                                 {
00317 //      _imageViewer2XYZ->GetVtkImageViewer2()->SetColorWindow(level);
00318
00319         vtkImageMapToWindowLevelColors* imagemaptowindowlevel = _imageViewer2XYZ->GetVtkImageViewer2()->GetWindowLevel();
00320         imagemaptowindowlevel->SetWindow(level);
00321         this->Refresh();
00322 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtkBaseView::TransCoordScreenToWorld ( double &  X,
double &  Y,
double &  Z,
int  type = 2
) [inherited]

Definition at line 92 of file wxVtkBaseView.cxx.

References wxVtkBaseView::GetRenderer().

Referenced by wxVtkBaseView::TransFromCoordScreenToWorld().

00093 {
00094         GetRenderer()->SetDisplayPoint((int)X, (int)Y, (int)Z);
00095         GetRenderer()->DisplayToWorld();
00096         double fP[4];
00097         GetRenderer()->GetWorldPoint( fP );
00098         if ( fP[3] ){
00099                 fP[0] /= fP[3];
00100                 fP[1] /= fP[3];
00101                 fP[2] /= fP[3];
00102         }
00103
00104         if (type!=0)
00105         {
00106                 X=fP[0];
00107         }
00108         if (type!=1)
00109         {
00110                 Y=fP[1];
00111         }
00112         if (type!=2)
00113         {
00114                 Z=fP[2];
00115         }
00116 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtk2DBaseView::TransformCoordinate_spacing_ModelToView ( double &  X,
double &  Y,
double &  Z
) [virtual]

Definition at line 54 of file wxVtk2DBaseView.cxx.

References _imageViewer2XYZ, and vtkImageViewer2_XYZ::GetVtkImageViewer2().

00055 {
00056 //EEDx5
00057         double spc[3];
00058 //      GetVtkBaseData()->GetImageData()->GetSpacing(spc);
00059 //JCP 04/08/10  W/O Image this->_imageViewer2XYZ->GetVtkImageViewer2()->GetInput()->GetSpacing(spc);
00060         vtkImageData* image = this->_imageViewer2XYZ->GetVtkImageViewer2()->GetInput();
00061         if(image){
00062                 image->GetSpacing(spc);
00063         }else{
00064                 spc[0] = 1;
00065                 spc[1] = 1;
00066                 spc[2] = 1;
00067         }
00068 //
00069         X=X*spc[0];
00070         Y=Y*spc[1];
00071         Z=Z*spc[2];
00072
00073 }

Here is the call graph for this function:

void wxVtk2DBaseView::TransformCoordinate_spacing_ViewToModel ( double &  X,
double &  Y,
double &  Z
) [virtual]

Definition at line 31 of file wxVtk2DBaseView.cxx.

References _imageViewer2XYZ, and vtkImageViewer2_XYZ::GetVtkImageViewer2().

Referenced by wxVtkBaseView::TransFromCoordScreenToWorld().

00032 {
00033 //EEDx5
00034         double spc[3];
00035 //      GetVtkBaseData()->GetImageData()->GetSpacing(spc);
00036 //JCP 04/08/10  W/O Image this->_imageViewer2XYZ->GetVtkImageViewer2()->GetInput()->GetSpacing(spc);
00037         vtkImageData* image = this->_imageViewer2XYZ->GetVtkImageViewer2()->GetInput();
00038         if(image){
00039                 image->GetSpacing(spc);
00040         }else{
00041                 spc[0] = 1;
00042                 spc[1] = 1;
00043                 spc[2] = 1;
00044         }
00045
00046
00047         X = X / spc[0];
00048         Y = Y / spc[1];
00049         Z = Z / spc[2];
00050
00051 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxVtkBaseView::TransFromCoordScreenToWorld ( double &  X,
double &  Y,
double &  Z,
bool  keepNormalDirection = false,
int  type = 2
) [virtual, inherited]

Reimplemented in wxVtkMPR2DView.

Definition at line 119 of file wxVtkBaseView.cxx.

References wxVtkBaseView::GetInteractorStyleBaseView(), vtkInteractorStyleBaseView::GetWxVtk2DBaseView(), wxVtkBaseView::TransCoordScreenToWorld(), and TransformCoordinate_spacing_ViewToModel().

Referenced by manualViewPerpPlaneContour::ifTouchContour(), vtkInfoTextImageInteractor::OnMouseMove(), vtkInteractorManualPaint::OnMouseMove(), manualViewBaseContour::TransfromCoordViewWorld(), and vtkPlane2DView::TransfromCoordViewWorld2().

00120 {
00121         double xx = X;
00122         double yy = Y;
00123         double zz = Z;
00124
00125         //RaC 03-2010
00126         TransCoordScreenToWorld(xx,yy,zz,type);
00127
00128         X = xx;
00129         Y = yy;
00130         Z=zz;
00131
00132 // EEDx5
00133         //JCP 13/05/2009
00134         vtkInteractorStyleBaseView* interactorstyle = (vtkInteractorStyleBaseView*)this->GetInteractorStyleBaseView();
00135     wxVtk2DBaseView* baseview = (wxVtk2DBaseView*)interactorstyle->GetWxVtk2DBaseView();
00136
00137         double fP[3];
00138         fP[0] = X;
00139         fP[1] = Y;
00140         fP[2] = Z;
00141
00142         baseview->TransformCoordinate_spacing_ViewToModel( fP[0] , fP[1] , fP[2] );
00143         //JCP 13/05/2009
00144
00145         if (type!=0)
00146         {
00147                 X=fP[0];
00148         }
00149         if (type!=1)
00150         {
00151                 Y=fP[1];
00152         }
00153         if (type!=2)
00154         {
00155                 Z=fP[2];
00156         }
00157 }

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

vtkImageViewer2_XYZ* wxVtk2DBaseView::_imageViewer2XYZ

Definition at line 23 of file wxVtk2DBaseView.h.

Referenced by wxWidgetMesure2D_Plane::CircleLine(), wxVtkMPR2DView::Configure(), Configure(), vtkPlane2DView::Configure(), vtkPlane2DView::Extract_MIP_PlaneVTK(), vtkPlane2DView::Extract_One_PlaneVTK(), GetRenderer(), GetRenWin(), vtkPlane2DView::HorizontalLine(), wxMaracasImageBrowser02::OnBtnResetRoi(), vtkInfoTextImage::PutColorLevel(), vtkInfoTextImage::PutWindowLevel(), wxVtkMPR2DView::Refresh(), Refresh(), ResetView(), setColorLevel(), setColorTransferFunction(), SetInteractorStyleImage(), wxVtkMPR2DView::SetVisibleAxis(), setWindowLevel(), TransformCoordinate_spacing_ModelToView(), TransformCoordinate_spacing_ViewToModel(), wxVtk2DBaseView(), and ~wxVtk2DBaseView().

vtkInteractorStyleBaseView2D* wxVtk2DBaseView::_style2D [private]

Definition at line 49 of file wxVtk2DBaseView.h.

vtkBaseData* wxVtk2DBaseView::_vtkbasedata [private]

Definition at line 45 of file wxVtk2DBaseView.h.

Referenced by GetActualSlice(), GetVtkBaseData(), SetActualSlice(), and SetVtkBaseData().

vtkInfoTextImage* wxVtk2DBaseView::_vtkIinfoTextImage [private]

Definition at line 47 of file wxVtk2DBaseView.h.

Referenced by Configure(), wxVtk2DBaseView(), and ~wxVtk2DBaseView().

vtkInfoTextImageInteractor* wxVtk2DBaseView::_vtkIinfoTextImageInteractor [private]

Definition at line 48 of file wxVtk2DBaseView.h.

Referenced by Configure().

The documentation for this class was generated from the following files:
Generated on 20 Oct 2010 for creaMaracasVisu_lib by  doxygen 1.6.1
