ThresholdImageViewPanel Class Reference

#include <ThresholdImageViewPanel.h>

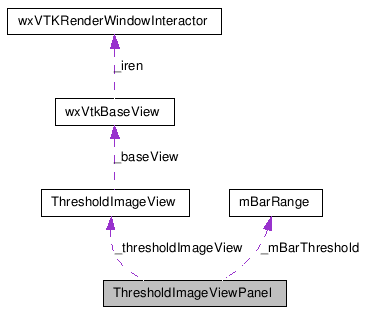

Collaboration diagram for ThresholdImageViewPanel:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 ThresholdImageViewPanel (wxWindow *parent, int min, int max, int type)
 ~ThresholdImageViewPanel ()
void onThresholdStop ()
void SetThresholdImageView (ThresholdImageView *thresholdImageView)
bool IsVisible ()

Private Member Functions

void onThresholdChange (wxCommandEvent &event)
void onThresholdShow (wxCommandEvent &event)
void onThresholdInterpolation (wxCommandEvent &event)
void onChangeOpacity (wxScrollEvent &event)

Private Attributes

bool _thresholdGo
ThresholdImageView * _thresholdImageView
mBarRange * _mBarThreshold
wxSlider * _opacity
wxCheckBox * _interpolationCheckBox
wxCheckBox * _cb_ShowHide

Detailed Description

Definition at line 22 of file ThresholdImageViewPanel.h.

Constructor & Destructor Documentation

ThresholdImageViewPanel::ThresholdImageViewPanel ( wxWindow *  parent,
int  min,
int  max,
int  type
)

Begin of the threshold panel

Definition at line 16 of file ThresholdImageViewPanel.cxx.

References _cb_ShowHide, _interpolationCheckBox, _mBarThreshold, _opacity, _thresholdGo, _thresholdImageView, onThresholdInterpolation(), onThresholdShow(), mBarRange::SetMin(), and mBarRange::SetStart().

00017 : wxPanel(parent, -1, wxDefaultPosition, wxDefaultSize, wxBORDER_SUNKEN)
00018 {
00019         _thresholdImageView = new ThresholdImageView();
00020
00021 //      wxButton *thresholdGoBtn = new wxButton(this,wxID_ANY,_T("Show/Hide Color"), wxDefaultPosition, wxSize(200,30) );
00022
00023         _thresholdGo = true;
00024         _cb_ShowHide = new wxCheckBox(this, wxID_ANY, _T("Show/Hide layer") );
00025         _cb_ShowHide->SetValue(_thresholdGo);
00026
00027         _interpolationCheckBox = new wxCheckBox(this, -1, _T("Image interpolation") );
00028         _interpolationCheckBox->SetValue(true);
00029         _opacity = new wxSlider(this, wxID_ANY, 6, 1, 10, wxDefaultPosition, wxDefaultSize, wxSL_HORIZONTAL|wxSL_LABELS, wxDefaultValidator);
00030
00031 //      double range[2];
00032 //      interfMainPanel::getInstance()->getImageRange(range);
00033
00034 //      int min = (int)floor (range[0]);
00035 //      int max = (int)ceil (range[1]);
00036
00037         if (type==0)
00038         {
00039         }
00040
00041         if (type==1)
00042         {
00043                 _mBarThreshold  =  new mBarRange(this,70,65);
00044                 _mBarThreshold->SetMin(0);
00045                 _mBarThreshold->SetStart(0);
00046                 _mBarThreshold-> SetOrientation( true );
00047                 _mBarThreshold-> setActiveStateTo(true);
00048                 _mBarThreshold-> setVisibleLabels( true );
00049                 _mBarThreshold-> setDeviceEndMargin(10);
00050                 _mBarThreshold-> setRepresentedValues( min , max );
00051                 _mBarThreshold-> setDeviceBlitStart(10,10);
00052                 _mBarThreshold-> setIfWithActualDrawed( false );
00053                 _mBarThreshold-> SetStart( min );
00054                 _mBarThreshold-> SetEnd( max );
00055         }
00056
00057
00058         Connect( _cb_ShowHide->GetId(), wxEVT_COMMAND_CHECKBOX_CLICKED , (wxObjectEventFunction) &ThresholdImageViewPanel::onThresholdShow );
00059         Connect( _interpolationCheckBox->GetId(), wxEVT_COMMAND_CHECKBOX_CLICKED, (wxObjectEventFunction) &ThresholdImageViewPanel::onThresholdInterpolation );
00060
00061         wxFlexGridSizer * sizer         = new wxFlexGridSizer(1);
00062         if (type==1)
00063         {
00064                 sizer -> Add( new wxStaticText(this,-1,_T("Image Threshold"))  , 1, wxGROW );
00065                 sizer -> Add( _mBarThreshold, 1, wxGROW );
00066                 sizer -> Add( new wxStaticText(this,-1,_T(" "))  , 1, wxGROW );
00067         }
00068         sizer -> Add( new wxStaticText(this,-1,_T("Opacity Level"))  , 1, wxGROW );
00069         sizer -> Add( _opacity, 1, wxGROW );
00070         sizer -> Add( new wxStaticText(this,-1,_T(" "))  , 1, wxGROW );
00071         sizer -> Add( _cb_ShowHide, 1, wxGROW );
00072         sizer -> Add( new wxStaticText(this,-1,_T(" "))  , 1, wxGROW );
00073         sizer -> Add( _interpolationCheckBox, 1, wxGROW );
00074
00075         this->SetSizer( sizer );
00076         this->SetAutoLayout( true );
00077         this->Layout();
00078 }

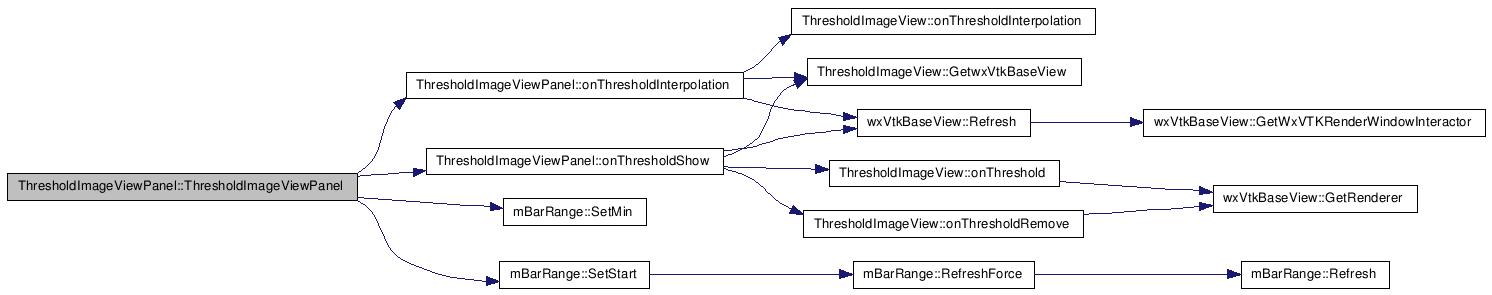

Here is the call graph for this function:

ThresholdImageViewPanel::~ThresholdImageViewPanel (  )

Definition at line 81 of file ThresholdImageViewPanel.cxx.

00082 {
00083 }

Member Function Documentation

void ThresholdImageViewPanel::onThresholdStop (  )

Definition at line 121 of file ThresholdImageViewPanel.cxx.

References _thresholdGo, _thresholdImageView, and ThresholdImageView::onThresholdRemove().

00122 {
00123         if (_thresholdGo)
00124         {
00125                 _thresholdImageView->onThresholdRemove( );
00126                 _thresholdGo=false;
00127         }
00128 }

Here is the call graph for this function:

void ThresholdImageViewPanel::SetThresholdImageView ( ThresholdImageView *  thresholdImageView  )

Definition at line 87 of file ThresholdImageViewPanel.cxx.

References _thresholdImageView.

00088 {
00089         _thresholdImageView = thresholdImageView;
00090 }

bool ThresholdImageViewPanel::IsVisible (  )

Definition at line 148 of file ThresholdImageViewPanel.cxx.

References _thresholdGo.

00149 {
00150         return _thresholdGo;
00151 }

void ThresholdImageViewPanel::onThresholdChange ( wxCommandEvent &  event  )  [private]

Definition at line 94 of file ThresholdImageViewPanel.cxx.

References _mBarThreshold, _thresholdGo, _thresholdImageView, mBarRange::GetEnd(), mBarRange::GetStart(), ThresholdImageView::GetwxVtkBaseView(), ThresholdImageView::onThresholdChange(), wxVtkBaseView::Refresh(), and ThresholdImageView::SetminMaxValue().

00095 {
00096         if (_thresholdGo)
00097         {
00098                 _thresholdImageView->SetminMaxValue( _mBarThreshold->GetStart(), _mBarThreshold->GetEnd() );
00099                 _thresholdImageView->onThresholdChange();
00100                 _thresholdImageView->GetwxVtkBaseView()->Refresh();
00101                 //std::cout<< "Valor Min: " << minVal << " & Valor Max: " << maxVal  << std::endl;
00102         }
00103 }

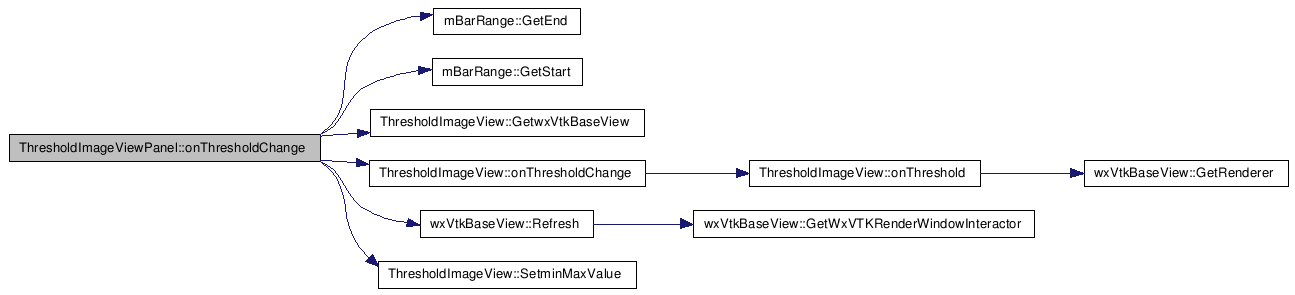

Here is the call graph for this function:

void ThresholdImageViewPanel::onThresholdShow ( wxCommandEvent &  event  )  [private]

Definition at line 106 of file ThresholdImageViewPanel.cxx.

References _cb_ShowHide, _thresholdGo, _thresholdImageView, ThresholdImageView::GetwxVtkBaseView(), ThresholdImageView::onThreshold(), ThresholdImageView::onThresholdRemove(), and wxVtkBaseView::Refresh().

Referenced by ThresholdImageViewPanel().

00107 {
00108         _thresholdGo = _cb_ShowHide->GetValue();
00109         if (_thresholdGo)
00110         {
00111                 _thresholdImageView->onThreshold();
00112         }
00113         else
00114         {
00115                 _thresholdImageView->onThresholdRemove( );
00116         }
00117         _thresholdImageView->GetwxVtkBaseView()->Refresh();
00118 }

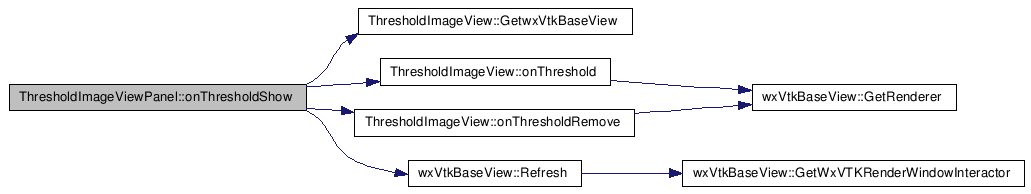

Here is the call graph for this function:

Here is the caller graph for this function:

void ThresholdImageViewPanel::onThresholdInterpolation ( wxCommandEvent &  event  )  [private]

Definition at line 131 of file ThresholdImageViewPanel.cxx.

References _interpolationCheckBox, _thresholdImageView, ThresholdImageView::GetwxVtkBaseView(), ThresholdImageView::onThresholdInterpolation(), and wxVtkBaseView::Refresh().

Referenced by ThresholdImageViewPanel().

00132 {
00133         _thresholdImageView->onThresholdInterpolation(_interpolationCheckBox->GetValue());
00134         _thresholdImageView->GetwxVtkBaseView()->Refresh();
00135
00136 }

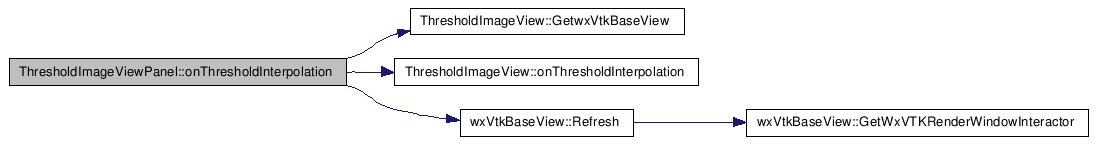

Here is the call graph for this function:

Here is the caller graph for this function:

void ThresholdImageViewPanel::onChangeOpacity ( wxScrollEvent &  event  )  [private]

Definition at line 139 of file ThresholdImageViewPanel.cxx.

References _opacity, _thresholdImageView, ThresholdImageView::GetwxVtkBaseView(), ThresholdImageView::onThresholdChangeOpacity(), and wxVtkBaseView::Refresh().

00140 {
00141         int opacity = _opacity->GetValue();
00142         _thresholdImageView->onThresholdChangeOpacity(opacity);
00143         _thresholdImageView->GetwxVtkBaseView()->Refresh();
00144 }

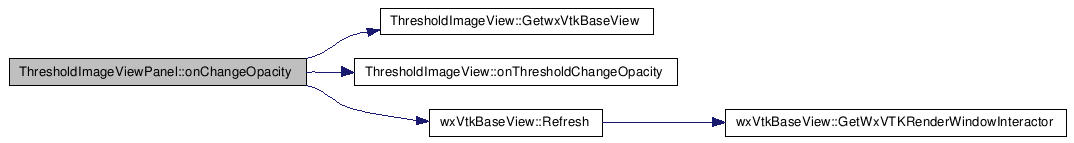

Here is the call graph for this function:

Member Data Documentation

bool ThresholdImageViewPanel::_thresholdGo [private]

Definition at line 34 of file ThresholdImageViewPanel.h.

Referenced by IsVisible(), onThresholdChange(), onThresholdShow(), onThresholdStop(), and ThresholdImageViewPanel().

ThresholdImageView* ThresholdImageViewPanel::_thresholdImageView [private]

Definition at line 35 of file ThresholdImageViewPanel.h.

Referenced by onChangeOpacity(), onThresholdChange(), onThresholdInterpolation(), onThresholdShow(), onThresholdStop(), SetThresholdImageView(), and ThresholdImageViewPanel().

mBarRange* ThresholdImageViewPanel::_mBarThreshold [private]

Definition at line 36 of file ThresholdImageViewPanel.h.

Referenced by onThresholdChange(), and ThresholdImageViewPanel().

wxSlider* ThresholdImageViewPanel::_opacity [private]

Definition at line 37 of file ThresholdImageViewPanel.h.

Referenced by onChangeOpacity(), and ThresholdImageViewPanel().

wxCheckBox* ThresholdImageViewPanel::_interpolationCheckBox [private]

Definition at line 38 of file ThresholdImageViewPanel.h.

Referenced by onThresholdInterpolation(), and ThresholdImageViewPanel().

wxCheckBox* ThresholdImageViewPanel::_cb_ShowHide [private]

Definition at line 39 of file ThresholdImageViewPanel.h.

Referenced by onThresholdShow(), and ThresholdImageViewPanel().

The documentation for this class was generated from the following files:
